Construction of Integrated Structures on Both Sides of Chandani Chowk Junction, Pune City in the State of Maharashtra, India Using UBG2250 and BT1500

  • Project Status

  • Select Country

  • Select Years

  • Reset

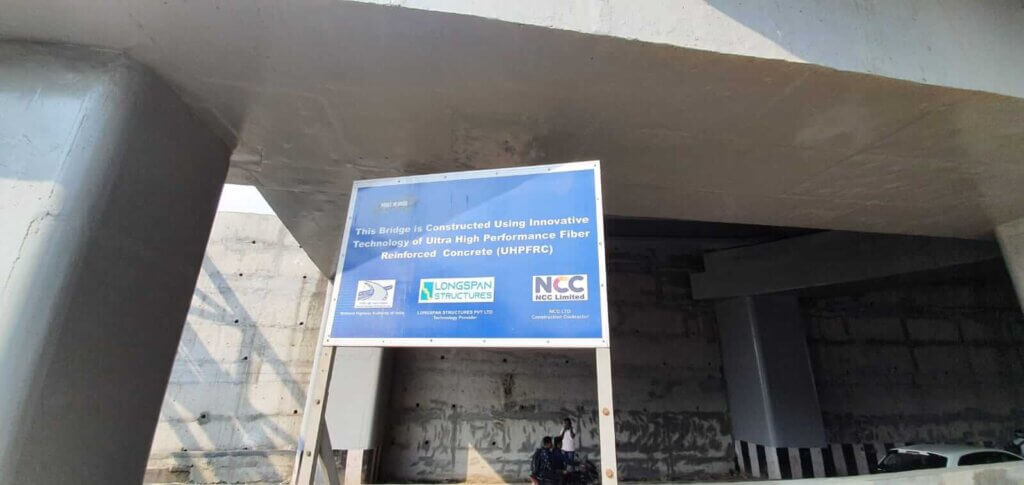

Signboard of project.
Signboard of project.
Arrangement of DURA BT segment prior to stressing.
Arrangement of DURA BT segment prior to stressing.

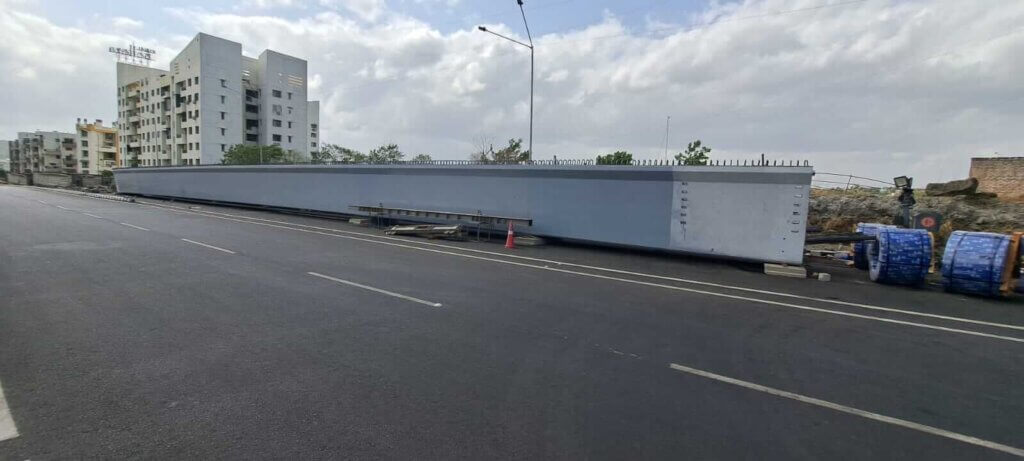

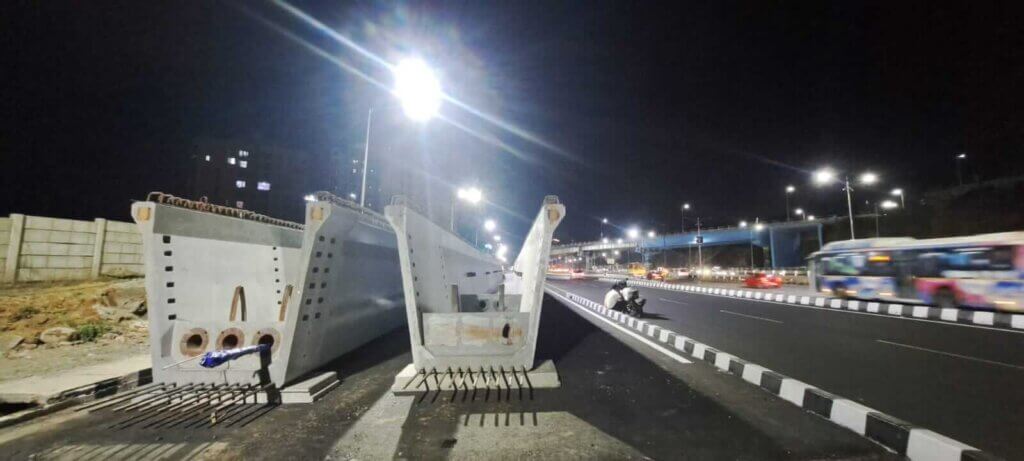

Arrangement of DURA UBG prior to stressing.
Arrangement of DURA UBG prior to stressing.
Arrangement of DURA UBG prior to stressing.
Arrangement of DURA UBG prior to stressing.

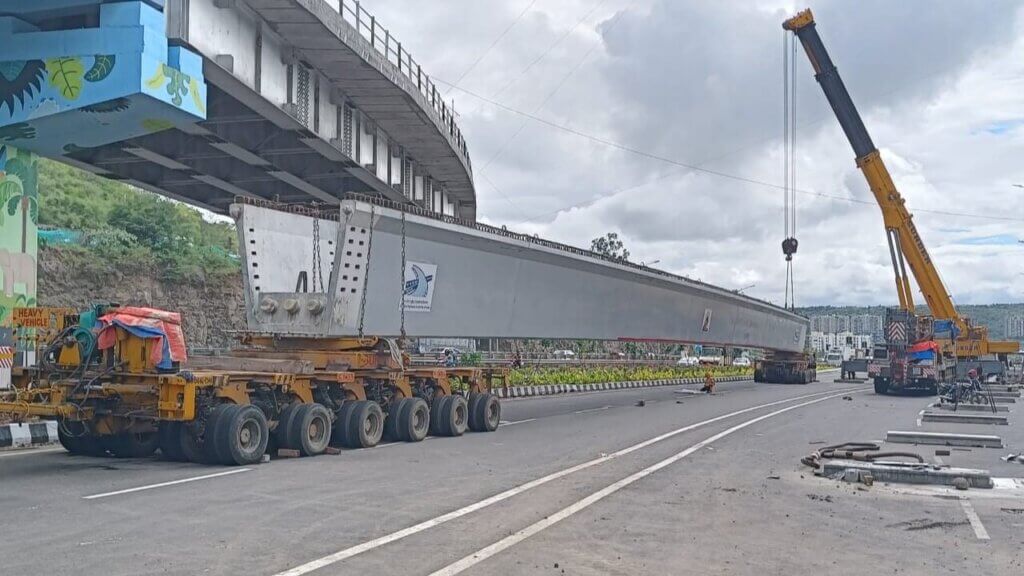

Erection of DURA UBG to launching site.
Erection of DURA UBG to launching site.

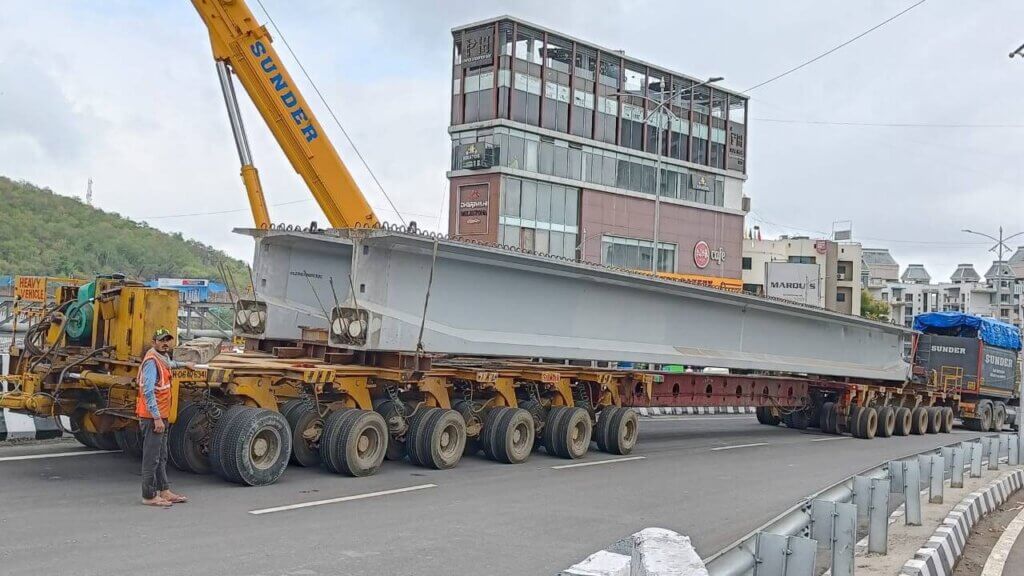

Erection of DURA BT to launching site.
Erection of DURA BT to launching site.

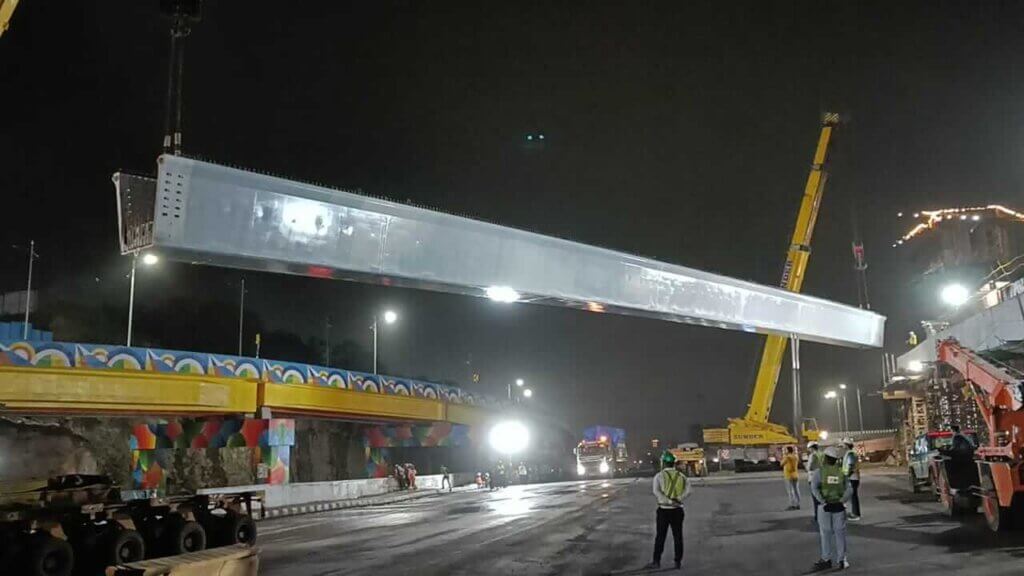

Launching of DURA UBG.
Launching of DURA UBG.

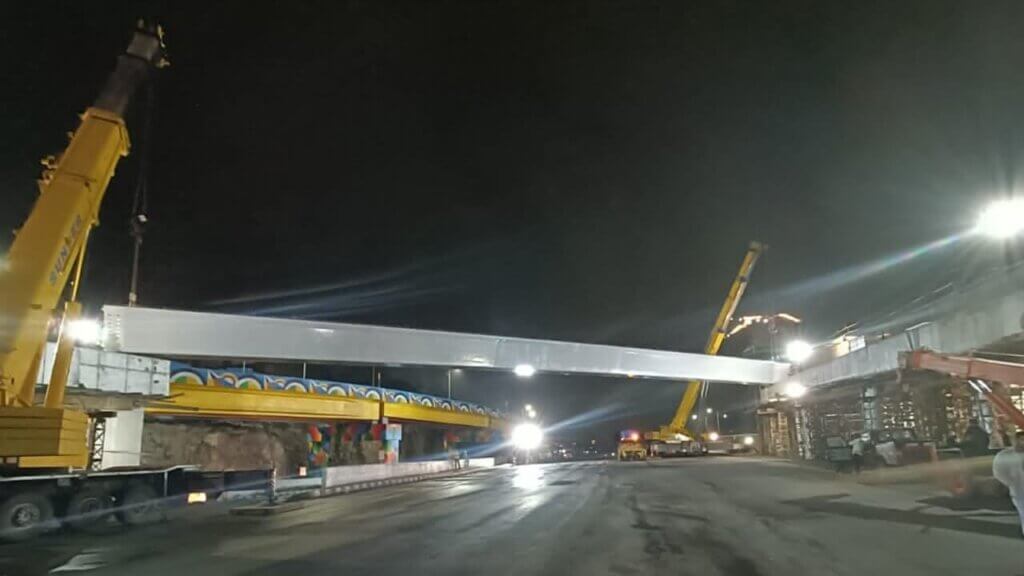

Positioning of DURA UBG.
Positioning of DURA UBG.
Launching and positiong of DURA BT.
Launching and positiong of DURA BT.
Launching of DURA BT.
Launching of DURA BT.
Completed launching of DURA BT.
Completed launching of DURA BT.

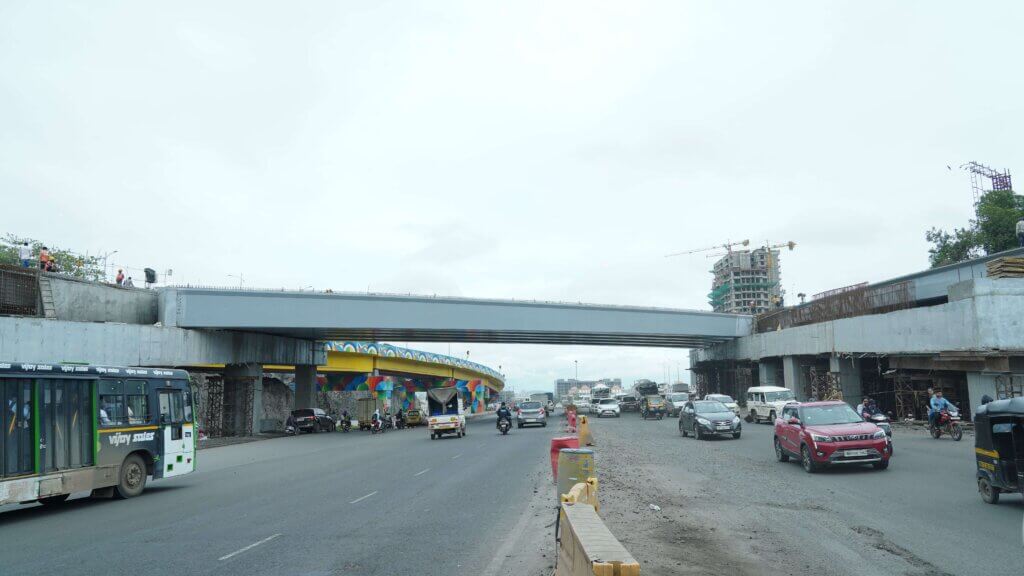

5 nos. of DURA UBG has been launched.
5 nos. of DURA UBG has been launched.

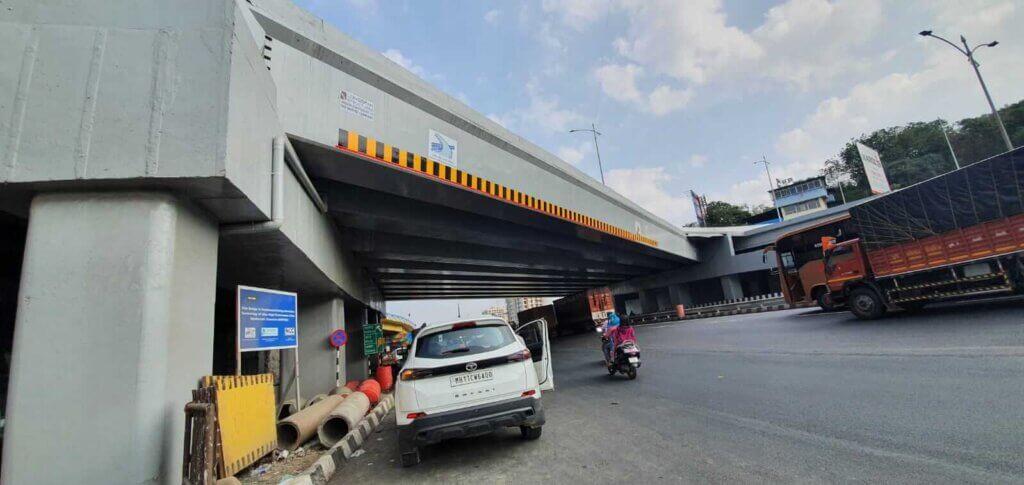

Completed launching 9 nos. of DURA UBG.
Completed launching 9 nos. of DURA UBG.
Group photo after completed launching of DURA UBG.
Group photo after completed launching of DURA UBG.
Preparing setup for deck slab.
Preparing setup for deck slab.
Casting of deckslab.
Casting of deckslab.

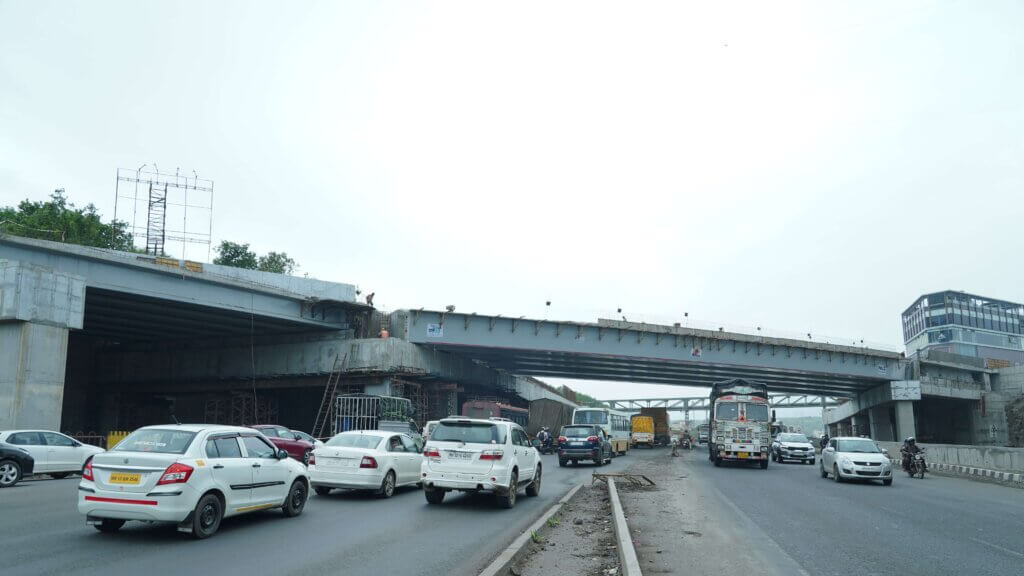

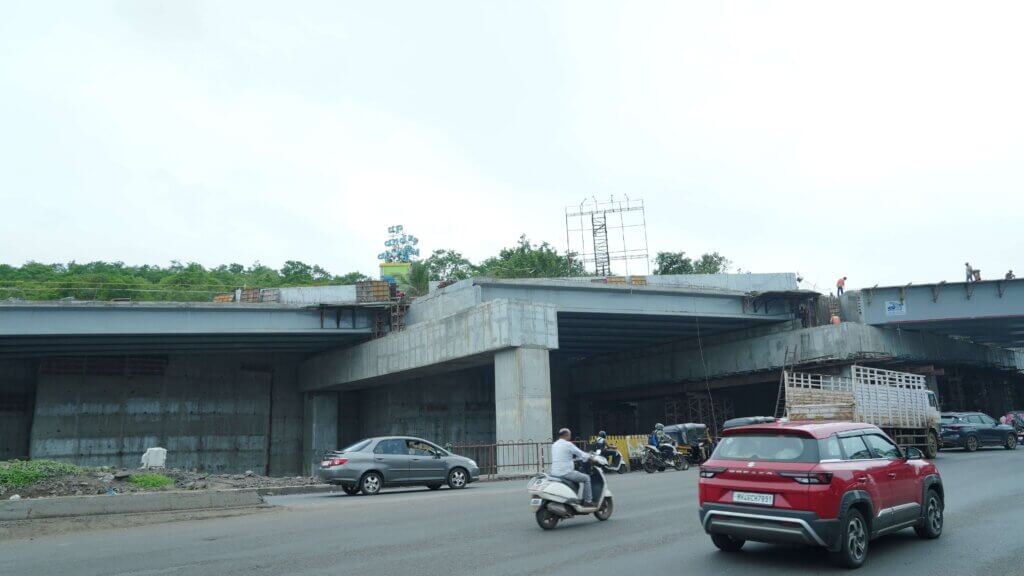

Side view of DURA UBG and DURA BT.
Side view of DURA UBG and DURA BT.
Side view of DURA UBG and DURA BT.
Side view of DURA UBG and DURA BT.

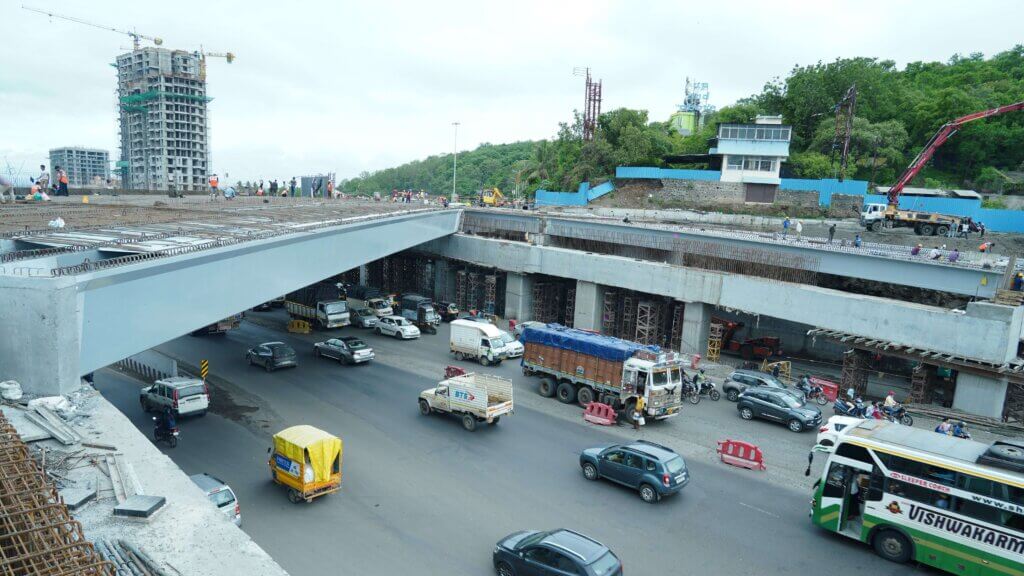

Top view of DURA UBG and DURA BT.
Top view of DURA UBG and DURA BT.

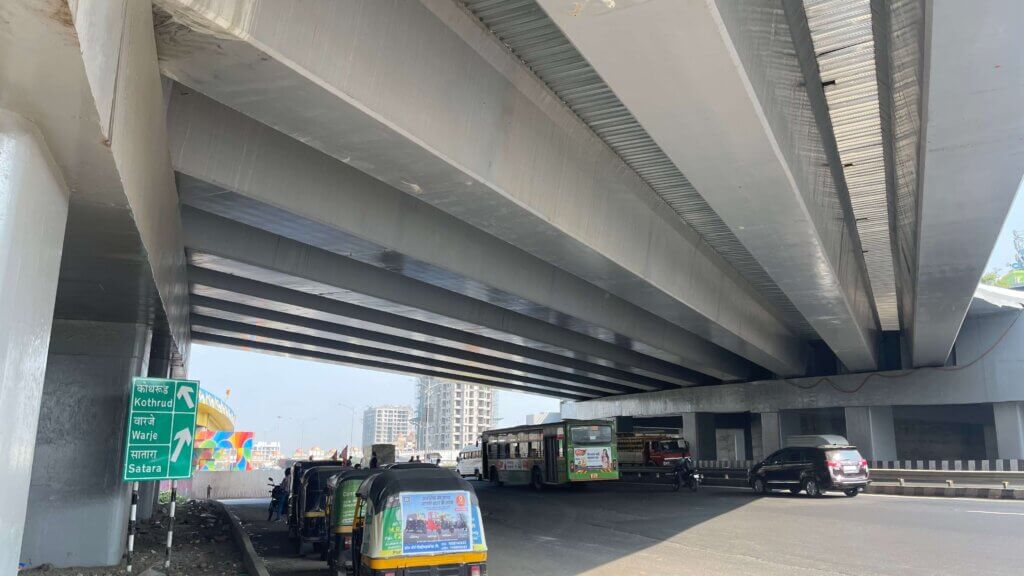

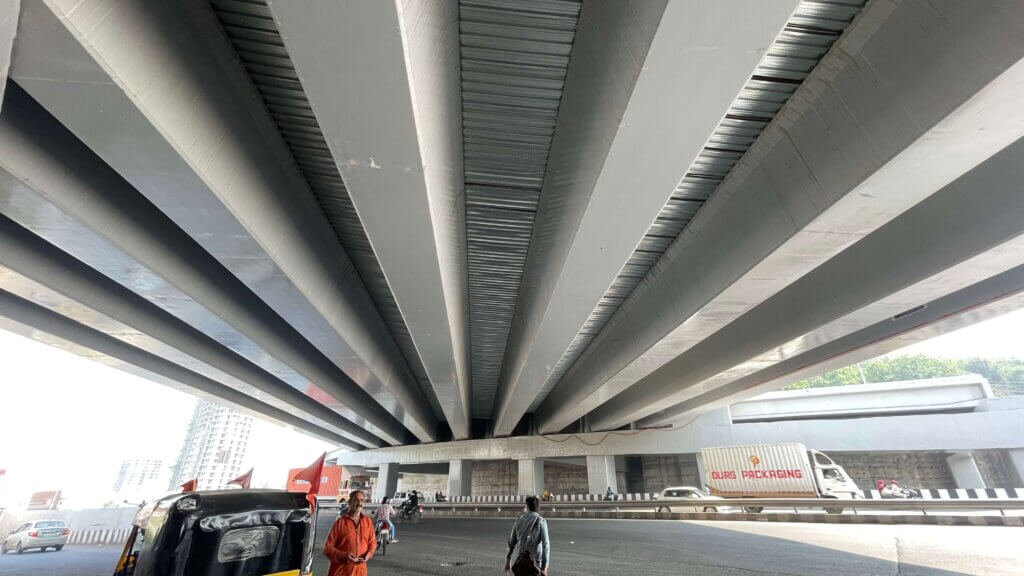

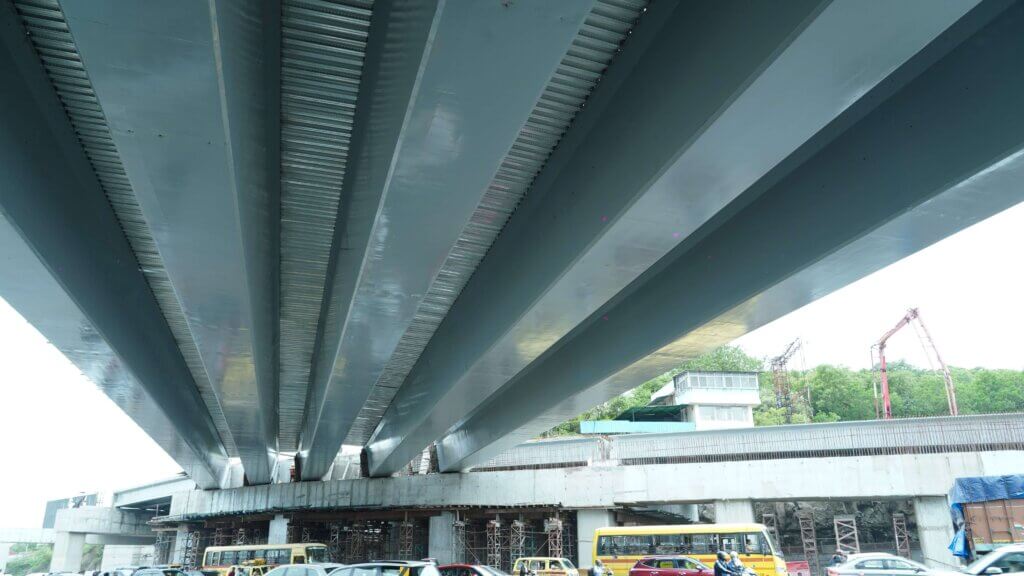

Bottom view arrangement of DURA UBG.
Bottom view arrangement of DURA UBG.
Bottom view arrangement of DURA UBG.
Bottom view arrangement of DURA UBG.
Bottom view arrangement of DURA UBG.
Bottom view arrangement of DURA UBG.

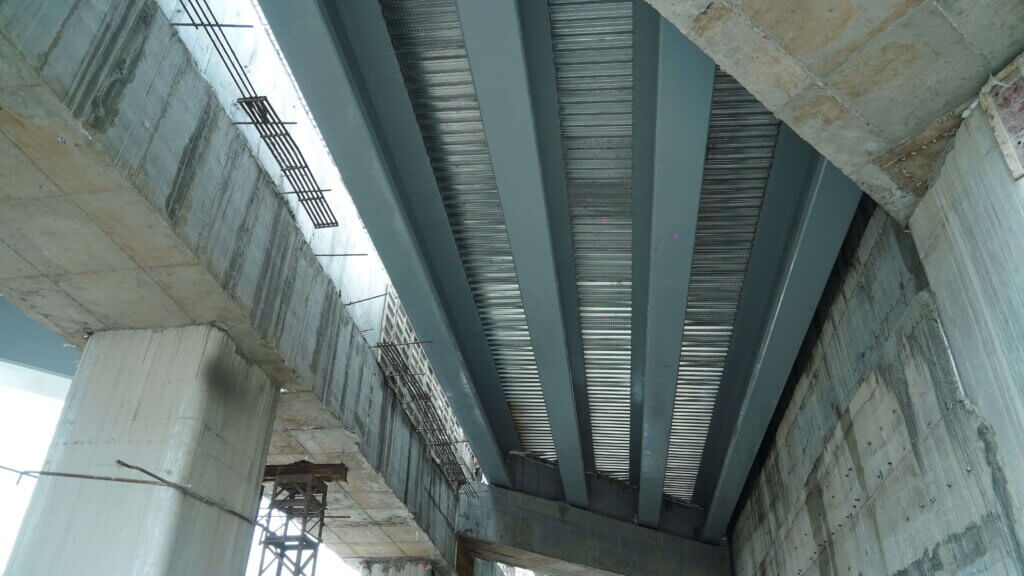

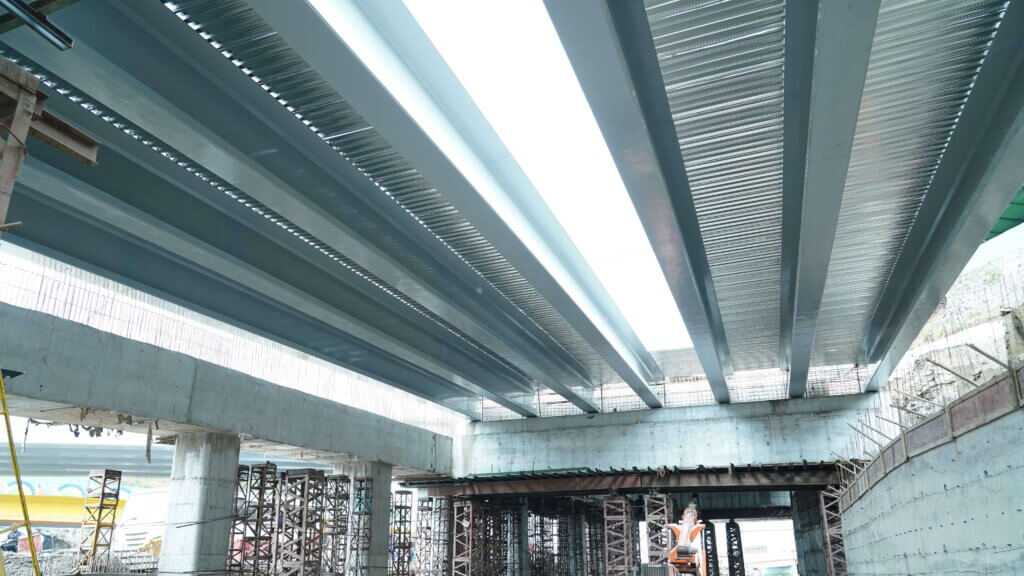

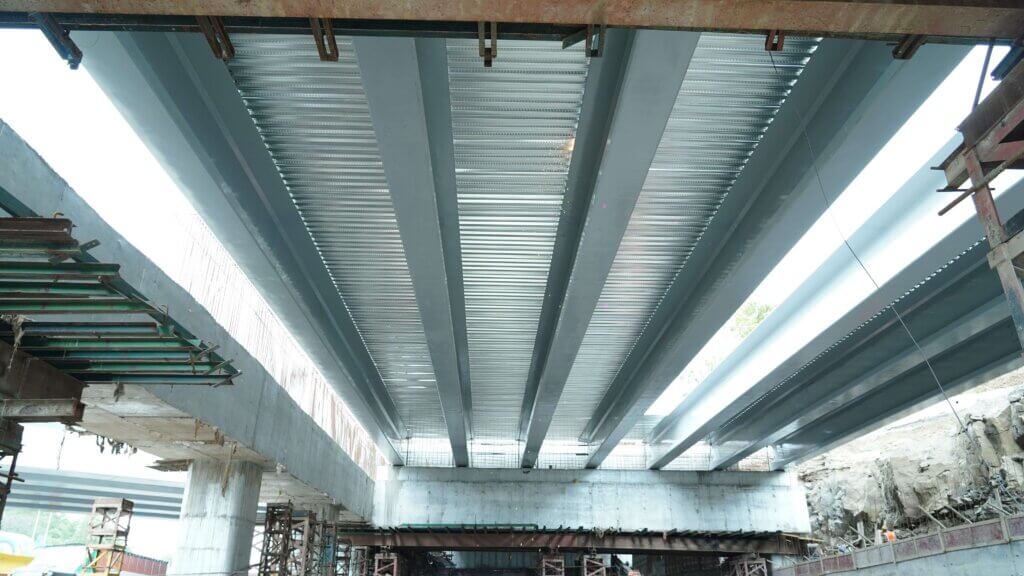

Bottom view arrangement of DURA BT.
Bottom view arrangement of DURA BT.
Bottom view arrangement of DURA BT.
Bottom view arrangement of DURA BT.
Bottom view arrangement of DURA BT.
Bottom view arrangement of DURA BT.

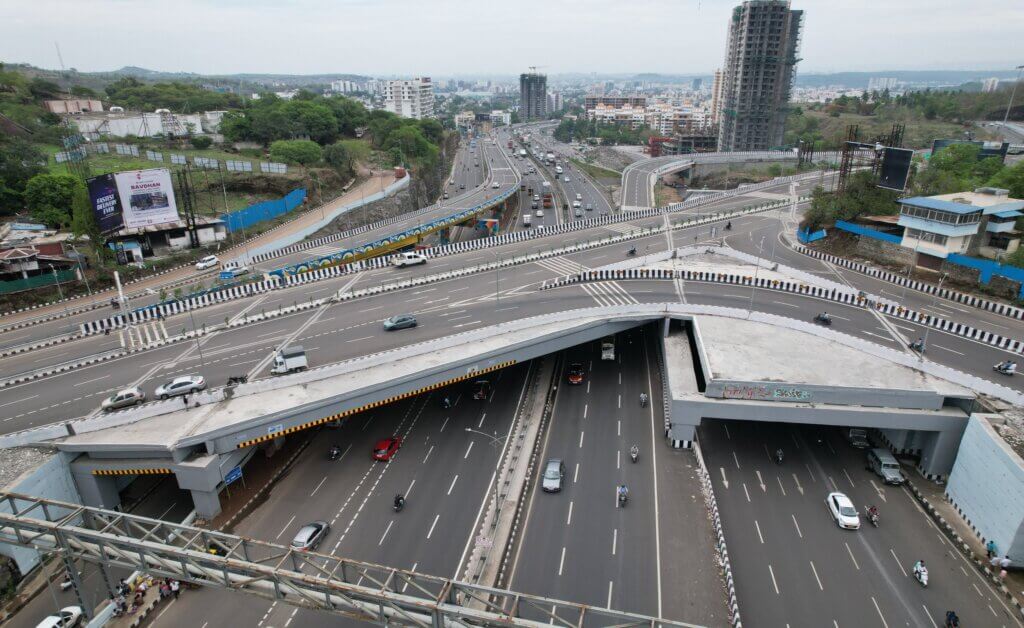

Completed bridge.
Completed bridge.
Completed bridge.
Completed bridge.
Project Title

Construction of Integrated Structures Along with Development of other Allied Structures on Both Sides of Chandani Chowk Junction (Ch.842+580) of NH-4 in Pune City in the State of Maharashtra

Project Year

2023

Status

Completed Project

Country

India

GPS Cordinates

18.507333 E, 73.783778 N

Structure Type

Vehicular Overpass with UHPFRC Beam Composite In Situ Deck Bridge System (Main span 57m, Ramp 6 spans x 23m to 35m, total length 193m)

Superstructure Feature

33 pieces of DURA® TB1500 – 23m to 35m, 33 nos and pieces of DURA® UBG2250 – 57m

Substructure Feature

RC Pile Piers

Foundation Feature

Open Foundation

Loading Type

3 Lane Loading Combinations as per IRC-6:2017 (70R + Class A)

Client

National Highways Authority of India (NHAI)

Superintendent Officer (S.O.)

CEG Limited

Contractor

NCC Ltd.

Indian Consultant

Longspan Structures Pvt. LTd.

Technology & Proof Consultant

Spectrum Techno Consultant Pvt. Ltd., Technogem
