12m Kg. Simpai, Pahang using UHPFRC Bridge

  • Project Status

  • Select Country

  • Select Years

  • Reset
Completed Bridge 2.
Completed Bridge 2.

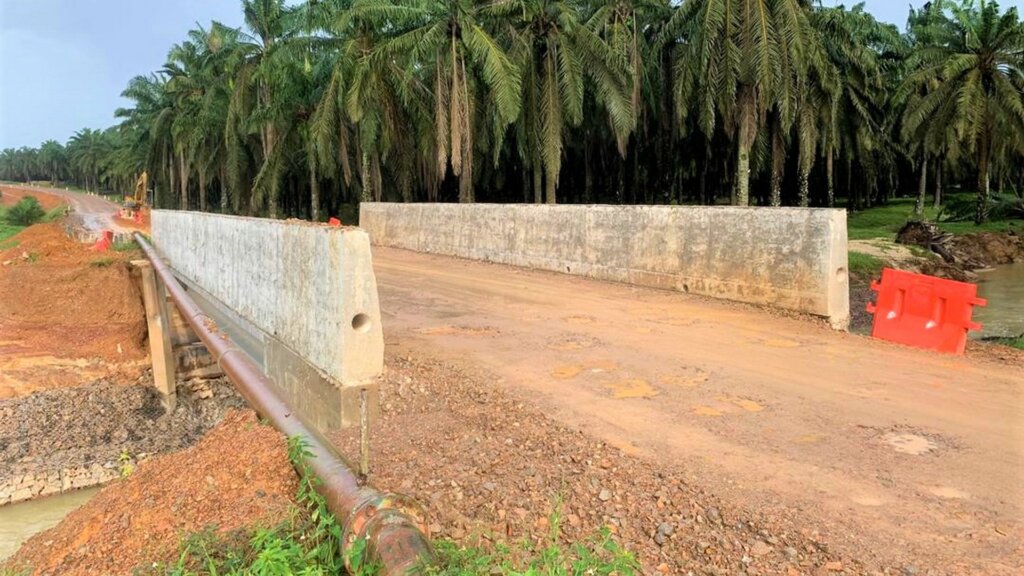

Completed Bridge 1.
Completed Bridge 1.
Four beams positioned.
Lifting of first beam for second bridge.
Completion of UHPC stitching work (280820).
Completion of UHPC stitching work (280820).

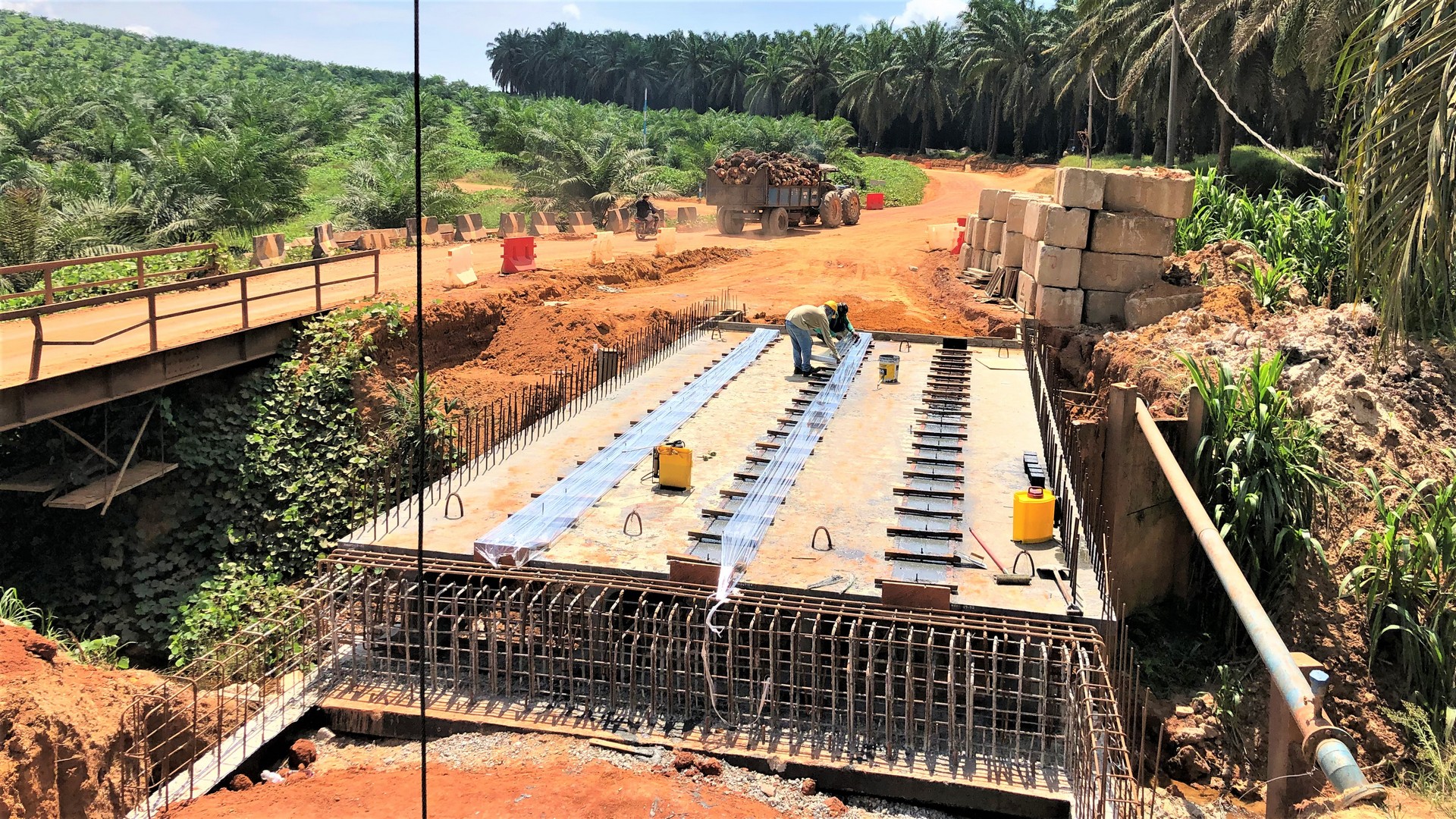

Two joints completed.
Two joints completed.

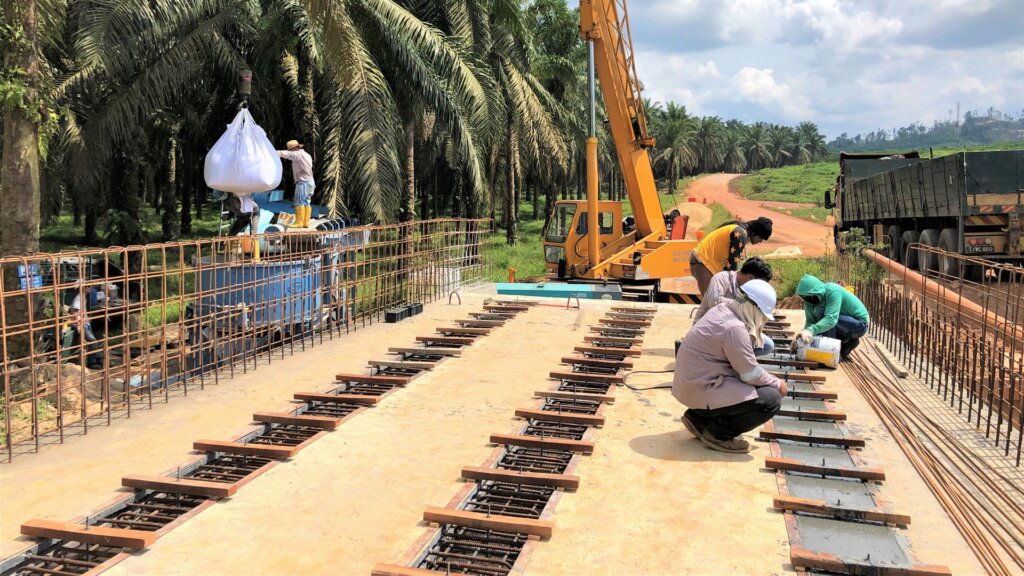

Inspecting the finishing of the UHPC stitches.
Inspecting the finishing of the UHPC stitches.
Casting of in-situ UHPC for stitching joints.
Casting of in-situ UHPC for stitching joints.

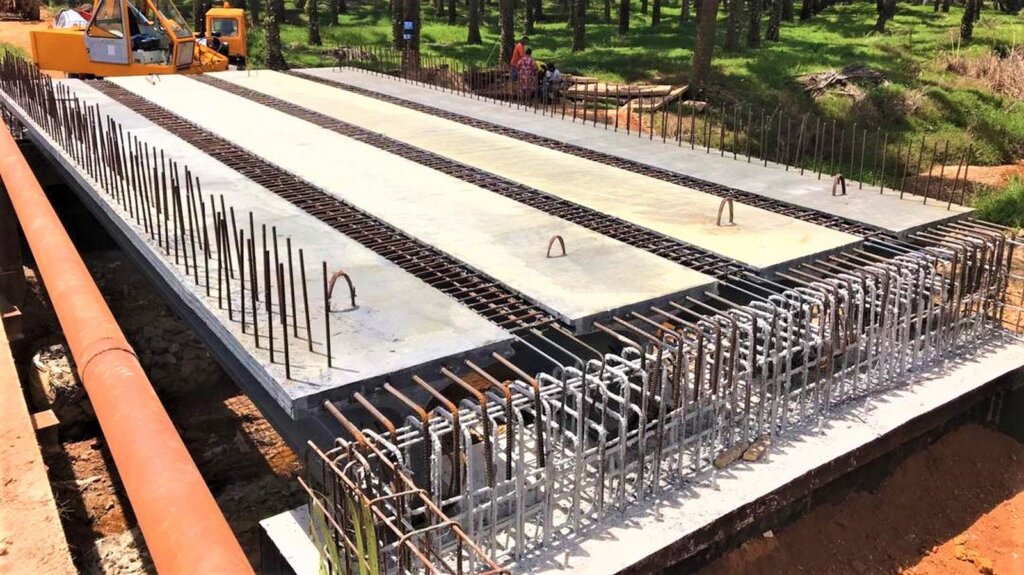

Beam positioning complete (220720).
Beam positioning complete (220720).
All beams positioned in place.
All beams positioned in place.
Lifting of TBG875 beams.
Lifting of TBG875 beams.
Lifting of the first beam.
Lifting of the first beam.
Mobile cranes used for beam launching.
Mobile cranes used for beam launching.
Abutments done (220720).
Abutments done (220720).
Project signboard and detail.
Project signboard and detail.
Project Title

To Build and Upgrade Entrance To Kg. Simpai, Pekan, Pahang Darul Makmur, (Fasa 2)(Cadangan Membina Dan Menaiktaraf Jalan Masuk Ke Kg. Simpai, Pekan, Pahang Darul Makmur, (Fasa 2) )

Project Year

2020

Status

Completed Project

Country

Malaysia

GPS Cordinates

3.217553 N; 103.145294 E (Bridge 1); 3.220677 N; 103.148496 E (Bridge 2)

Structure Type

Single Span 12m by 6m Wide UHPFRC integral beam-deck system

Superstructure Feature

4 pieces of DURA® TBG875-12m (per bridge)

Substructure Feature

Cast in-situ RC abutments

Foundation Feature

250mm dia. Spun pile (Class B)

Loading Type

HA+ 30 units HB loadings (BD37/01)

Client

JAKOA

Superintendent Officer (S.O.)

JKR Pekan, Pahang

Contractor

Goodsons Resources Sdn Bhd

Construction Status

Completed
