35m Single Span DURA Bridge in Kampung Belum Baru

  • Project Status

  • Select Country

  • Select Years

  • Reset
Project signboard.
Project signboard.

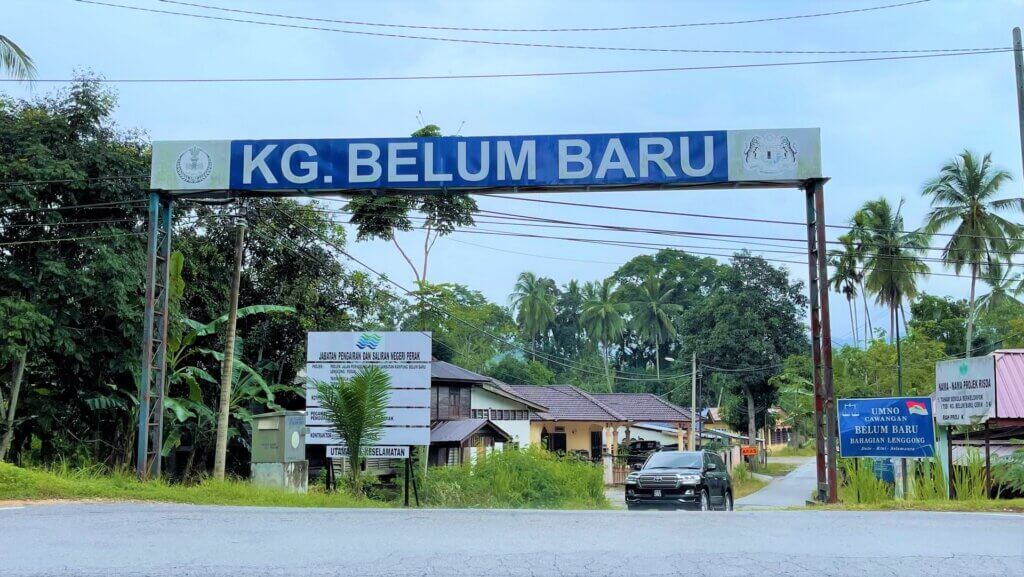

Kampung Belum Baru entrance.
Kampung Belum Baru entrance.
Proposed new bridge crossing river.
Proposed new bridge crossing river.

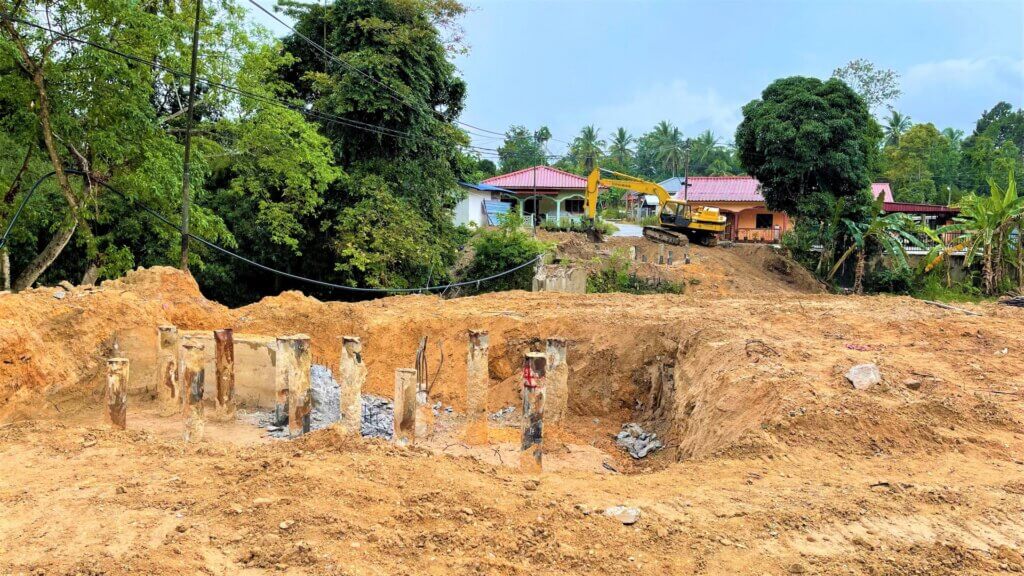

Micropile work in progress (060721).
Micropile work in progress (060721).
Concreting of abutment A.
Concreting of abutment A.
Abutment B ready for beam positioning.
Abutment B ready for beam positioning.
DURA UBG1250 end segment arrive at site.
DURA UBG1250 end segment arrive at site.
Temporary support for Dura beam segments.
Temporary support for Dura beam segments.
All segments and left in formworks arrive at site.
All segments and left in formworks arrive at site.
Lifting of UBG1250 segment to temporary using single mobile crane.
Lifting of UBG1250 segment to temporary using single mobile crane.

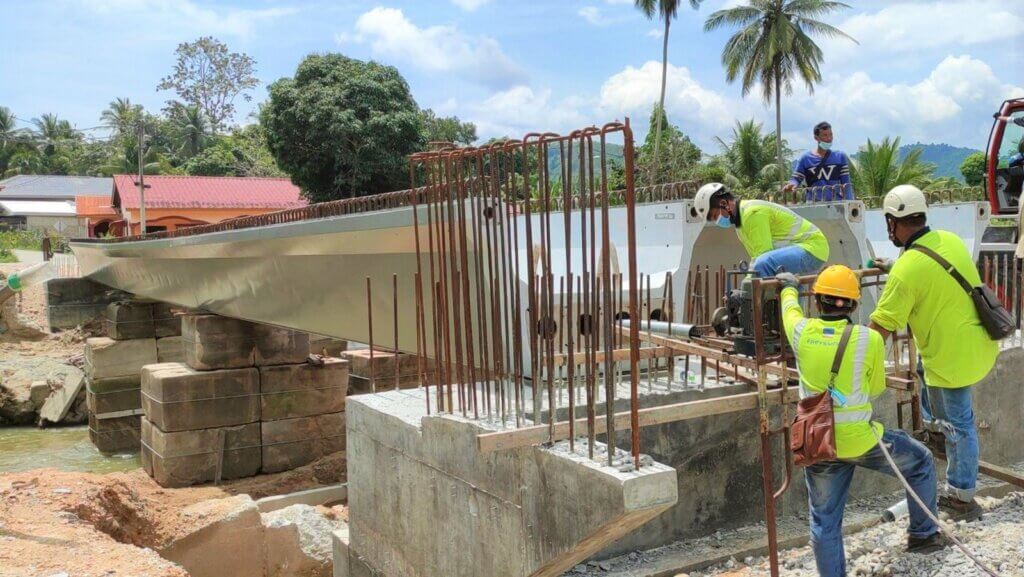

Pushing prestressed cable for first beam.
Pushing prestressed cable for first beam.

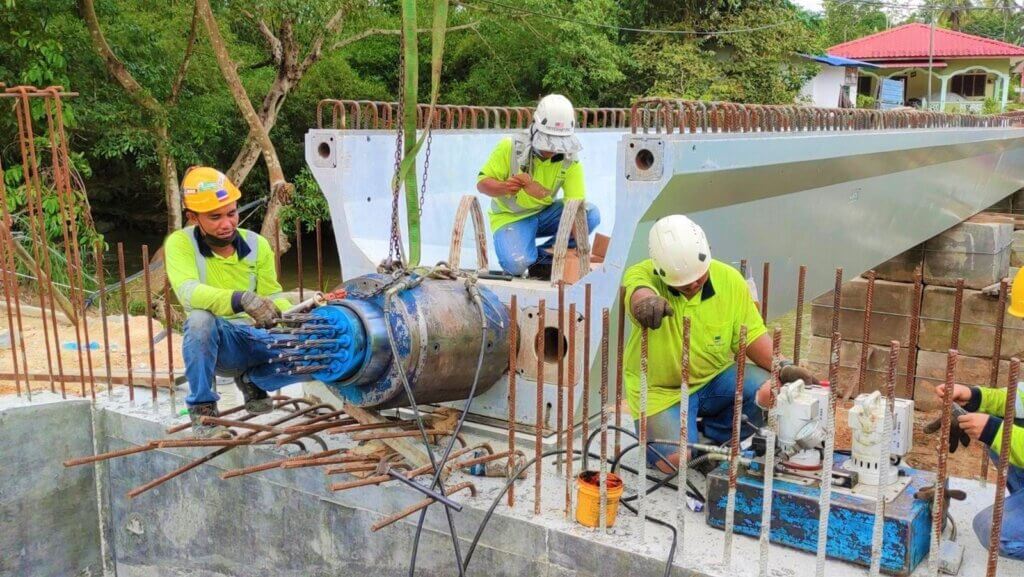

Stressing of first tendon.
Stressing of first tendon.

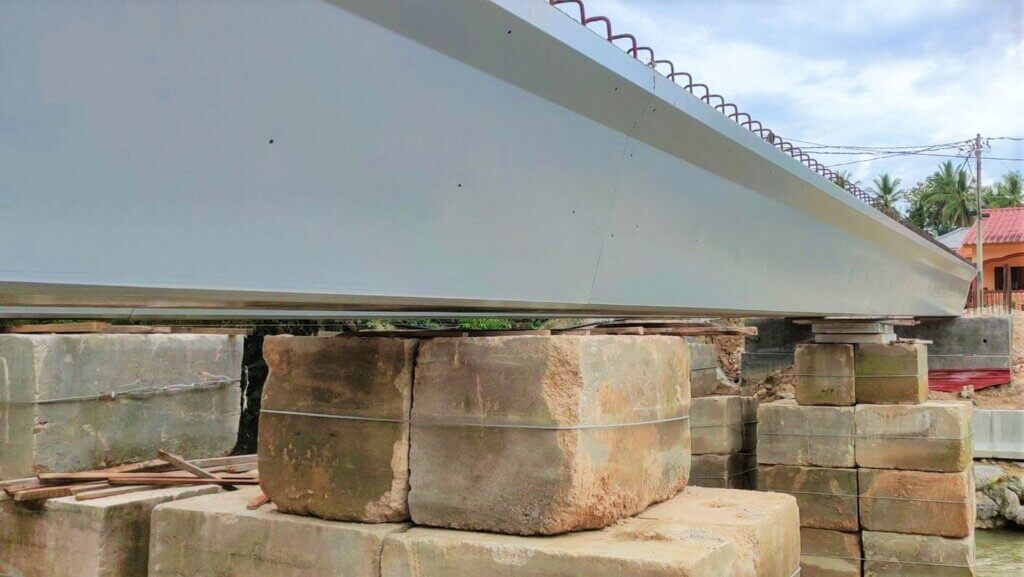

Completion of post-tension works, beams hog as expected.
Completion of post-tension works, beams hog as expected.

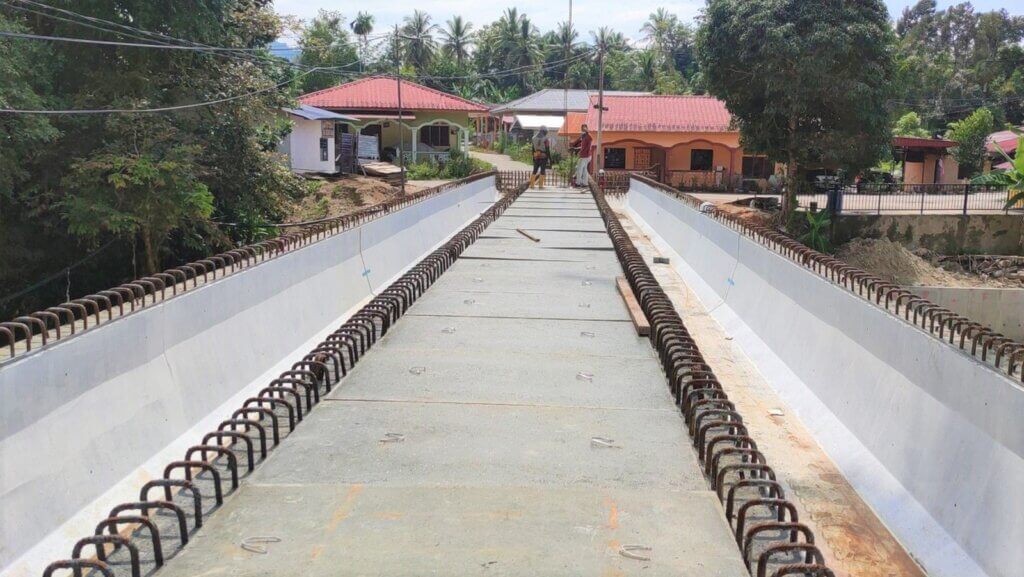

Installation of left in formwork.
Installation of left in formwork.
Completed bridge..JPG
Completed bridge.
Completed bridge..JPG
Project Title

Project Connection of Village with Kampung Belum Baru Bridge Lenggong, Perak) (Projek Jalan Perhubungan Desa – Jambatan Kampung Belum Baru Lenggong, Perak)

Project Year

2021

Status

Completed Project

Country

Malaysia

GPS Cordinates

5.269776 N, 101.063947 E

Structure Type

Single Span 35m by 7m Wide UHPFRC Composite Road Bridge System

Superstructure Feature

2 pieces of DURA® UBG1250-35m with Cast In-Situ RC Deck

Substructure Feature

RC Abutments

Foundation Feature

300mm Dia. Micro Piles

Loading Type

HA + KEL or 30 Units HB Loadings (BD37/01)

Client

JPS Perak

Superintendent Officer (S.O.)

JPS Perak

Contractor

PERNIAGAAN EMZEK

Contract Period

20 Months
