4-Laning of existing 2-laning stretch from Dharmapuri at KM 117.000 to Lonand- at km. 166.400 (Pkg-iv) on Mohol-Alandi section (design length 49.400 km) of nh-965 in the state of Maharashtra on EPC mode

  • Project Status

  • Select Country

  • Select Years

  • Reset

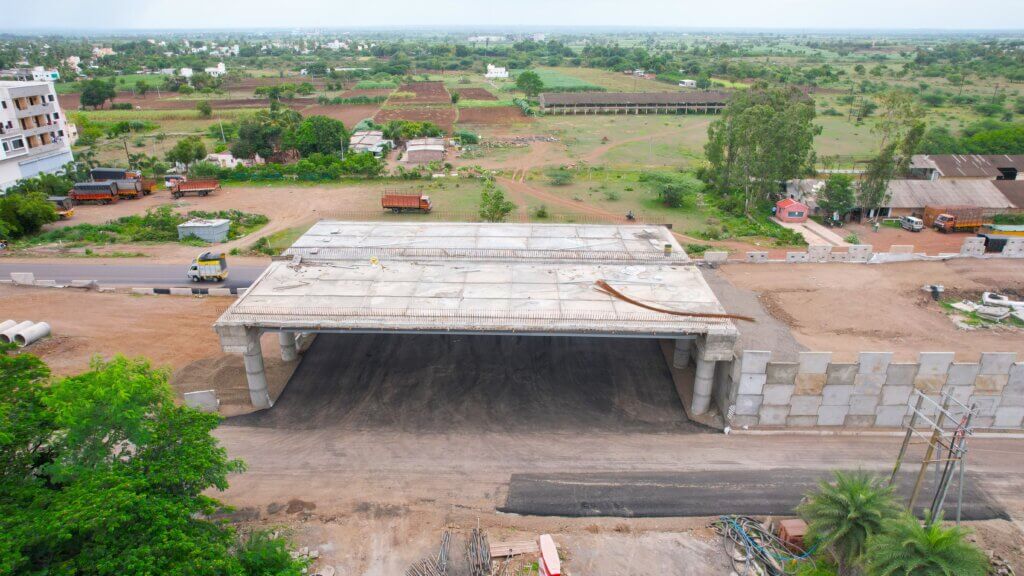

Completed bridge
Completed bridge
Completed bridge.
Completed bridge.

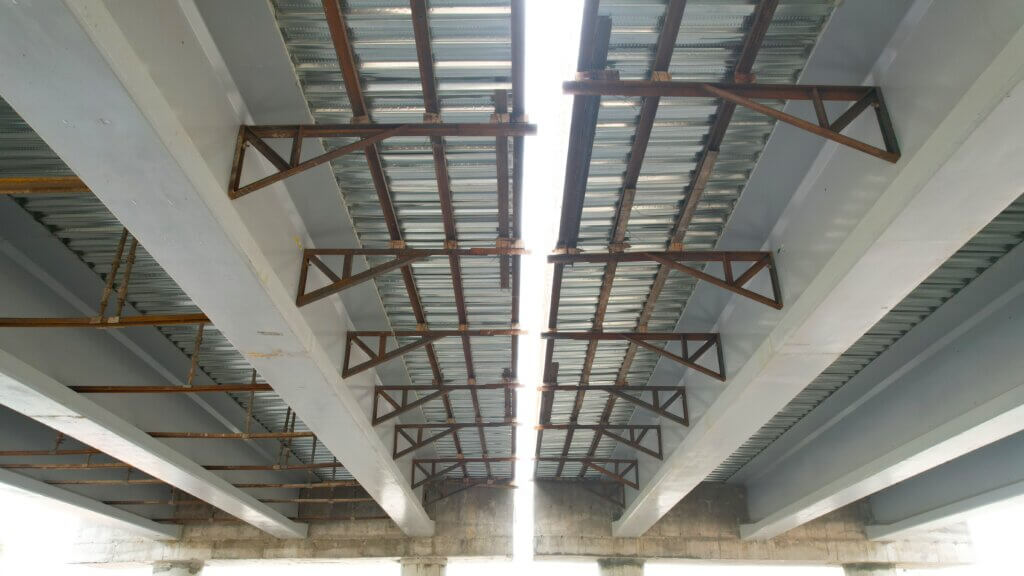

Completion bridge using BT1500
Completion bridge using BT1500
Project Title

Dharampuri Ch. 152+700 4-Laning of existing 2-laning stretch from Dharmapuri at KM 117.000 to Lonand- at km. 166.400 (Pkg-iv) on Mohol-Alandi section (design length 49.400 km) of nh-965 in the state of Maharashtra on EPC mode

Project Year

2024

Status

On Going Project

Country

India

GPS Cordinates

18.0029775 N , 74.3446135 E

Structure Type

UHPFRC beam composite in situ deck bridge system – 1 no of 33 m length integral bridge

Superstructure Feature

RCC Deck + 3nos. of BT1500 Girders on LHS and RHS Side. Integral Bridge

Substructure Feature

Pier Type Abutment and Piers

Foundation Feature

Open Foundation

Loading Type

3 Lane Loading Combinations as per IRC-6:2017 (70R + Class A)

Client

NHAI

Contractor

RK Chavan Infrastructures Pvt. Ltd.

Indian Consultant

SDPL

Technology & Proof Consultant

Aerotide Infrastructure Engineering Pvt. Ltd.
