50m Single Span Crossing Sungai Ijok, Perak

  • Project Status

  • Select Country

  • Select Years

  • Reset
Existing old bridge crossing Sg Ijok
Existing old bridge crossing Sg Ijok
Sg Ijok
Sg Ijok
Piling done at Abutment B -11-09-2014-
Piling done at Abutment B -11-09-2014-
Construction of pile cap at abutment A -11-09-2014-
Construction of pile cap at abutment A -11-09-2014-
Unloading DURA UBG-50m segments -04-12-2014-
Unloading DURA UBG-50m segments -04-12-2014-
A single span DURA UBG-50m fully assembled off-site -04-12-2014-
A single span DURA UBG-50m fully assembled off-site -04-12-2014-
Sg Ijok bridge beam launching day -01-07-2015-
Sg Ijok bridge beam launching day -01-07-2015-
Lifting of 1st beam onto a truck
Lifting of 1st beam onto a truck
Transporting first beam to the bridge site
Transporting first beam to the bridge site
Launching the first beam to the abutment seatings
Launching the first beam to the abutment seatings

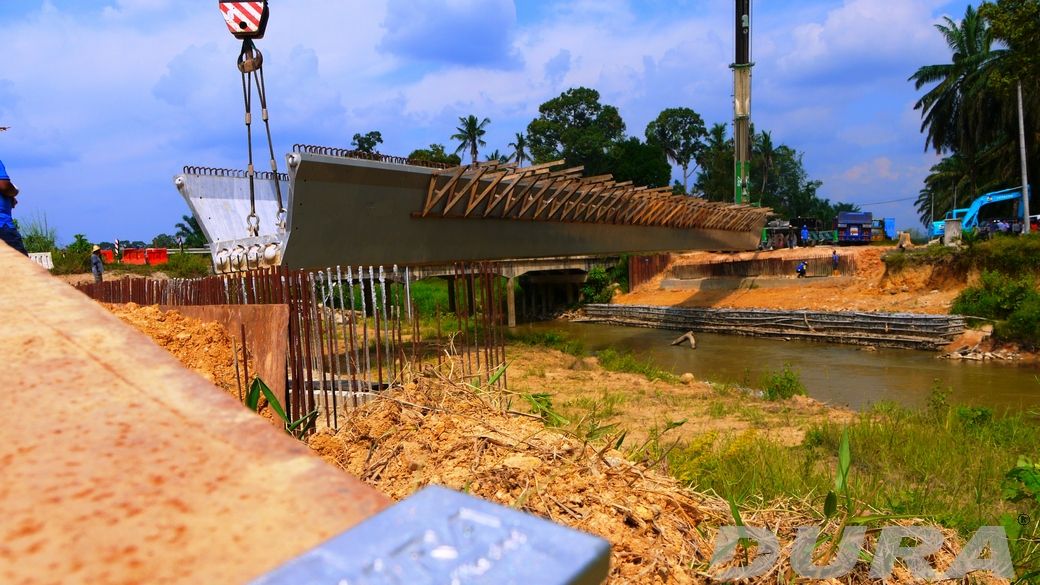

First beam launched
First beam launched
Lifting of 2nd beam
Lifting of 2nd beam
Three DURA UBG2000-495m launched
Three DURA UBG2000-495m launched
Three DURA UBG2000-495m launched_2
Three DURA UBG2000-495m launched_2
Abutment A casted
Abutment A casted
Preparation of timber formwork for deck casting
Preparation of timber formwork for deck casting
Preparation of timber formwork for deck casting_2
Preparation of timber formwork for deck casting_2
Preparation of timber formwork for deck casting_3
Preparation of timber formwork for deck casting_3
Fixing reinforcement and formwork for Abutment B
Fixing reinforcement and formwork for Abutment B
Steel reinforcement for the RC deck
Steel reinforcement for the RC deck
Completion of RC deck and RC parapet
Completion of RC deck and RC parapet
Laying of binder course at approach road
Laying of binder course at approach road
Completion of Sg Ijok bridge
Completion of Sg Ijok bridge
Completed after 3 years
Completed after 3 years
Completed after 3 years_2
Completed after 3 years_2
Completed after 3 years_3
Completed after 3 years_3
Completed after 3 years_4
Completed after 3 years_4
Completed after 3 years_5
Completed after 3 years_5
Project Title

Memperelokkan Jalan Taiping/selama, Daerah Larut, Matang Dan Selama, Perak Darul Ridzuan. (fasa 2a : Kubu Gajah Ke Penempatan Rancangan Belia Pondok Tanjung) Bridge 2- Sg Ijok

Project Year

2015

Status

Completed Project

Country

Malaysia

GPS Cordinates

5.081517 N; 100.720305 E

Structure Type

Single span 50m long x 14m wide UHPC Composite Bridge System

Superstructure Feature

3 pieces of DURA® UBG2000-49.5m

Substructure Feature

500mm dia. spun pile (Class B)

Client

JPS Perak

Superintendent Officer (S.O.)

JKR Daerah Larut, Matang & Selama

Consultant

Jurutera Perunding Concrete Technology

Contractor

Solid Gold Synergy Sdn Bhd

Contract Period

18 months

Construction Status

Completed
