52m Single Span Crossing Sungai Ara for JPS Flood Mitigation Project

  • Project Status

  • Select Country

  • Select Years

  • Reset
The proposed new bridge site, Sungai Ara
The proposed new bridge site, Sungai Ara
The existing old bridge
The existing old bridge

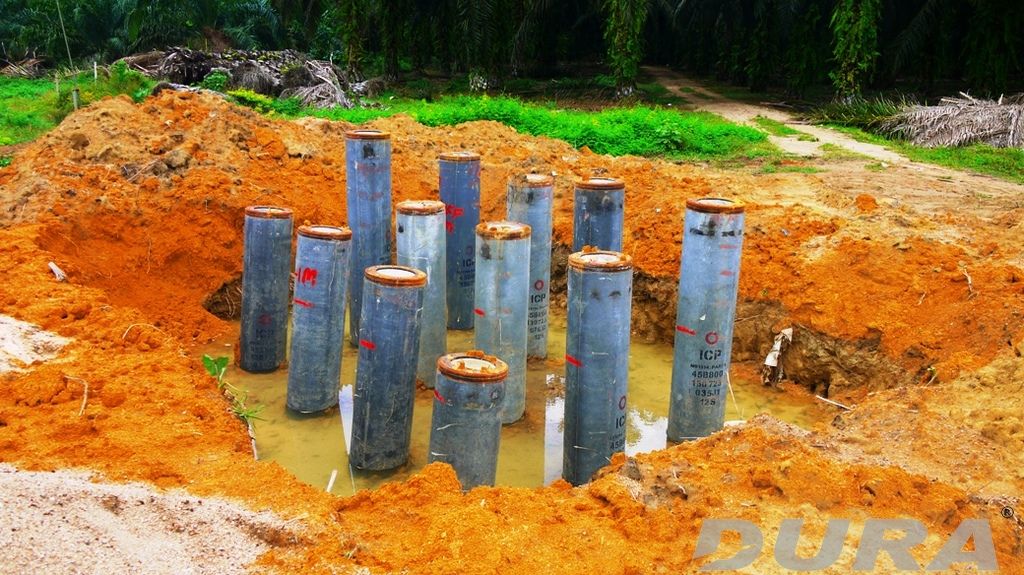

Spun pile used in foundation -19-10-2013-
Spun pile used in foundation -19-10-2013-
Unloading beam segments -07-11-2013-
Unloading beam segments -07-11-2013-
Alignment DURA U segments -09-12-2013-
Alignment DURA U segments -09-12-2013-

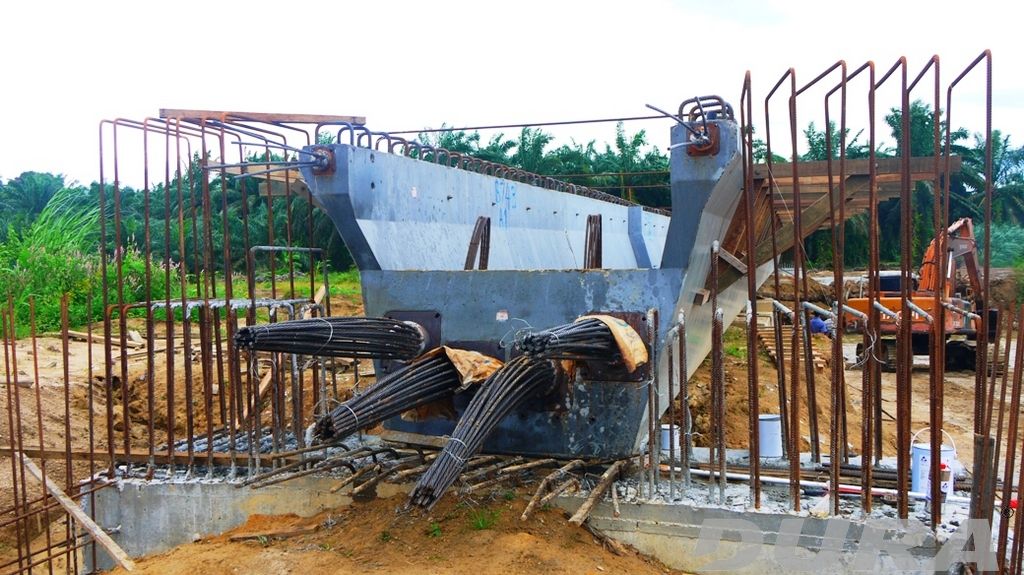

Post-tensioning in progress -02-01-2014-
Post-tensioning in progress -02-01-2014-
52m DURA girder fully post-tensioned -02-01-2014-
52m DURA girder fully post-tensioned -02-01-2014-
Preparation of timber formwork for in-situ concrete decking -16-01-2014-
Preparation of timber formwork for in-situ concrete decking -16-01-2014-
Preparation of timber formwork for in-situ concrete decking -16-01-2014-_2
Preparation of timber formwork for in-situ concrete decking -16-01-2014-_2
Completion of bridge work -01-03-2014-
Completion of bridge work -01-03-2014-
Sg Ara bridge
Sg Ara bridge
Elevation view of Sg Ara bridge
Elevation view of Sg Ara bridge
Newly constructed Sg Ara bridge
Newly constructed Sg Ara bridge
Newly constructed Sg Ara bridge_2
Newly constructed Sg Ara bridge_2
Newly constructed Sg Ara bridge_3
Newly constructed Sg Ara bridge_3
Project Title

Kerja-Kerja Membina Dan Pencegah Banjir Sungai Ara Serta Kerja Kerja Lain Yang Berkaitan, Dearah Larut Matang Dan Selama, Perak Darul Ridzuan (Bridge 3 Sg. Ara CH 1250).

Project Year

2014

Status

Completed Project

Country

Malaysia

GPS Cordinates

5.013447 N , 100.739763 E

Structure Type

Single span 52m x 4.8m wide UHPdC U beam composite bridge

Superstructure Feature

1 pieces of DURA® UBG1750-52m topped with 180mm thk in-situ RC deck slab

Substructure Feature

450mm dia. Spun Pile (Class B)

Loading Type

Full HA+30 unit HB loadings

Client

JPS Perak

Consultant

Dura Technology Sdn Bhd

Contractor

JJM Sdn Bhd

Construction Status

Completed
