63m New Bridge Build in Kg. Sepah , Johor

  • Project Status

  • Select Country

  • Select Years

  • Reset
Completed bridge.
Completed bridge..JPG
Distance of the second span middle to the crane lifting point is 38m.
Distance of the second span middle to the crane lifting point is 38m.
300t mobile crane used to perform direct lifting to teh second middle span.
300t mobile crane used to perform direct lifting to teh second middle span.
Three beams seated.
Three beams seated.
Three beams seated.
Three beams seated.

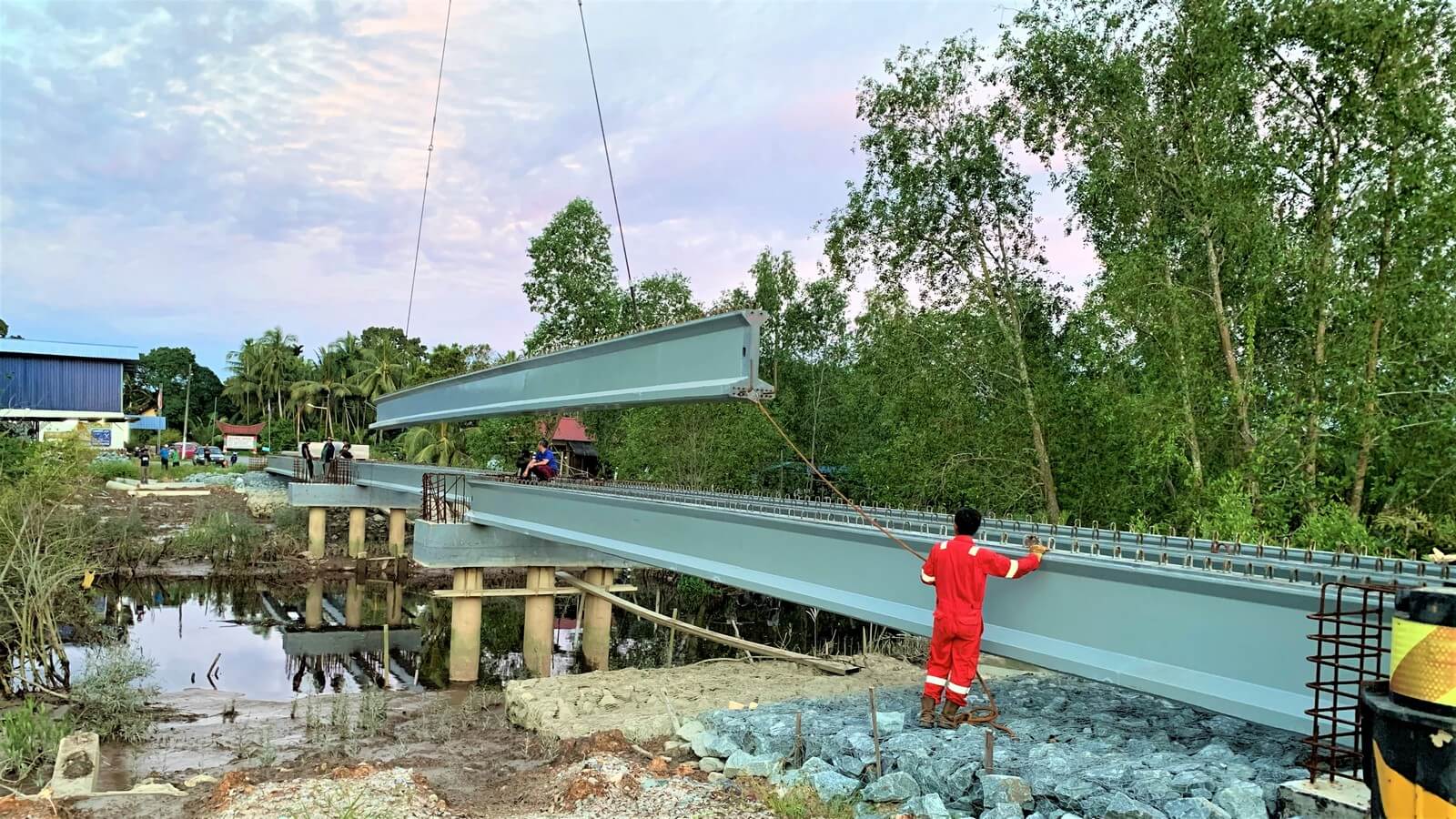

Lifting of first beam.
Lifting of first beam.
Five beams positioned..JPG
Positioning of first beam (040820)..JPG
Arrival of Dura I-beams.
Arrival of Dura I-beams.
Plinth and rubber seating for precast beams.
Plinth and rubber seating for precast beams.
Substructure done, ready for beams launching.
Substructure done, ready for beams launching.
Damaged existing bridge.
Damaged existing bridge.
Existing old bridge at Kg Sepah.
Existing old bridge at Kg Sepah.
Project Title

To Build A New Bridge At Kampung Sepah Beruang Benut, Pontian, Johor (Membina Jambatan Baru Di Kampung Sepah Beruang Benut, Pontian, Johor)

Project Year

2021

Status

Completed Project

Country

Malaysia

GPS Cordinates

1.639795 N, 103.261916 E

Structure Type

Three Spans 63m by 5m Wide UHPFRC integral beam-deck system

Superstructure Feature

6 pieces of DURA® IB850-20m and 3 pieces of DURA® IB850-23m

Substructure Feature

Cast in-situ RC abutments

Foundation Feature

600mm dia. Spun pile (Class B)

Loading Type

HA+ 30 units HB loadings (BD37/01)

Client

JPS Malaysia

Superintendent Officer (S.O.)

JPS Johor

Consultant

JPCT

Contractor

Kamy Sejahtera Enterprise
