DURA Beam Used As Access Bridge for Oversize Cargo at Westport Malaysia, Port Klang, Selangor

Westport Site -26-04-2012-

Westport Malaysia wraft construction in progress -26-04-2012-

Driving of 800mm diameter spun piles -26-04-2012-

Existing excess bridge to the wharf

Casting of pretension DURA TBG1000-121m precast beam using G150 ultra-high performance ductile concrete -07-04-2012-

After demould and transfer of prestressing -09-04-2012-

Destructive performance load test -ULS- of TBG1000-121m in flexural strength test, at P =1230 kN

Destructive performance load test -ULS- of TBG1000-121m in shear strength test, at P =2140 kN

Crack pattern of tested beam at flexure strength test -ULS-

DURA beams at stock yard -31-05-2012-

Dura beams uploaded to a truck and ready for transportation

Lorries parked at Westport and waiting for beam launching -10-06-2012-

Launching of first beam to the first span using a single unit 60 tonnes mobile crane -09-06-2012-

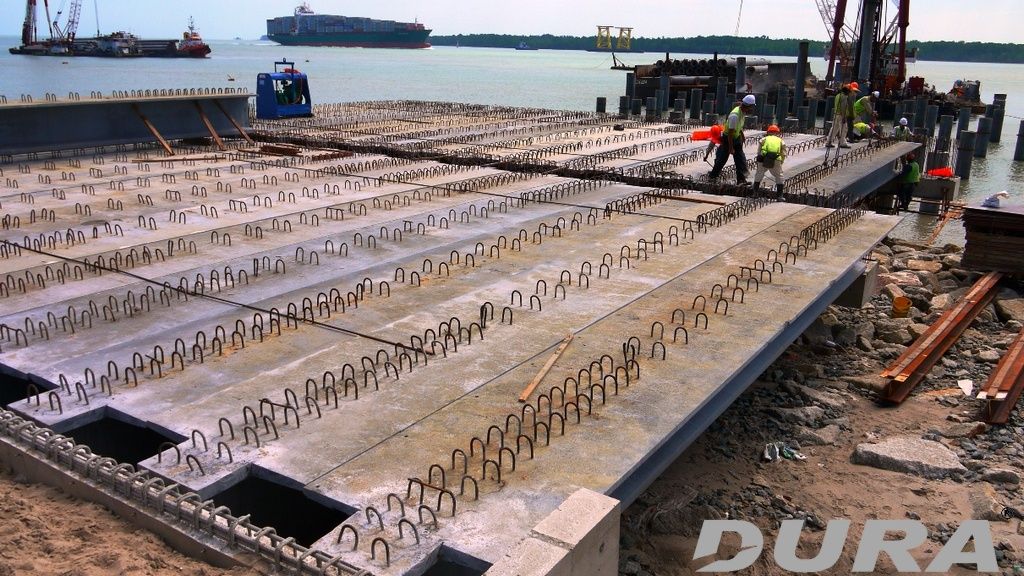

Beam launching on the second span -10-06-2012-

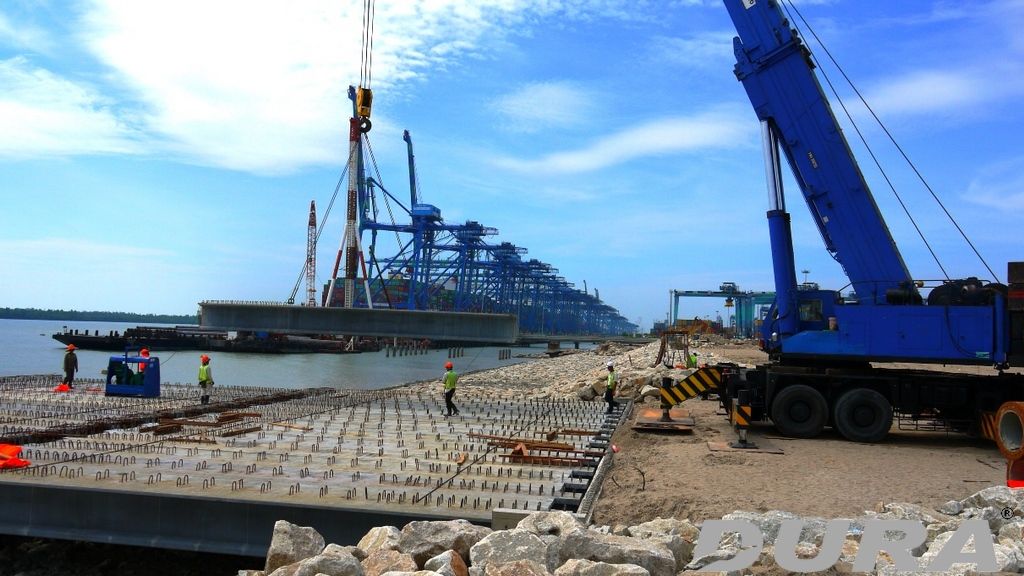

A single unit 160 tonnes mobile crane was used to launch the beams for the second span -10-06-2012-

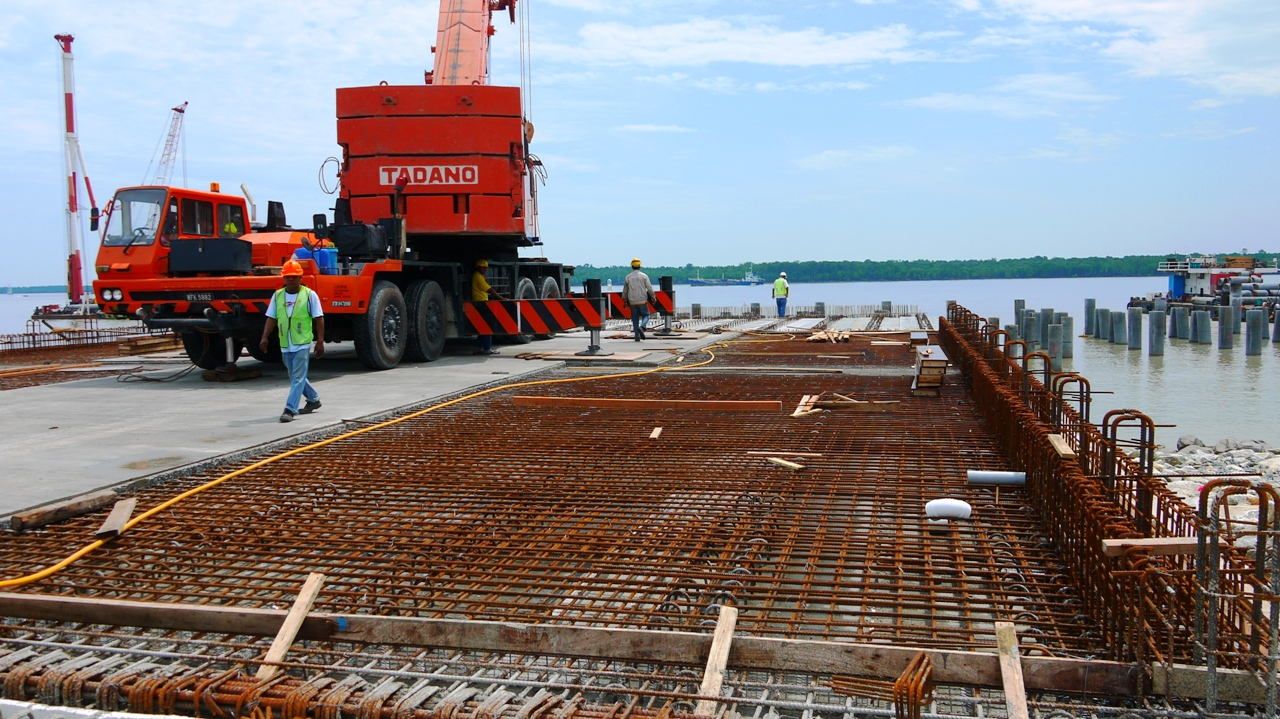

A portion of the concrete deck was constructed for span 1 and 2 -04-07-2012-

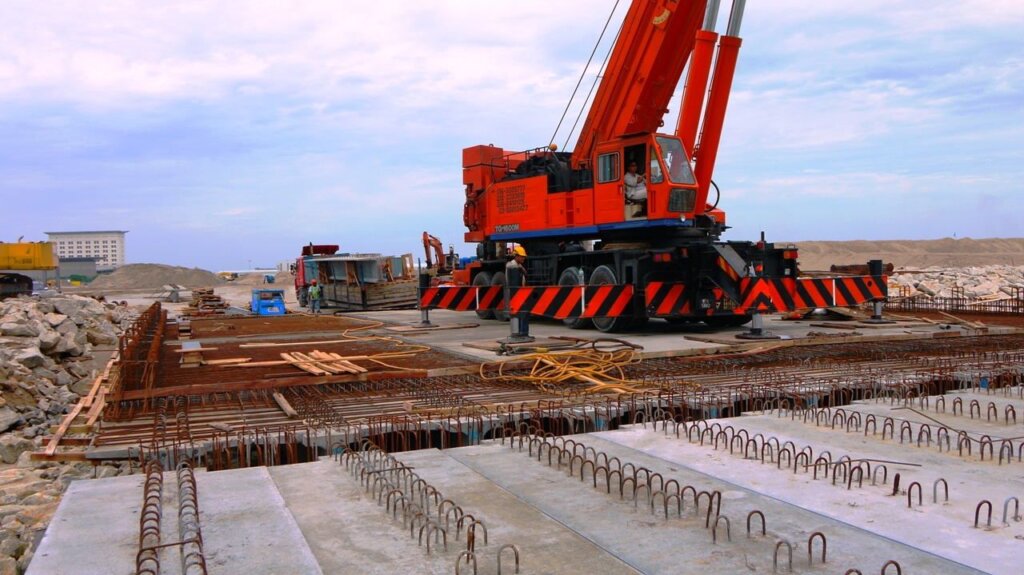

A unit of 160 tonnes crane sitting on the new cast deck -04-07-2012-

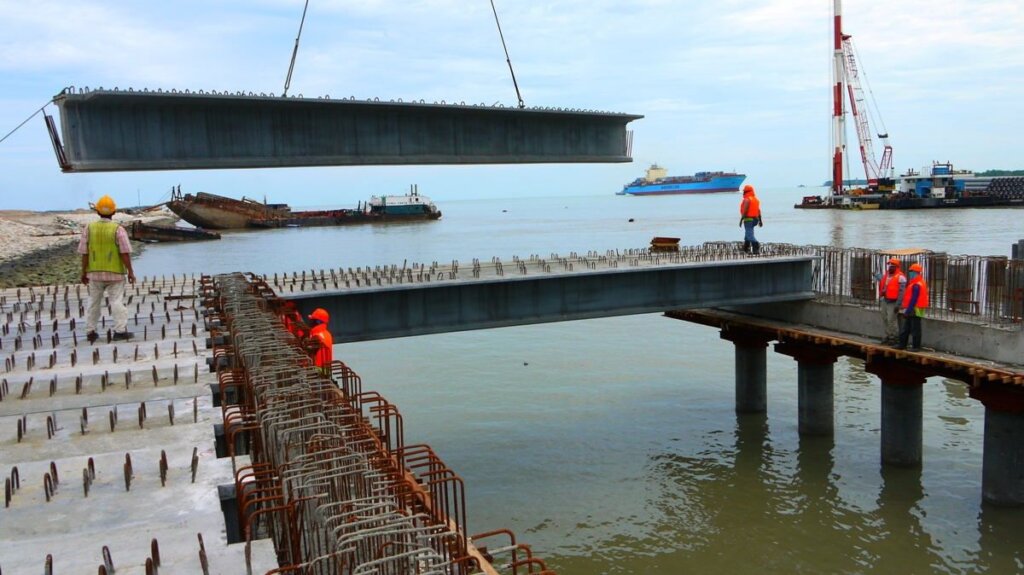

Beam launching for the fourth span -04-07-2012-

Four spans with RC decking completed -23-07-2012-

Beam launching for the fifth span -23-07-2012-

Beam launching for the fifth span -23-07-2012-_2

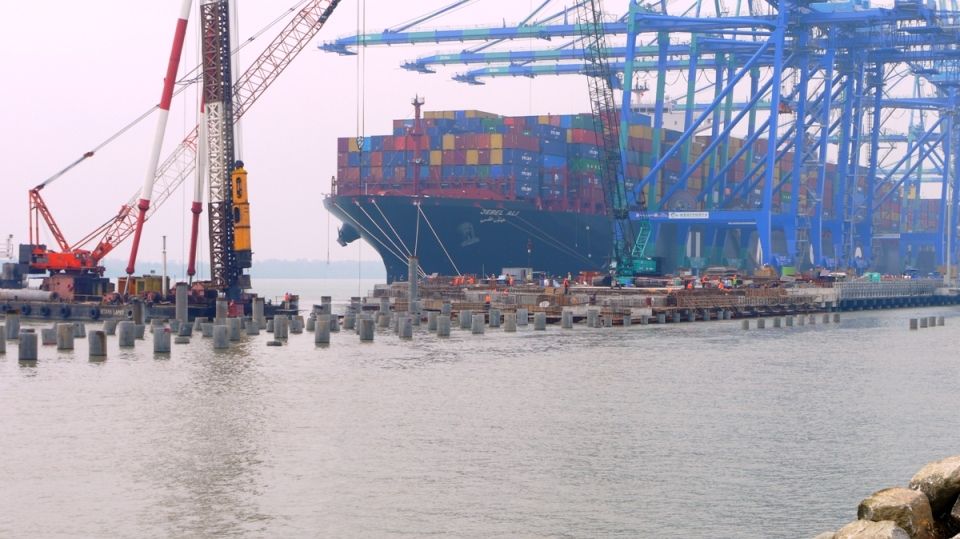

Piling in progress at the wharf area -03-08-2012-

Five spans RC decking completed -03-08-2012-

Five spans RC decking completed -03-08-2012-_2

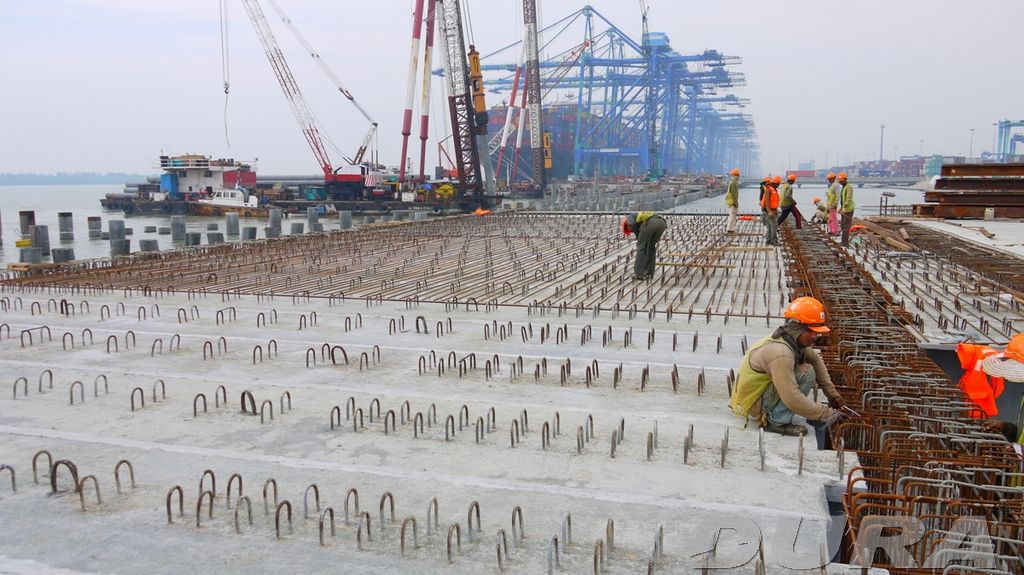

Preparation for the final 6th span for RC deck concreting -03-08-2012-

Completed Bridge25

A giant crawler crane sitting on the newly built bridge

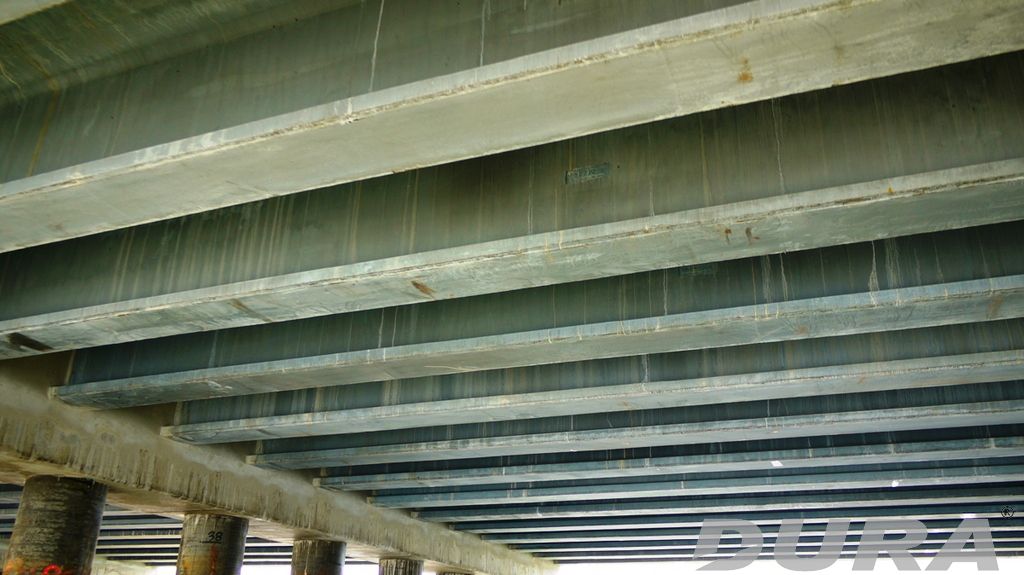

Bottom soffit view of the 6th span

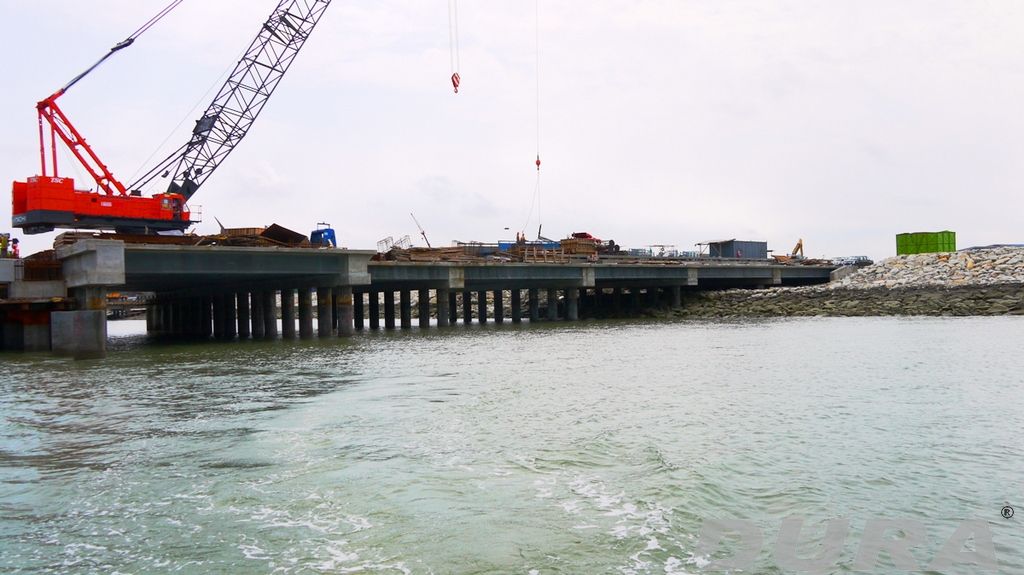

Another view of the completed 6 spans UHPdC composite bridge

Bridge 25 -10-01-2013-

Bridge 25 -10-01-2013-_2

Bridge 25 -10-01-2013-_3

Bridge 25 -10-01-2013-_4

Bridge 25 -10-01-2013-_5

Bridge 25 -10-01-2013-_6

After 1 year since completion -26-06-2013-

After 1 year since completion -26-06-2013-_2

After 1 year since completion -26-06-2013-_3

Project Title

Cadangan Pembinaan Dermaga 300m Kedua CT6 dan Jambatan Penghubung di Pembangunan Perlabuhan Barat, Pulau Indah, Pelabuhan Klang, Klang Bandar di Raja Selangor Darul Ehsan untuk Westports Malaysia Sdn Bhd.

Project Year

2012

Status

Completed Project

Country

Malaysia

GPS Cordinates

2.920829 N , 101.287659 E

Supply Status

Completed

Structure Type

5 spans of 13m long x 22.5m wide & 1 span 13m long x 42m wide DURA beam composite RC deck system.

Superstructure Feature

102 pieces of DURA TBG1000-12.1m

Substructure Feature

800mm diameter spun piles

Loading Type

Special oversize cargo loading (max payload of 3000 metric tonnes)

Client

Westport Malaysia

Consultant

HSS Engineering

Contractor

Putra Perdana Construction Sdn Bhd

Contract Period

2 months (supply)
