DURA Bridge Firstly Used in the State of Terengganu

  • Project Status

  • Select Country

  • Select Years

  • Reset
KT by-pass bridge ST2 crossing an open channel drain and a small road
KT by-pass bridge ST2 crossing an open channel drain and a small road
Construction of pile cap of abutment A -311016-
Construction of pile cap of abutment A -311016-
Beam launching in progress -080317-
Beam launching in progress -080317-
Beam launching in progress -080317-_2
Beam launching in progress -080317-_2
Lifting first beam onto transportation truck
Lifting first beam onto transportation truck
Inspection of beam before launching
Inspection of beam before launching
Positioning of the first beam -080317-
Positioning of the first beam -080317-
Two DURA UBG2000-35m beams seated on abutments
Two DURA UBG2000-35m beams seated on abutments
Two DURA UBG2000-35m beams seated on abutments_2
Two DURA UBG2000-35m beams seated on abutments_2
Preparation for the third beam launching -080317-
Preparation for the third beam launching -080317-
Preparation for the third beam launching -080317-_2
Preparation for the third beam launching -080317-_2

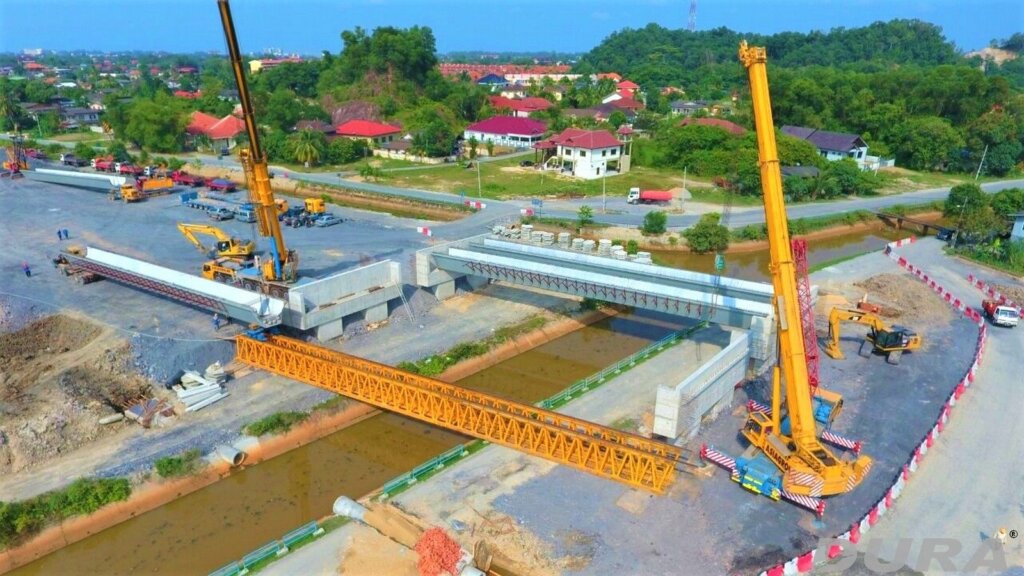

Placing beam on steel transfer girder
Placing beam on steel transfer girder
Positioning fourth beams
Positioning fourth beams
In-situ RC deck completed -080517-
In-situ RC deck completed -080517-
Construction of parapet walls
Construction of parapet walls
Completed ST2 bridge
Completed ST2 bridge
Side view of ST2 bridge
Side view of ST2 bridge
Two beams used per span over an 115m wide RC deck
Two beams used per span over an 115m wide RC deck

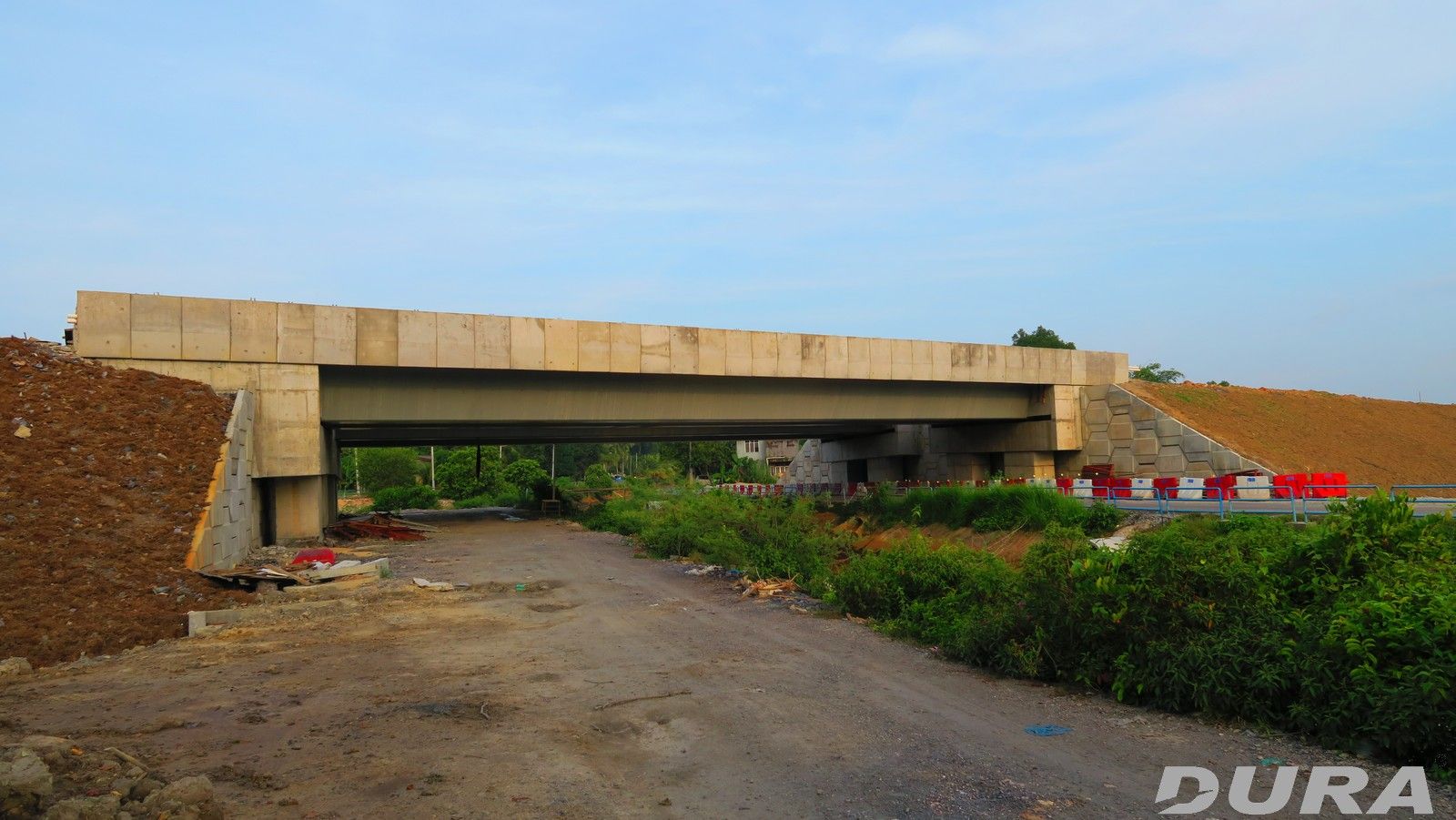

ST2 bridge
ST2 bridge

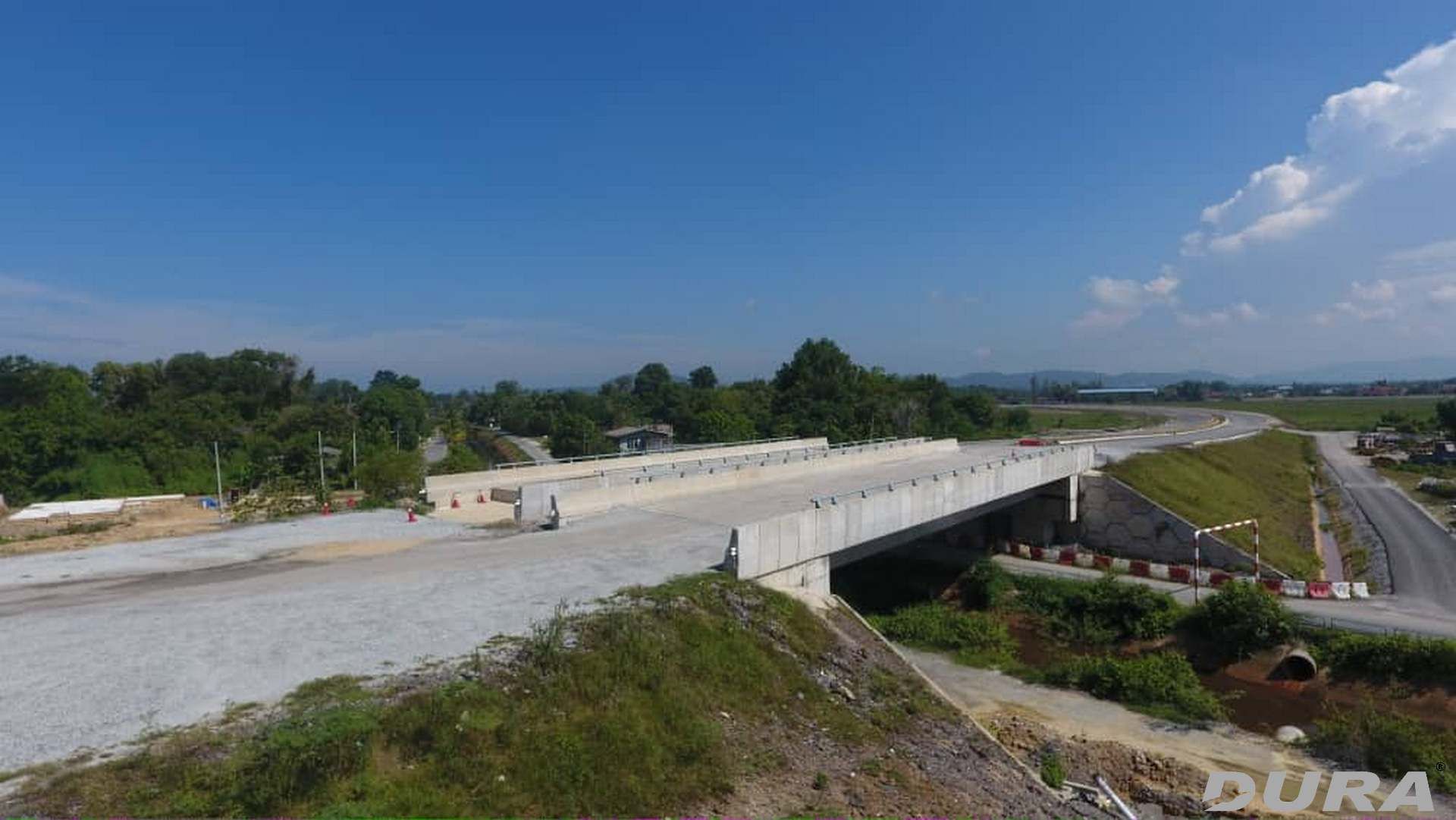

Bridge construction completed
Bridge construction completed
Bridge construction completed_2
Bridge construction completed_2
Backfilling approach road
Backfilling approach road

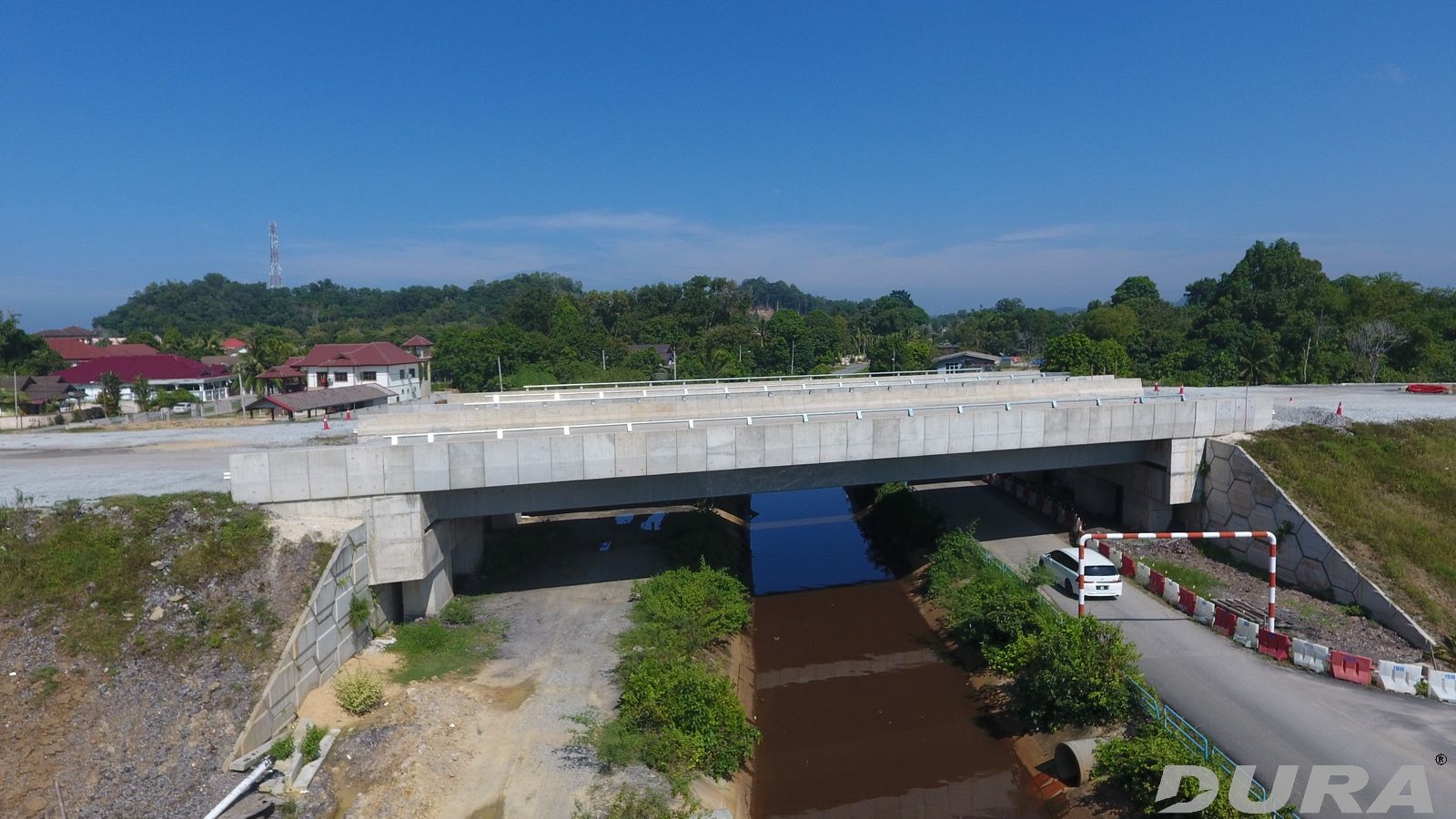

ST2 bridge_2
ST2 bridge_2
Project site showing pile load test in progress in Abutment B and construction of pile cap at abutment A -311016-
Project site showing pile load test in progress in Abutment B and construction of pile cap at abutment A -311016-
Project Title

To Construct Jalan Terengganu By-Pass, Kuala Terengganu, Terengganu Darul Iman for the KT-By Pass Project (Bridge ST2).(Membina dan Menyiapkan Jalan Terengganu By-Pass, Kuala Terengganu, Terengganu Darul Iman)

Project Year

2017

Status

Completed Project

Country

Malaysia

GPS Cordinates

5.290302 N, 103.134801 E

Structure Type

Single Span 35m by 11.5m Wide (Left & Right) Composite Bridge System (Skew 15 degree).

Superstructure Feature

4 pieces of DURA® UBG2000-35m with Cast In-Situ RC Deck

Substructure Feature

Cast in-situ RC abutments

Foundation Feature

500mm dia. Spun pile (Class B)

Loading Type

HA+KEL or 45 units HB loadings (BD37/01)

Client

JKR Malaysia

Superintendent Officer (S.O.)

JKR Terengganu

Consultant

Jannacks Consultants Sdn Bhd

Contractor

Iswarabena Sdn Bhd Sdn Bhd (G7)

Contract Period

36 months

Construction Status

Completed
