DURA Bridge Provide Crossing to Indigeneous People at Ulu Kinta, Kinta District, Perak.

  • Project Status

  • Select Country

  • Select Years

  • Reset
Existing steel bailey bridge at Ulu Kinta Site
Existing steel bailey bridge at Ulu Kinta Site
Existing steel bailey bridge at Ulu Kinta Site_2
Existing steel bailey bridge at Ulu Kinta Site_2
Abutments completed -11-08-2012-
Abutments completed -11-08-2012-
Bridge site near Sultan Azlan Shah Dam
Bridge site near Sultan Azlan Shah Dam
Bridge site near Sultan Azlan Shah Dam_2
Bridge site near Sultan Azlan Shah Dam_2
Site is ready for beam launching
Site is ready for beam launching

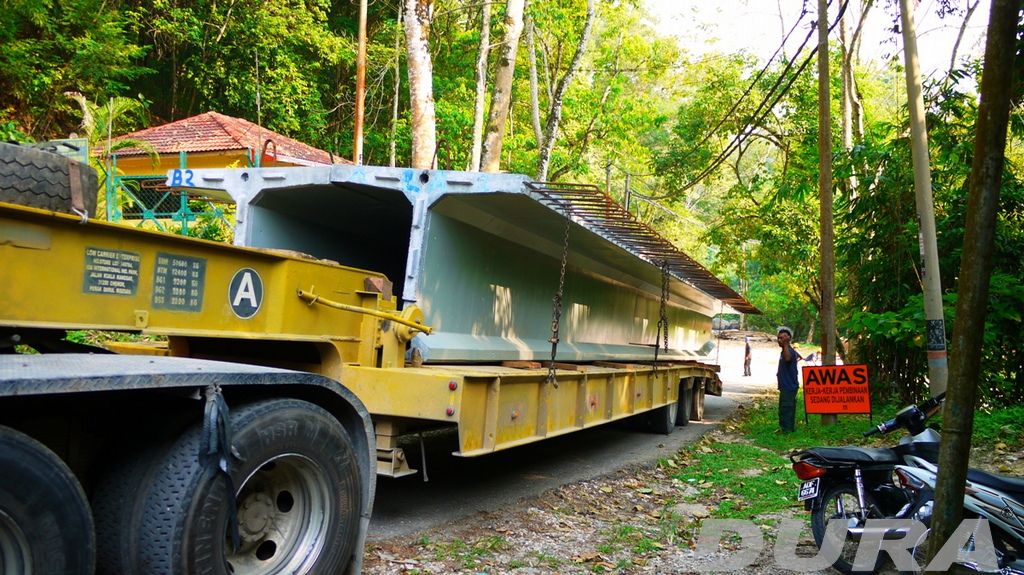

Low loader transporting beams into the job site through a narrow access -11-08-2012-
Low loader transporting beams into the job site through a narrow access -11-08-2012-

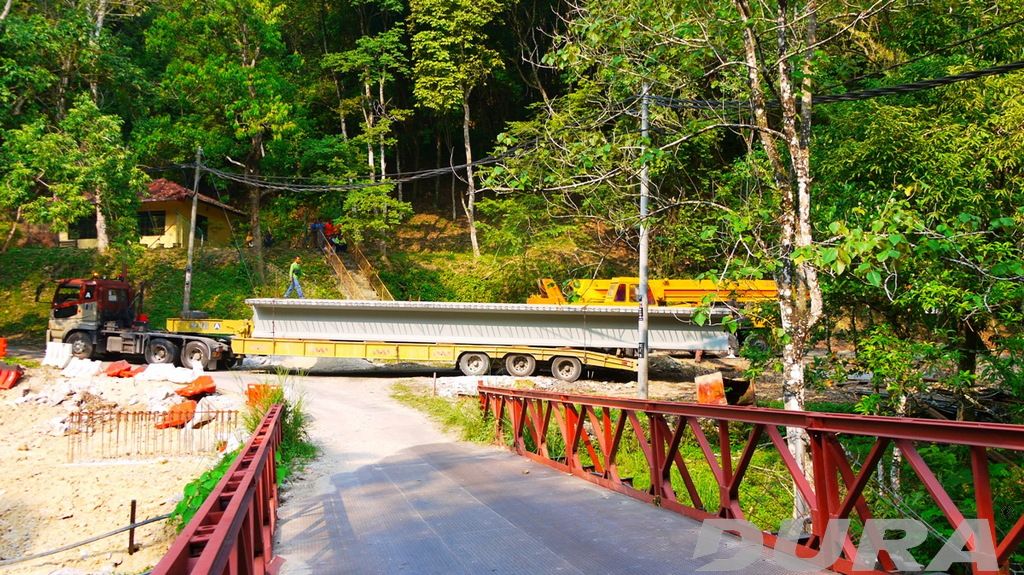

First two segments arrived at the job site -11-08-2012-
First two segments arrived at the job site -11-08-2012-
First two segments unloaded using a single 45-tonnes capacity mobile crane
First two segments unloaded using a single 45-tonnes capacity mobile crane

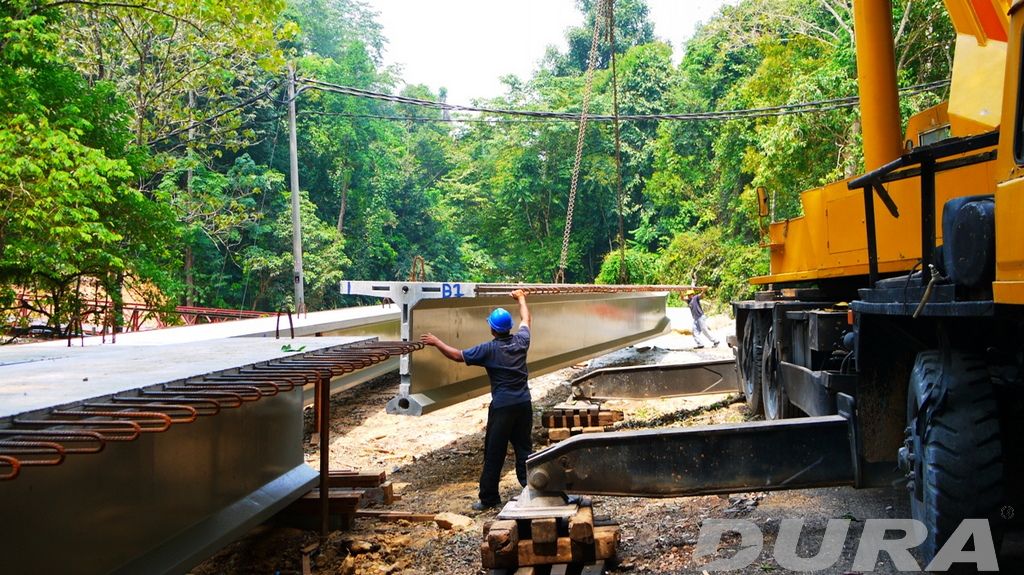

Lifting of the last segment
Lifting of the last segment
Two DURA beams nicely assembled off-site and ready for post-tensioning
Two DURA beams nicely assembled off-site and ready for post-tensioning
Completion of post-tensioning work on two Dura beams -15-08-2012-
Completion of post-tensioning work on two Dura beams -15-08-2012-

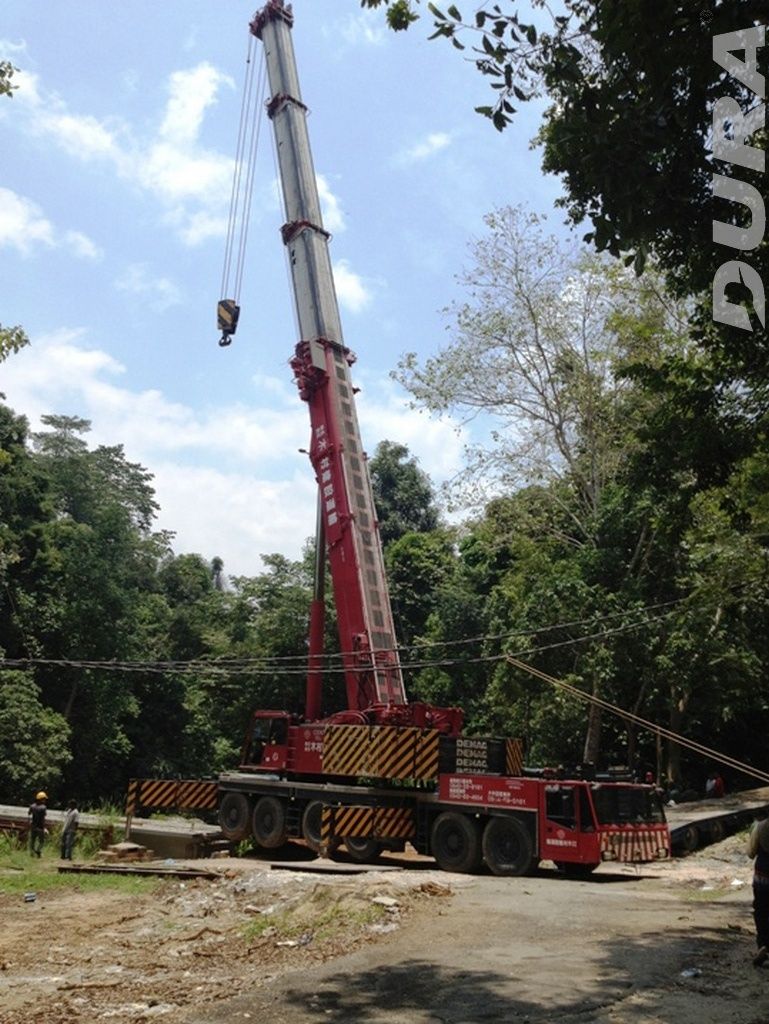

Crane operator getting ready for beam launching -02-09-2012-
Crane operator getting ready for beam launching -02-09-2012-

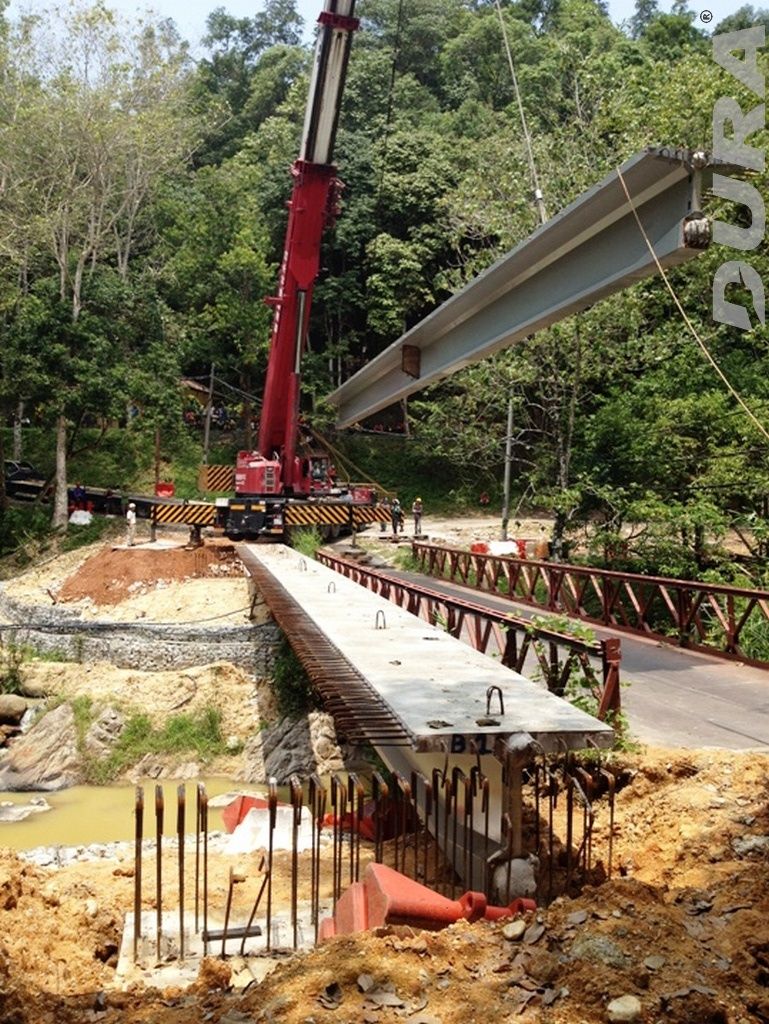

Lifting of TBG1325-32m using a single unit 275-tonnes mobile crane
Lifting of TBG1325-32m using a single unit 275-tonnes mobile crane
Two DURA beams nicely seated on the abutments -02-09-2012-
Two DURA beams nicely seated on the abutments -02-09-2012-
Elevation view
Elevation view
Bottom soffit view
Bottom soffit view
GI railing installed -06-10-2012-
GI railing installed -06-10-2012-
GI railing installed -06-10-2012-_2
GI railing installed -06-10-2012-_2
Road sealed
Road sealed
Road Guard rail installed -10-12-12-
Road Guard rail installed -10-12-12-
Completed Ulu Kinta bridge
Completed Ulu Kinta bridge
After 1 year
After 1 year
After 1 year_2
After 1 year_2
After 1 year_3
After 1 year_3
Project Title

To Construct a New Concrete Bridge with the Replacement of a Bailey Bridge and Other Associated Works at Kampung Ulu Kinta, Kinta District, Perak D.R.(Membina Jambatan Konkrit Untuk Menggantikan Jambatan Bailey & Kerja-Kerja Berkaitan Di Kg. Ulu Kinta, Daerah Kinta, Perak D.R.)

Project Year

2012

Status

Completed Project

Country

Malaysia

GPS Cordinates

4.6700352 N ,101.1985730 E

Structure Type

Single span 32m long by 3.5m wide (MTB-R1) UHPdC integral beam-deck system.

Superstructure Feature

2 pieces of DURA® TBG1325-32m

Substructure Feature

Pad footing

Loading Type

Full HA+30HB loading (BD37/01)

Client

JKR Perak

Consultant

Dura Technology Sdn Bhd (in-house design)

Contractor

Afdzal Yamin Enterprise (Class E)

Contract Period

2 months

Construction Period

4 months

Construction Status

Completed
