DURA Bridge Systems Provide Access at Extreme Terrain

  • Project Status

  • Select Country

  • Select Years

  • Reset
Project signboard and detail
Project signboard and detail
Unpaved steep mountainous road
Unpaved steep mountainous road
Aboriginal people settlement
Aboriginal people settlement
Existing bridge nos 3
Existing bridge nos 3
Existing bridge nos 4
Existing bridge nos 4
Existing bridge nos 5
Existing bridge nos 5
Existing bridge nos 6
Existing bridge nos 6
Existing bridge nos 7
Existing bridge nos 7
Existing bridge nos 9
Existing bridge nos 9
Bridge 9- Micropile drilling in progress -26-08-2014-
Bridge 9- Micropile drilling in progress -26-08-2014-
Bridge 9- Micropile drilling in progress -26-08-2014-_2
Bridge 9- Micropile drilling in progress -26-08-2014-_2
125m long precast DURA IB1000 segments
125m long precast DURA IB1000 segments
125m long precast DURA IB1000 segments_2
125m long precast DURA IB1000 segments_2
RC abutments ready for beam launching
RC abutments ready for beam launching
Seven half segments of the beams placed onto the temporary supports and one side of the abutment
Seven half segments of the beams placed onto the temporary supports and one side of the abutment
Seven precast DURA IB1000-25m assembled, prior to post-tensioning
Seven precast DURA IB1000-25m assembled, prior to post-tensioning
Post-tensioning in progress
Post-tensioning in progress
Casting of RC parapet for Bridge 8
Casting of RC parapet for Bridge 8

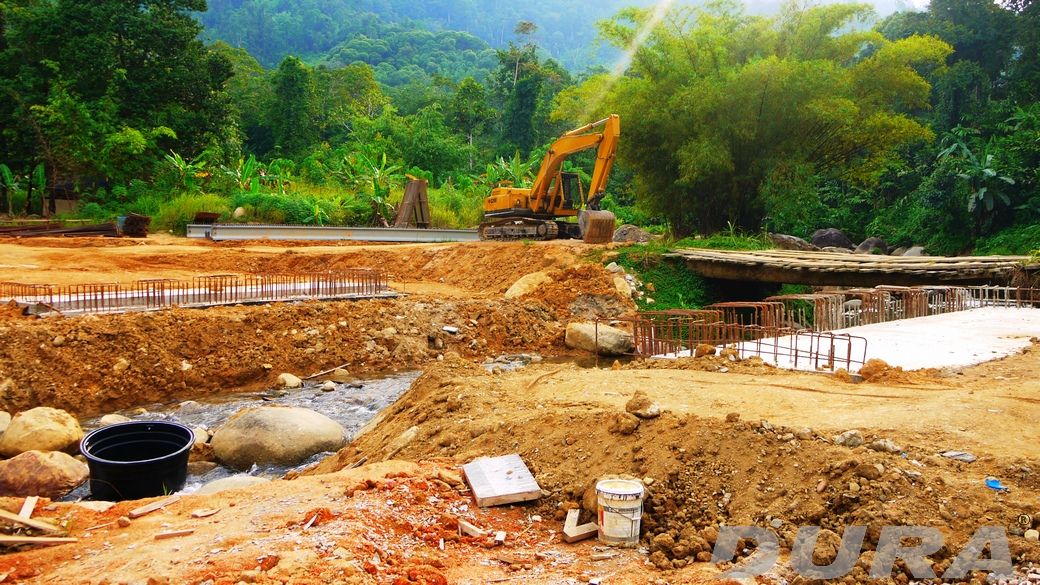

Precast beam ready for launching for Bridge 6
Precast beam ready for launching for Bridge 6
Execution of pile load test at Bridge 4
Execution of pile load test at Bridge 4
Completed Bridge Nos 9
Completed Bridge Nos 9
Completed Bridge Nos 8
Completed Bridge Nos 8
Completed Bridge Nos 7
Completed Bridge Nos 7
Completed Pos Sinderut Bridge 2
Completed Pos Sinderut Bridge 2
Completed Bridge 2 and 4
Completed Bridge 2 and 4
Completed Bridge 3
Completed Bridge 3
Project Title

To Upgrade Pos Sinderut Road, Dun Jelai, Cameron Highland Parliment, Pahang D.M.(Menaiktaraf Jalan Pos Sinderut, Dun Jelai, Parlimen Cameron Highland, Pahang Darul Makmur.)

Project Year

2016

Status

Completed Project

Country

Malaysia

GPS Cordinates

4.169237 N, 101.585514 E (Bridge 2); 4.168740N, 101.581722 E (Bridge 3); 4.168826 N, 101.618189 E (Bridge 4); 4.152962N, 101.649732 E (Bridge 5); 4.141622 N, 101.648723 E (Bridge 6); 4.133348N, 101.650420 E (Bridge 7); 4.126586 N, 101.706304 E (Bridge 8); 4.135983N, 101.710117 E (Bridge 9).

Structure Type

Single span 21m long (Bridge 2); single span 25m long (Bridge 3, 8 & 9); single span 12m (Bridge 4 & 5) and single span 16m (Bridge 6 & 7), come with 10m wide in-situ RC deck, using precast DURA light-weight prestressed I-beam composite bridge system.

Superstructure Feature

7 pieces of DURA IB1000-21m; 14 pieces of DURA IB650-12m; 14 pieces of DURA IB650-16m and 21 pieces of DURA IB1000-25m

Substructure Feature

Cast in-situ RC abutments

Foundation Feature

300mm diameter micropile

Loading Type

Full HA+30HB Highway loading

Client

KKLW

Superintendent Officer (S.O.)

JKR Raub

Contractor

Dinslee Sdn Bhd

Alternative Bridge Designer

Jurutera Perunding Concrete Technology

Contract Period

24 months

Construction Status

Completed
