DURA Bridge used at Wisma Lembaga Kemajuan Ikan Malaysia (LKIM)

  • Project Status

  • Select Country

  • Select Years

  • Reset
Project detail and signboard
Project detail and signboard
Existing bebo arch at Sungai Rasau
Existing bebo arch at Sungai Rasau
Existing crossing to Wisma LKIM Sepang
Existing crossing to Wisma LKIM Sepang
The grand Wisma LKIM
The grand Wisma LKIM
Piling work almost completed -14-12-2013-
Piling work almost completed -14-12-2013-
Demolishing existing arch culvert -24-01-2014-
Demolishing existing arch culvert -24-01-2014-
Piles cutted and ready for pile cap construction -13-02-2014-
Piles cutted and ready for pile cap construction -13-02-2014-

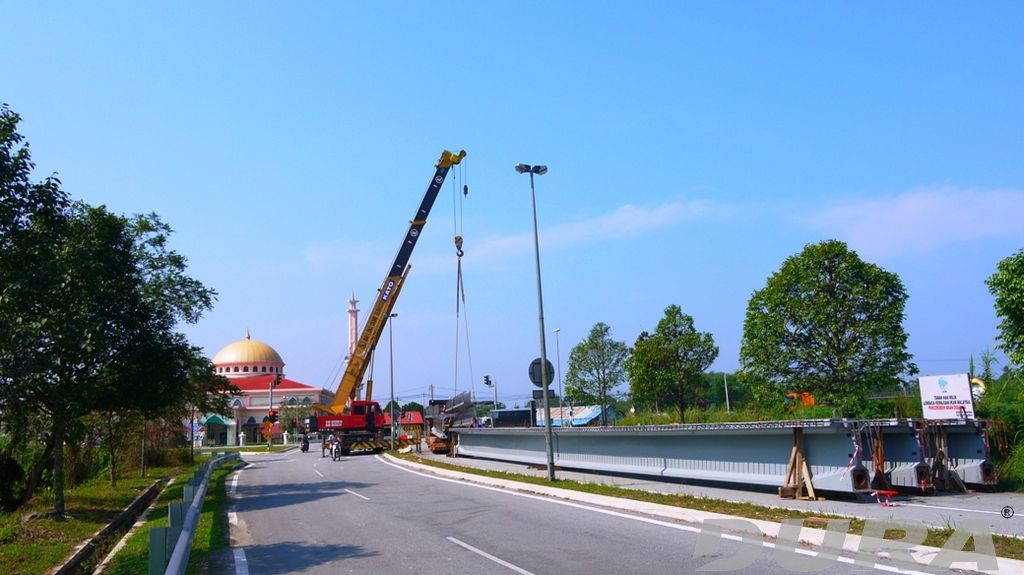

Delivery of DURA TBG1325-315m to site from Chemor factory -22-03-2014-
Delivery of DURA TBG1325-315m to site from Chemor factory -22-03-2014-
Post-tensioning work in progress -14-04-2014-
Post-tensioning work in progress -14-04-2014-
Post-tensioning work in progress -14-04-2014-_2
Post-tensioning work in progress -14-04-2014-_2
Beam launching on the first beam -23-05-2014-
Beam launching on the first beam -23-05-2014-
Transportation of beam for beam launching -23-05-2014-
Transportation of beam for beam launching -23-05-2014-
Beam launching on the fourth beam -23-05-2014-
Beam launching on the fourth beam -23-05-2014-
Single lifting of DURA beam using one unit 300T mobile crane -23-05-2014-
Single lifting of DURA beam using one unit 300T mobile crane -23-05-2014-
14 nos of beams positioned within 6 hours
14 nos of beams positioned within 6 hours
Assembly of formwork for stitching work -02-07-2014-
Assembly of formwork for stitching work -02-07-2014-
Assembly of formwork for RC parapet -02-07-2014-
Assembly of formwork for RC parapet -02-07-2014-
Bottom view of the bridge
Bottom view of the bridge
Stitching work in progress -05-07-2014-
Stitching work in progress -05-07-2014-
Road newly sealed -28-8-2014-
Road newly sealed -28-8-2014-
Newly completed Wisma LKIM bridge
Newly completed Wisma LKIM bridge
Newly completed Wisma LKIM bridge_2
Newly completed Wisma LKIM bridge_2
Project Title

Cadangan Membina dan Menyiapkan Jambatan Merentasi Sungai Rasau Bagi Laluan Ke Wisma LKIM Beserta Kerja-Kerja Yang Berkaitan Di Mukim Dengkil, Sepang, Selangor.

Project Year

2014

Status

Completed Project

Country

Malaysia

GPS Cordinates

2.97072,101.640367

Structure Type

Single span 32m long by 22.1m wide UHPDC integral beam-deck system.

Superstructure Feature

14 pieces of DURA® TBG1325-31.5m

Substructure Feature

600mm Dia. Spun Pile (Class B)

Loading Type

Full HA + 45 unit HB loadings

Client

Lembaga Kemajuan Ikan Malaysia (LKIM)

Consultant

Perunding Budiman S/B

Contractor

Ir Reka Utama S/B

Contract Period

10 months

Construction Status

Completed
