DURA Bridge Used Near National Park, Pahang

Existing road lead to Sg Yap bridge

Existing 22m wide narrow bridge

Existing 22m wide narrow bridge_2

Completion of piling work at Abutment A -06-07-2014-

Casting of abutments -13-08-2014-

Unloading first end segment of UBG2000 -13-08-2014-

Three segments assembled and aligned -13-08-2014-

Post-tensioning of first beam -20-08-2014-

Post-tensioning of first beam -20-08-2014-_2

Both abutments are completed and ready for beam launching

Both abutments are completed and ready for beam launching_2

Project sign board and detail

Preparation for beam launching -06-09-2014-

First U-beam uploaded -06-09-2014-

First U-beam uploaded -06-09-2014-_2

Transporting 1st beam to abutments

Transporting 1st beam to abutments_2

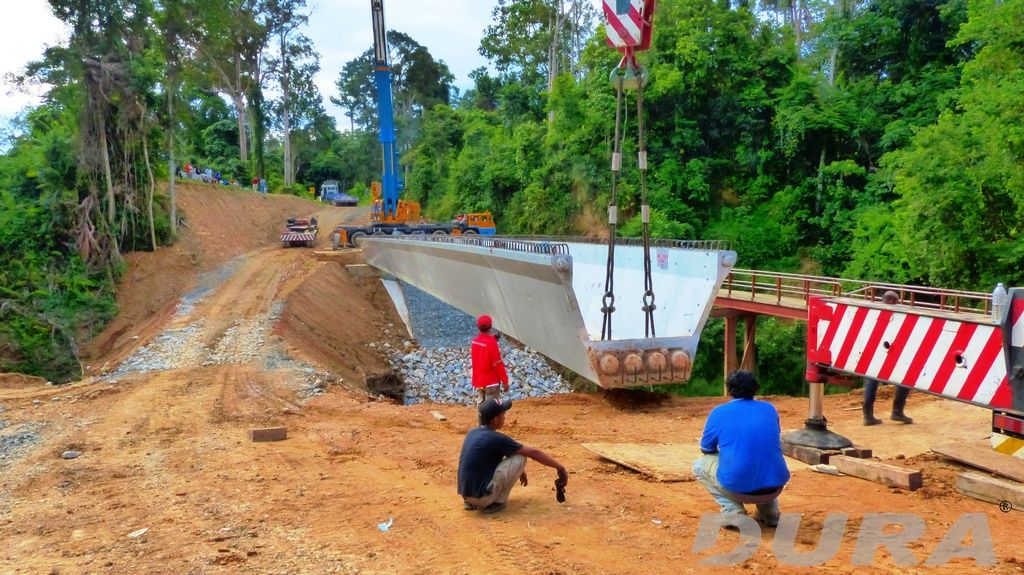

2 units of 160 tonnes all terrain cranes are used to lift the first beam -06-09-2014-

Positioning of DURA UBG2000-495m to the plinth seating

1st U beam positioned onto the abutments

Uploading 2nd U-beams -07-09-2014-

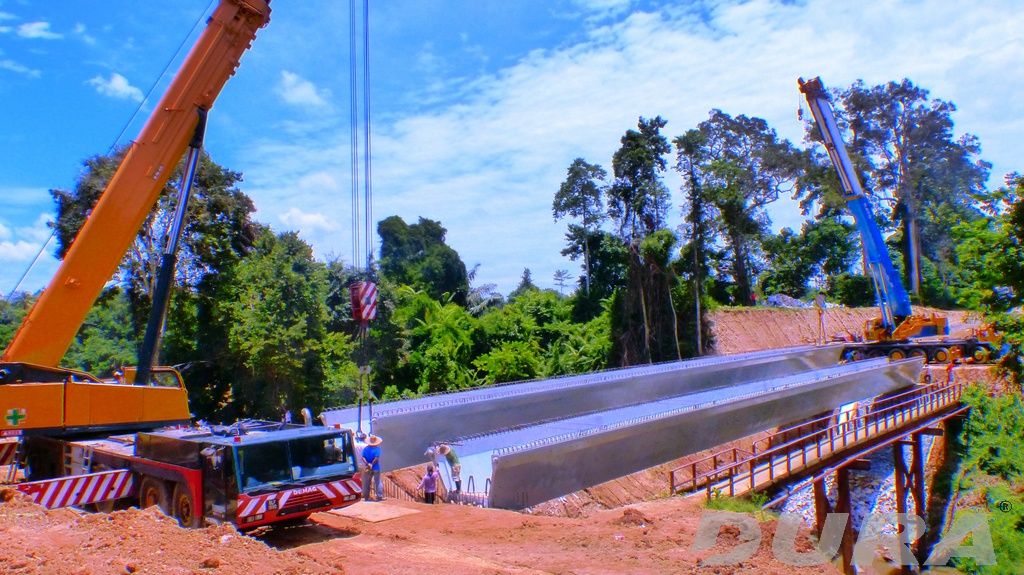

2 units of 160 tonnes all terrain cranes are used to lift the second beam -07-09-2014-

2 units of 160 tonnes all terrain cranes are used to lift the second beam -07-09-2014-_2

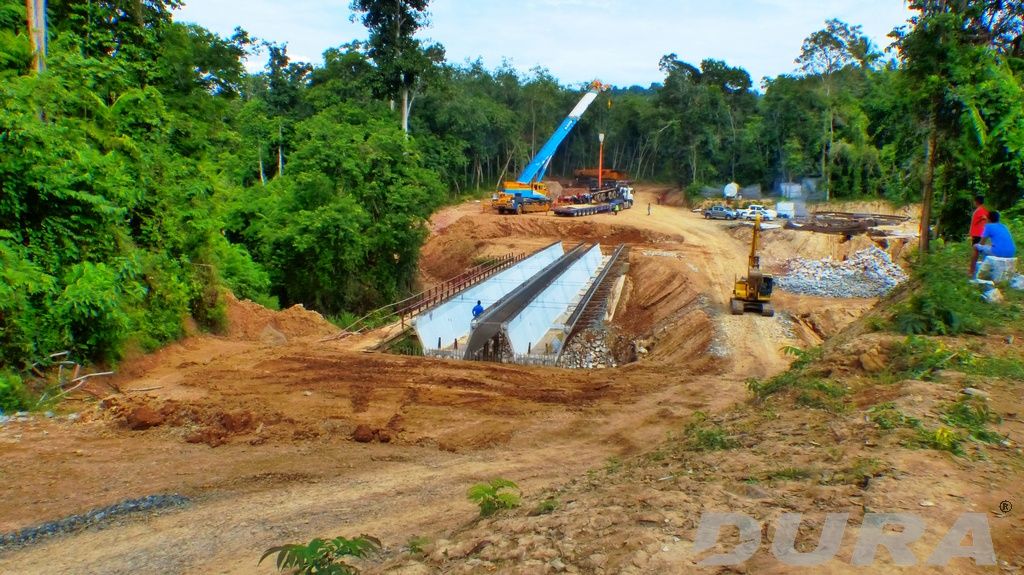

Beam launching completed

Abutment concreted -20-09-2014-

The completed single span 50m long DURA composite bridge crossing Sg Yap -Jerantut, Pahang-

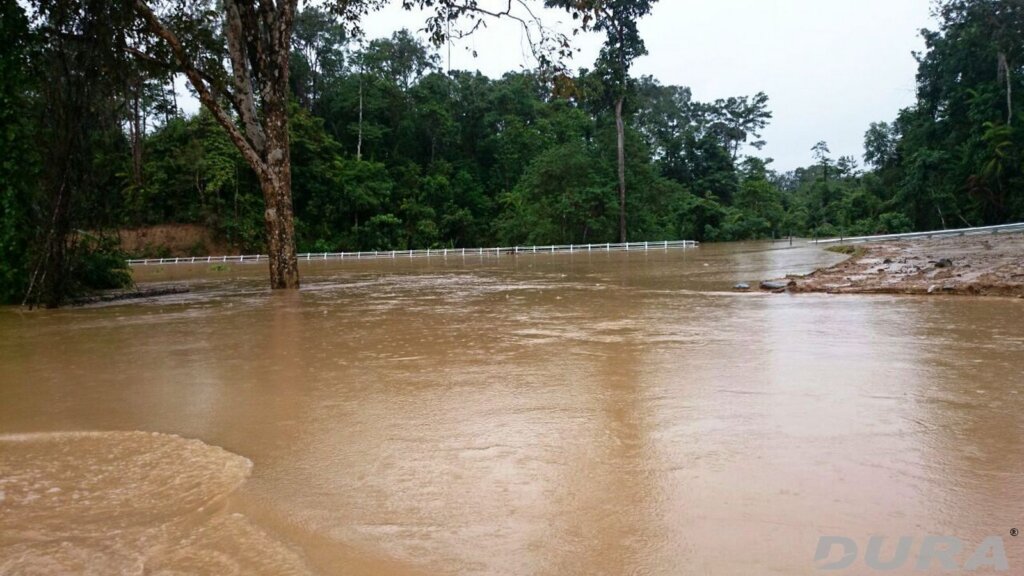

The newly built bridge fully submerged in river water during the extreme flood event in Malaysia history

Sungai Yap bridge not affected by the flood Picture taken after one year -10-10-2015-

Sungai Yap bridge not affected by the flood Picture taken after one year -10-10-2015-_2

Sungai Yap bridge not affected by the flood Picture taken after one year -10-10-2015-_3

Sungai Yap bridge not affected by the flood Picture taken after one year -10-10-2015-_4

Sungai Yap bridge not affected by the flood Picture taken after one year -10-10-2015-_5

Project Title

Menaiktaraf Jalan Luar Bandar Dalam Dun Tahan - Jalan Sungai Yap Ke Kampung Kluang, Kuala Tembeling, Daerah Jerantut, Pahang Darul Makmur.

Project Year

2014

Status

Completed Project

Country

Malaysia

GPS Cordinates

4.065233,102.329709

Structure Type

Single span 51m long x 8m wide UHPC composite bridge

Superstructure Feature

2 pieces of DURA® UBG2000-49.5m

Substructure Feature

450mm dia. spun pile (Class B)

Client

JKR Perak

Consultant

Concrete Technology Sdn Bhd

Contractor

Gabungan Perintis S/B (Class C)

Contract Period

48 weeks

Construction Status

Completed
