Dura Bridge Used to Rescue Delayed Tambun Road Bridge Project Crossing Sg Choh

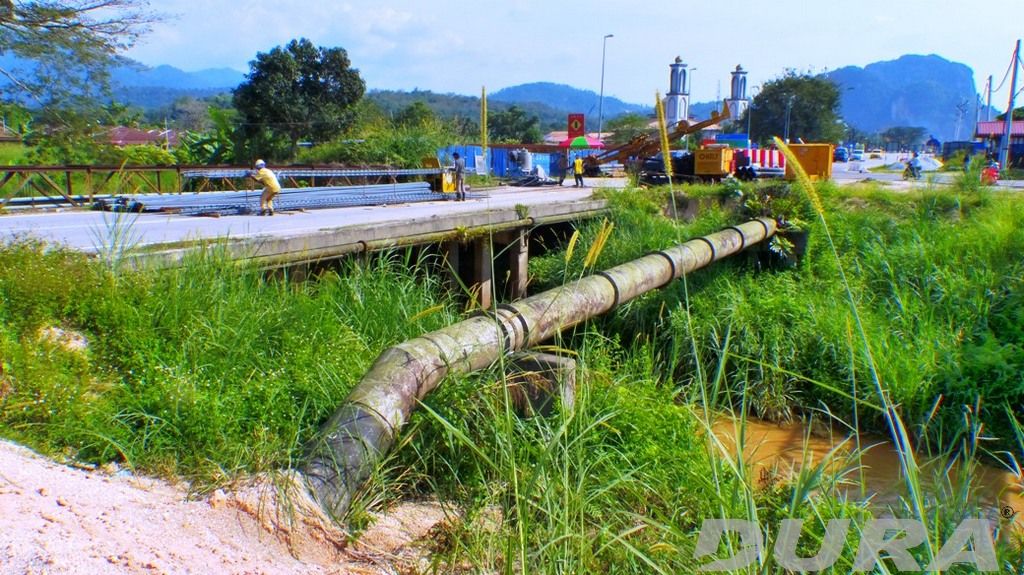

Existing side condition at Sg Choh

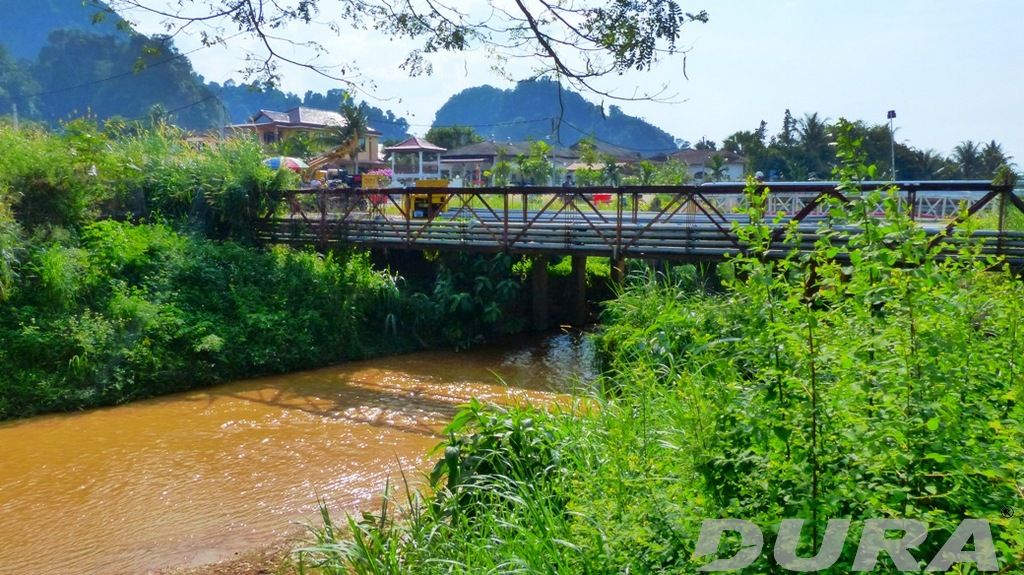

Existing side condition at Sg Choh_2

Micropile machine ready to start work -22-01-2014-

Drilling of fourth hole on Sunday morning -26-01-2014-

Micropiles at abutment A -26-02-2014-

DURA UBG1750 segments unloaded to site -28-02-2014-

Construction of abutment in progress -06-03-2014-

Temporary support ready for beam assembly -25-06-2014-

Lifting of first segment using a 45 tonne mobile crane

Positioning first end segment to the abutment -25-06-2014-

Lifting of second segment -25-06-2014-

Positioning second segment to the temporary supports -25-06-2014-

Second segment aligned

Lifting of fourth segment -25-06-2014-

Post-tensioning of first edge beam in progress -28-06-2014-

Post-tensioning of first edge beam in progress -28-06-2014-_2

Two beams post-tensioned and both beams hogged and detached from temporary supports

Completion of PT work for two numbers of DURA UBG1750-32m

Timber formwork used for the construction of in-situ decking

Preparation of timber formwork

First half portion of the RC deck casted -19-07-2014-

RC deck and backwall fully casted -07-08-2014-

Installation of Precast Parapet -14-08-2014-

Sealing of the road -28-08-2014-

Completed Sg Choh Bridge

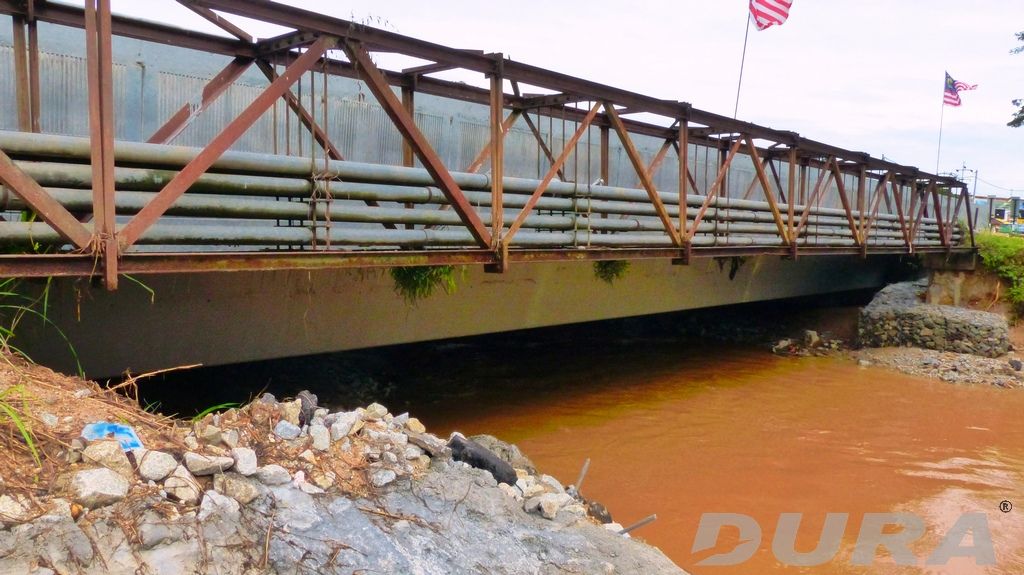

Completed Sg Choh Bridge_2

Project Title

To Replace Sg Choh Bridge, Tambun Road, Tanjung Rambutan, Laluan A13, Kinta District, Perak D.Z. (Menggantikan Jambatan Sg. Choh, Jalan Tambun / Tanjung Rambutan, Laluan A13, Daerah Kinta, Perak Darul Ridzuan.)

Project Year

2014

Status

Completed Project

Country

Malaysia

GPS Cordinates

4.65640,101.15920

Structure Type

Single span 32m x 22m wide UHPC composite bridge

Superstructure Feature

4 pieces of DURA® UBG1750-32m

Substructure Feature

300mm diameter micropiles

Client

Kerajaan Negeri Perak D.R.

Superintendent Officer (S.O.)

JKR Kinta

Consultant

Concrete Technology Sdn Bhd (alternative design)

Contractor

Jernas Holding Sdn Bhd

Contract Period

18 months

Construction Status

Completed
