Dura Shallow Beams used at Residential Housing Project at Kuala Selangor

  • Project Status

  • Select Country

  • Select Years

  • Reset
Both RC abutments partially constructed and ready to receive precast beams
Both RC abutments partially constructed and ready to receive precast beams
Both RC abutments partially constructed and ready to receive precast beams_2
Both RC abutments partially constructed and ready to receive precast beams_2
Transportation of UBG1250 segments from the factory
Transportation of UBG1250 segments from the factory
Unloading end segment using a 45-tonnes mobile crane
Unloading end segment using a 45-tonnes mobile crane
Unloading end segment using a 45-tonnes mobile crane_2
Unloading end segment using a 45-tonnes mobile crane_2
Two beams assembled near the bridge site
Two beams assembled near the bridge site
DURA UBG1250 partially assembled
DURA UBG1250 partially assembled

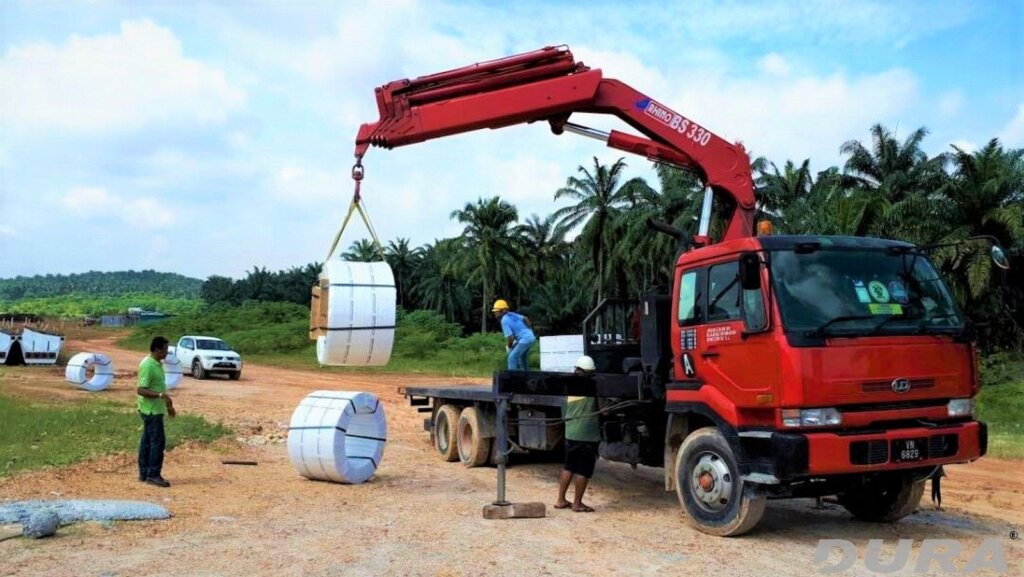

Unloading PC strands
Unloading PC strands
Installation of PC strands
Installation of PC strands
Installation of strands into the ducts
Installation of strands into the ducts
Stressing of UBG1250-36m in progress
Stressing of UBG1250-36m in progress
Cutting of access length of strands after PT work
Cutting of access length of strands after PT work
End plates of two beams patched with cement paste
End plates of two beams patched with cement paste
Preparation for beam launching
Preparation for beam launching
Placing 1st U beam onto the steel transfer girders
Placing 1st U beam onto the steel transfer girders
Positioning of the first beam
Positioning of the first beam
Positioning of the third beam
Positioning of the third beam
Completion of beam launching
Completion of beam launching
Formwork preparation for RC deck
Formwork preparation for RC deck
Approach slab concrete preparation
Approach slab concrete preparation
Deck slab concrete in progress
Deck slab concrete in progress
Completed bridge
Completed bridge
Project Title

To Build a New Bridge at the Project on the Construction of 315 Units 2 Storey High Terrance Houses (15’ x 55’) and 2 Units Compact Substations at Lots PT 1887, PT 1888, PT 1890, PT 1891, and PT 1892, Mukim Ijok, Kuala Selangor, Selangor. (Membina Jambatan Baru di Projek Pembinaan 315 Unit Rumah Teres Mampu Milik 2 Tingkat (15’x55’) dan 2 Unit Compact Substation; Di Atas Lot PT 1887, PT 1888, PT 1890, PT 1891, Dan PT 1892, Mukim Ijok, Daerah Kuala Selangor, Selangor)

Project Year

2017

Status

Completed Project

Country

Malaysia

GPS Cordinates

3.238109 N, 101.476939 E

Structure Type

Single Span 36m by 10.5m Wide Composite Bridge

Superstructure Feature

4 pieces of DURA® UBG1250-36m with Cast In-Situ RC Deck

Substructure Feature

Cast in-situ RC abutments

Foundation Feature

400mm dia. Spun pile (Class B)

Loading Type

HA+KEL or 30 units HB loadings (BD37/01)

Client

Regency Land Sdn Bhd

Superintendent Officer (S.O.)

Perunding Majucipta Sdn Bhd

Consultant

JPCT (Alternative Design)

Contractor

Maltecon Builders Sdn Bhd

Construction Status

Completed
