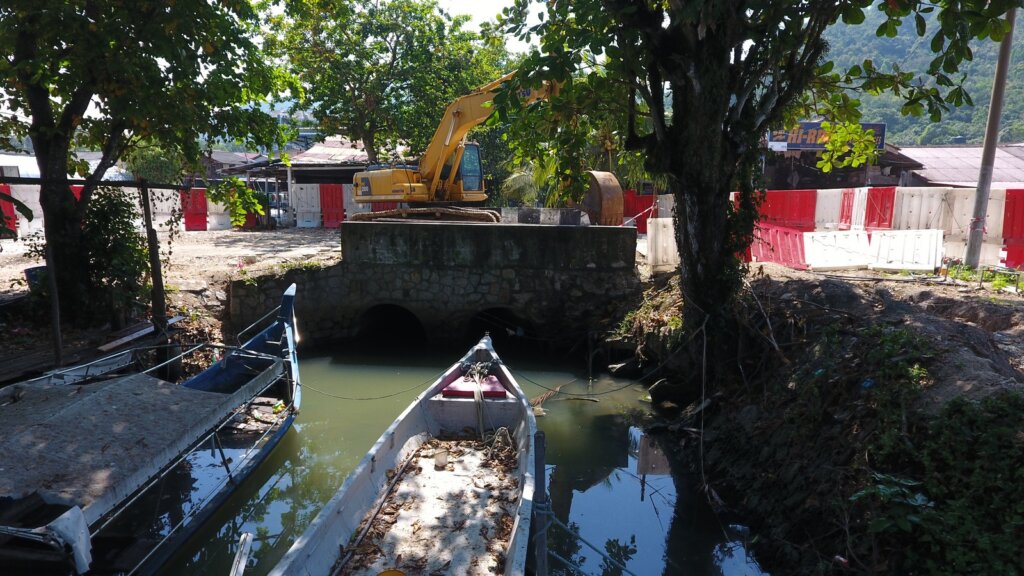

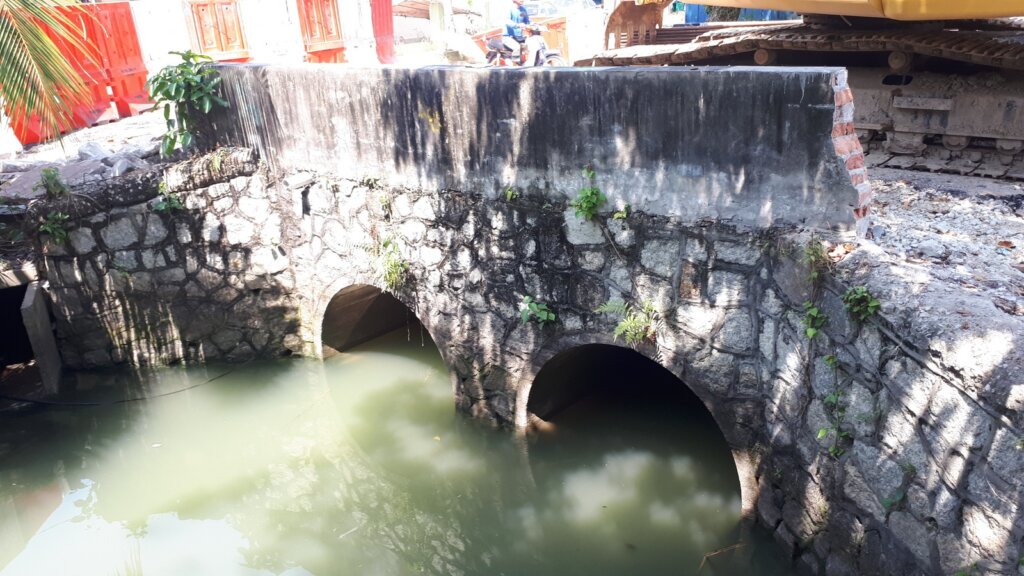

To Replace An Old Bridge At Jalan Kampung Nelayan, Teluk Bahang, Daerah Barat Daya, Pulau Pinang(Pembinaan Jambatan Baru menggantikan Jambatan Lama Di Jalan Kampung Nelayan, Teluk Bahang, Daerah Barat Daya, Pulau Pinang)
2020
Completed Project
Malaysia

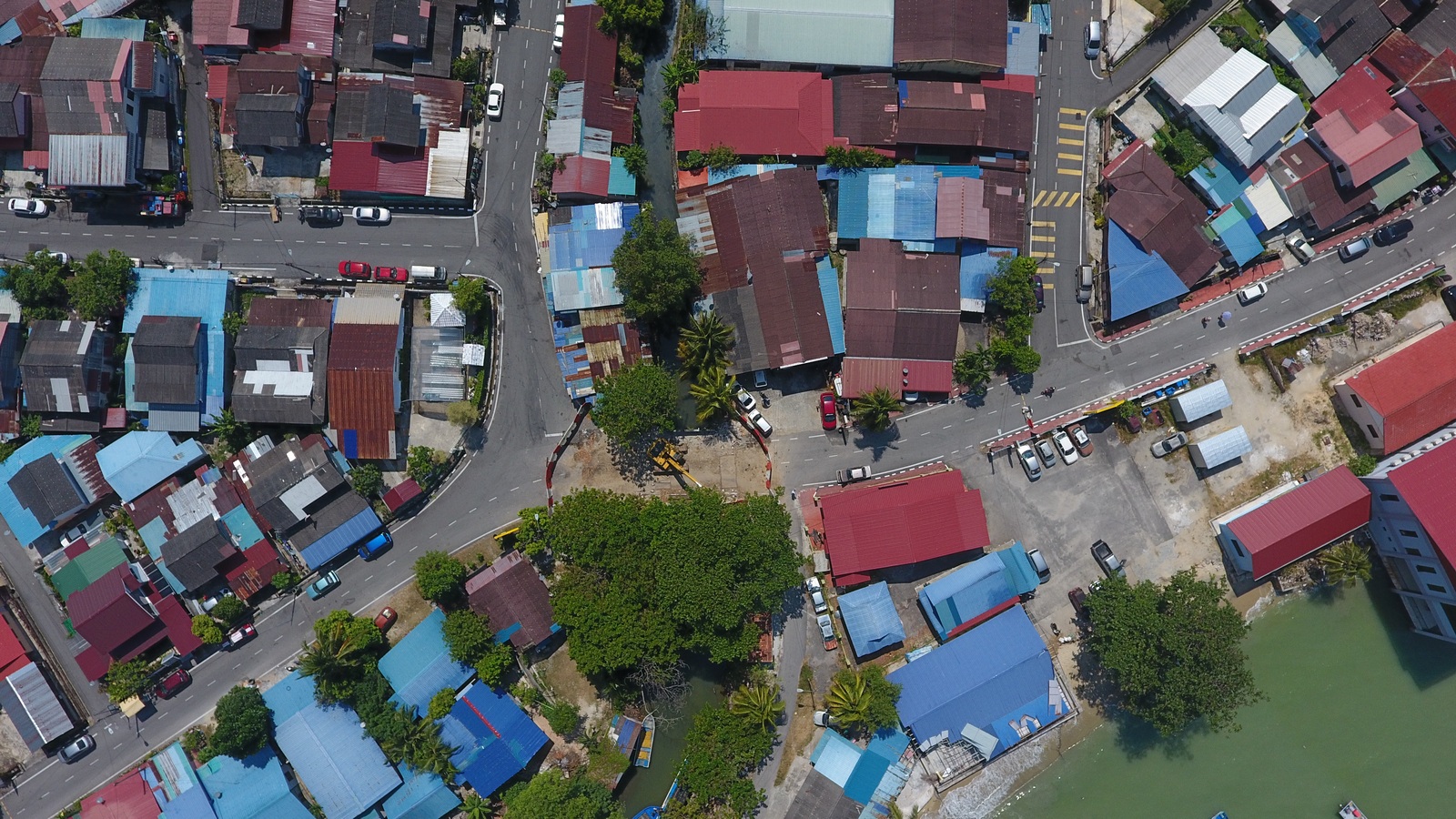

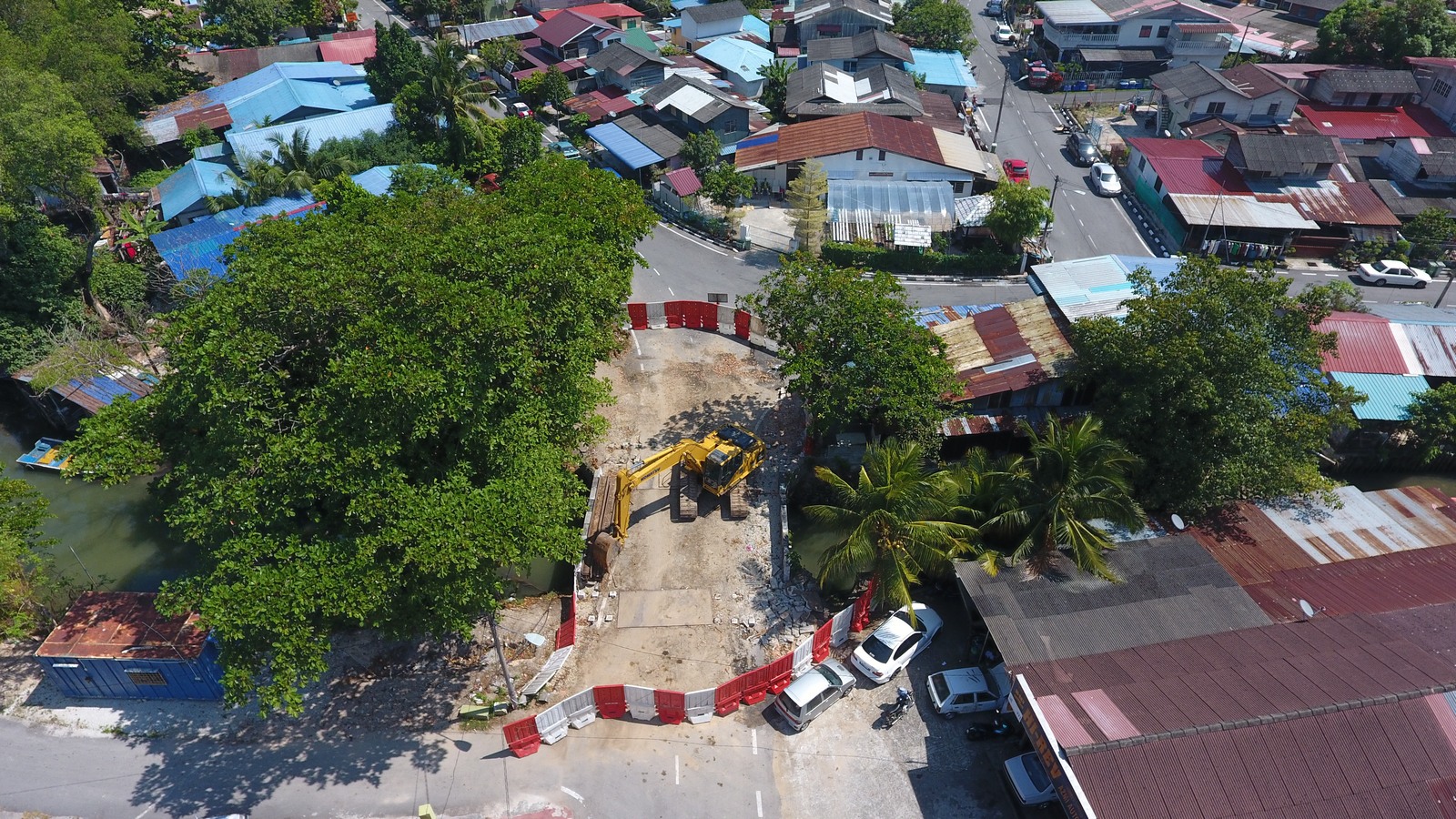

5.459322 N; 100.208538 E
Single Span UHPFRC Beam Composite In Situ Deck Bridge System: 10m x 9.9m wide.

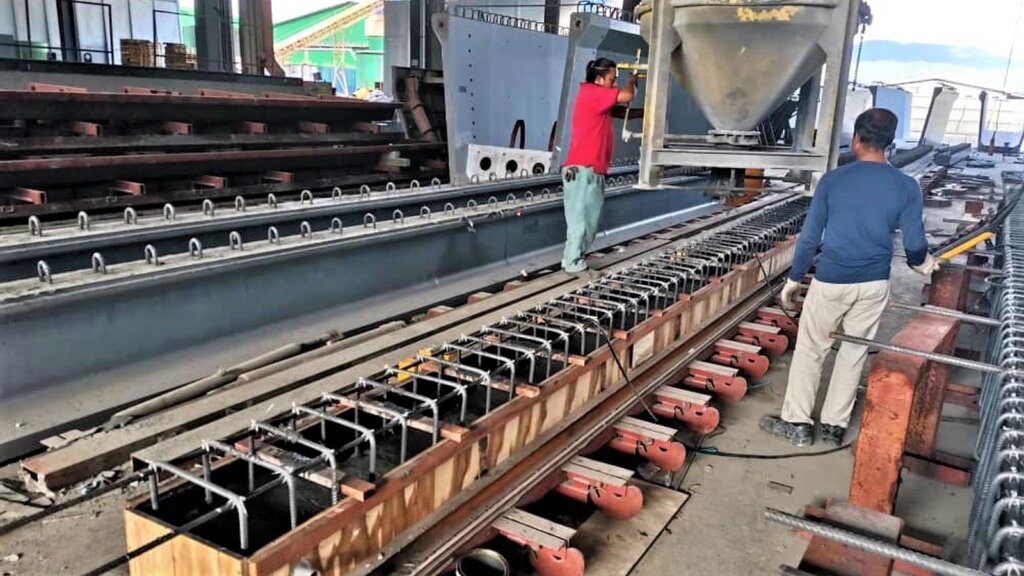

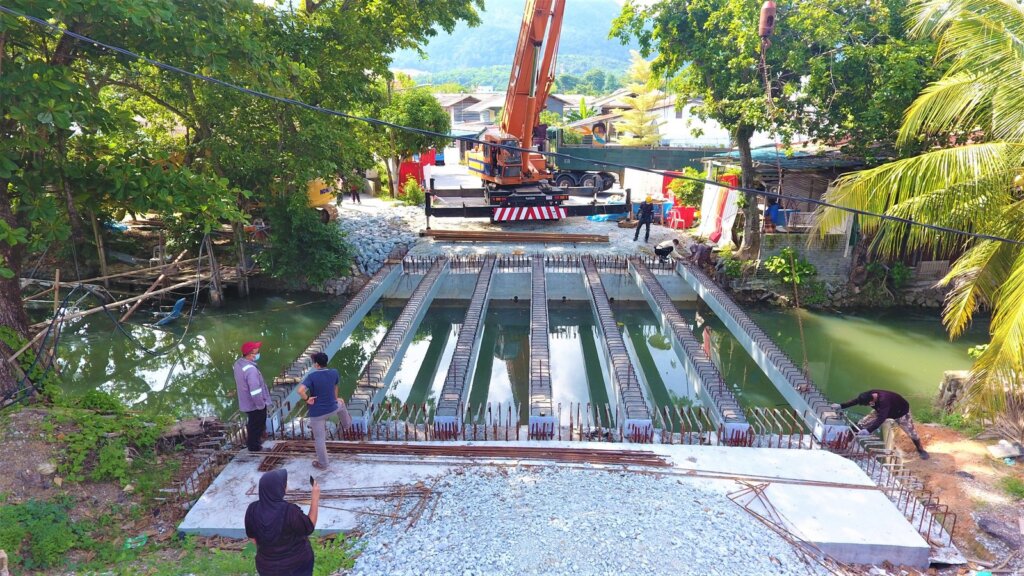

7 pieces of DURA® Shallow Beams 300 x 400 - 12m with Cast In-Situ RC Deck
2 nos. of Cast in-situ RC abutments
250mm x 250mm RC Pile
HA+KEL or 30 units HB loadings
JKR Pulau Pinang
JKR Daerah Barat Daya, Pulau Pinang
Perunding Kejuruteraan MK
Pembinaan I&R Sdn Bhd
12 months

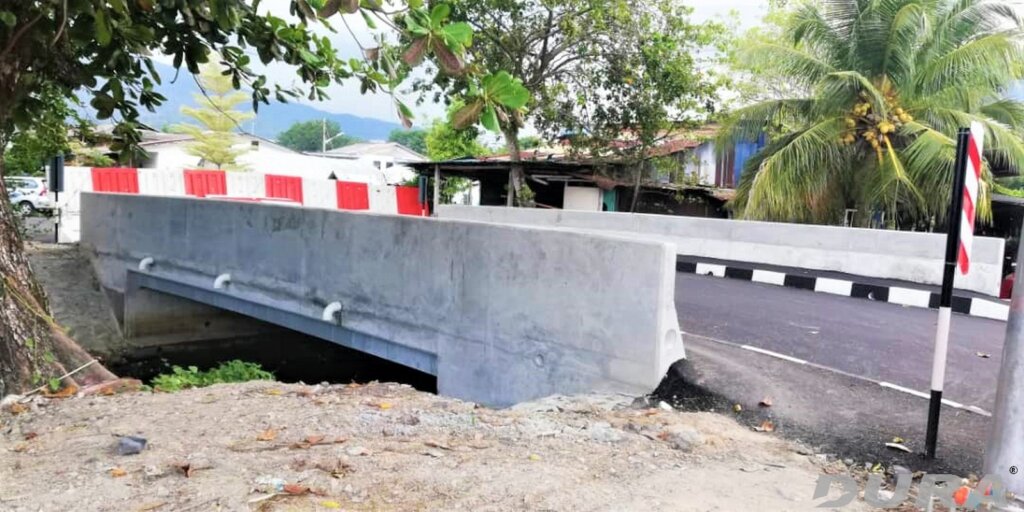

Completed
