DURA Technology Used in Jetty Construction in Bum Bum Island, Sabah

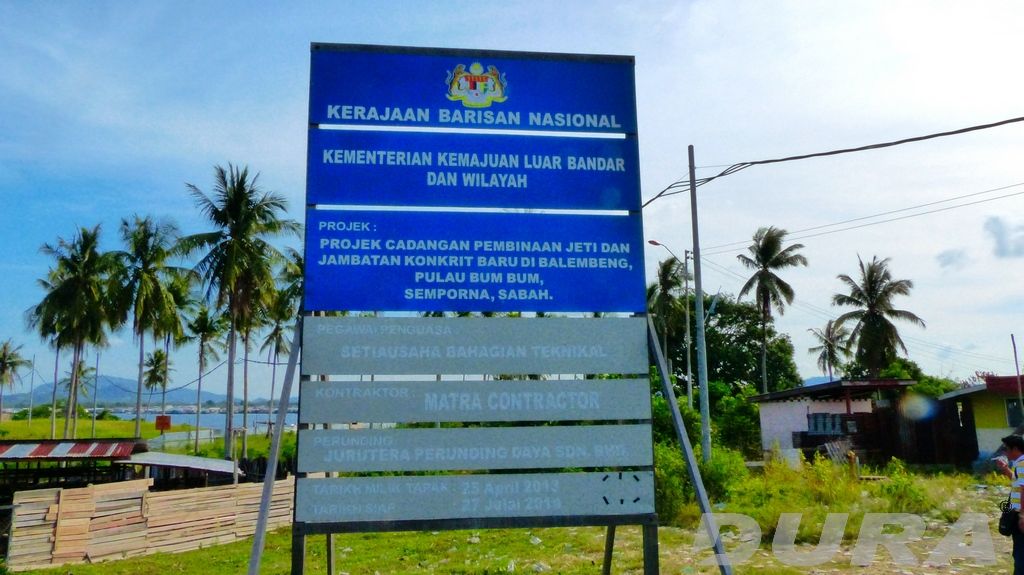

Project signboard and detail

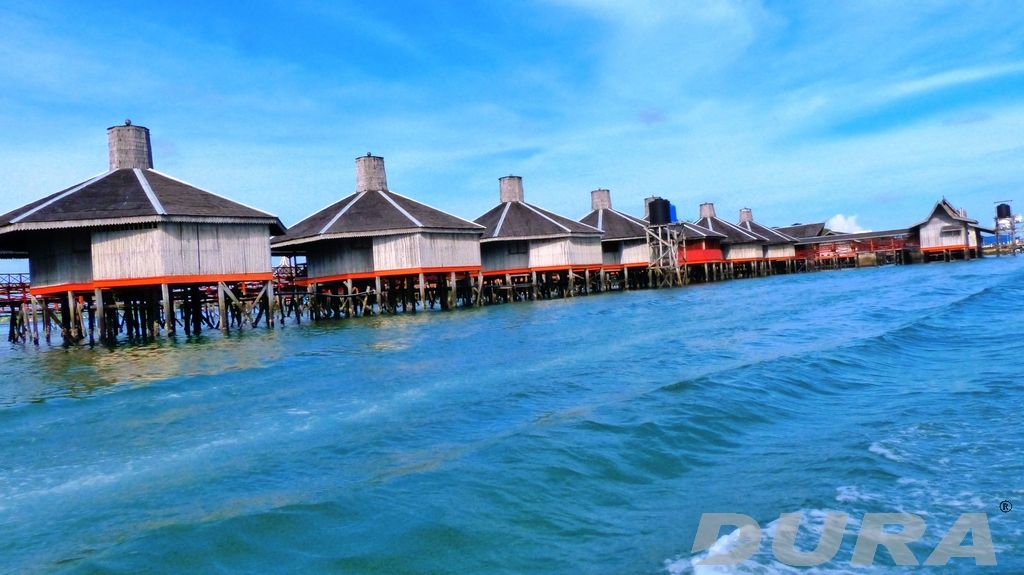

Dragon Inn resort 15km from Bum Bum jetty site

Existing timber jetty 150m from the proposed new jetty site

Existing timber jetty

Proposed site for the construction of the 240m long concrete jetty

Piling work in progress

Piling work in progress_2

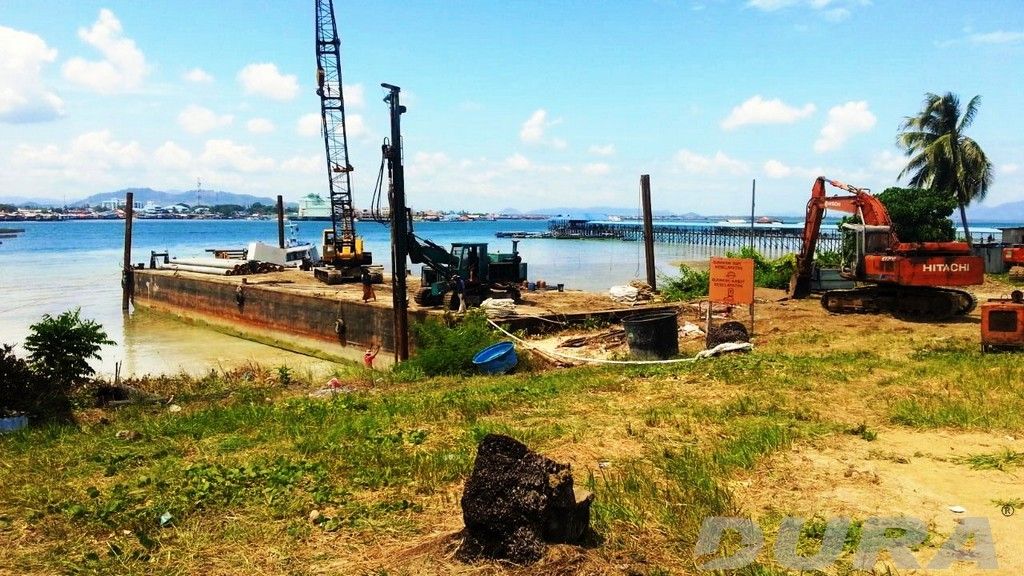

Boring of holes for piles in progress

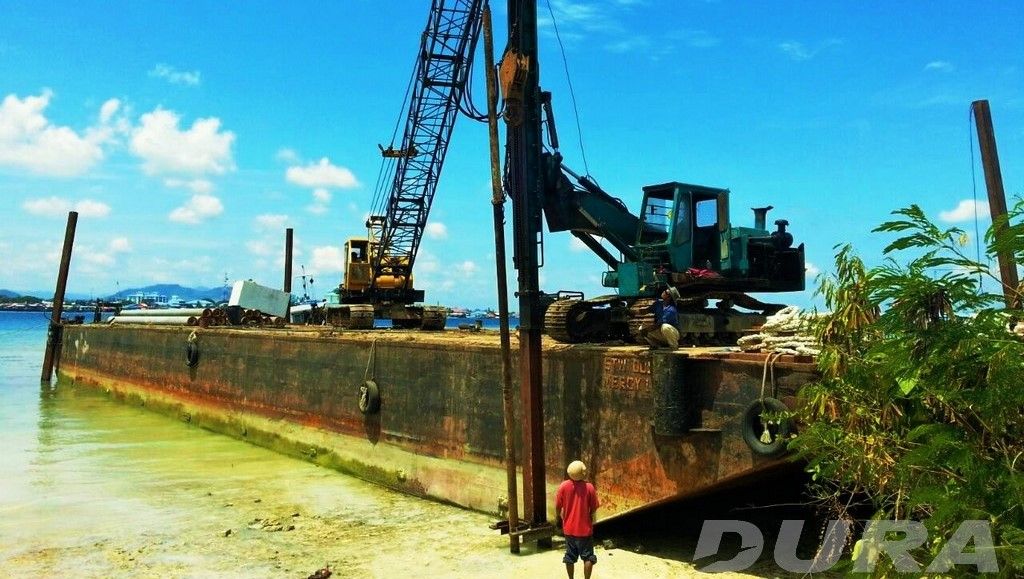

Boring of holes for piles in progress_2

Piling work in progress -14-03-2015-

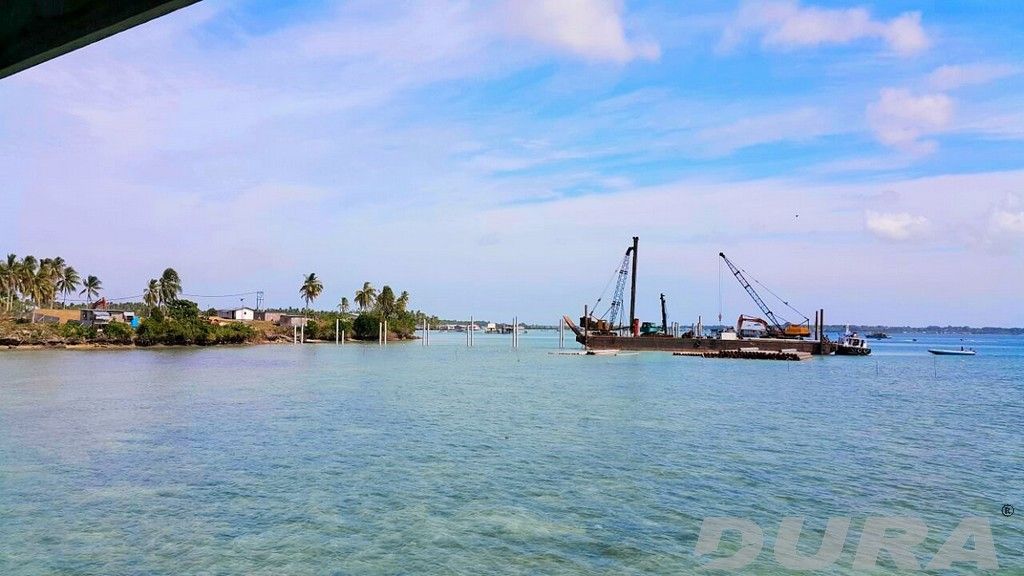

Piling work in progress -28-03-2015-

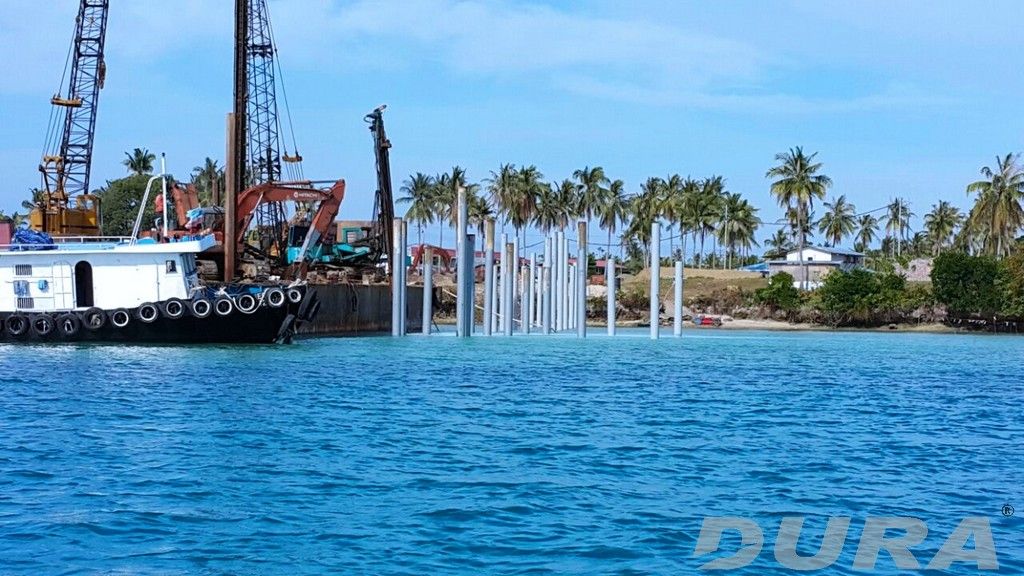

Piling work in progress -28-03-2015-_2

Spun piles have been cut-off to the expected level -10-05-2015-

Spun piles have been cut-off to the expected level -10-05-2015-_2

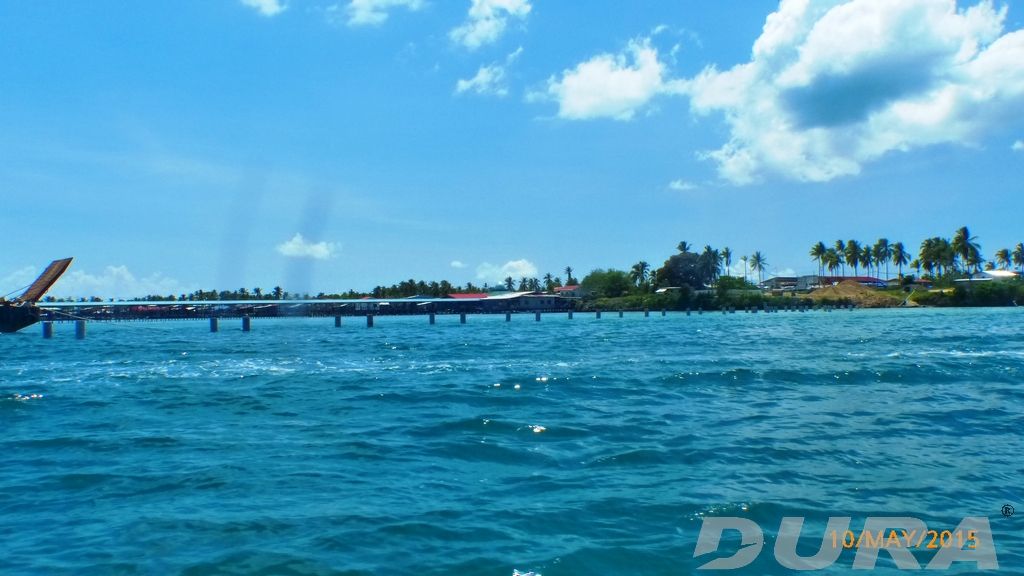

Spun piles have been cut-off to the expected level -10-05-2015-_3

Unloading precast jetty components to smaller barge -30-08-2015-

All precast jetty components unloaded to the installation barge -31-05-2015-

All precast jetty components unloaded to the installation barge -31-05-2015-_2

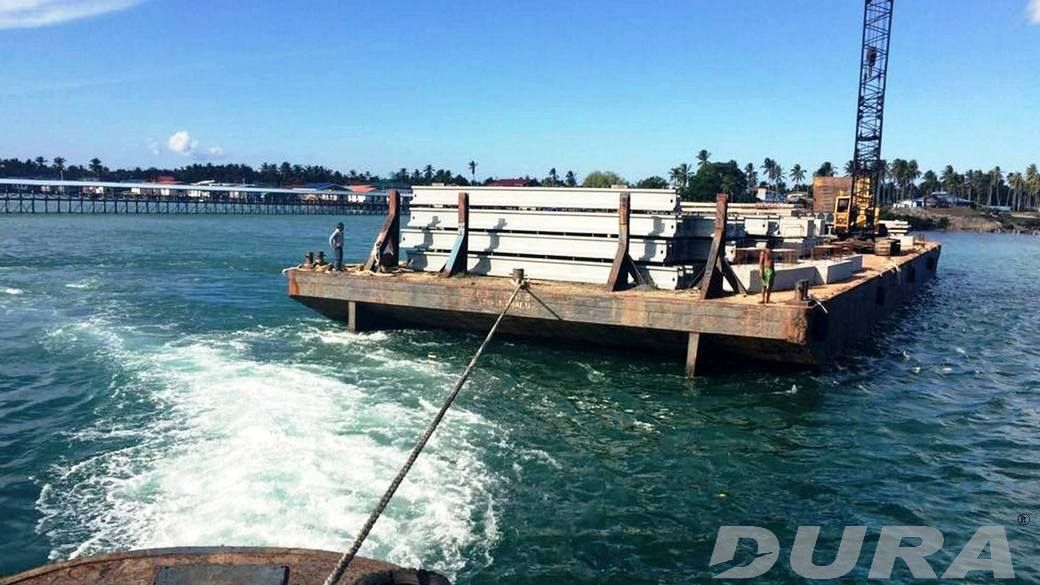

A tug boat towing the barge to a suitable location

Precast jetty components

Assembling of precast jetty components

Assembling of precast jetty components_2

Assembling of precast jetty components_3

Assembling of precast jetty components_4

Assembling of precast jetty components_5

Assembling of precast jetty components_6

Piles at jetty head

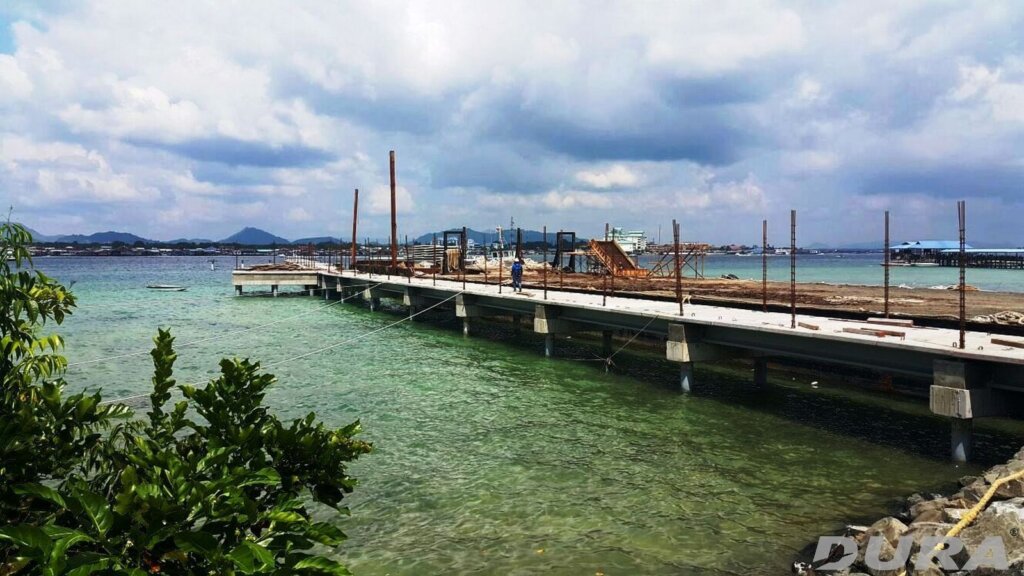

Jetty walkway mostly completed

Preparation for in-situ concreting for RC column

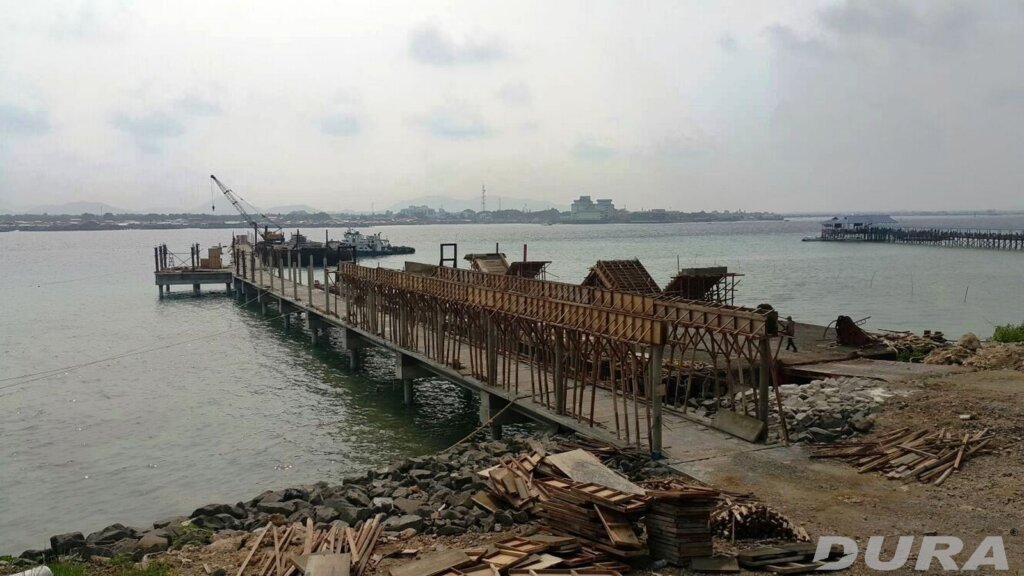

Preparation for in-situ concreting for RC column and roof beam -10-10-2015-

Preparation for in-situ concreting for RC pile cap for jetty head -10-10-2015-

Concreting work in progress for jetty head pile cap -10-10-2015-

Bum Bum Island Jetty almost complete construction

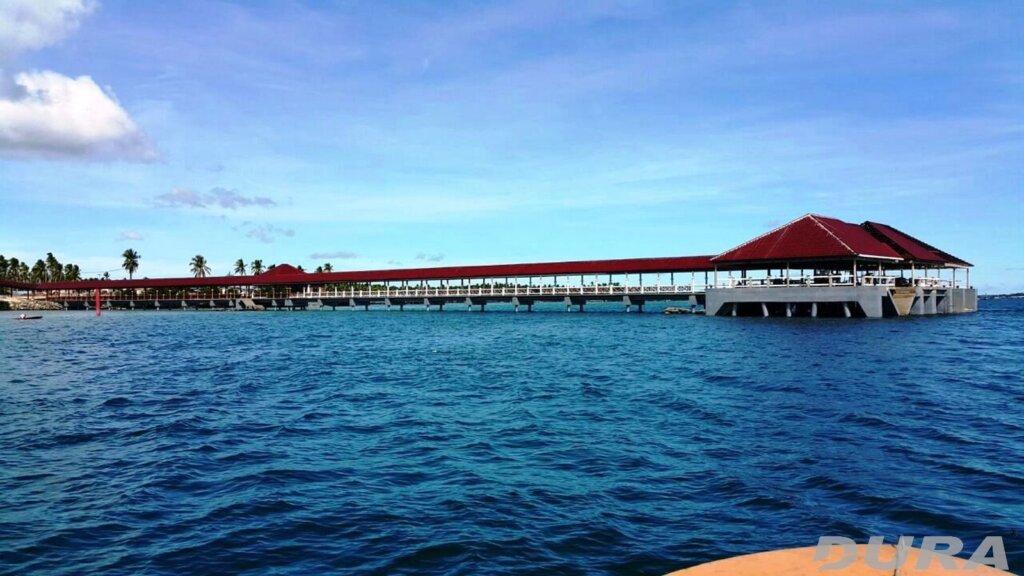

Bum Bum Island Jetty almost complete construction_2

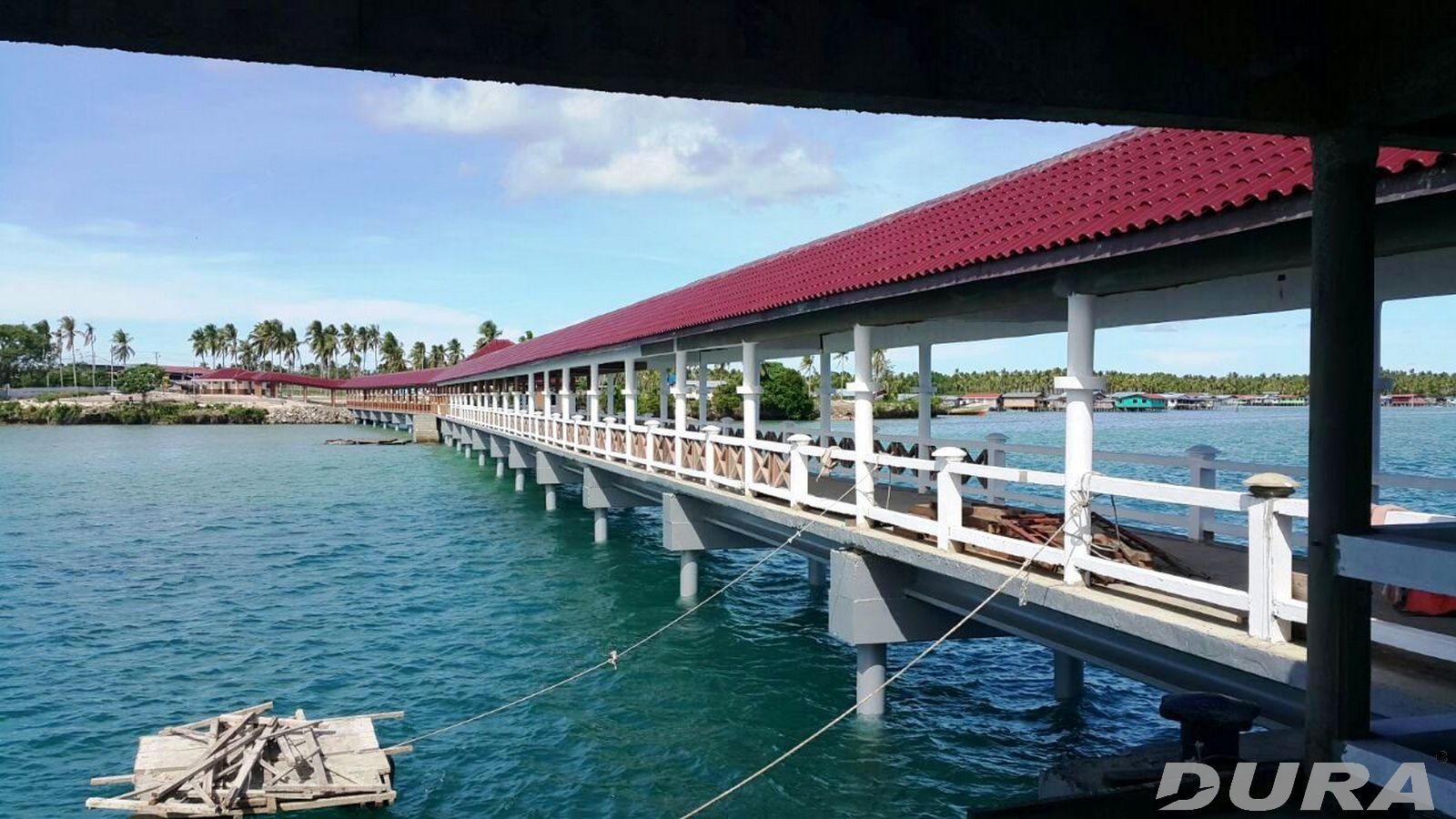

Bum Bum Island Jetty almost complete construction_3

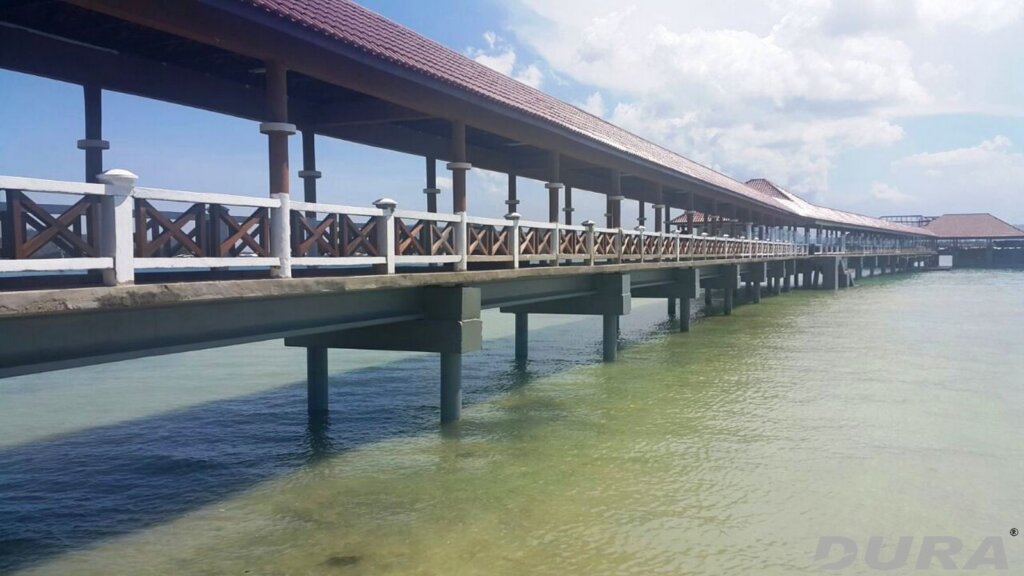

Bum Bum Island Jetty almost complete construction_4

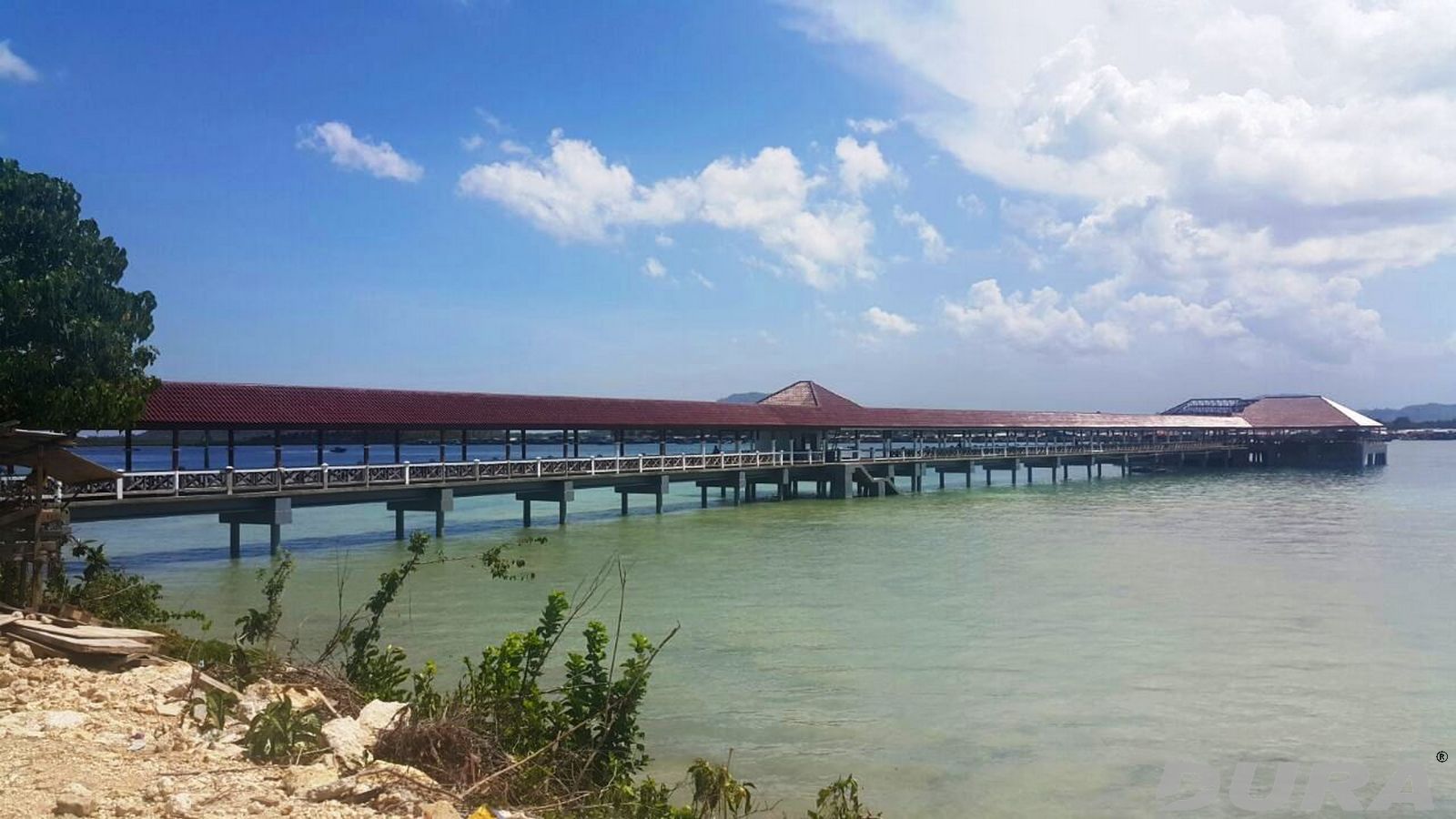

Bum Bum Island Jetty almost complete construction_5

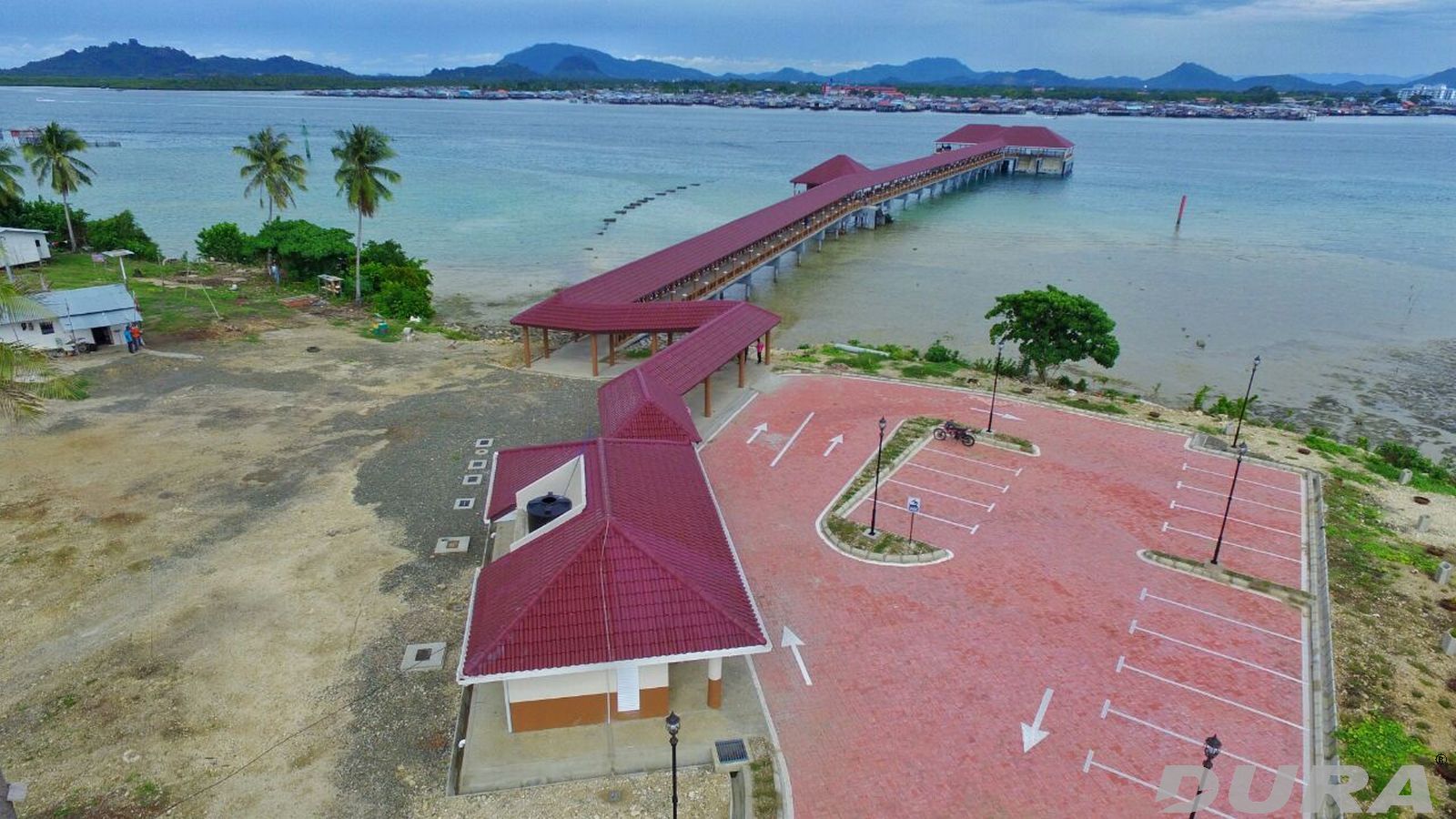

Completed Bum Bum jetty

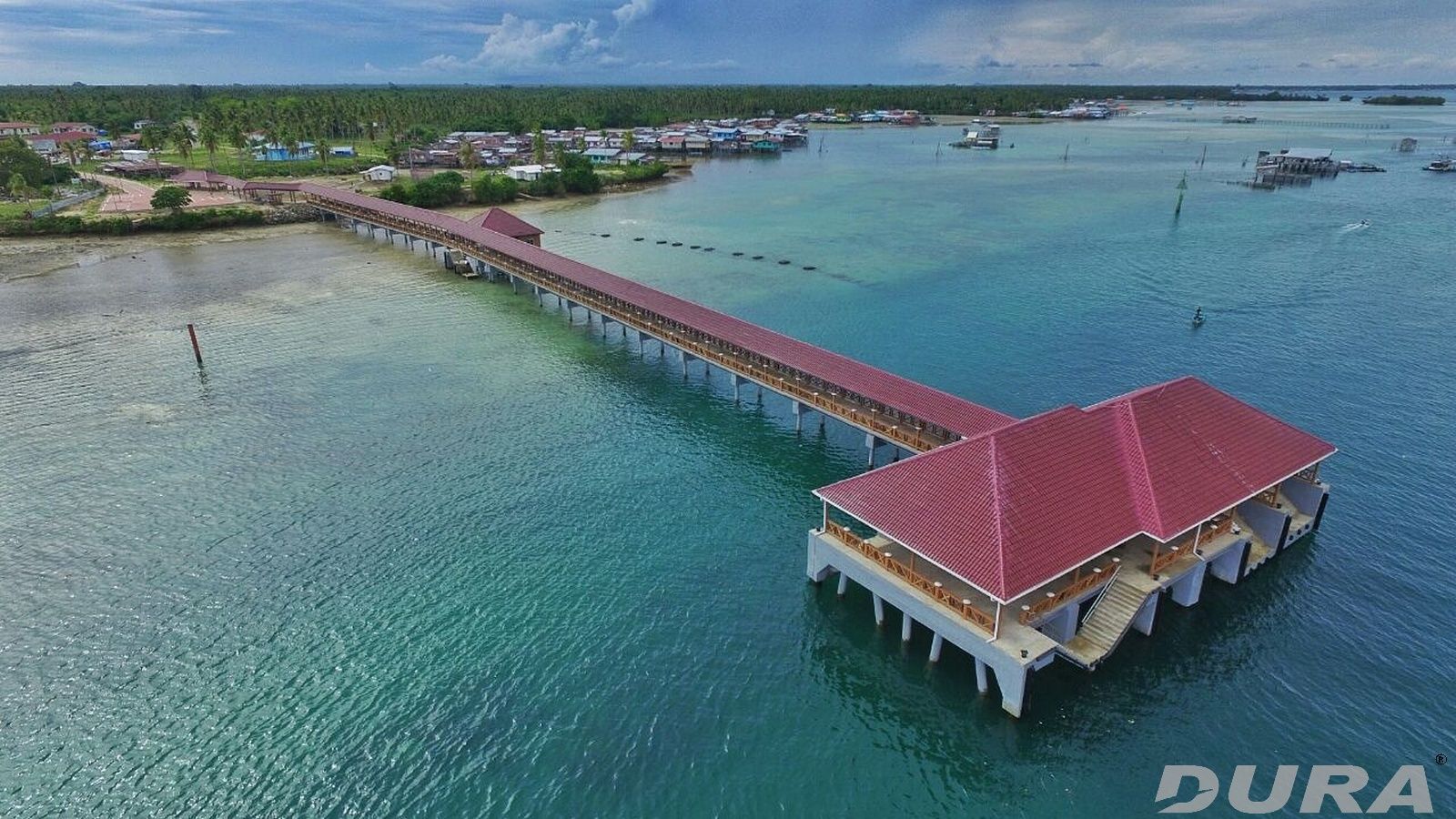

Completed Bum Bum jetty_2

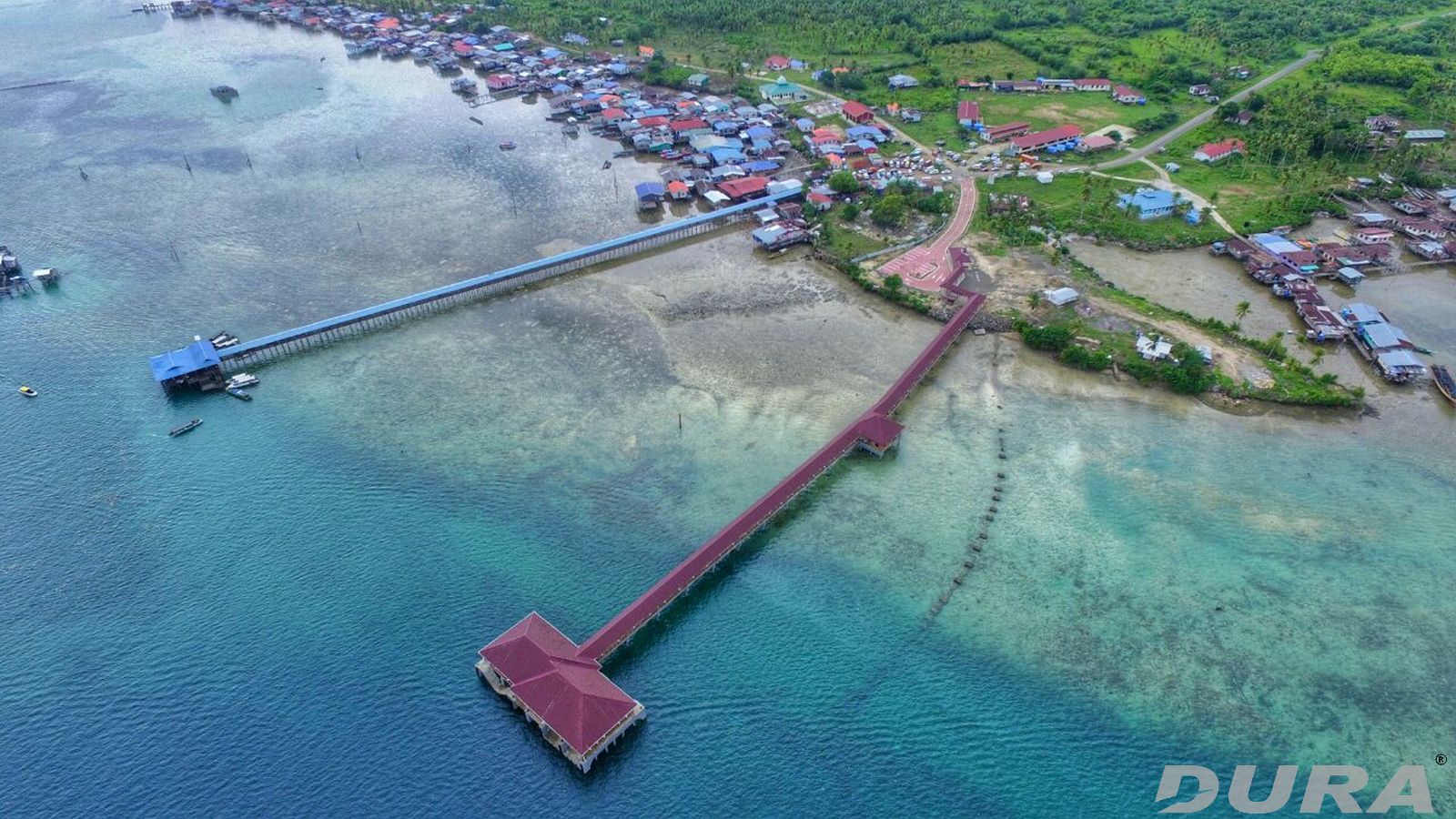

Completed Bum Bum jetty_3

Project Title

Construction of a Concrete Jetty Bridge at Balembang, Bum Bum Island, Semporna, Sabah.(Pembinaan Jeti Dan Jambatan Konkrit Baru Di Balembang Pulau Bum Bum, Semporna, Sabah.)

Project Year

2016

Status

Completed Project

Country

Malaysia

GPS Cordinates

4.477529 N; 118.627185 E

Structure Type

Approximate 240m long multiple span jetty, build with UHPC Composite Jetty System.

Superstructure Feature

86 pieces of DURA® IB650-4.9m to 9.9m & 126 pieces of precast deck slab (Grade 60)

Substructure Feature

Combination of 44 nos. precast Grade 60 pier crosshead and in-situ RC pile cap and pre-bored 400mm dia. and 500mm dia. spun pile (Class C)

Client

KKLW

Superintendent Officer (S.O.)

Setiausaha Bahagian Teknikal

Consultant

Jurutera Perunding Daya S/B

Contractor

Matra Contractor

Contract Period

12 months

Construction Status

Completed
