Dura U Beams Firstly Used in LLM Project- Duke 3 Section 2

  • Project Status

  • Select Country

  • Select Years

  • Reset

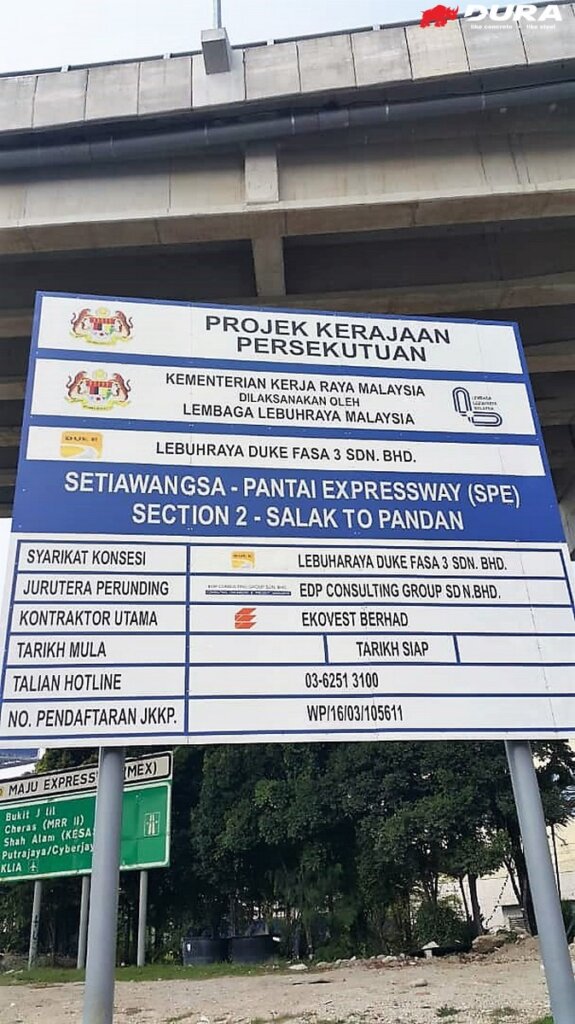

Project signboard.
Project signboard.

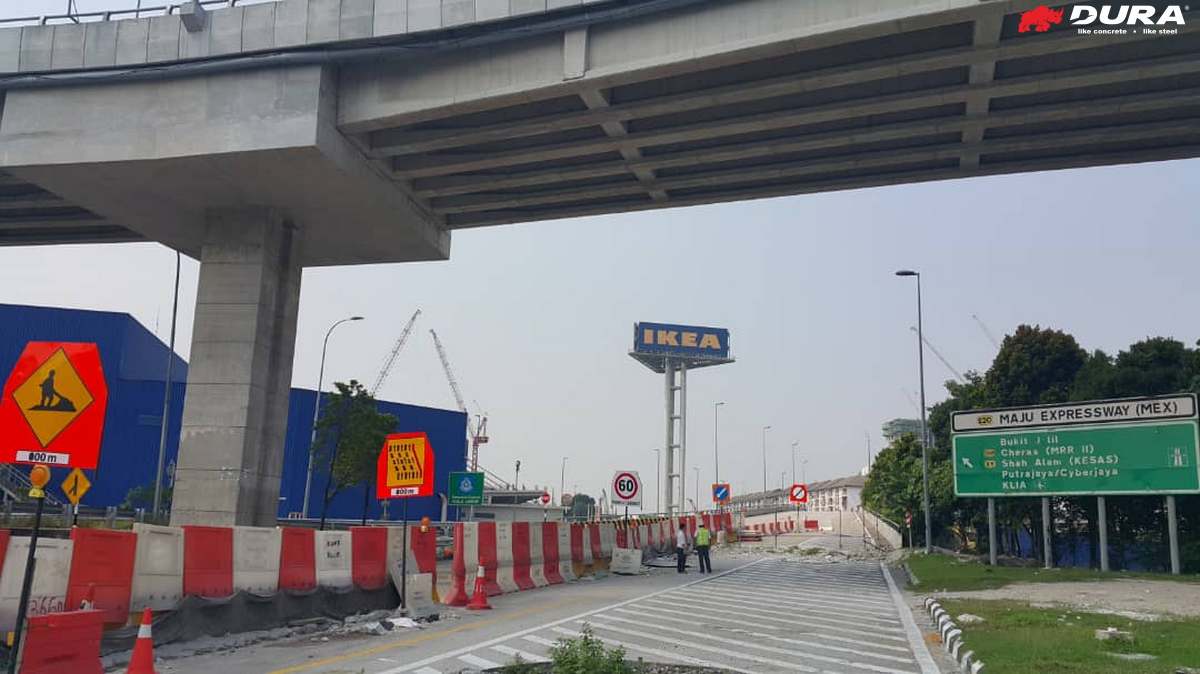

Existing site view.
Existing site view.

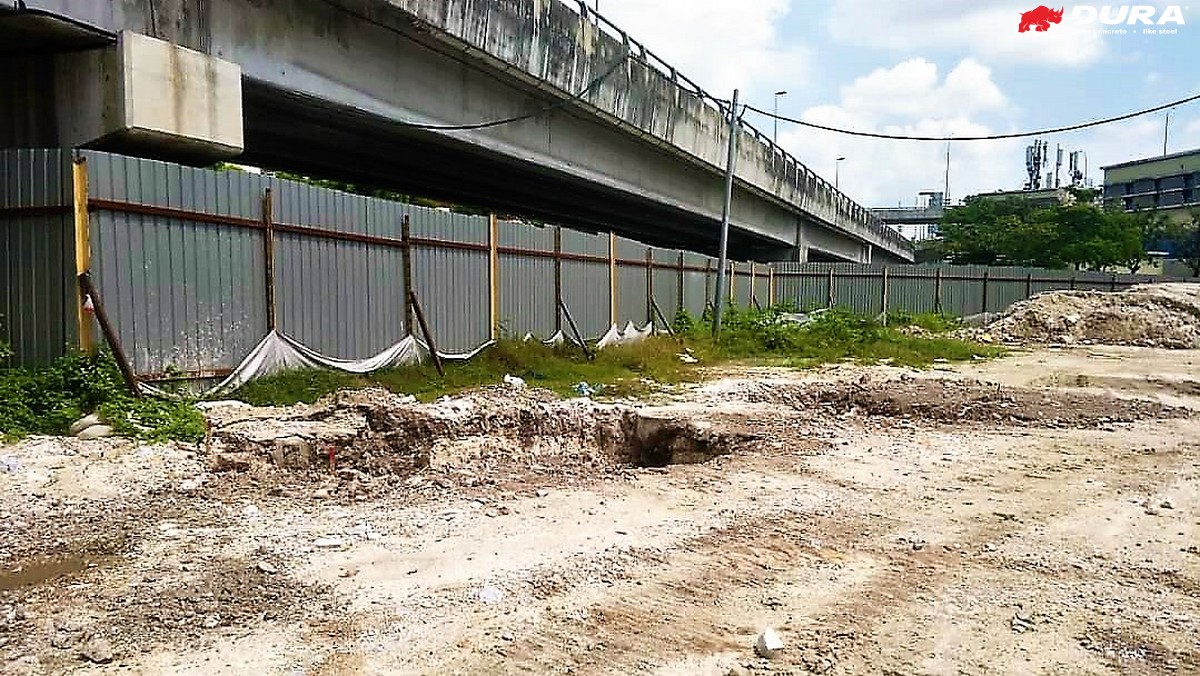

Location of Piers P68 LHS bore pile completed.
Location of Piers P68 LHS bore pile completed.

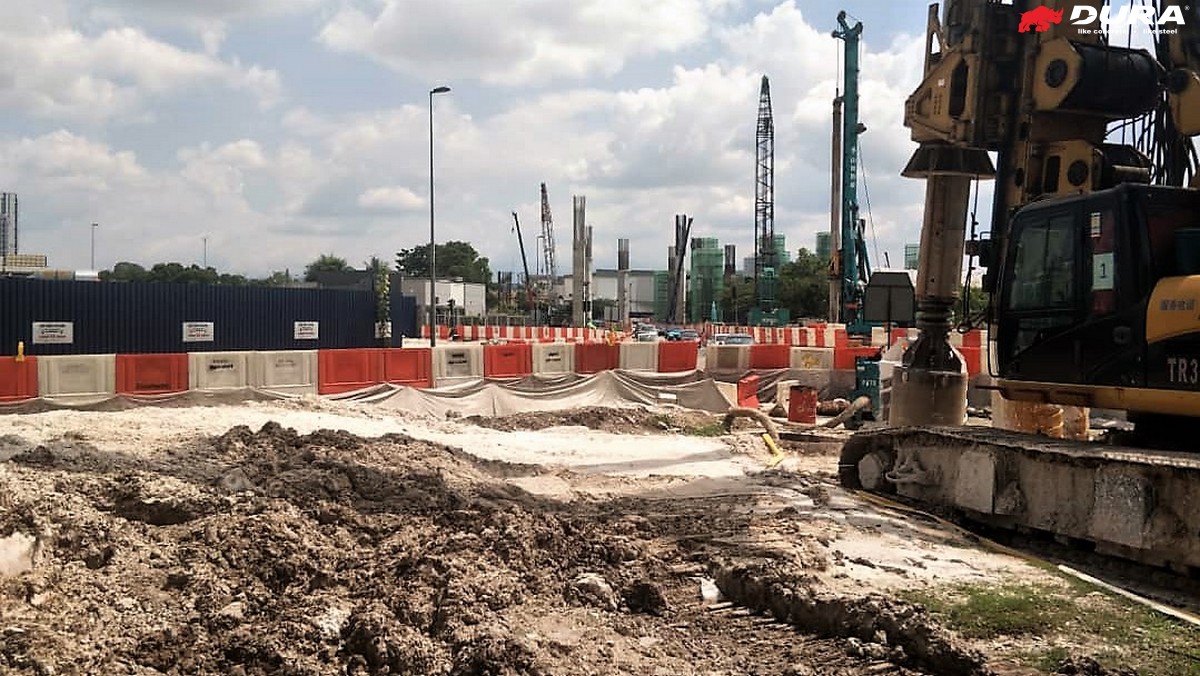

Location of Piers P72-P73.
Location of Piers P72-P73.

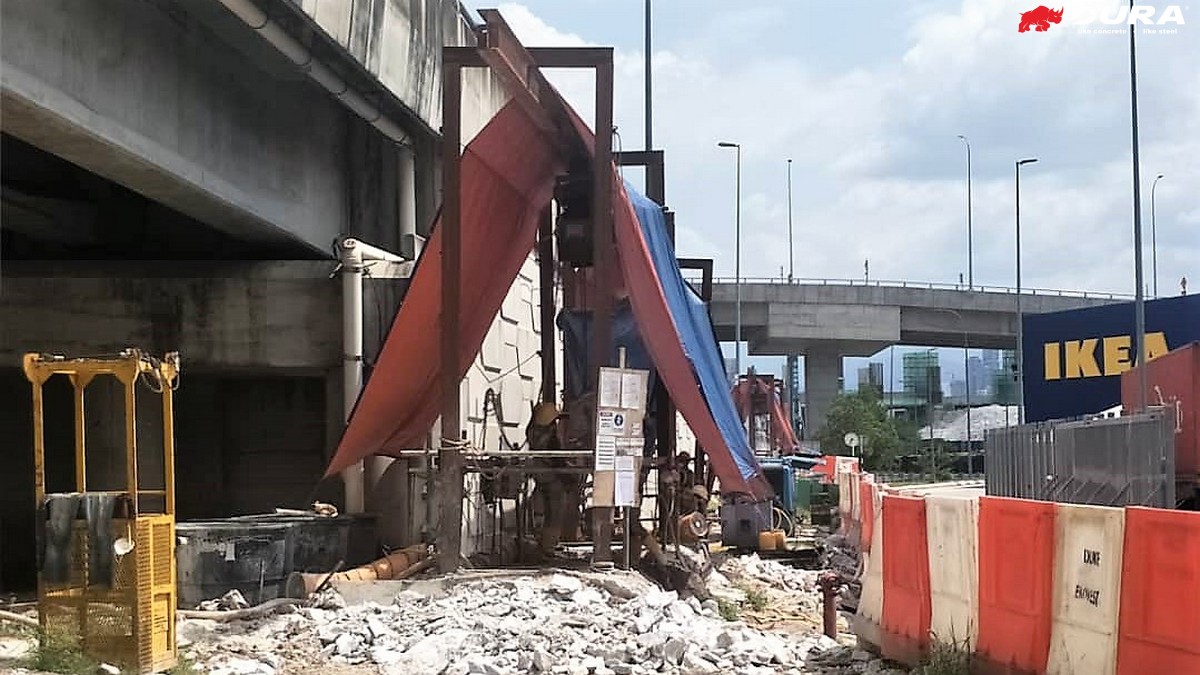

Location of Piers P68 &P70 RHS HDC in progress (01032019).
Location of Piers P68 &P70 RHS HDC in progress (01032019).

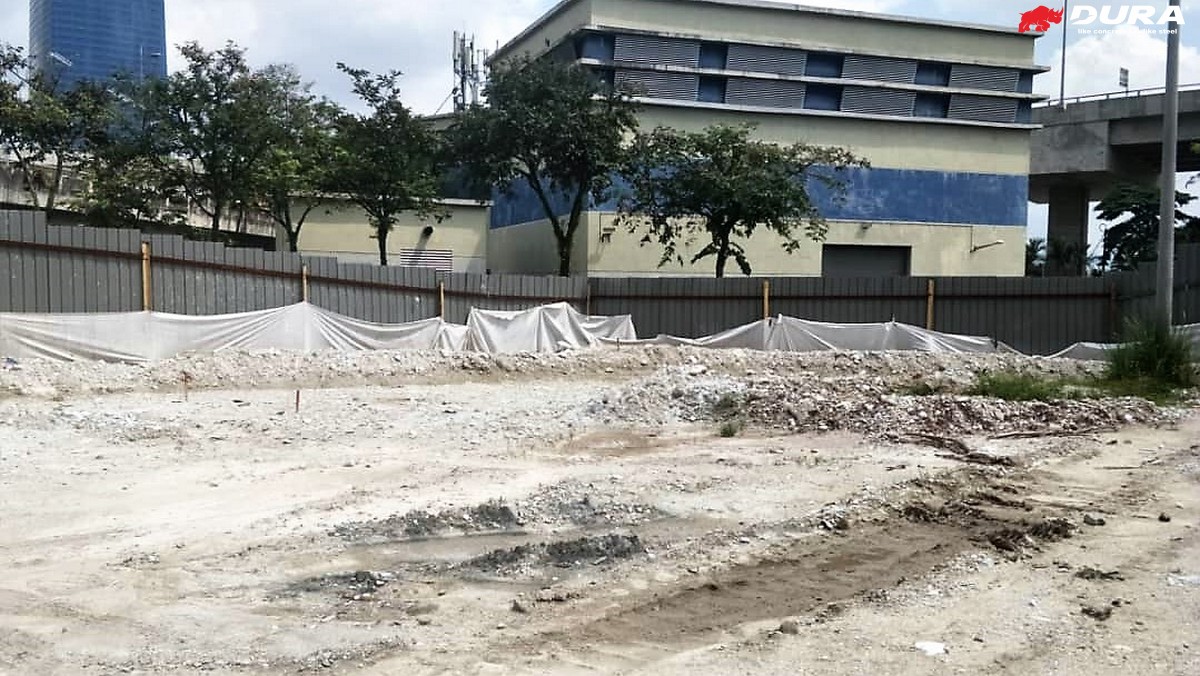

Location of Piers P70L bore pile completed (01032019).
Location of Piers P70L bore pile completed (01032019).

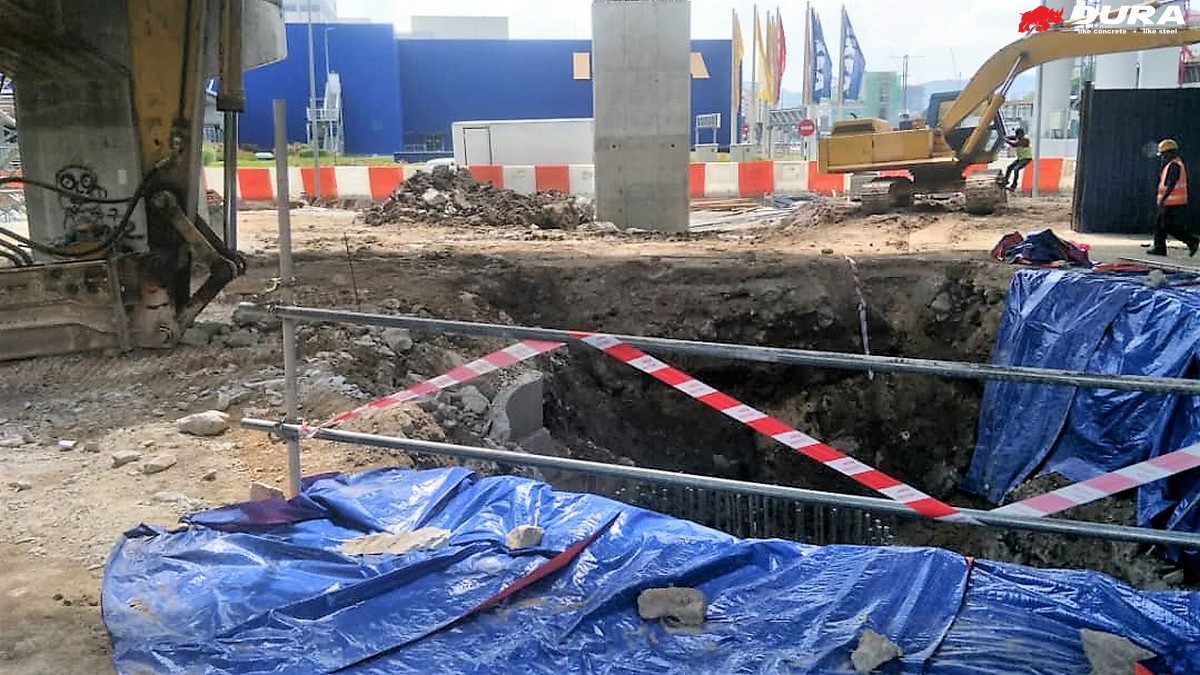

Location of Piers P65L HDC(01032019).
Location of Piers P65L HDC(01032019).

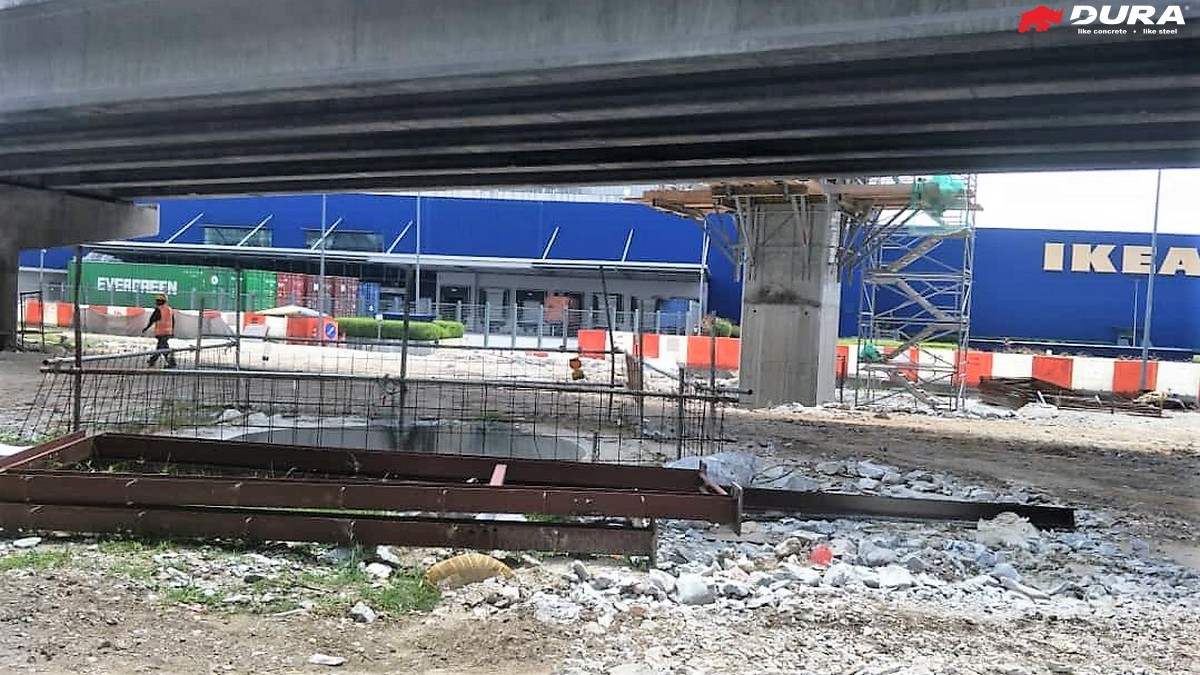

Location of Piers P66 LHS HDC completed (01032019).
Location of Piers P66 LHS HDC completed (01032019).

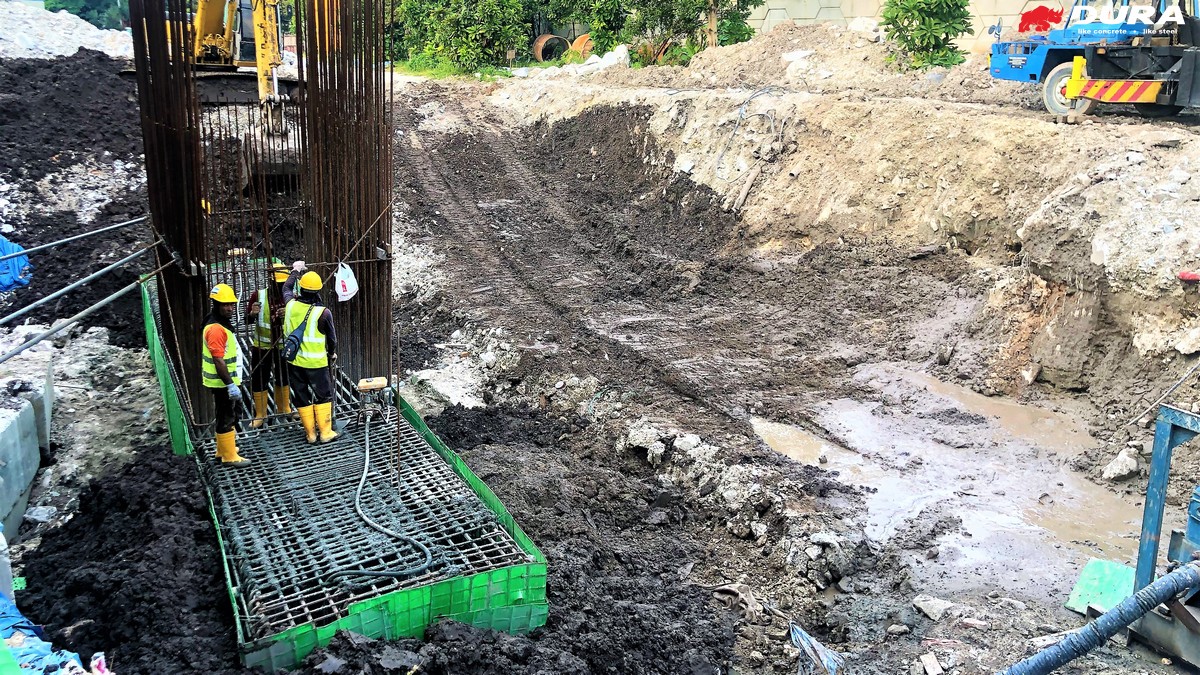

Concreting pile cap for Pier P68R (270619).
Concreting pile cap for Pier P68R (270619).

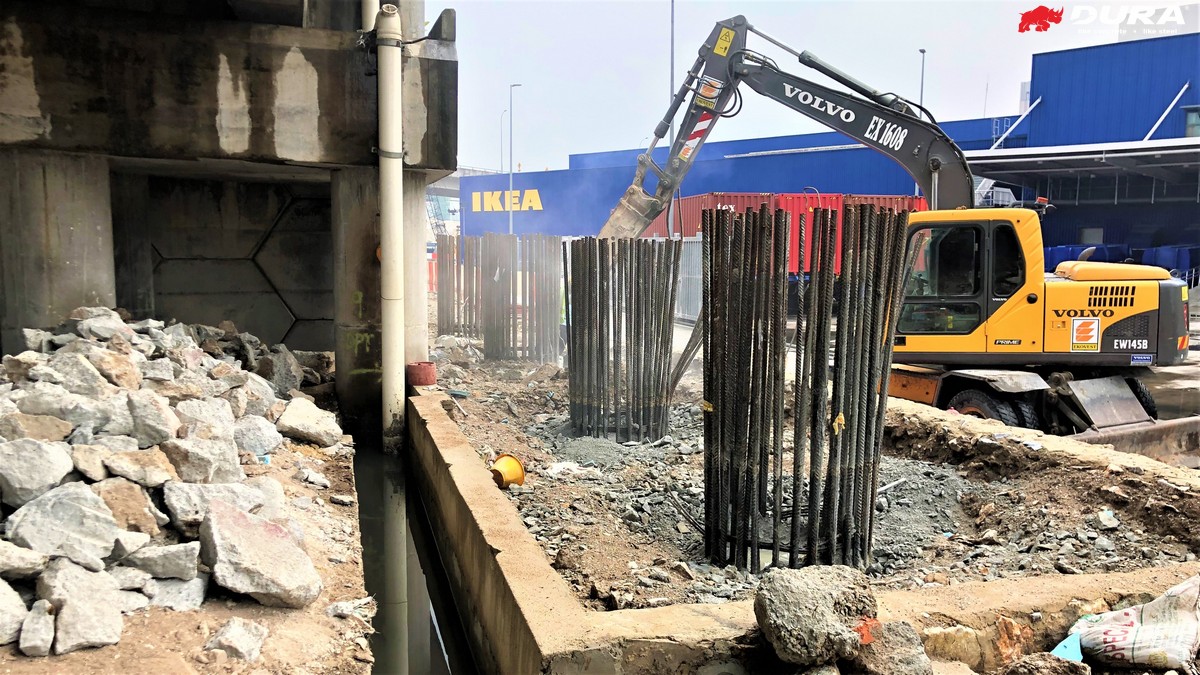

Bored piles at Pier 70.
Bored piles at Pier 70.

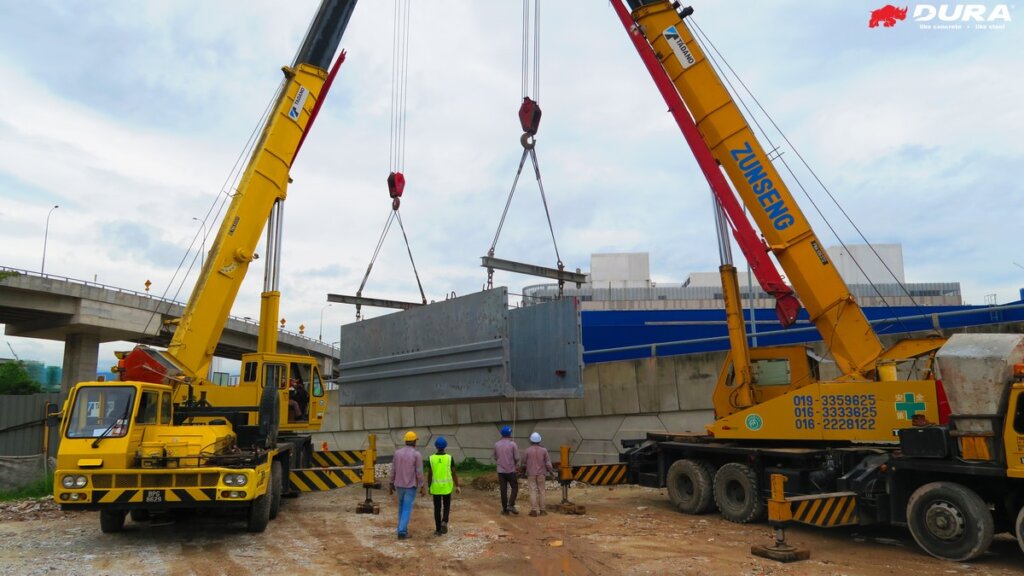

Unloading of UHPC portal shell using 2 units of 45t mobile cranes (100220).
Unloading of UHPC portal shell using 2 units of 45t mobile cranes (100220).

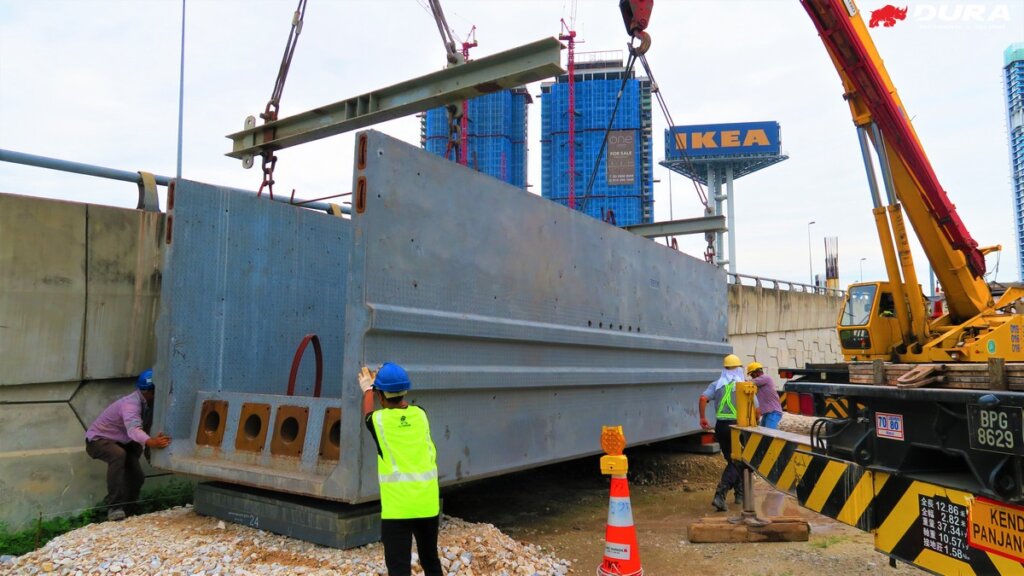

Assembly of first portal shell segment (100220).
Assembly of first portal shell segment (100220).

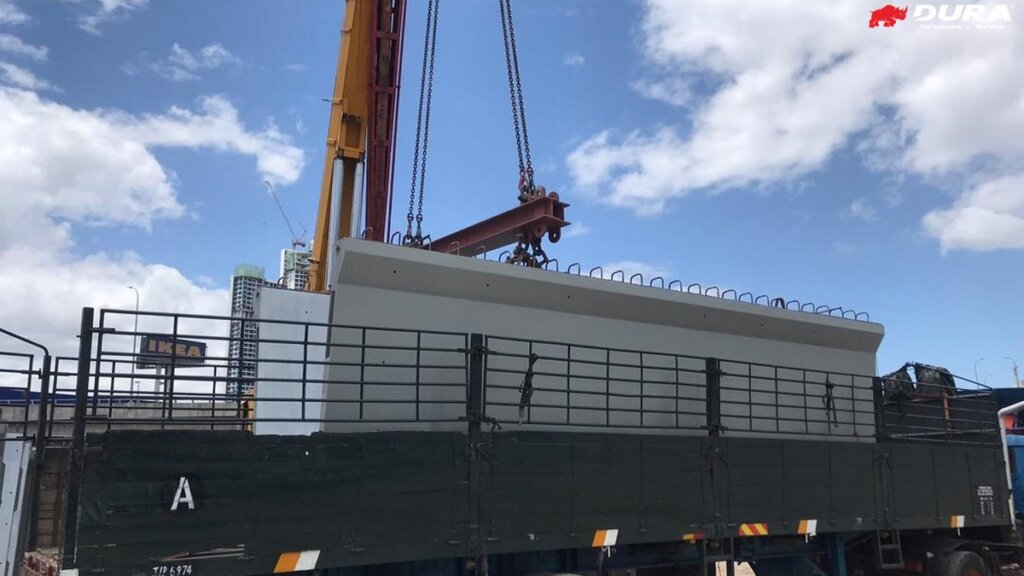

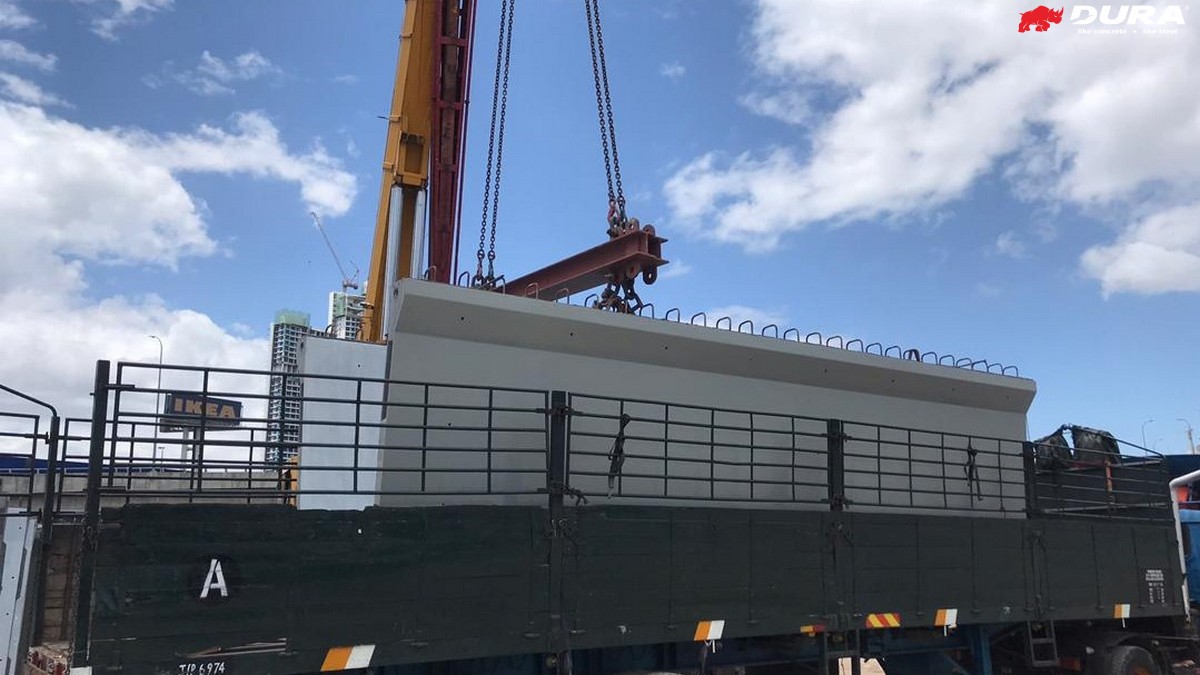

Unloading of UBG2500 segments (220220).
Unloading of UBG2500 segments (220220).

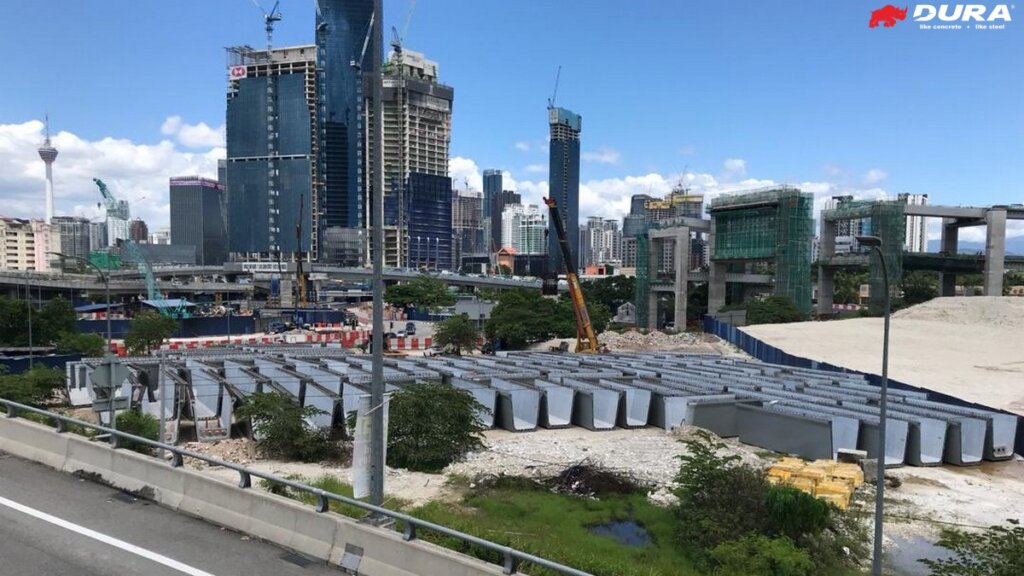

UBG2500 segments in storage yard.
UBG2500 segments in storage yard.

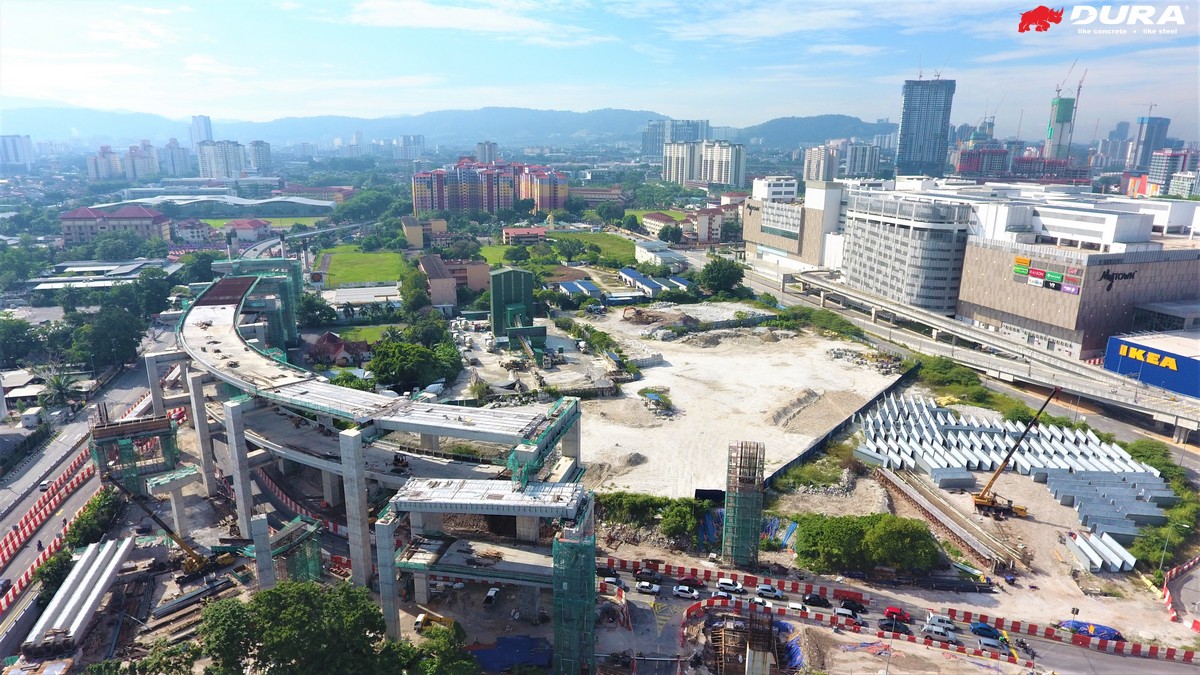

DURA U segments in storage yard

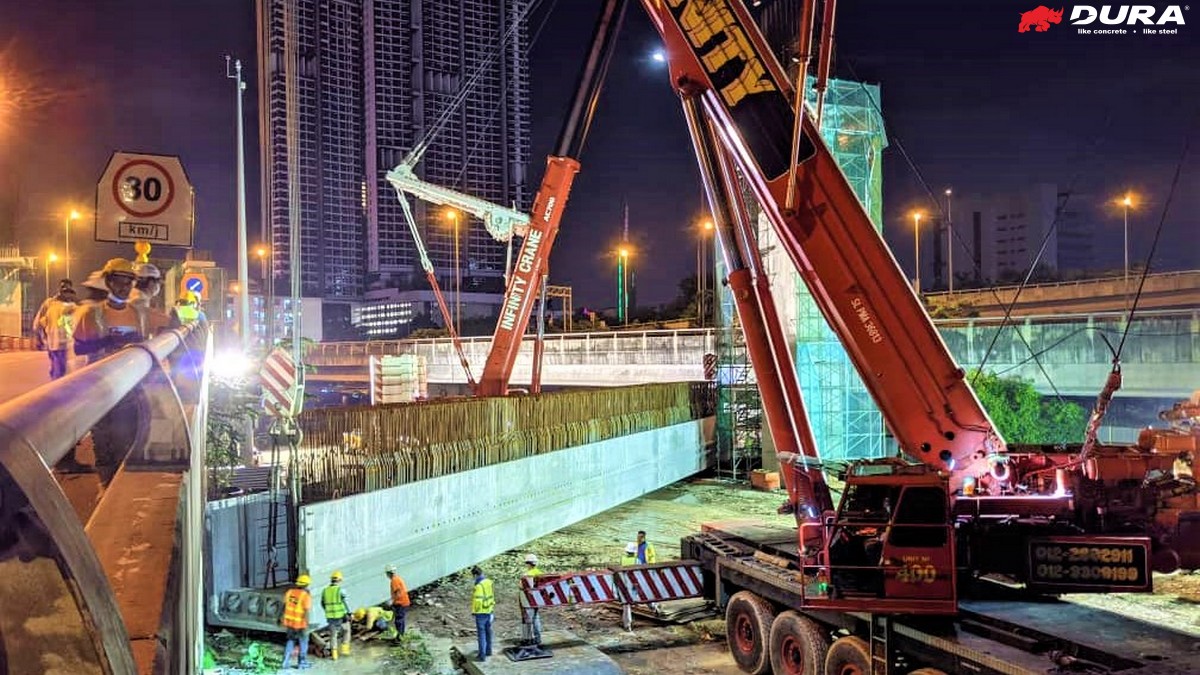

Getting ready to launch the first portal shell onto the pier P68.
Getting ready to launch the first portal shell onto the pier P68.

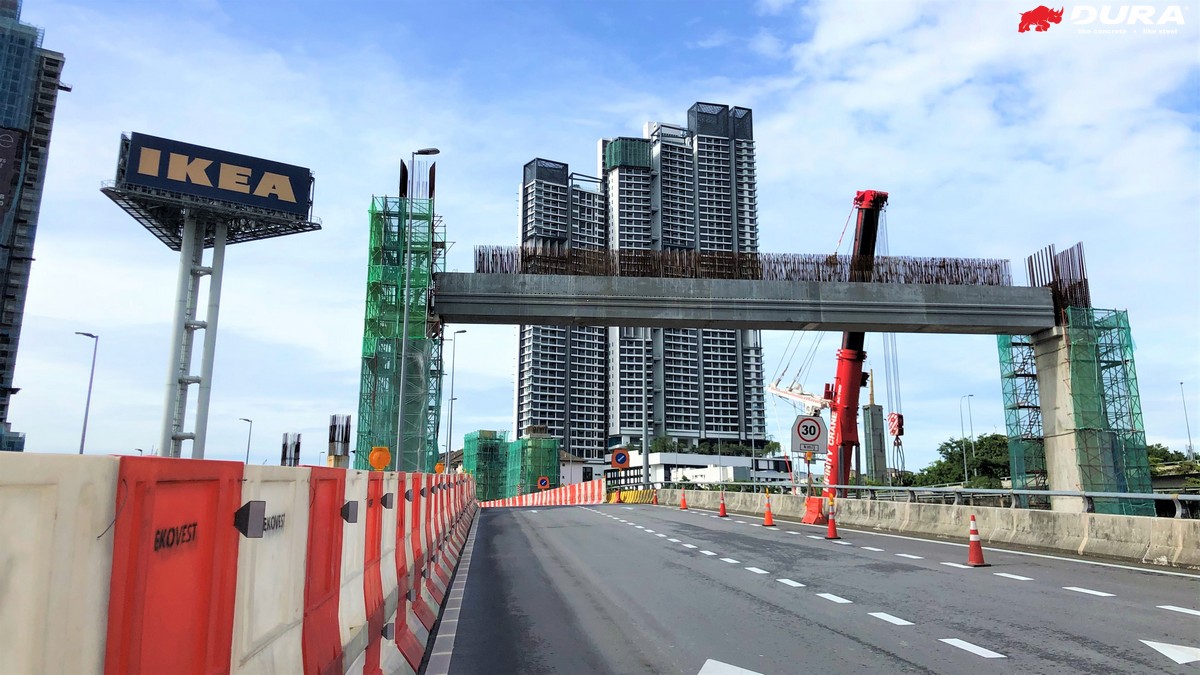

First portal shell positioned.
First portal shell positioned.

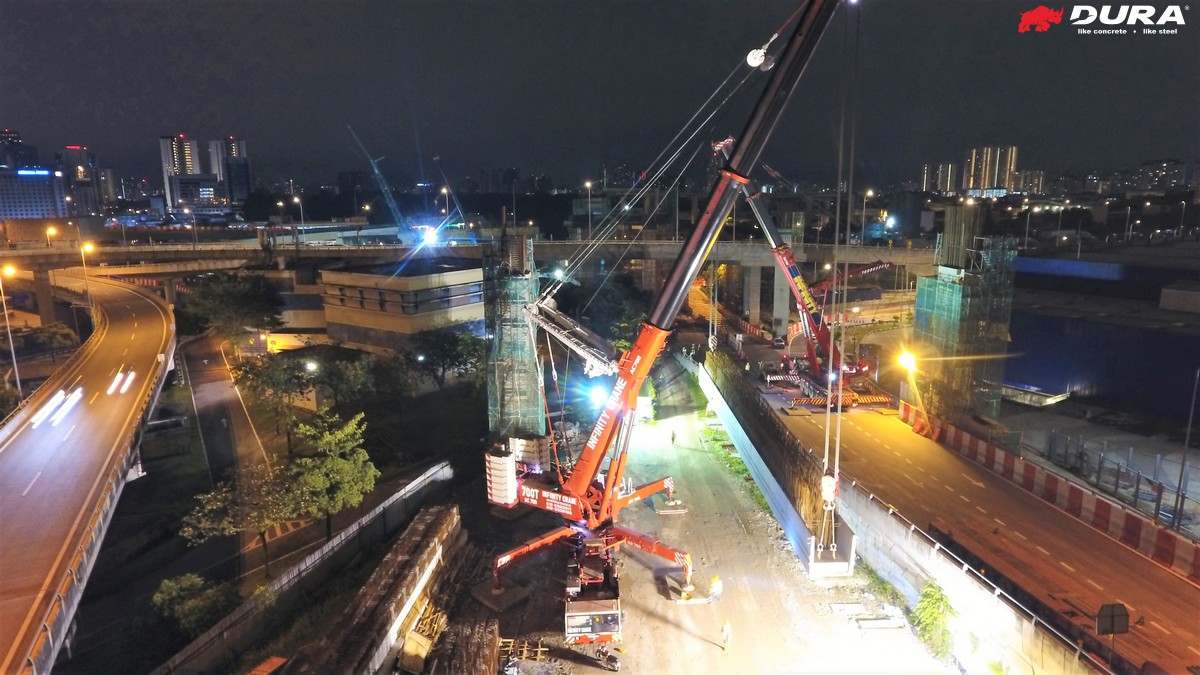

Getting ready to launch second portal shell onto pier P70

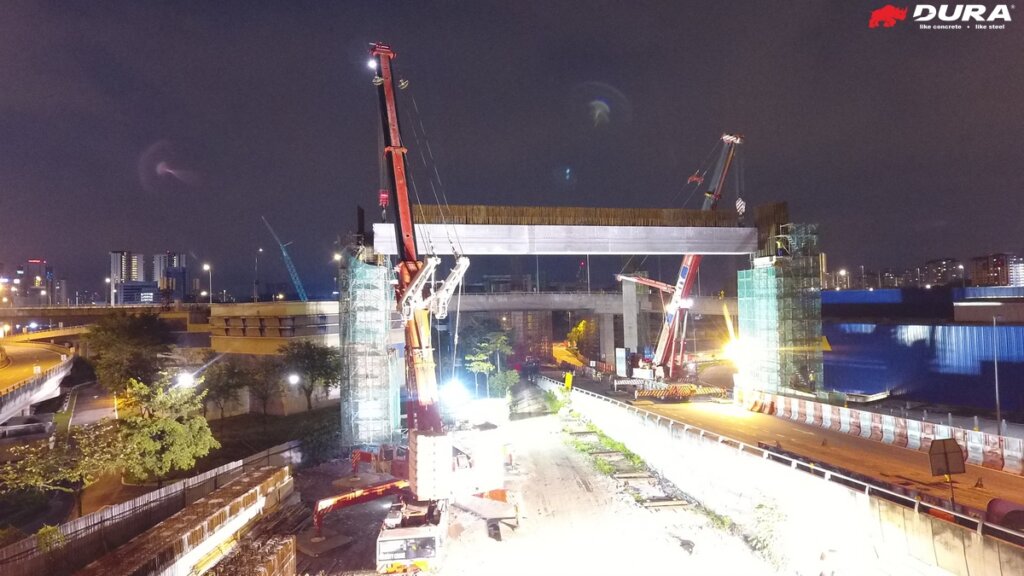

Positioning the second portal shell onto pier P70

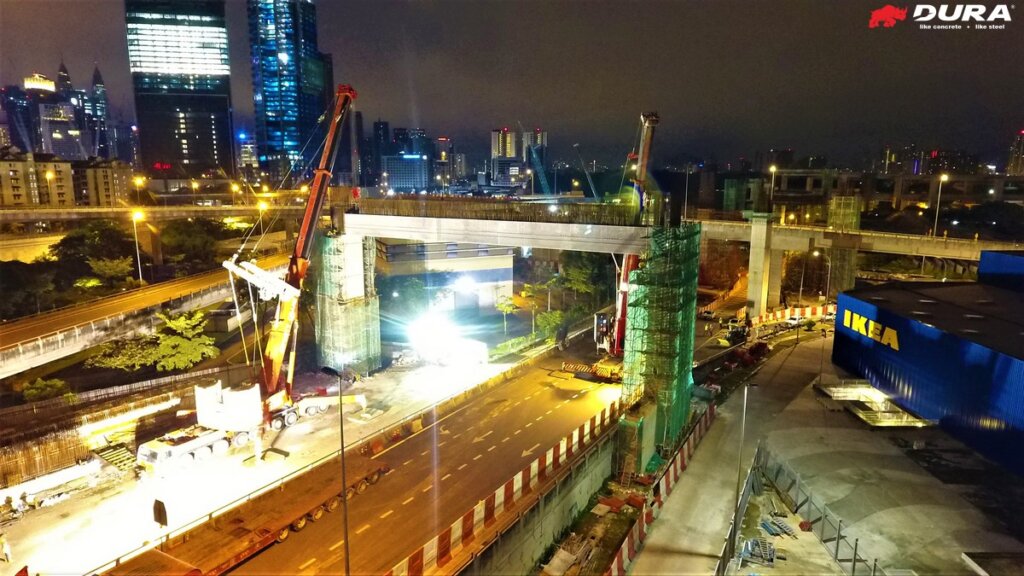

Second portal shell positioned

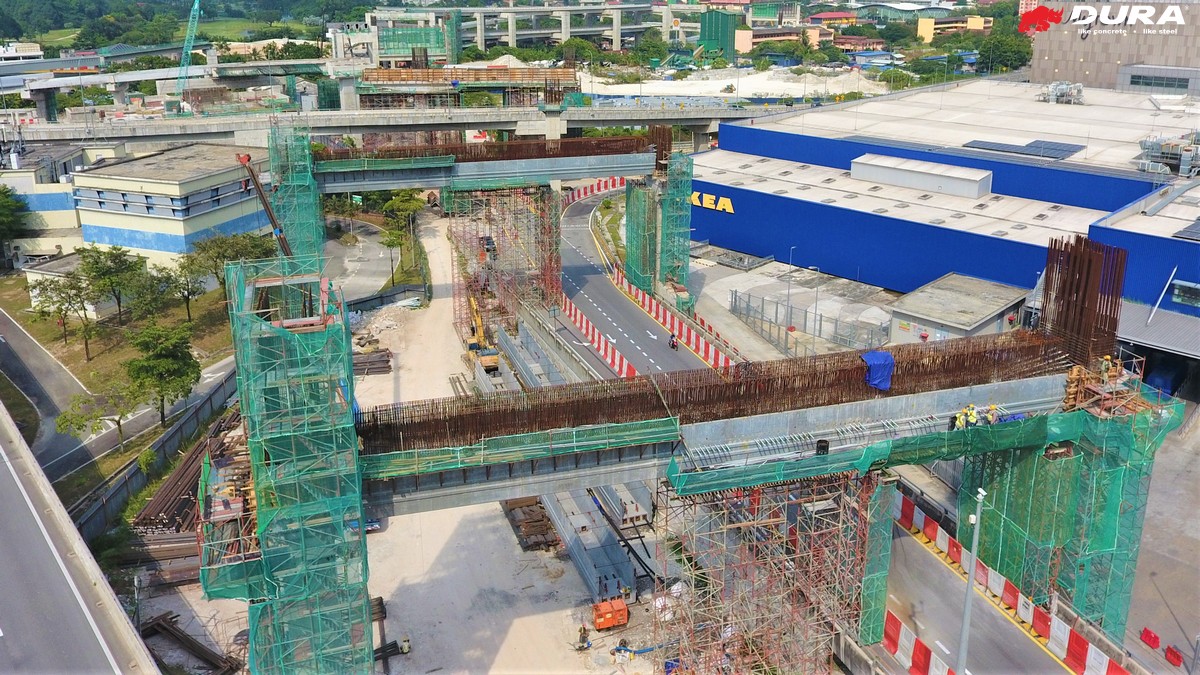

Construction of portal beam in progress

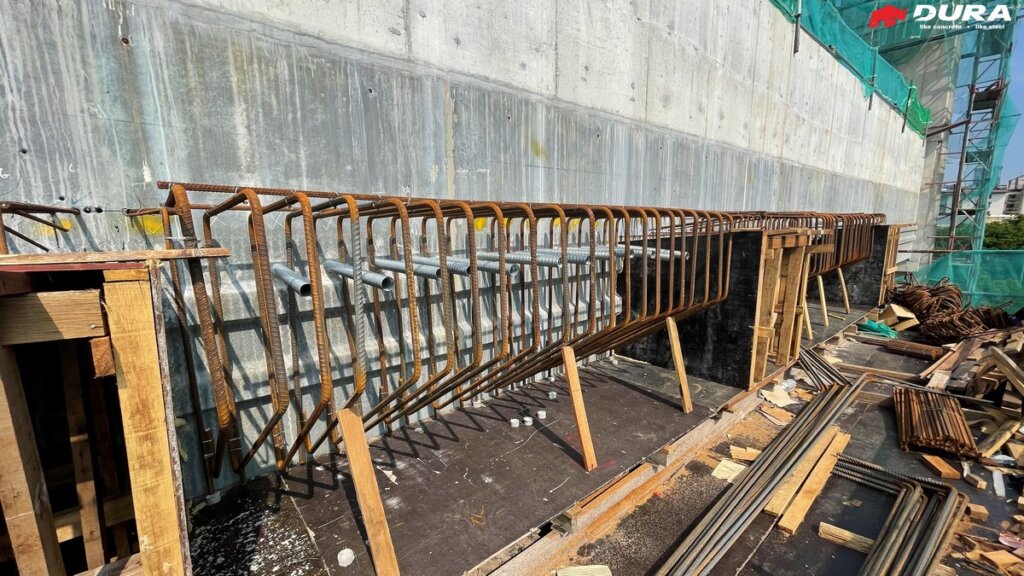

Fixing rebars and sheath for the corbel.
Fixing rebars and sheath for the corbel.

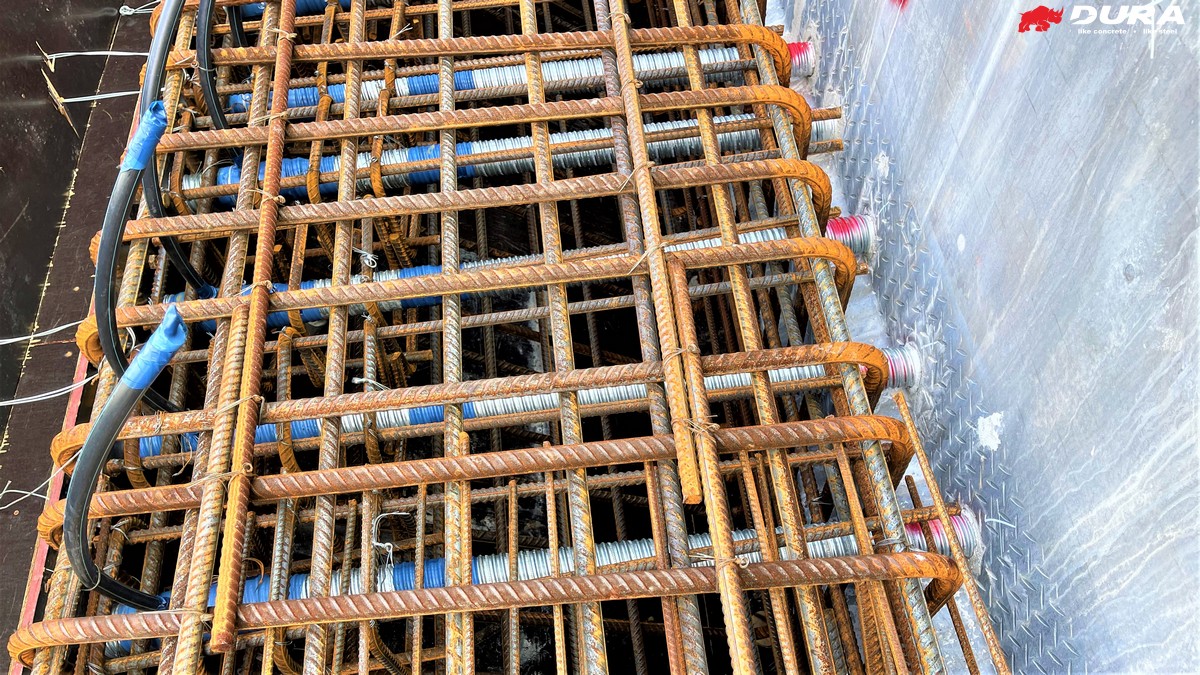

Corbel ready for concreting.
Corbel ready for concreting.

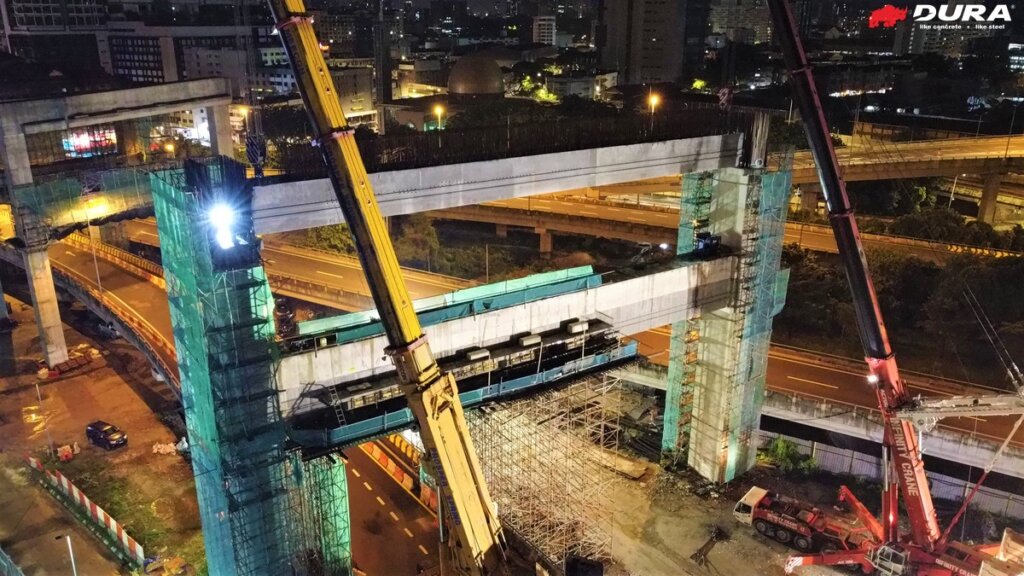

Lifting of portal shell for level two at pier 68 100821

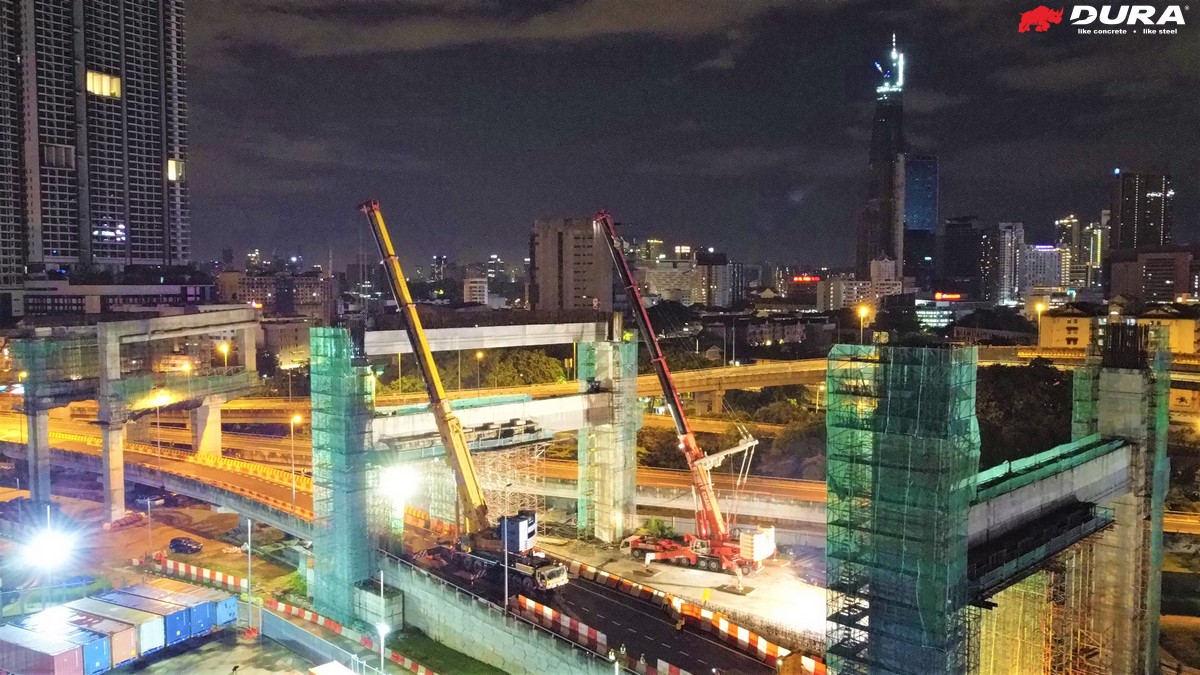

Lifting of 38m long UHPC portal shell for level two at pier 68

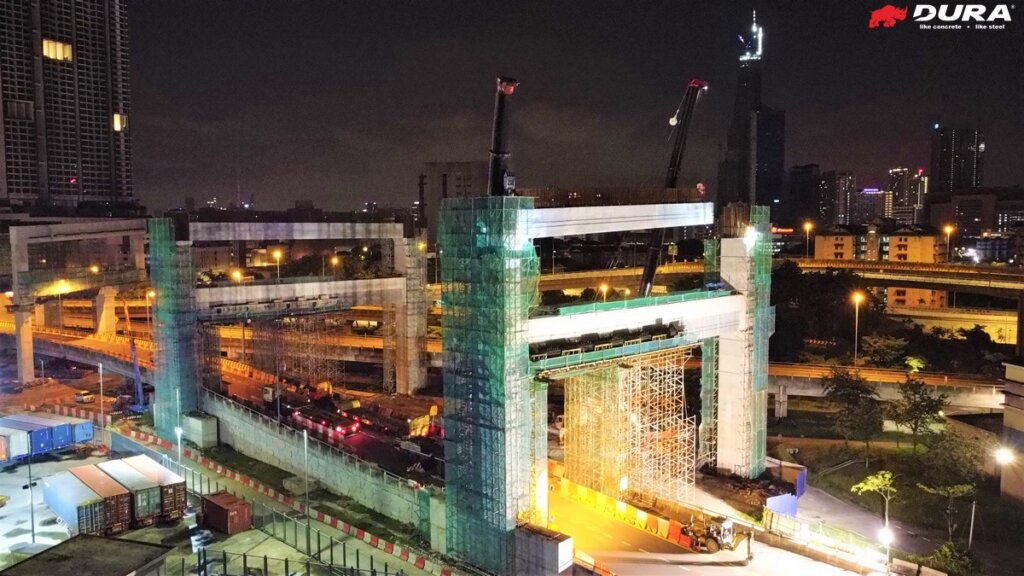

Lifting of 38m long UHPC portal shell for level two at pier 70 110821

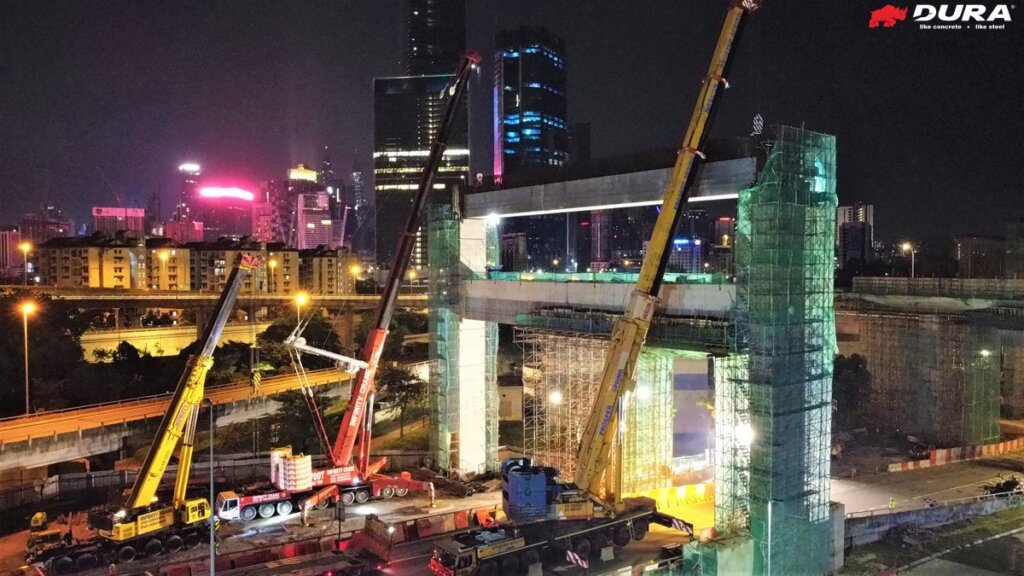

Portal shell for pier 70 at level two positioned in place

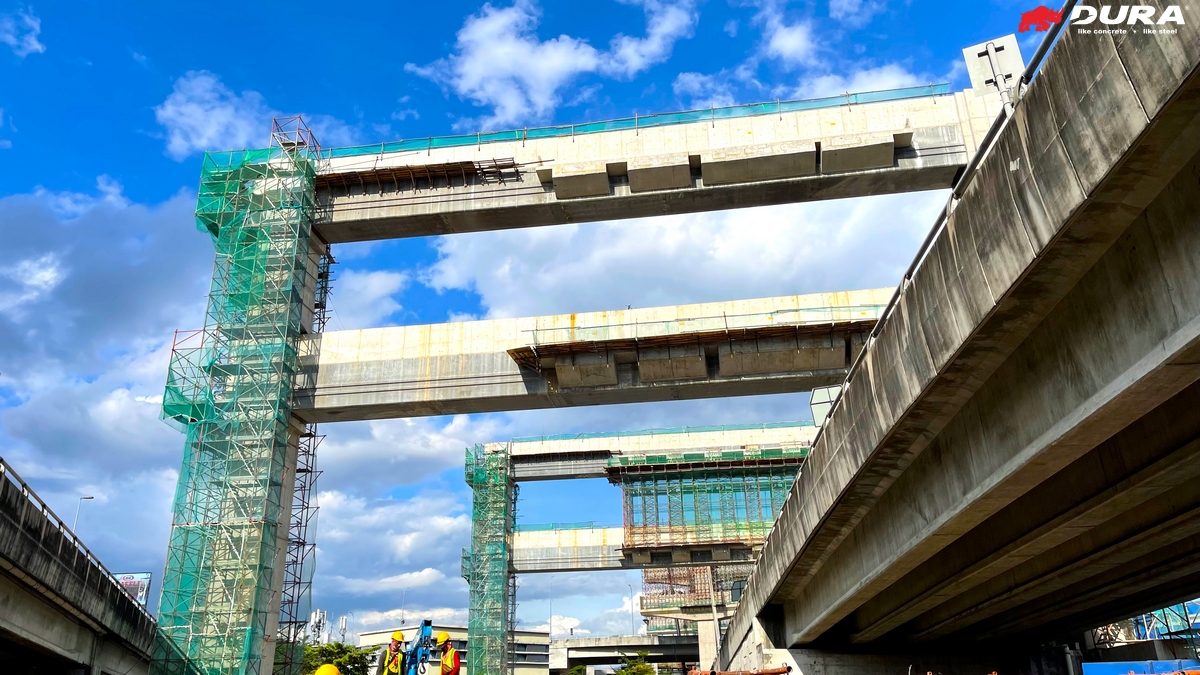

RC corbel constructed.
RC corbel constructed.

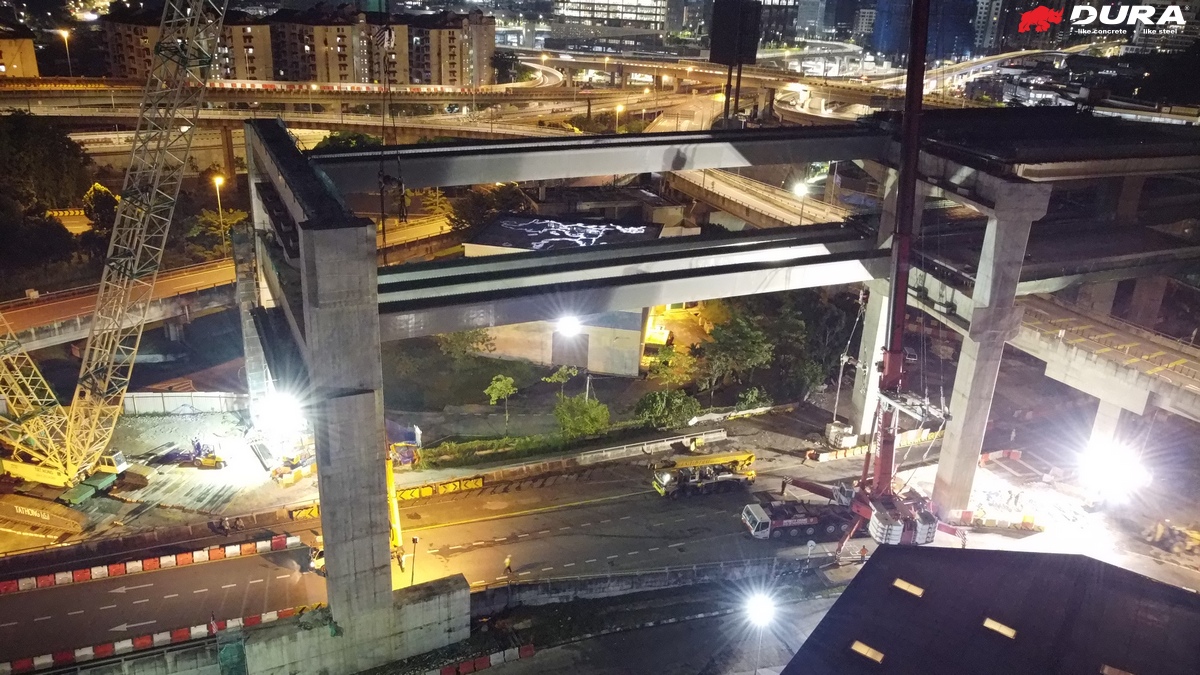

Beam launching of UBG2500 60m
default

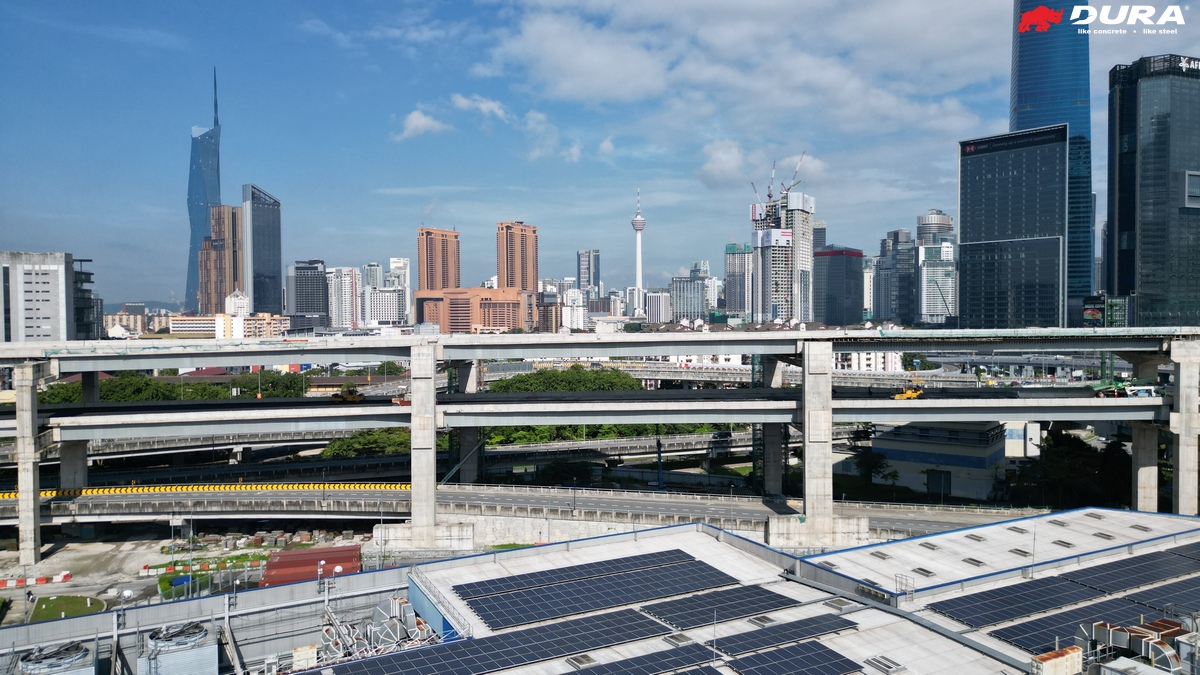

Four spans launched
default
Six spans launched
default
Completed bridge span P68 P72
default

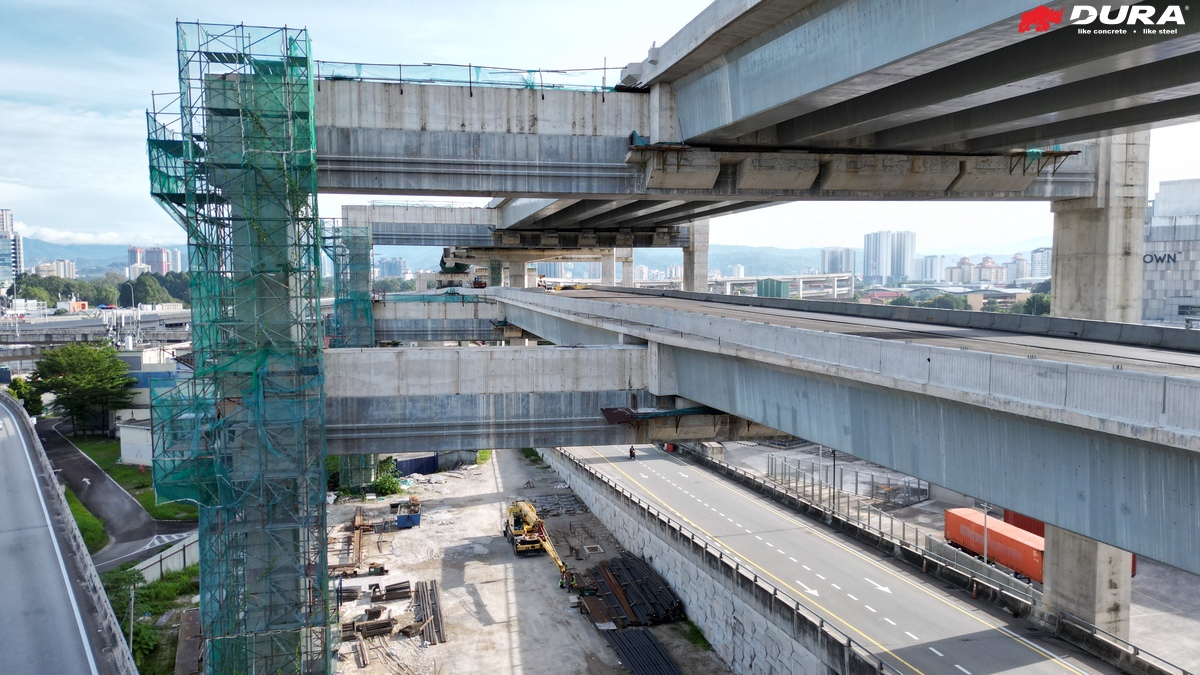

Completed DURA portal frame
Project Title

Setiawangsa– Pantai Expressway (SPE) – DUKE Phase 3 (Pier 66 to Pier 75) for Mainline (Section 2– Salak To Pandan)

Project Year

2021

Status

Completed Project

Country

Malaysia

GPS Cordinates

3.137151 N; 101.721663 E (60m ML/P74 – ML/P75); 3.136675 N; 101.721167 E (59.1m ML/P73 – ML/P74); 3.136212 N; 101.720660 E (60m ML/P70 – ML/P72); 3.135806 N; 101.720275 E (62.7m ML/P68 – ML/P70); 3.135311 N; 101.719892 E (62.1m ML/P66 – ML/P68)

Structure Type

5 Spans of 294m by 12.5 to 24m Wide Double Decker Composite Bridge System (Total Ten Spans with Floor Area of 10020m2)

Superstructure Feature

Total 40 pieces of DURA® UBG2500-55.2m – 61.8m with Cast In-Situ RC Deck

Substructure Feature

Cast in-situ RC piers

Foundation Feature

1.2m Dia. Bored Piles

Loading Type

HA+ 45 units HB loadings (BD37/01)

Client

Lembaga Lebuhraya Malaysia (LLM)

Superintendent Officer (S.O.)

Lembaga Lebuhraya Malaysia (LLM)

Consultant

Jurutera Perunding RiZ Sdn Bhd (alternatvie design)

Contractor

Ekovest Construction Sdn Bhd
