First Dura Footbridge in China

  • Project Status

  • Select Country

  • Select Years

  • Reset

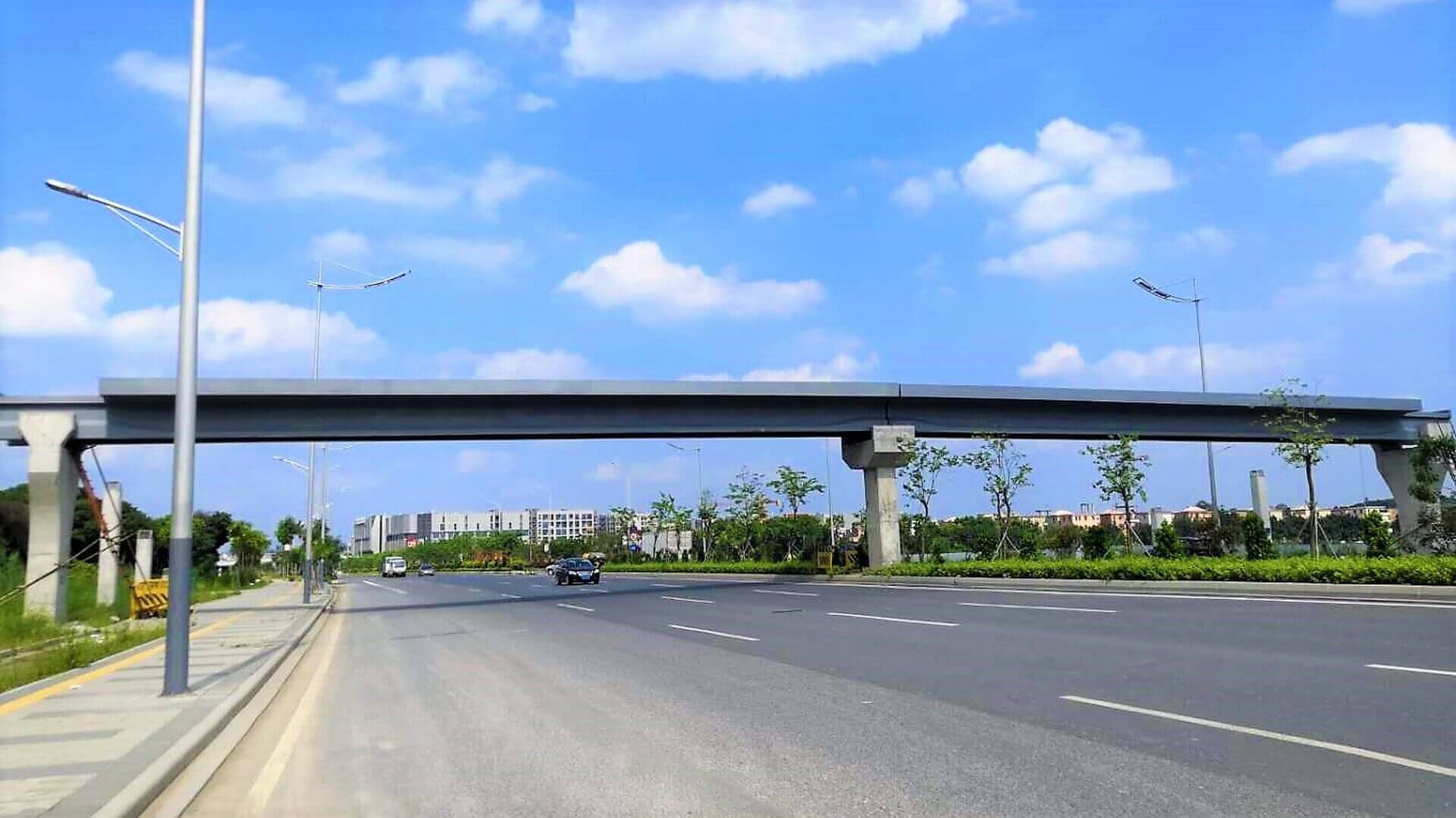

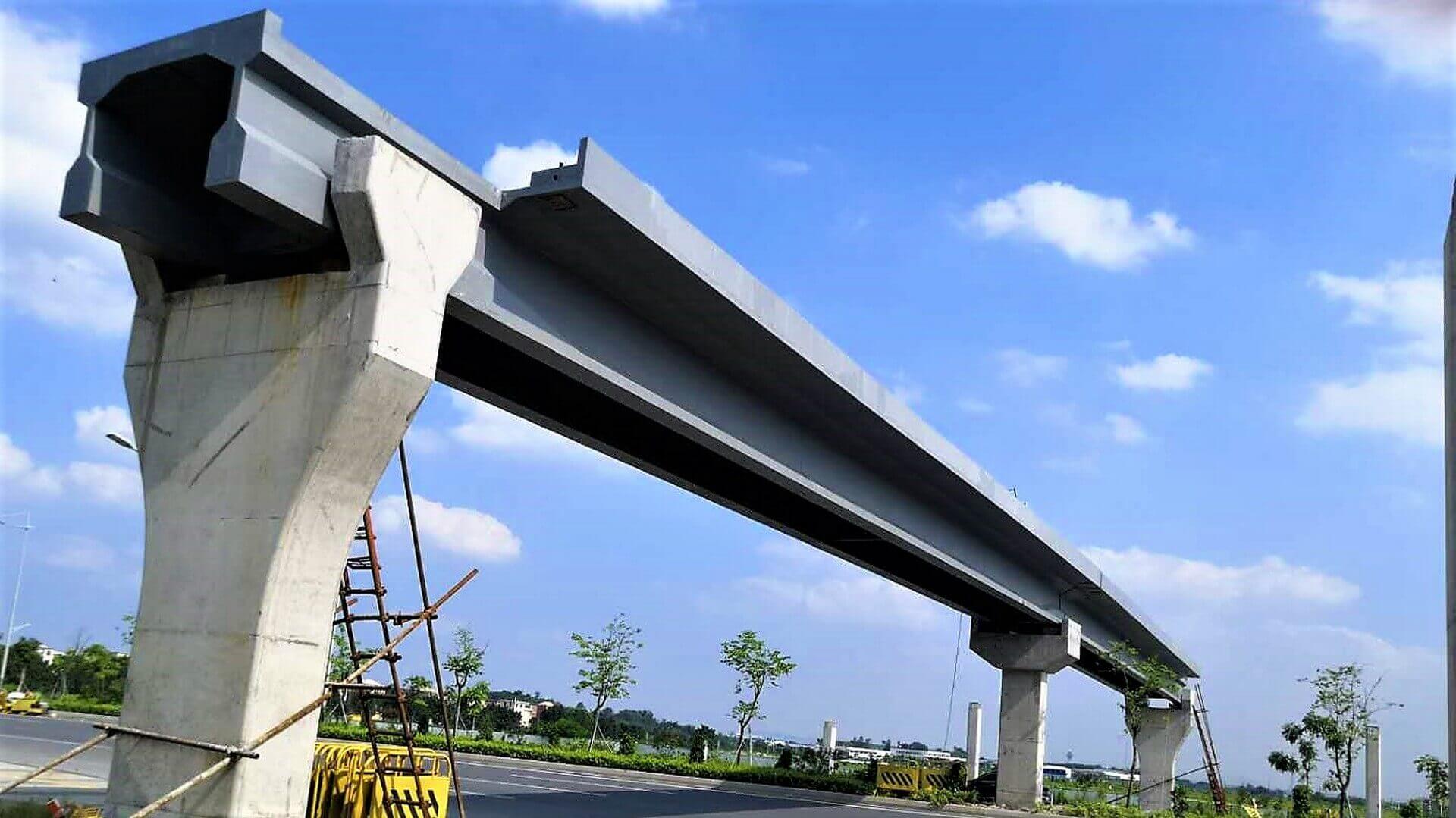

Completed bridge.
Completed bridge.

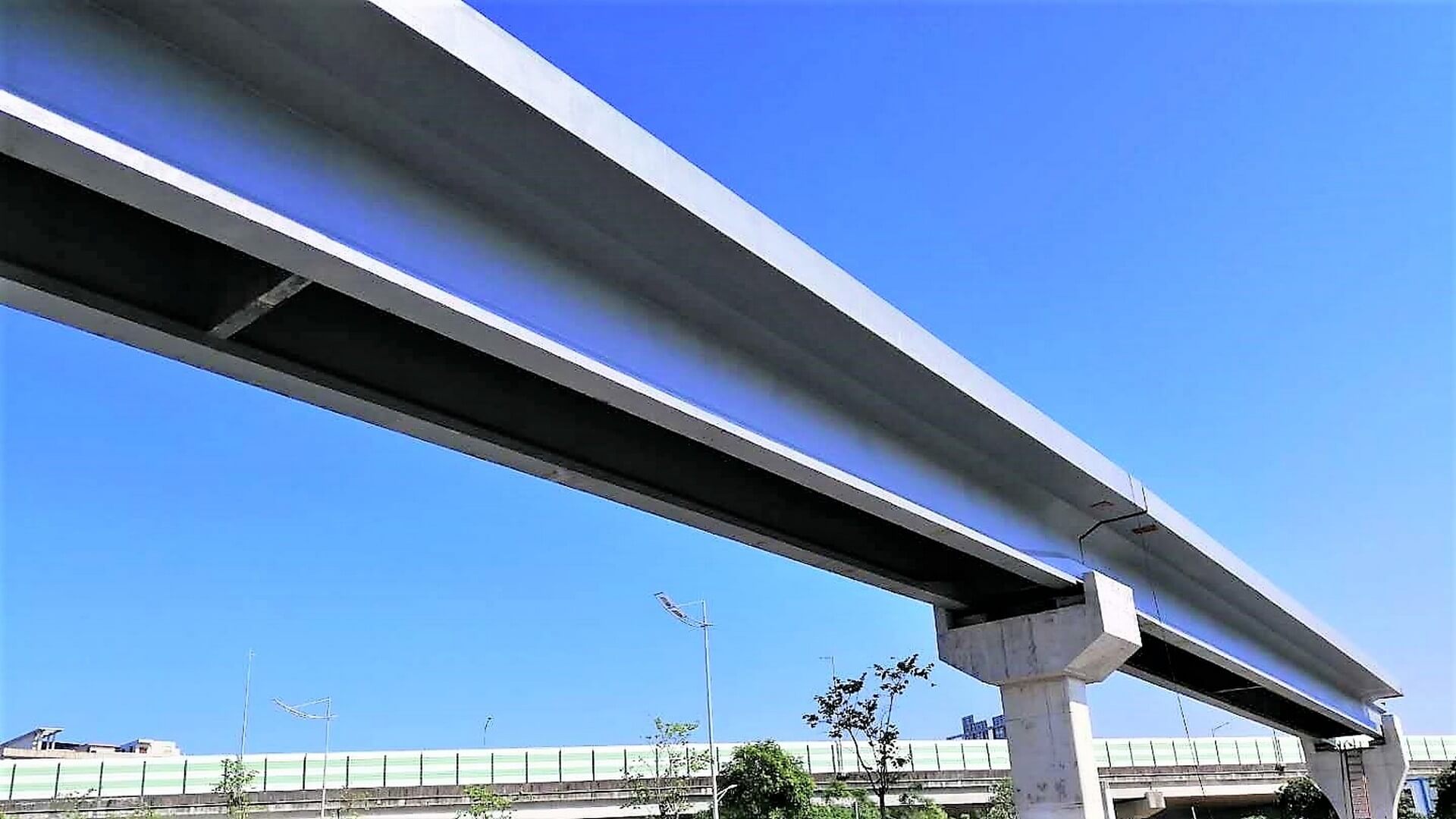

Huadu Footbridge using UHPC material.
Huadu Footbridge using UHPC material.

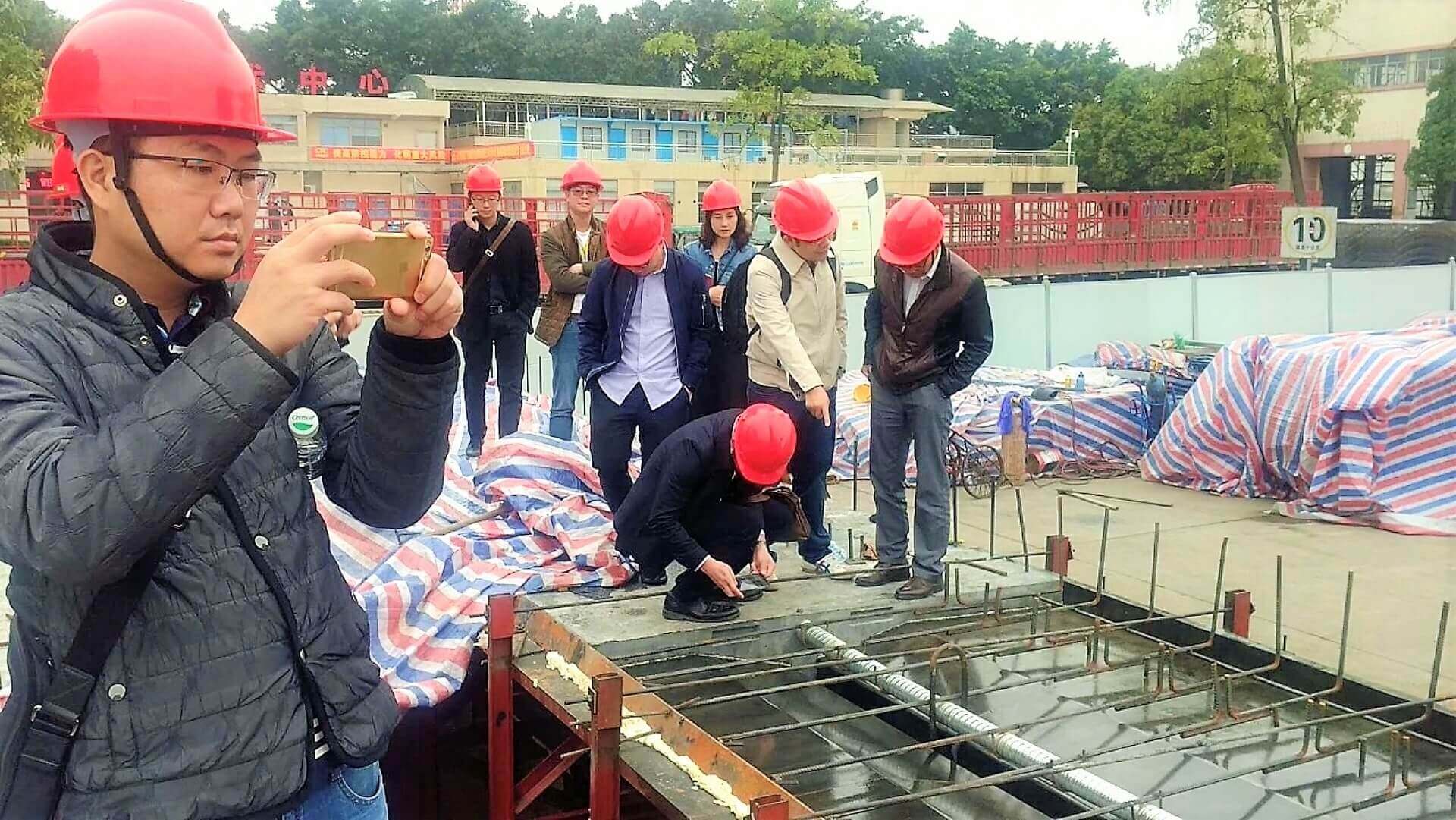

Match casting with visitors (210319)
Match casting with visitors (210319)
Dura double T footbridge (060419).
Dura double T footbridge (060419).

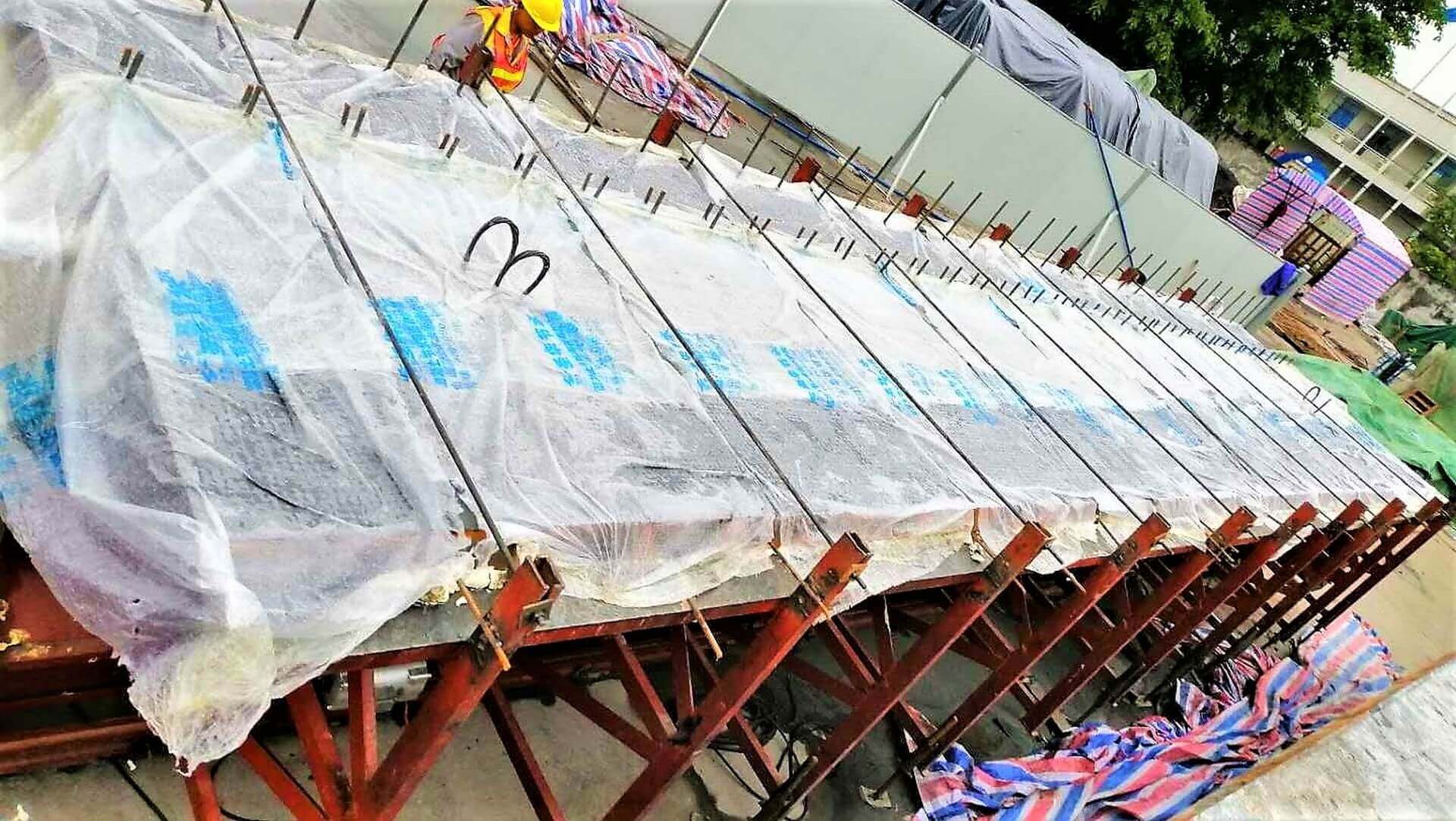

Air curing of the beam with plastic sheet used to cover the beam.
Air curing of the beam with plastic sheet used to cover the beam.

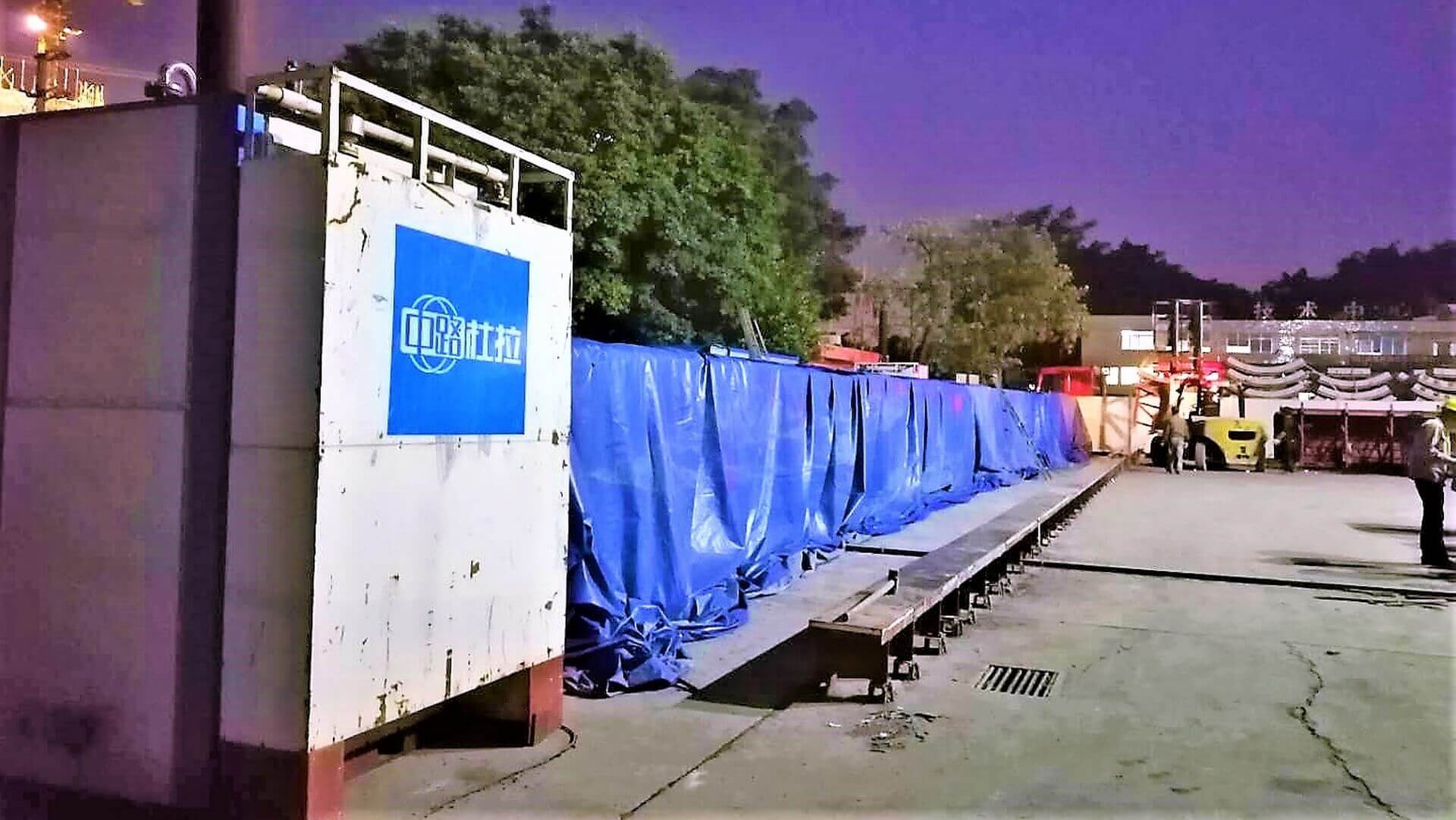

Steam curing of the beam.
Steam curing of the beam.
Briefing for installation team prior to beam launching.
Briefing for installation team prior to beam launching.

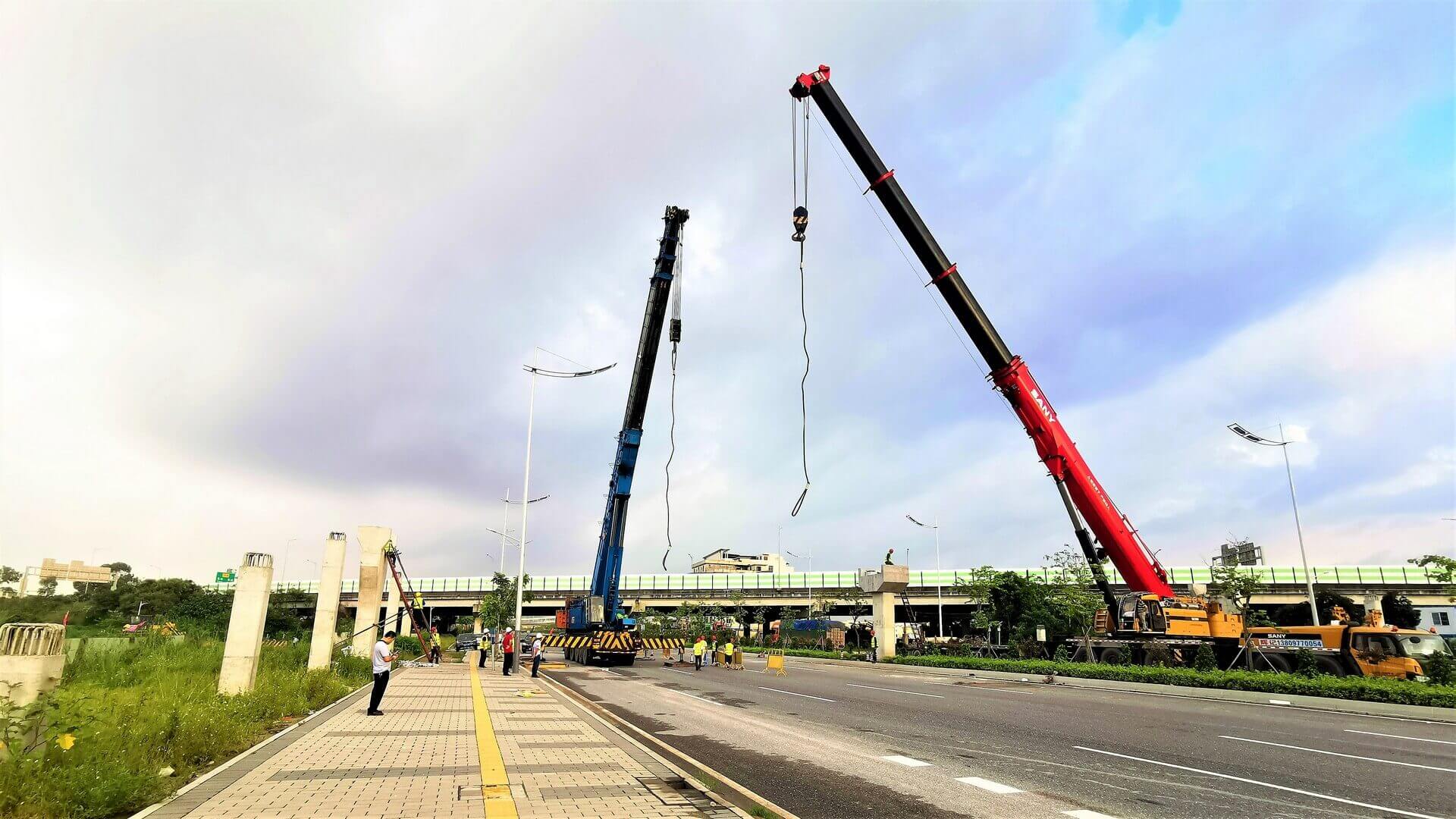

Parking of two units 260 tonnes mobile cranes (070819).
Parking of two units 260 tonnes mobile cranes (070819).

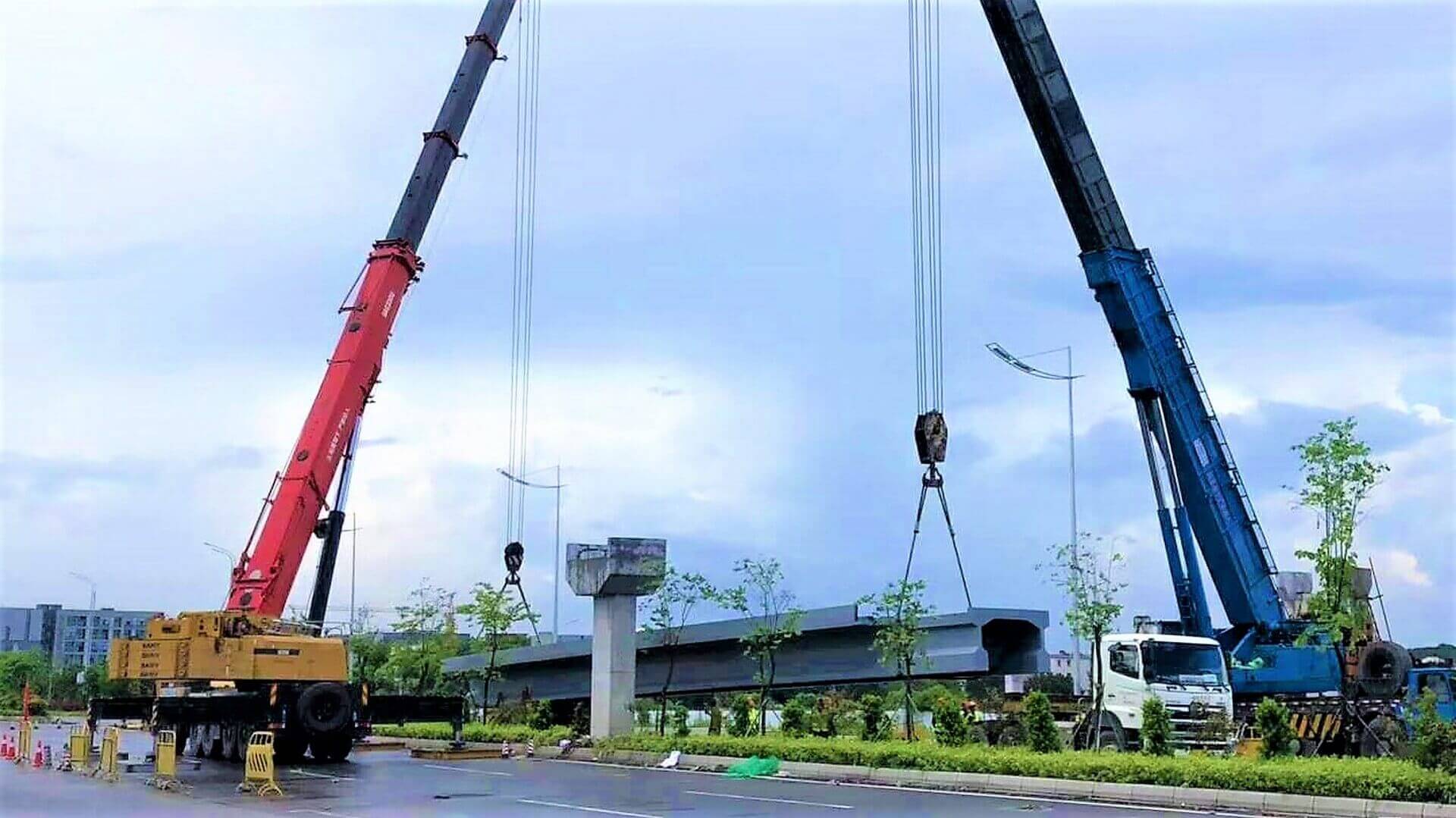

Lifting of the first double-T girder.
Lifting of the first double-T girder.
Lifting of the first double-T girder.
Lifting of the first double-T girder.

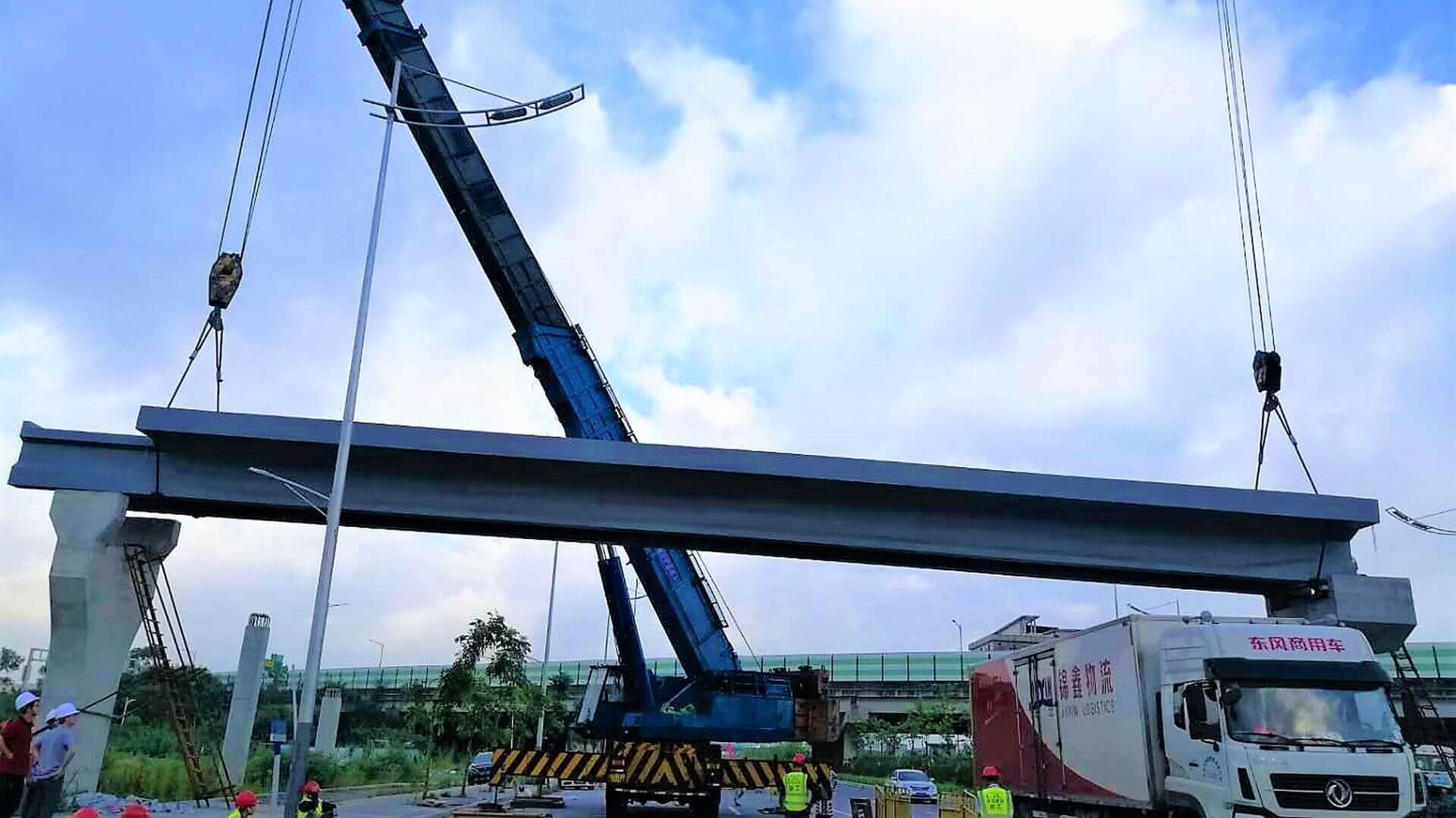

Positioning of the first ZhongLu-Dura double T girder using 2 units 260t mobile cranes (070619).
Positioning of the first ZhongLu-Dura double T girder using 2 units 260t mobile cranes (070619).
First girder installed (070619).
First girder installed (070619).

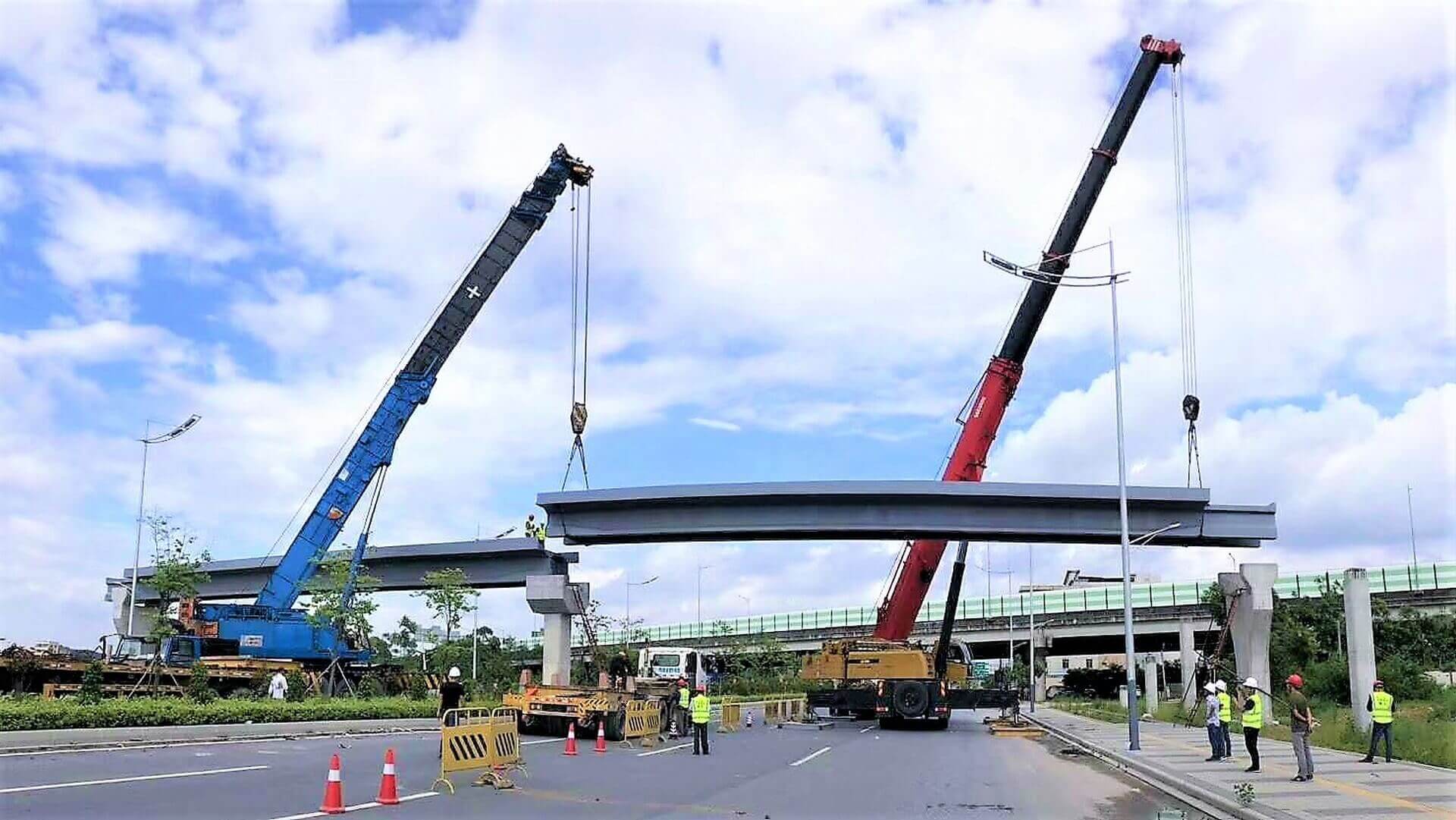

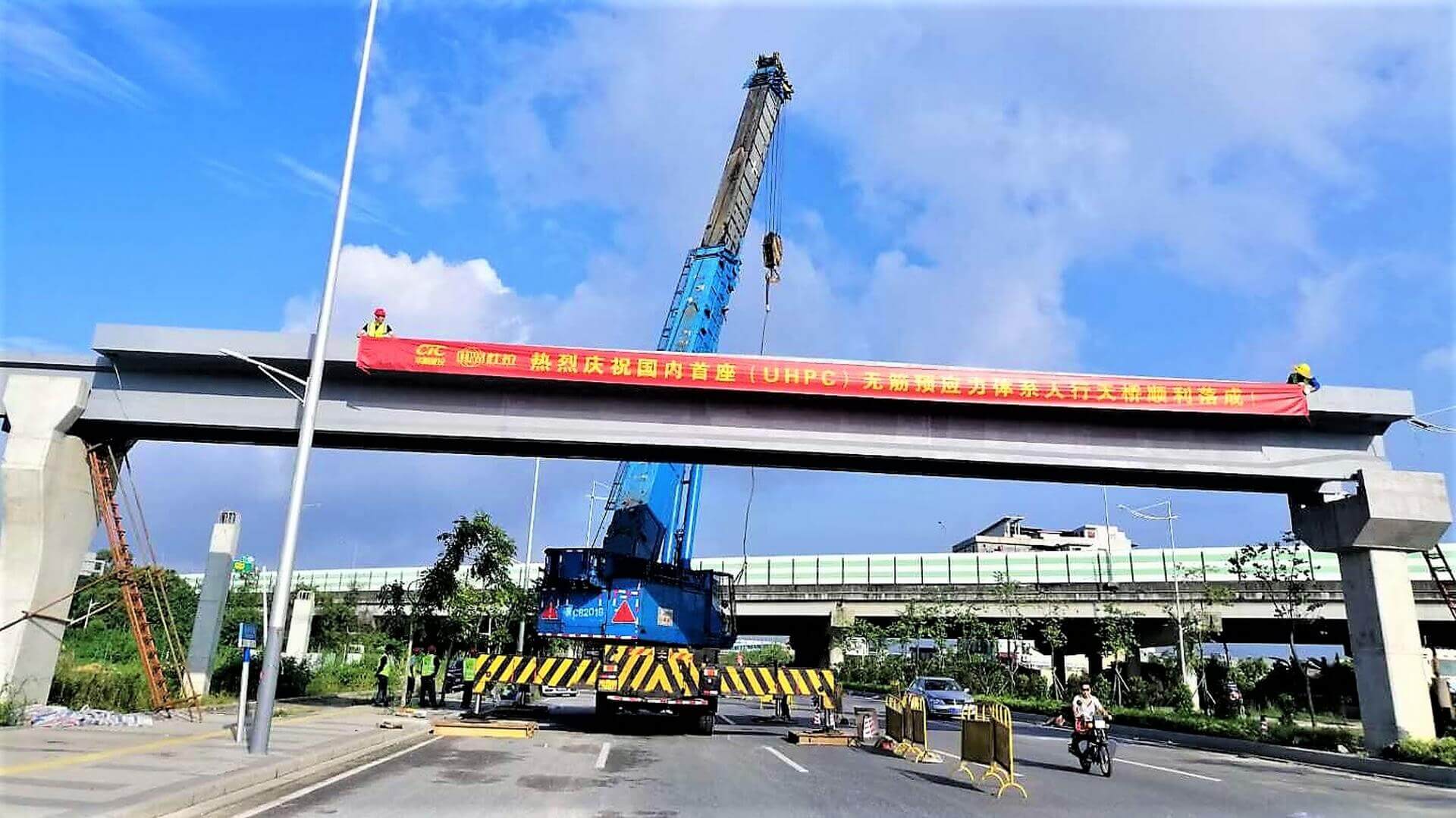

Lifting of the second double-T girder.
Lifting of the second double-T girder.
Two girders successfully installed.
Two girders successfully installed.
The completed first ZhungLu-Dura Footbidge at Huadu.
The completed first ZhungLu-Dura Footbidge at Huadu.

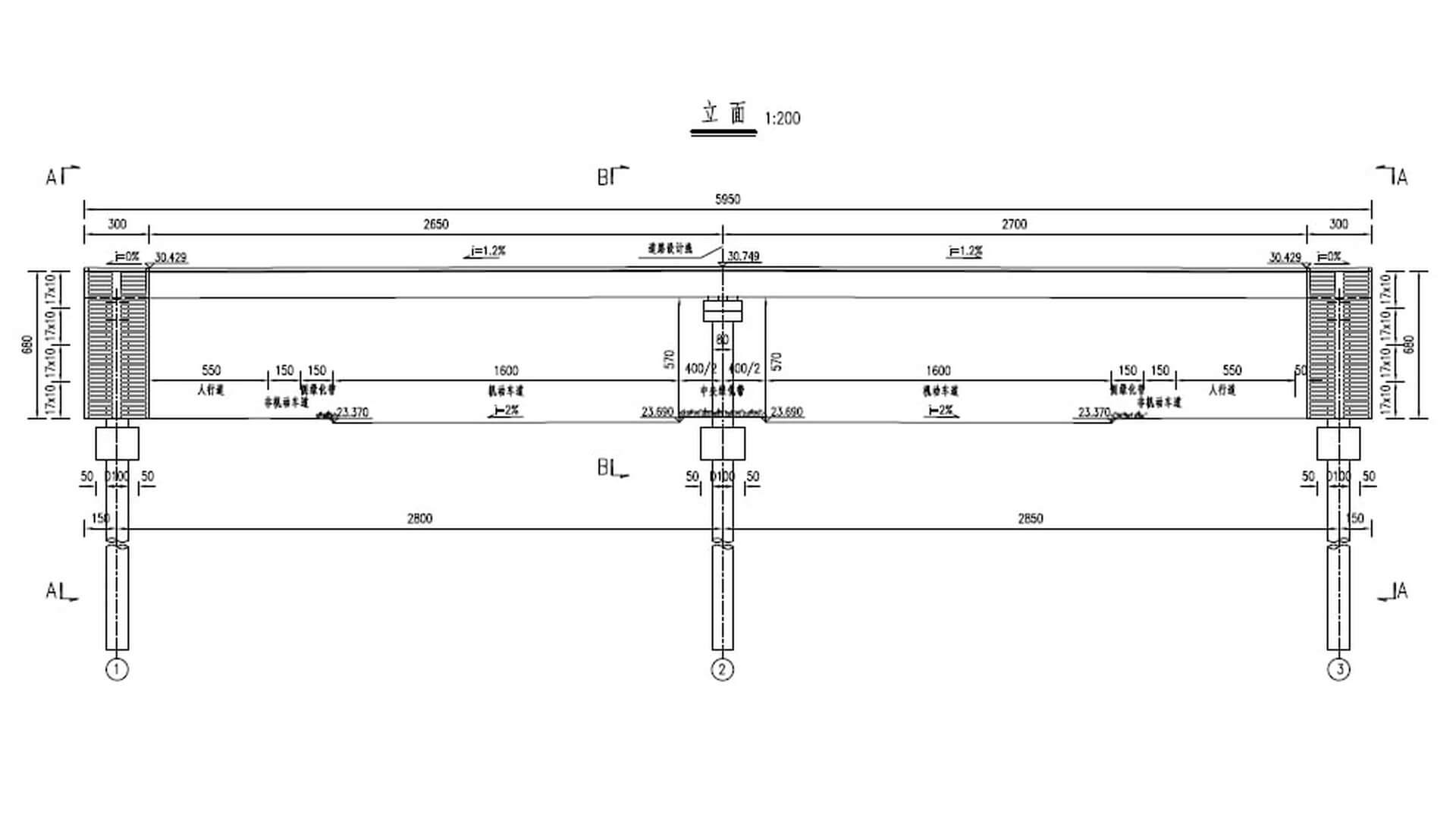

General arrangement of Huadu footbridge.
General arrangement of Huadu footbridge.

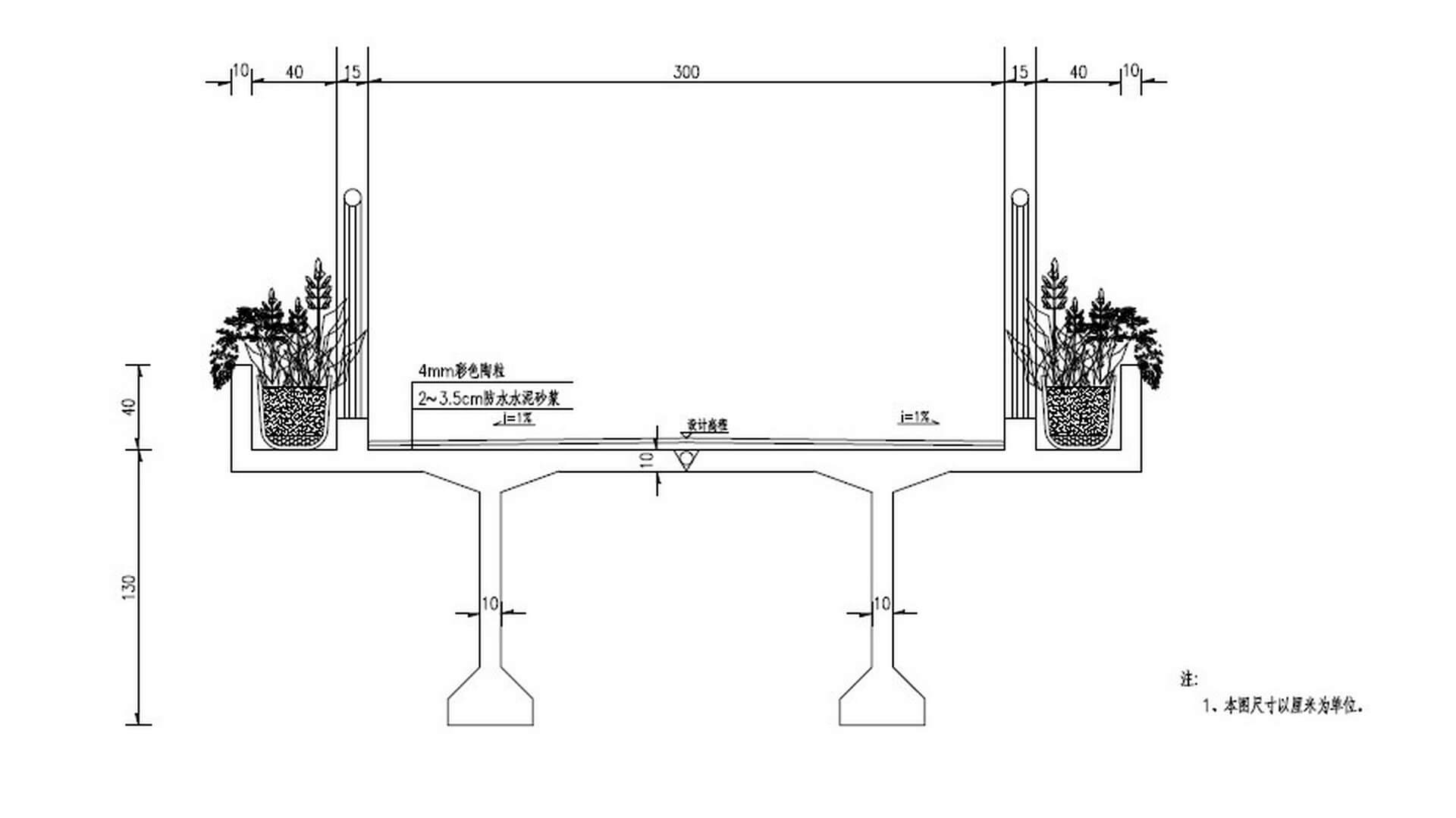

Typical Cross section view .
Typical Cross section view .
Batching of UHPC at the casting yard.
Batching of UHPC at the casting yard.

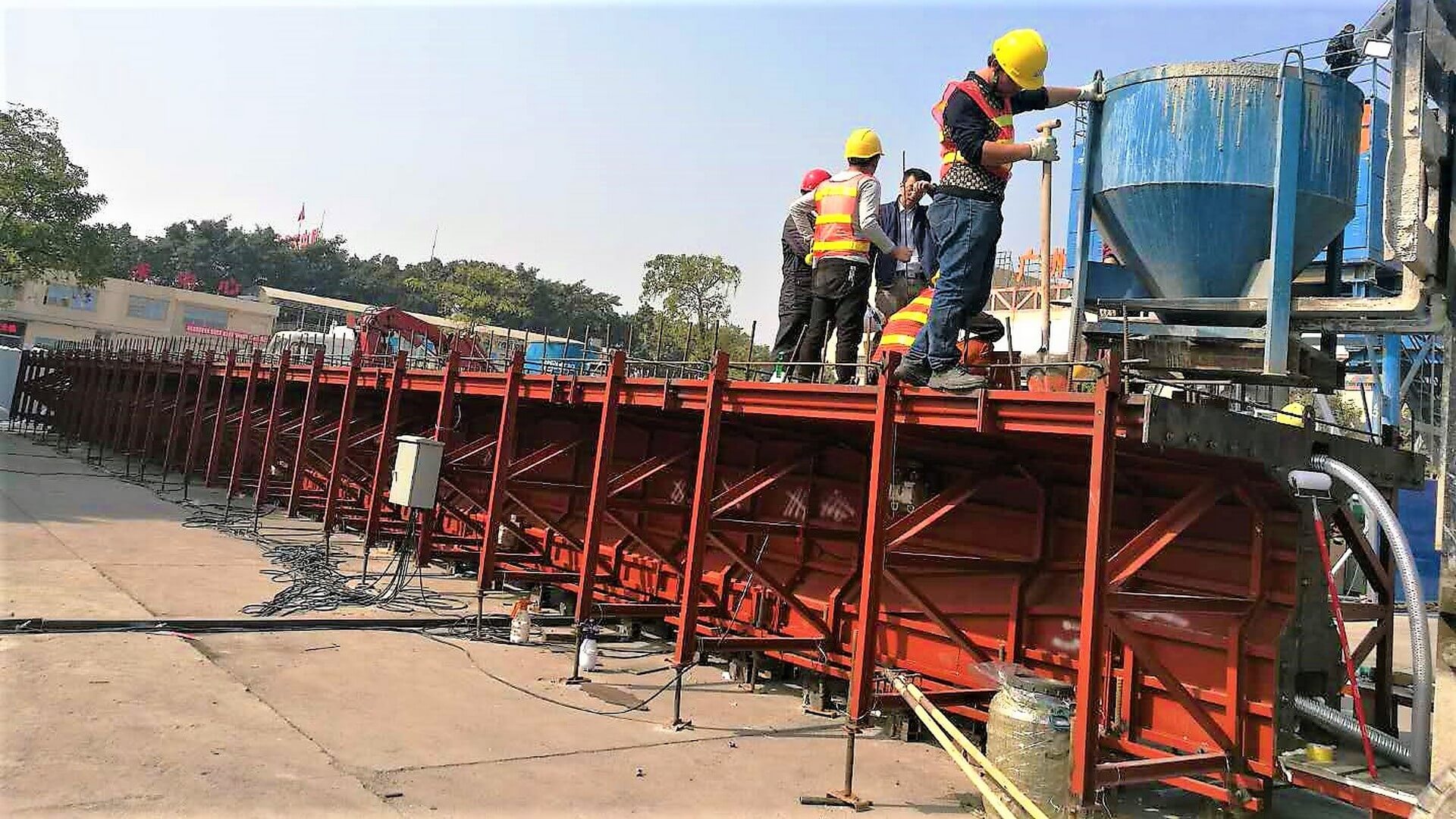

Casting of Zhonglu-Dura UHPC footbridge.
Casting of Zhonglu-Dura UHPC footbridge.
Typical cross section.
Typical cross section.

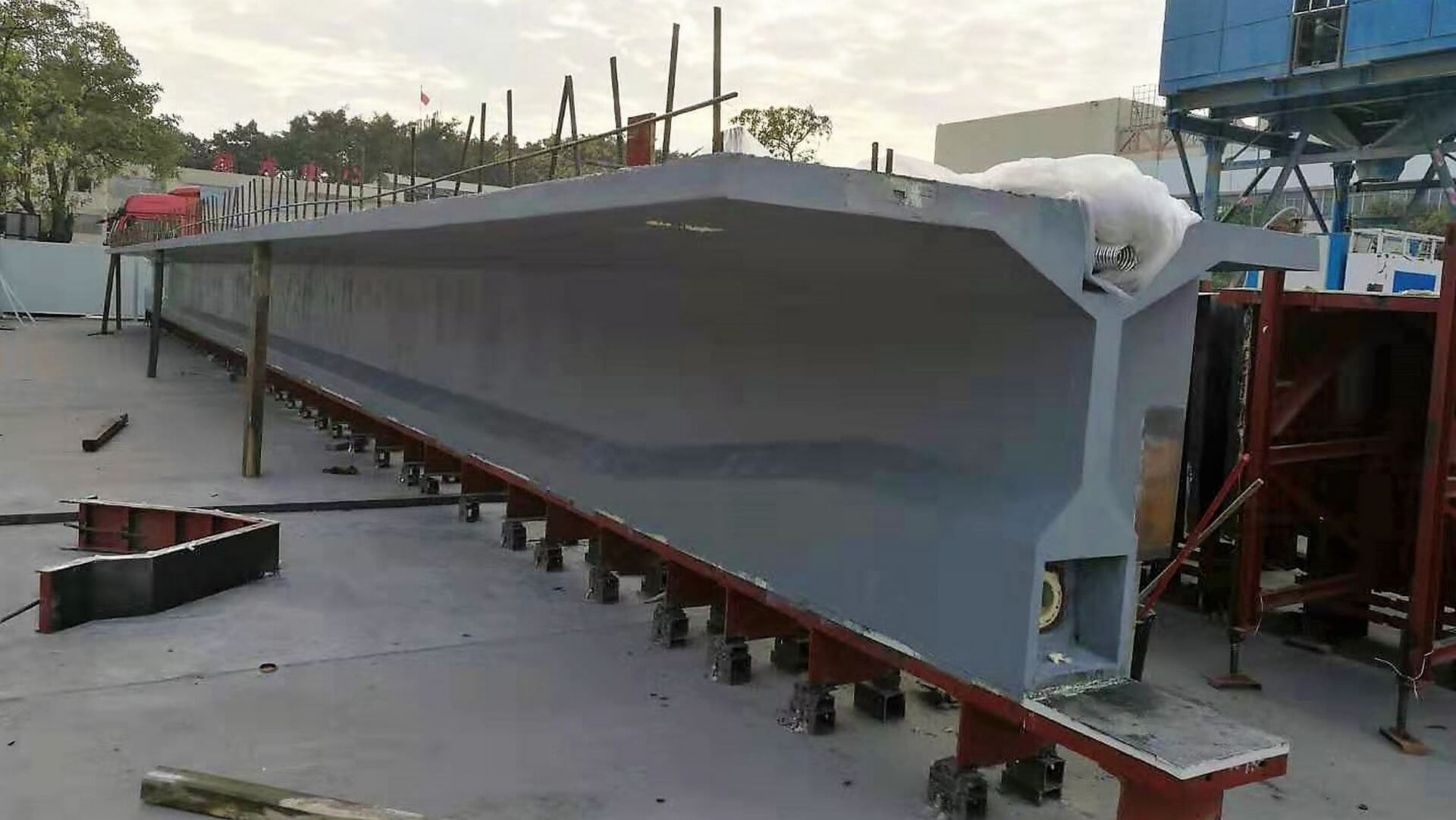

Full span 30m T beam casted in one shoot.
Full span 30m T beam casted in one shoot.

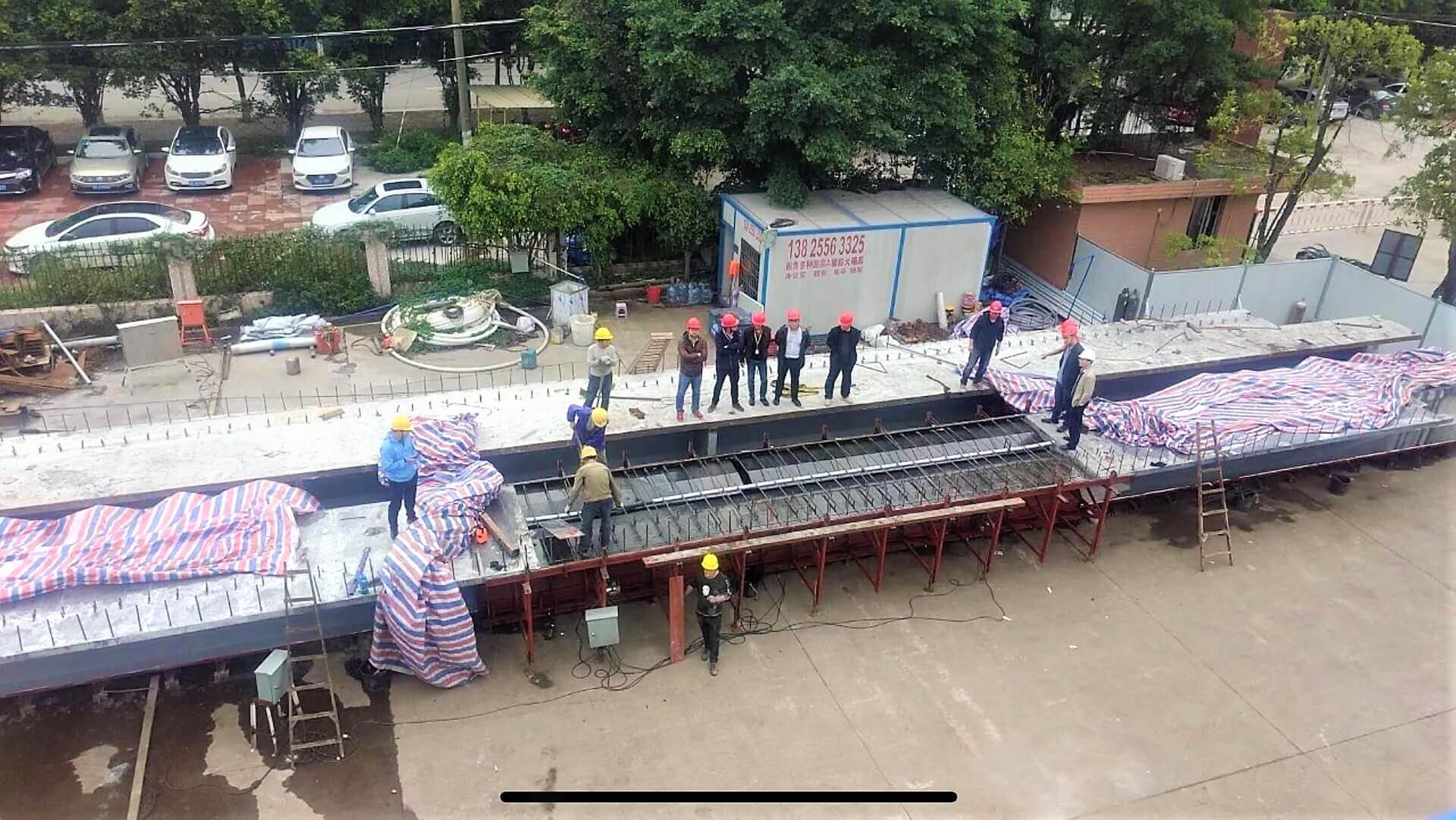

Match casting for second beam (210319).
Match casting for second beam (210319).
Project Title

Extension and Reconstruction of Huadu Avenue (North Approach Junction of Airport to Cotton Tree Drive). 花都大道（机场北进路口至红棉大道段）扩建改造工程

Project Year

2019

Status

Completed Project

Country

China

GPS Cordinates

23.435640 N; 113.301292 E

Structure Type

Double Span 30m by 5.3m wide Double T-UHPC Bridge Girder

Superstructure Feature

2 pieces of Double Tee- Integral Beam-Deck Bridge

Substructure Feature

Cast in-situ RC piers

Foundation Feature

1m dia. Bored piles

Loading Type

5 kPa

Client

广州市花都区地方公路管理站 Guangzhou Huada District Local Highway Management Station

Consultant

广州市公路勘察设计有限公司 Guangzhou Highway Survey and design Co. Ltd

Contractor

广东华隧建设集团股份有限公司 Guangdong Hua Tunnel Construction Group Co. Ltd

Construction Status

Completed
