FIRST DURA LONG SPAN U BRIDGE GIRDER – 80m USED IN RAPID TRANSIT SYSTEM LINK (RTS LINK) ANTARA JOHOR BAHRU DAN SINGAPURA

  • Project Status

  • Select Country

  • Select Years

  • Reset
Project site.
Project site.
Construction of Pier 1b.
Construction of Pier 1b.
Construction of portal Pier 1.
Construction of portal Pier 1.
Completed construction of Pier 1 & 1b portal.
Completed construction of Pier 1 & 1b portal.
Completed construction of Pier 1 & 1b portal.
Completed construction of Pier 1 & 1b portal.
Inspection of DURA UBG4000 - 80m from consultant, contractor and client.
Inspection of DURA UBG4000 - 80m from consultant, contractor and client.
Preparing of casting UBG4000 - 80m.
Preparing of casting UBG4000 - 80m.
Match casting of DURA UBG4000 - 80m.
Match casting of DURA UBG4000 - 80m.
Completed casting segments of UBG4000.
Completed casting segments of UBG4000.
Steam curing of UBG4000.
Steam curing of UBG4000.
Completed touch up and ready for delivery to site.
Completed touch up and ready for delivery to site.
Unloading segment of UBG4000 for delivery to site.
Unloading segment of UBG4000 for delivery to site.
Securing segment of UBG4000 for delivery.
Securing segment of UBG4000 for delivery.
Segments of UBG4000 arrived at site.
Segments of UBG4000 arrived at site.
2 nos. of segments UBG4000 arrived at site.
2 nos. of segments UBG4000 arrived at site.
Loading of segment UBG4000 for assemble.
Loading of segment UBG4000 for assemble.
Positioning segment of UBG4000 prior stressing.
Positioning segment of UBG4000 prior stressing.
Positiong segment of UBG4000 prior stressing.
Positiong segment of UBG4000 prior stressing.

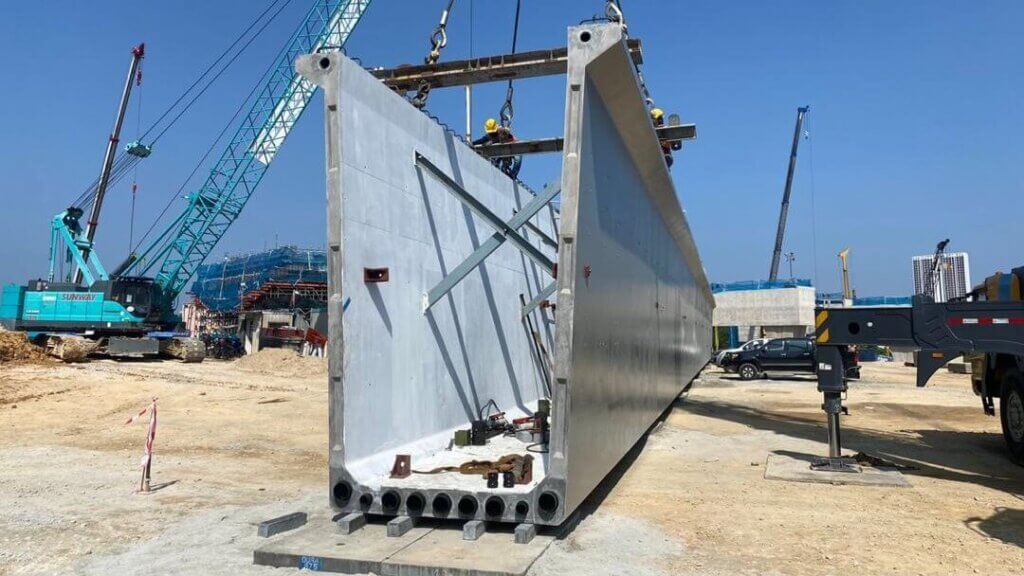

Continue unloading segment.
Continue unloading segment.

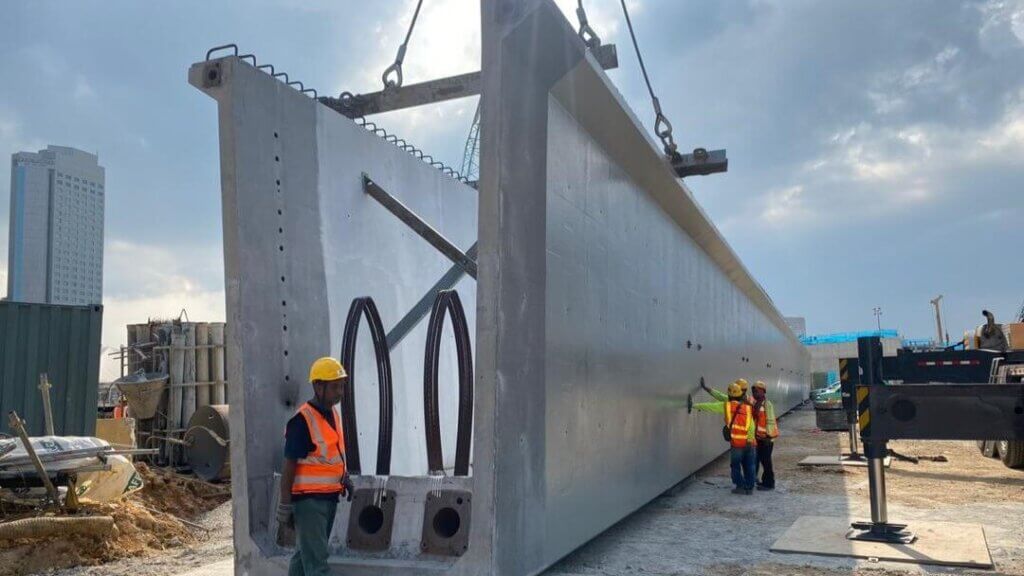

Completed unloading all segment.
Completed unloading all segment.
Completed unloading all segment.
Completed unloading all segment.
Assembly of segment joint using PT Bar UBG4000-80m.
Assembly of segment joint using PT Bar UBG4000-80m.
Inserting strand of UBG4000-80m.
Inserting strand of UBG4000-80m.
Continue transporting segment of UBG4000-80m.
Continue transporting segment of UBG4000-80m.
Stressing of UBG4000-80m.
Stressing of UBG4000-80m.
Stressing of UBG4000-80m.
Stressing of UBG4000-80m.
Stressing last UBG4000-80m.
Stressing last UBG4000-80m.

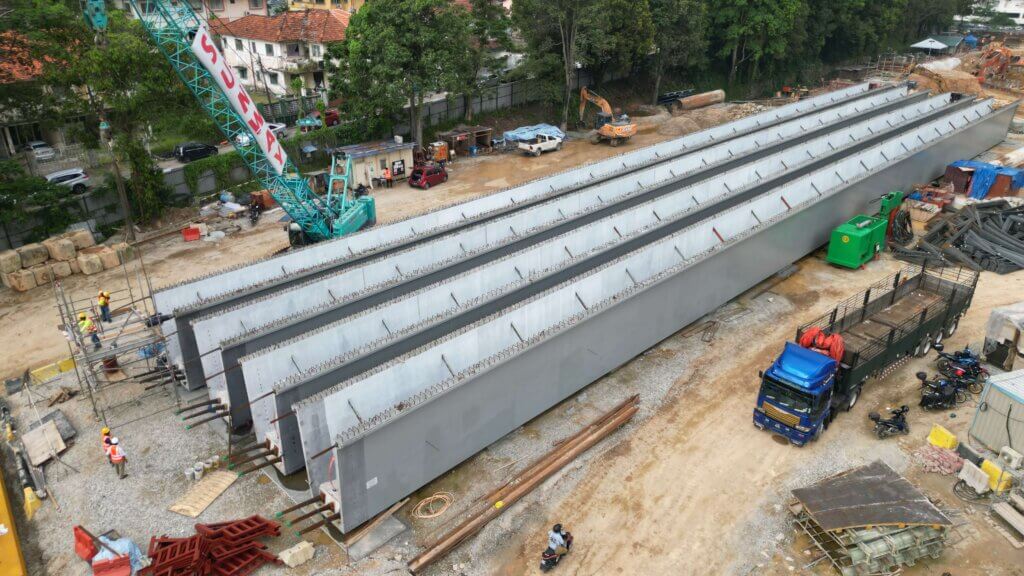

Completed stressing 4 nos. of UBG4000-80m.
Completed stressing 4 nos. of UBG4000-80m.
Completed stressing 4 nos. of UBG4000-80m.
Completed stressing 4 nos. of UBG4000-80m.
Completed stressing 4 nos. of UBG4000-80m.
Completed stressing 4 nos. of UBG4000-80m.
Completed stressing 4 nos. of UBG4000-80m.
Completed stressing 4 nos. of UBG4000-80m.
Preparation load onto multi-axle of first UBG4000-80m.
Preparation load onto multi-axle of first UBG4000-80m.
Loading first UBG4000-80m to multi-axle.
Loading first UBG4000-80m to multi-axle.
Completed load onto multi-axle and ready to move.
Completed load onto multi-axle and ready to move.
Launching of first UBG4000-80m.
Launching of first UBG4000-80m.

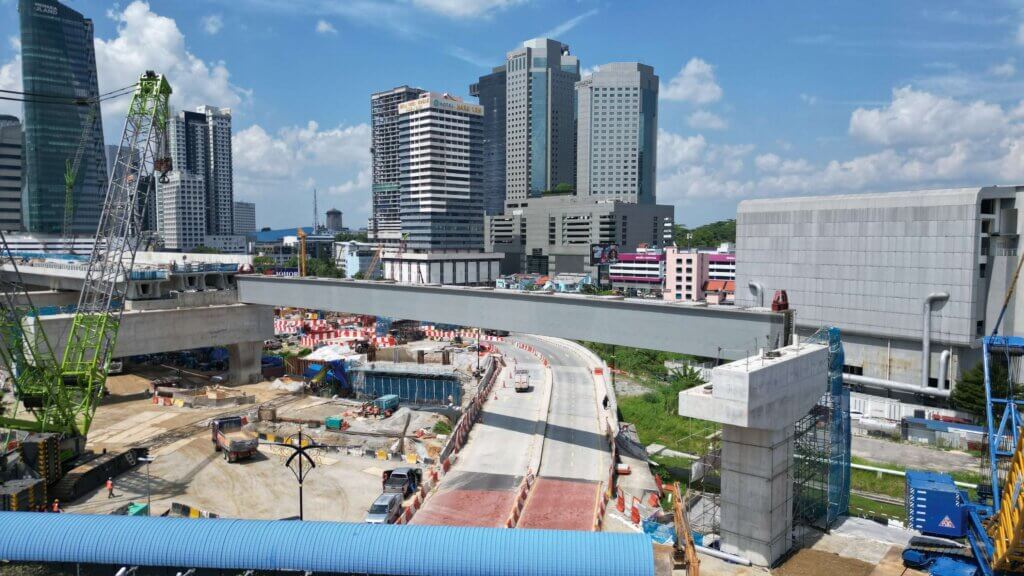

Completed launch of first UBG4000-80m.
Completed launch of first UBG4000-80m.
Launching of second UBG4000-80m.
Launching of second UBG4000-80m.
Launching of second UBG4000-80m.
Launching of second UBG4000-80m.
Completed launch of second UBG4000-80m.
Completed launch of second UBG4000-80m.
Third UBG4000-80m completed load onto multi-axle.
Third UBG4000-80m completed load onto multi-axle.
Launching of third UBG4000-80m.
Launching of third UBG4000-80m.
4th UBG4000-80m load onto multi-axle.
4th UBG4000-80m load onto multi-axle.
Group photo before launching.
Group photo before launching.
Last launching of UBG4000-80m.
Last launching of UBG4000-80m.
Completed launching of 4 nos. UBG4000-80m.
Completed launching of 4 nos. UBG4000-80m.
Completed launching of 4 nos. UBG4000-80m.
Completed launching of 4 nos. UBG4000-80m.
Completed launching of 4 nos. UBG4000-80m.
Completed launching of 4 nos. UBG4000-80m.
Completed launching of 4 nos. UBG4000-80m.
Completed launching of 4 nos. UBG4000-80m.
Completed launching of 4 nos. UBG4000-80m.
Completed launching of 4 nos. UBG4000-80m.
DURA team group photo.
DURA team group photo.
DURA team group photo.
DURA team group photo.
Constructing utilities support.
Constructing utilities support.
Deck slab casting completed.
Deck slab casting completed.
Deck slab casting completed. (1)
Deck slab casting completed. (1)
Project Title

RAPID TRANSIT SYSTEM LINK (RTS LINK) PROJECT BETWEEN JOHOR BAHRU AND SINGAPORE- Package 5 Terrestrial Viaduct (Pier 1 – Pier 1b)

Project Year

2023

Status

Completed Project

Country

Malaysia

GPS Cordinates

1.468844 N, 103.760880 E

Structure Type

Single Span 80.411m by 14.3m to 17.64m Wide Composite Bridge System.

Superstructure Feature

4 pieces of DURA® UBG4000-80.411m, with Cast In-Situ RC Deck

Substructure Feature

Cast in-situ RC piers & portal

Foundation Feature

1.8m Dia. Bored Piles

Loading Type

Railway Loading

Client

Mass Rapid Transit System (MRTS)

Superintendent Officer (S.O.)

Mass Rapid Transit System (MRTS)

Consultant

AECOM Perunding Sdn Bhd

Contractor

Sunway Construction Sdn Bhd

Designer

SA Architects Sdn Bhd
