Five Spans Integral UHPFRC Composite Bridge Over The Canal Of Sungai Muar

  • Project Status

  • Select Country

  • Select Years

  • Reset
Project signboard.
Project signboard.
Proposed bridge site over a man-made canal.
Proposed bridge site over a man-made canal.
Proposed bridge site.
Proposed bridge site.
Construction of 1.5m dia. bored pile with MS permanent casing (221217).
Construction of 1.5m dia. bored pile with MS permanent casing (221217).
1.5m dia. bored pile for pier 2 (221217).
1.5m dia. bored pile for pier 2 (221217).
Pier 1 (221217).
Pier 1 (221217).
All 10 pieces of DURA UBG2000 beams post-tensioned on site.
DURA U beams ready for beam launching.
Arrival of 160 tonnes mobile cranes.
Arrival of 160 tonnes mobile cranes.
Lifting of 2nd beam (250918).
Lifting of 2nd beam (250918).
Lifting of 2nd beam (250918)._2
Lifting of 2nd beam (250918)._2
Two numbers of UBG2000-50m positioned onto the piers.
Two numbers of UBG2000-50m positioned onto the piers.
Two numbers of UBG2000-50m positioned onto the piers._2
Two numbers of UBG2000-50m positioned onto the piers._2

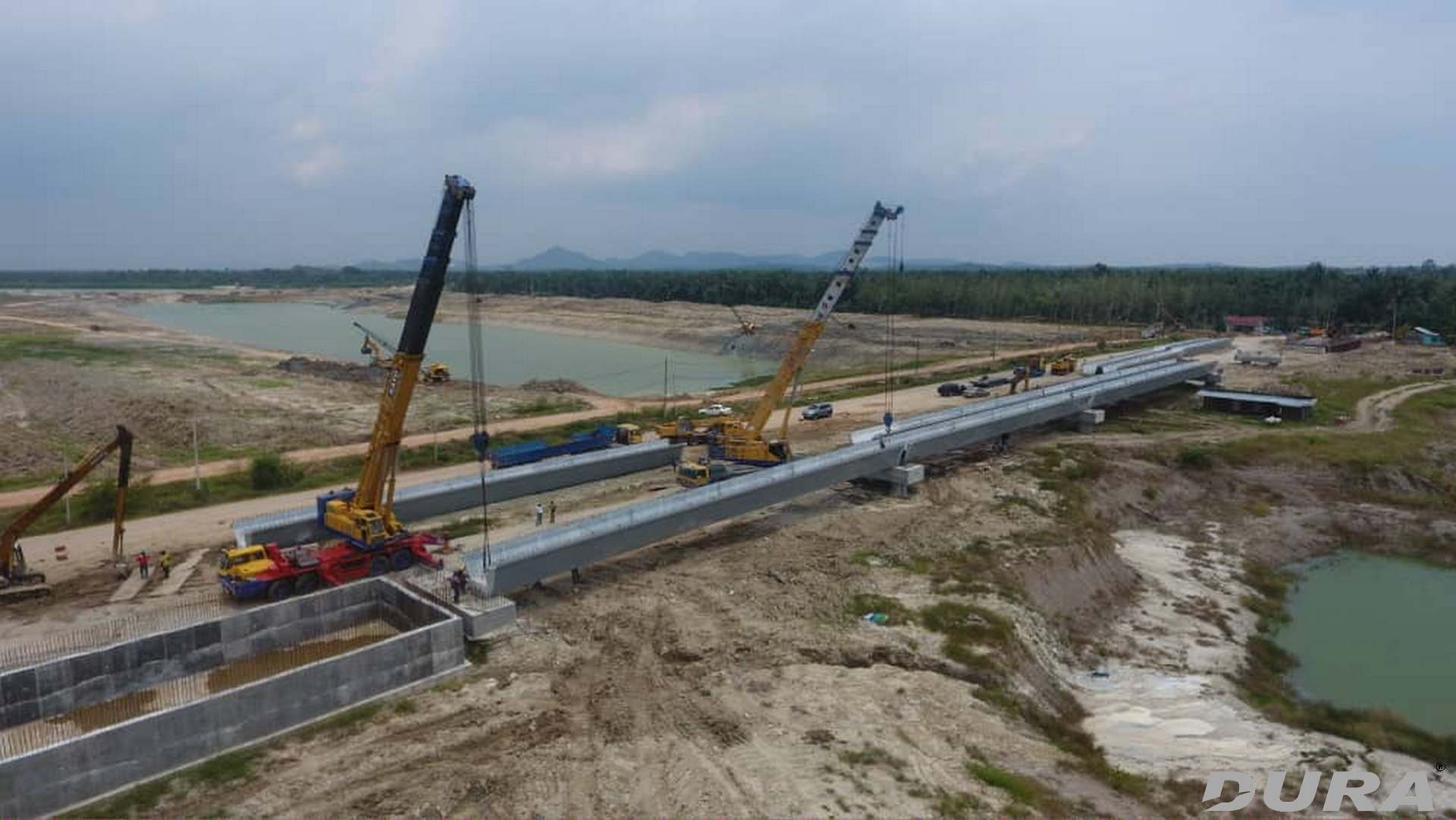

Positioning the 5th beams (260918).
Positioning the 5th beams (260918).
Positioning the 5th beams (260918)._2
Positioning the 5th beams (260918)._2
JD JPR Muar witnessing the progress work during beam launching (160918).
JD JPR Muar witnessing the progress work during beam launching (160918).
10 beams fully launched into position (280918).
10 beams fully launched into position (280918).
10 beams fully launched into position (280918)._2
10 beams fully launched into position (280918)._2
10 beams fully launched into position (280918)._3
10 beams fully launched into position (280918)._3
10 beams fully launched into position (280918)._4
10 beams fully launched into position (280918)._4

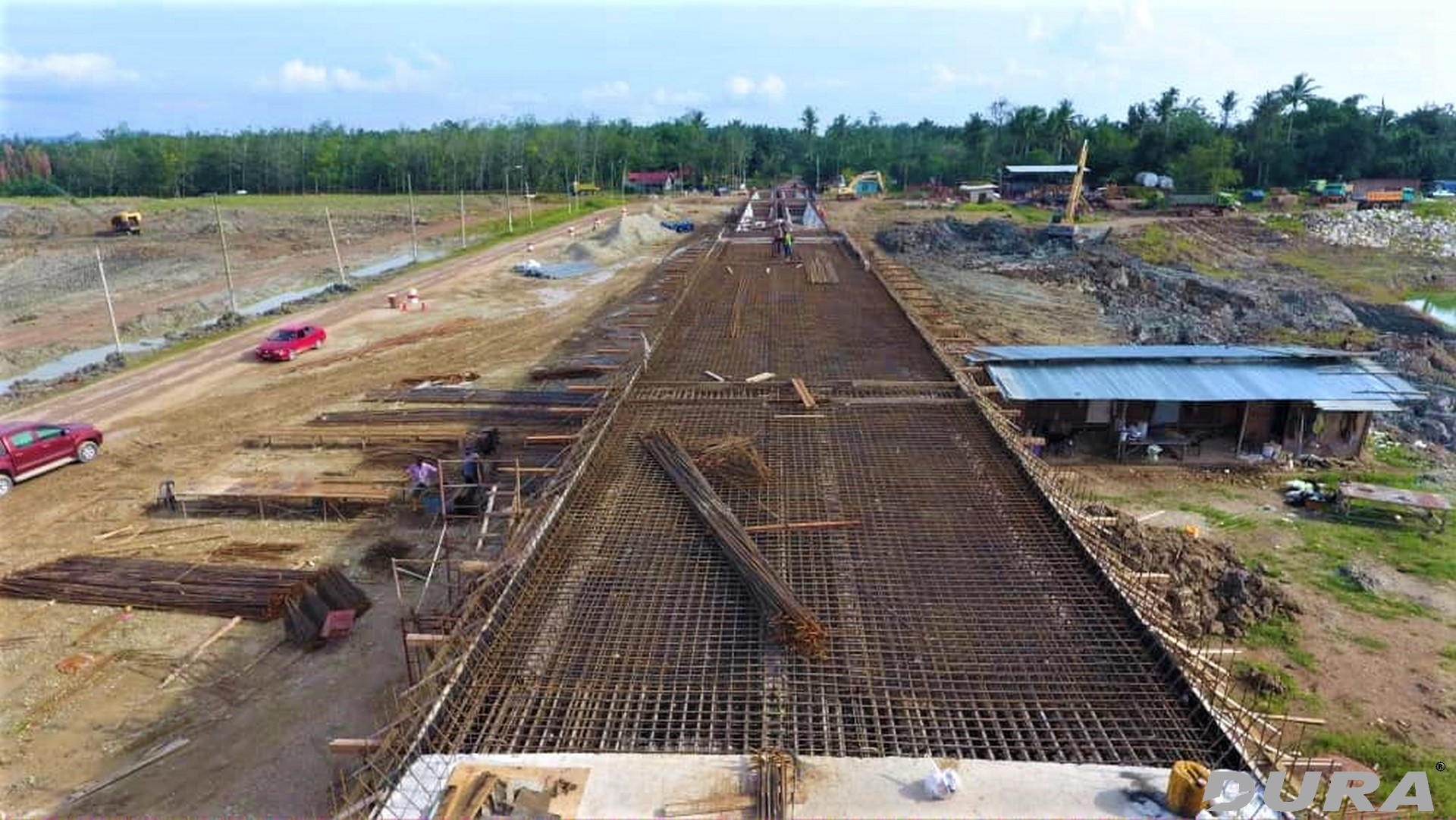

Rebar fitting for RC deck.
Rebar fitting for RC deck.

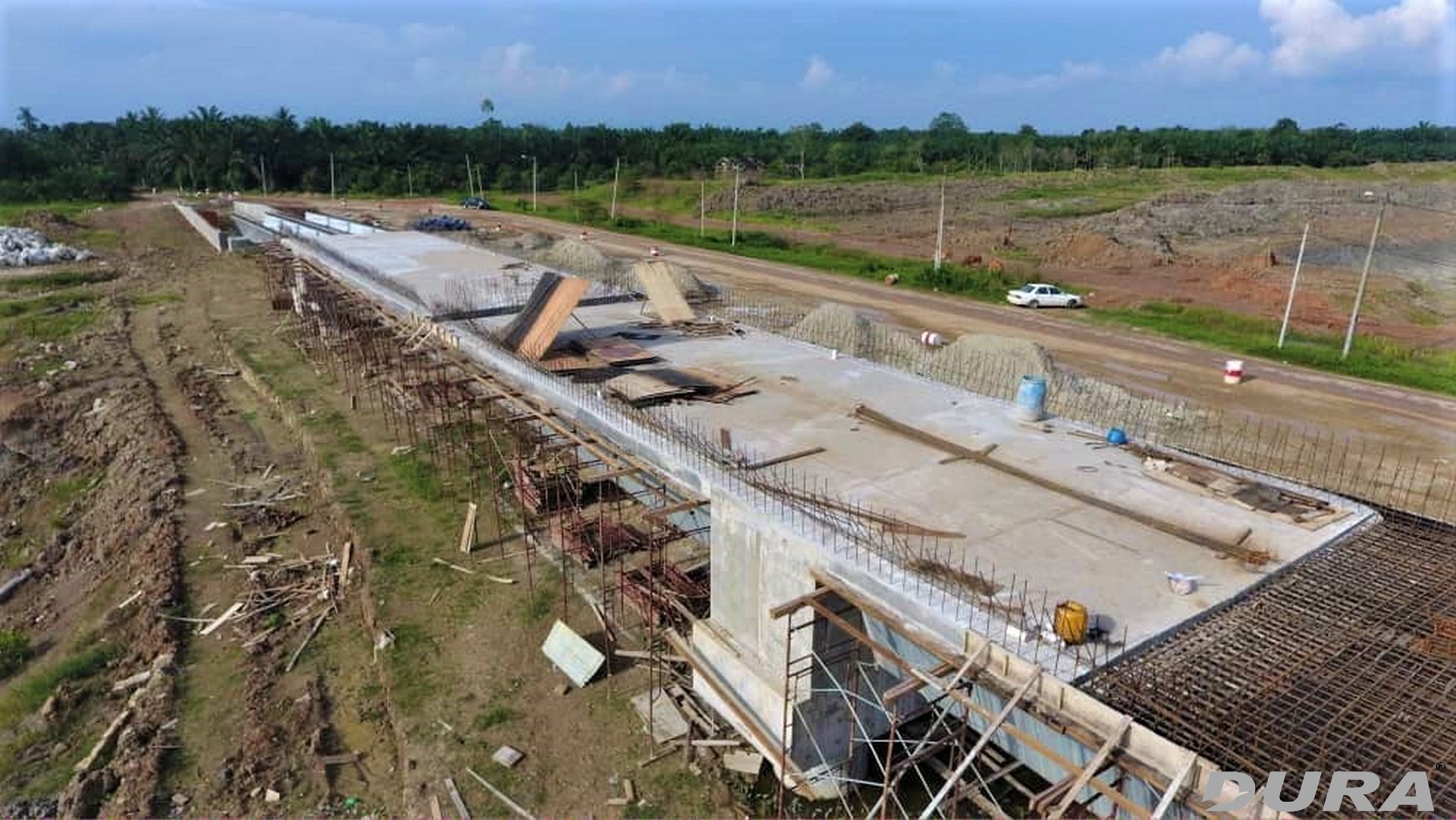

Some part of RC deck casted.
Some part of RC deck casted.
Some part of RC deck casted._2
Some part of RC deck casted._2
Completed Muar Bridge
Completed Muar Bridge
Project Title

Development of Flood Fluid Plan of Sungai Muar, Johor Blemishes Construction in Sungai Muar And Related Works.(Rancangan Tebatan Banjir Lembangan Sungai Muar, Johor Pembinaan Belemang Di Sungai Muar Dan Kerja-Kerja Berkaitan.)

Project Year

2018

Status

Completed Project

Country

Malaysia

GPS Cordinates

2.149051N, 102.62368E

Structure Type

Five Spans 40+40+50+40+40m x 7.4m Wide Composite Bridge System.

Superstructure Feature

8 pieces of DURA® UBG2000-39.5m, 2 pieces of DURA® UBG2000-49.5m, with cast in situ RC deck.

Substructure Feature

Cast in-situ RC abutments and RC piers

Foundation Feature

1500mm dia. Bored piles

Loading Type

HA + KEL or 45 Units HB Loadings (BD37/01)

Client

JPS Malaysia

Superintendent Officer (S.O.)

Jurutera Projek UPP Persekutuan Negeri Johor

Consultant

JPCT (alternative design)

Contractor

Maya Masrili Sdn Bhd.

Contract Period

36 months

Construction Status

Completed
