Five Spans UHPC Composite Bridge from Kg. Seberang Manong to Pekan Manong

  • Project Status

  • Select Country

  • Select Years

  • Reset
Original site
Original site

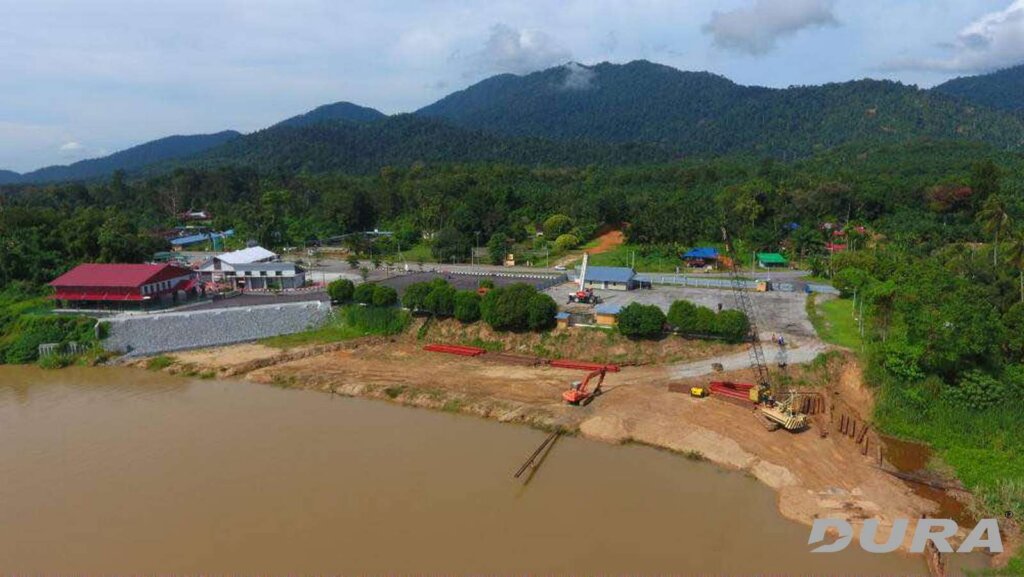

The bridge project site crossing to Sungai Perak.
The bridge project site crossing to Sungai Perak.
Construction of temporary platform in progress.
Construction of temporary platform in progress.
Temporary bridge
Temporary bridge
Temporary bridge under installation
Abutment A.
Abutment A.

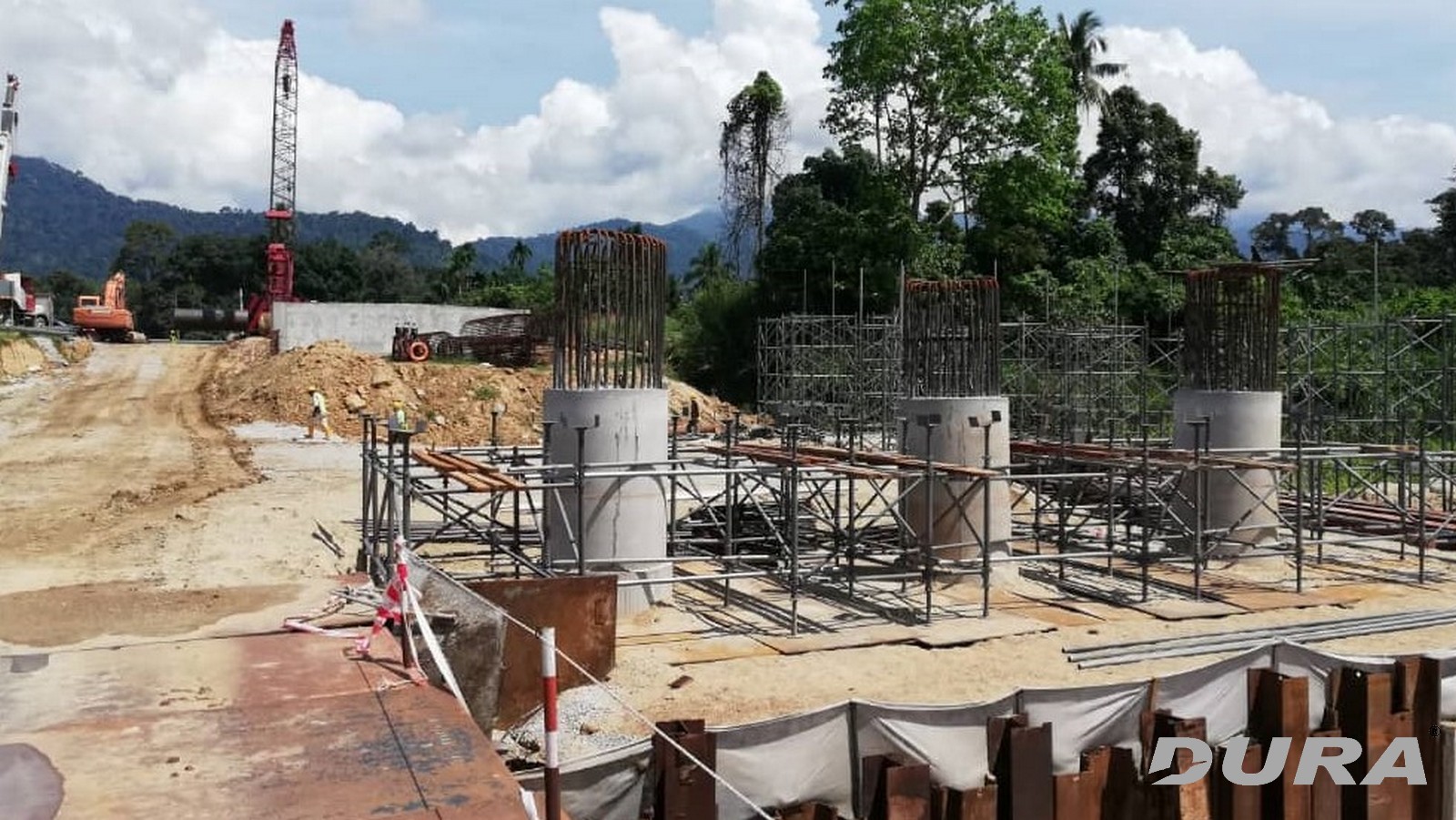

Pier 1.
Pier 1.

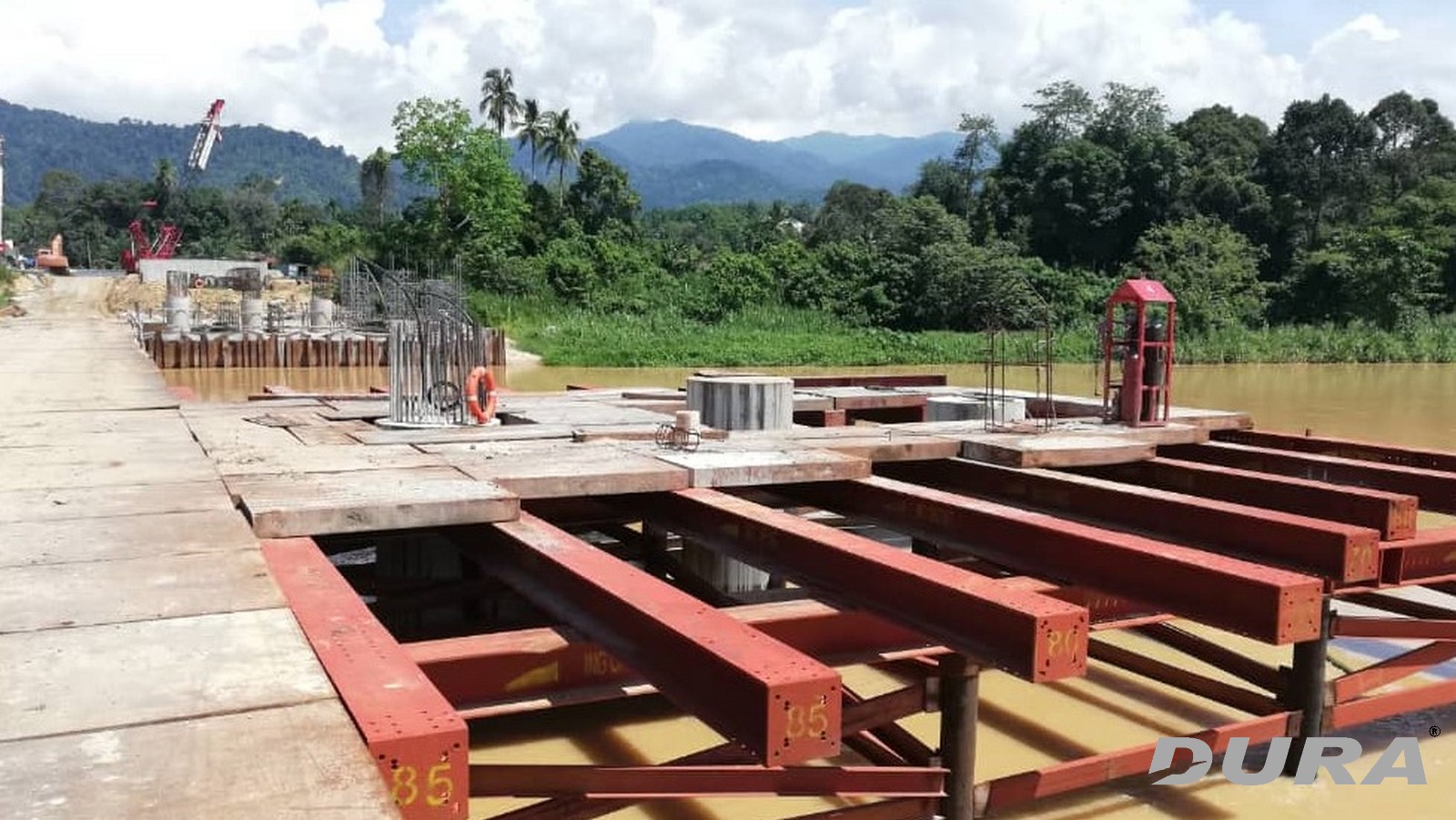

Pier 2 under construction.
Pier 2 under construction.
Installation of launching platform in progress.
Installation of launching platform in progress.
First DURA UBG3000-70m.
First DURA UBG3000-70m.
Post-tensioning mock-up on the UBG3000-70m.
Post-tensioning mock-up on the UBG3000-70m.
Full mockup on post-tensioning work of DURA UBG3000-70m.
Full mockup on post-tensioning work of DURA UBG3000-70m.
Unload and assembly of first DURA UBG2250 segment.
Unload and assembly of first DURA UBG2250 segment.
Unloading and assembly of U segments.
Unloading and assembly of U segments.
Installation of strands.
Installation of strands.
External tendons and ducting.
External tendons and ducting.
JD JPR Muar witnessing the progress work during beam launching (160918).
JD JPR Muar witnessing the progress work during beam launching (160918).

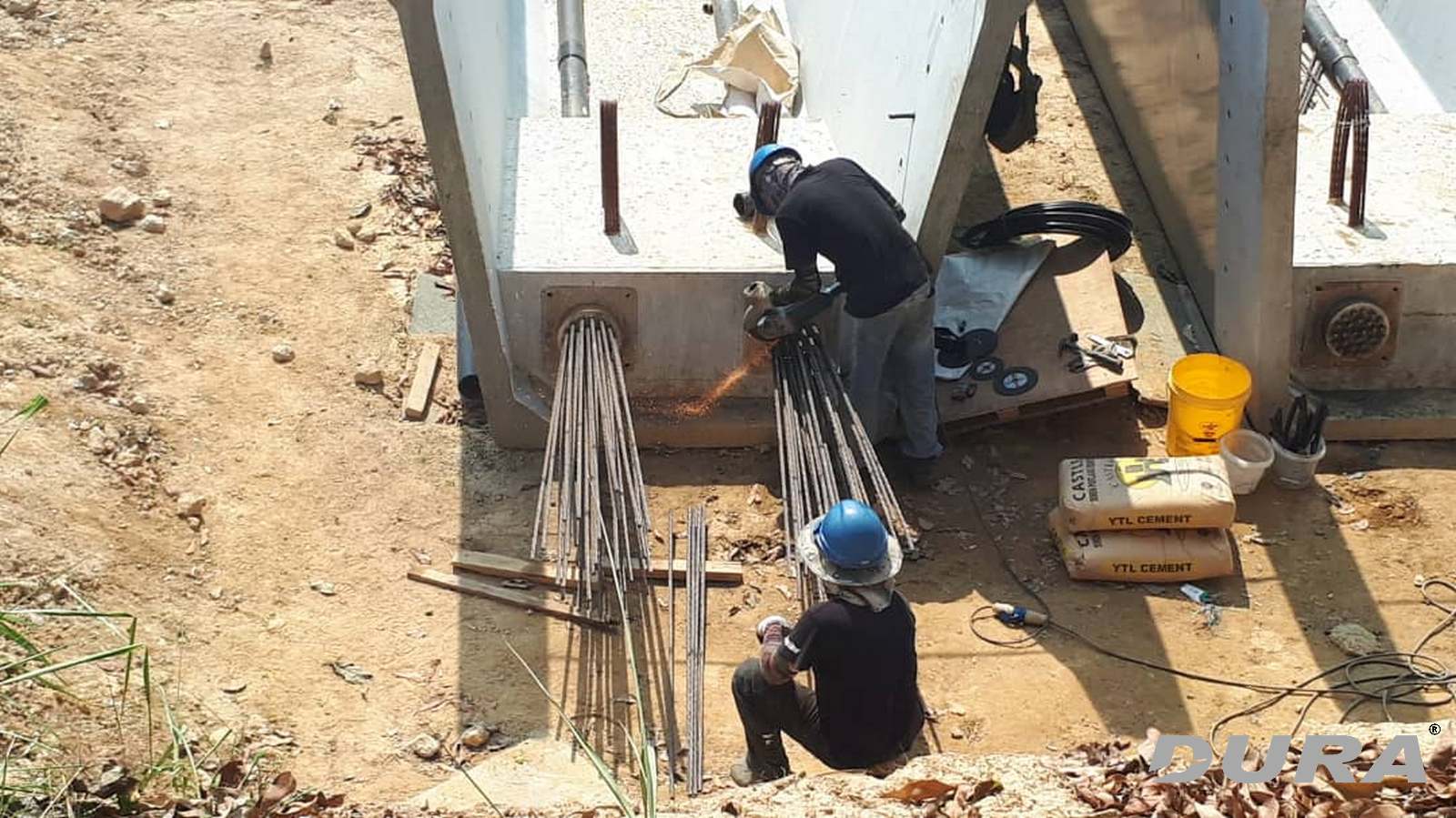

Cutting of extra strands after PT.
Cutting of extra strands after PT.
Tendons installed and post-tensioned.
Tendons installed and post-tensioned.
Preparation of temporary staging for UBG3000-70m beam assembly.
Preparation of temporary staging for UBG3000-70m beam assembly.
Preparation of temporary staging for UBG3000-70m beam assembly (280918).
Preparation of temporary staging for UBG3000-70m beam assembly (280918).
Unloading UBG3000 segment (261018).
Unloading UBG3000 segment (261018).
Unloading more UBG3000 segments.
Unloading more UBG3000 segments.
90 tonnes capacity crawler crane used for unloading and assembly of segments.
90 tonnes capacity crawler crane used for unloading and assembly of segments.
Temporary platform for UBG3000-70m assembly.
Temporary platform for UBG3000-70m assembly.
Temporary platform.
Temporary platform.
Assembly of UBG3000-70m segments (071118).
Assembly of UBG3000-70m segments (071118).

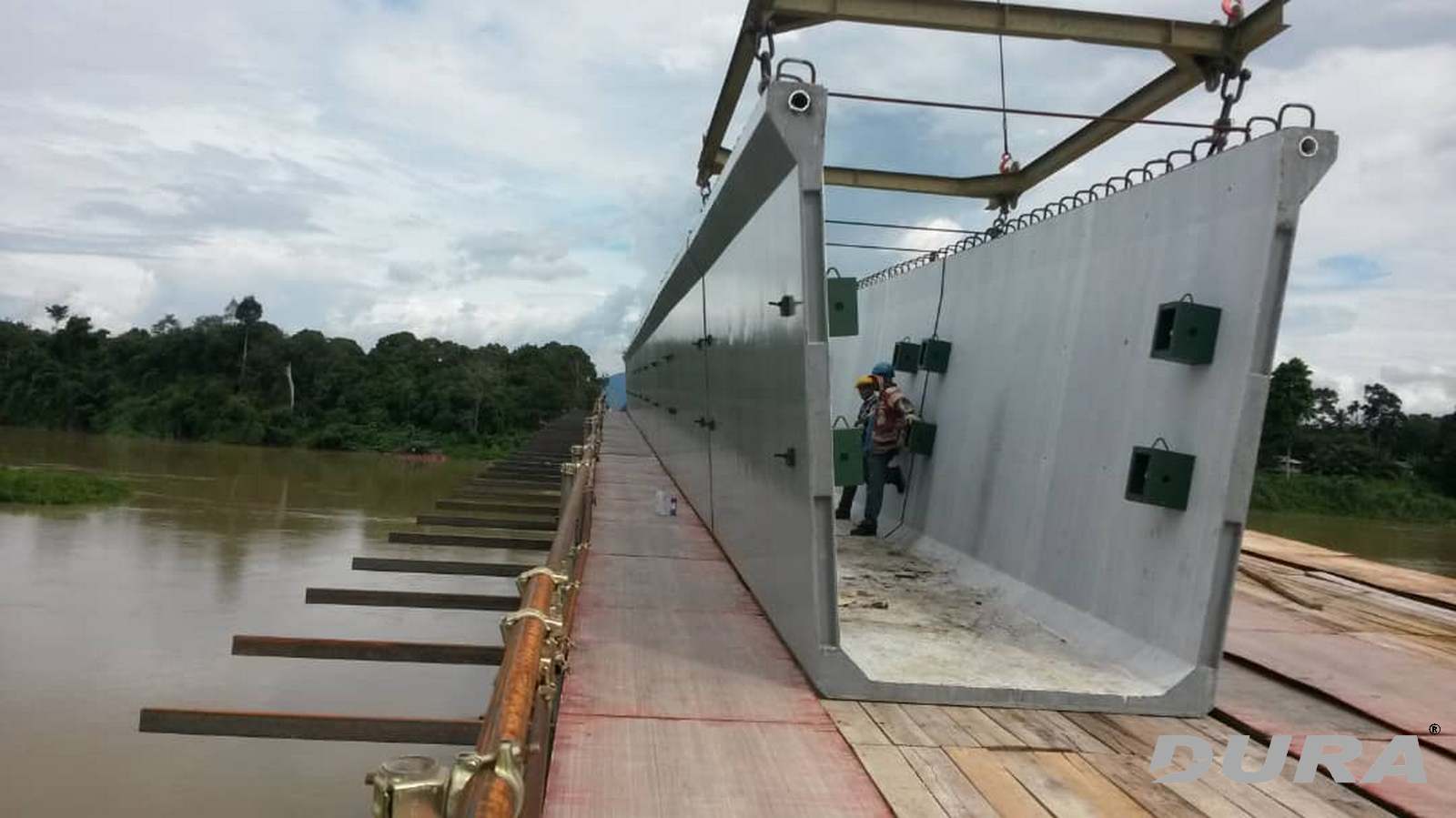

Assembly of UBG3000.
Assembly of UBG3000.
Temporary tie rods tensioning used to temporary connect the segments.
Temporary tie rods tensioning used to temporary connect the segments.
Assembly and PT work in progress on UBG3000-70m for span 2 (171118).
Assembly and PT work in progress on UBG3000-70m for span 2 (171118).
Assembly and PT work in progress on UBG3000-70m for span 2 (171118).
Assembly and PT work in progress on UBG3000-70m for span 2 (171118).
PT top tendons (171118).
PT top tendons (171118).

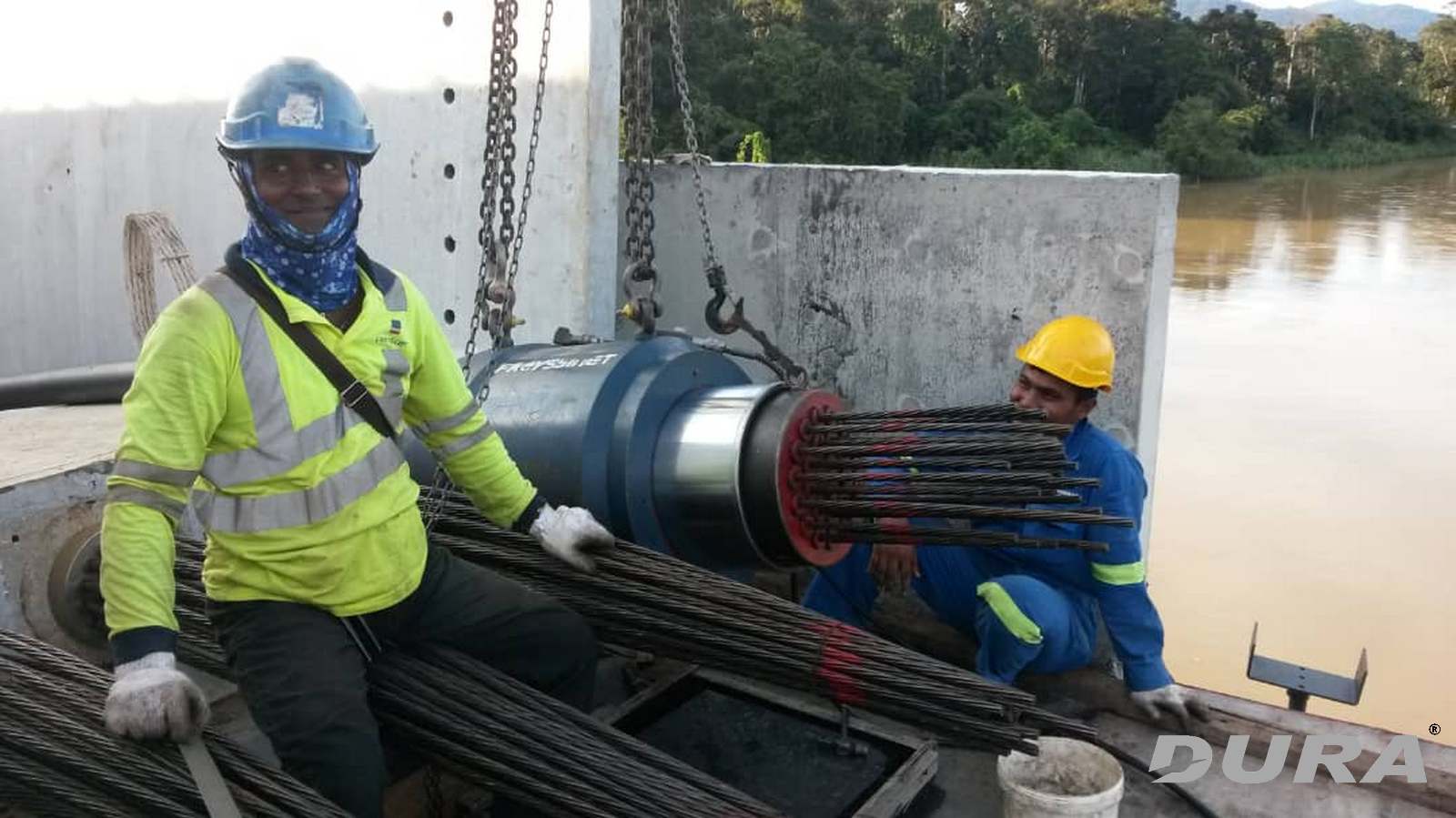

Stressing in progress (191118).
Stressing in progress (191118).
Completion of PT work for the first beam.
Completion of PT work for the first beam.
Direct beam launching of span 1, UBG2250-45m (240119).
Direct beam launching of span 1, UBG2250-45m (240119).
Beam launching of UBG2250-45m for span 1.
Beam launching of UBG2250-45m for span 1.
Direct launching using 2 units 200 tonnes mobile cranes.
Completed RC decking for span 1 (080519).
Completed RC decking for span 1 (080519).
Lifting of UBG2250-45m for the last span (130619).
Lifting of UBG2250-45m for the last span (130619).
Completion of beam launching for the last 5th spans.
Completion of beam launching for the last 5th spans.
Installation of precast parapet (140819).
Installation of precast parapet (140819).
Demantling of steel temporary bridge (280919).
Manong bridge soon will be completed and open to traffic (201019).
Manong bridge soon will be completed and open to traffic (201019).
Manong bridge soon will be completed and open to traffic (201019)._2
Manong bridge soon will be completed and open to traffic (201019)._2
Project Title

To Construct Bridge at Sungai Perak from Kg. Seberang Manong to Pekan Manong (Kampung Simpang Melembu), Kuala Kangsar, Perak Darul Ridzuan(Membina Jambatan Menyeberang Sungai Perak di antara Kampung Seberang Manong ke Pekan Manong (Kampung Simpang Melembu), Kuala Kangsar, Perak Darul Ridzuan)

Project Year

2019

Status

Completed Project

Country

Malaysia

GPS Cordinates

4.598792 N ,100.881463 E

Structure Type

Five Spans UHPC Beam Composite In Situ Deck Bridge System: 45m + 70m + 70m + 70m + 45m x 11.5m wide.

Superstructure Feature

9 pieces of DURA® UBG3000-70m and 6 pieces of DURA® UBG2250-45m with Cast In-Situ RC Deck

Substructure Feature

Cast in-situ RC abutments

Foundation Feature

1500mm dia. Bored Piles

Loading Type

LM1 + LM3 SV80

Client

JKR Malaysia

Superintendent Officer (S.O.)

JKR Perak

Contractor

Kumpulan Awambina Sdn Bhd

Alternative Bridge Designer

JKR Malaysia

Contract Period

24 months

Construction Status

Completed
