Flood Mitigation Plan at Sg. Chempedak , Negeri Sembilan using DURA® IB1000 – 20m to 21.5m and DURA® IB650 – 20m length

  • Project Status

  • Select Country

  • Select Years

  • Reset

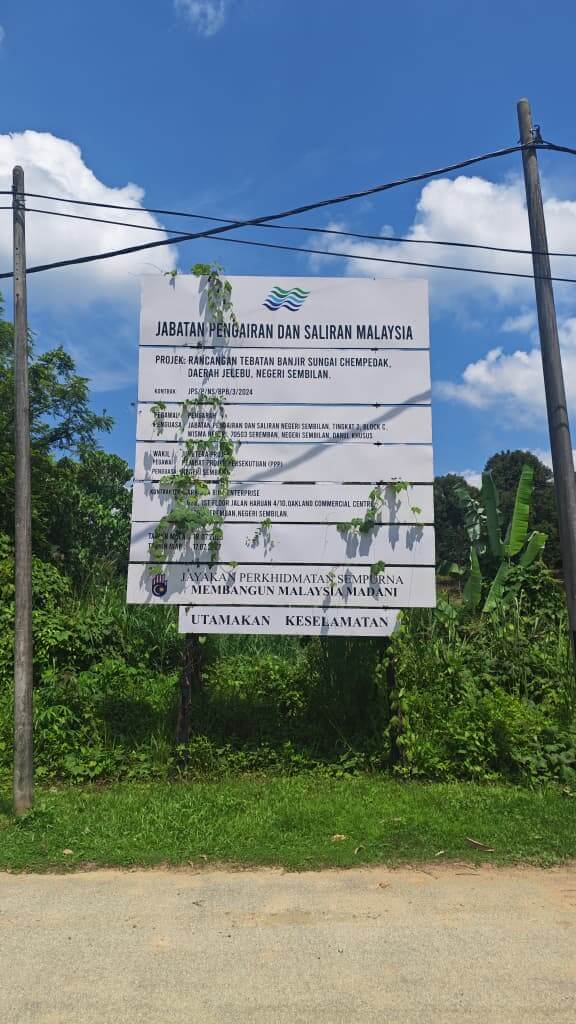

Project signboard.
Project signboard.

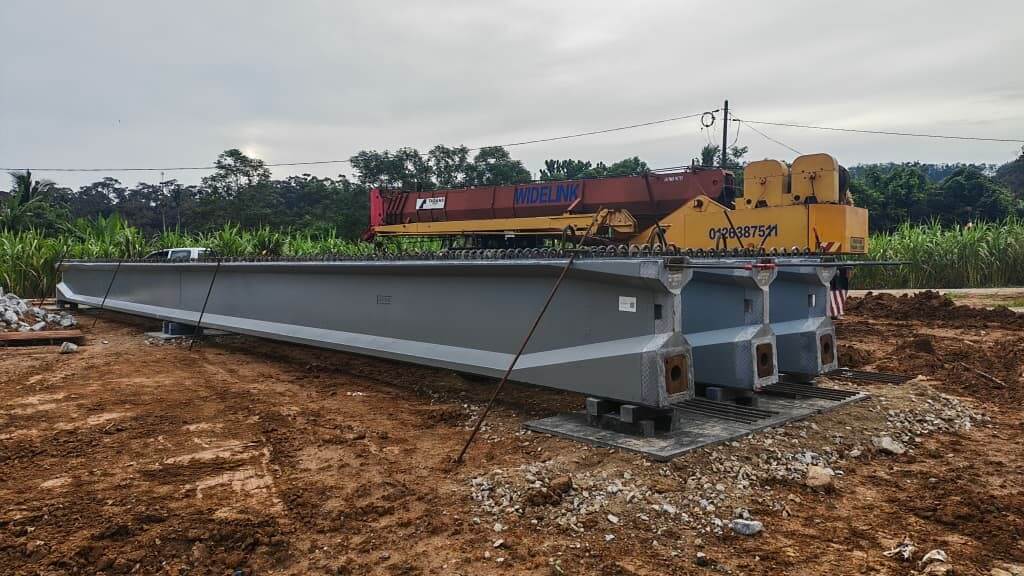

Delivery of the precast beams to the project site has been completed, marking the commencement of beam launching preparations.
Delivery of the precast beams to the project site has been completed, marking the commencement of beam launching preparations.

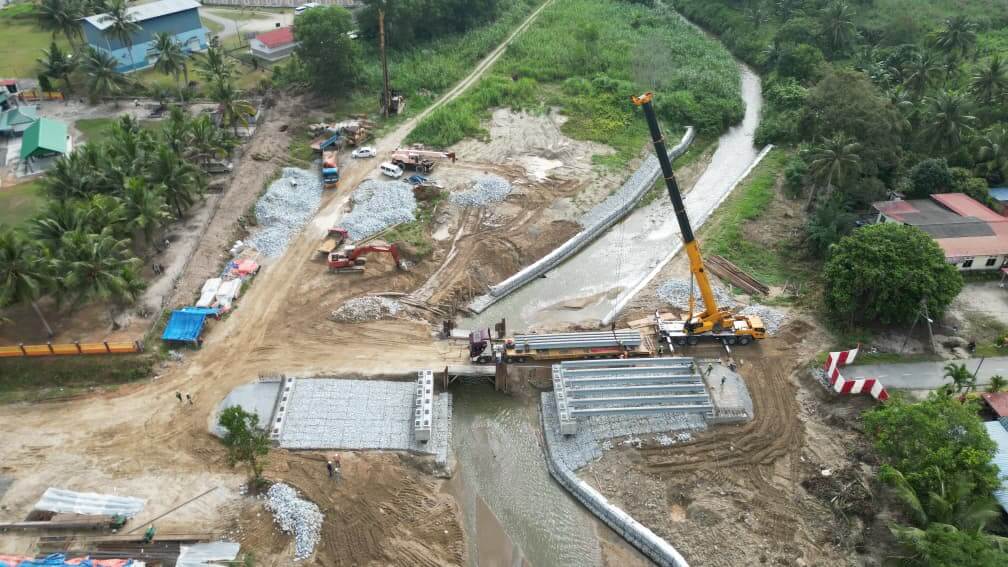

UHPC beam launching activities are in progress.
UHPC beam launching activities are in progress.

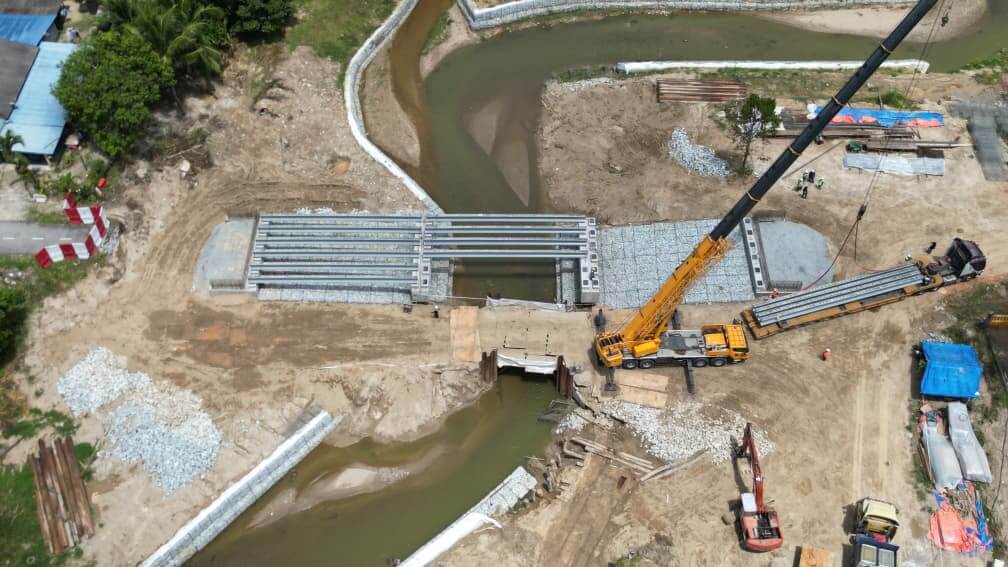

UHPC beam launching activities are in progress. The precast UHPC beams are being lifted directly from the delivery trailer using a mobile crane and positioned onto the bridge bearings.
UHPC beam launching activities are in progress. The precast UHPC beams are being lifted directly from the delivery trailer using a mobile crane and positioned onto the bridge bearings.

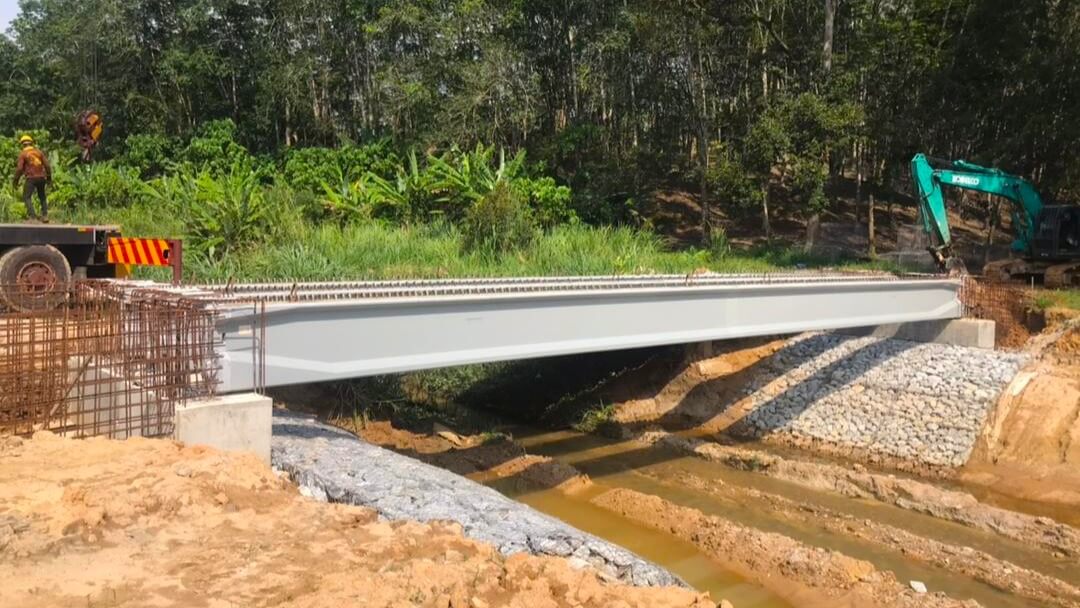

Completion of beam placement.
Completion of beam placement.
Project Title

PROJEK RANCANGAN TEBATAN BANJIR SUNGAI CHEMPEDAK, DAERAH JELEBU, NEGERI SEMBILAN

Project Year

2025

Status

On Going Project

Country

Malaysia

GPS Cordinates

Br. No.1,3&5 : 2.989265,102.085026, Br No.6 : 2.983248,102.072639

Structure Type

Bridge No.1,No.3 & No.5 Single Span 20m by 5m Wide UHPFRC Composite Bridge System | Bridge No.4 Single Span 21.5m by 5m Wide UHPFRC Composite Bridge System | Bridge No.6 Single Span 20m by 5m Wide UHPFRC Composite Bridge System | Bridge No.7 Single Span 20m by 7m Wide UHPFRC Composite Bridge System

Superstructure Feature

Bridge 1,2,3 & 5 : 12 pieces of DURA®IB1000 – 20M | Bridge 4 : 3 pieces of DURA®IB1000 – 21.5M | Bridge 6 & 7 : 8 pieces of DURA®IB650 - 20M

Substructure Feature

Cast in-situ RC abutments

Foundation Feature

200mm x 200mm dia. RC Piles

Loading Type

HA+ 45 units HB loadings (BD37/01)

Client

Jabatan Pengairan dan Saliran Malaysia

Superintendent Officer (S.O.)

Jabatan Pengairan dan Saliran Negeri Sembilan

Contractor

Arkisha Bina Enterprise

Contract Period

24 months
