IB850 for 20m single span bridge at Tambunan Sabah

  • Project Status

  • Select Country

  • Select Years

  • Reset

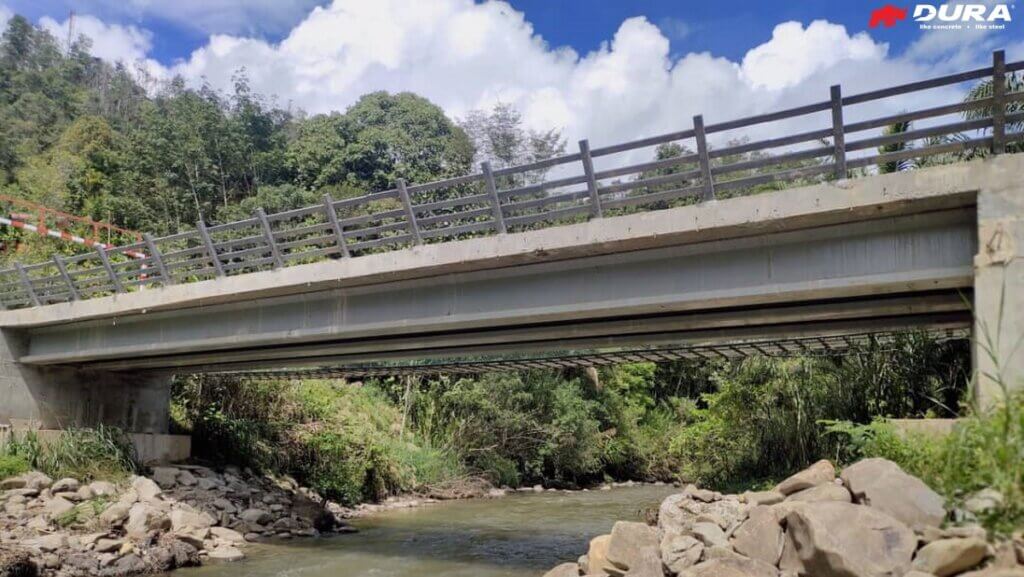

Completed Bridge.
Completed Bridge.
Completed Bridge.
Completed Bridge.

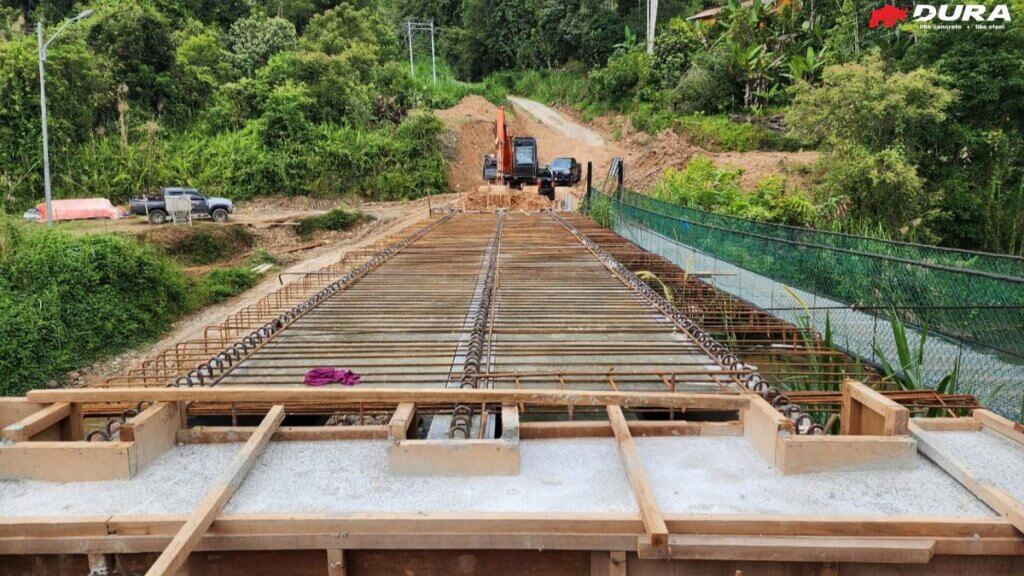

Deckslab of bridge.
Deckslab of bridge.

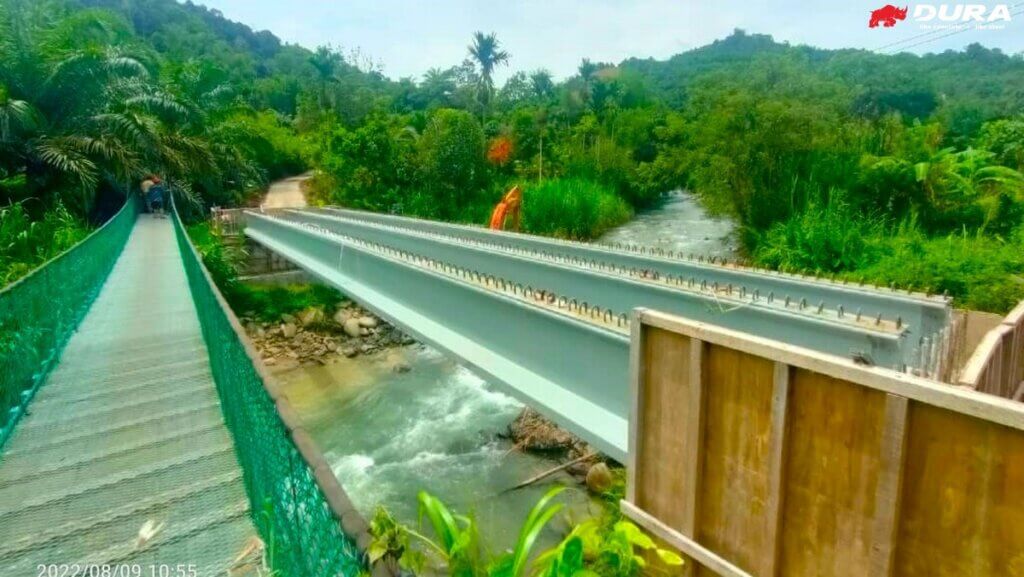

Three nos of IB850 sitting on the abutments.
Three nos of IB850 sitting on the abutments.

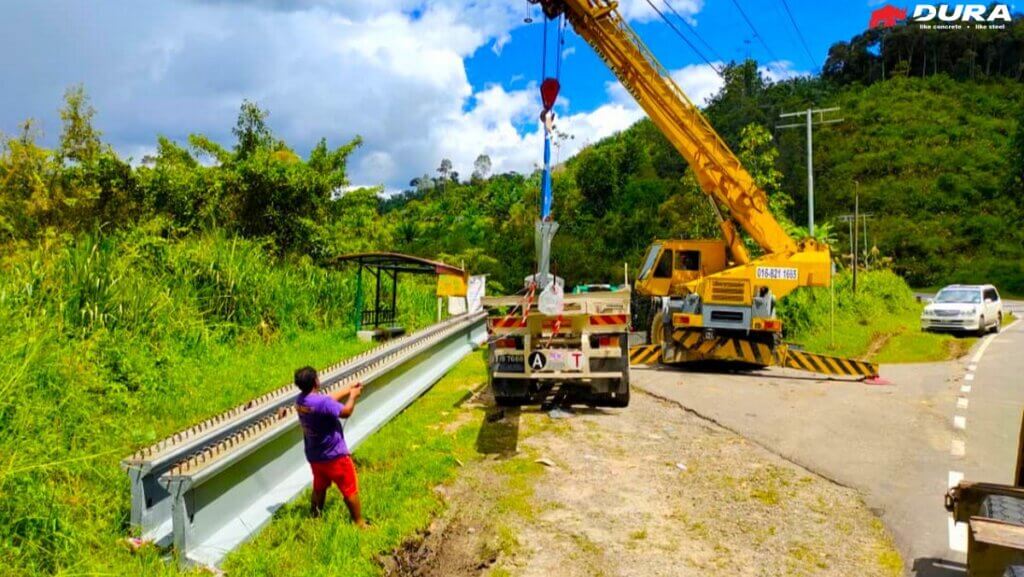

Unloading Ibeam to job site.
Unloading Ibeam to job site.
Uploading Ibeam onto the ship.
Uploading Ibeam onto the ship.
Uploading beam into the ship.
Uploading beam into the ship.
RC pile used as foundation structure.
RC pile used as foundation structure.

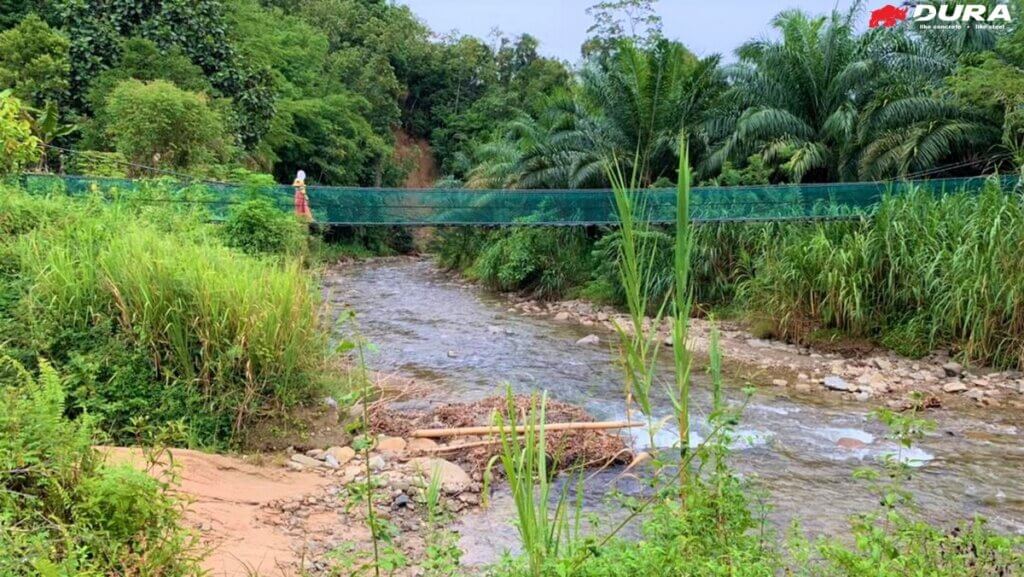

Existing cable bridge.
Existing cable bridge.

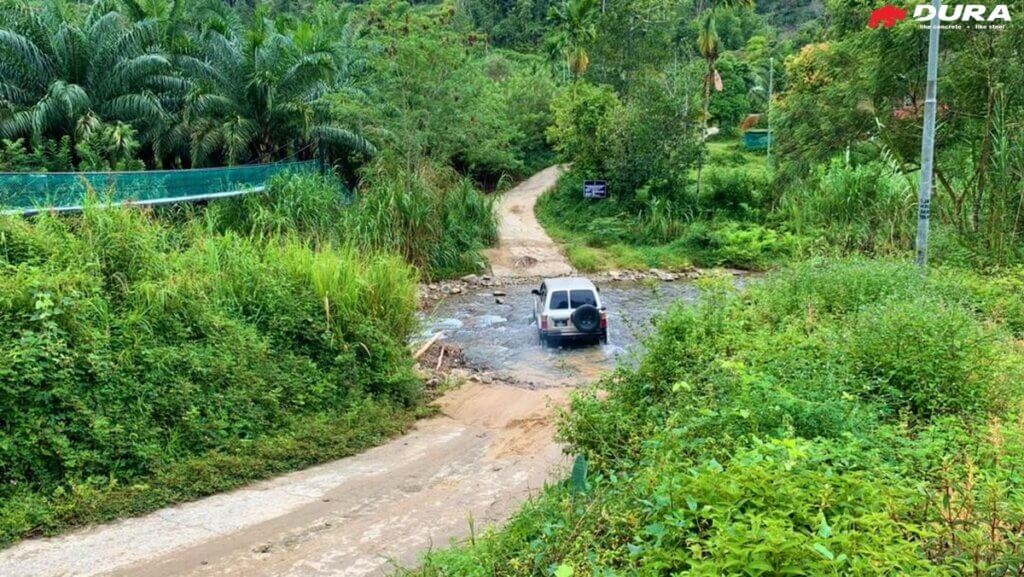

Existing river and proposed bridge site.
Existing river and proposed bridge site.
Project Title

To Construct a Concrete Bridge At Kg. Meluot Tampasak Liwan Tambunan, Sabah

Project Year

2022

Status

Completed Project

Country

Malaysia

GPS Cordinates

5.816400 N; 116.491292 E

Structure Type

Single Span 20m by 4.5m Wide UHPFRC integral beam-deck system.

Superstructure Feature

3 pieces of DURA® IB850-20m

Substructure Feature

Cast in-situ RC abutments

Foundation Feature

200mm x 200mm dia. SQ RC pile (Class B)

Loading Type

HA+ 30 units HB loadings (BD37/01)

Client

Jabatan Tanah Tambunan

Superintendent Officer (S.O.)

Jabatan Tanah Tambunan

Consultant

JPCT

Contractor

Sartini Contractor
