MALAYSIA BOLEH !!! – Dura Bridge Made from Malaysia Going to be Used in India

  • Project Status

  • Select Country

  • Select Years

  • Reset
Preparation of bore pile starter bars (160519).
Preparation of bore pile starter bars (160519).

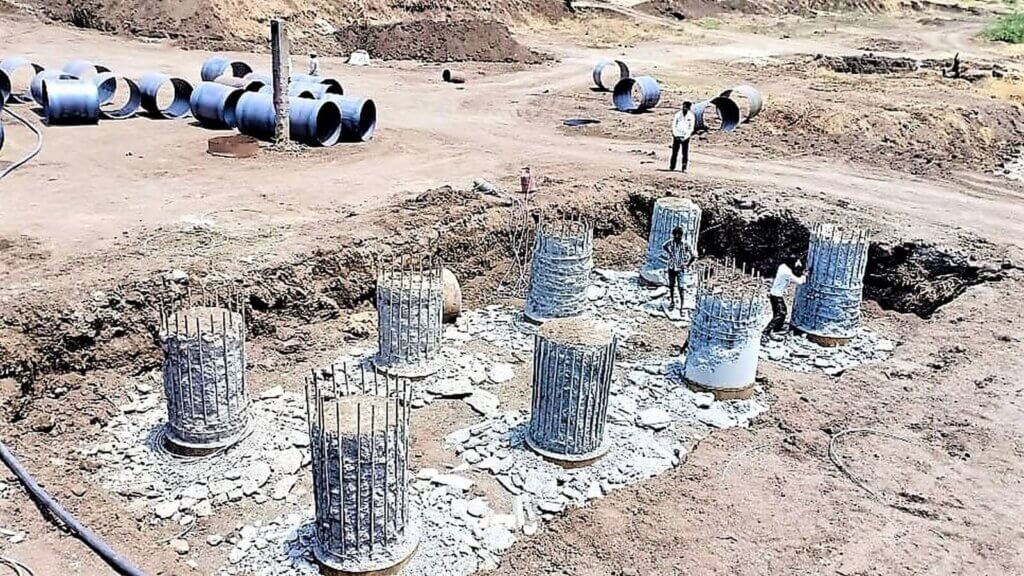

Preparation of bore pile starter bars at the pier region (160519).
Preparation of bore pile starter bars at the pier region (160519).

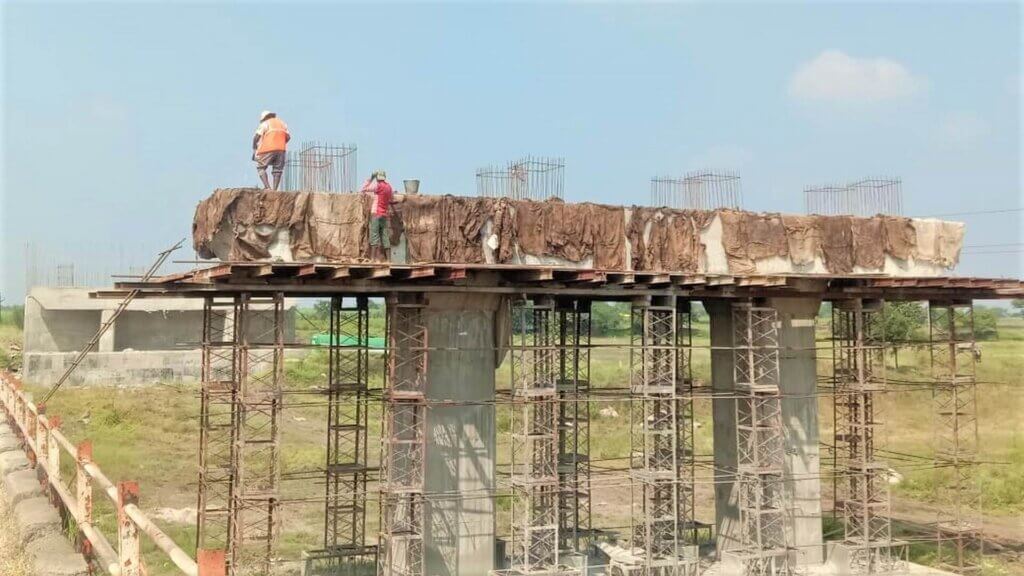

Construction of centre pier.
Construction of centre pier.

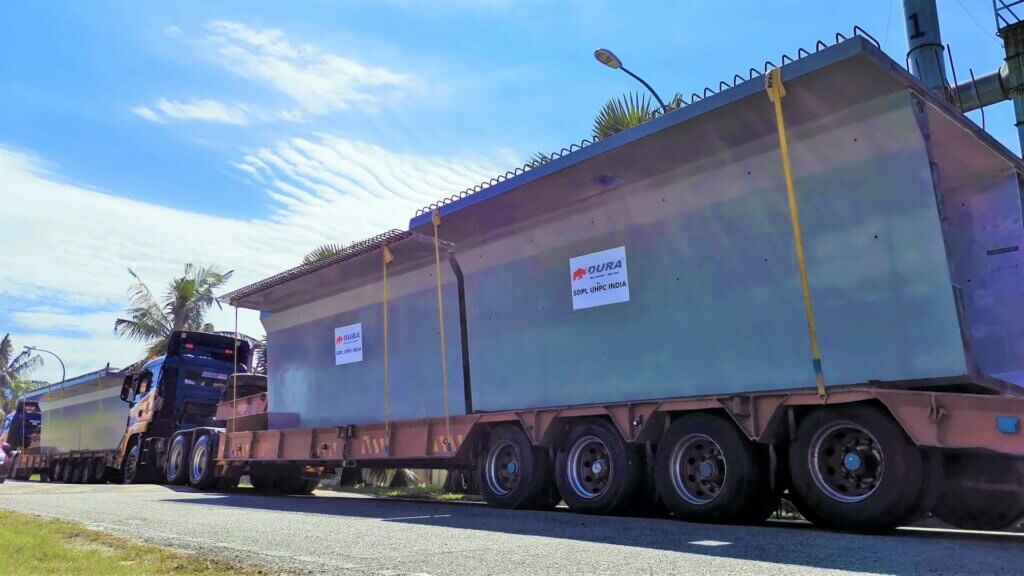

Sending beam segments to Penang port.
Sending beam segments to Penang port.

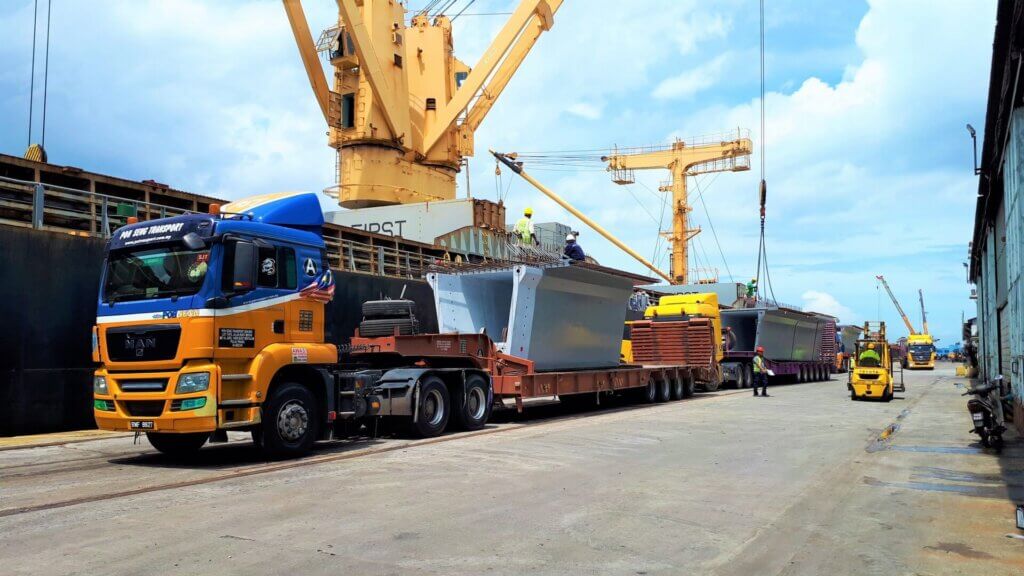

Segments ready to be lifted onto the ship.
Segments ready to be lifted onto the ship.

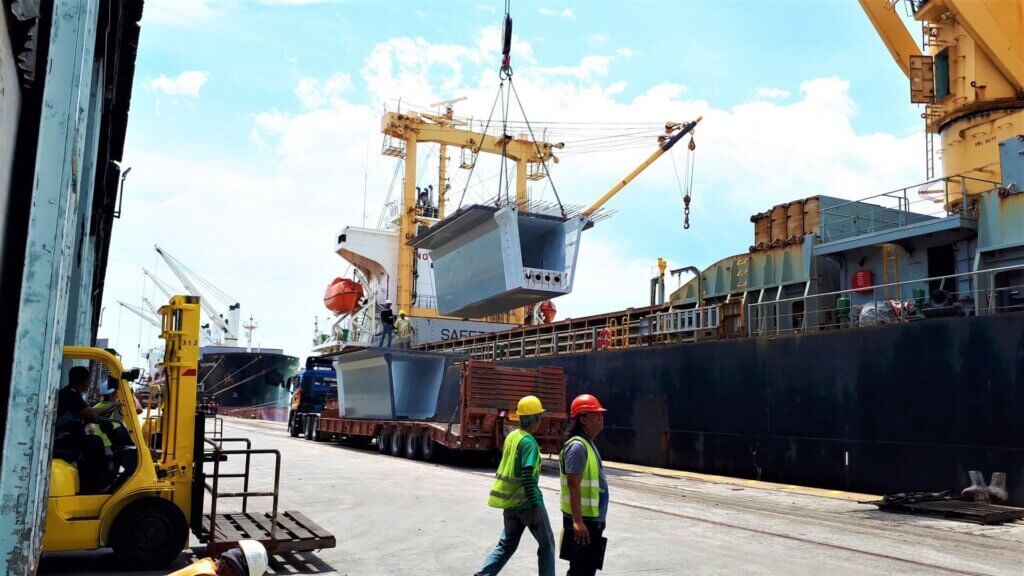

Loading segments onto the ship.
Loading segments onto the ship.

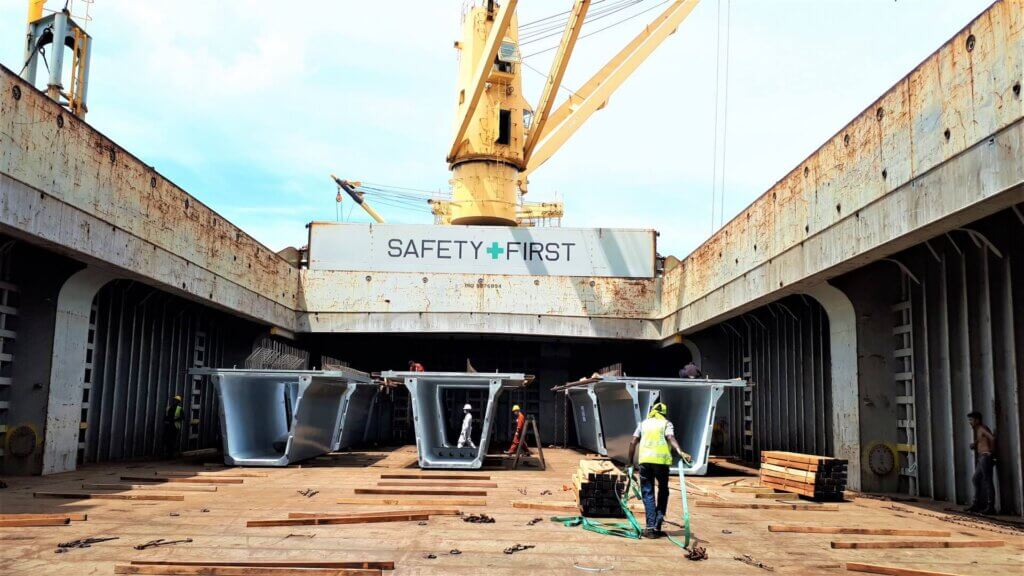

Arranging beam segments.
Arranging beam segments.

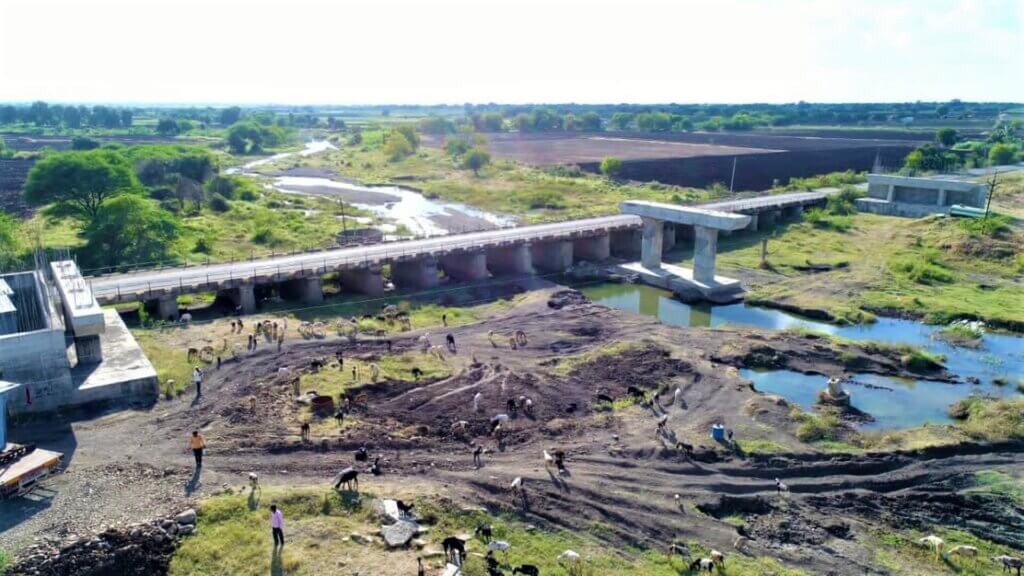

Bridge segments reach Latur bridge site.
Bridge segments reach Latur bridge site.

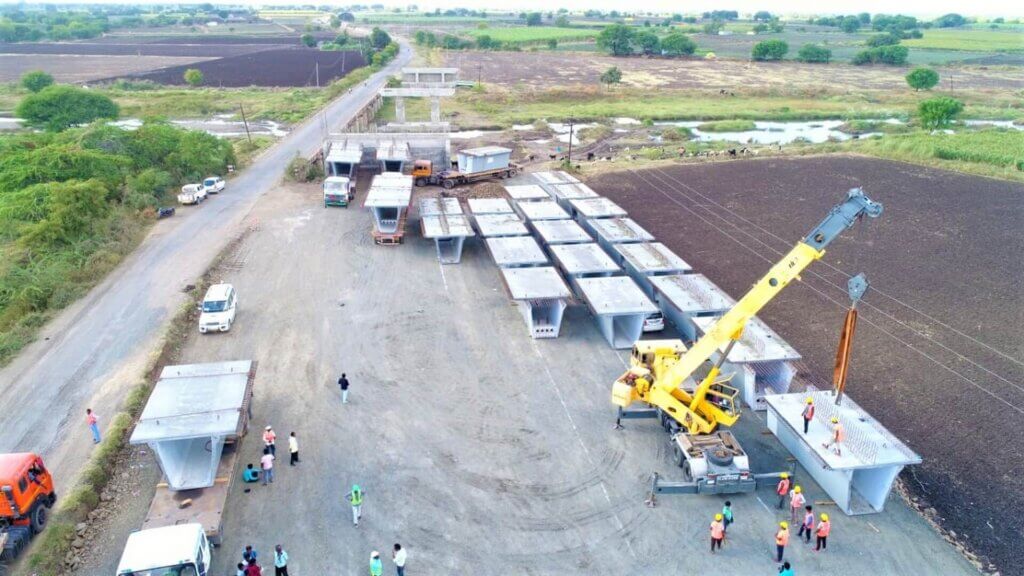

Unloading box girder segments.
Unloading box girder segments.

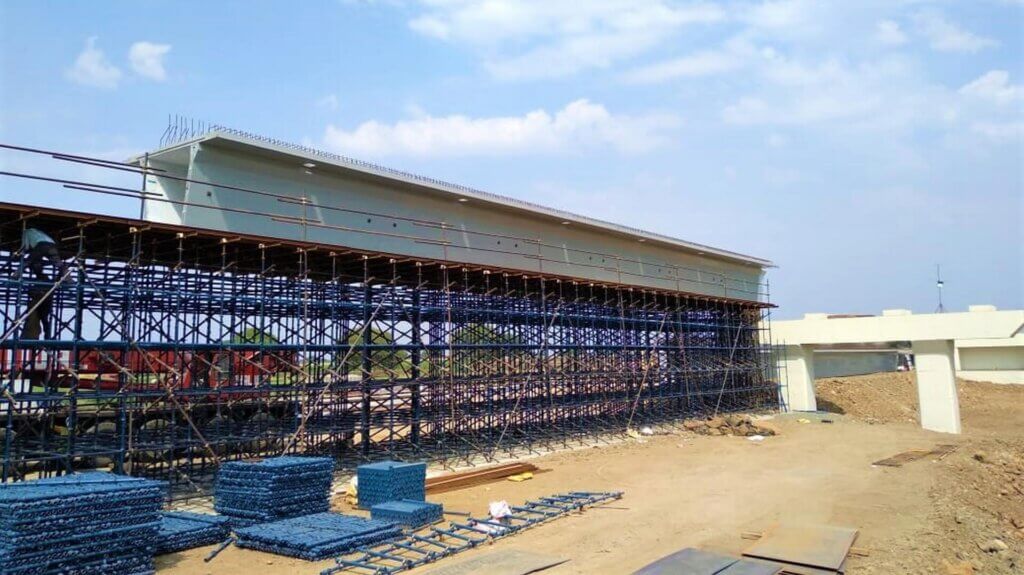

Six segments have aligned.
Six segments have aligned.

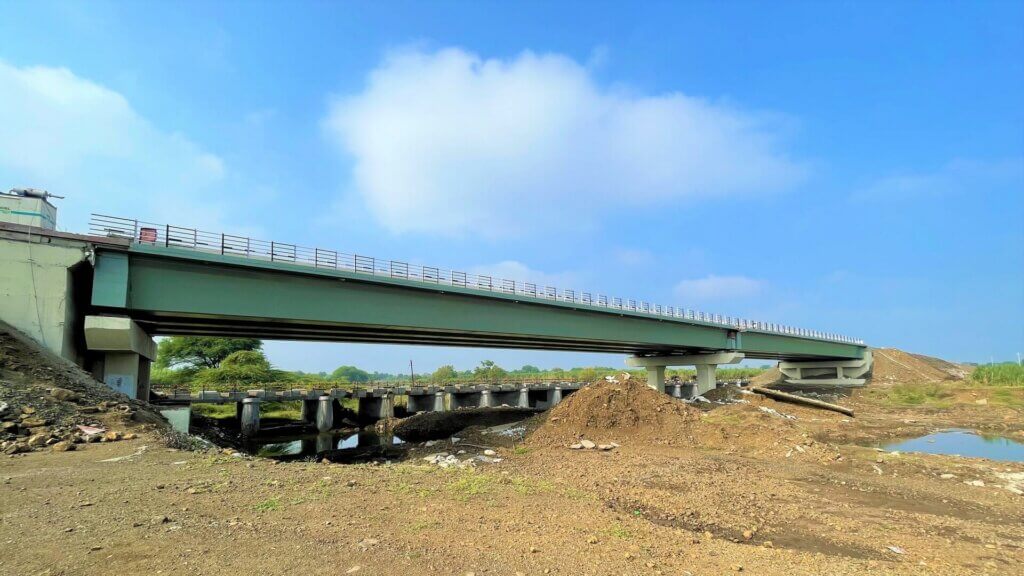

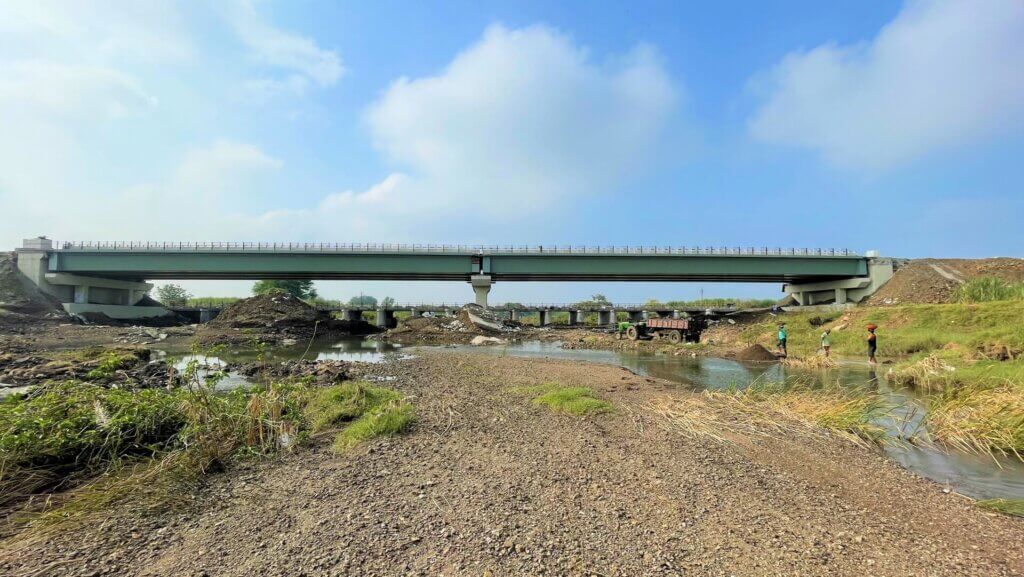

Completed Latur Bridge.
Completed Latur Bridge.
Completed Latur Bridge.
Completed Latur Bridge.

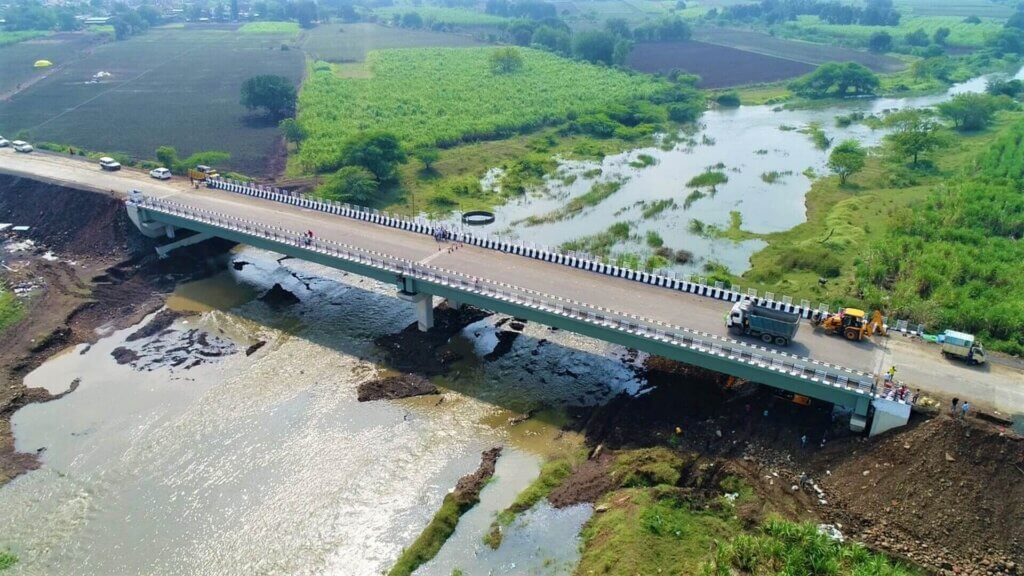

Latur Bridge.
Latur Bridge.
Latur Bridge.
Latur Bridge.

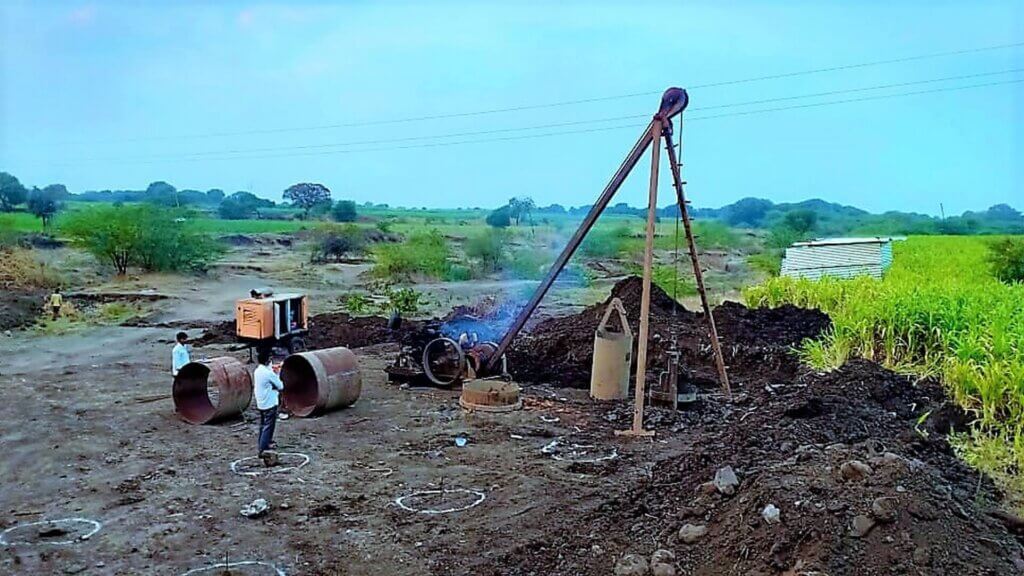

Construction of foundation work in progress.
Construction of foundation work in progress.

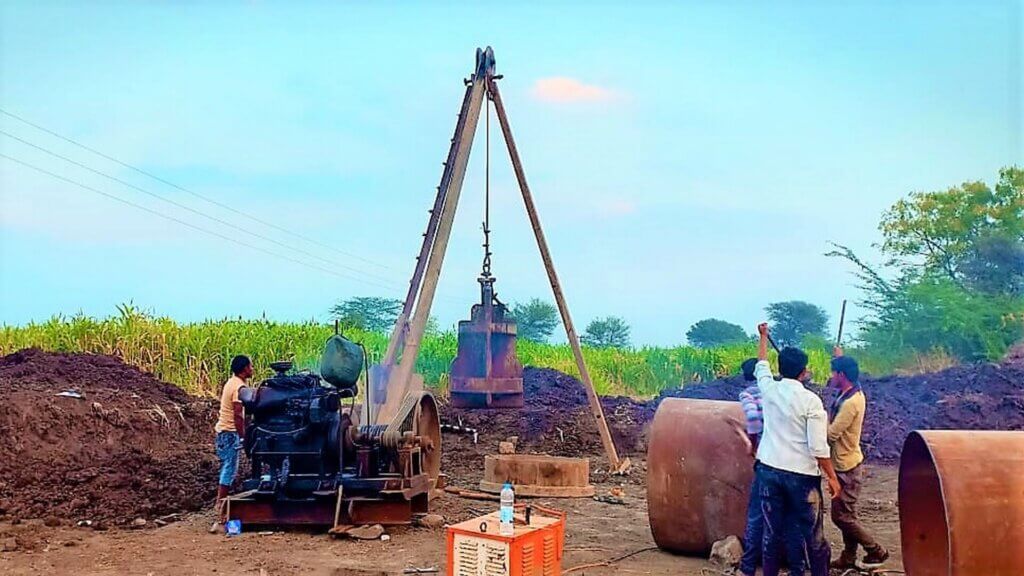

Drop- in hammer used to dig holes on the ground.
Drop- in hammer used to dig holes on the ground.

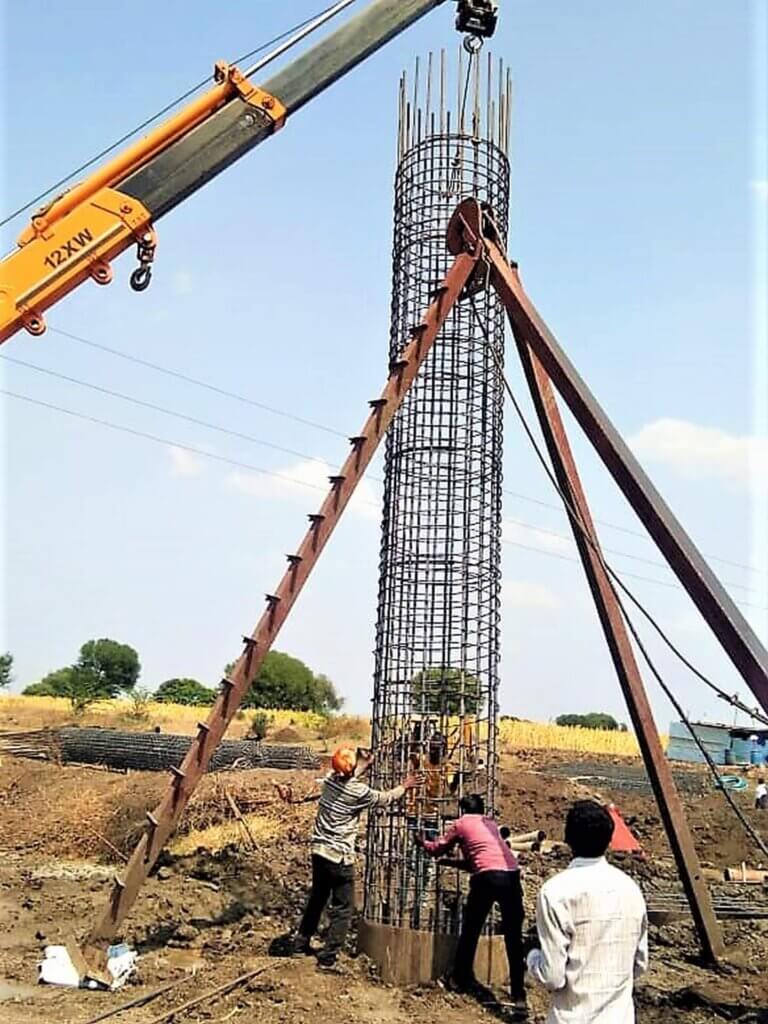

Installation of steel cage into the dug holes.
Installation of steel cage into the dug holes.

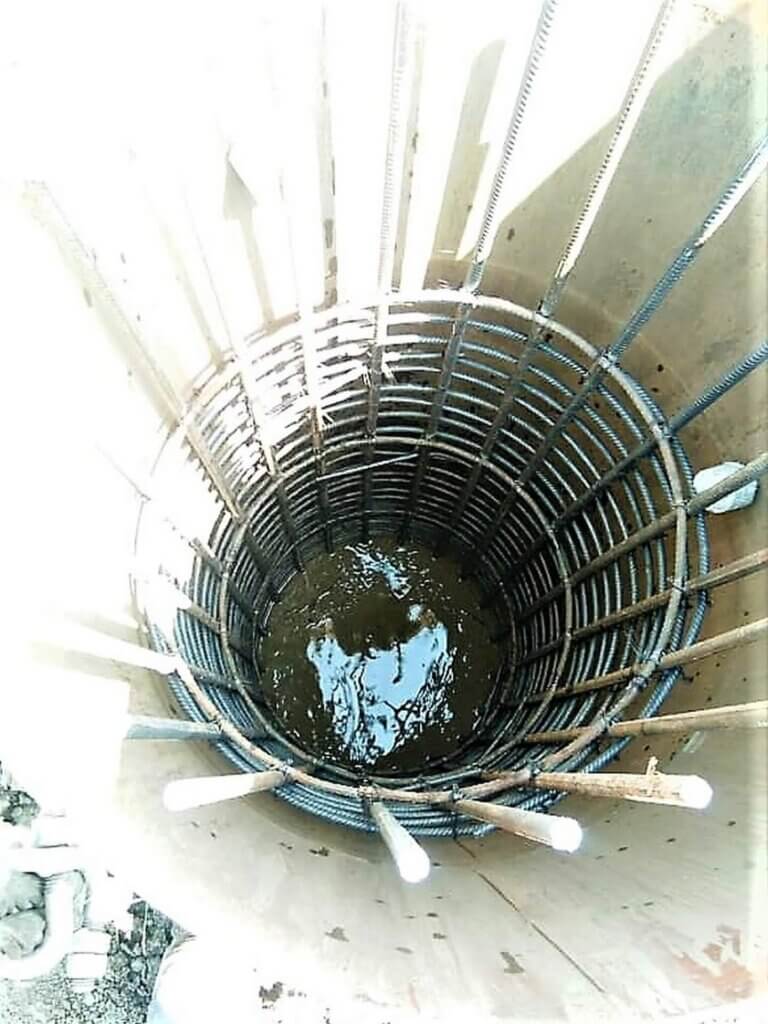

Steel cage installed.
Steel cage installed.

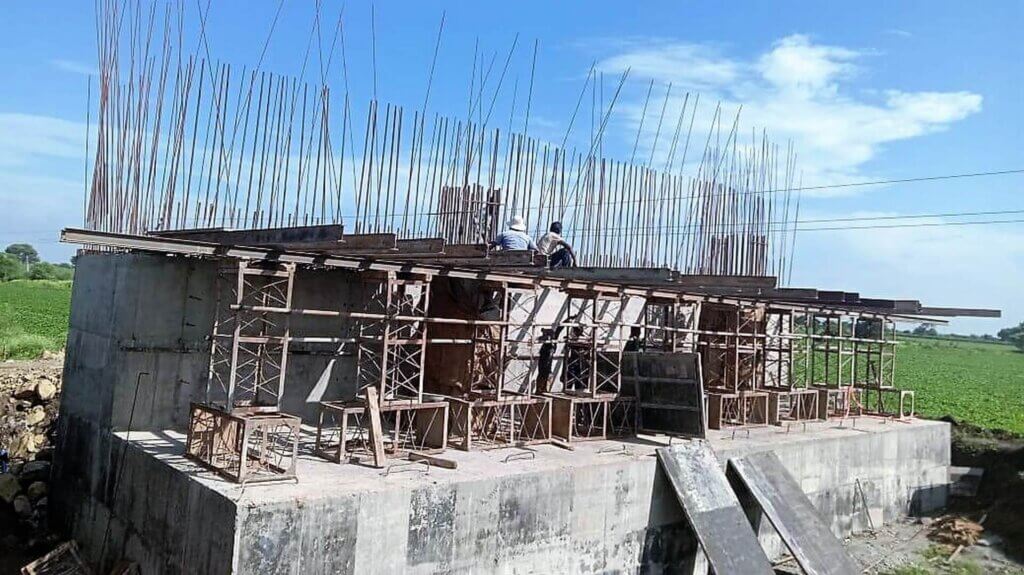

Construction of Abutment A
Construction of Abutment A

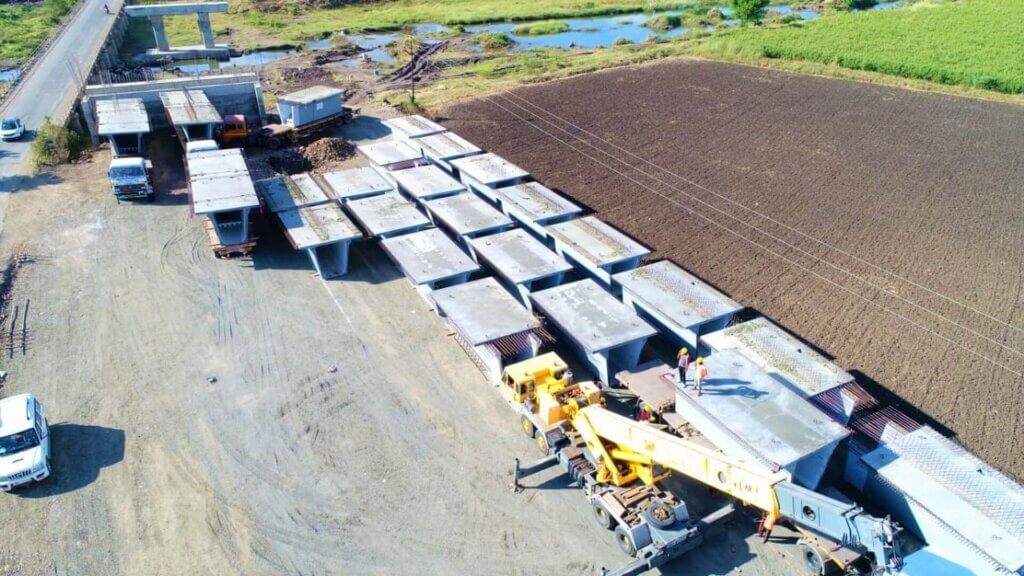

Unloaded box girder at job site.
Unloaded box girder at job site.

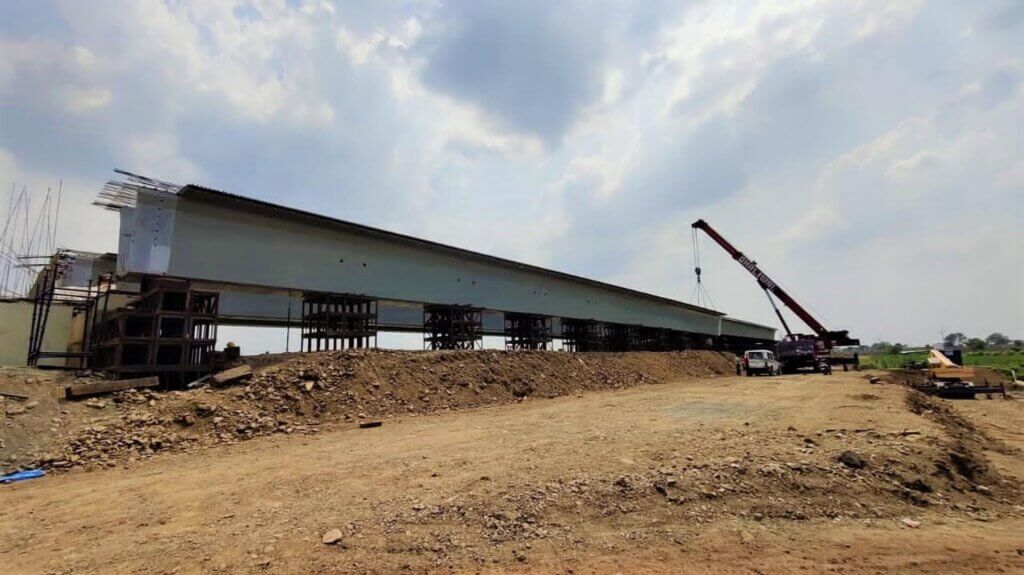

Assembling span 1 girder 3 on temporary platform.
Assembling span 1 girder 3 on temporary platform.
Transporation of UHPC box girder segments to job site (181120).
Transporation of UHPC box girder segments to job site (181120).

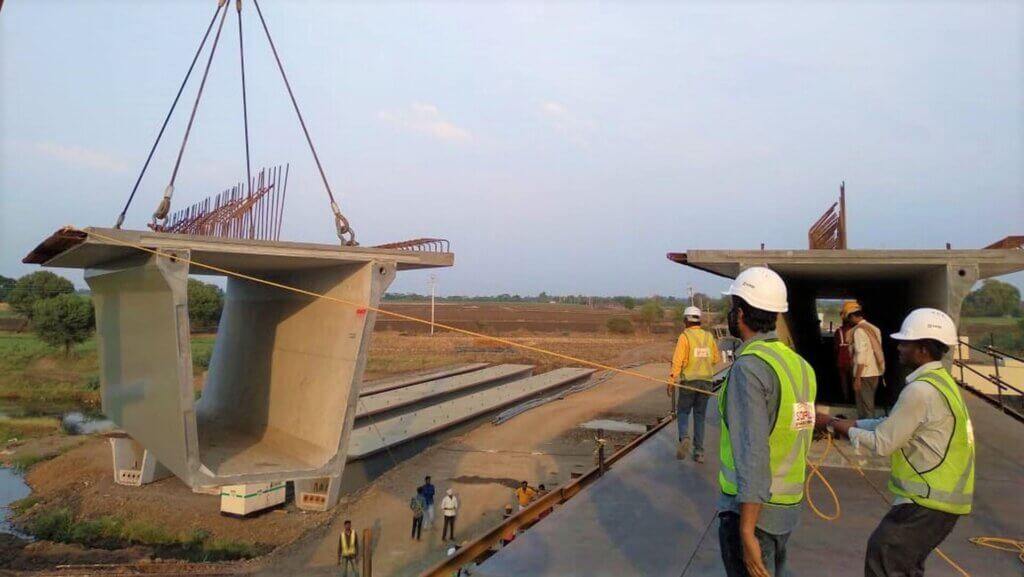

Placing the UHPC box segment onto the steel temporary staging support (210421).
Placing the UHPC box segment onto the steel temporary staging support (210421).

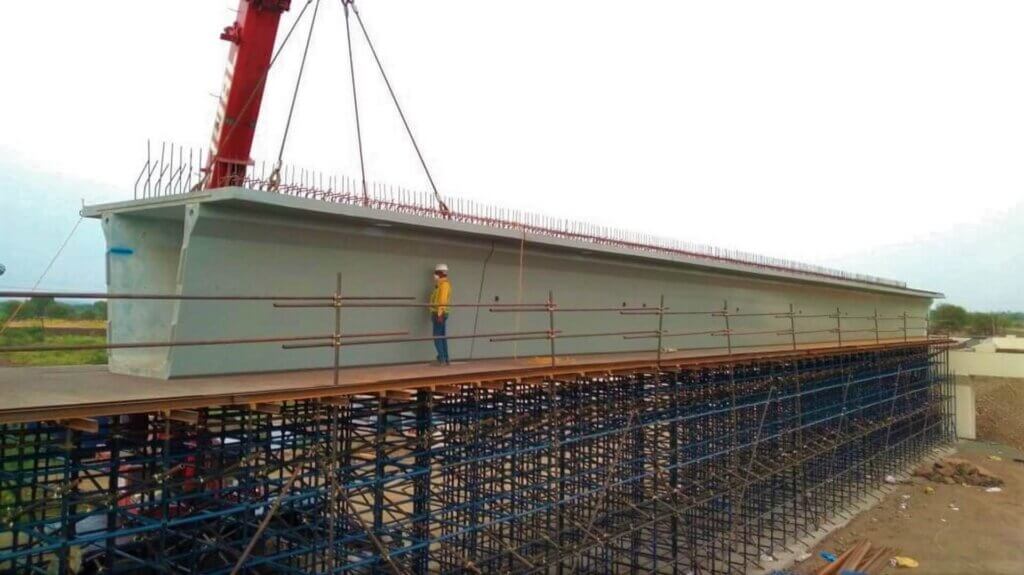

Assembly of box segment using mobile crane (210421).
Assembly of box segment using mobile crane (210421).

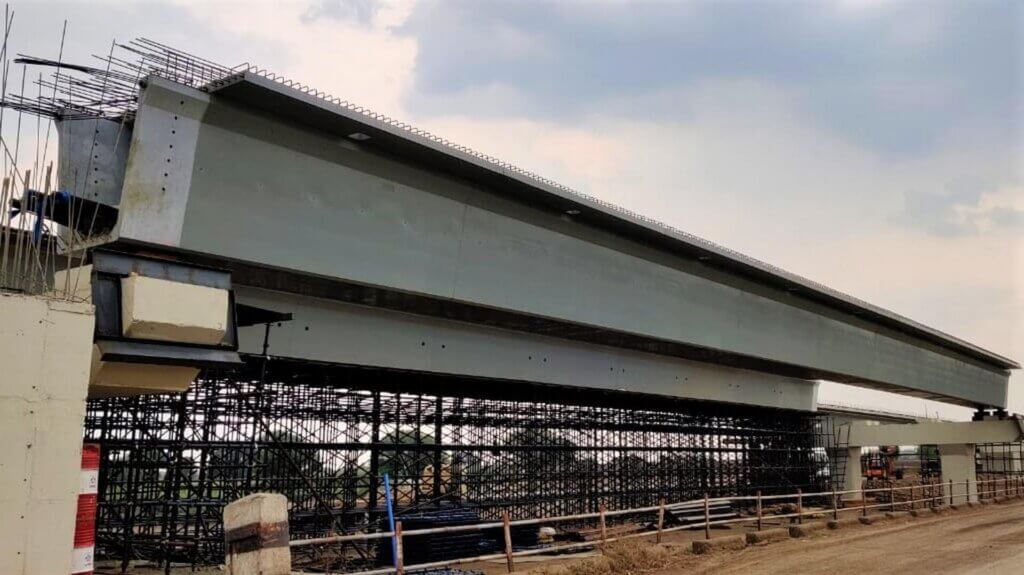

One full beam fully post-tensioned.
One full beam fully post-tensioned.

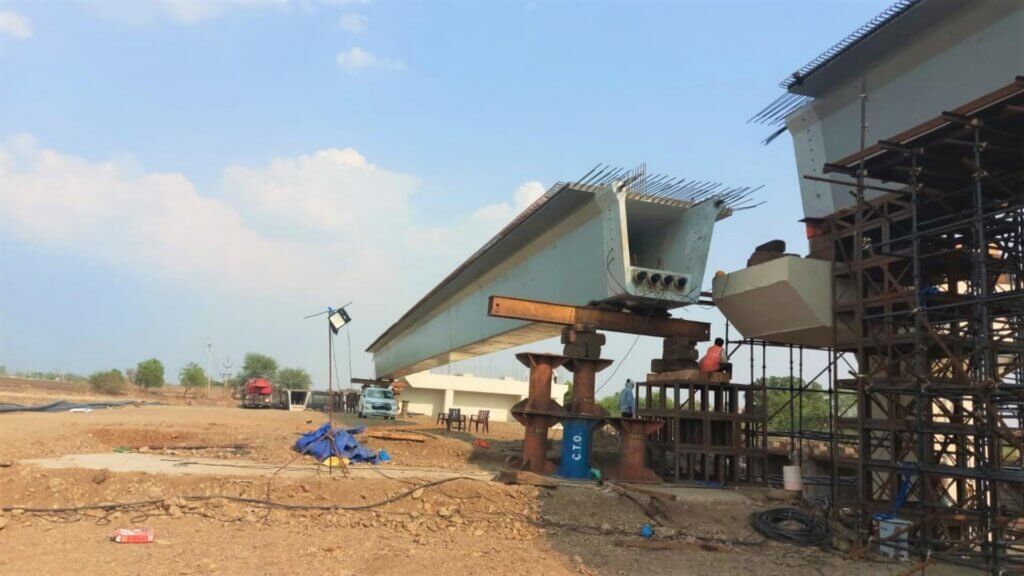

Jacking up second girder for positioning.
Jacking up second girder for positioning.

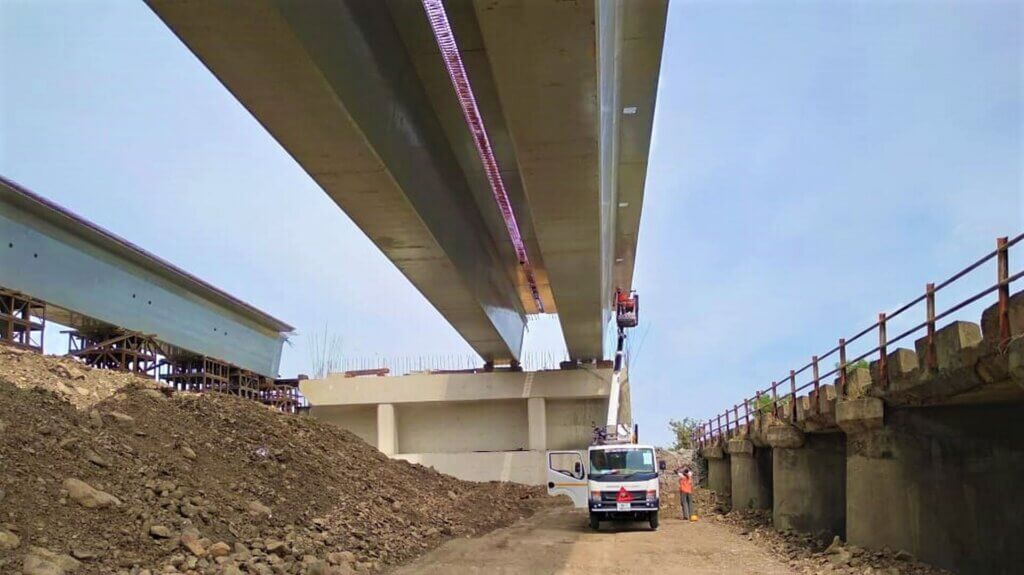

Soffit views of two beams together.
Soffit views of two beams together.

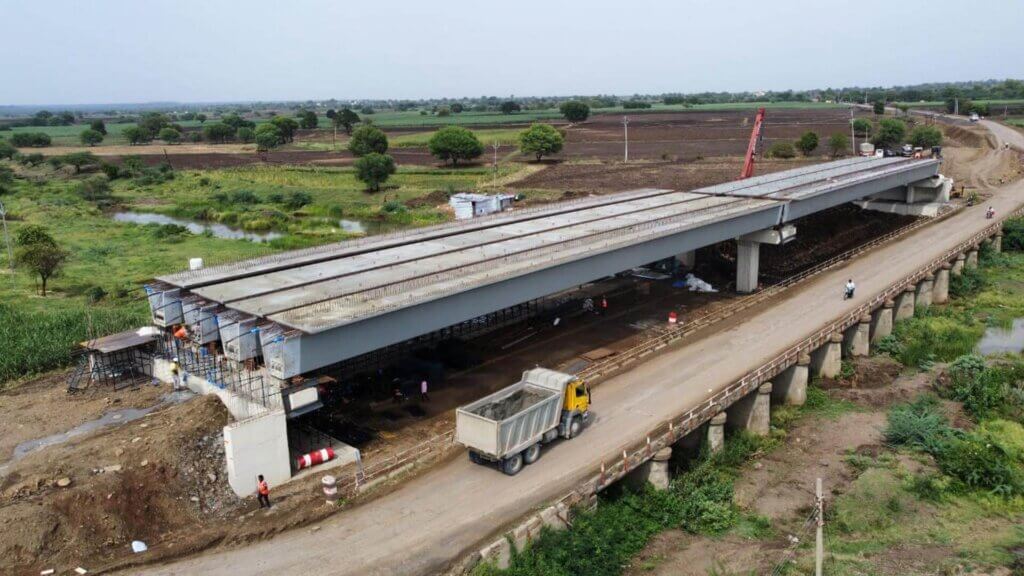

Seven beams positioned.
Seven beams positioned.

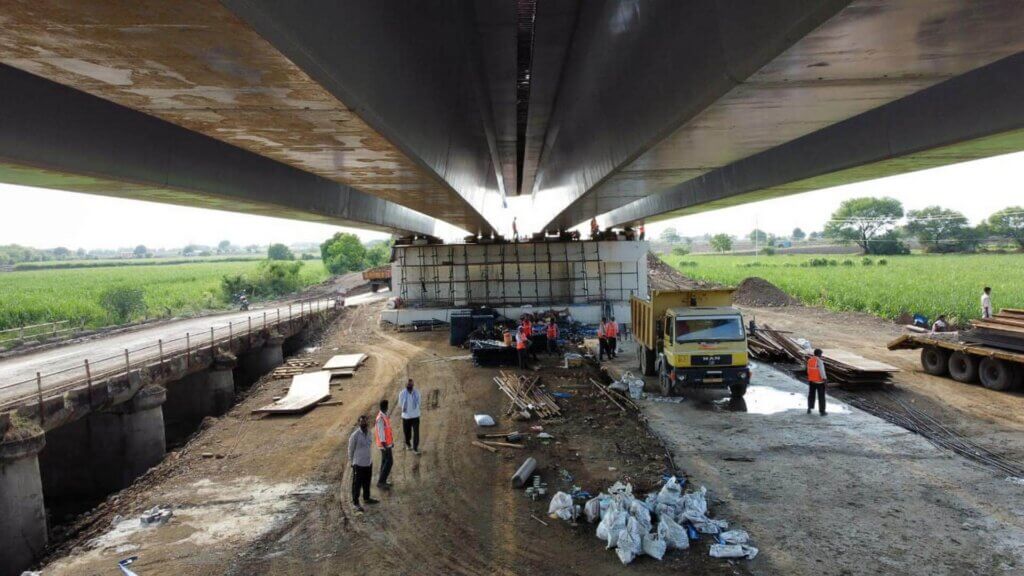

Soffit view.
Soffit view.

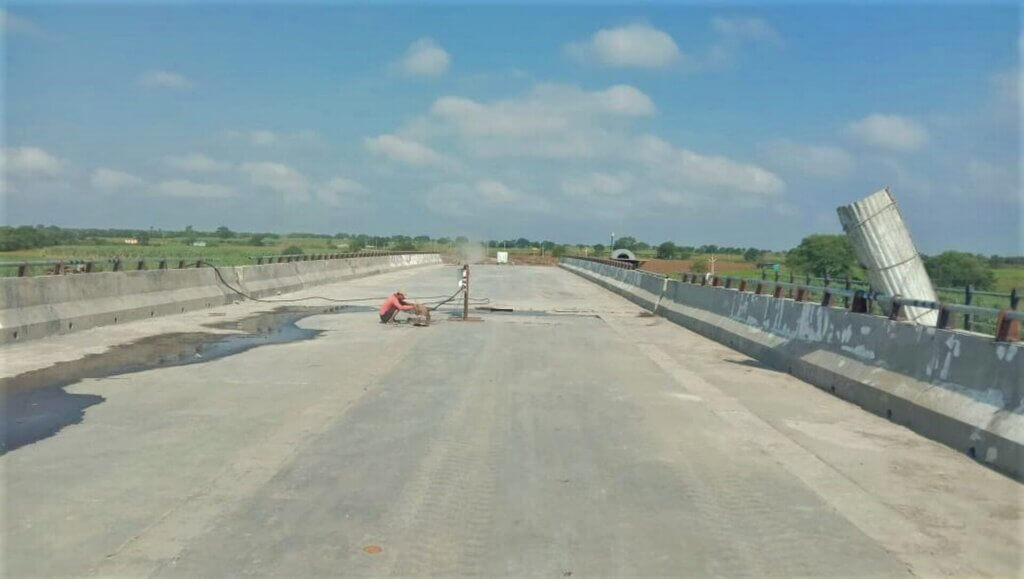

In-situ UHPC stitching work completed.
In-situ UHPC stitching work completed.
36
36

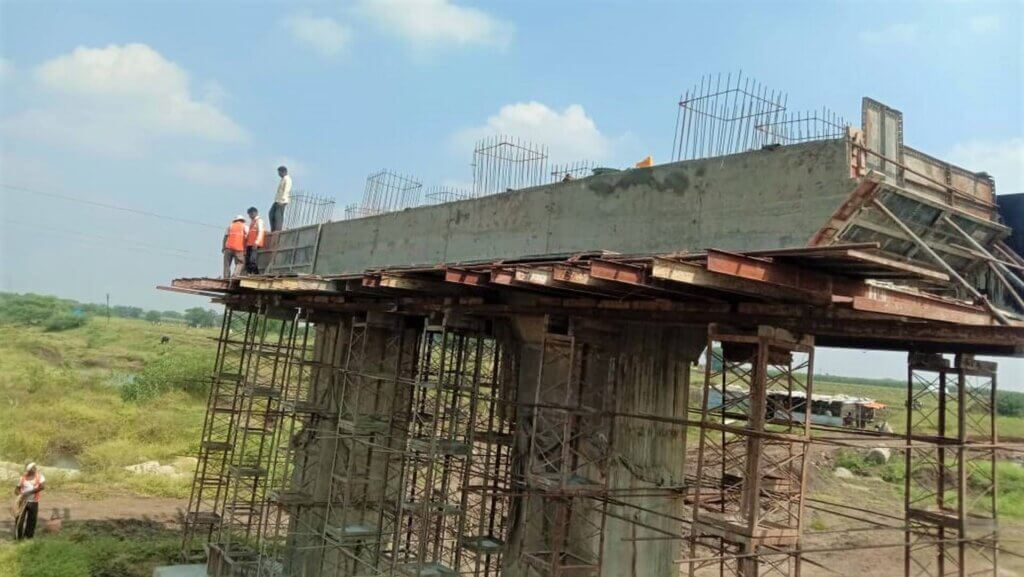

Construction of Abutment B.
Construction of Abutment B.

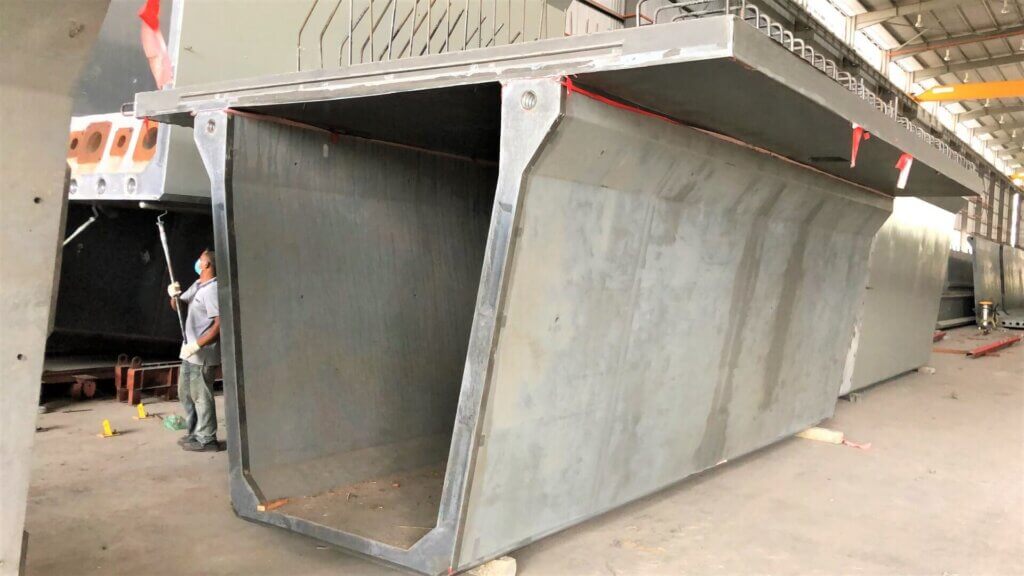

DURA BBG2400 first box segment (060820).
DURA BBG2400 first box segment (060820).

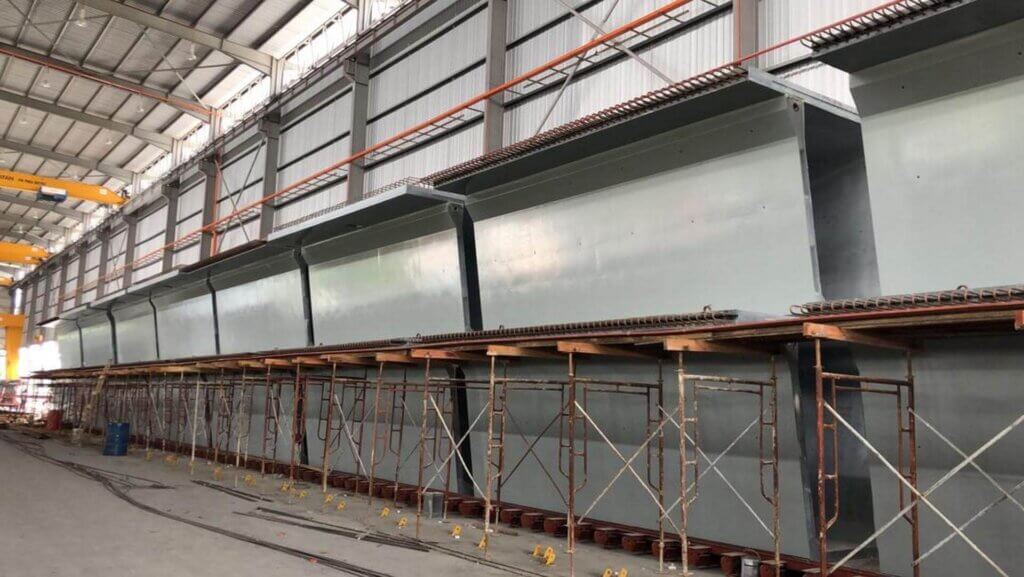

BBG2400 segments ready to be transported to site.
BBG2400 segments ready to be transported to site.

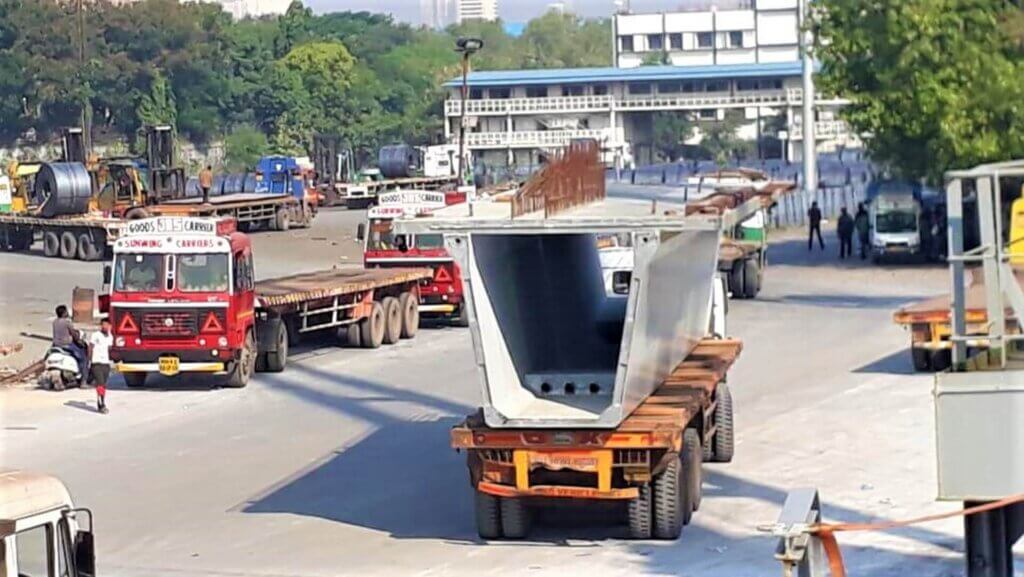

Unloaded beam segments to truck at Mumbai port (071120)
Unloaded beam segments to truck at Mumbai port (071120)

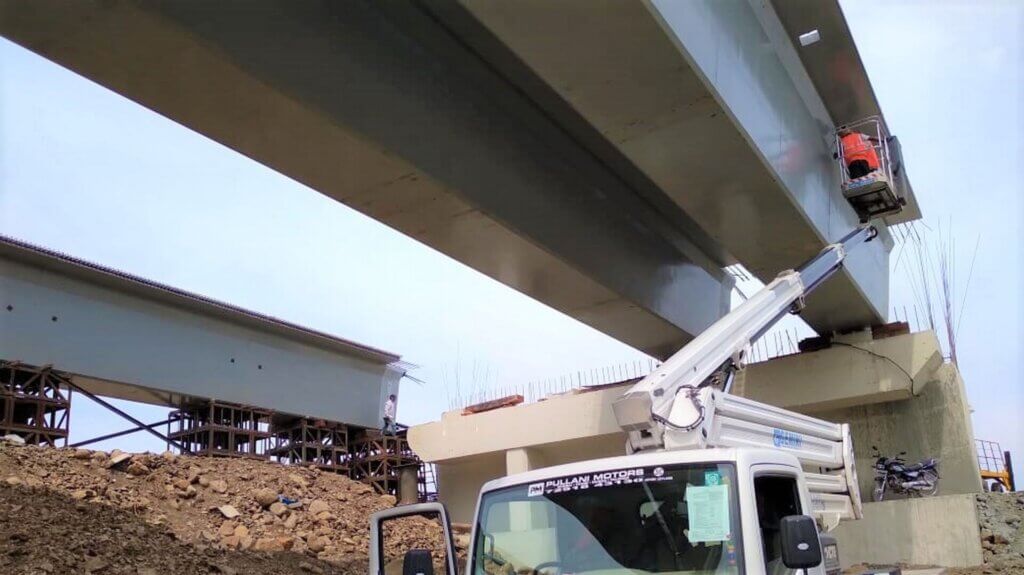

Sealing the segmental joints with epoxy.
Sealing the segmental joints with epoxy.
Project Title

Project: Construction of Major Bridge across Sole Nalla on Latur – Nitur - Nilanga – Balki – Road NH72K.

Project Year

2022

Status

Completed Project

Country

India

GPS Cordinates

18.256878N, 76.724448E

Structure Type

2 spans x 55.5 m long (total 111 m), Major Bridge across Sole Nalla

Superstructure Feature

Simply Supported Four (4) UHPC Box Girders for each span

Substructure Feature

RC Portal Piers

Foundation Feature

Eight (8) Drilled Piles for Each Foundation.

Loading Type

IRC Class Loadings.

Client

Maharashtra State Road Development Corporation.

Superintendent Officer (S.O.)

Valecha-SDPL JV, Áyoleeza Consultants Pvt. Ltd.

Consultant

Technology and Proof Consultant: Indian Institute of Technology (IIT), Bombay

Contractor

Shinde Developers Pvt. Ltd.

Contract Period

1 Years

Construction Status

Completed

Indian Consultant

Shirish Patel and Associates

Malaysian Consultant

HSS Engineers Sdn. Bhd.
