New Bridge 20m Single Span in Kampung Air Simpol

  • Project Status

  • Select Country

  • Select Years

  • Reset

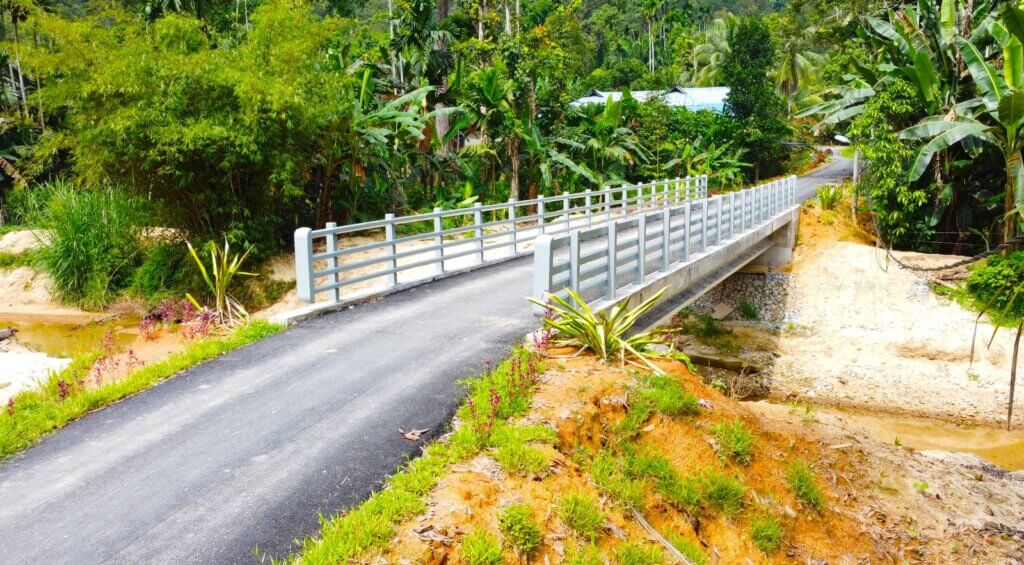

Completed bridge.
Completed bridge.
Completed bridge..JPG
Completed bridge..JPG
Completed bridge..JPG
Install formwork for diaphragm and deck slab.
Install formwork for diaphragm and deck slab.

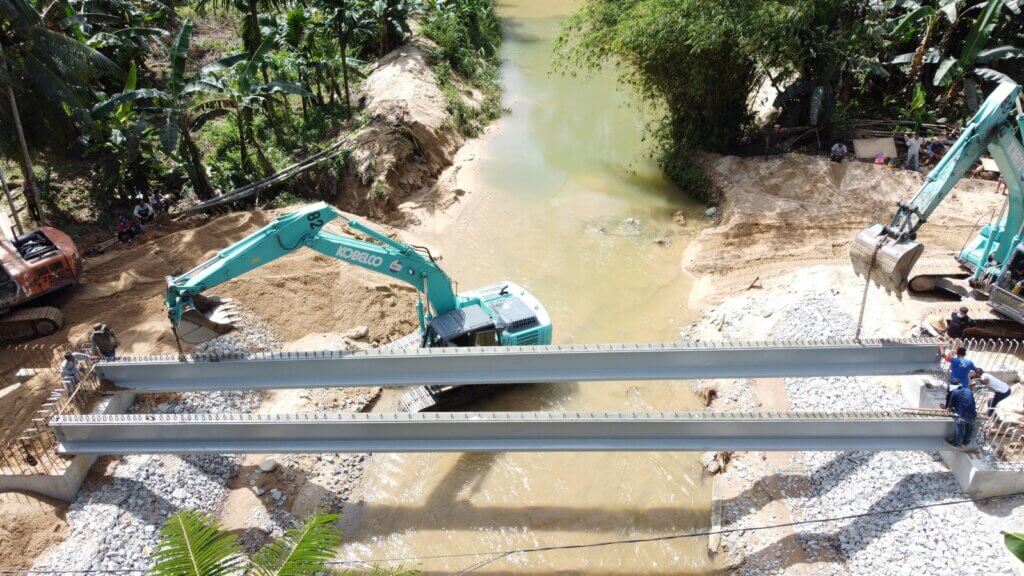

Done launching two I Beam 850 20m..JPG
Setting beam to fitting left in formwork.
Two excavator 250lc.
Second beam adjust for correct position.

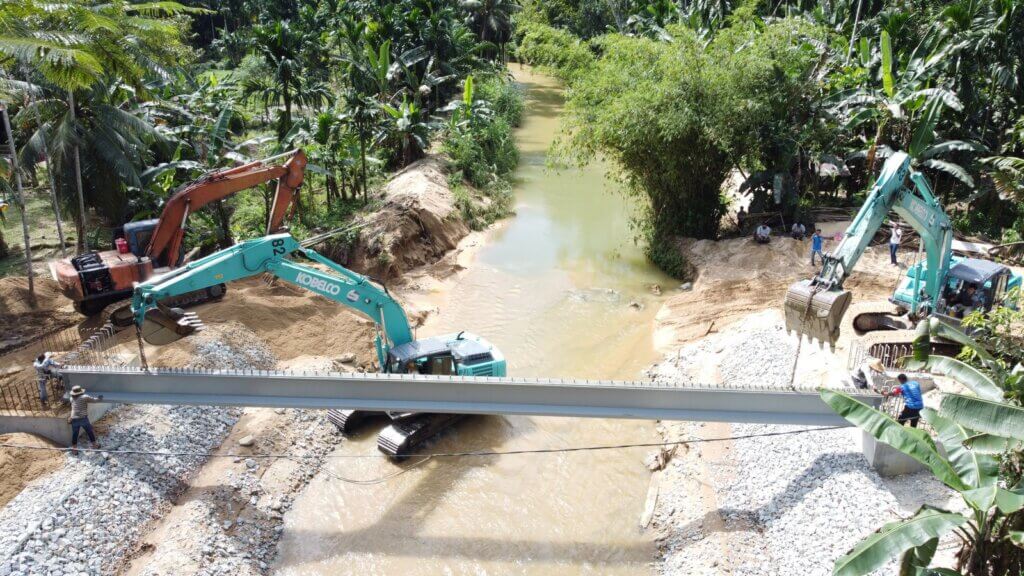

First beam lift to the position.

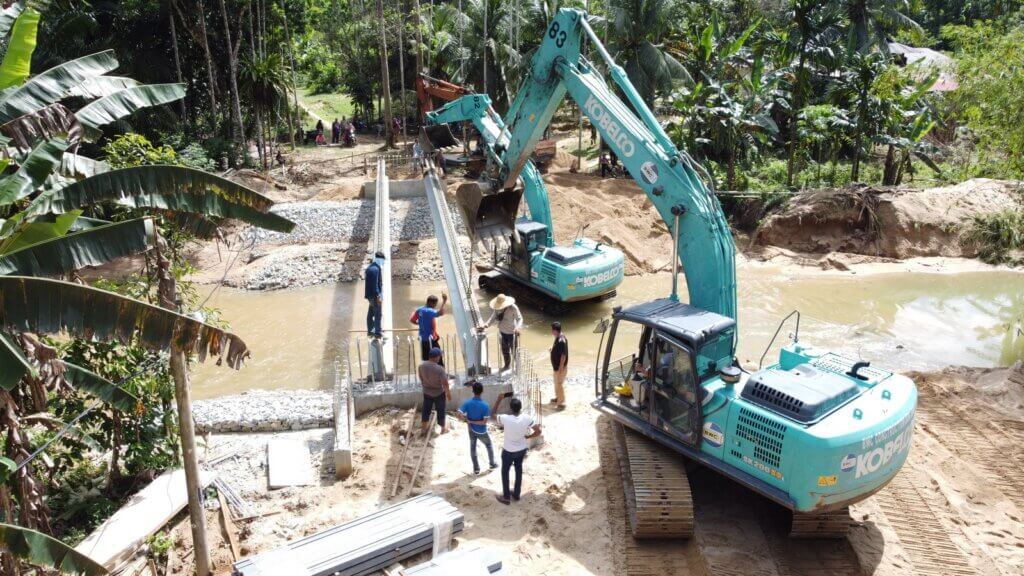

Prepared for launching with two excavator.
Safely tranporting to site.
Safely tranporting to site.

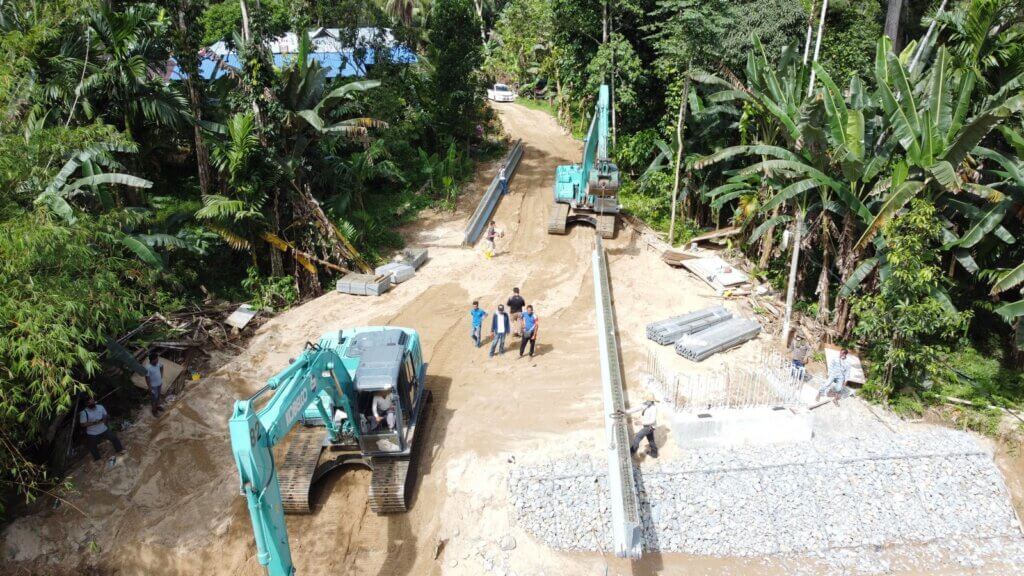

Transporting Dura I beam using two forklifts due to narrow access to the bridge site.
Transporting Dura I beam using two forklifts due to narrow access to the bridge site.
Transporting beams.
Transporting beams.

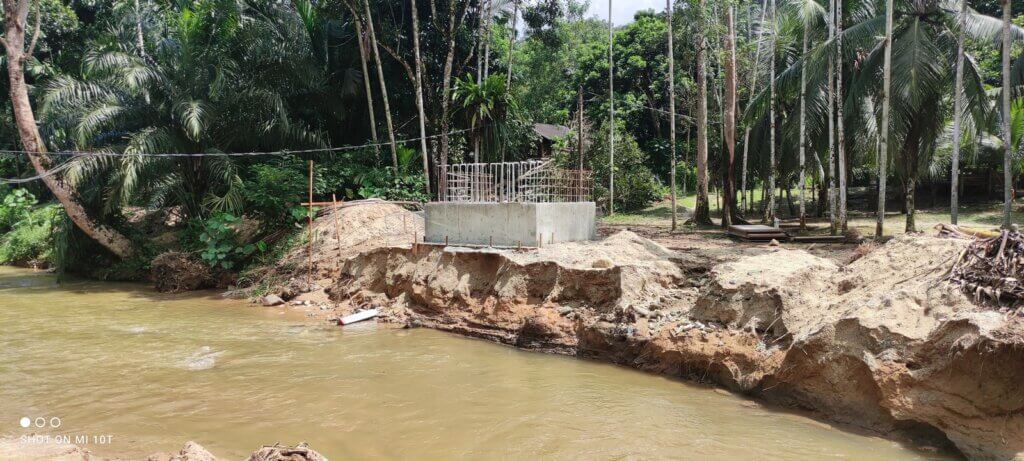

Abutment B.
Abutment B.

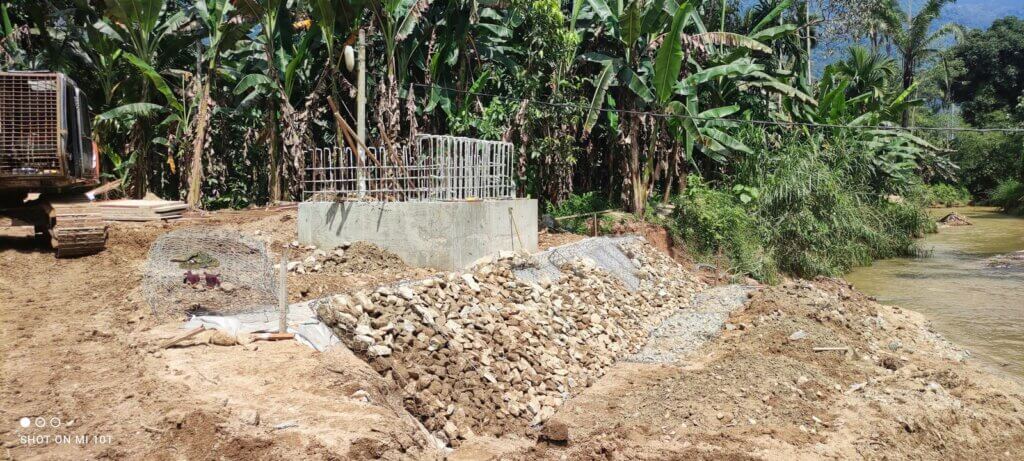

Abutment A.
Abutment A.

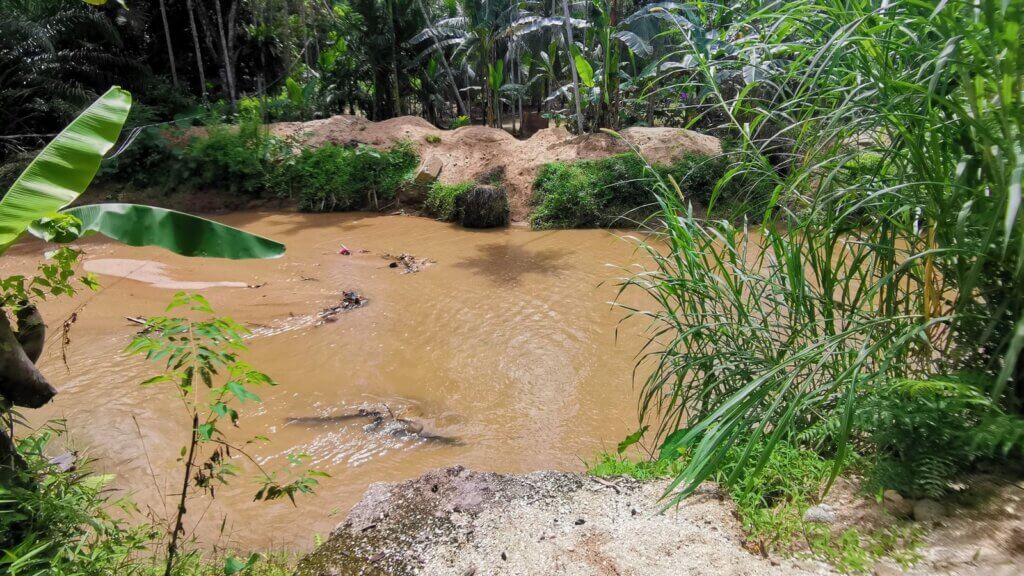

Original site.
Original site.
Project Title

To Build A New Bridge At Kampung Air Simpol, Sungai Jernih, Mukim Hulu Ijok(Bina Baru Jambatan Serta Kerja Berkaitan Di Kampung Air Simpol, Sungai Jernih, Mukim Hulu Ijok, Perak)

Project Year

2021

Status

Completed Project

Country

Malaysia

GPS Cordinates

5.135107 N; 100.874092 E

Structure Type

Single Span 20m by 3.5m Wide UHPFRC integral beam-deck system.

Superstructure Feature

2 pieces of DURA® IB850-20m

Substructure Feature

Cast in-situ RC abutments

Foundation Feature

200mm x 200mm dia. SQ RC pile (Class B)

Loading Type

HA+ 30 units HB loadings (BD37/01)

Client

Jabatan Tanah Selama

Superintendent Officer (S.O.)

Jabatan Tanah Selama

Consultant

JPCT

Contractor

Prisma Canggih Ent

Contract Period

6 Weeks
