New Bridge for Kg Malau, Hulu Perak.

  • Project Status

  • Select Country

  • Select Years

  • Reset

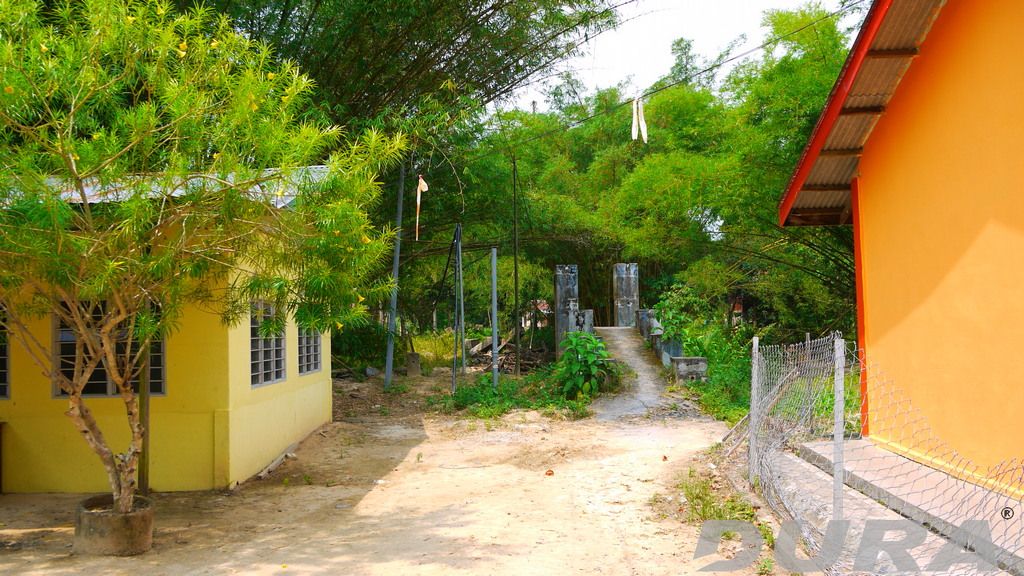

A narrow access road toward the collapsed old bridge
A narrow access road toward the collapsed old bridge
Collapsed RC pylons
Collapsed RC pylons

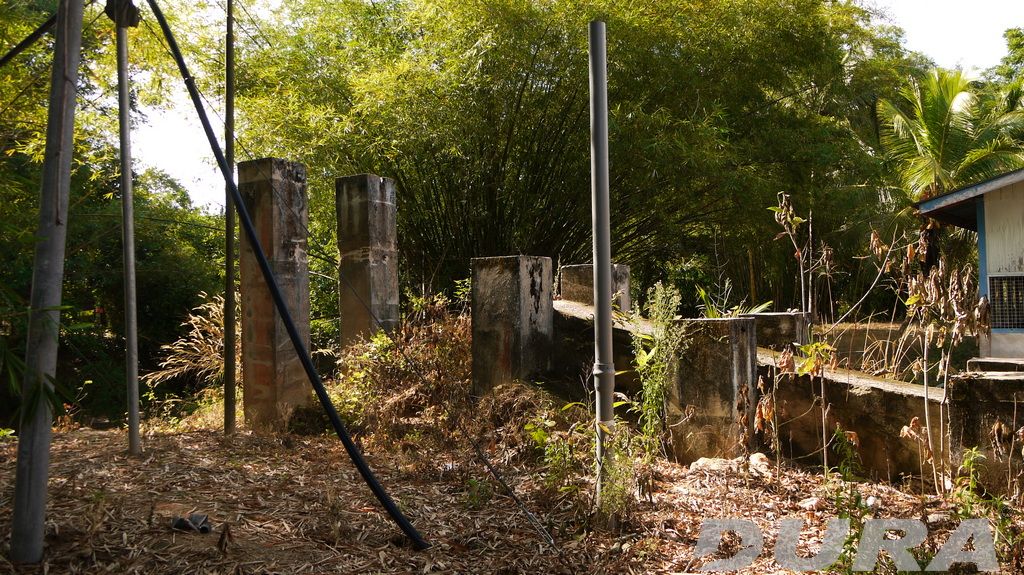

Collapsed RC pylon at the other side of the bridge
Collapsed RC pylon at the other side of the bridge

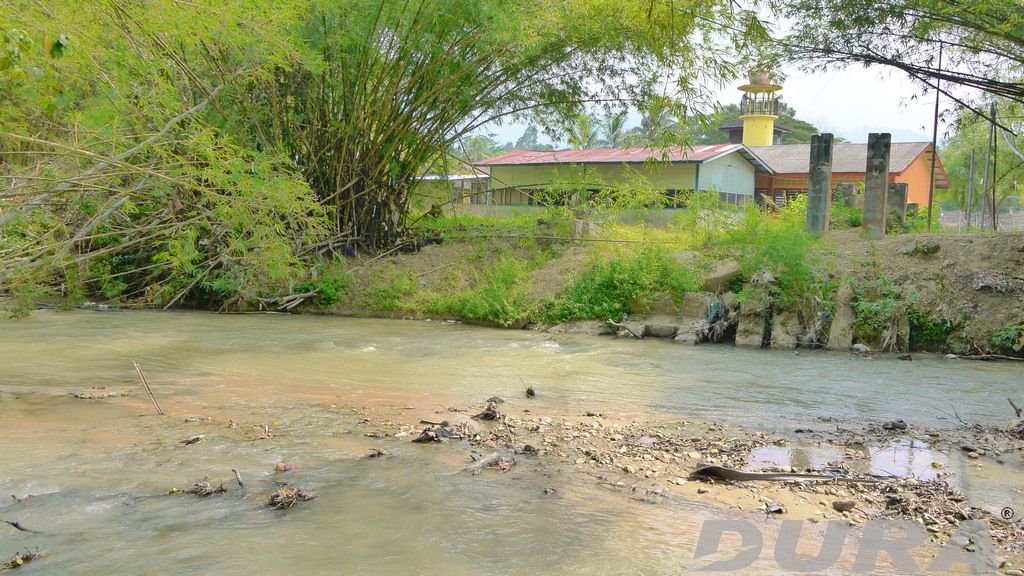

Bridge was washed away by a severe flood early this year -2012-
Bridge was washed away by a severe flood early this year -2012-

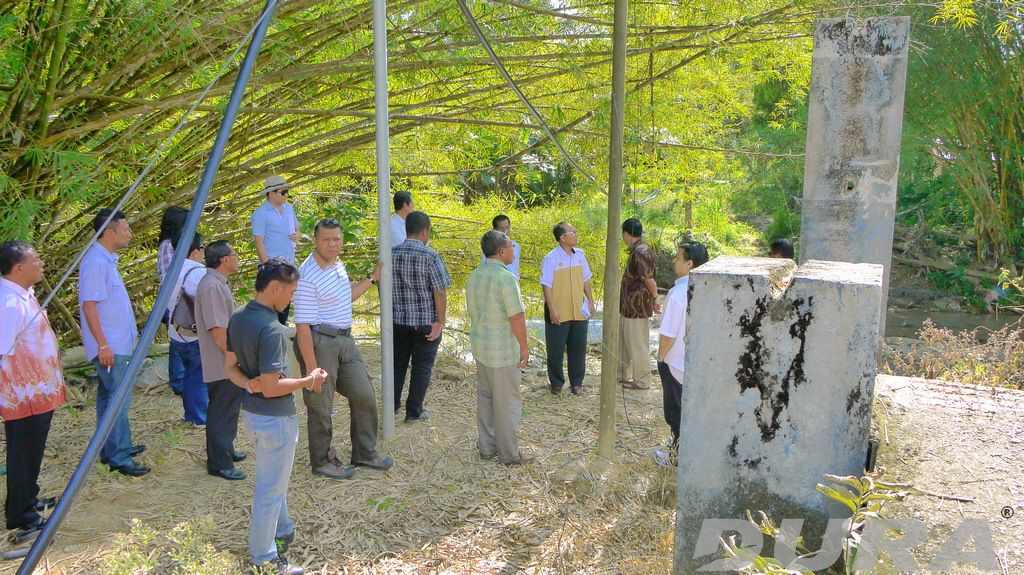

Mr Zaina from JKR Hulu Perak giving a briefing to participated contractors during the side visit and open tendering day -04-10-2012-
Mr Zaina from JKR Hulu Perak giving a briefing to participated contractors during the side visit and open tendering day -04-10-2012-

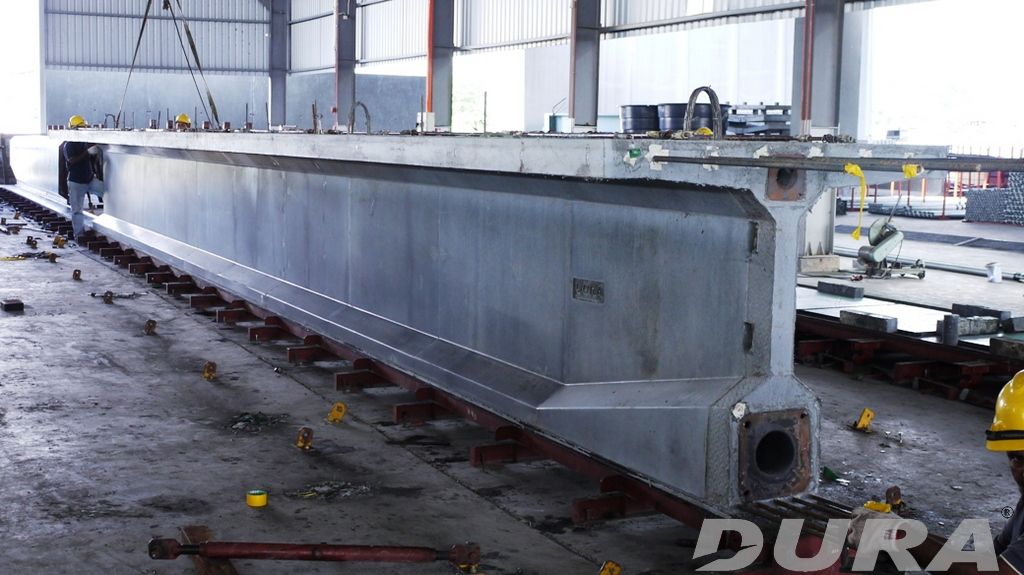

Manufacturing of the first UHPdC bridge girder -13-12-12-
Manufacturing of the first UHPdC bridge girder -13-12-12-
Transportation of DURA T beams using a low loader -22-12-2012-
Transportation of DURA T beams using a low loader -22-12-2012-

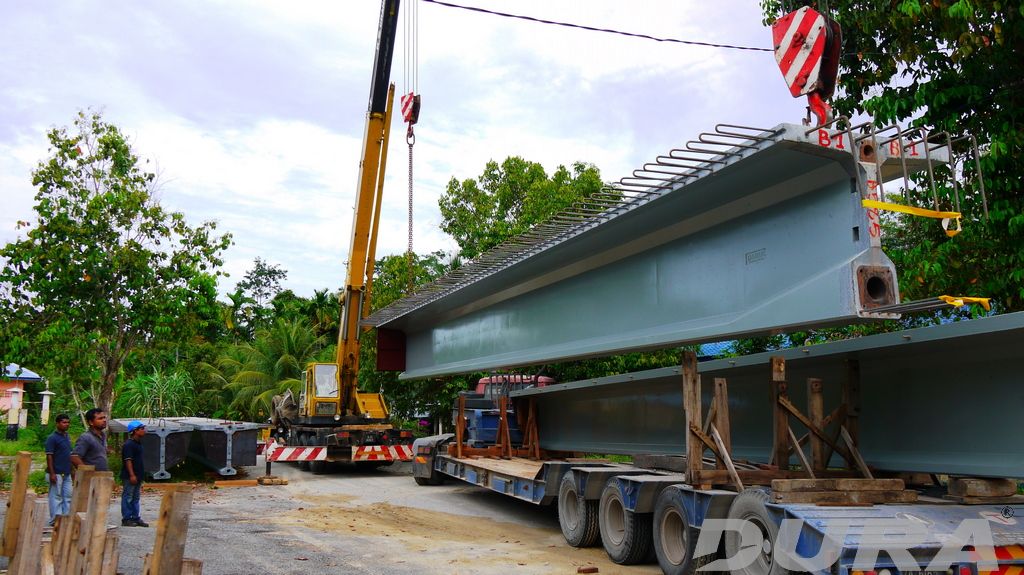

Unloading beam 1
Unloading beam 1

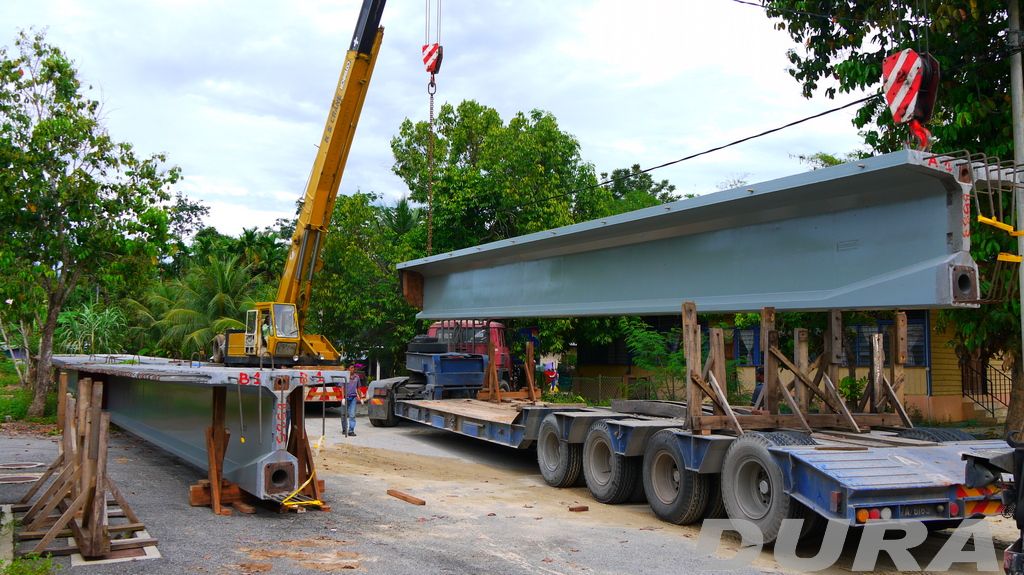

Unloading beam 2
Unloading beam 2

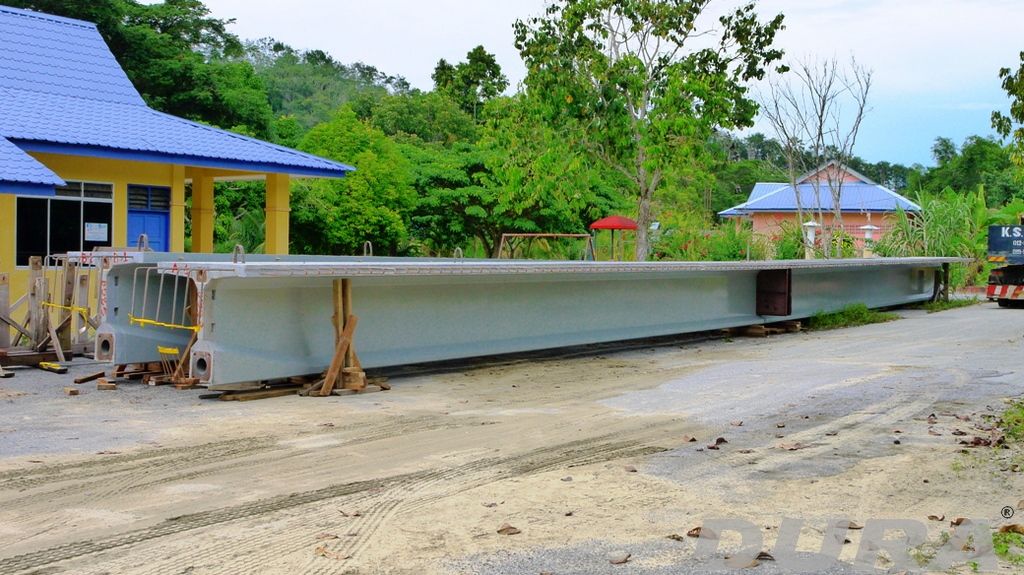

Two beams assembled near the job site -22-12-2012-
Two beams assembled near the job site -22-12-2012-

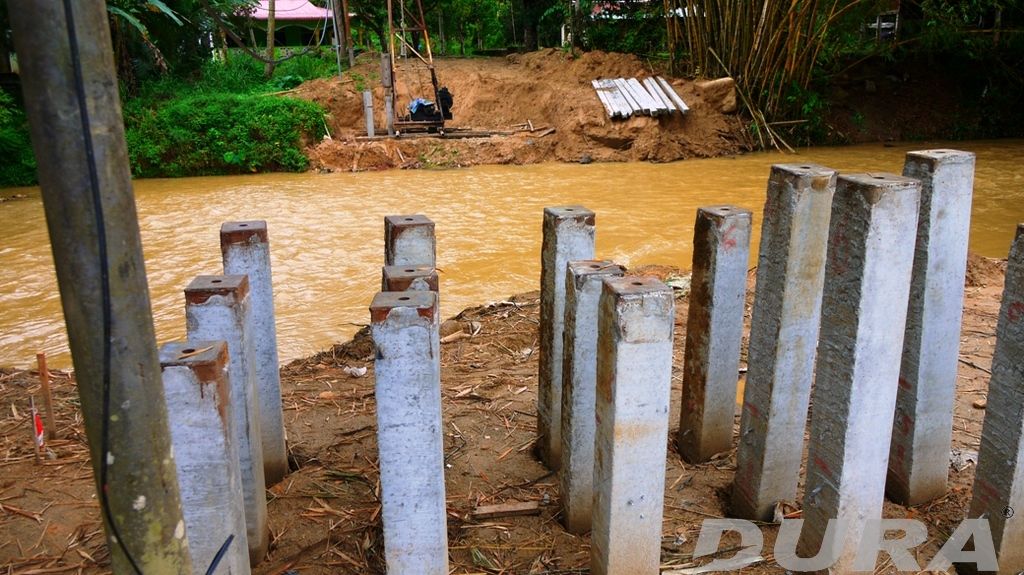

Driving of RC pile in progress -12-02-2013-
Driving of RC pile in progress -12-02-2013-

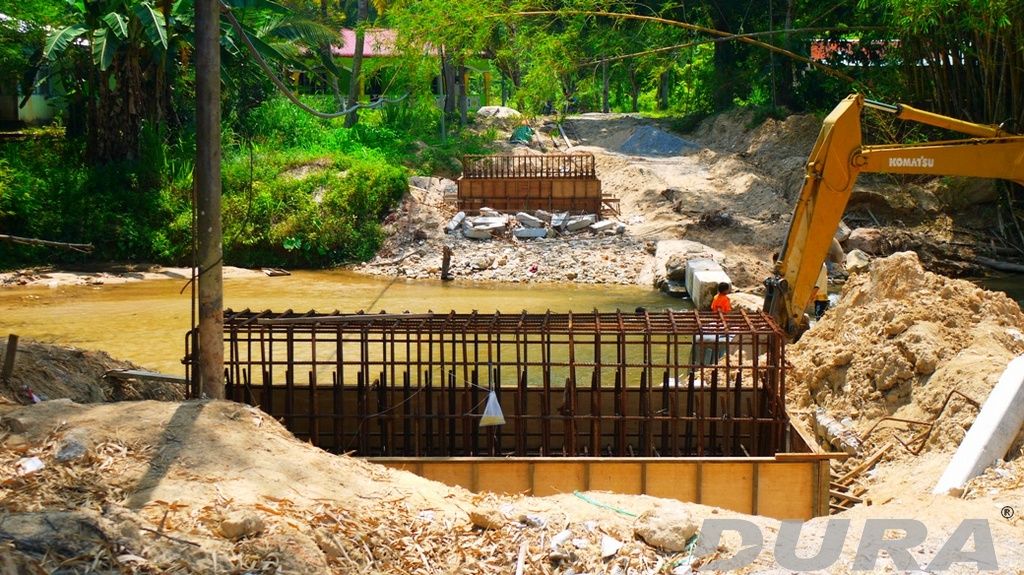

Abutments ready for concreting -30-03-2013-
Abutments ready for concreting -30-03-2013-
Abutments ready for beam launching -24-05-2013-
Abutments ready for beam launching -24-05-2013-

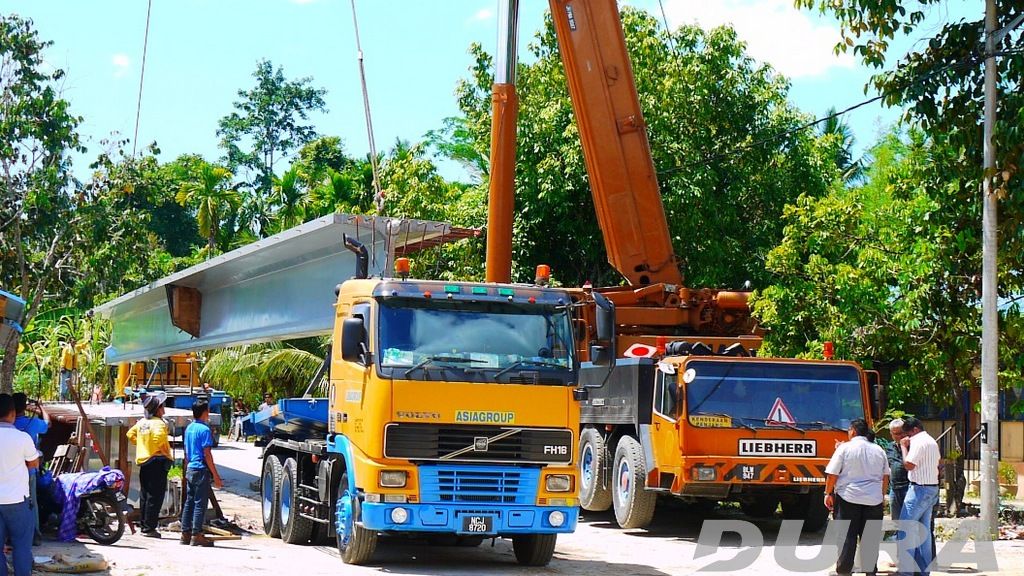

Upload prestress beam onto a truck -27-05-2013-
Upload prestress beam onto a truck -27-05-2013-

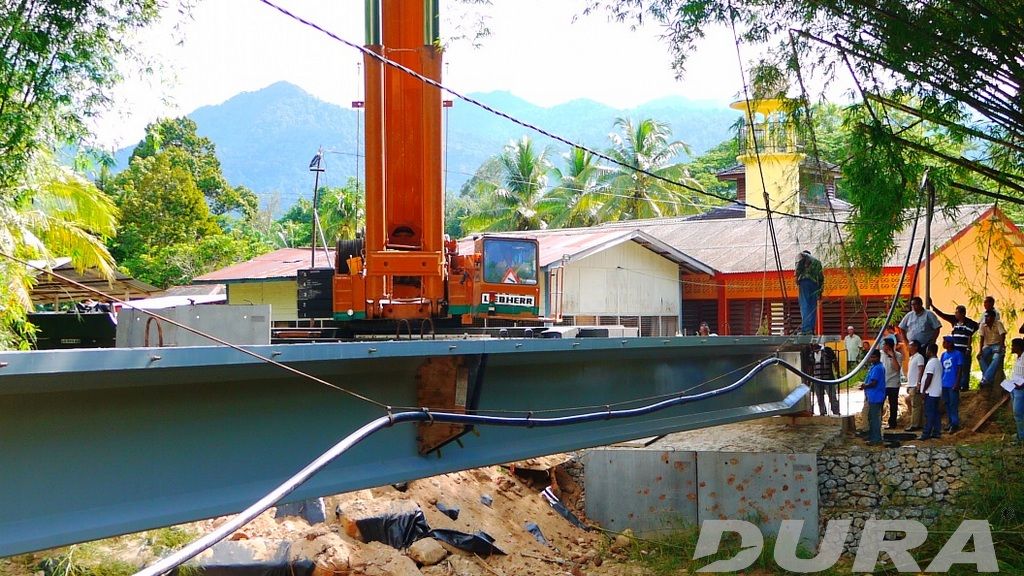

First beam launched
First beam launched

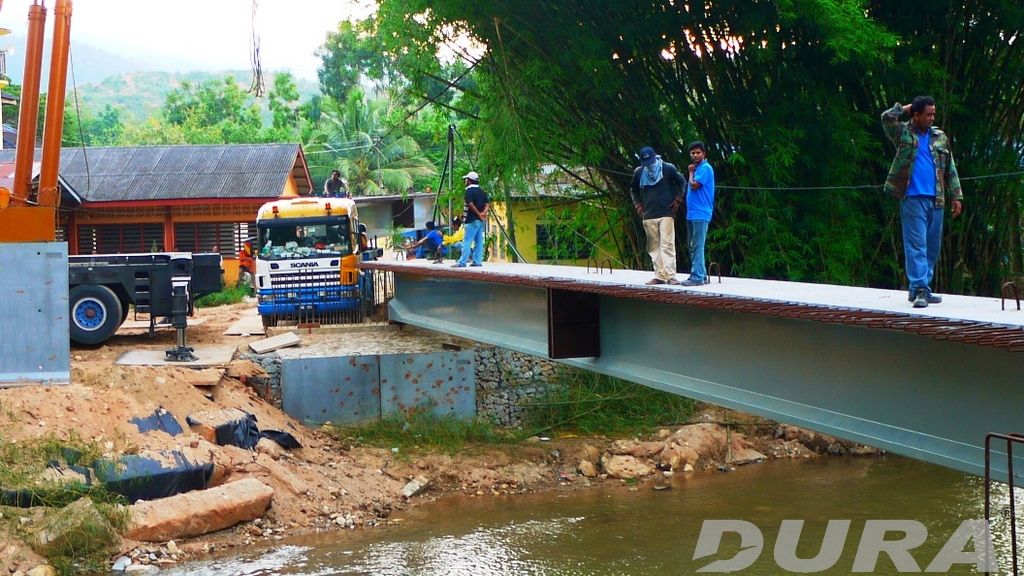

First beam launched_2
First beam launched_2
Two beams launched and ready for stitching
Two beams launched and ready for stitching

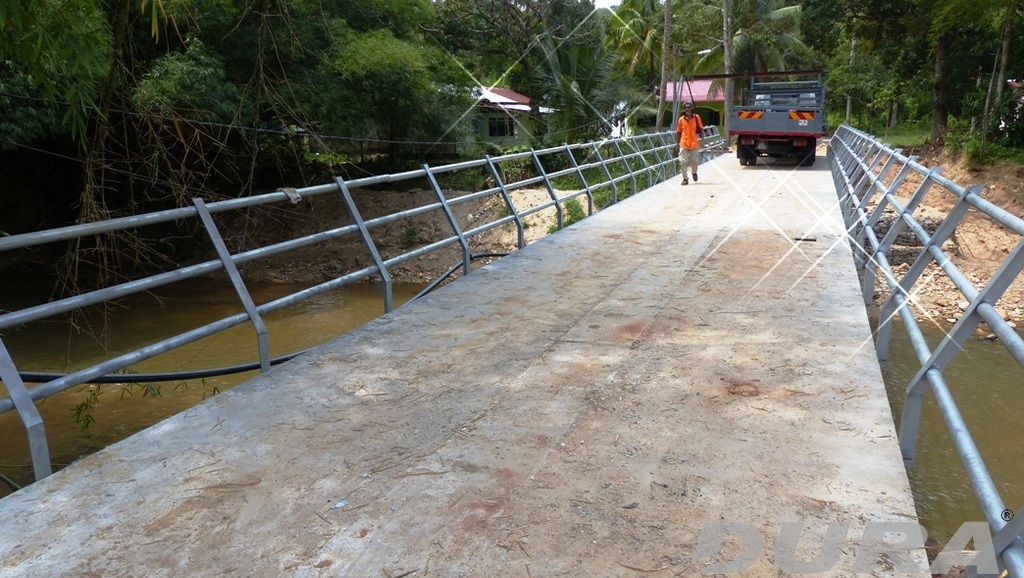

Completion of in-situ UHPDC joint
Completion of in-situ UHPDC joint

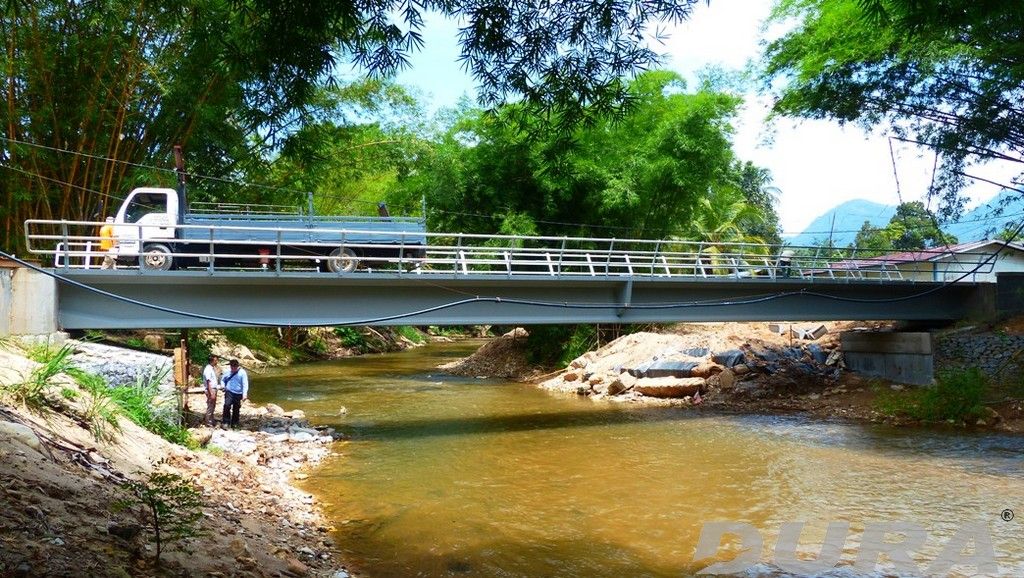

Pierless Kg bridge at Kg Malau
Pierless Kg bridge at Kg Malau

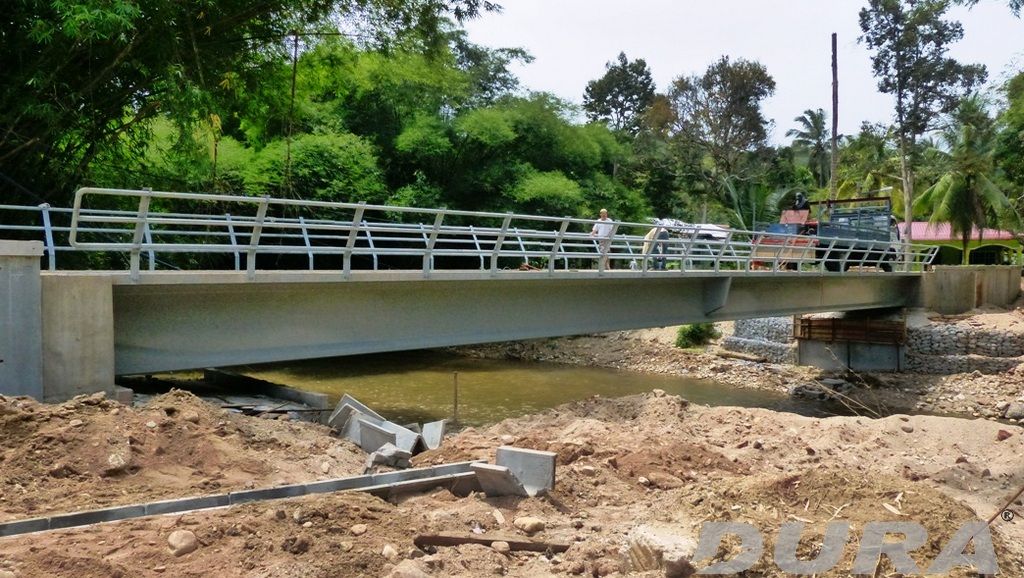

Kg Malau bridge almost complete construction -18-06-2013-
Kg Malau bridge almost complete construction -18-06-2013-

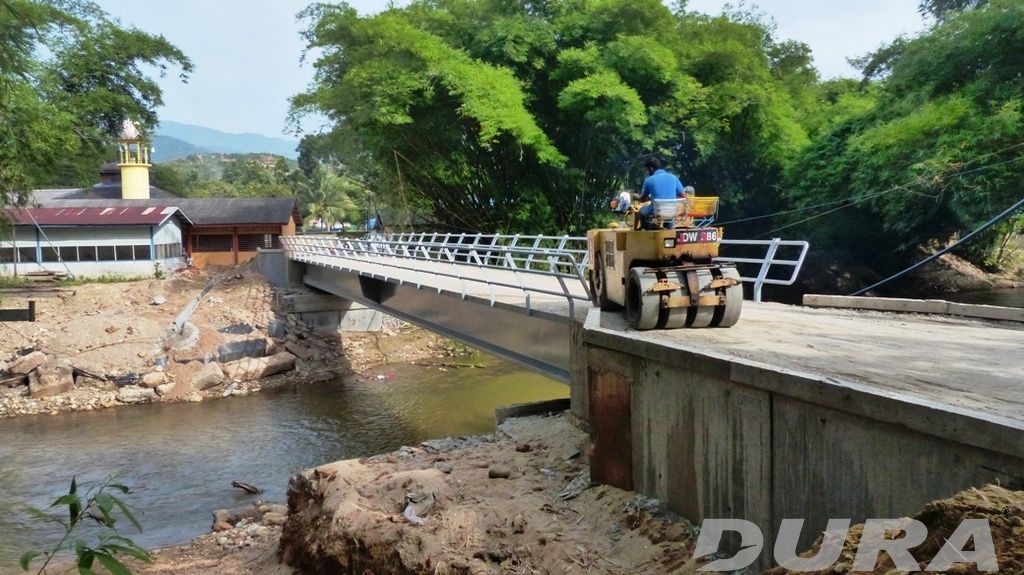

Compacting crusher run -22-06-2013-
Compacting crusher run -22-06-2013-

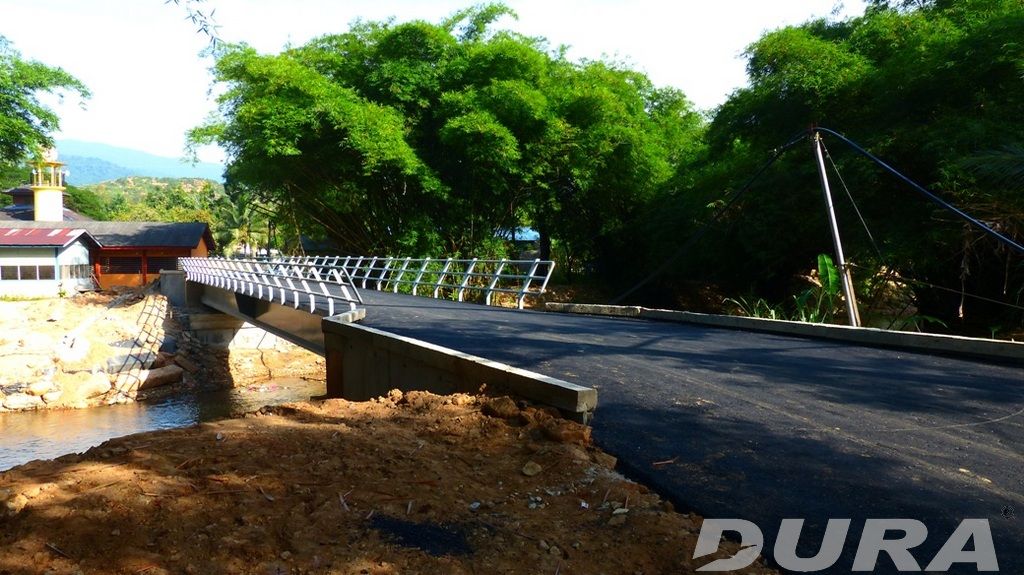

Wearing surface laid -23-06-2013-
Wearing surface laid -23-06-2013-
After half a year -22-12-2013-
After half a year -22-12-2013-
Project Title

To Construct a Concrete Bridge at Kampung Malau, Lawin, Hulu Perak District, Perak D.R. (Membina Jambatan Kampung Malau, Daerah Hulu Perak, Perak D.R.)

Project Year

2013

Status

Completed Project

Country

Malaysia

GPS Cordinates

5.280800 N , 101.057859 E

Structure Type

Single span 30m long by 3.5m wide (MTB-R1) UHPdC integral beam-deck system.

Superstructure Feature

2 pieces of DURA® TBG1325-29.5m

Substructure Feature

200mm square RC piles

Loading Type

Full HA+30 units HB loading (BD37/01)

Client

JKR Hulu Perak (Perak)

Consultant

Dura Technology Sdn Bhd (in-house design)

Contractor

Ziz Majubina Sdn Bhd

Contract Period

4 months

Construction Status

Completed
