New Triple Spans Bridge at Jalan Pasir Hor Crossing Sg. Seribong

  • Project Status

  • Select Country

  • Select Years

  • Reset

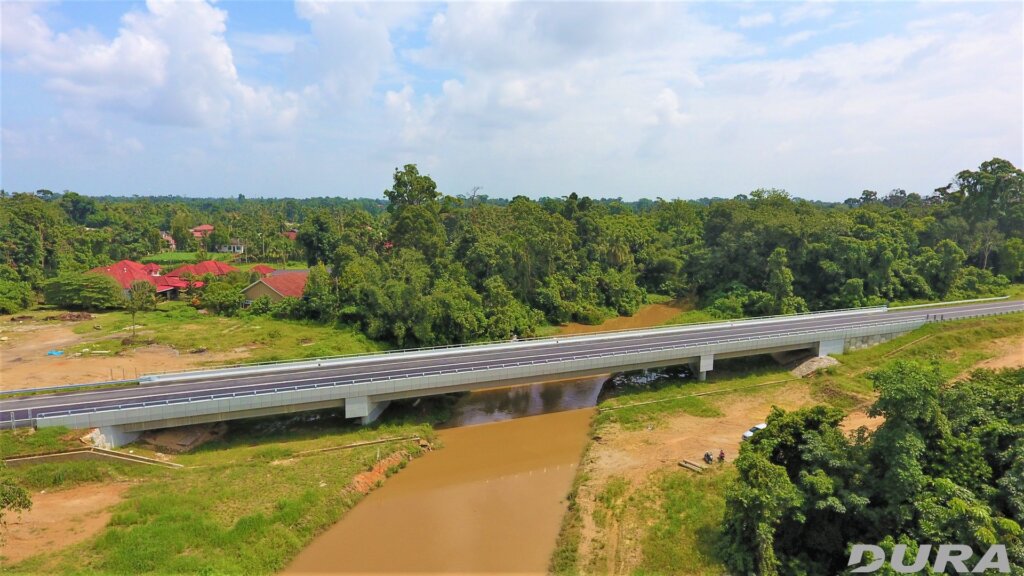

Complete bridge.

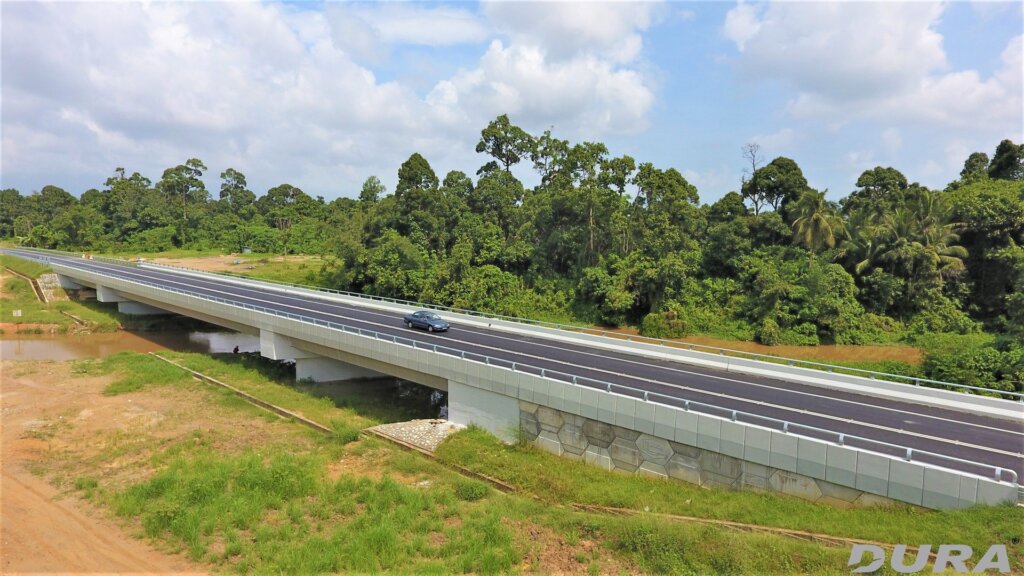

New bridge open for traffic.

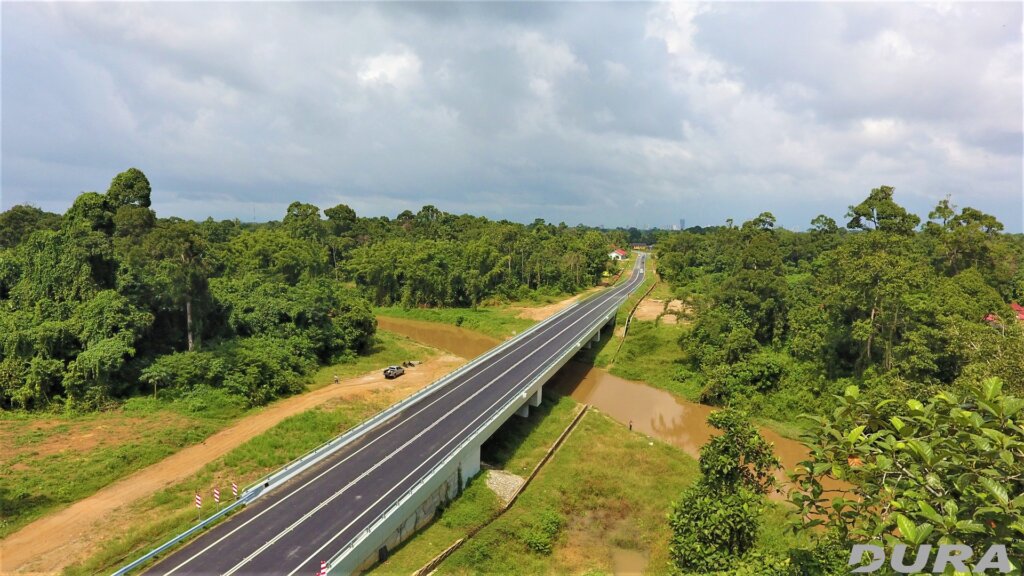

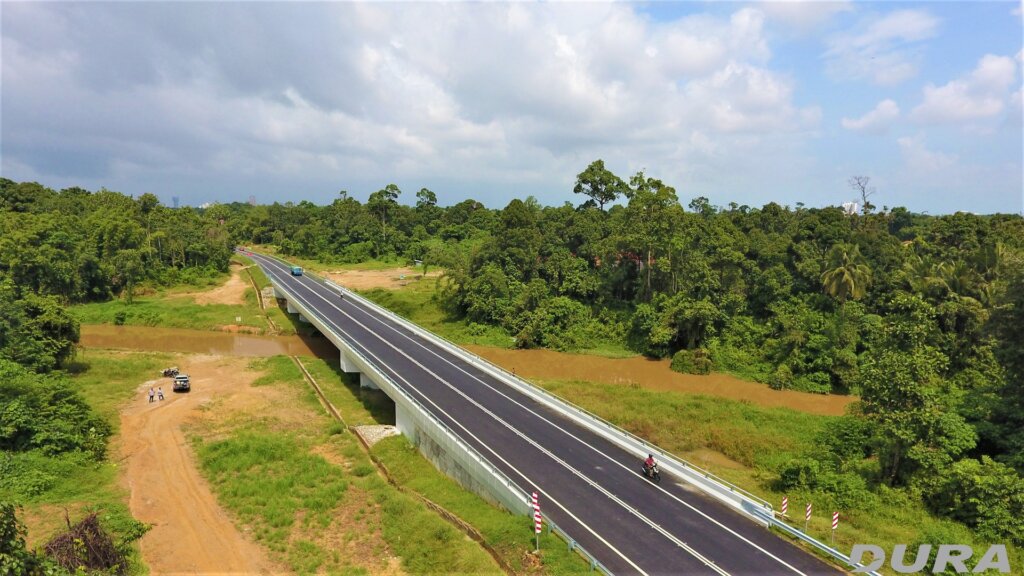

Completed Seribong bridge.
Completed Seribong bridge.

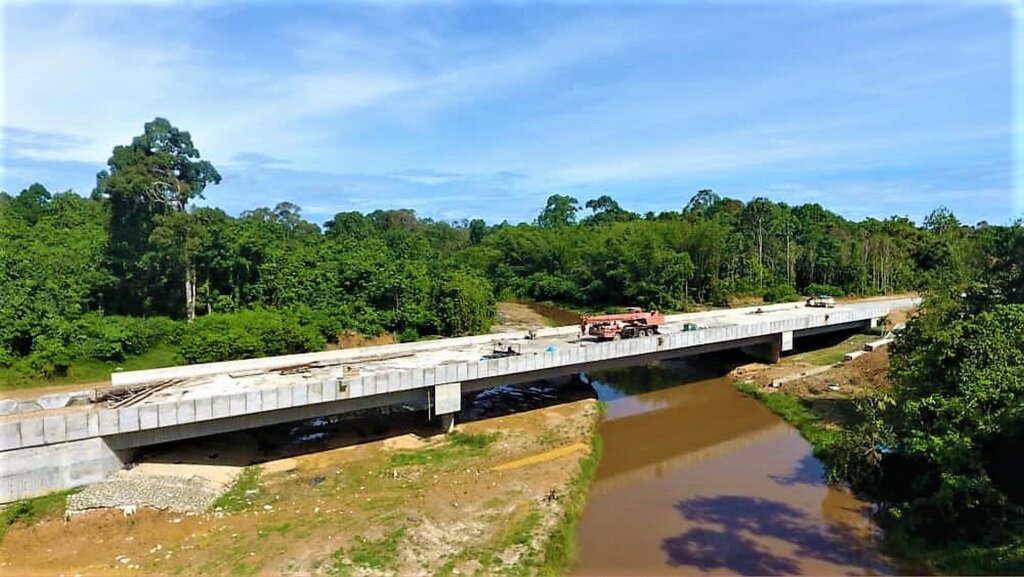

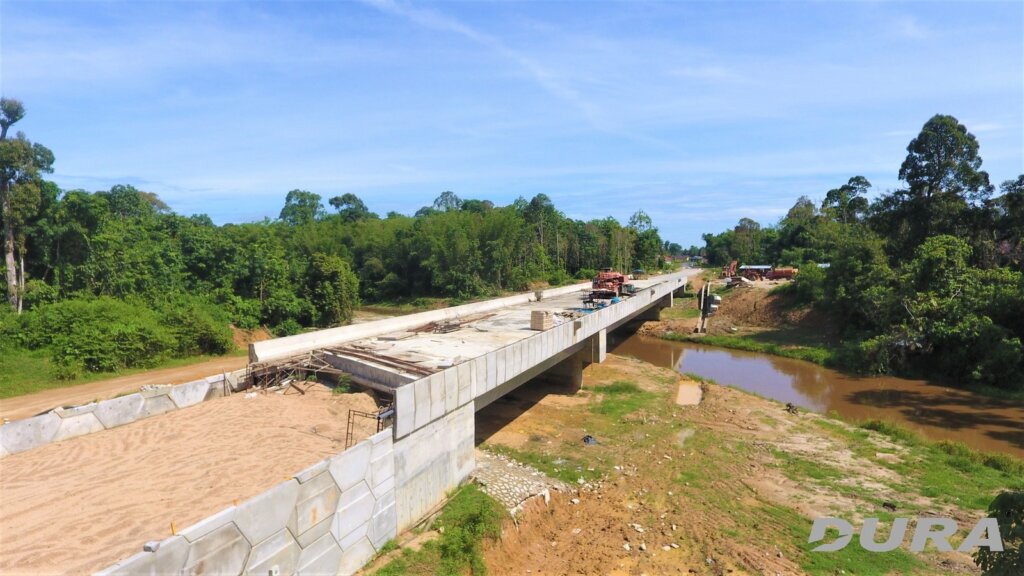

RC deck casted towards the completion of the bridge (290819).

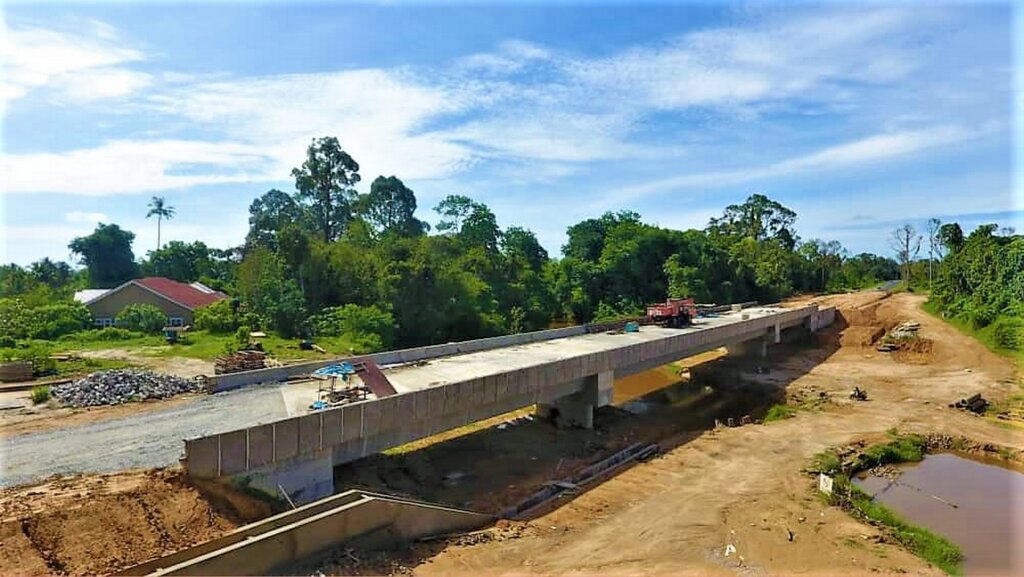

RC deck casted towards the completion of the bridge (290819)_2
RC deck casted towards the completion of the bridge (290819)_2
RC deck casted towards the completion of the bridge (290819)
RC deck casted towards the completion of the bridge (290819)

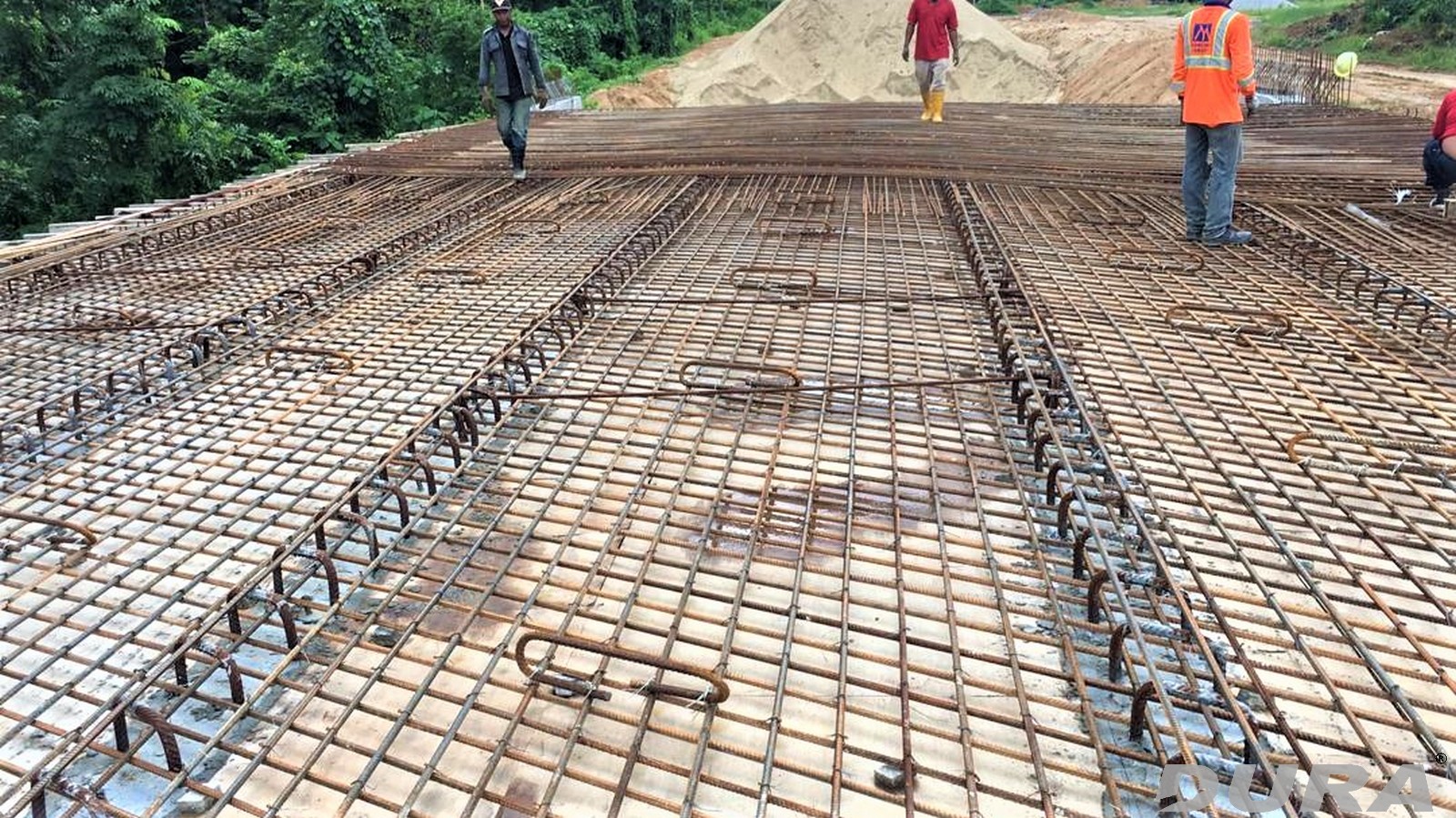

Bar fitting for RC deck.
Bar fitting for RC deck.
Inspection of end diaphragms rebar (011018).
Inspection of end diaphragms rebar (011018).
Rebar for end diaphragm (011018).
Rebar for end diaphragm (011018).

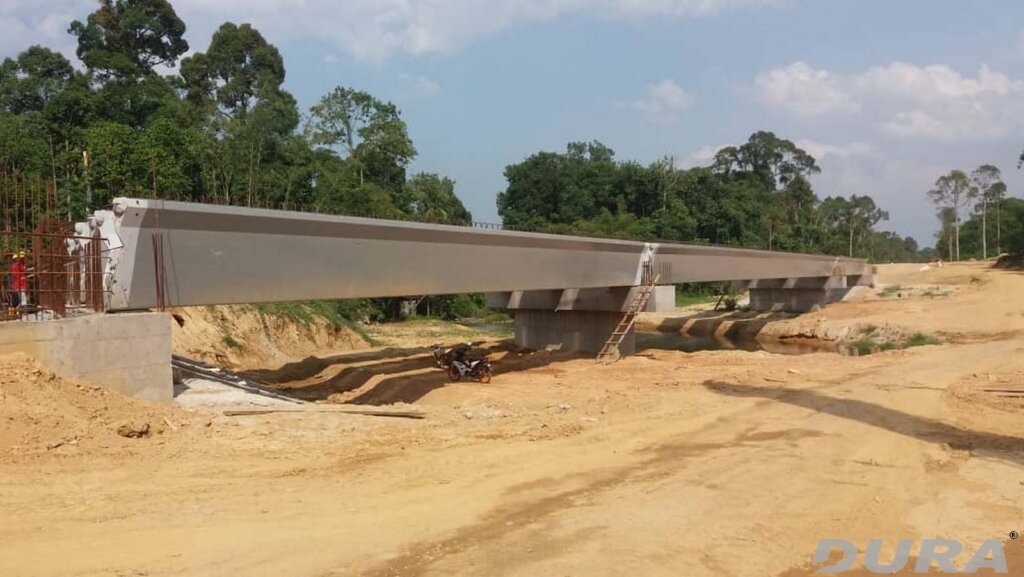

All beams launched (160718)._2
All beams launched (160718)._2

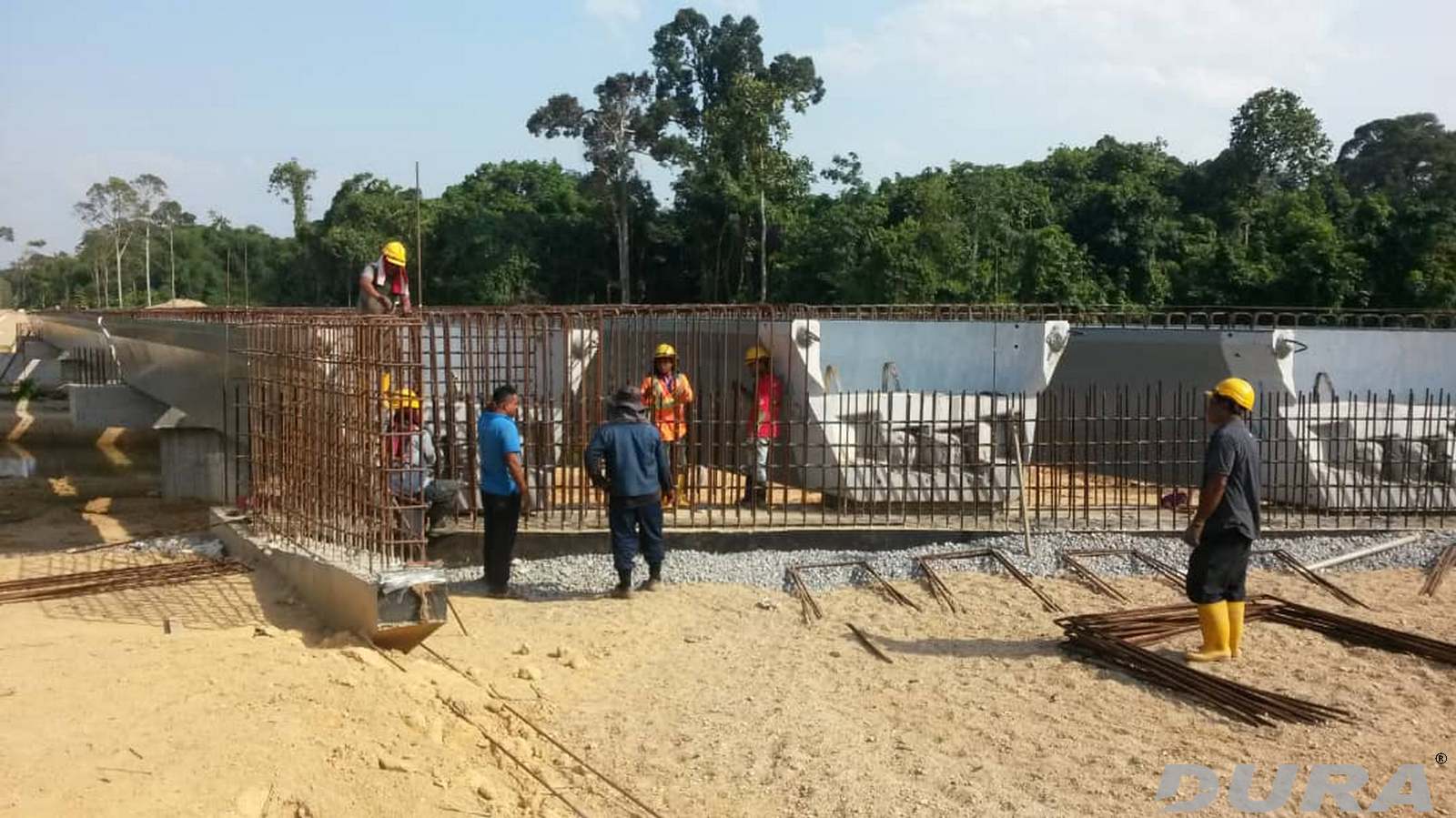

All beams launched (160718).
All beams launched (160718).

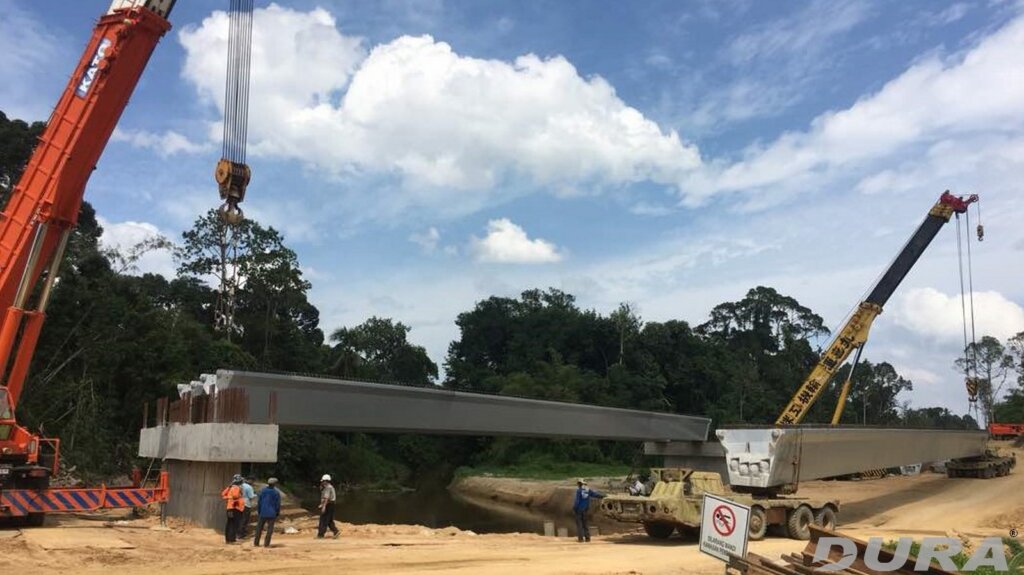

Beam launching in progress (140718)._2
Beam launching in progress (140718)._2

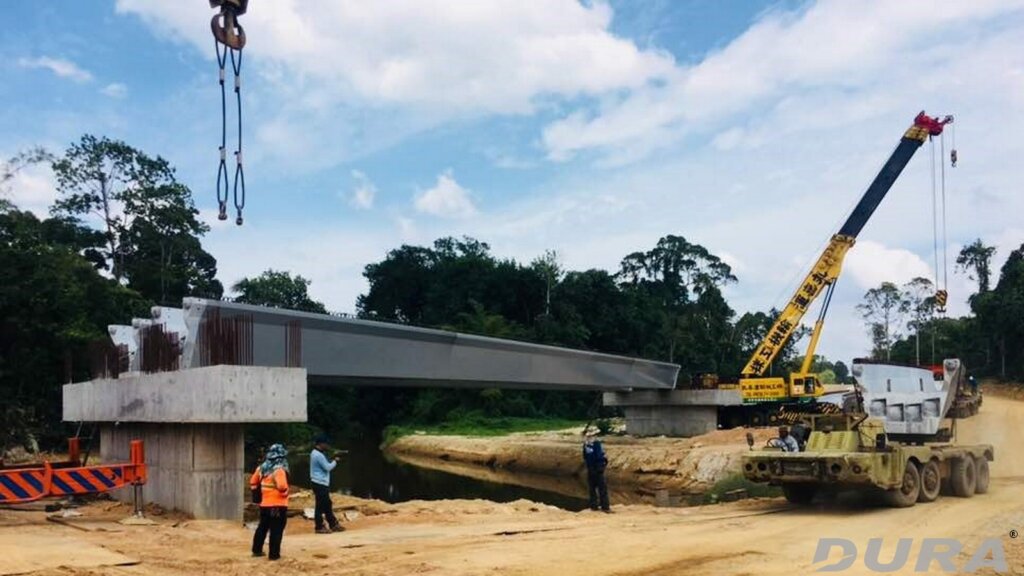

Beam launching in progress (140718).
Beam launching in progress (140718).

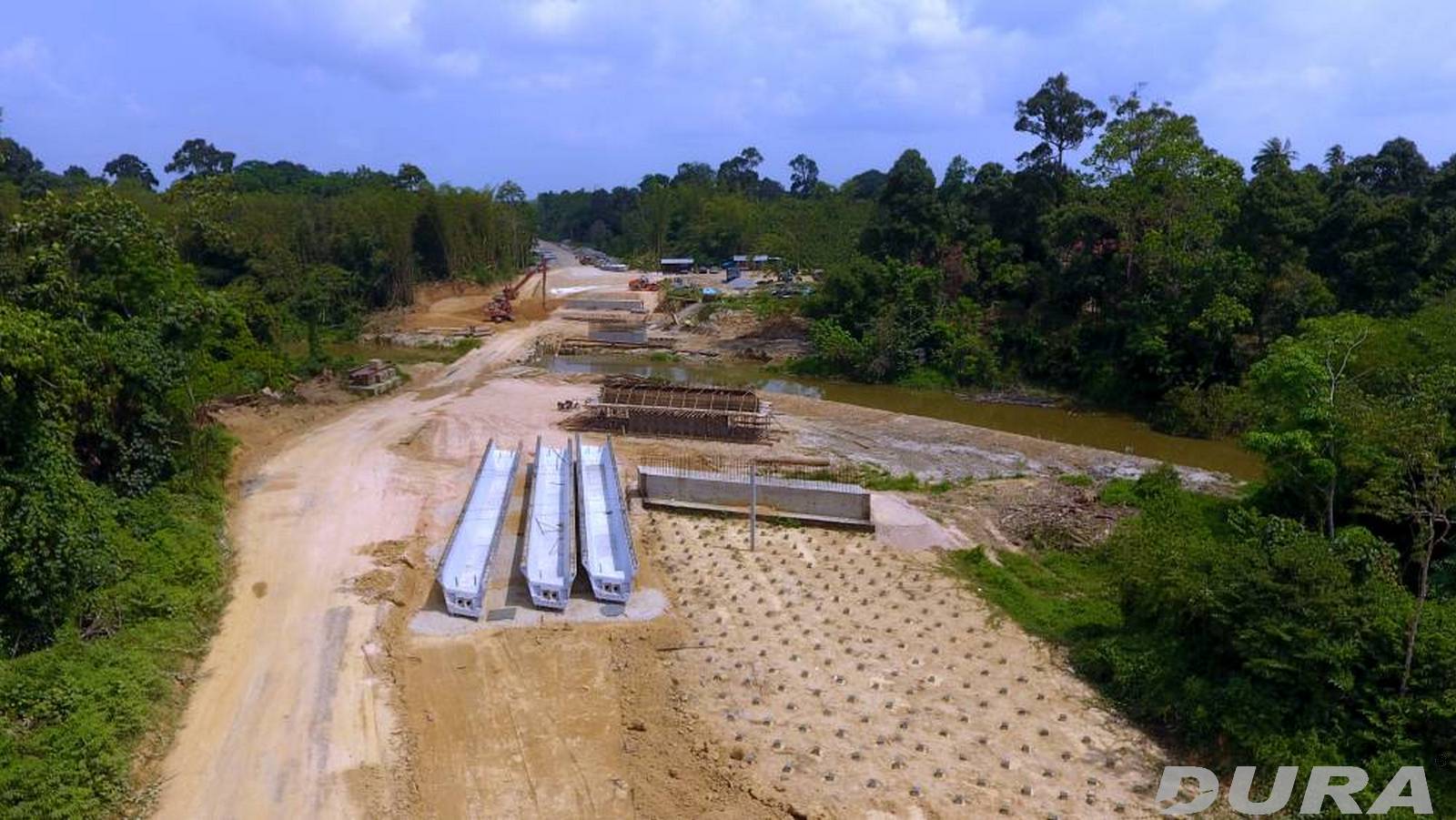

Three U-beams assembled behind the abutments.
Three U-beams assembled behind the abutments.
Three U-beams assembled.
Three U-beams assembled.

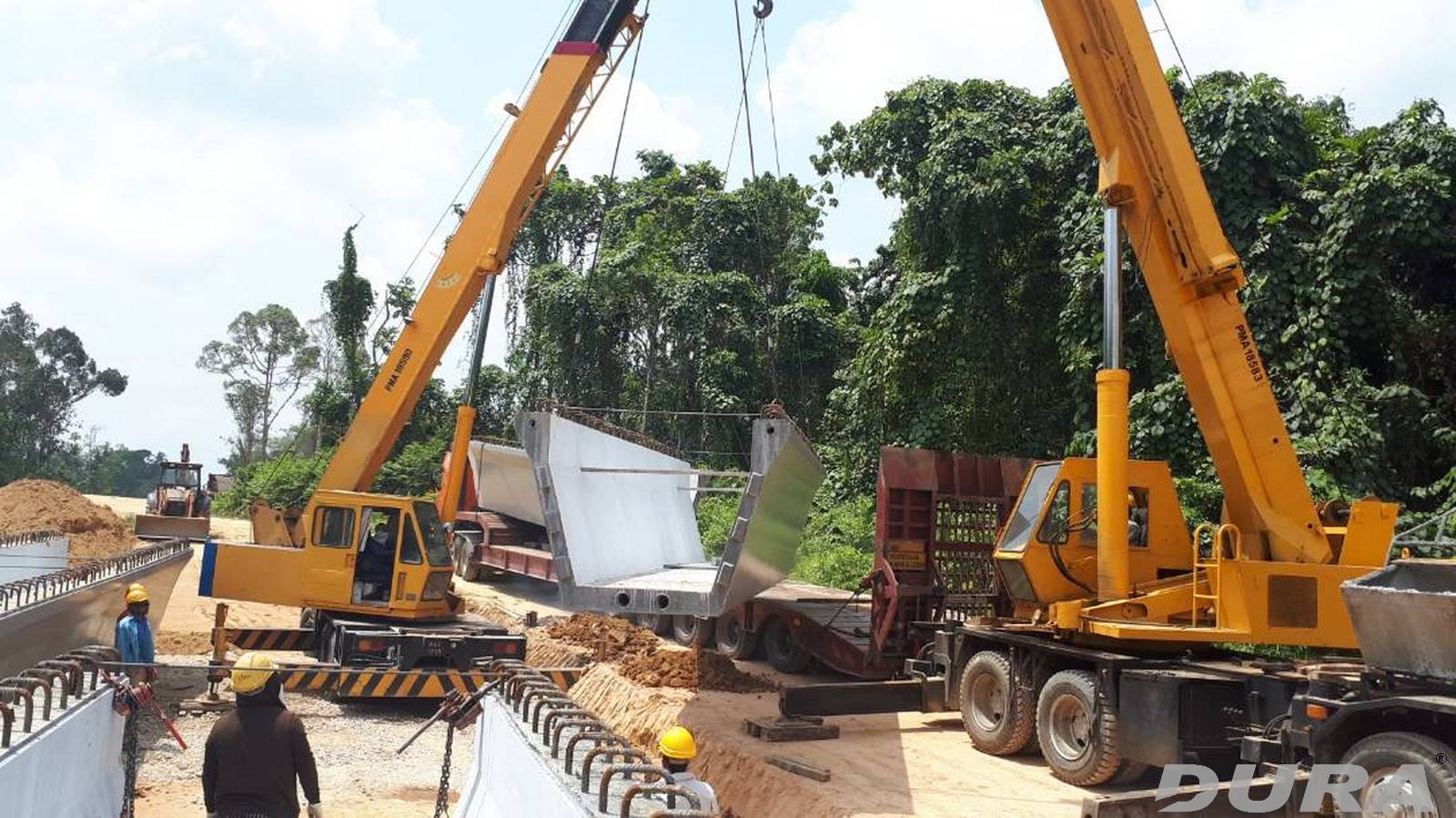

Unloading to site for assembly.
Unloading to site for assembly.

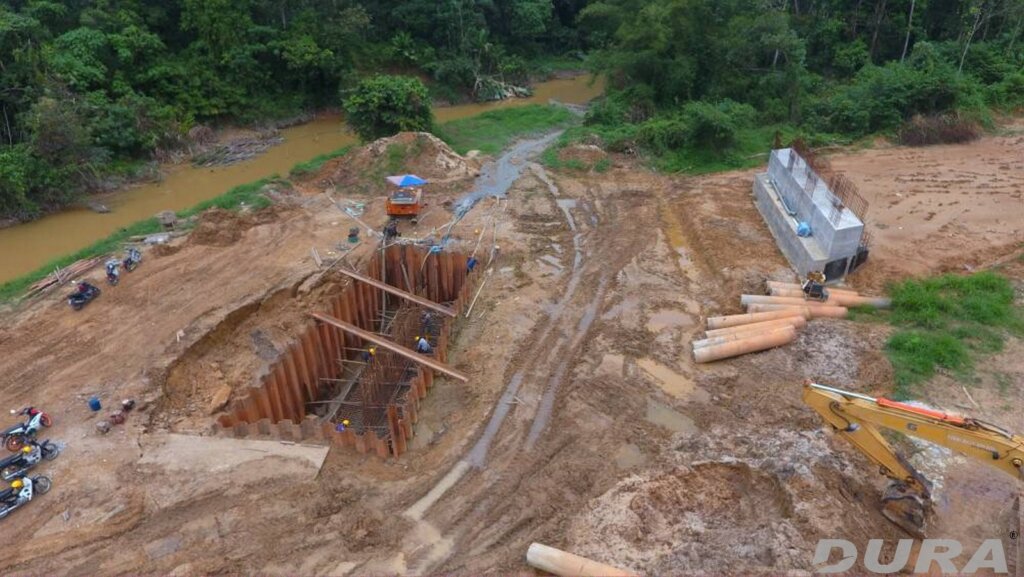

Cofferdam used to construct pier 2.
Cofferdam used to construct pier 2.

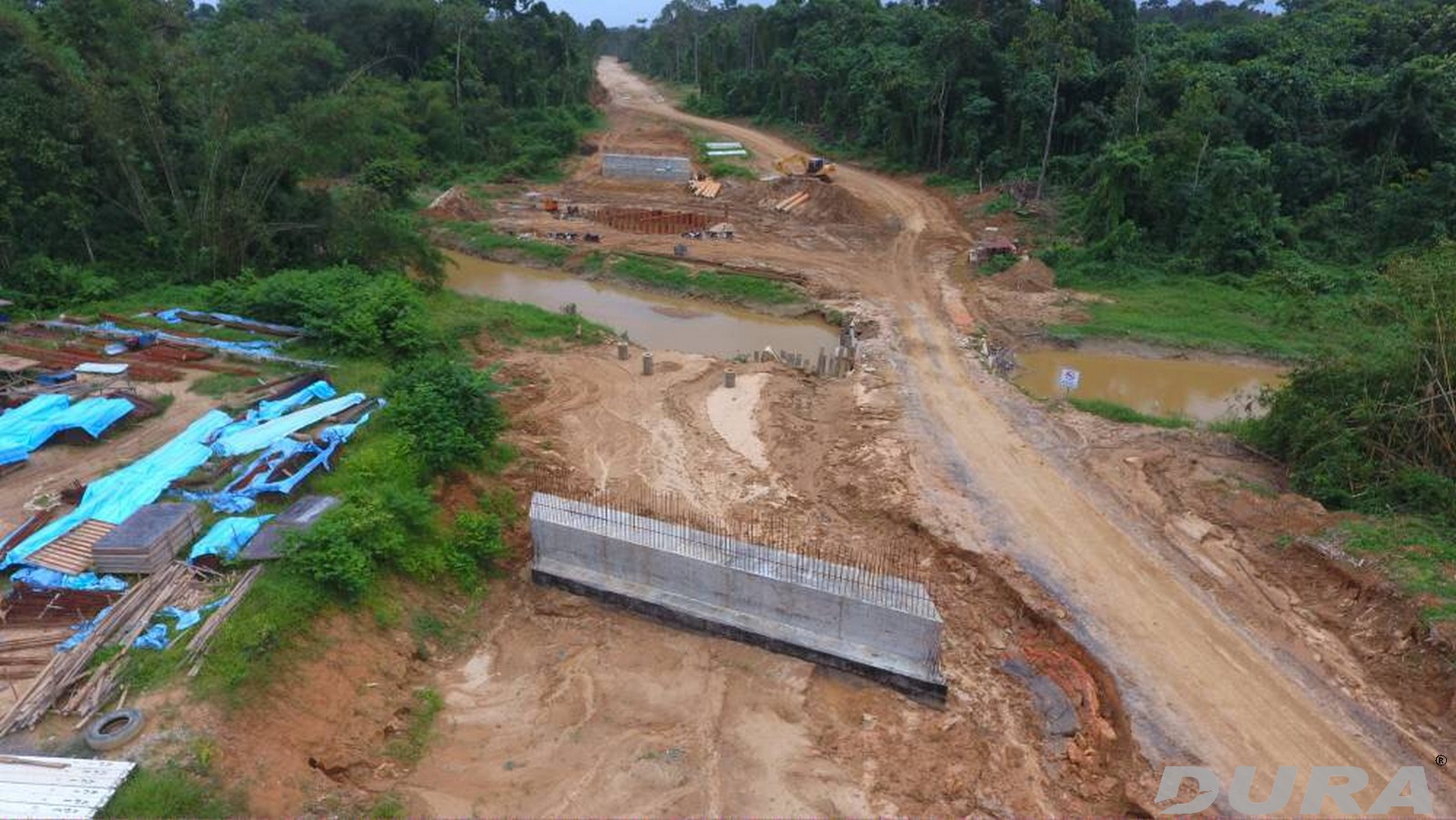

Substructure construction in progress._2
Substructure construction in progress._2

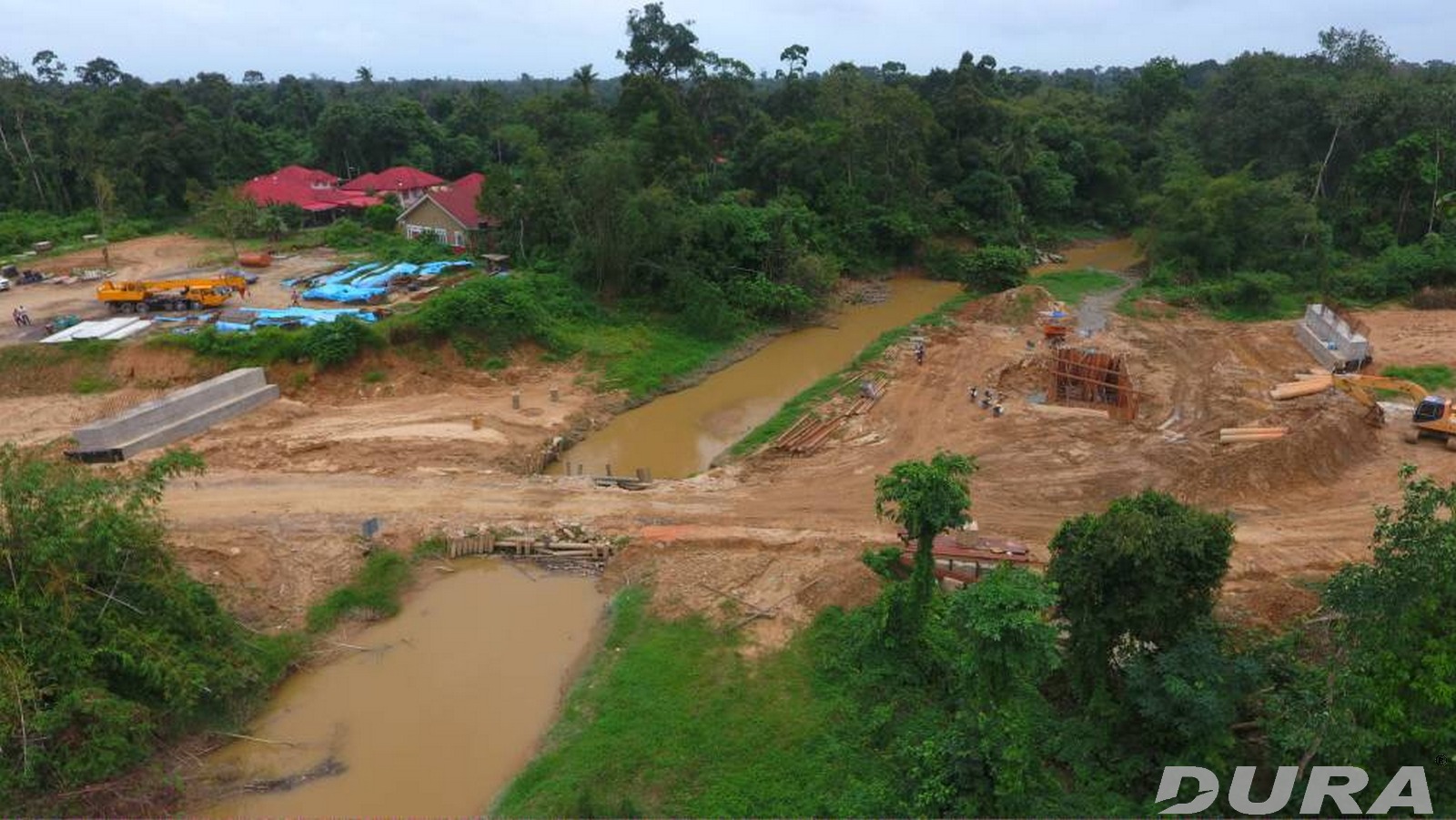

Substructure construction in progress.
Substructure construction in progress.

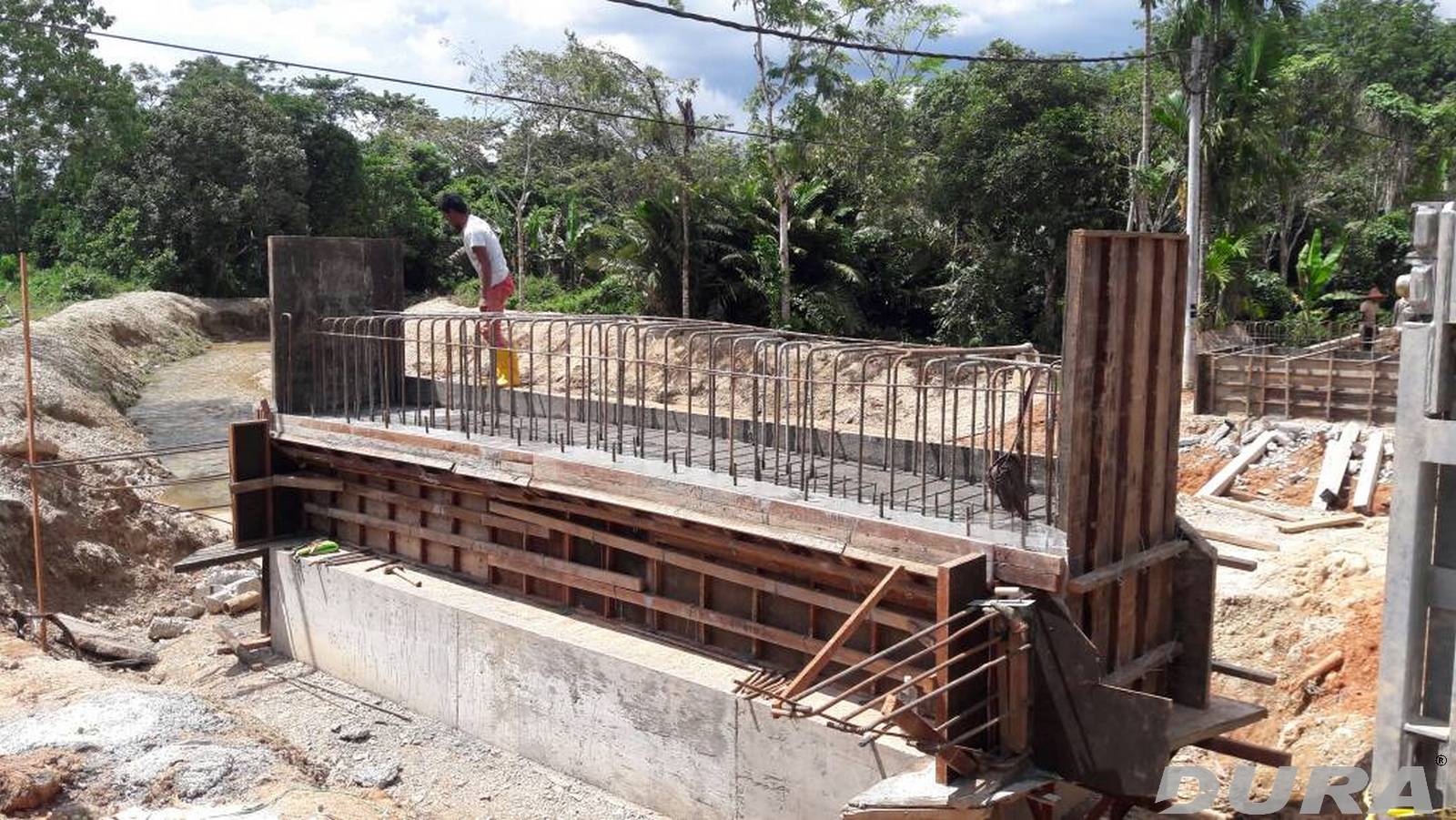

Construction of abutment A
Construction of abutment A

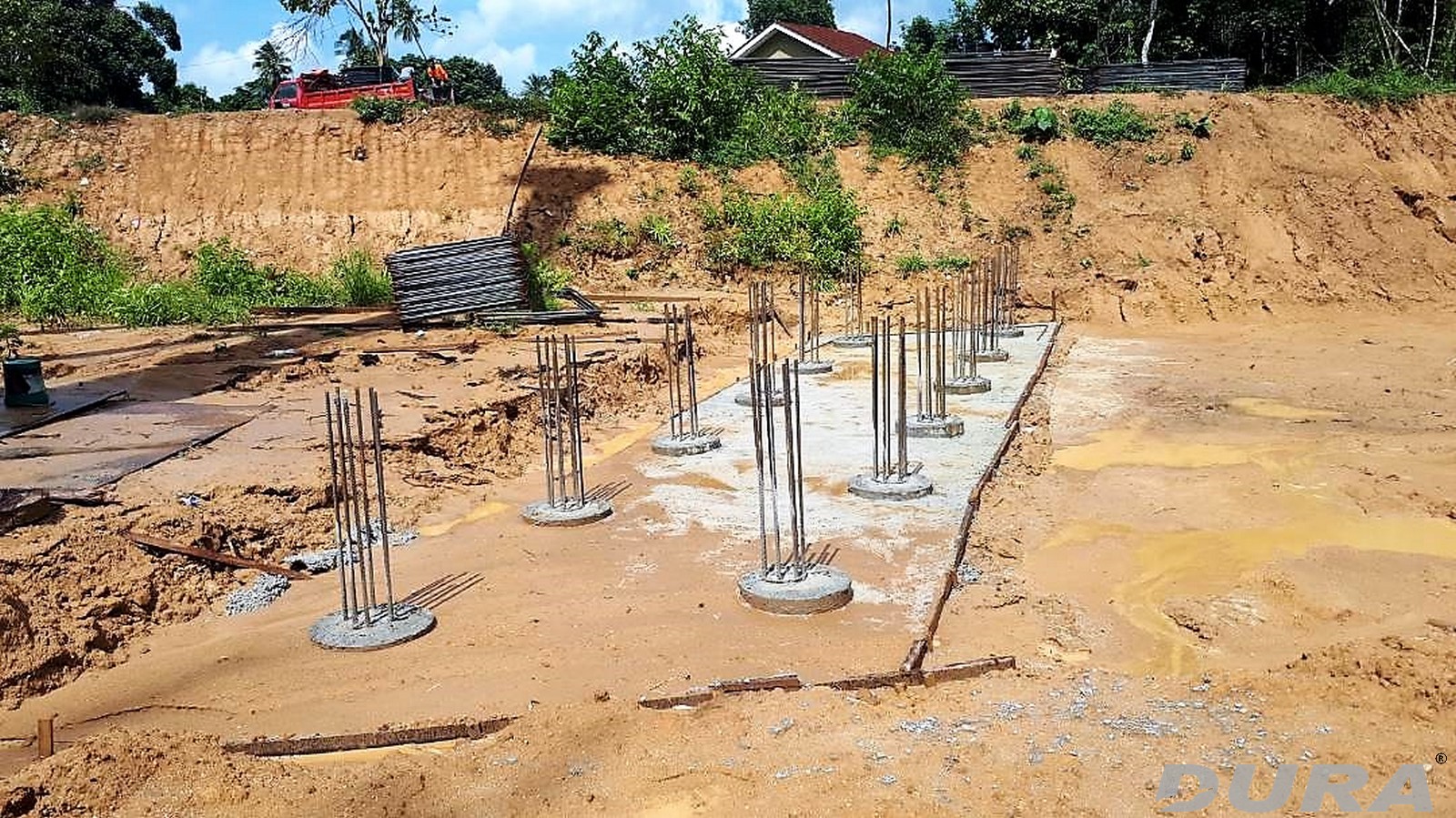

Abutment B
Abutment B

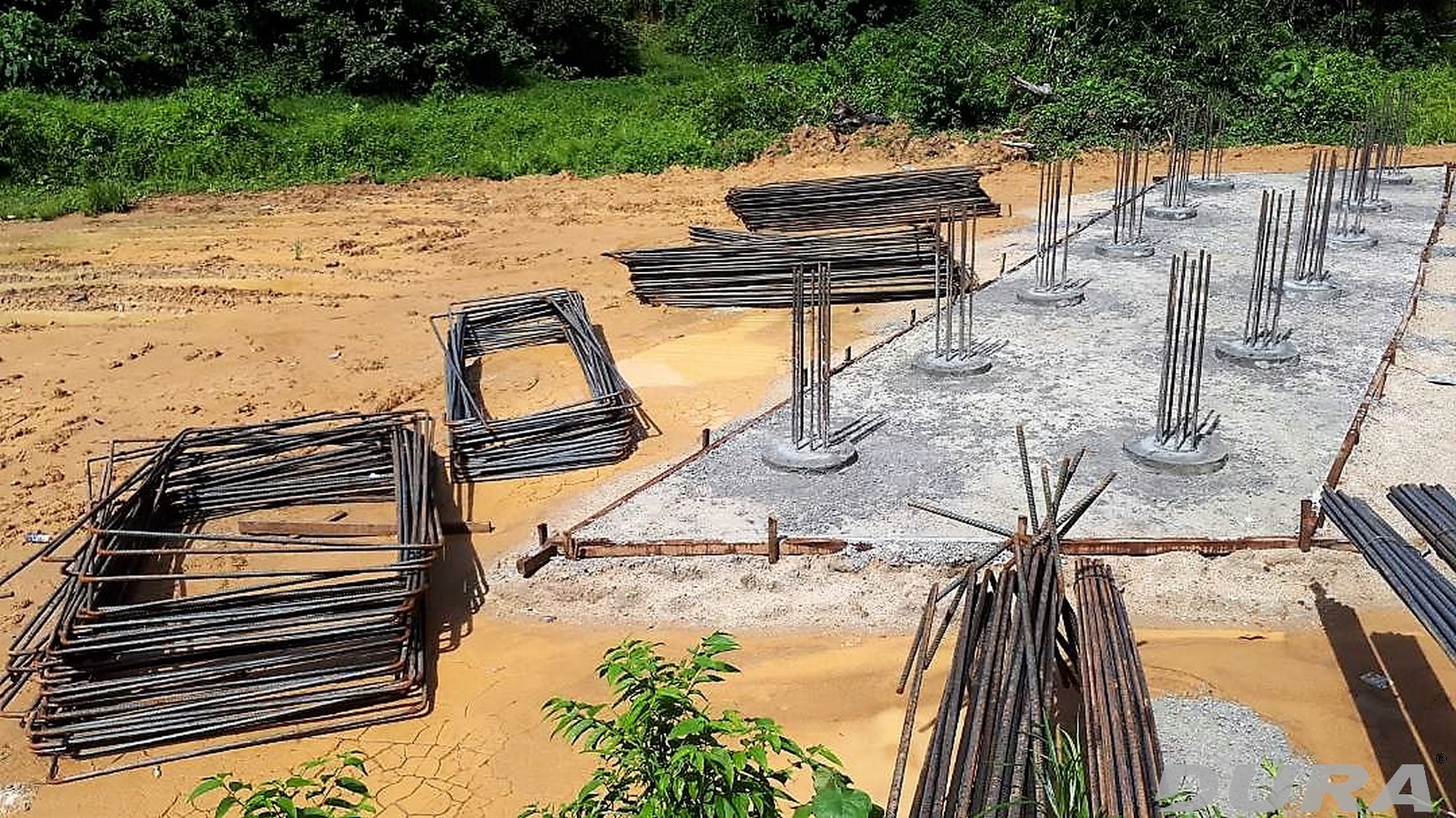

Abutment A
Abutment A
Piling work in progress
Piling work in progress

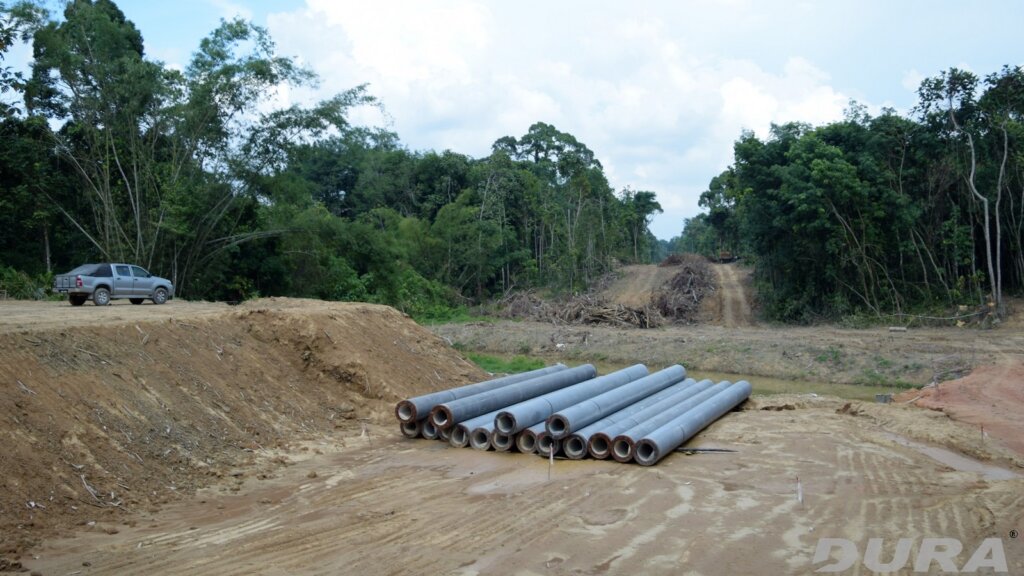

600mm spun piles at site
600mm spun piles at site

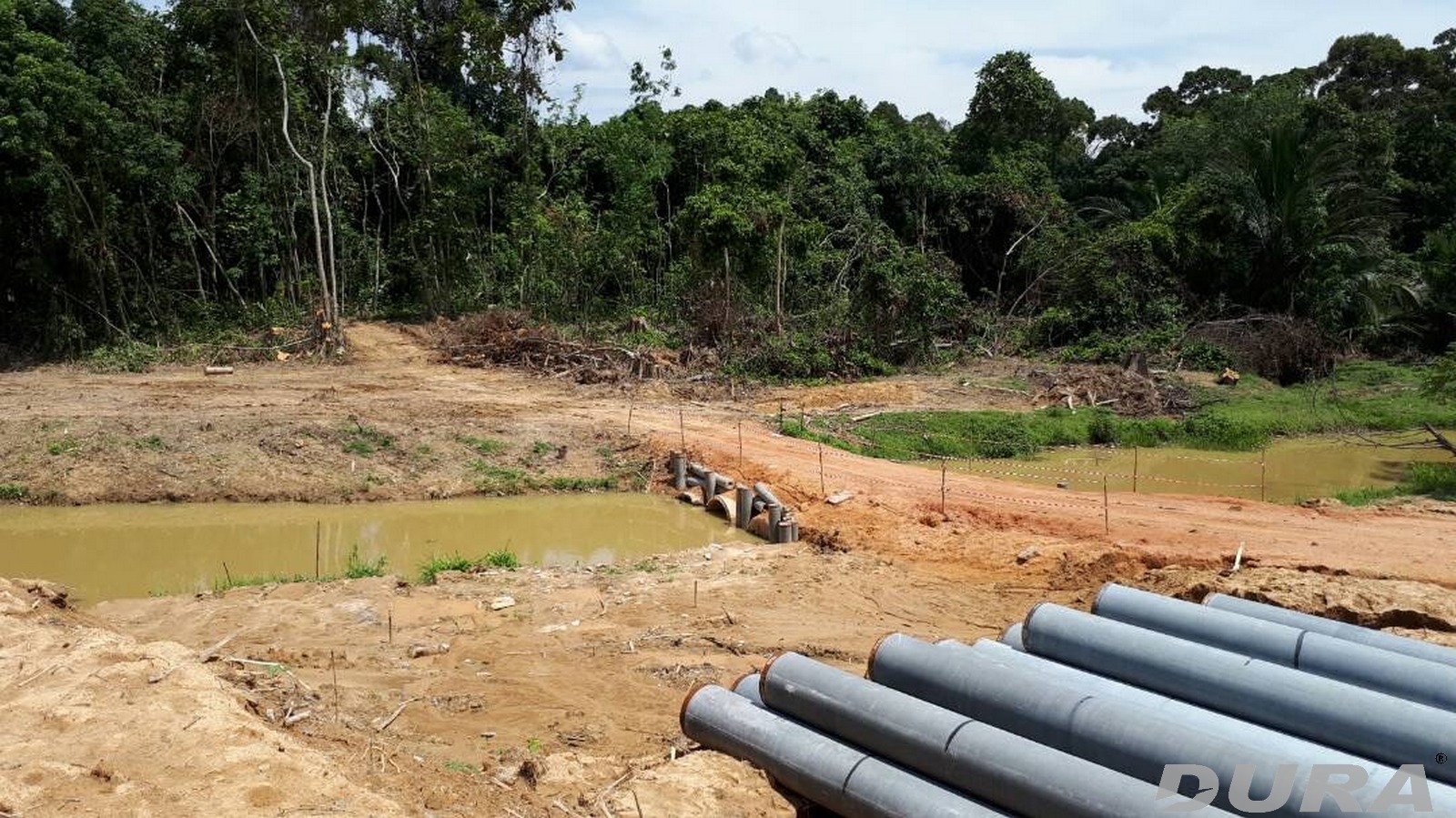

Original site.
Original site.
Project Title

To Construct Three Spans Bridge at Jalan Pasir Hor, Kubang Kerian Ke Pasir Jelatang, Pasir Tumboh, Kota Bharu, Kelantan.(Menaiktaraf Jalan Pasir Hor, Kubang Kerian Ke Pasir Jelatang, Pasir Tumboh, Kota Bharu, Kelantan)

Project Year

2019

Status

Completed Project

Country

Malaysia

GPS Cordinates

6.073648 N, 102.265898 E

Structure Type

Three Spans 30o Skew UHPC Beam Composite In Situ Deck Bridge System : 24m + 50m + 24m x 12m wide.

Superstructure Feature

6 pieces of DURA® UBG1750-24m and 3 pieces of DURA® UBG1750-50m with Cast In-Situ RC Deck

Substructure Feature

2 nos. of cast in-situ RC abutments and 2 nos. of cast in-situ RC piers.

Foundation Feature

600mm dia. Spun pile (Class B)

Loading Type

HA + 45 units HB loadings (BD37/01)

Client

JKR Kelantan

Superintendent Officer (S.O.)

JKR

Consultant

Just Consult

Contractor

Yusri Maju Sdn. Bhd.

Contract Period

24 months

Construction Status

Completed
