No More Blockage At Sg. Linggi Of Jalan Rantau-Siliau, Negeri Sembilan.

  • Project Status

  • Select Country

  • Select Years

  • Reset
Original site and old concrete bridge with 4 rows of piers in the waterway of the Sg Linggi -13-10-2011-
Original site and old concrete bridge with 4 rows of piers in the waterway of the Sg Linggi -13-10-2011-

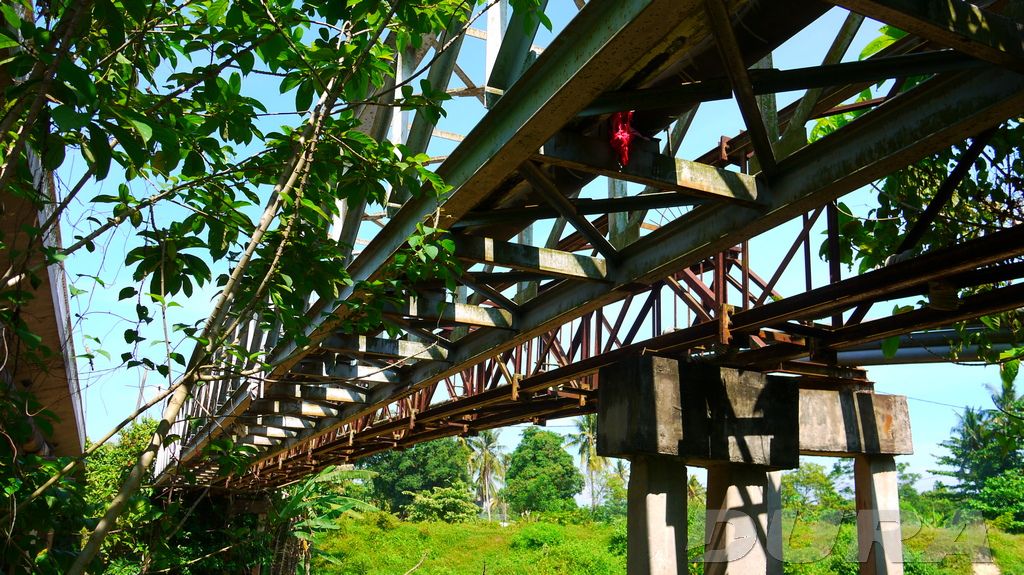

Existing utility and pipings
Existing utility and pipings
Debris stuck at the piers -13-10-2011-
Debris stuck at the piers -13-10-2011-

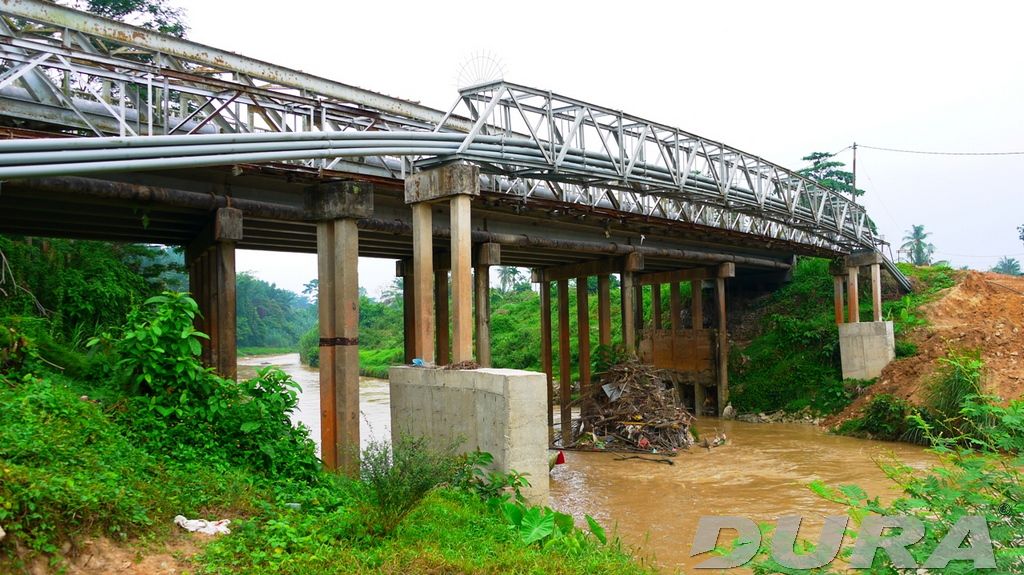

Debris stuck at the piers -05-08-2012-
Debris stuck at the piers -05-08-2012-

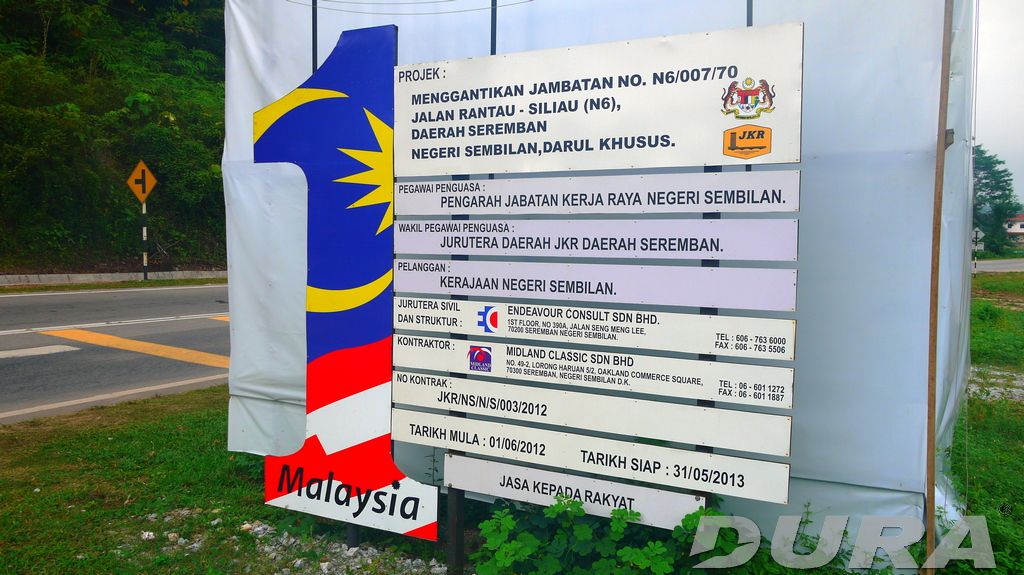

Project signboard and project detail near the job site
Project signboard and project detail near the job site

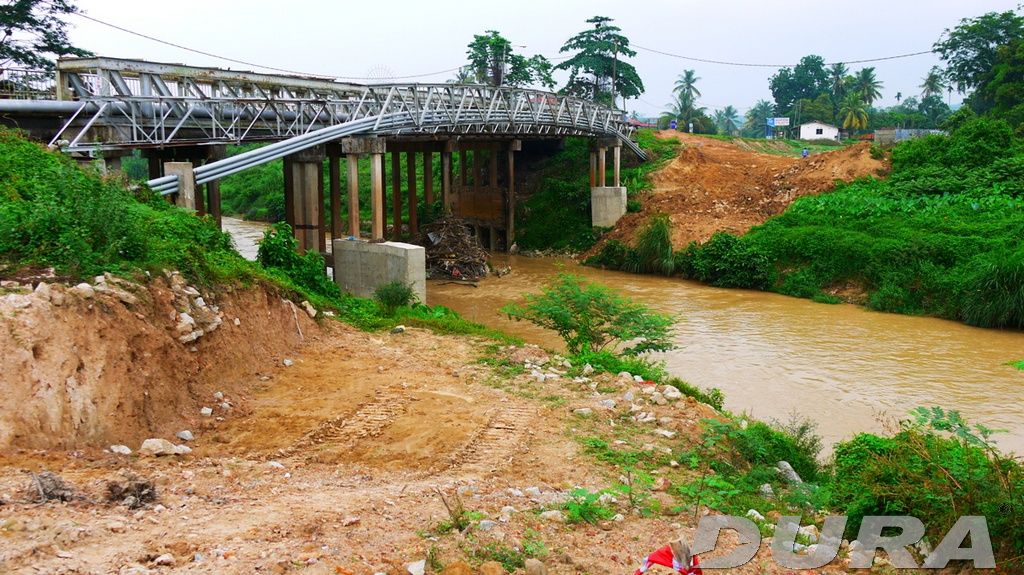

Site clearing began -05-08-2012-
Site clearing began -05-08-2012-

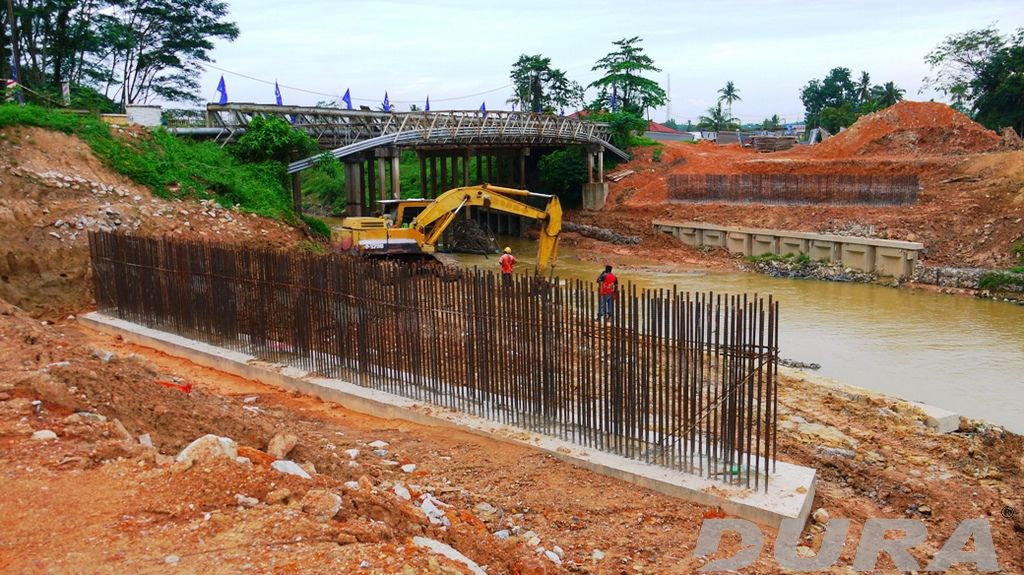

Construction of abutment in progress -15-02-2013-
Construction of abutment in progress -15-02-2013-

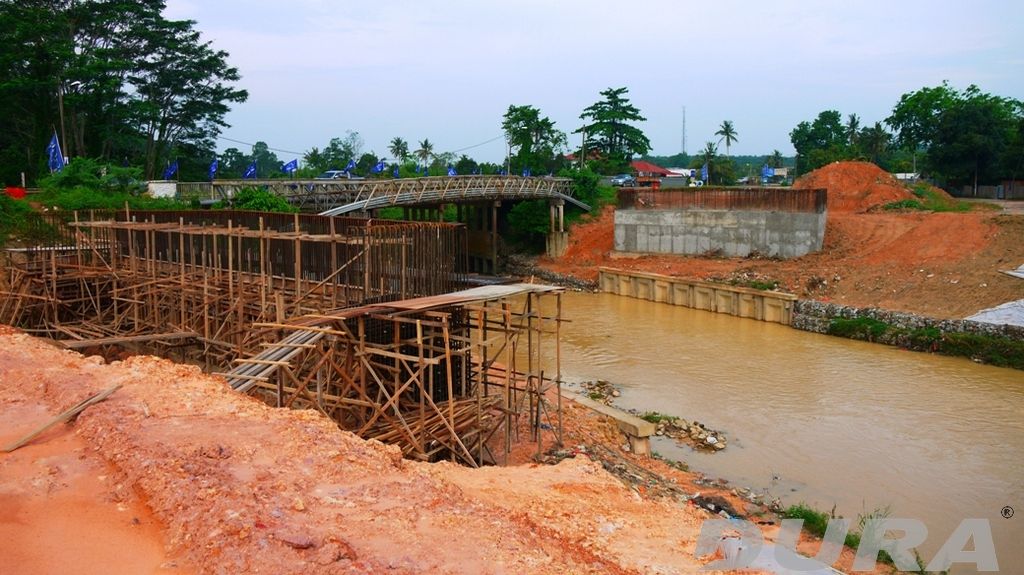

Construction of abutment in progress -07-04-2013-
Construction of abutment in progress -07-04-2013-

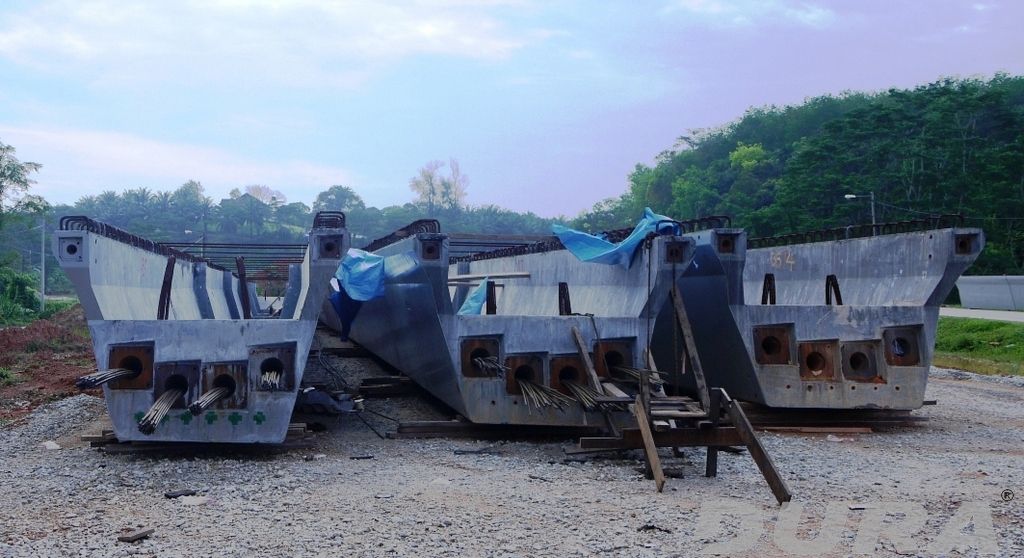

Installation of strands for post-tension U beam -07-04-2013-
Installation of strands for post-tension U beam -07-04-2013-

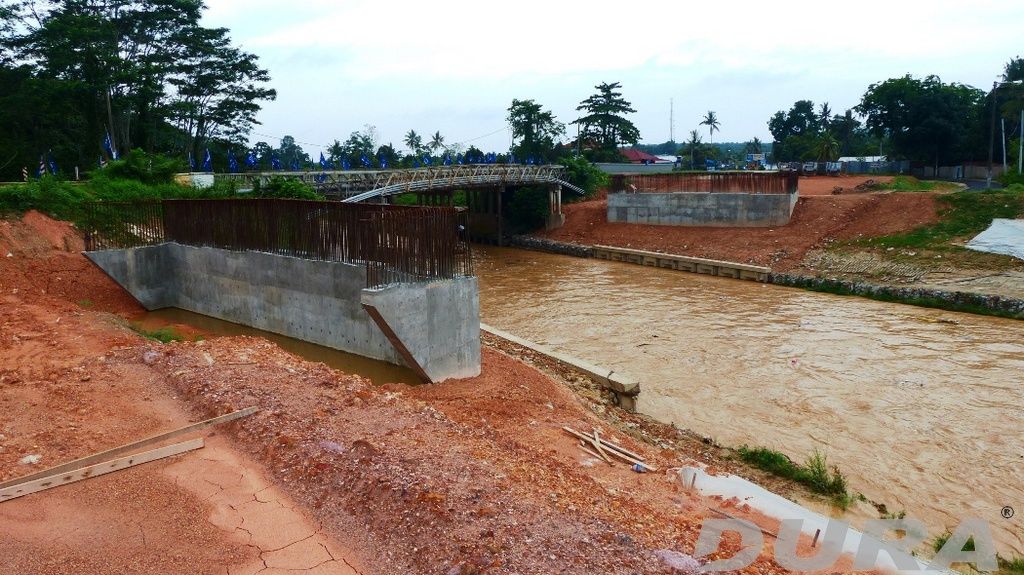

Partially completed abutment -20-04-2013-
Partially completed abutment -20-04-2013-

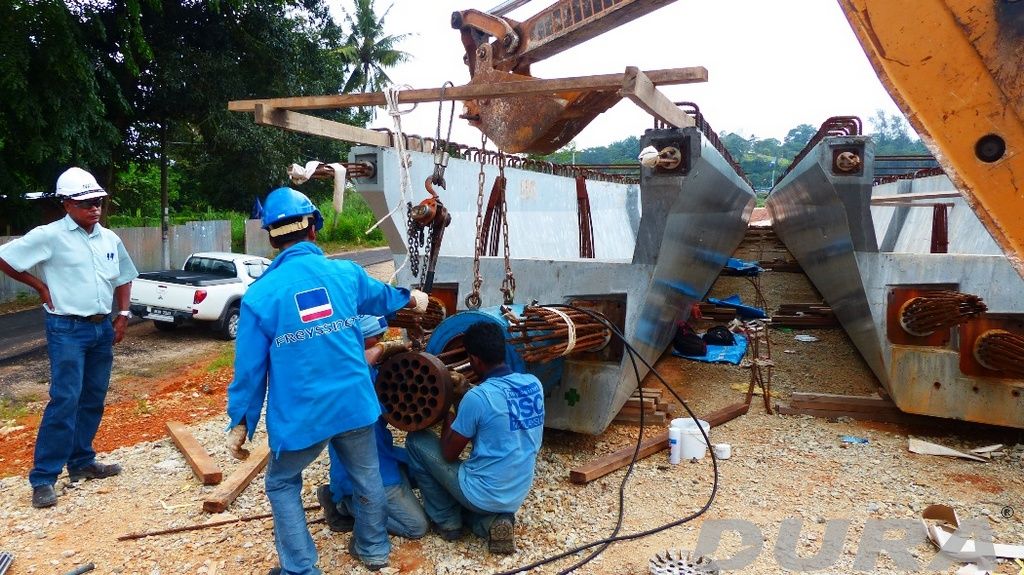

Post-tensioning work in progress in 1st U beam -29-04-2013-
Post-tensioning work in progress in 1st U beam -29-04-2013-

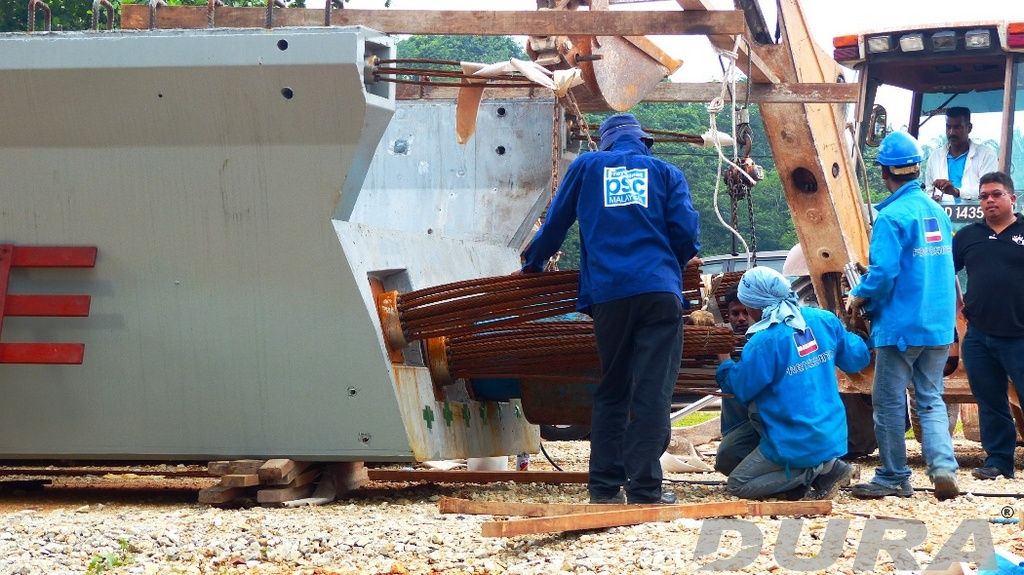

Post-tensioning work in progress in 1st U beam -29-04-2013-_2
Post-tensioning work in progress in 1st U beam -29-04-2013-_2

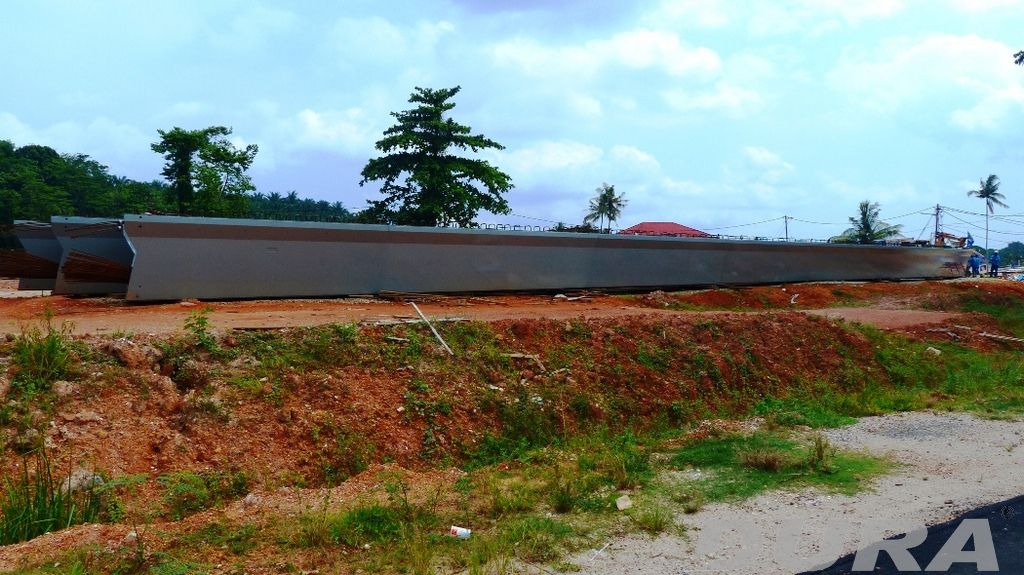

Completion of 1st U beam PT work
Completion of 1st U beam PT work

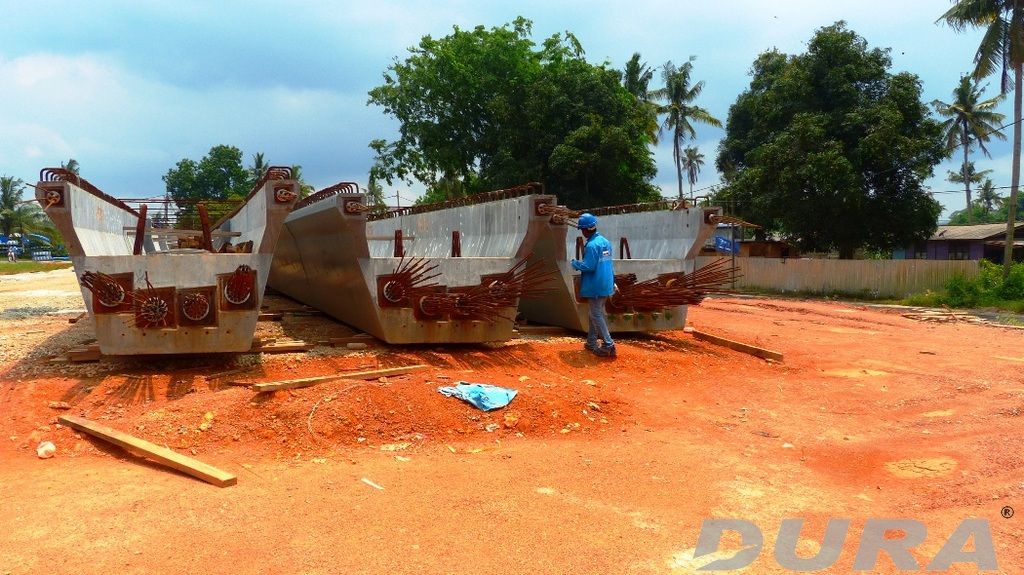

Post-tensioning work in progress in 1st U beam -29-04-2013-_3
Post-tensioning work in progress in 1st U beam -29-04-2013-_3
Platform preparation for crane seating -18-05-2013-
Platform preparation for crane seating -18-05-2013-
Arrival of 500 tonnes capacity all-terrain mobile crane by Asiagroup -18-05-2013-
Arrival of 500 tonnes capacity all-terrain mobile crane by Asiagroup -18-05-2013-
During beam lifting -20-05-2013-
During beam lifting -20-05-2013-
During beam lifting -20-05-2013-_2
During beam lifting -20-05-2013-_2
Five DURA U beam launched
Five DURA U beam launched
Five DURA U beam launched_2
Five DURA U beam launched_2

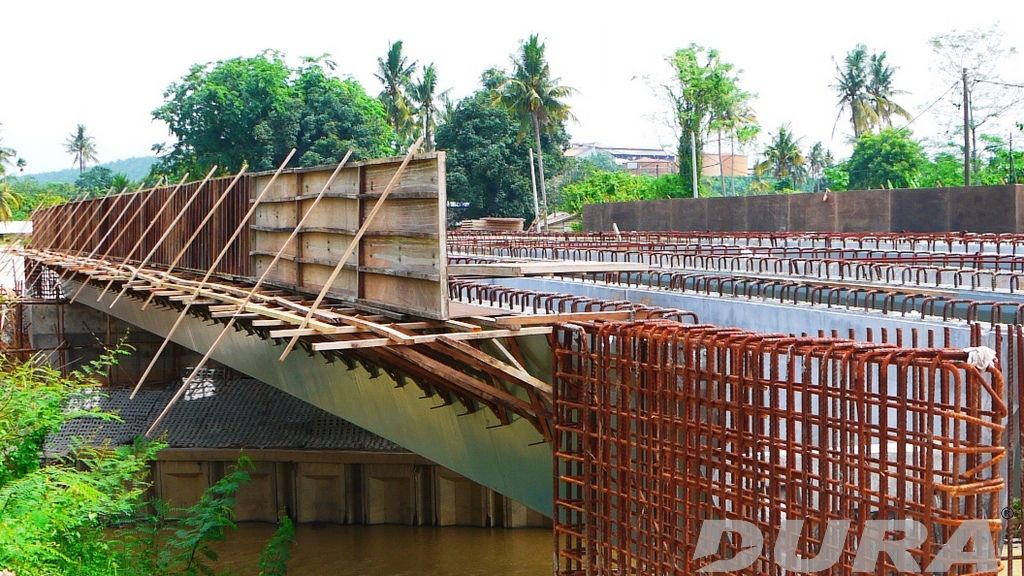

Preparation of formwork for in-situ RC decking -15-06-2013-
Preparation of formwork for in-situ RC decking -15-06-2013-
Preparation of formwork for in-situ RC decking -15-06-2013-_2
Preparation of formwork for in-situ RC decking -15-06-2013-_2

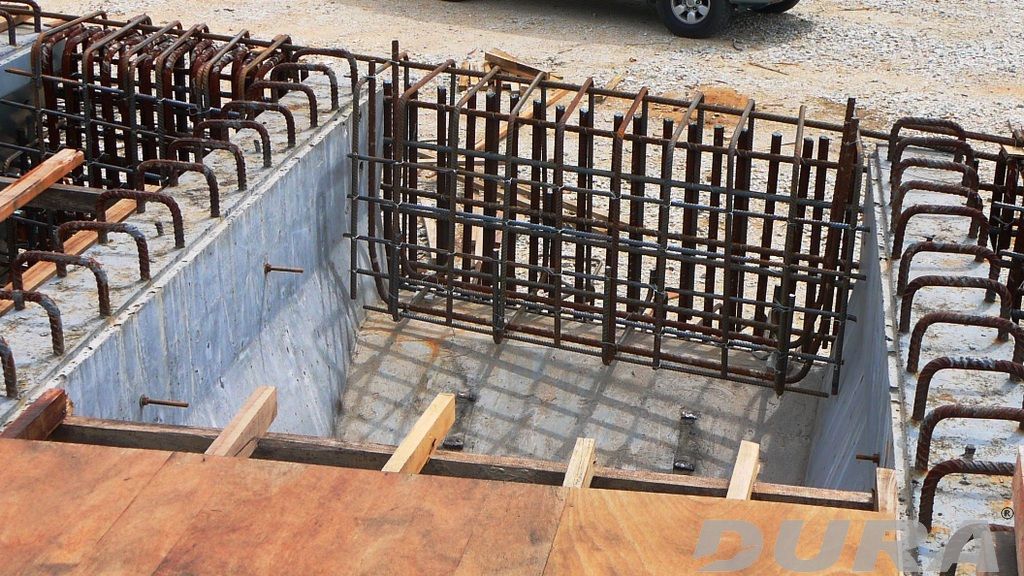

Fixing of end-diaphragm reinforcement
Fixing of end-diaphragm reinforcement
In-situ deck slab completed -12-09-2013-
In-situ deck slab completed -12-09-2013-
Completed 52m long single span Rantau-Siliau bridge
Completed 52m long single span Rantau-Siliau bridge
Completed 52m long single span Rantau-Siliau bridge_2
Completed 52m long single span Rantau-Siliau bridge_2
Column-free new bridge crossing Sg Linggi
Column-free new bridge crossing Sg Linggi

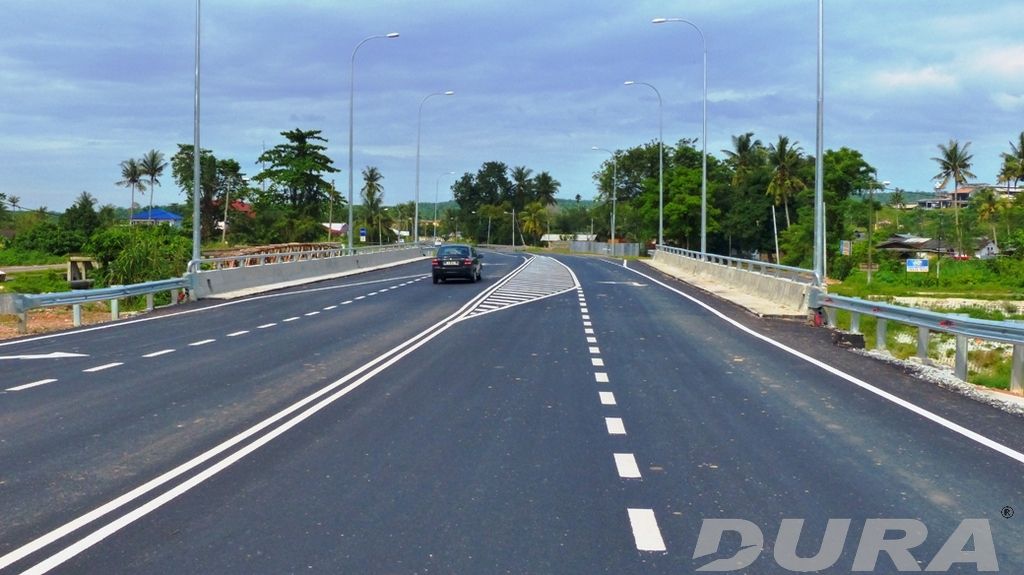

Completed 52m long single span Rantau-Siliau bridge_3
Completed 52m long single span Rantau-Siliau bridge_3
Project Title

A Proposal to Replaced an Old Bridge at Sunga Linggi, Jalan Rantau-Siliau, Rantau, Seremban District, Negeri Sembilan.(Cadangan Menggantikan Jambatan di Atas Sg. Linggi, Jalan Rantau- Siliau, Mukim Rantau, Daerah Seremban, Negeri Sembilan.)

Project Year

2013

Status

Completed Project

Country

Malaysia

GPS Cordinates

2.581020 N , 101.957703 E

Structure Type

51.8m long x 18.6m wide UHPdC composite bridge crossing Sg. Linggi

Superstructure Feature

5 pieces of DURA® UBG1750-51.5m topped with 200mm thk in-situ RC deck

Substructure Feature

800mm diameter bored pile

Loading Type

Full HA+45HB loading (BD37/01)

Client

JKR Negeri Sembilan

Consultant

Endeavour Consult Sdn Bhd

Contractor

Midland Classic Sdn Bhd

Contract Period

12 months

Construction Period

Completed
