Partial UHPFRC Box Girder Design Used at Eight Spans Bridge at Kampung Lambor Crossing Sg. Perak

  • Project Status

  • Select Country

  • Select Years

  • Reset

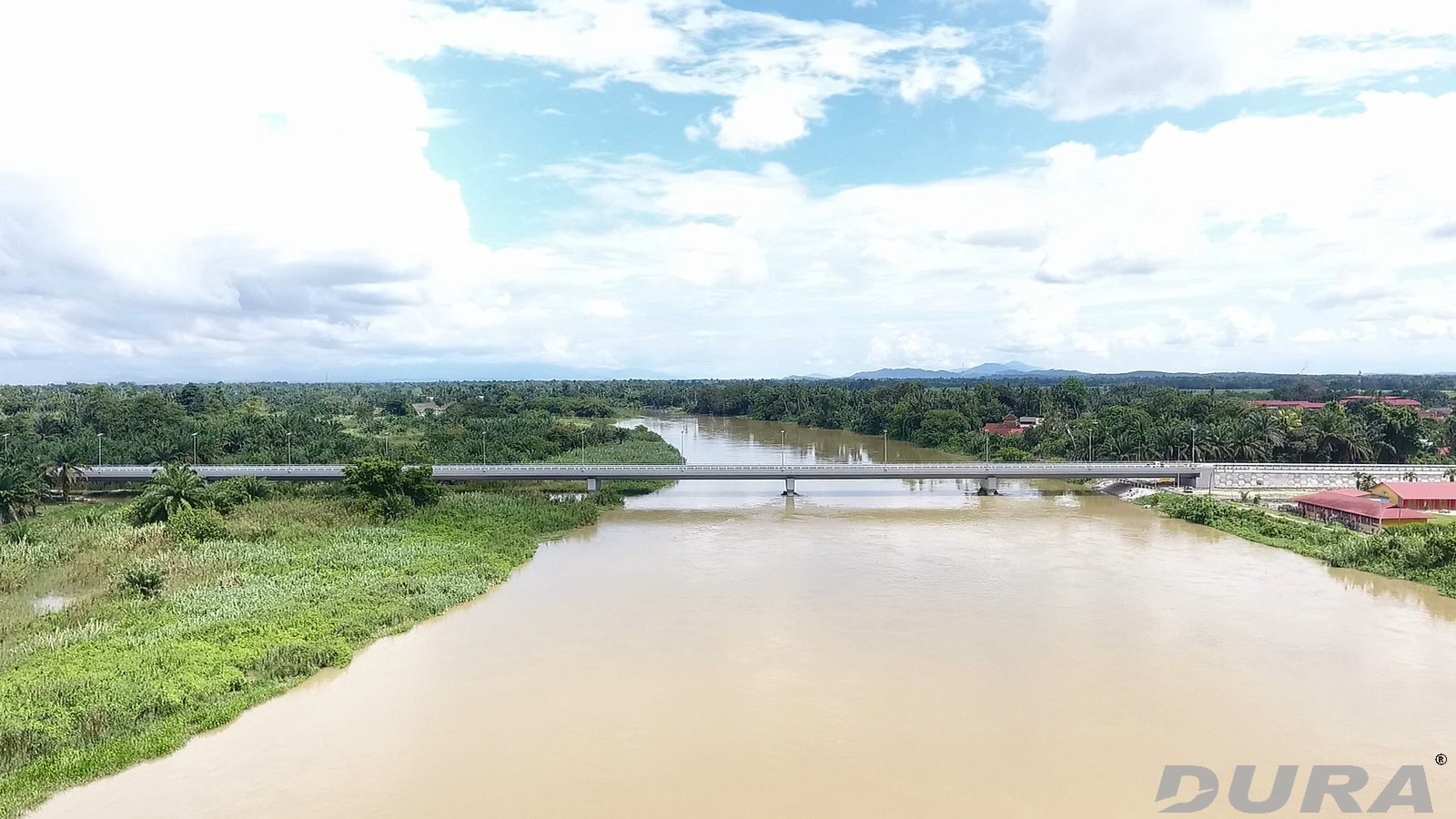

Lambor bridge.
Lambor bridge.

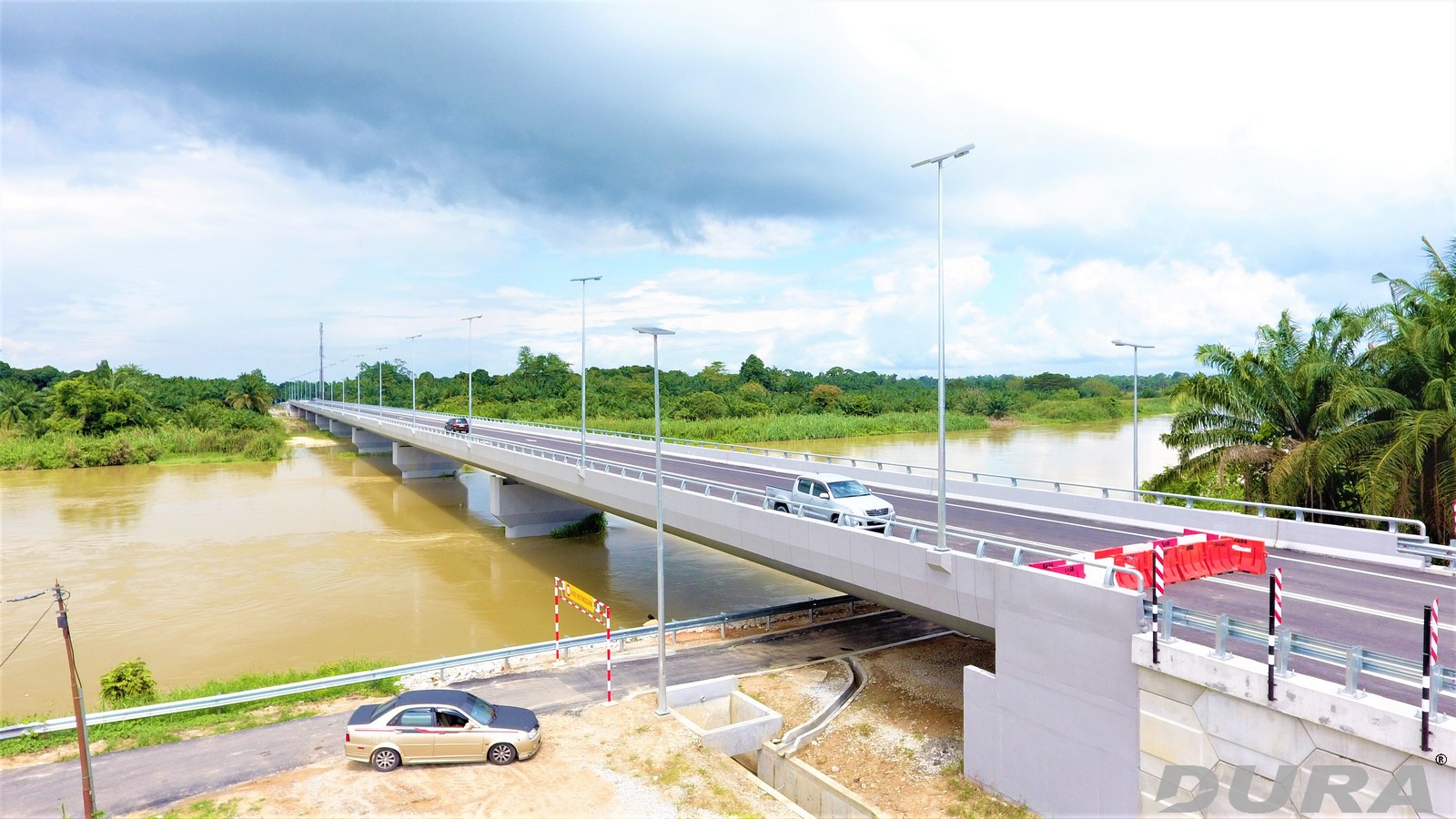

Lambor bidge open for traffic.
Lambor bidge open for traffic.

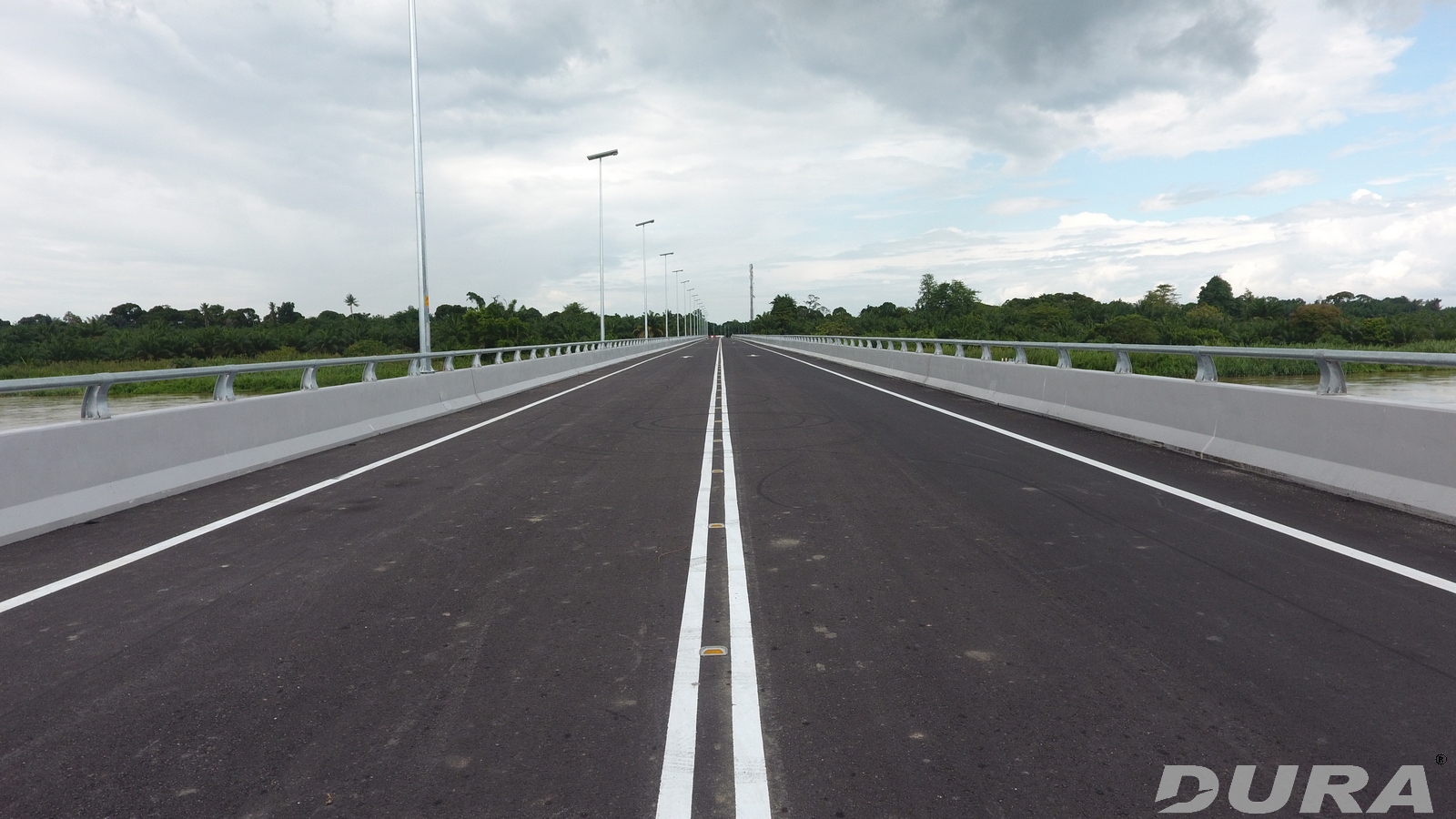

Premix laid on bridge.
Dismantling temporary bridge.
Dismantling temporary bridge.

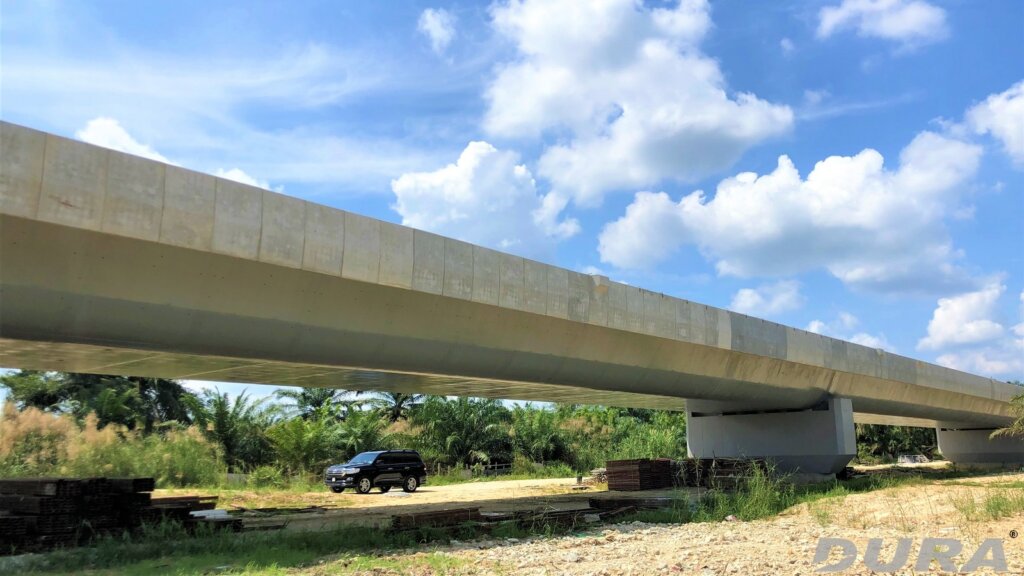

At span 3 and span 4.
At span 3 and span 4.
Soffit view of bridge.
Soffit view of bridge.

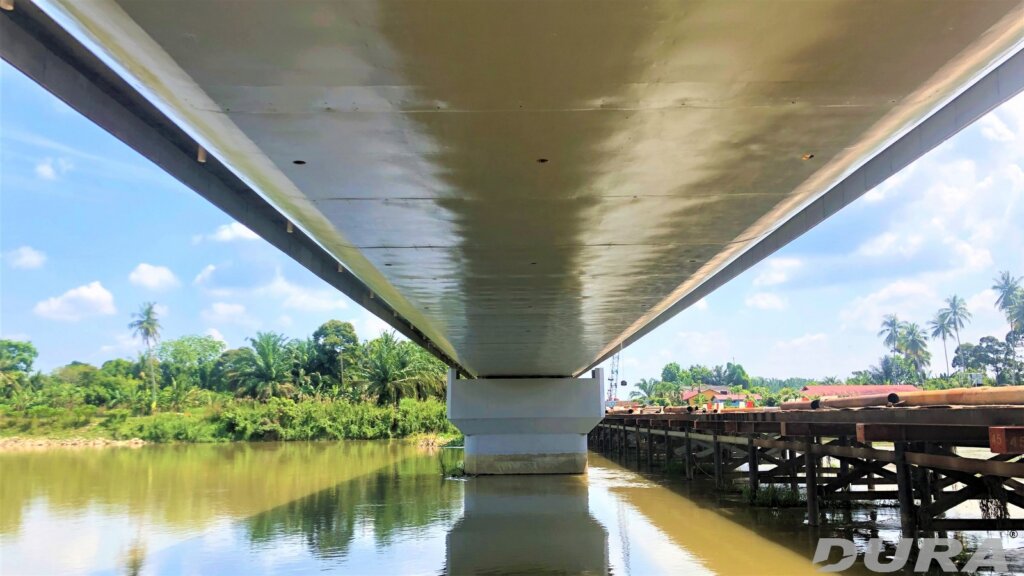

Soffit view.
Soffit view.
Completed bridge.
Completed bridge.

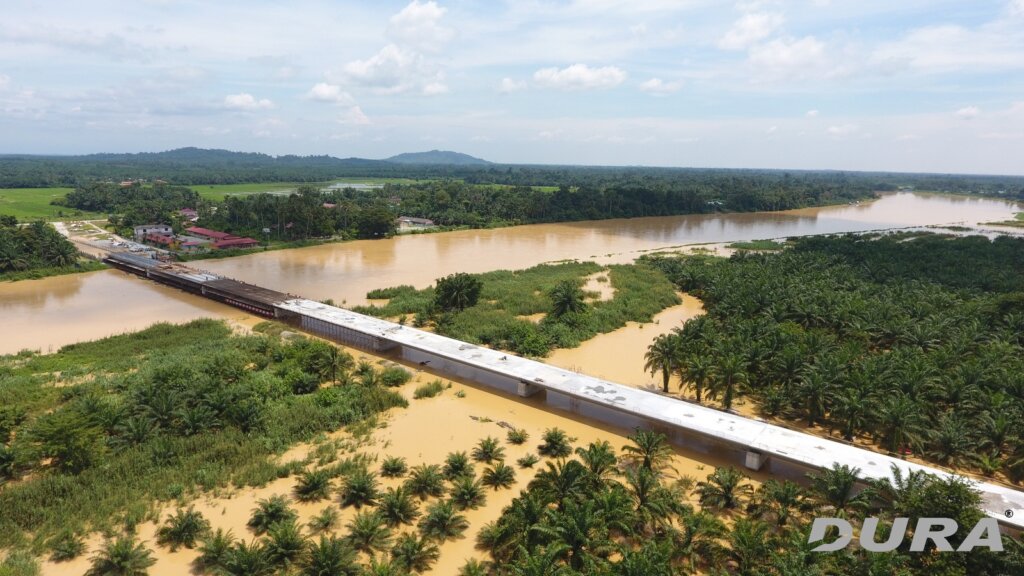

Construction of RC deck in progress (211019).

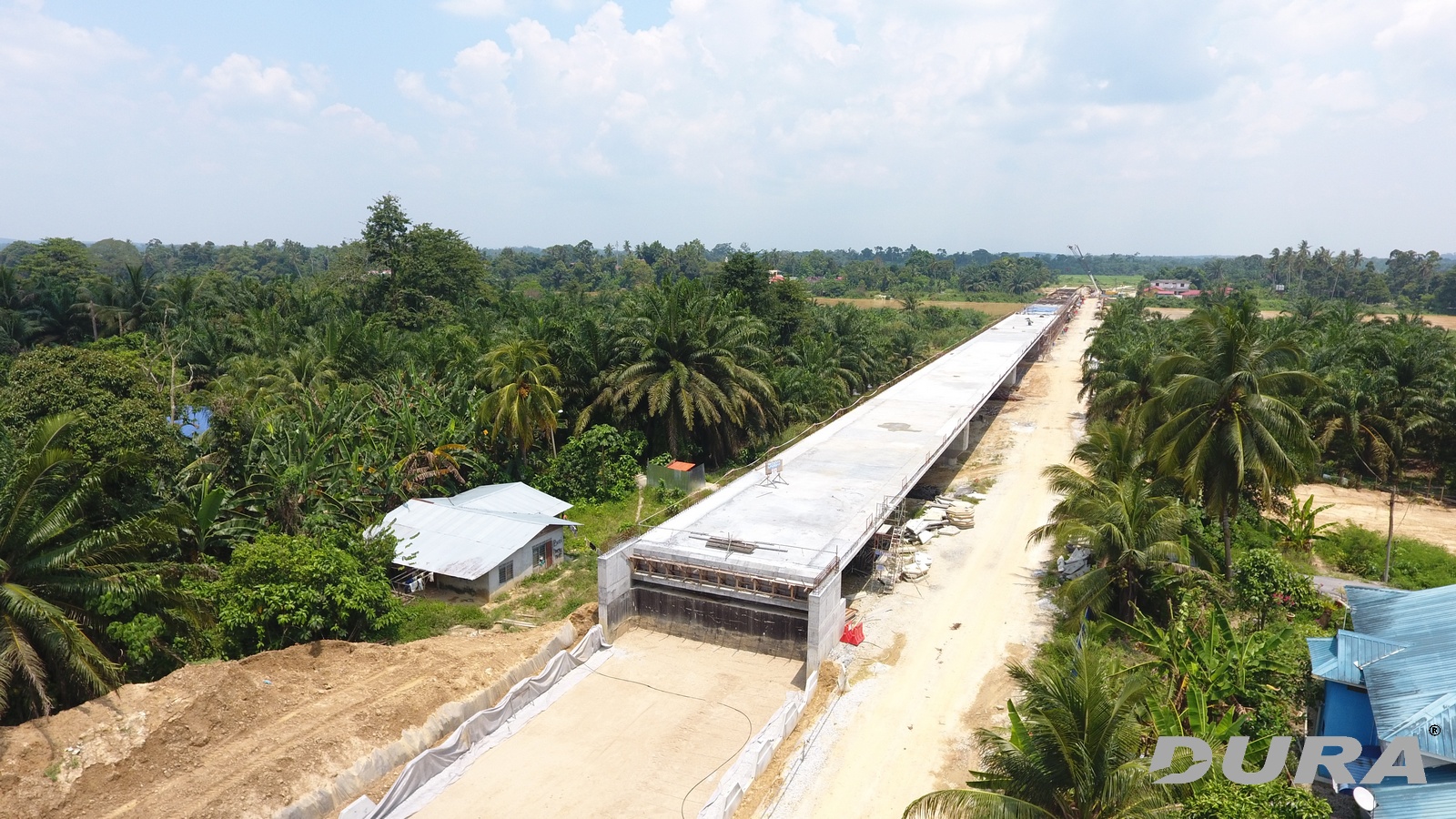

Four spans RC deck has been constructed (121019).

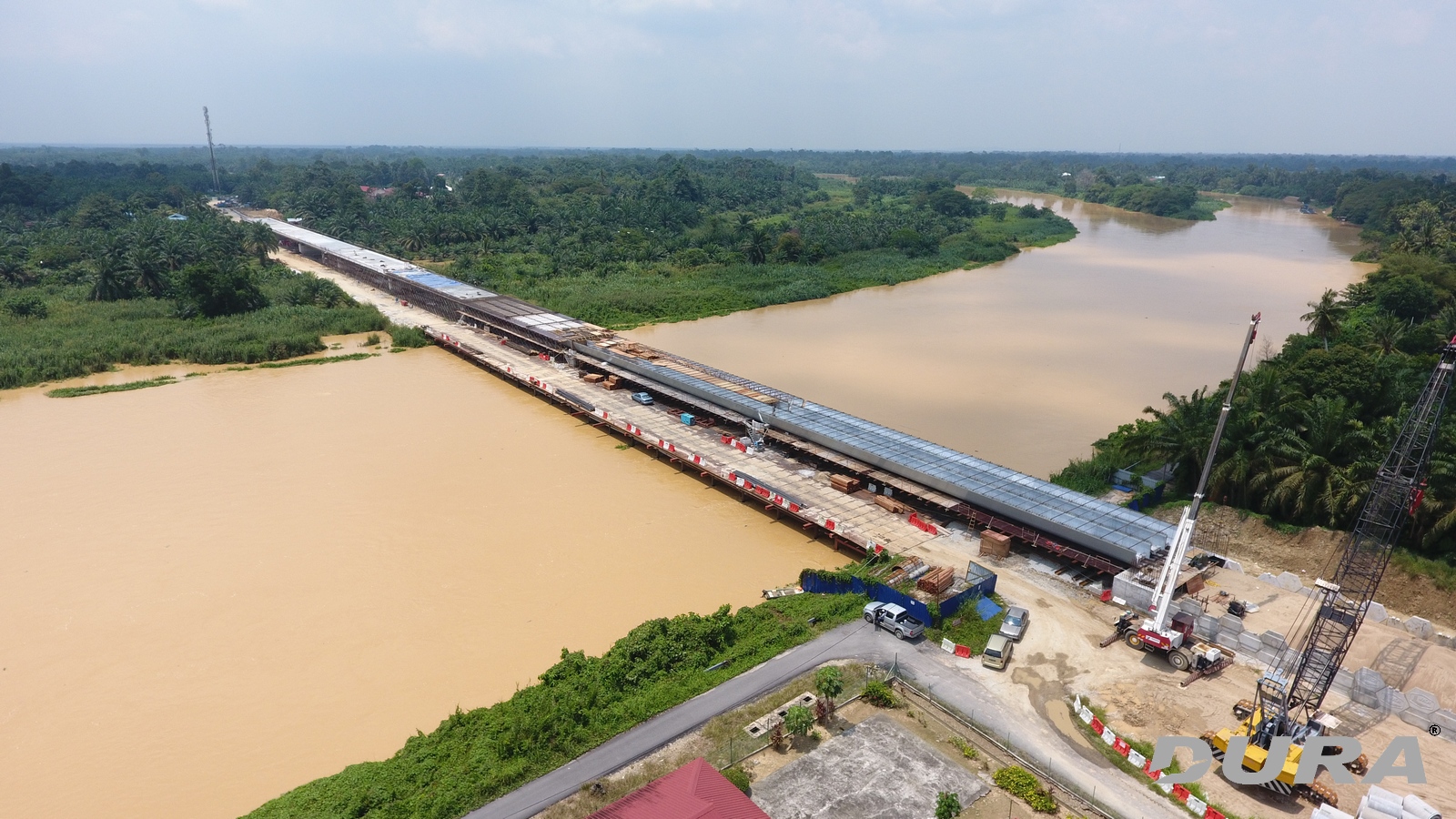

8 spans DURA precast girder assembled.

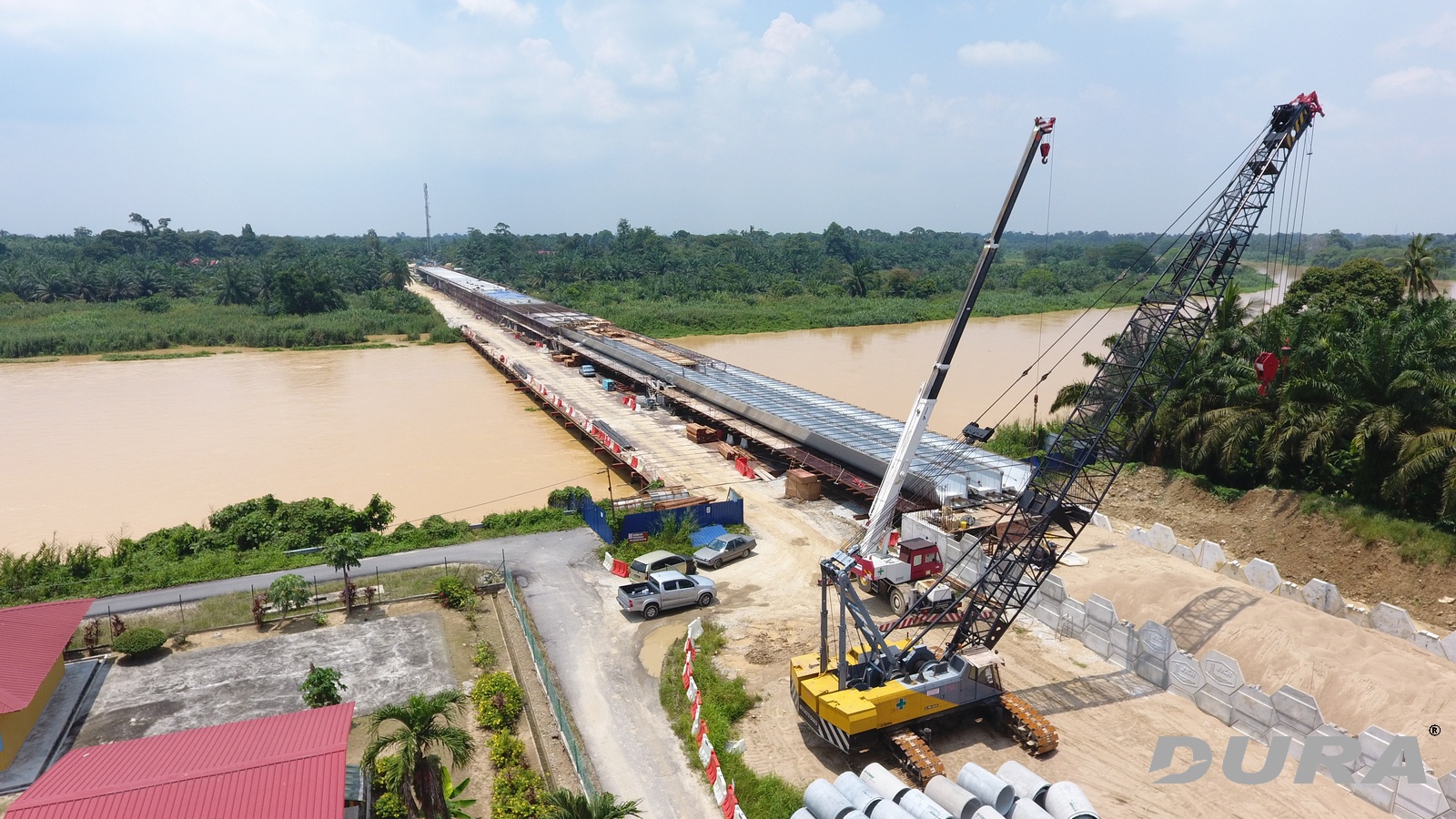

Site progress on 12 Oct 2019.

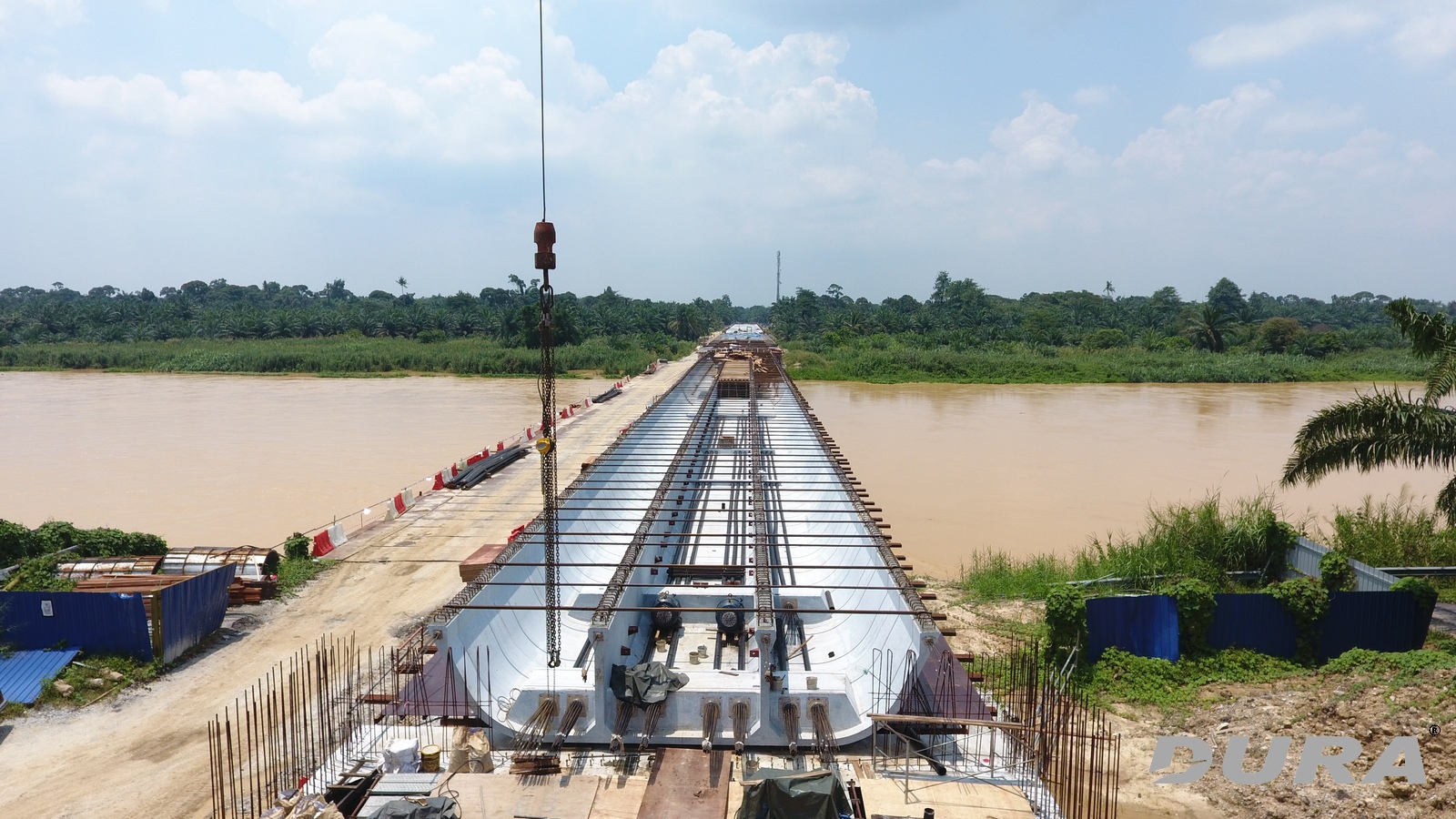

Post-tensioning the last GUBG2000 (span 8).
Giant U bridge girder store in the yard ready for transportation
Giant U bridge girder store in the yard ready for transportation
Casting of in-situ RC deck (200819).
Casting of in-situ RC deck (200819).

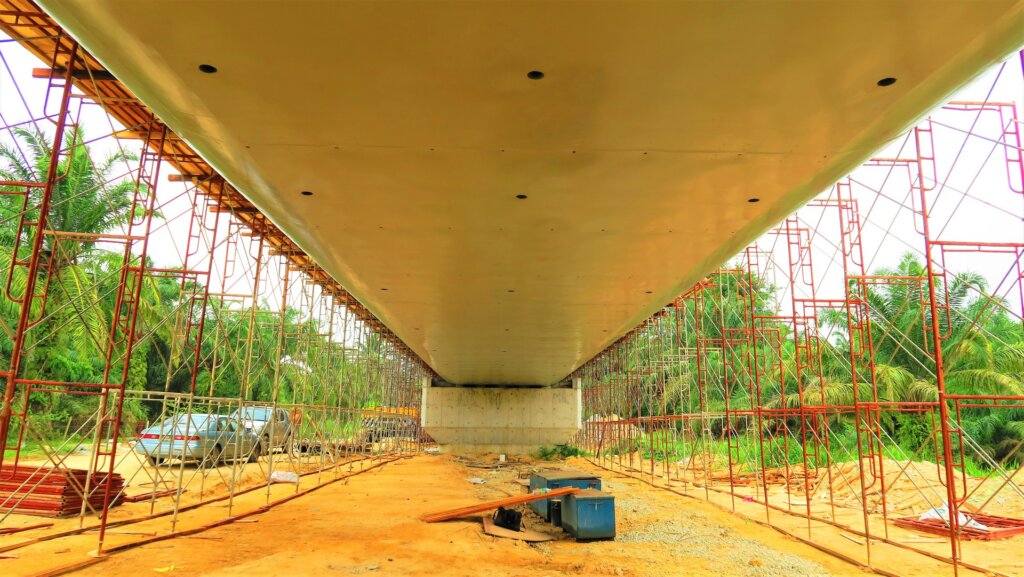

Soffit view for span 2 (140819).
Soffit view for span 2 (140819).
Installation of deck reinforcement (140819).
Installation of deck reinforcement (140819).

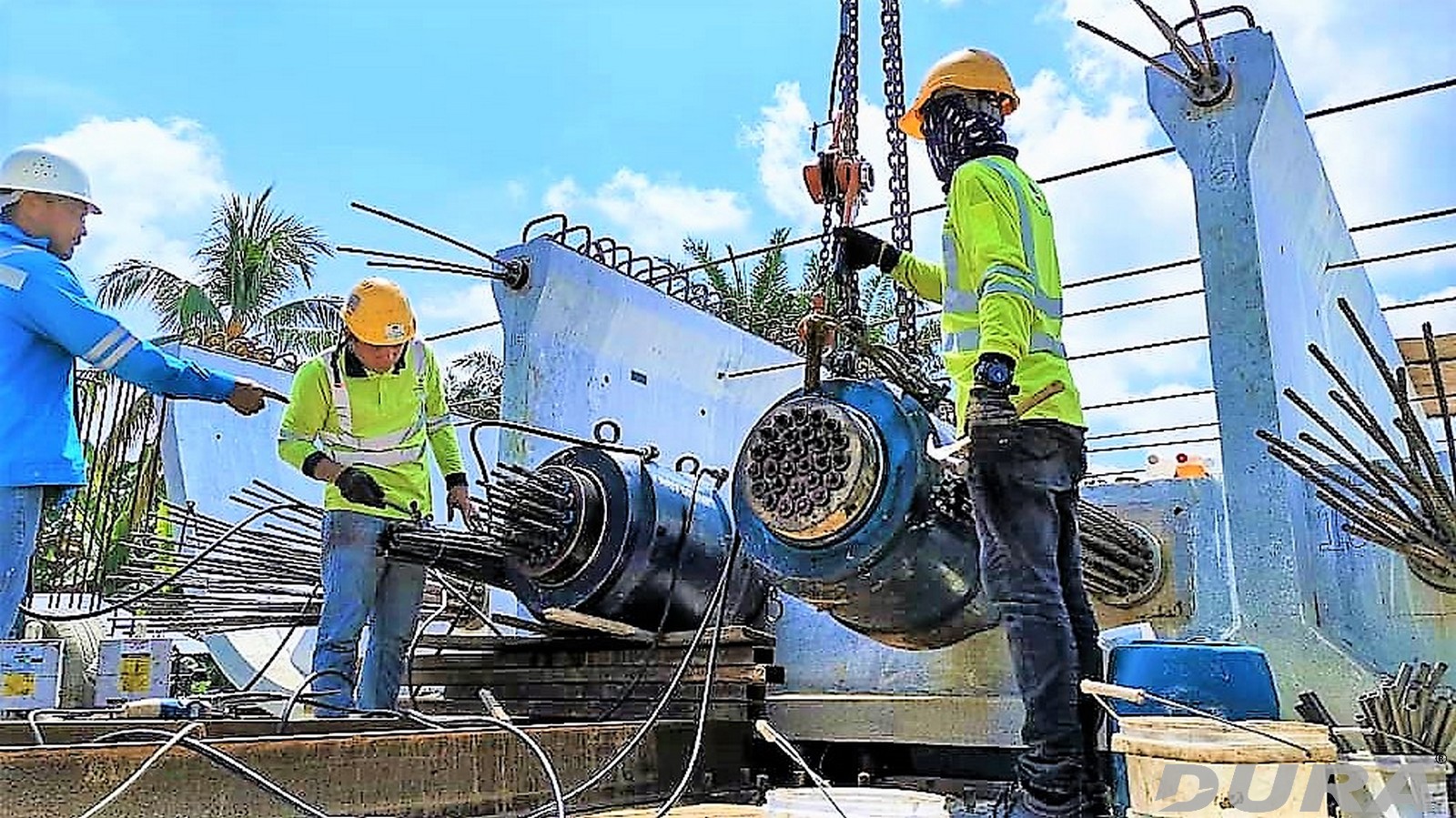

Post-tensioning work using two jack simultaneously in progress.
Post-tensioning work using two jack simultaneously in progress.
Temporary tie rods used to hold the segments in position.
Temporary tie rods used to hold the segments in position.
Installation of GUBG in progress (280519)._3
Installation of GUBG in progress (280519)._3
Installation of GUBG in progress (280519).
Installation of GUBG in progress (280519).
Installation of Giant U girder segment in progress (280519).

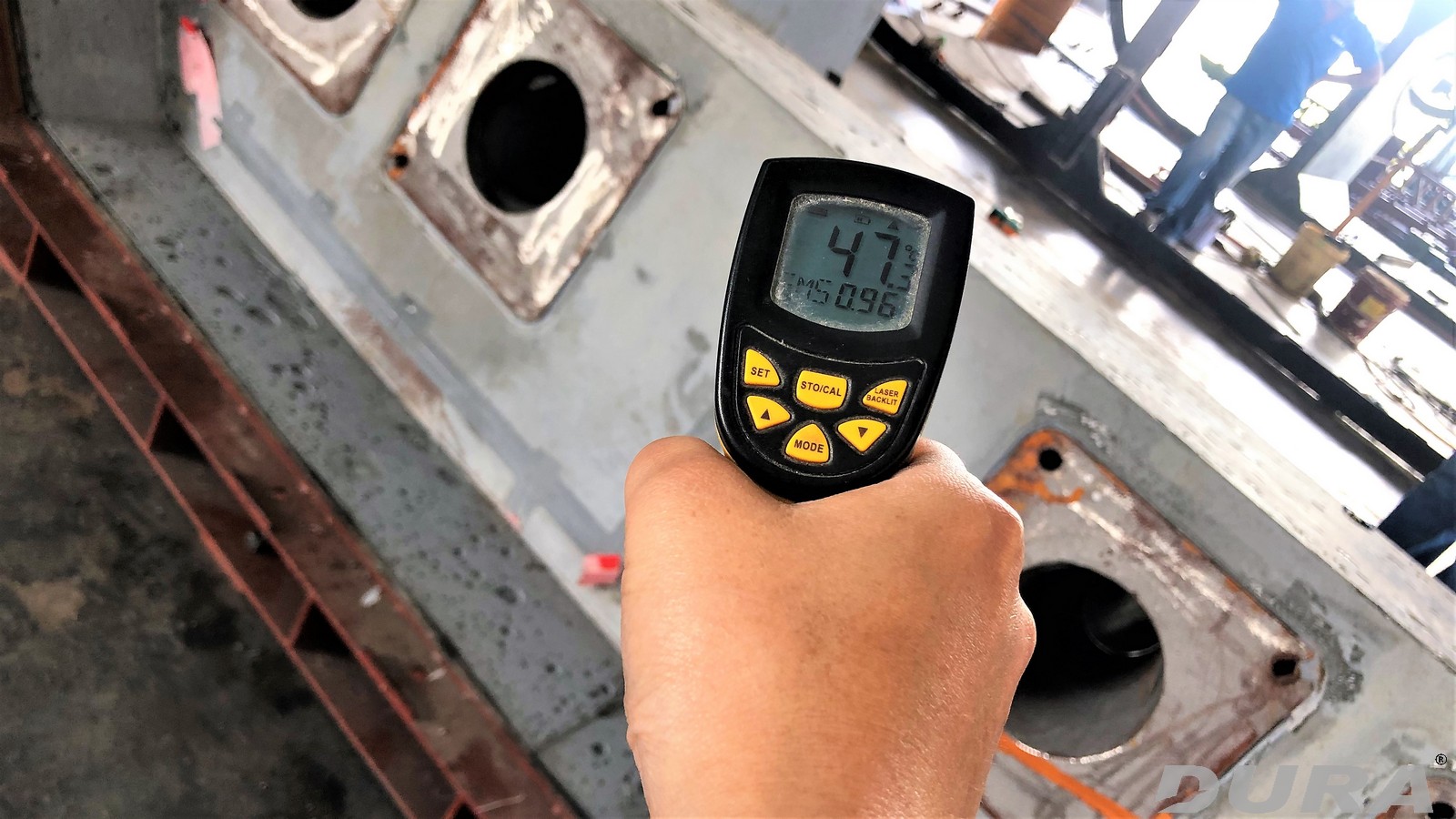

Temperature measured after demoulding.
Temperature measured after demoulding.
Lifting of GUB2000 segment.
Lifting of GUB2000 segment.

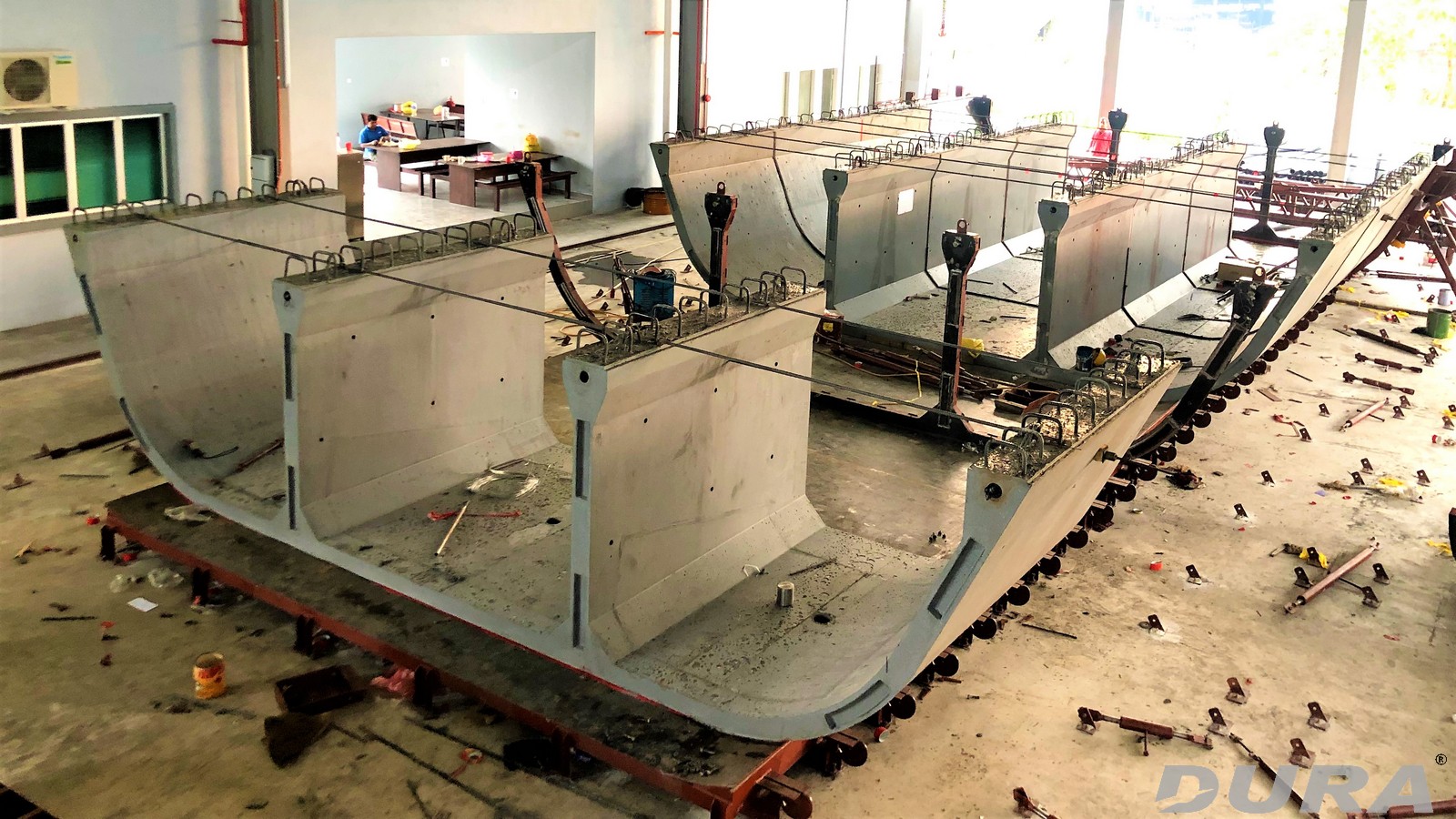

Matching casting of GUBG2000 segments.
Matching casting of GUBG2000 segments.

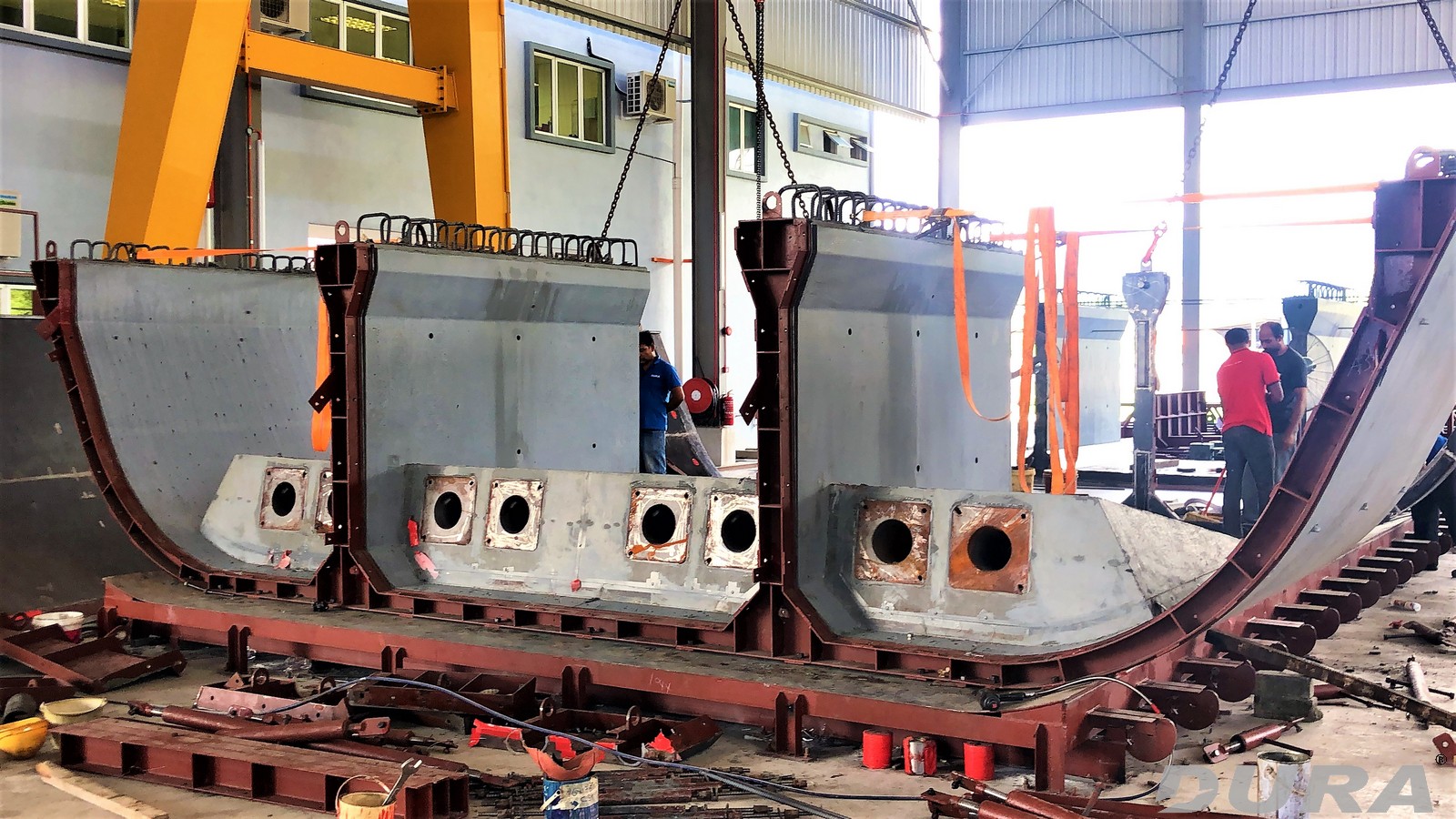

Demoulding end segment 1 (030419).
Demoulding end segment 1 (030419).
Match casting od segment 6 of GUBG2000-50m (260319).
Match casting od segment 6 of GUBG2000-50m (260319).

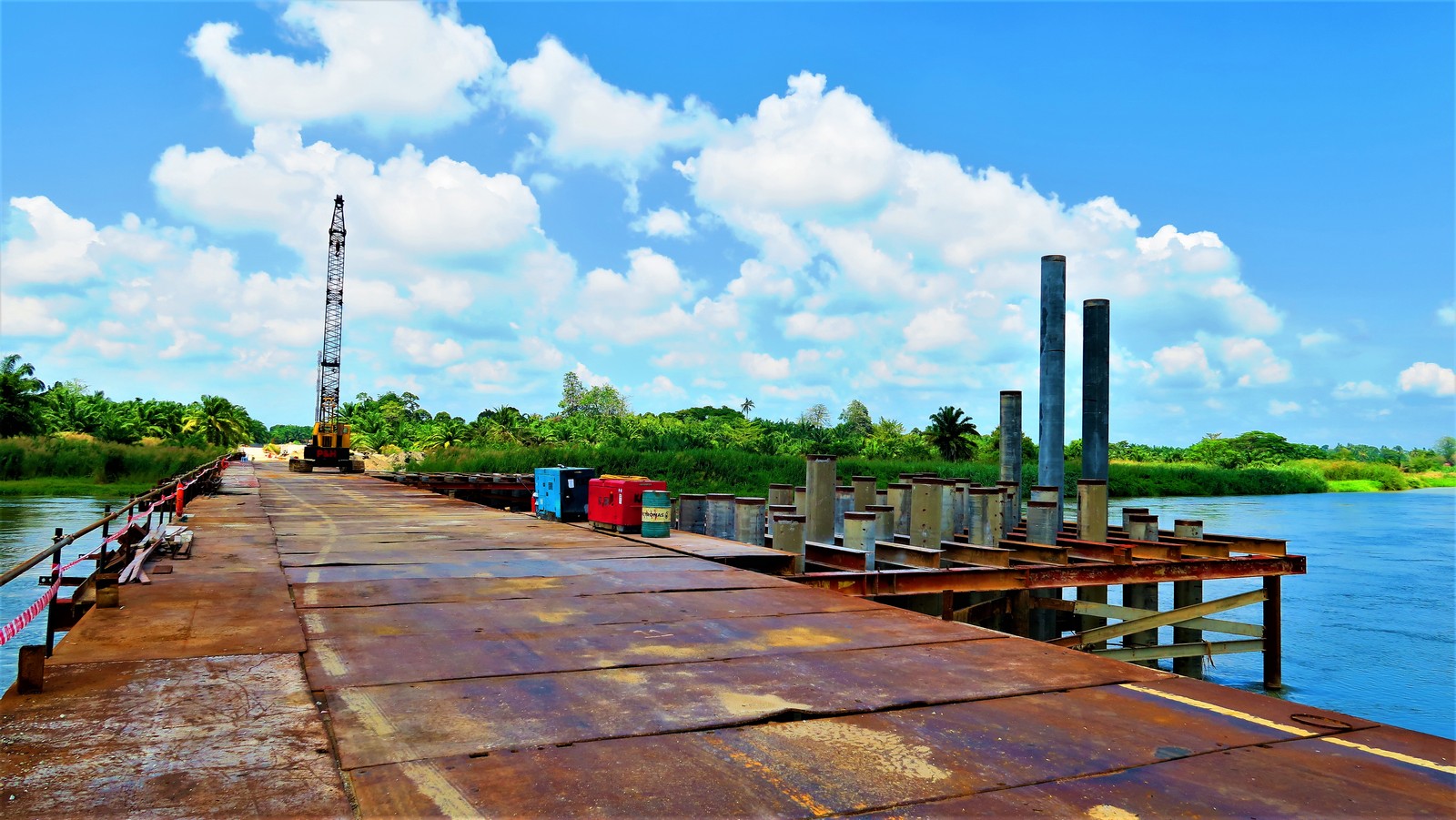

Pier 7 in progress (040219).
Pier 7 in progress (040219).
Foundation of Pier 6 under construction (040219).
Foundation of Pier 6 under construction (040219).

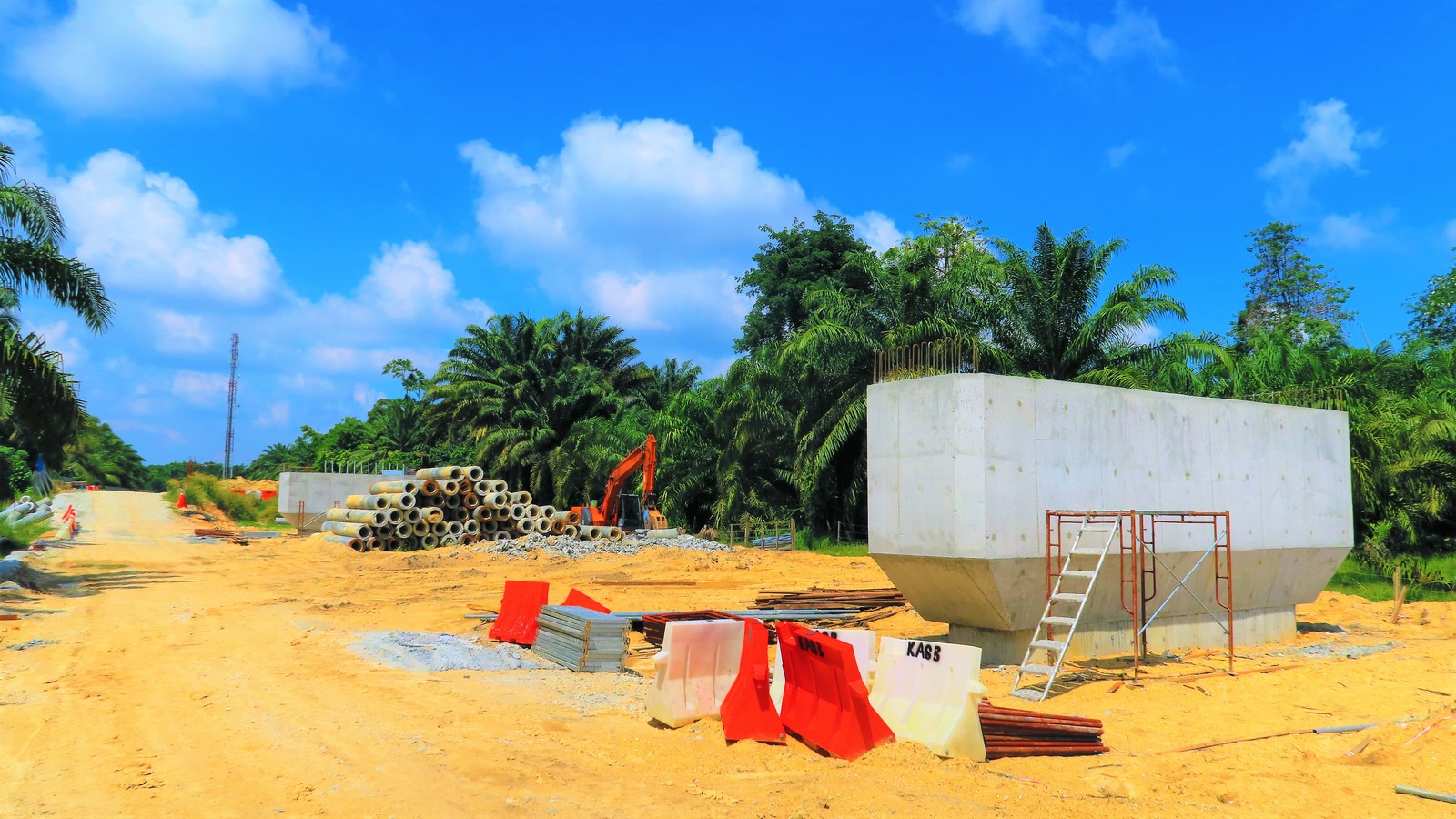

Pier 1 and pier 2 constructed (040219).
Pier 1 and pier 2 constructed (040219).
Construction of Abutment A in progress (040219)
Construction of Abutment A in progress (040219)

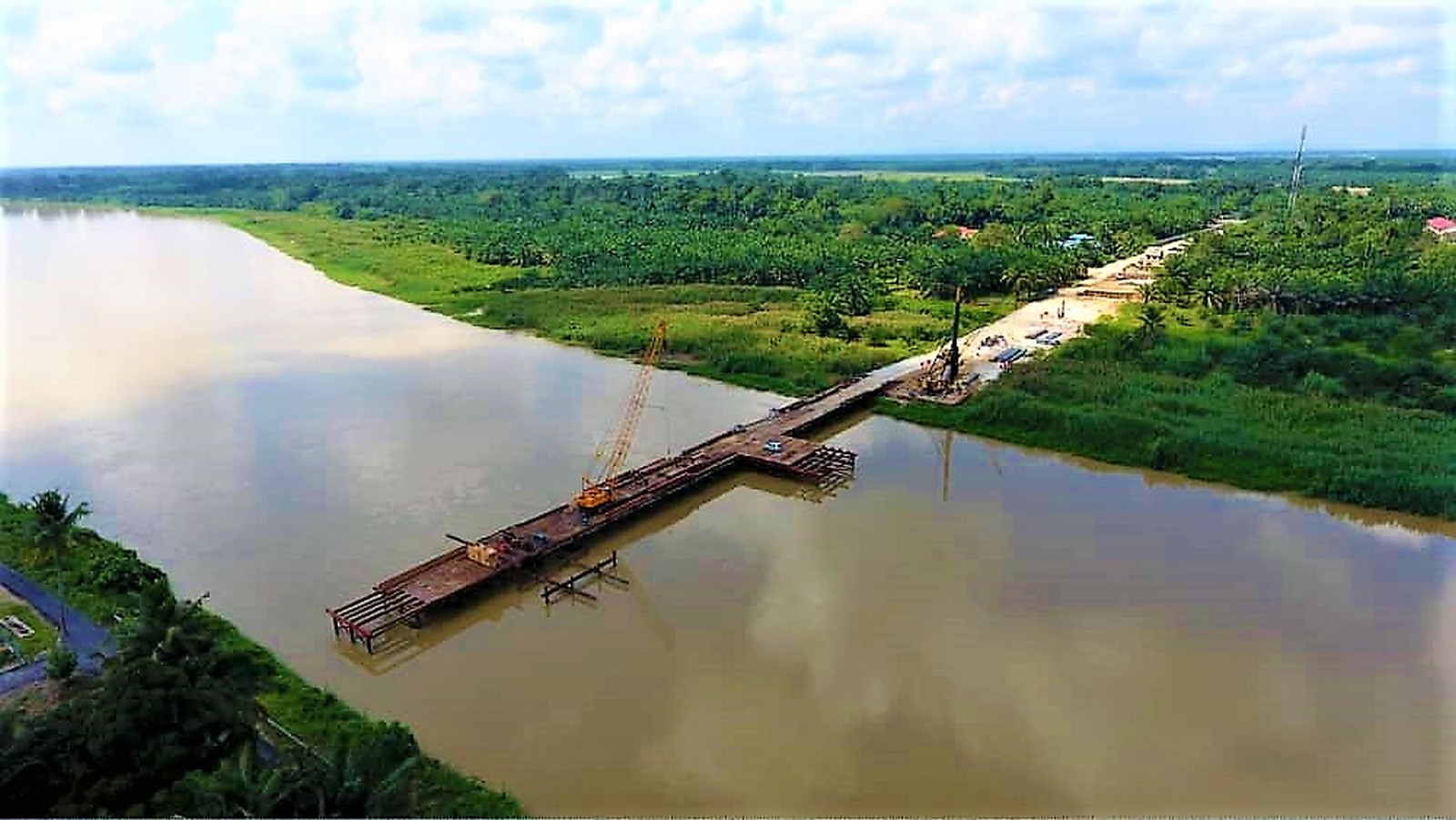

Construction of temporary bridge.
Construction of temporary bridge.

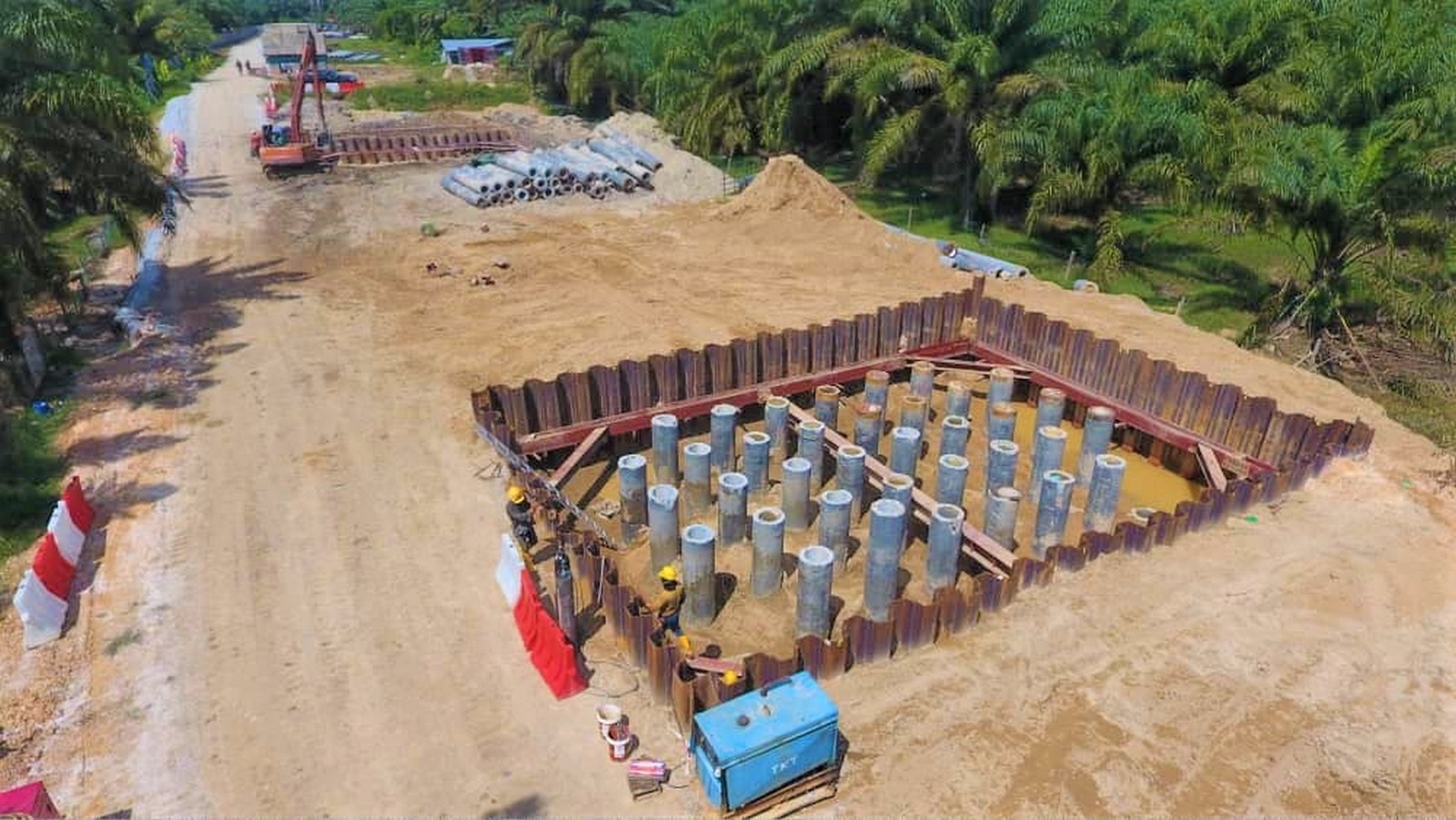

Cofferdam and pile cap construction.
Cofferdam and pile cap construction.

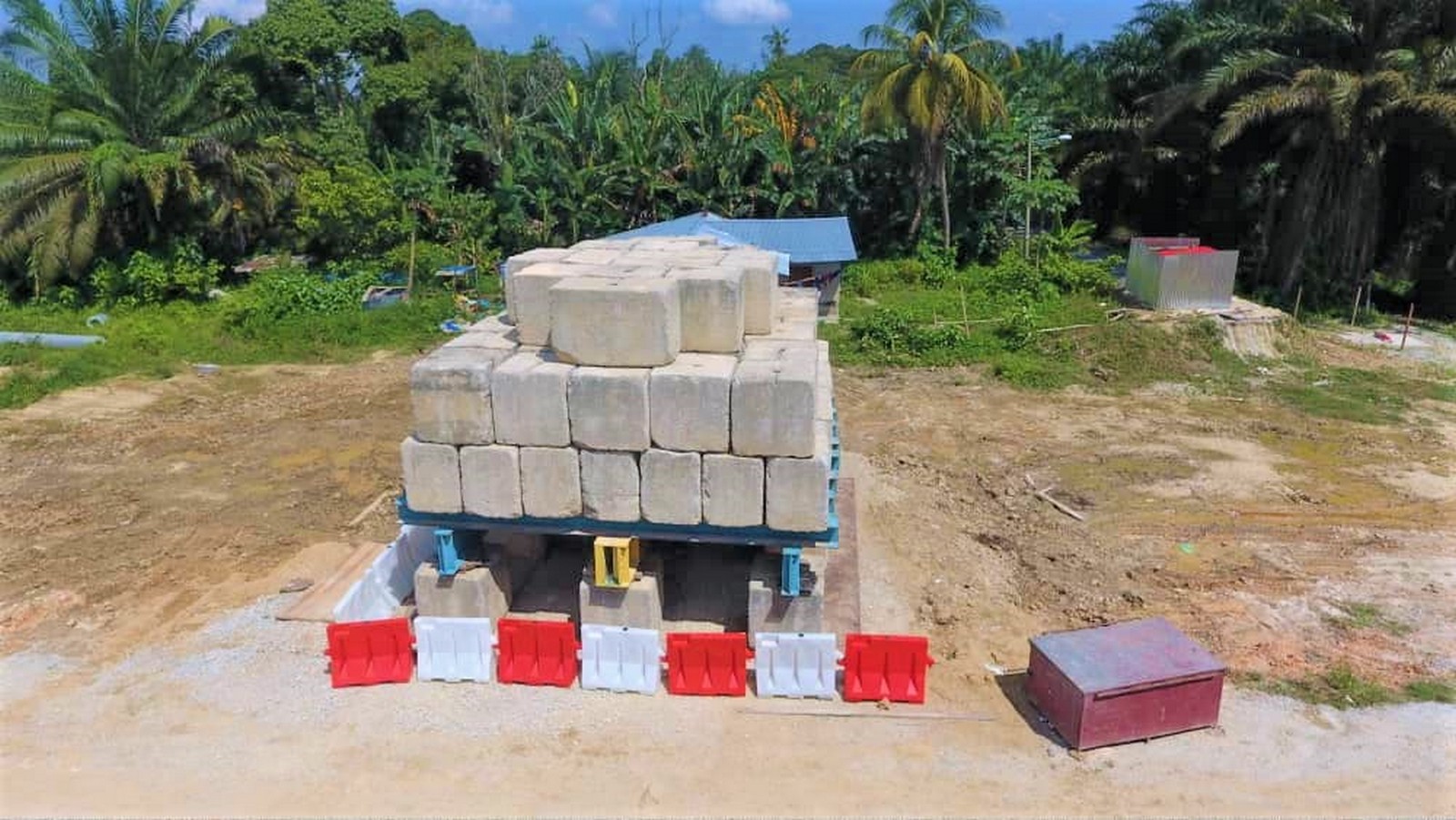

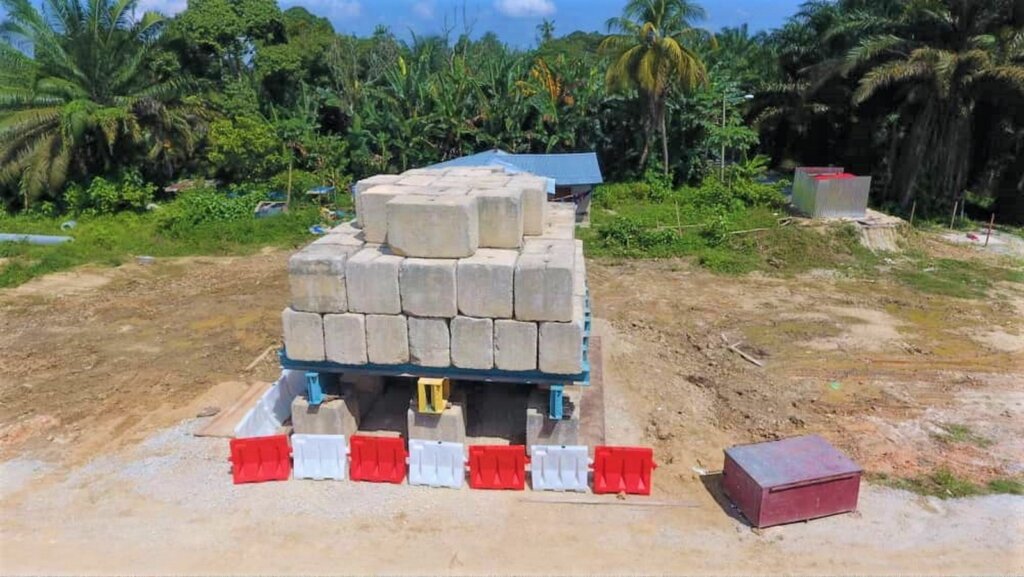

Pile maintain load test.
Pile maintain load test.

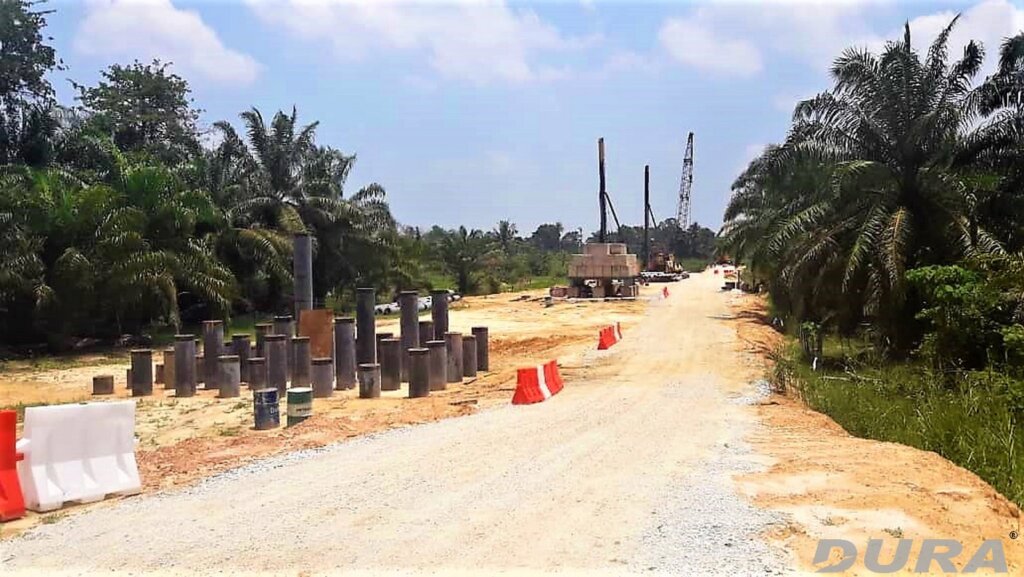

Piling work in progress (290918).
Piling work in progress (290918).
Construction of temporary bridge. (290918).
Construction of temporary bridge. (290918).
Original Site at Lambor_2
Original Site at Lambor_2

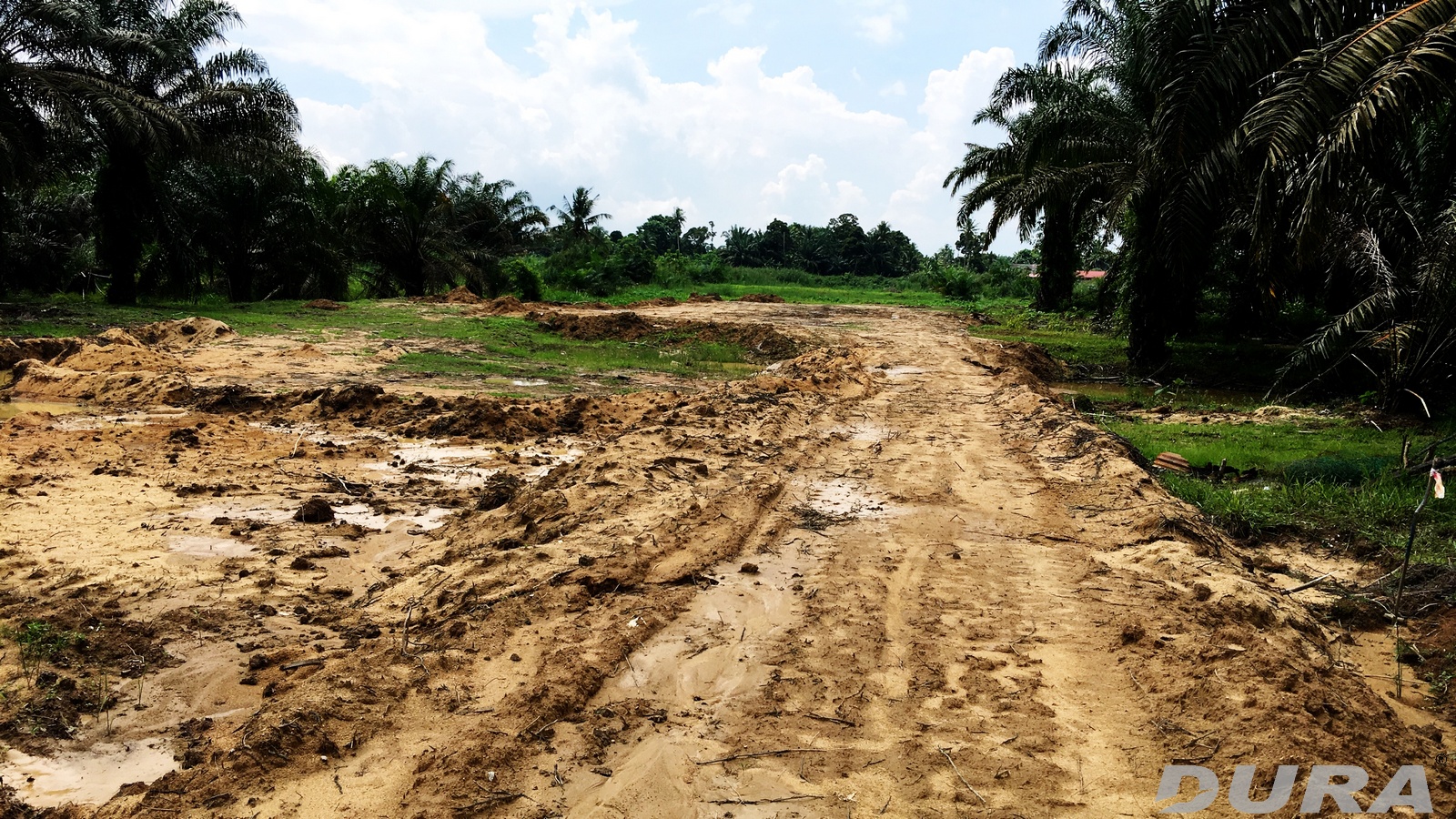

Original Site at Lambor
Original Site at Lambor
Project Signboard
Project Signboard
Project Title

To Construct Bridge at Lambor (Crossing Sungai Perak).(Membina Jambatan Menghubungkan Kg. Lambor Kiri Ke Kg. Lambor Kanan (Merentasi Sg. Perak).

Project Year

2019

Status

Completed Project

Country

Malaysia

GPS Cordinates

4.269773 N, 100.901552 E

Structure Type

Eight Span 404m by 11.5m Wide Composite Bridge System.

Superstructure Feature

8 piece of DURA® GUBG2000-50m with Cast In-Situ RC Deck

Substructure Feature

Cast in-situ RC abutments

Foundation Feature

600mm dia. Spun Pile (Class B).

Loading Type

LM1 & LM3 (SV100)

Client

Jabatan Kerja Raya Malaysia

Superintendent Officer (S.O.)

JKR Daerah Perak Tengah

Consultant

JKR Malaysia

Contractor

Everfine Resources Sdn Bhd

Contract Period

24 months

Construction Status

Completed
