Pedestrian Bridge in Melaka using Dura UBG1500

  • Project Status

  • Select Country

  • Select Years

  • Reset
Project site.
Project site.
Proposed bridge site.
Proposed bridge site.
Construction of columns in progress (220421).
Construction of columns in progress (220421).

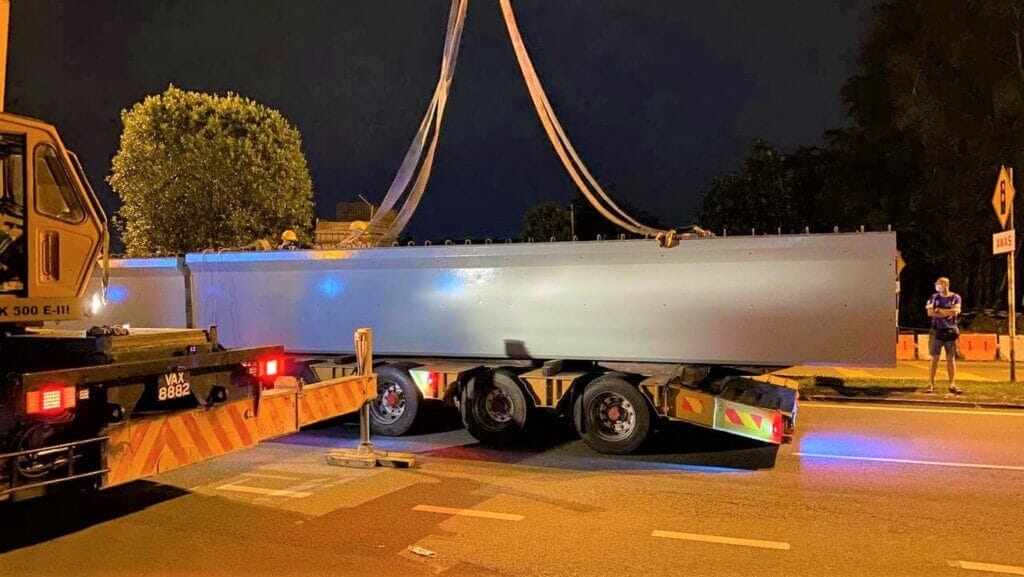

Unloading beam segment.
Unloading beam segment.
Assembly of segment.
Assembly of segment.
UBG1500 fully assembled.
UBG1500 fully assembled.
UBG1500-40m fully assembled at the road side.
UBG1500-40m fully assembled at the road side.
Fully post-tensioned and grouted.
Fully post-tensioned and grouted.
Construction of piers.
Construction of piers.
Transporting U beam for beam launching.
Transporting U beam for beam launching.
Lifting of UBG1500 beam.
Lifting of UBG1500 beam.
Placing DURA U beam on the piers.
Placing DURA U beam on the piers.
UBG1500-40m done launch.
UBG1500-40m done launch.

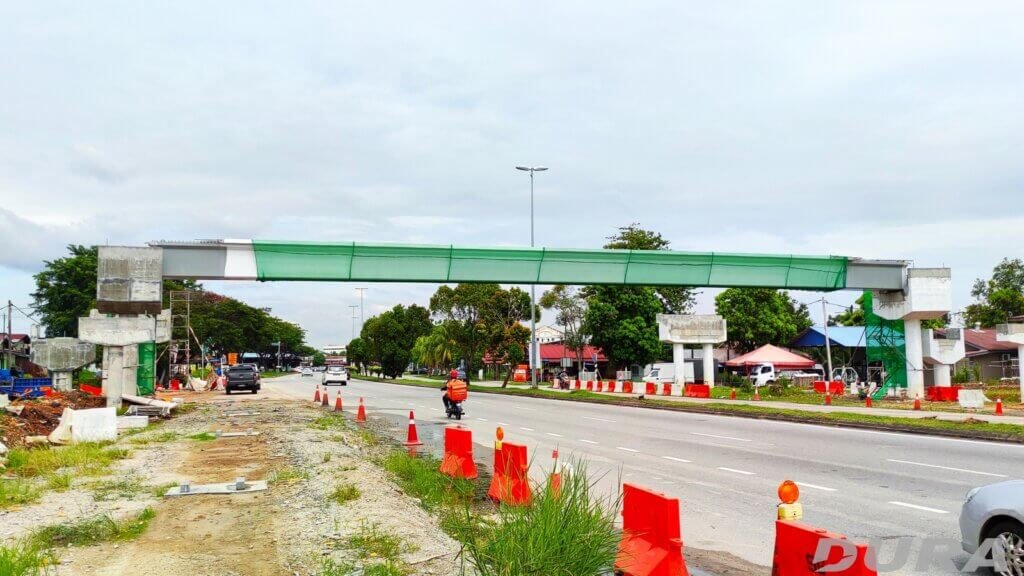

Dura beam crossing the road.
Dura beam crossing the road.
Complete footbridge.
Complete footbridge.
Completed footbridge.
Completed footbridge.
Complete first DURA footbridge in Melaka.
Complete first DURA footbridge in Melaka.
Project Title

To Construct a Pedestrian Bridge at Laluan FT019 – Lebuh AMJ (SK Agama Balai Panjan), Melaka (Membina Jejantas Pejalan Kaki Di Laluan FT019 – Lebuh AMJ (SK Agama Balai Panjang), Melaka)

Project Year

2021

Status

Completed Project

Country

Malaysia

GPS Cordinates

2.223799 N, 102.232931 E

Structure Type

Single Span 40m by 2.5m Wide UHPFRC Composite Pedestrian Bridge System

Superstructure Feature

1 pieces of DURA® UBG1500-40m with Cast In-Situ RC Deck

Substructure Feature

RC Columns

Foundation Feature

350mm Dia. Micropiles (Class B)

Loading Type

5 kPa (BD37/01)

Client

JKR Malaysia

Superintendent Officer (S.O.)

JKR Melaka Tengah

Contractor

Reximius Sdn Bhd

Contract Period

20 Months
