Replacement of 57 Years Old Bridge at Sungai Guntung, Setiu

  • Project Status

  • Select Country

  • Select Years

  • Reset

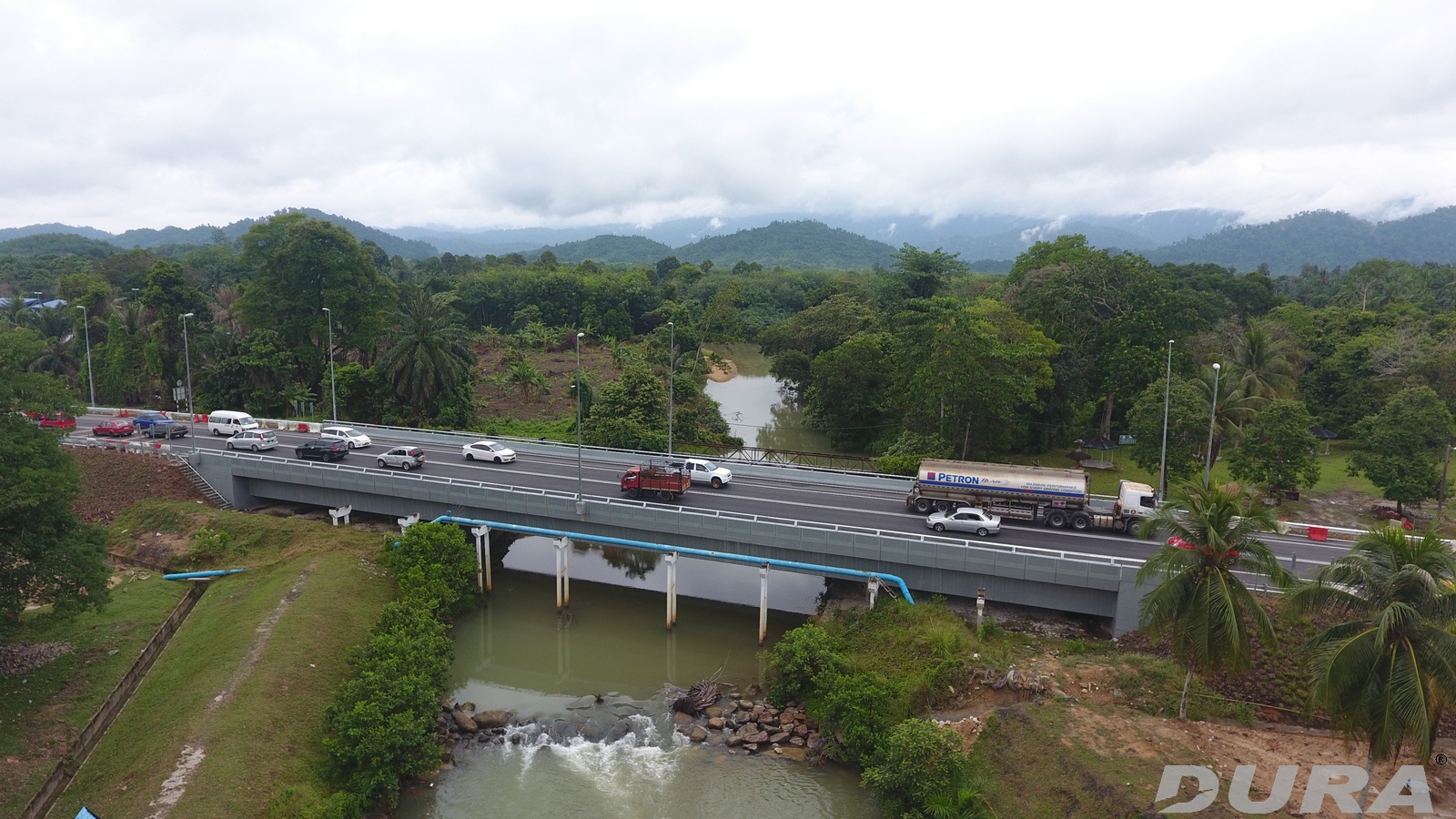

New bridge open for traffic.

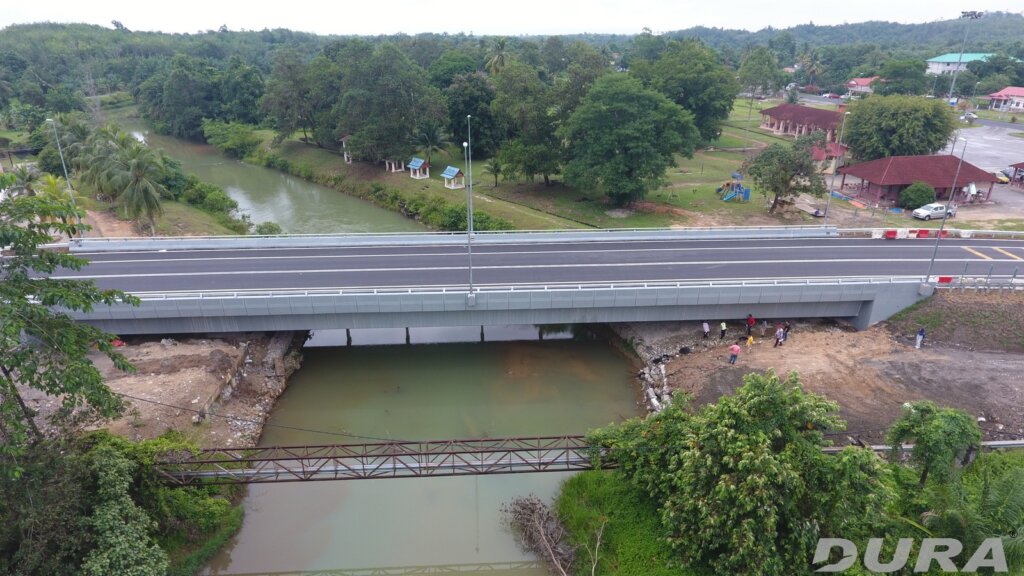

Completed Bridge.

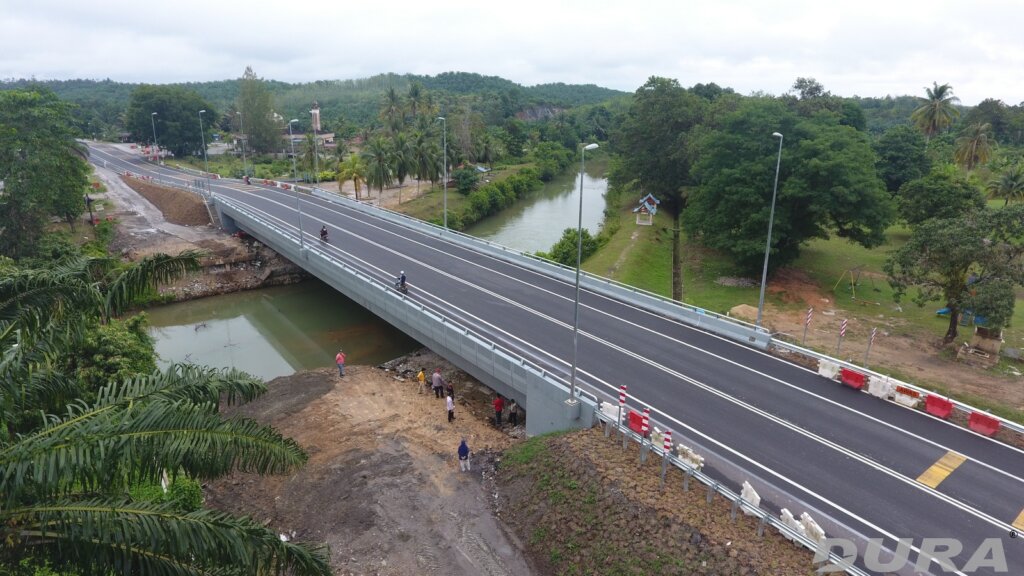

Completed Sg. Guntung Bridge (2020).

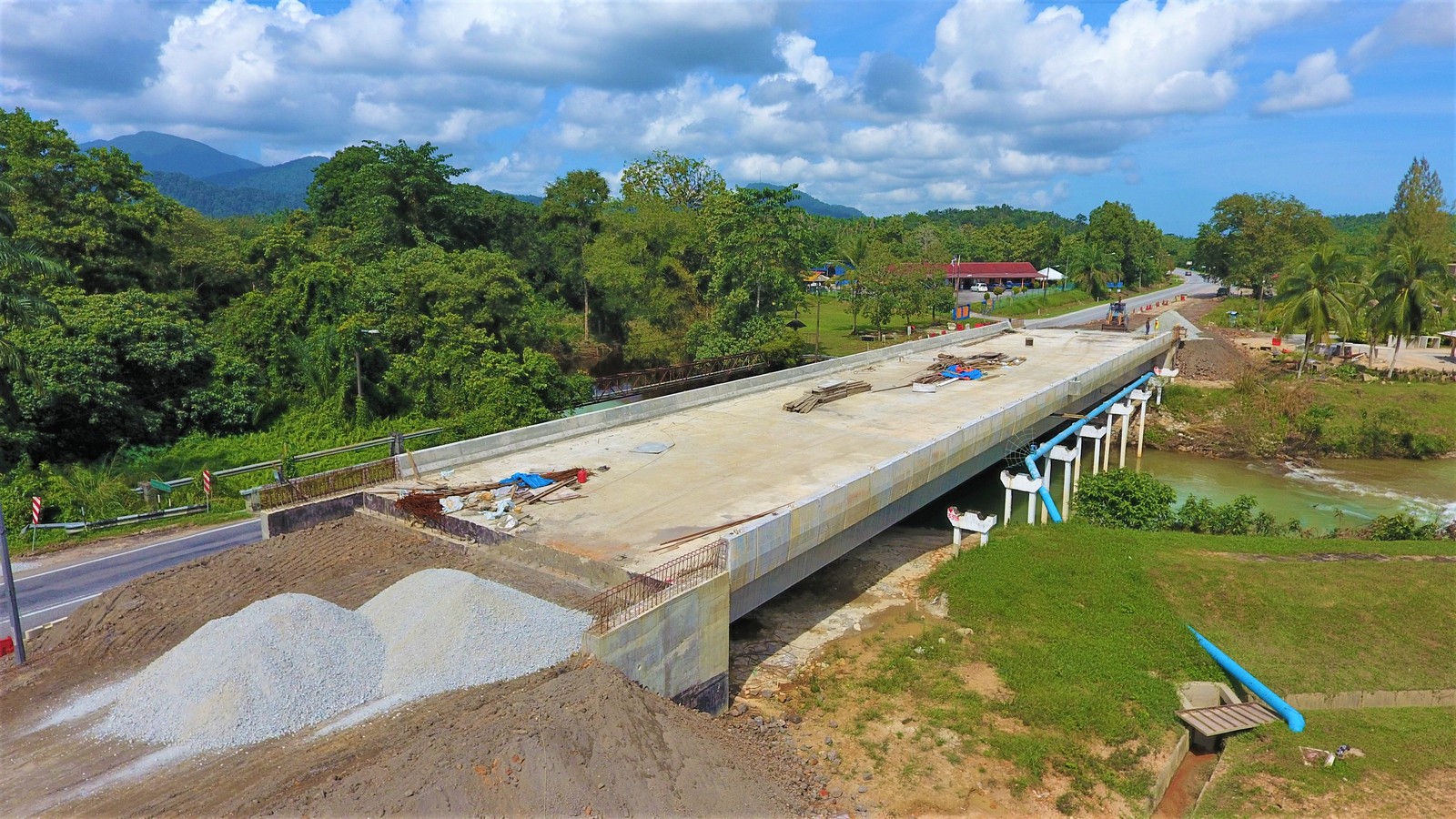

Completion of RC deck construction.

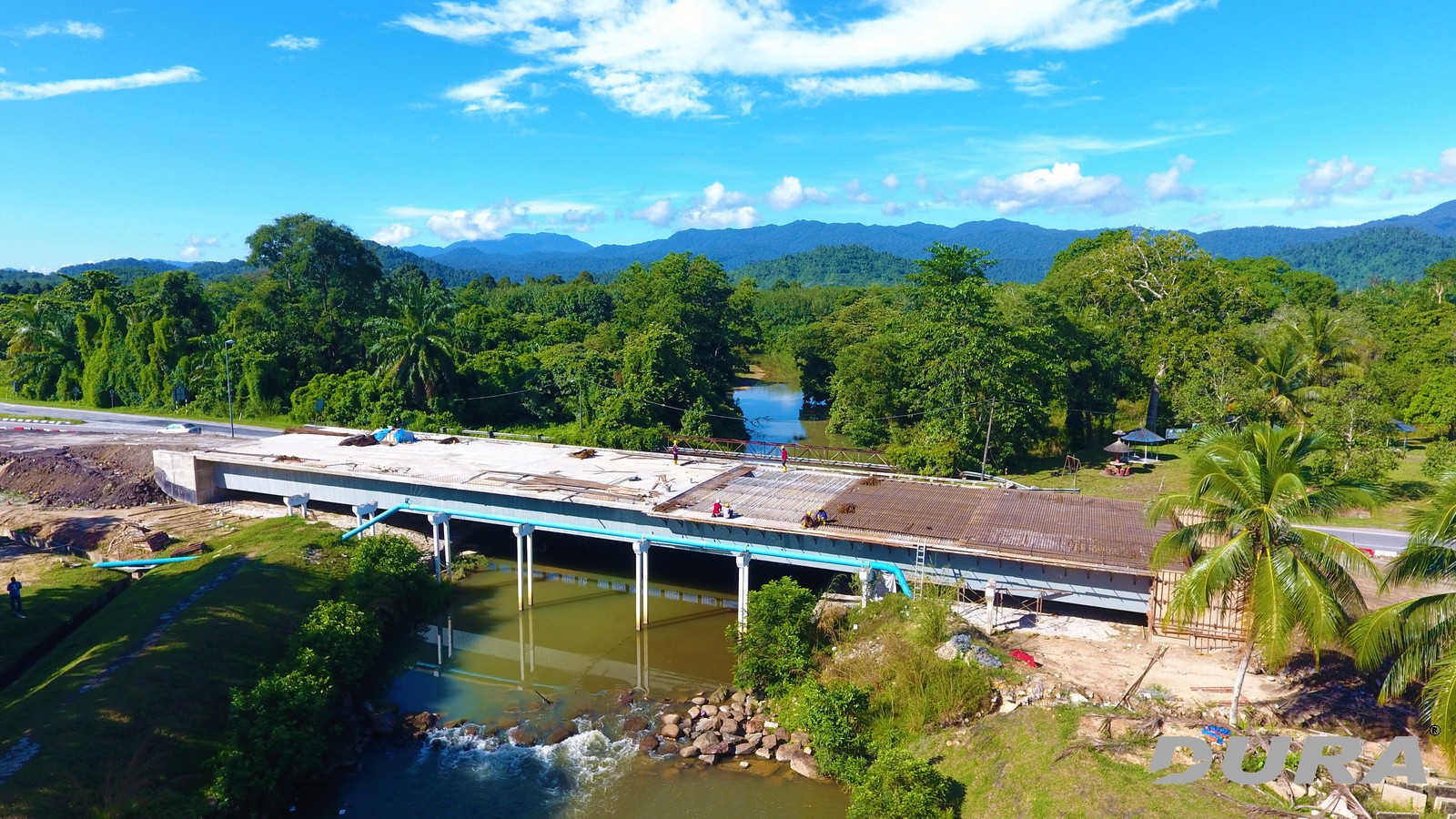

RC deck partially constructed.

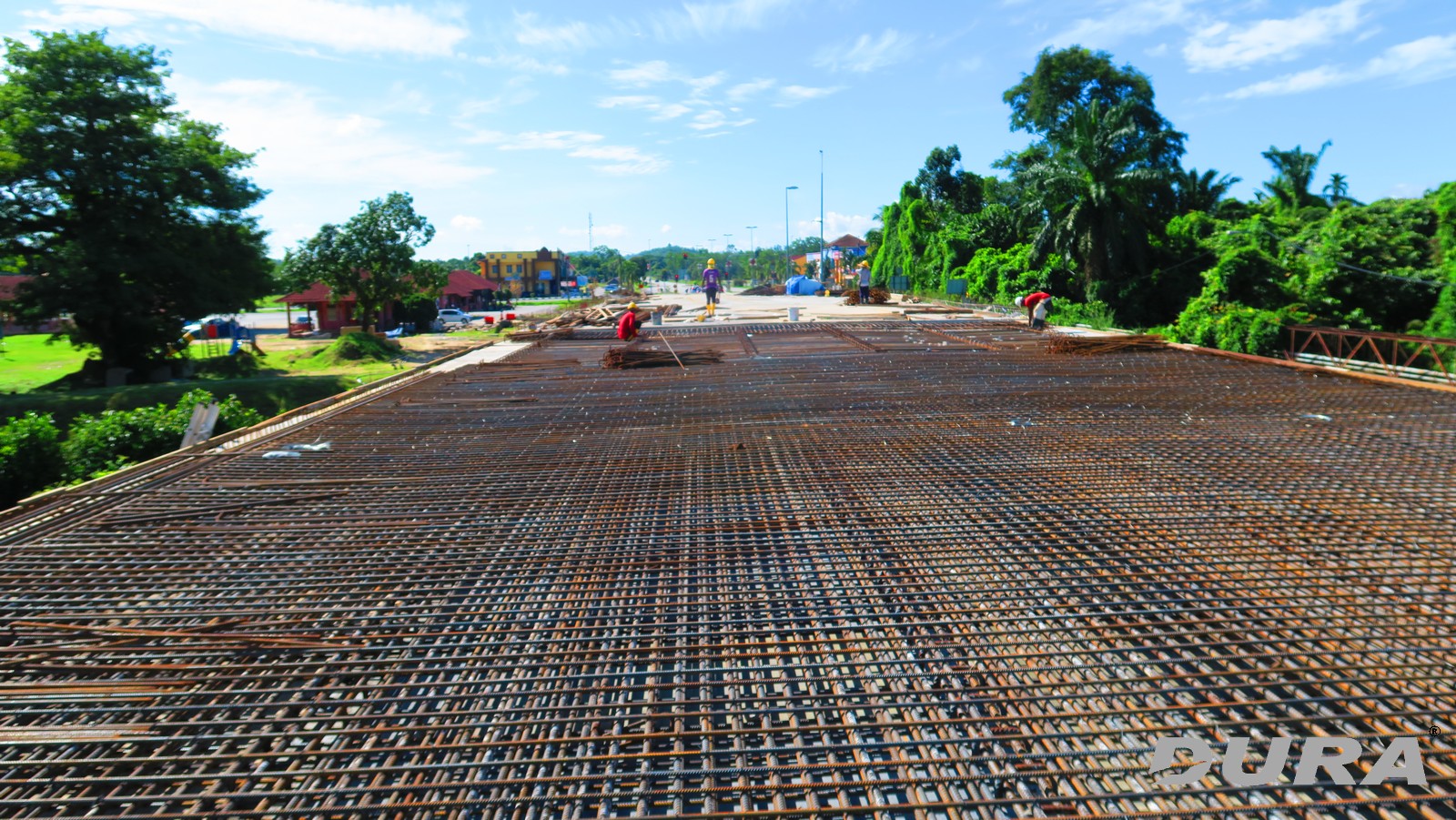

Construction of in-situ deck
Construction of in-situ deck

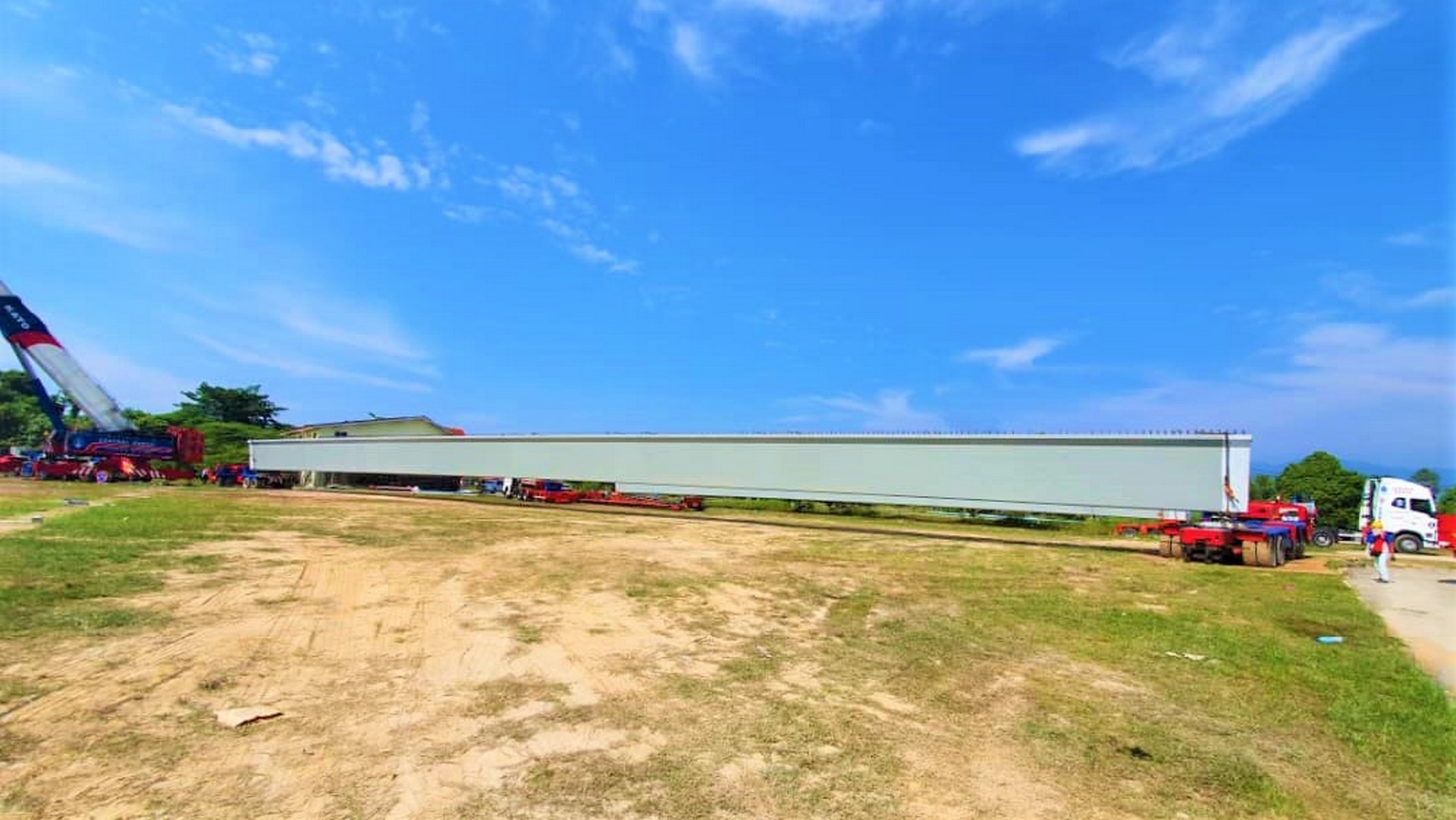

Towing the last third beam for launching (050819)
Towing the last third beam for launching (050819)

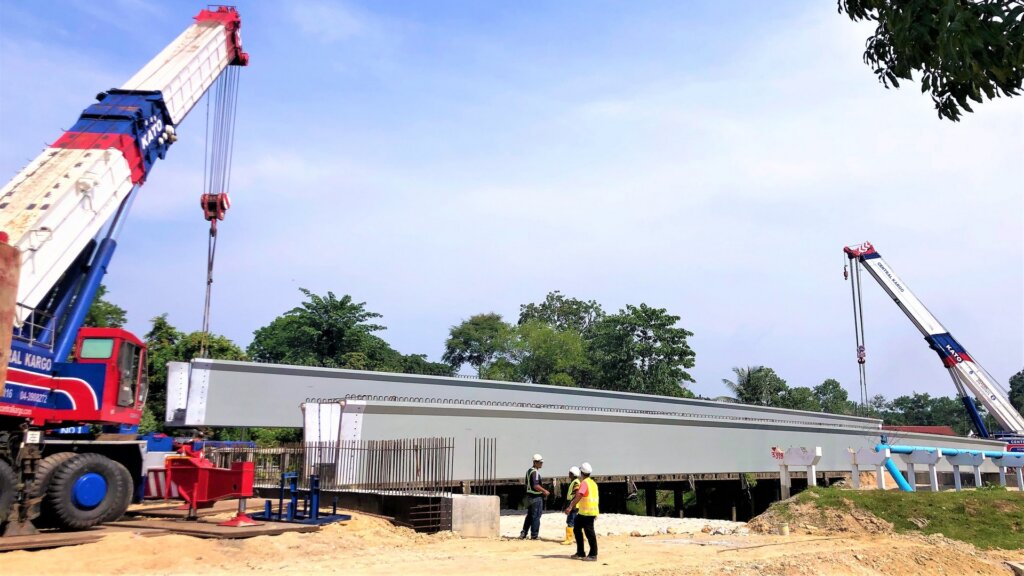

Positioning 2nd beam (050819)
Positioning 2nd beam (050819)

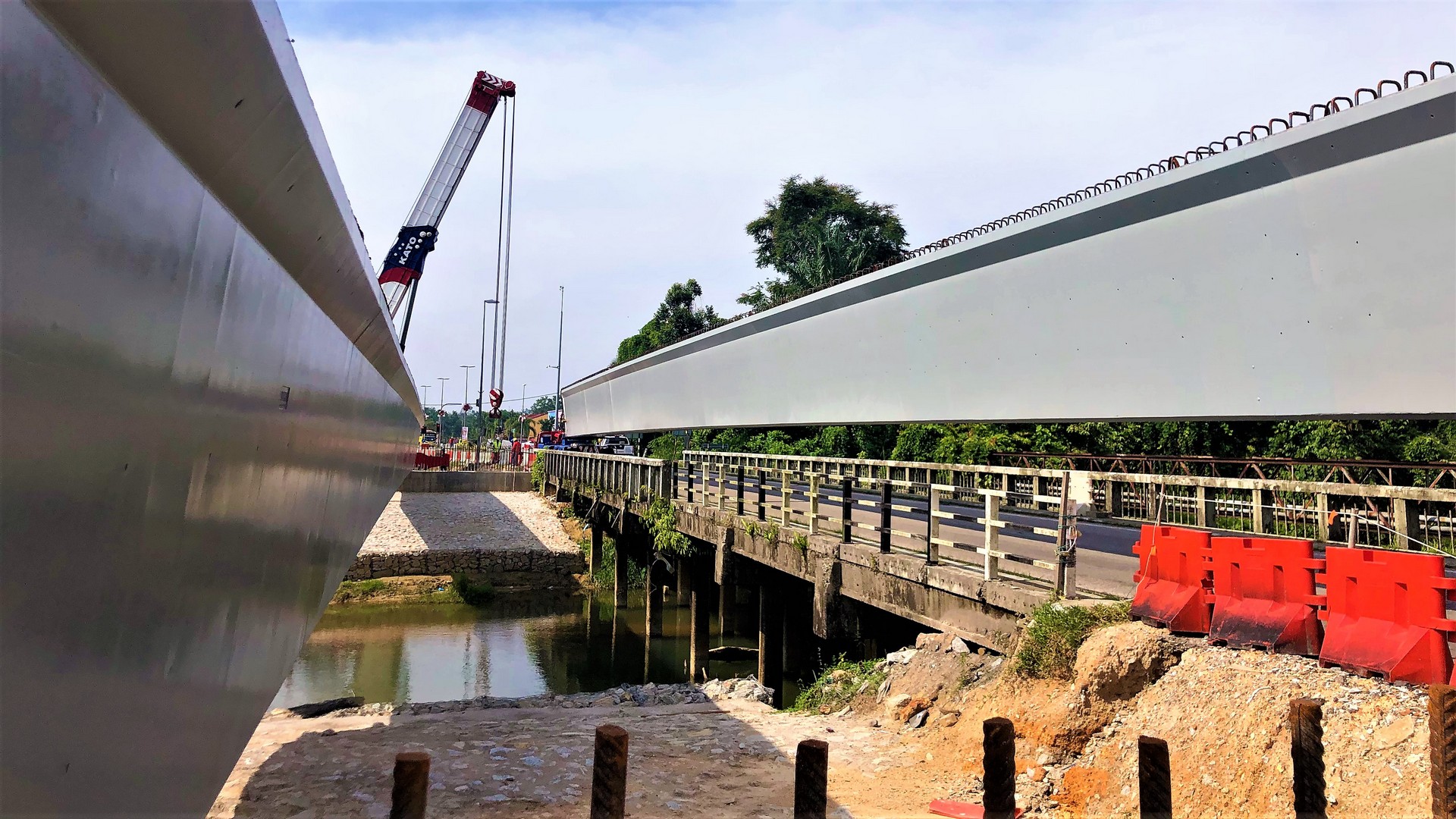

Lifting 2nd beam
Lifting 2nd beam

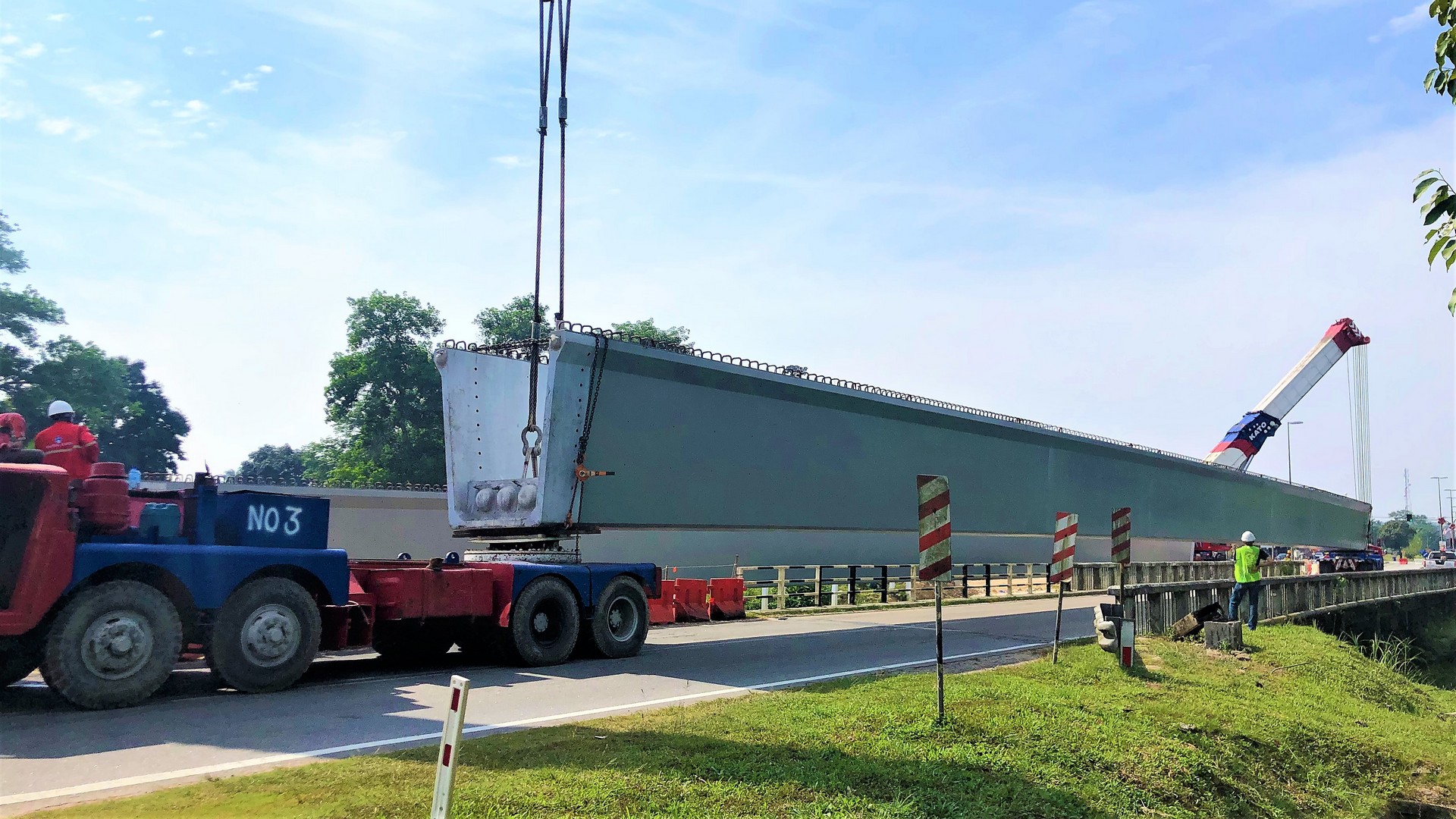

Getting ready to lift the second beam (050819)
Getting ready to lift the second beam (050819)

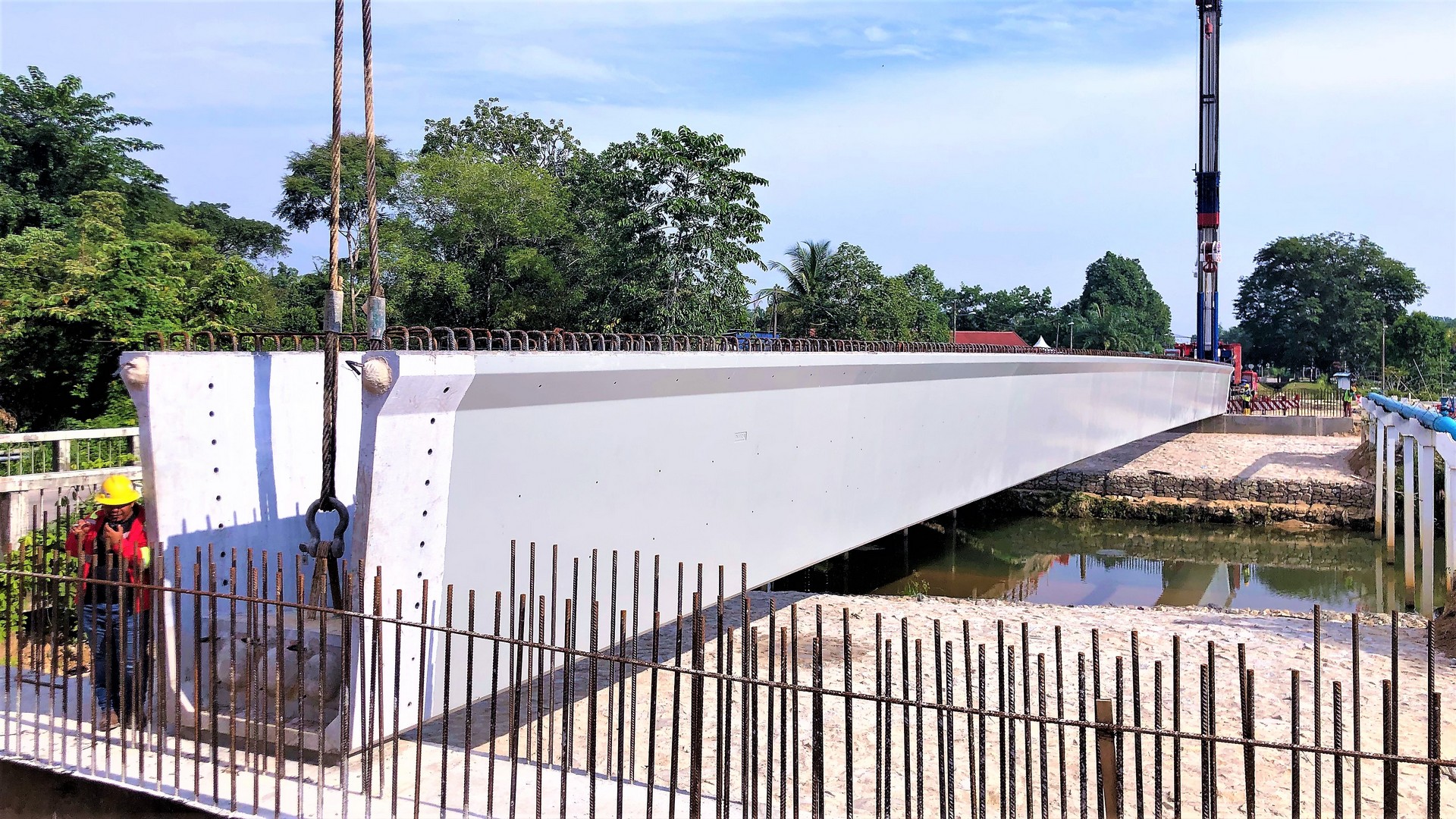

Positioning 1st beam (050819)
Positioning 1st beam (050819)

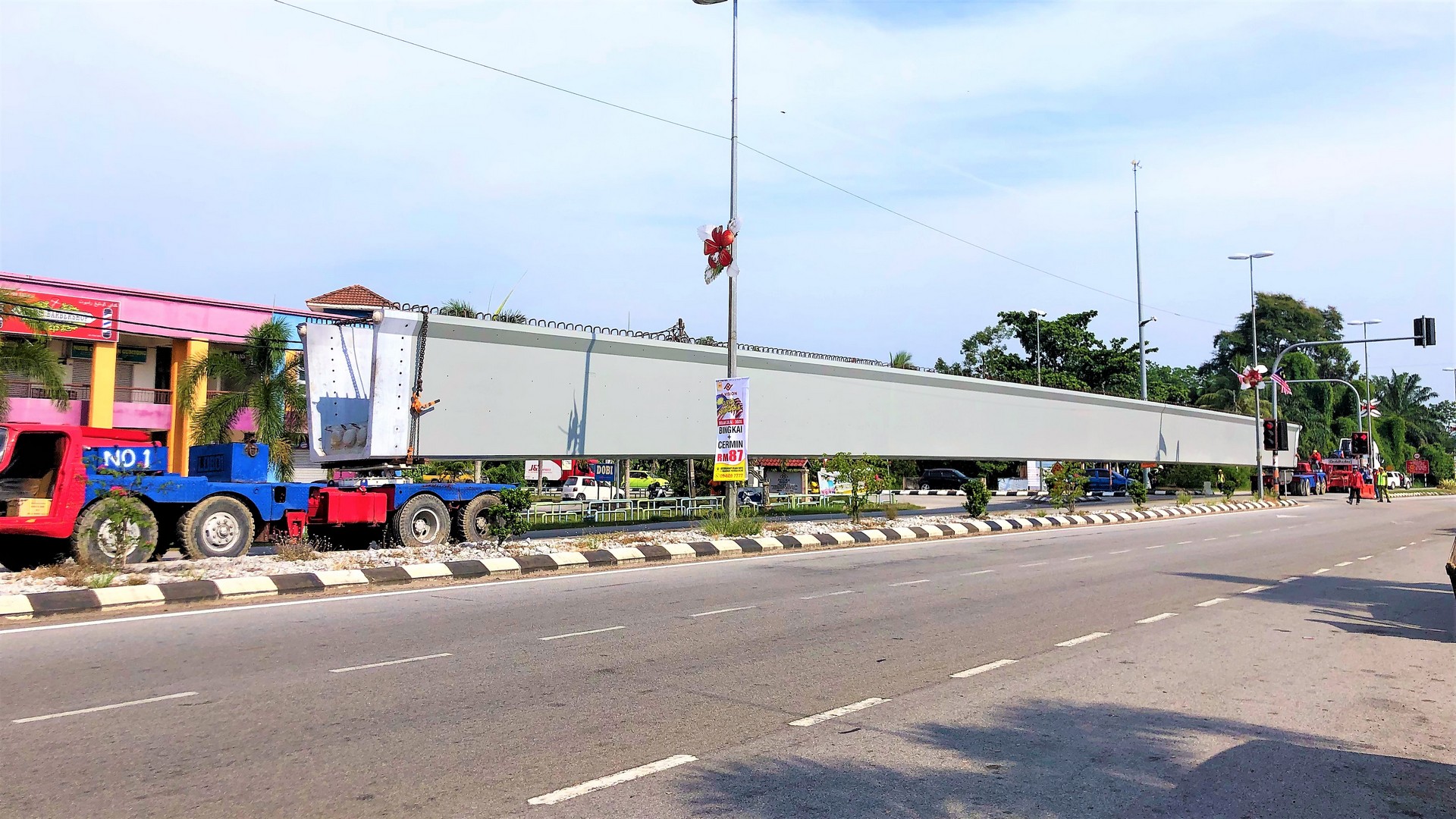

Transporting 1st beam for launching (050819)
Transporting 1st beam for launching (050819)

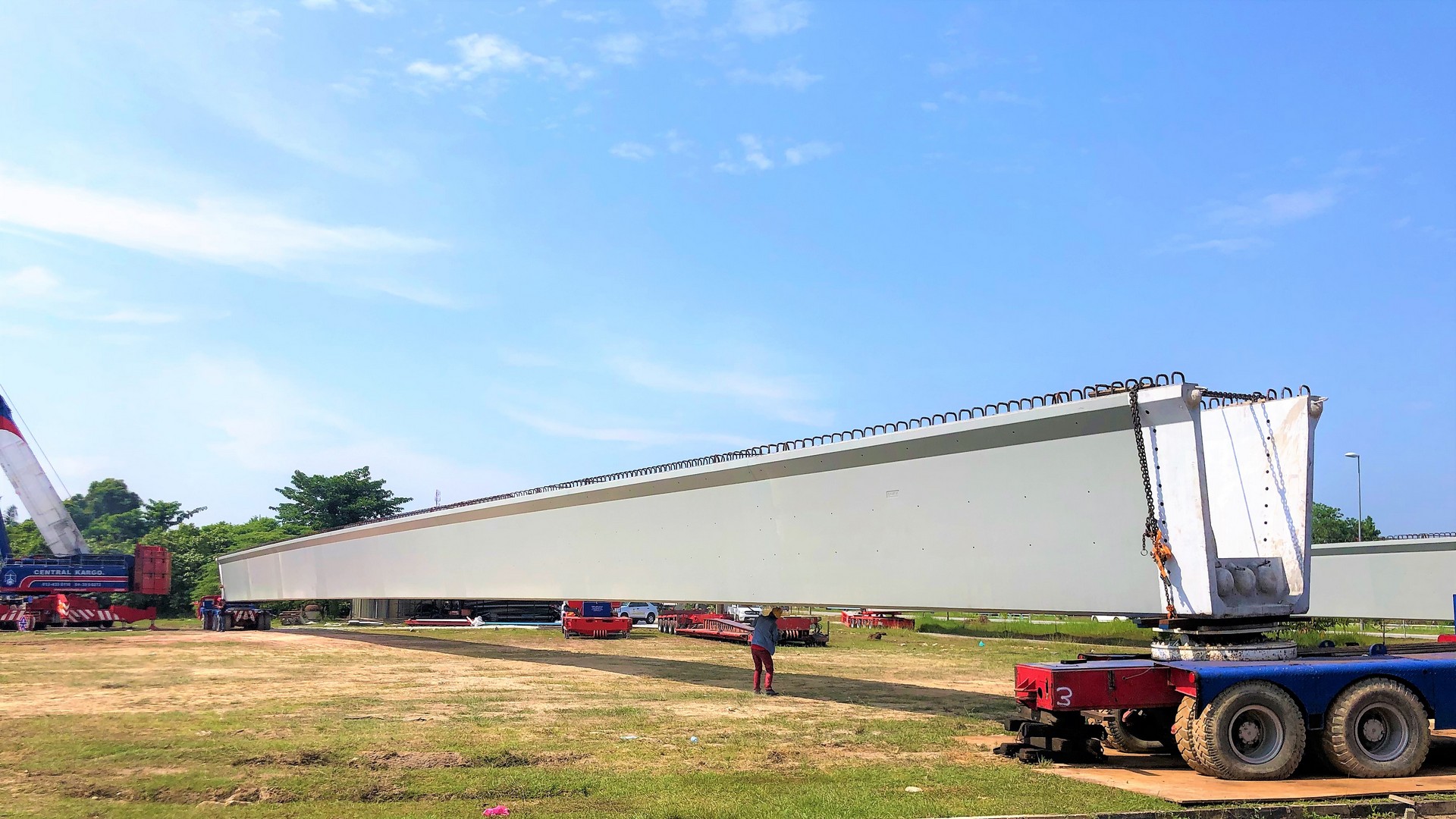

Upload beams for launching (040819)
Upload beams for launching (040819)

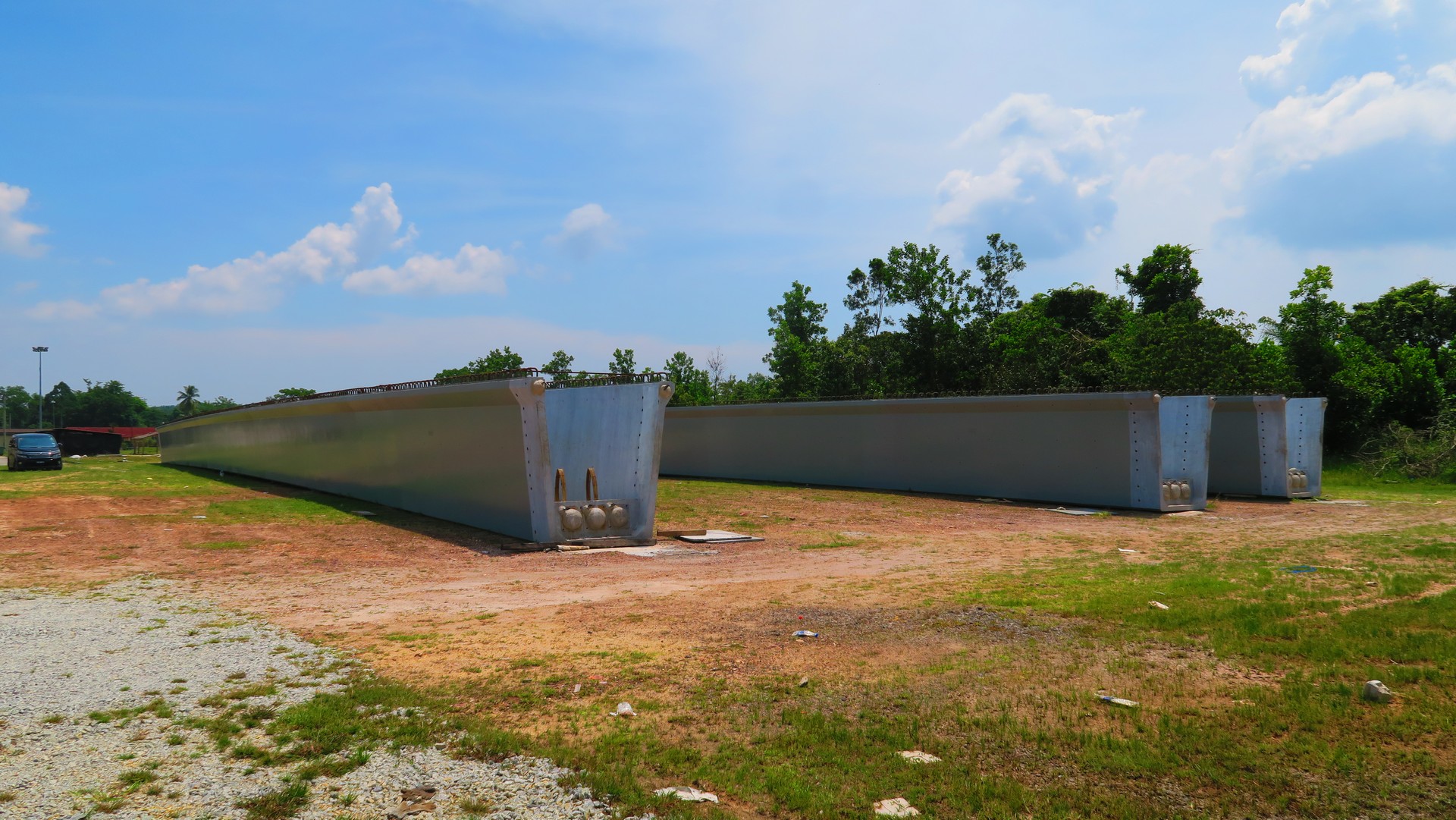

UBG2500-65m ready for beam launching (290719)
UBG2500-65m ready for beam launching (290719)

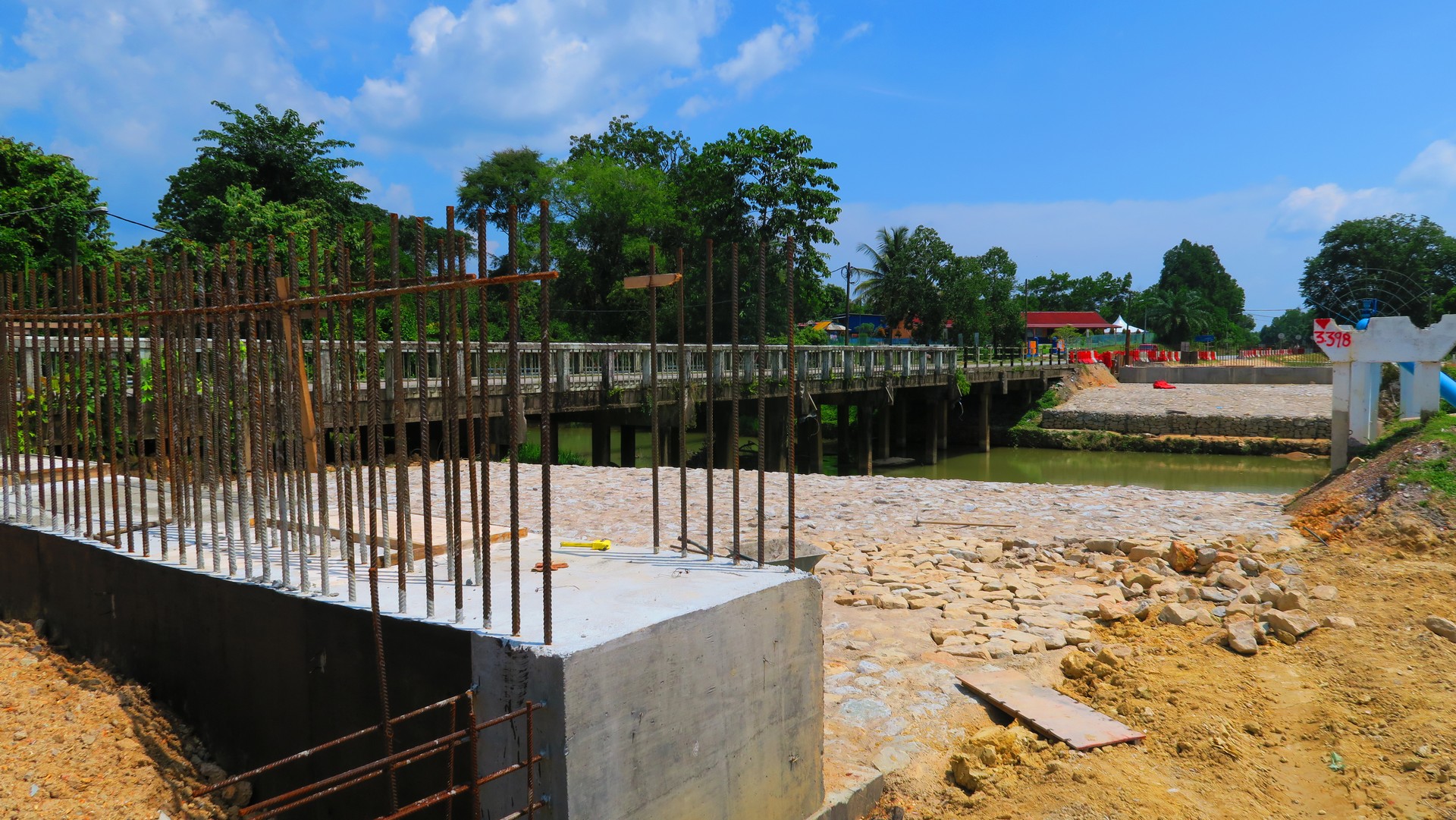

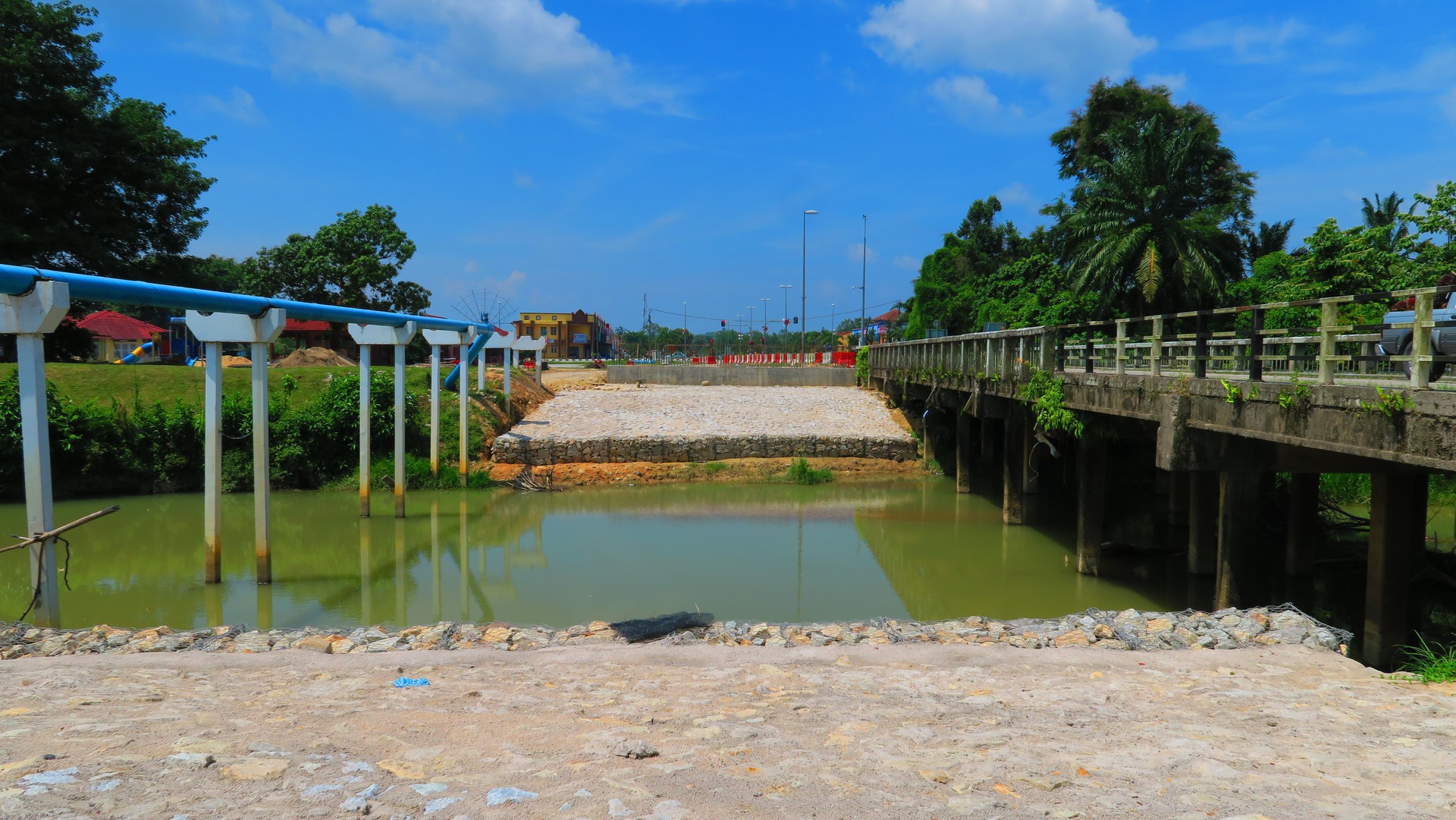

Abutments completed and ready to receive beams (290719)
Abutments completed and ready to receive beams (290719)
Abutments completed and ready to receive beams (290719)
Abutments completed and ready to receive beams (290719)

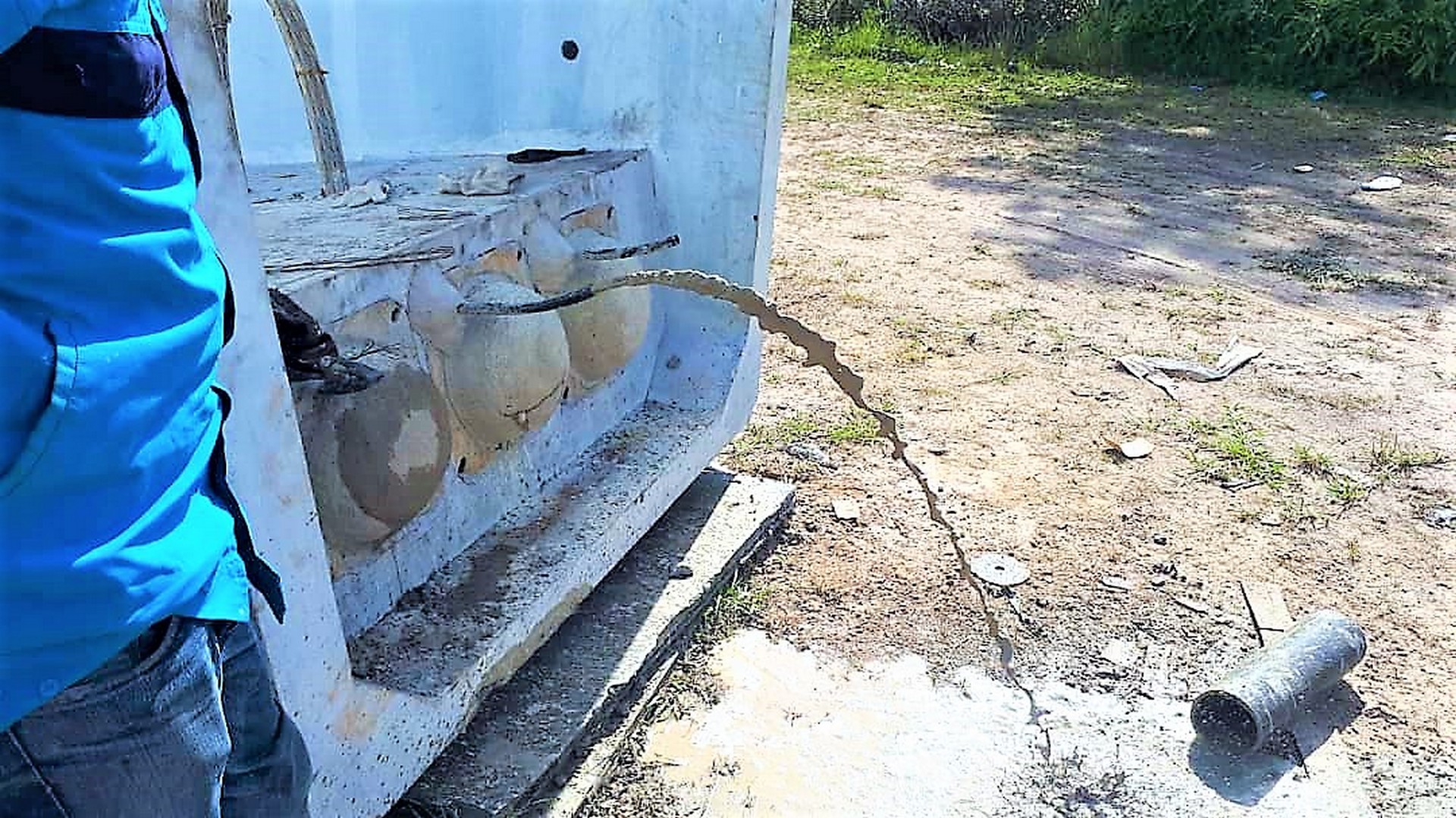

Grouting of tendons (250519)
Grouting of tendons (250519)
Patching of anchor blocks
Patching of anchor blocks

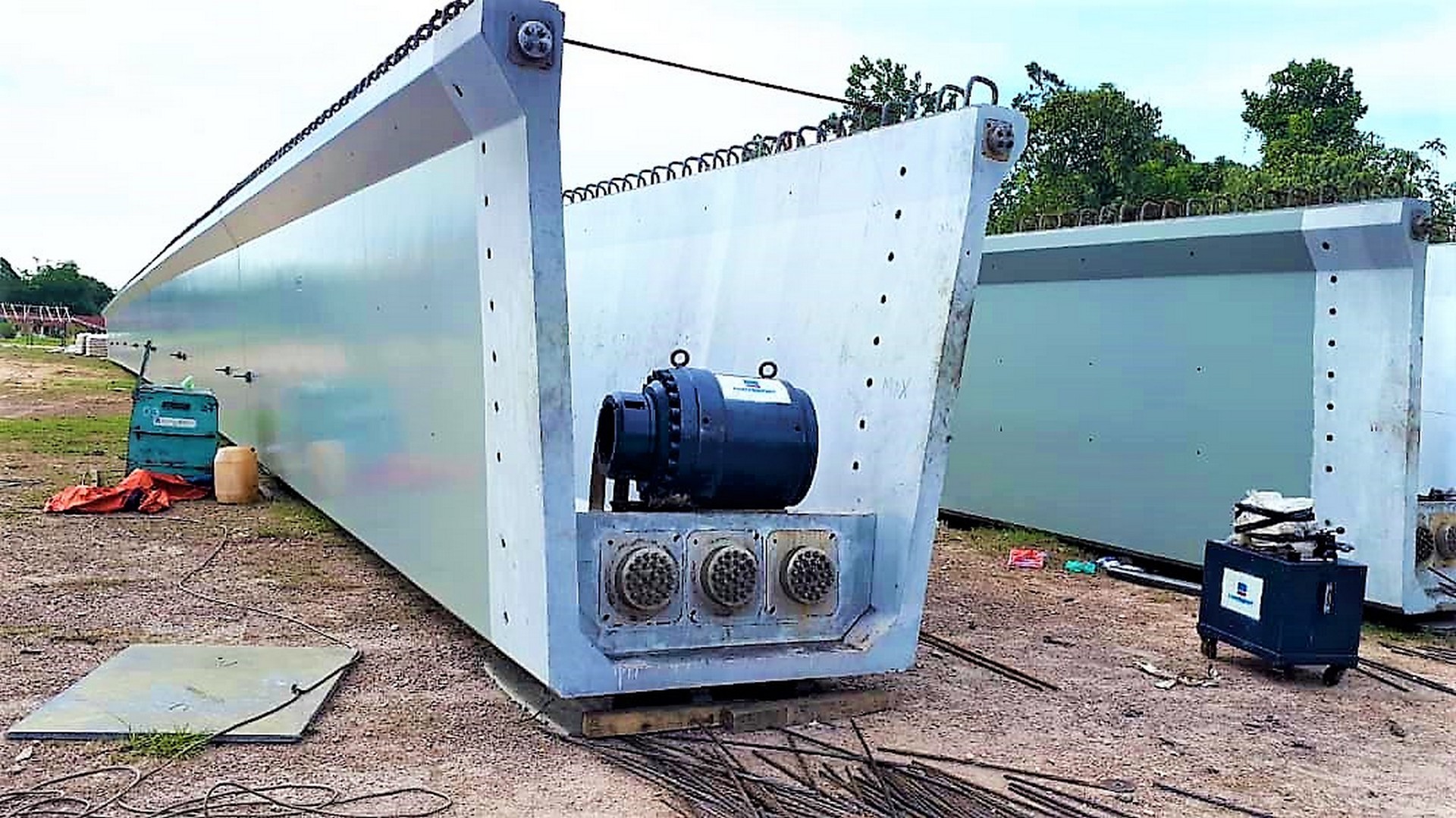

Excessive strands at anchor block cut
Excessive strands at anchor block cut

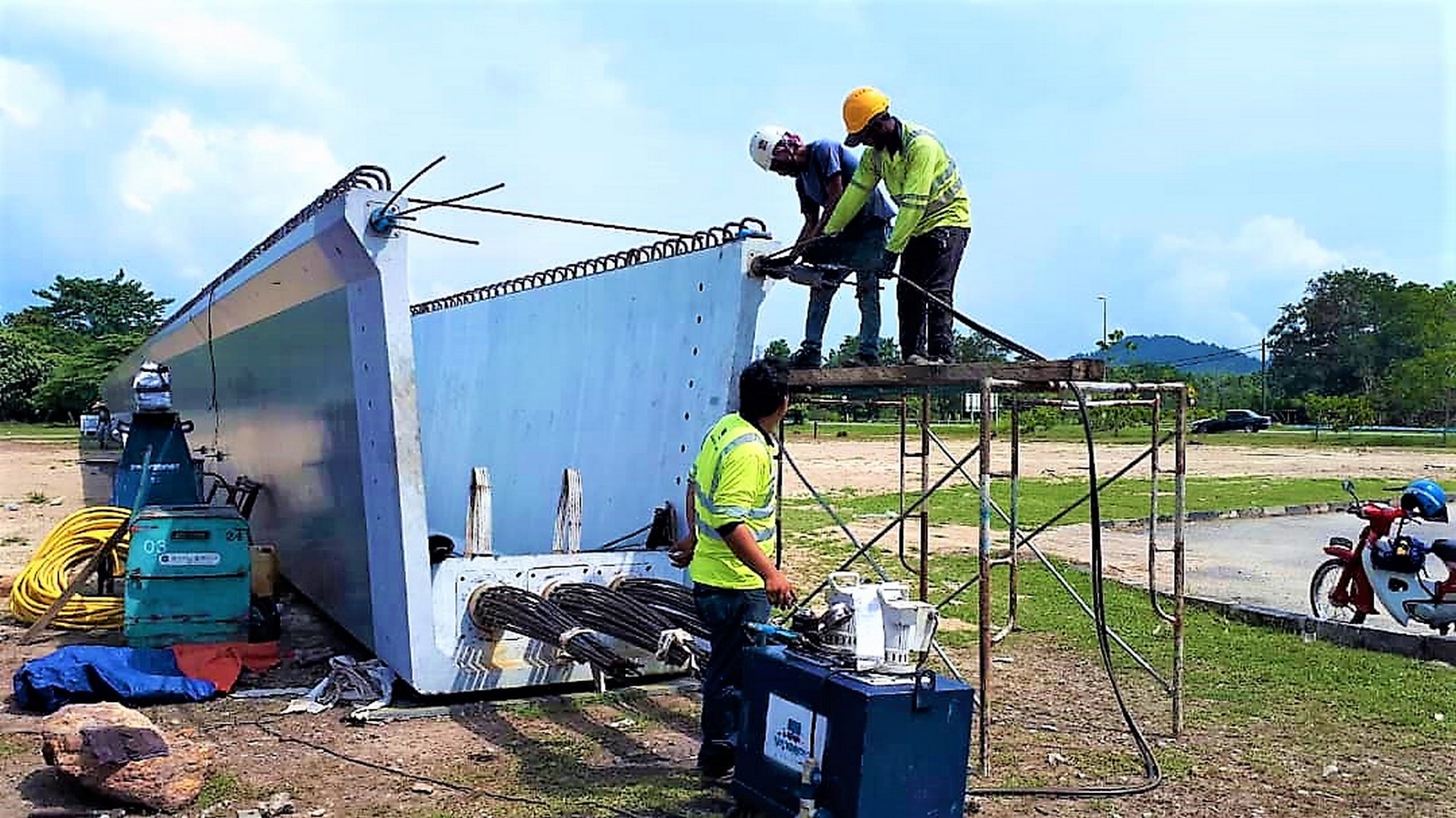

Stressing top tendon
Stressing top tendon

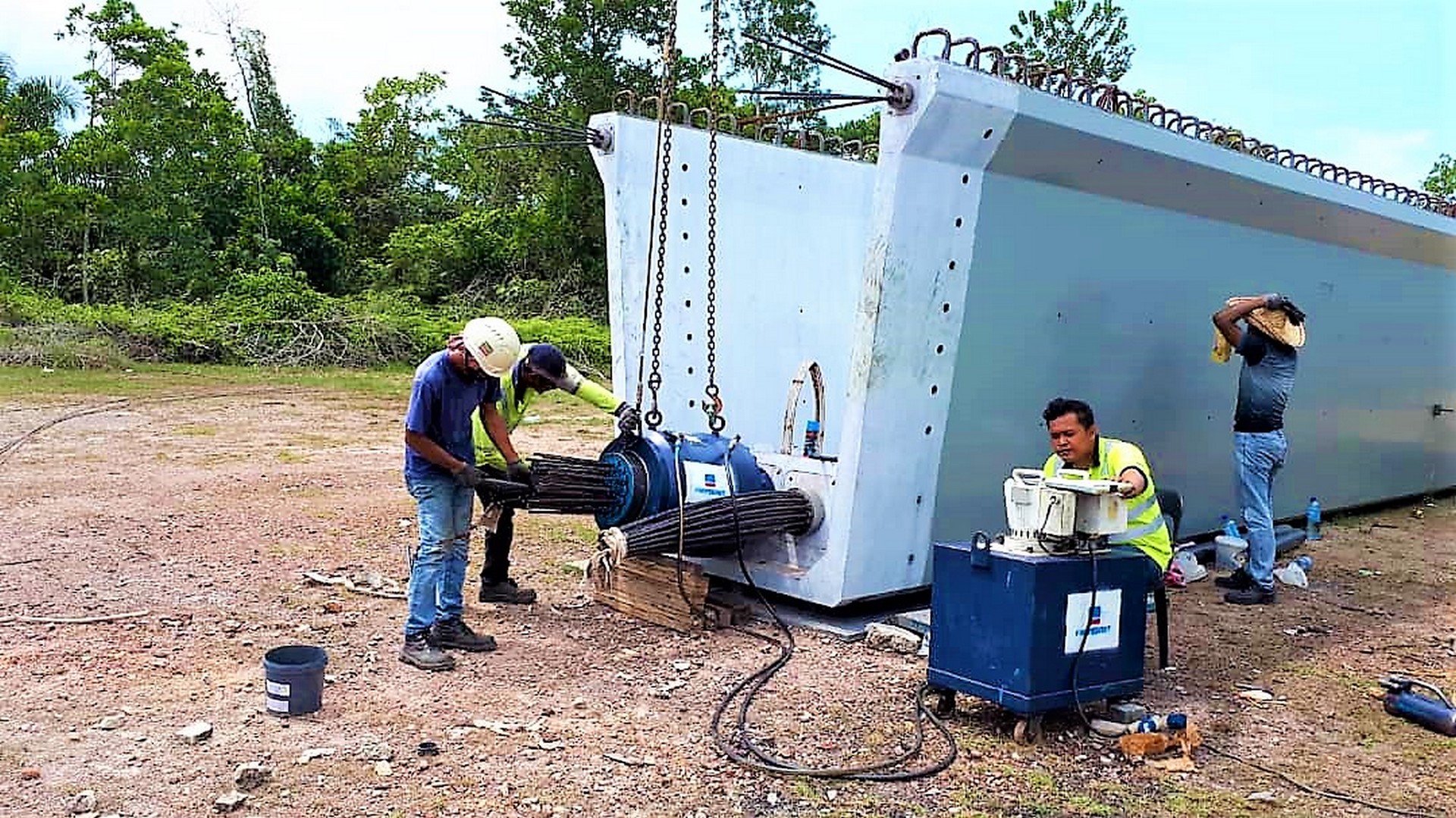

Stressing bottom tendons
Stressing bottom tendons

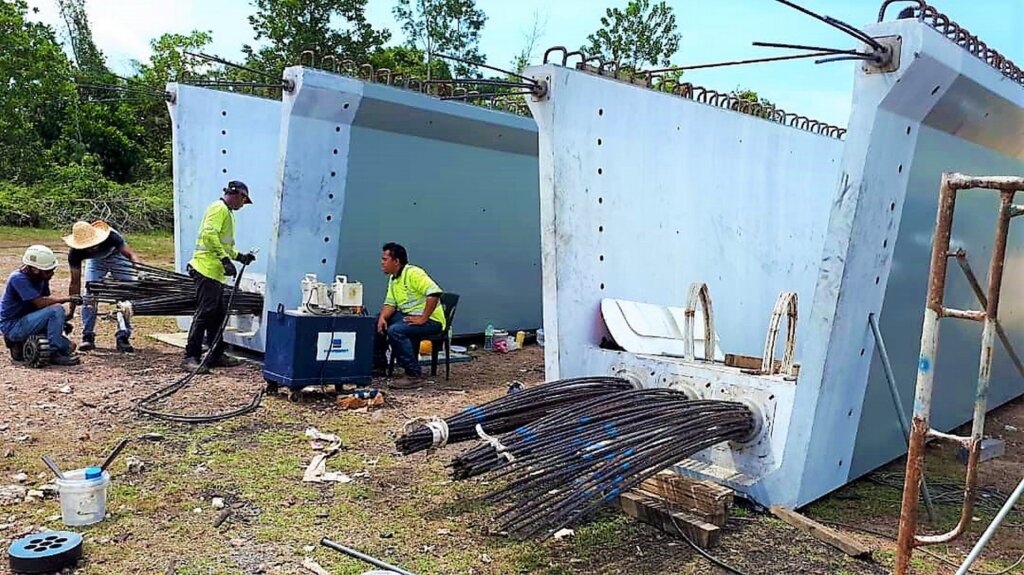

Pushing cable and bearing blocks installation (250519)
Pushing cable and bearing blocks installation (250519)

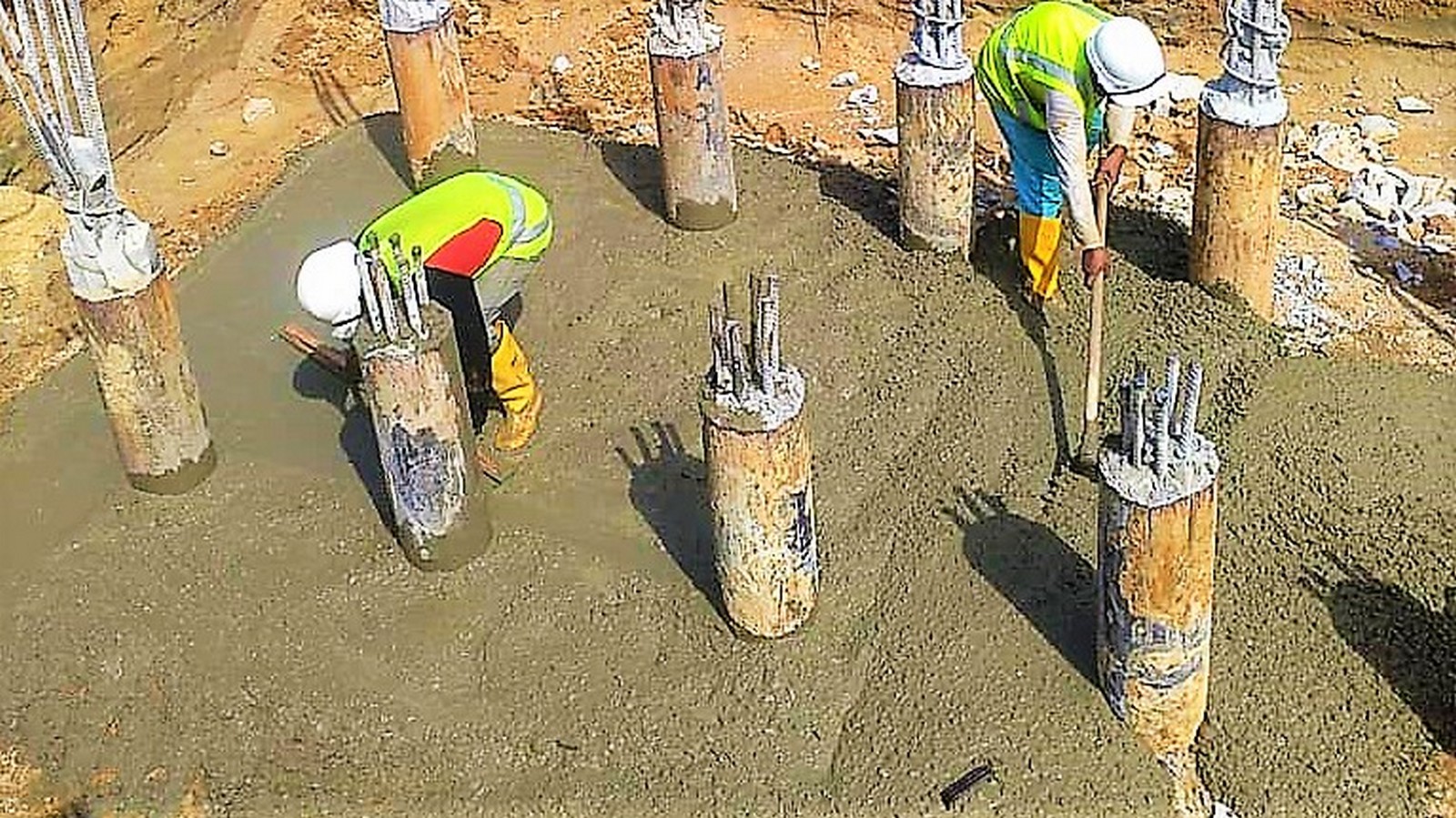

Preparation of lean concrete at the pile cap
Preparation of lean concrete at the pile cap

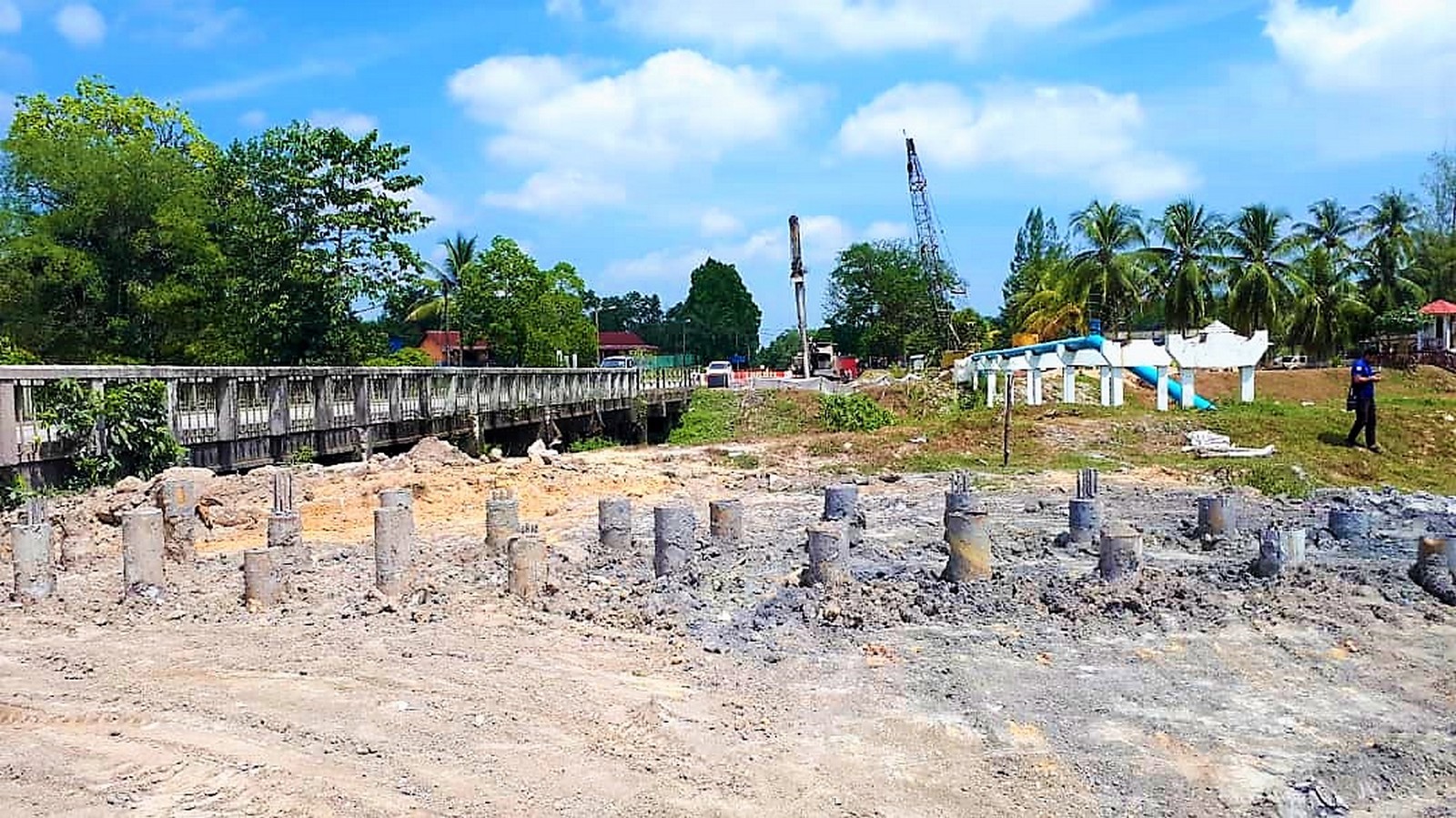

Micropiling for abutment A
Micropiling for abutment A

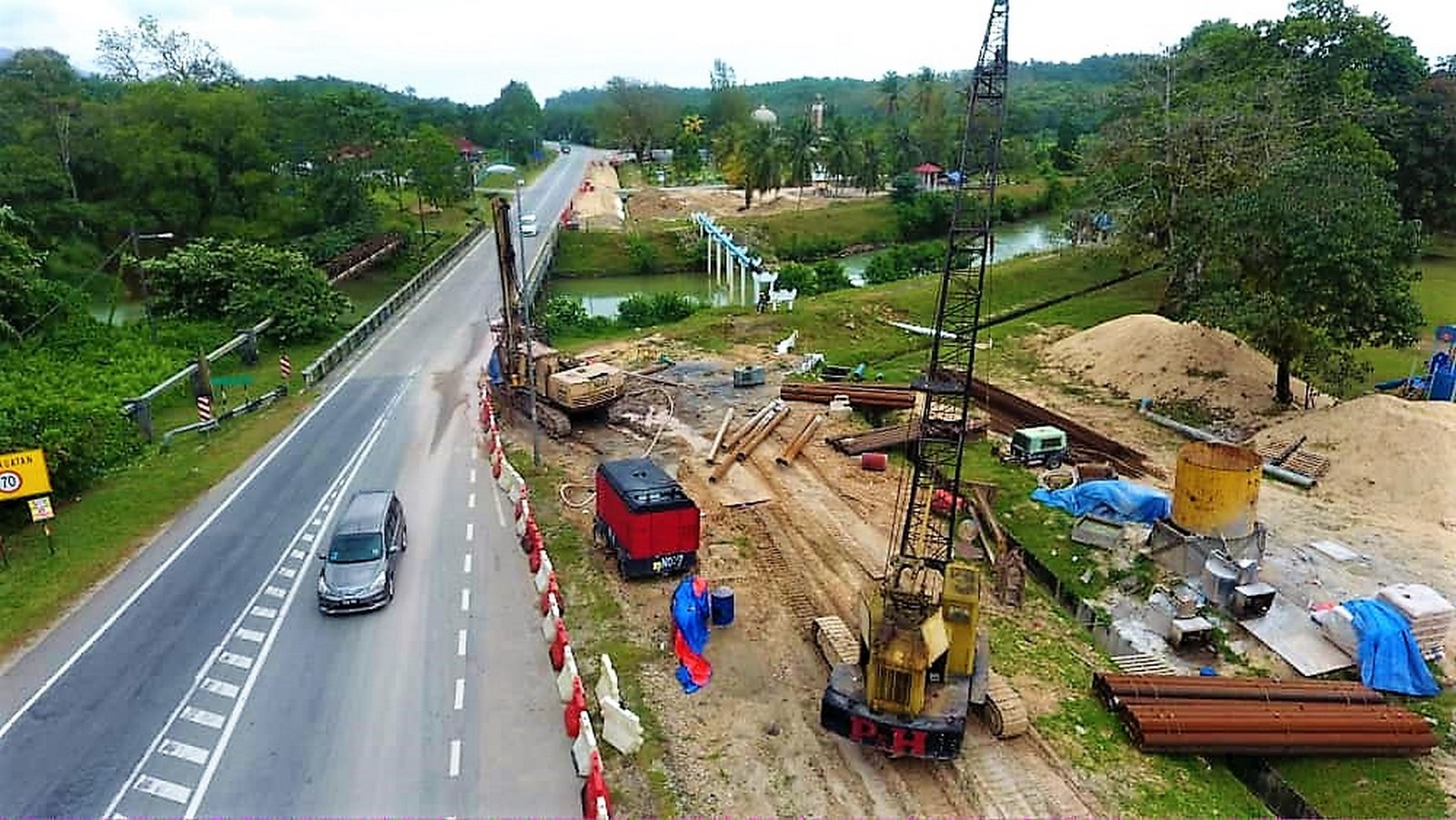

Piling in progress_1702630118456
Piling in progress_1702630118456
Sg Guntung Bridge at FT003-619-50
Sg Guntung Bridge at FT003-619-50
Existing Sg. Guntung bridge built in 1961.
Existing Sg. Guntung bridge built in 1961.
Existing Sg. Guntung bridge built in 1961.
Existing Sg. Guntung bridge built in 1961.

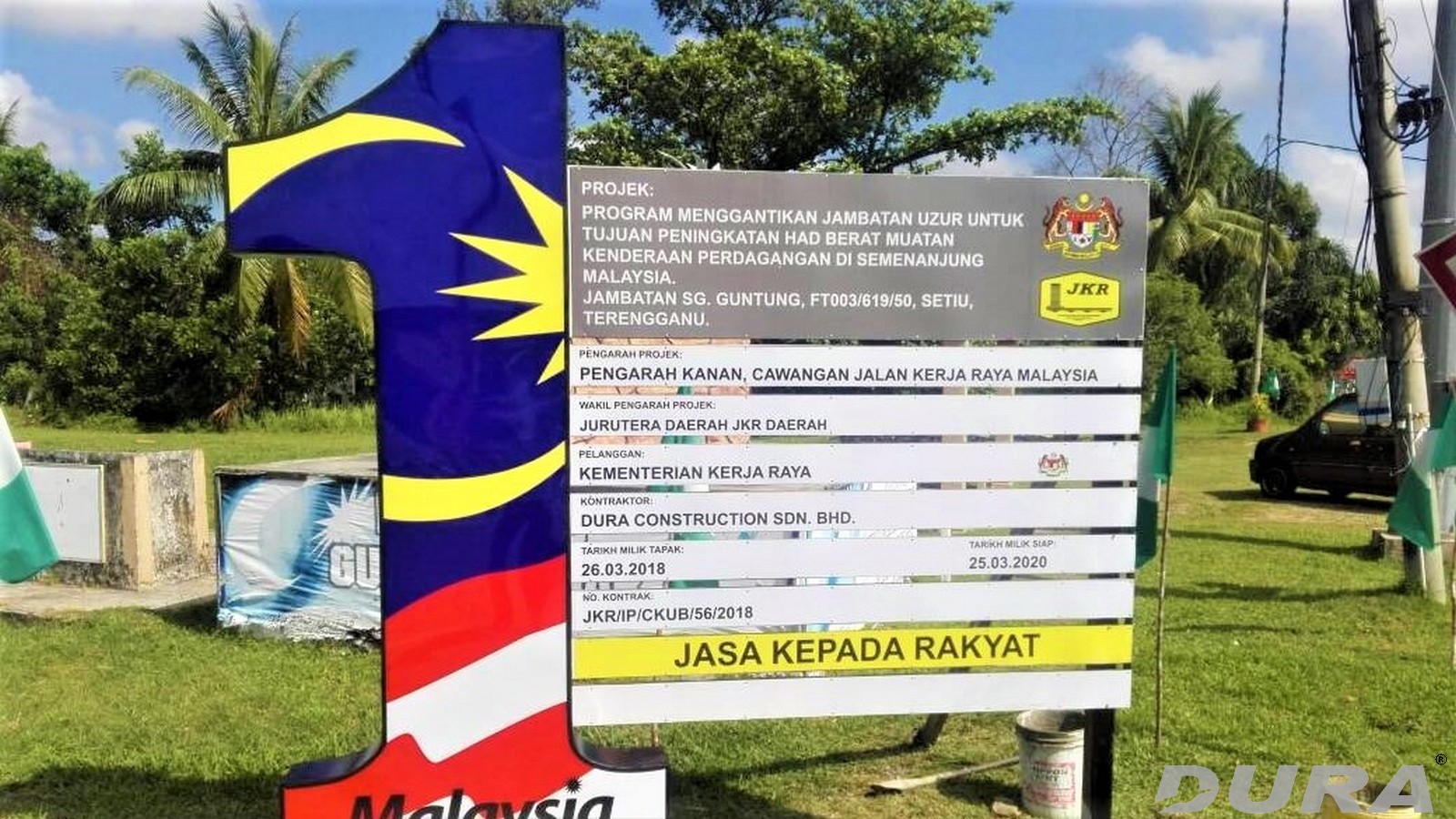

Project Signboard_1702630118001
Project Signboard_1702630118001
Project Title

To Construct Bridge at Sungai Guntung, FT003/619/50, Setiu, Terengganu.(Menggantikan Jambatan Sungai Guntung, FT003/619/50, Setiu, Terengganu)

Project Year

2020

Status

Completed Project

Country

Malaysia

GPS Cordinates

5.58656 N; 102.70621 E

Structure Type

Single Span 65m by 14m Wide Composite Bridge System.

Superstructure Feature

3 pieces of DURA® UBG2500-65m with Cast In-Situ RC Deck

Substructure Feature

Cast in-situ RC abutments

Foundation Feature

300mm dia. Micro Pile.

Loading Type

SV100 loadings (BS EN 1991-2-2003)

Client

Jabatan Kerja Raya Malaysia

Superintendent Officer (S.O.)

JKR Daerah Setiu

Consultant

Primareka Consultants

Contractor

Dura Construction Sdn Bhd

Contract Period

24 months

Construction Status

Completed
