Replacement of Damaged Bridge Over Bukit Merah Dam

  • Project Status

  • Select Country

  • Select Years

  • Reset
Existing Alur Limpah Selatan Bridge cross Bukit Merah Dam
Existing Alur Limpah Selatan Bridge cross Bukit Merah Dam

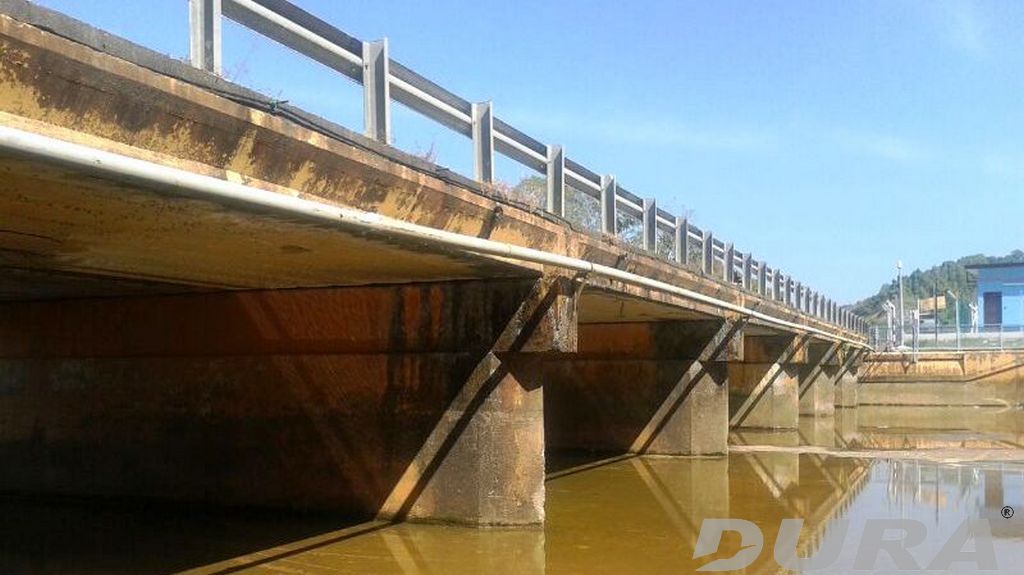

Existing bridge_2
Existing bridge_2

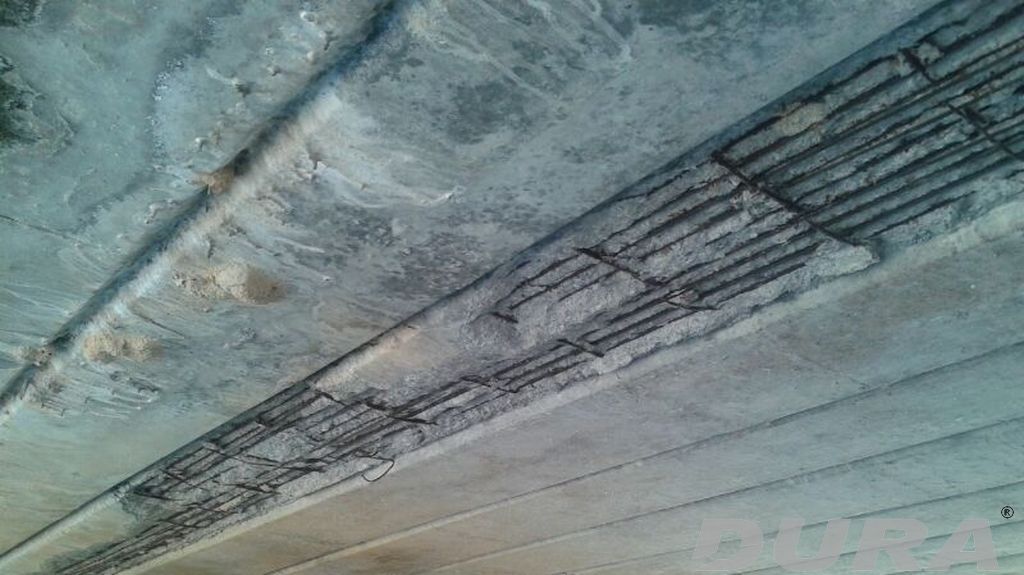

Some beams badly corroded
Some beams badly corroded

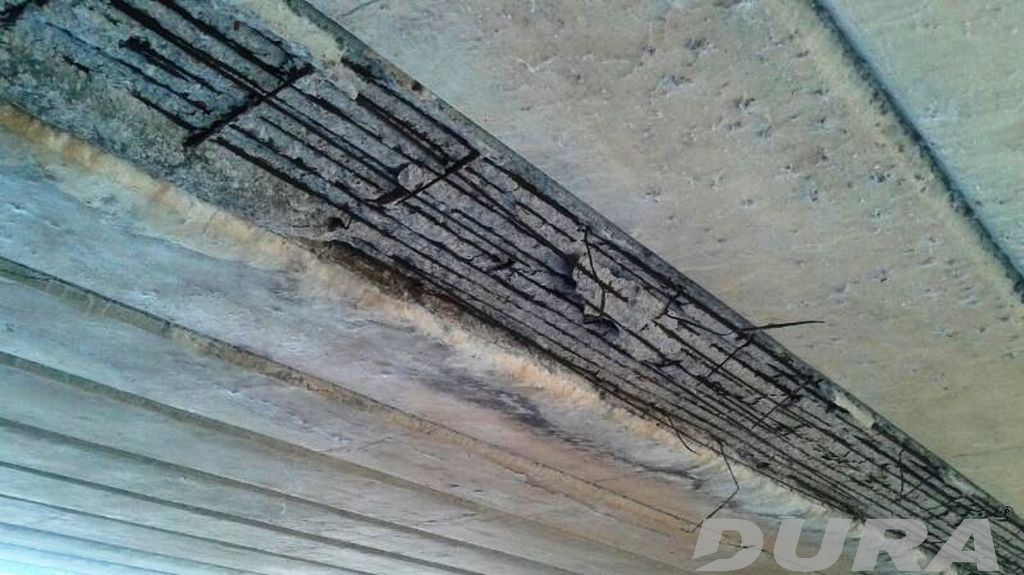

Some beams badly corroded_2
Some beams badly corroded_2

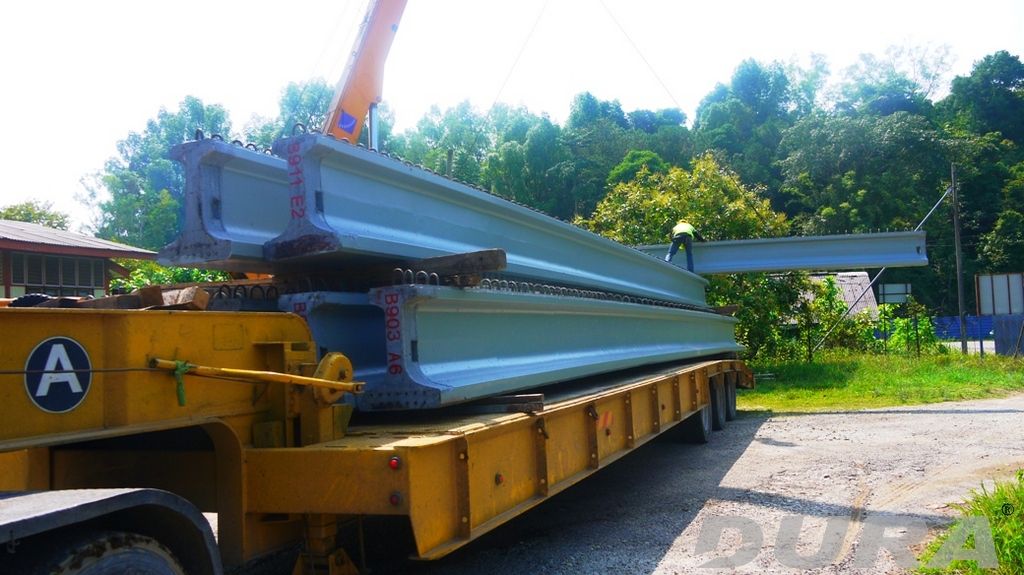

Transportating of precast DURA I-beams -16-04-2014-
Transportating of precast DURA I-beams -16-04-2014-

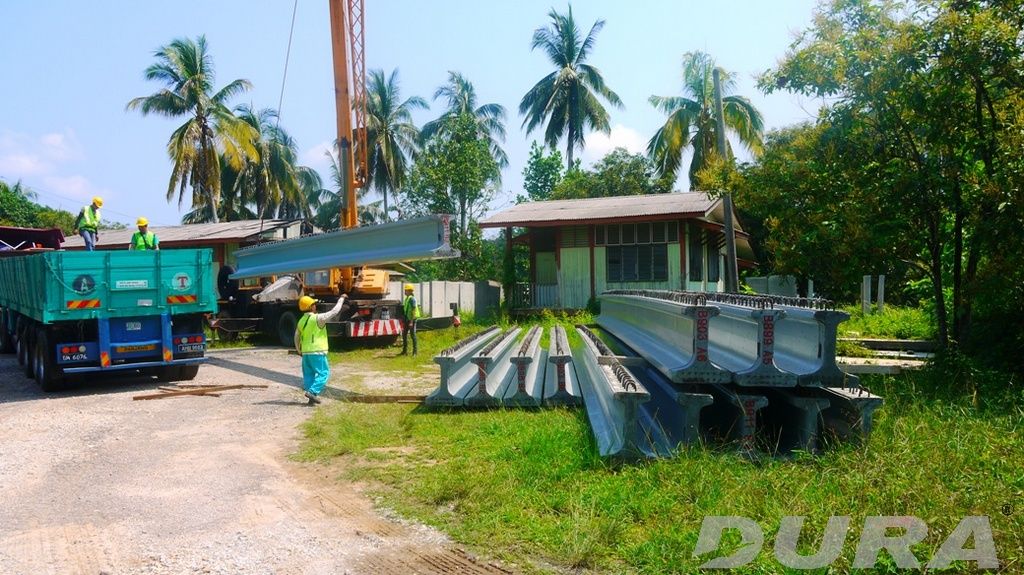

Unloading of beams
Unloading of beams

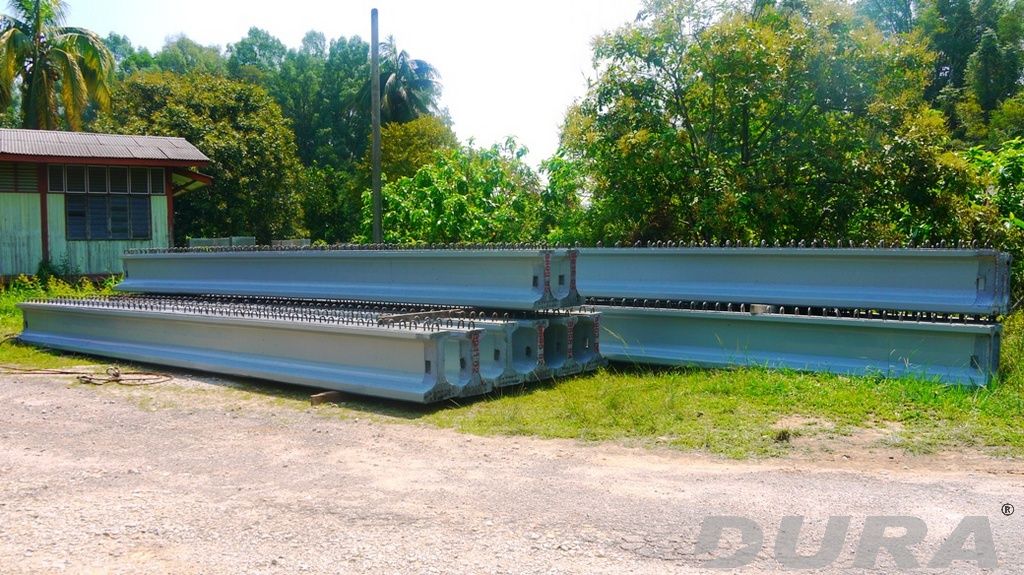

Unloading of beams_2
Unloading of beams_2

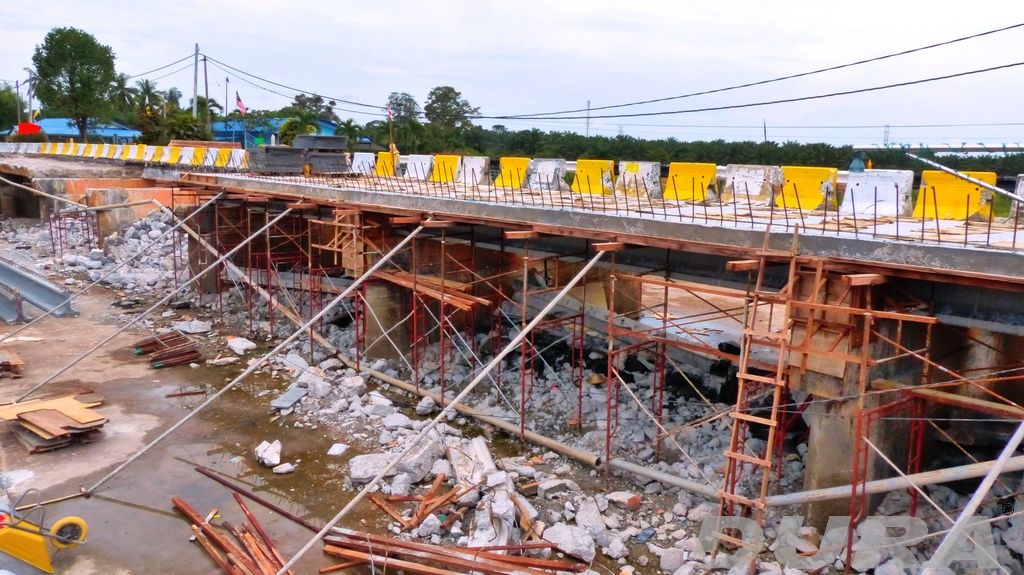

First portion of the in-situ decking constructed -29-08-2014-
First portion of the in-situ decking constructed -29-08-2014-

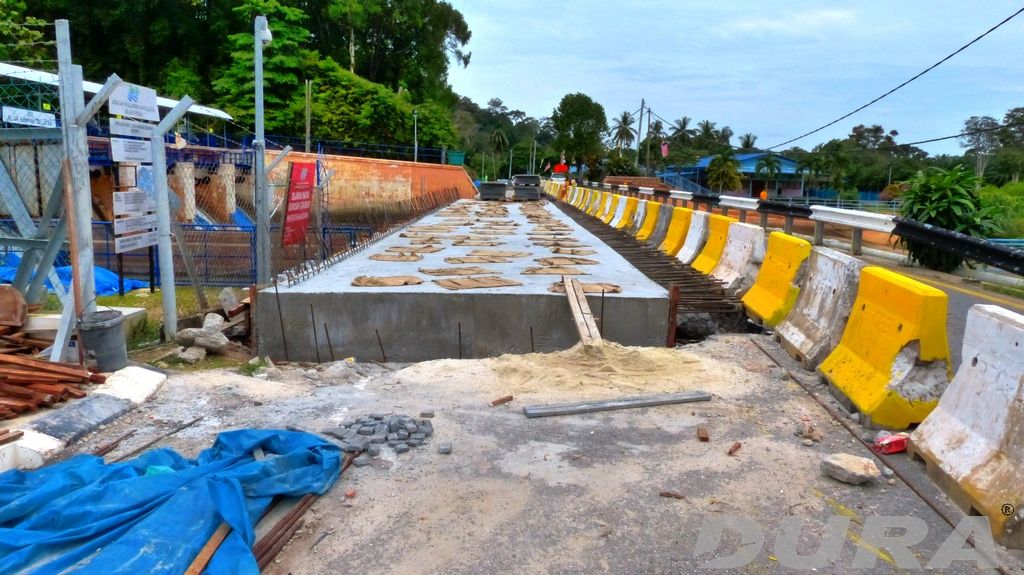

First portion of the in-situ decking constructed -29-08-2014-_2
First portion of the in-situ decking constructed -29-08-2014-_2

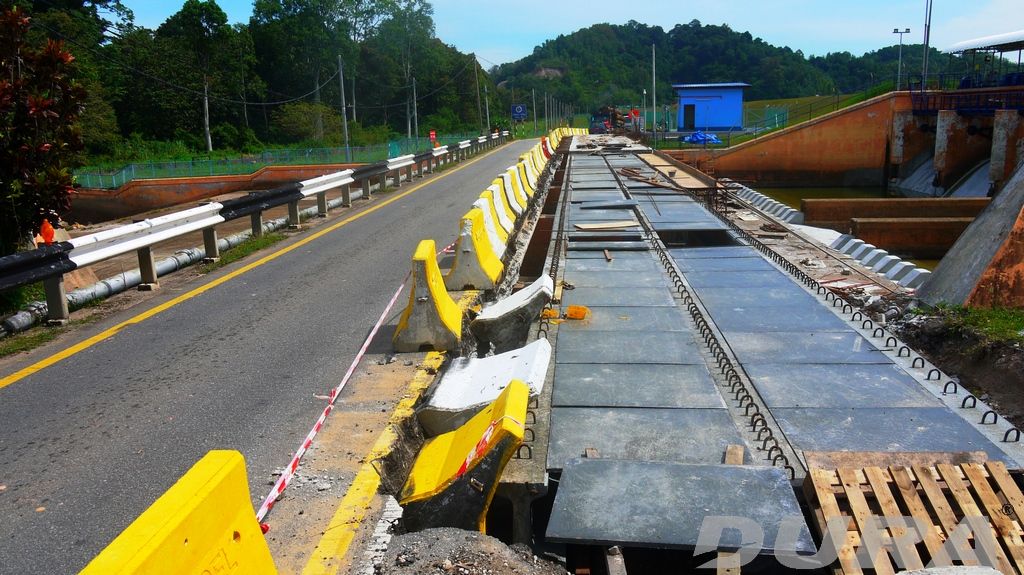

Precast 20mm thick DURA left in-form used
Precast 20mm thick DURA left in-form used

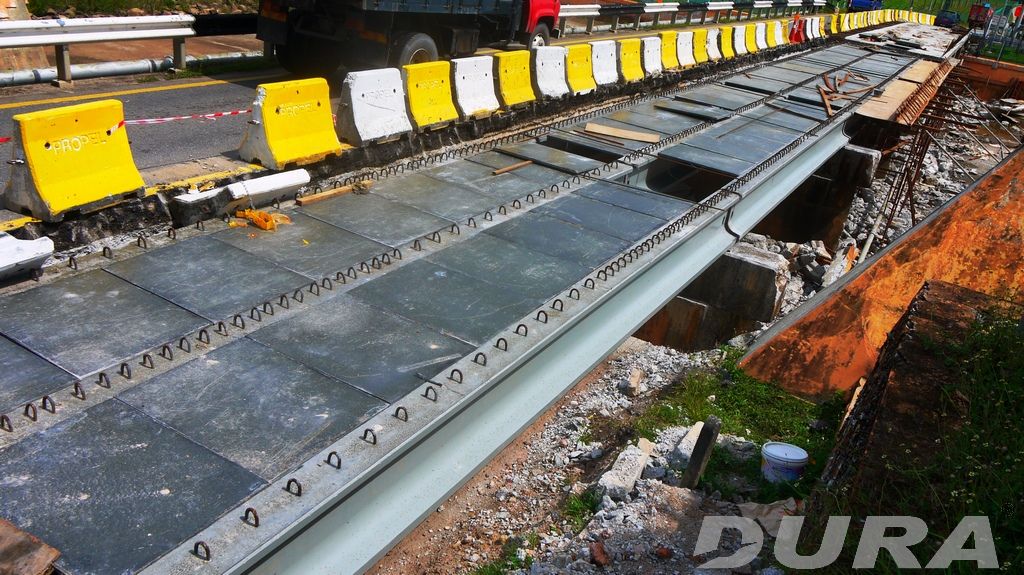

Precast 20mm thick DURA left in-form used_2
Precast 20mm thick DURA left in-form used_2
Installation of precast RC parapet
Installation of precast RC parapet

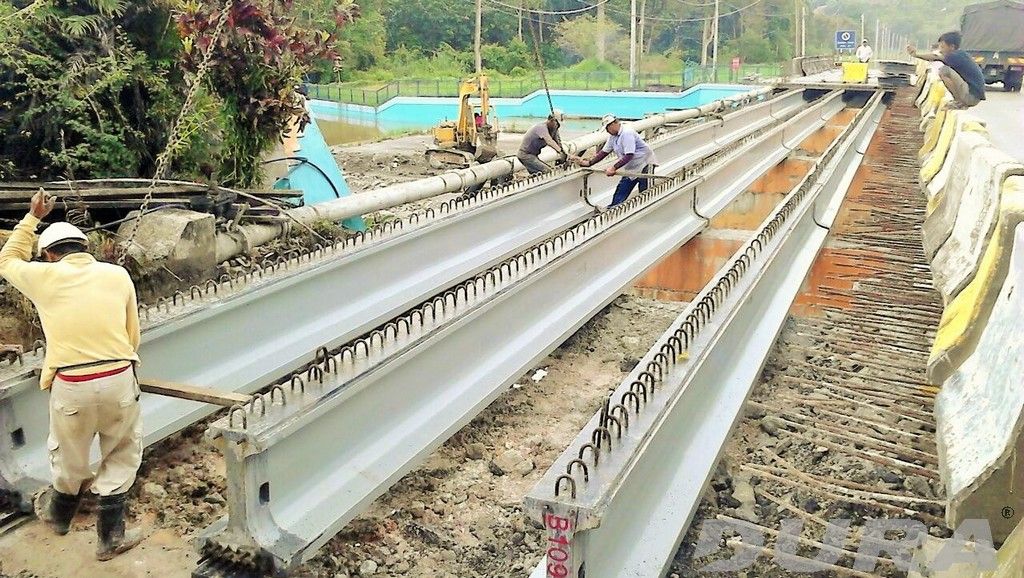

Second phase of beam launched -29-12-2014-
Second phase of beam launched -29-12-2014-

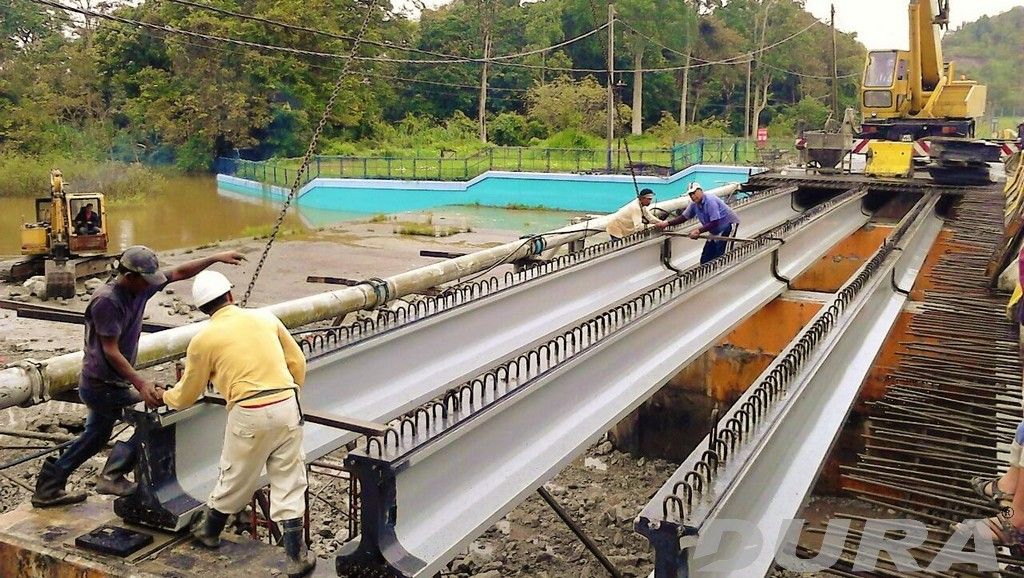

Second phase of beam launched -29-12-2014-_2
Second phase of beam launched -29-12-2014-_2

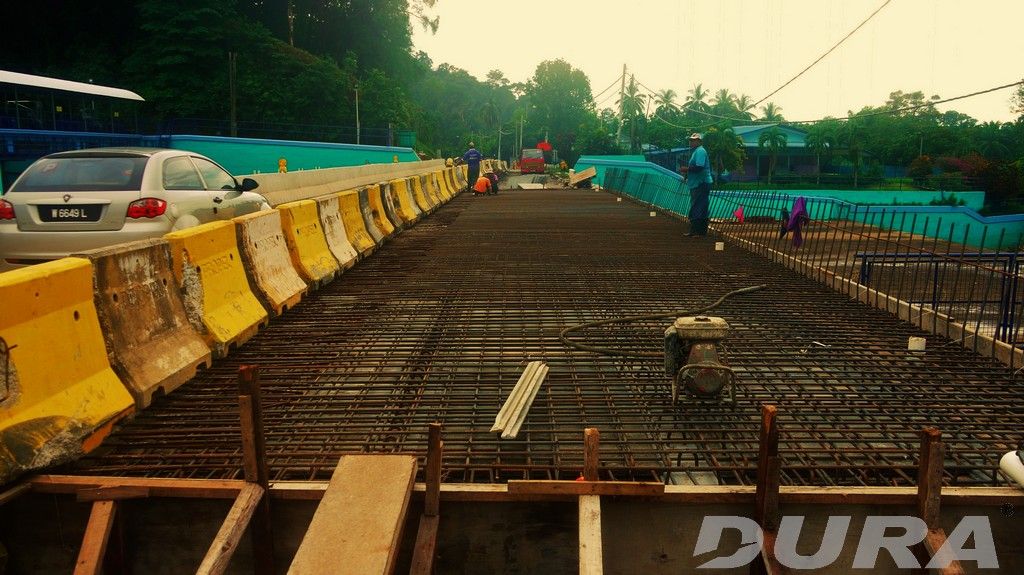

Final portion of the in-situ RC deck going to be casted -15-12-2014-
Final portion of the in-situ RC deck going to be casted -15-12-2014-

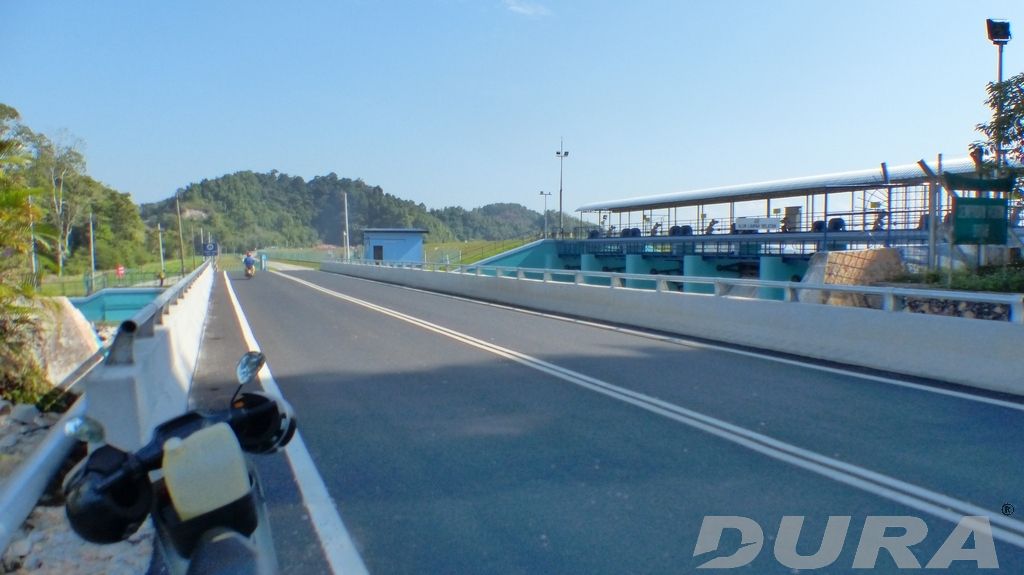

Completed new bridge with wearing surface laid
Completed new bridge with wearing surface laid

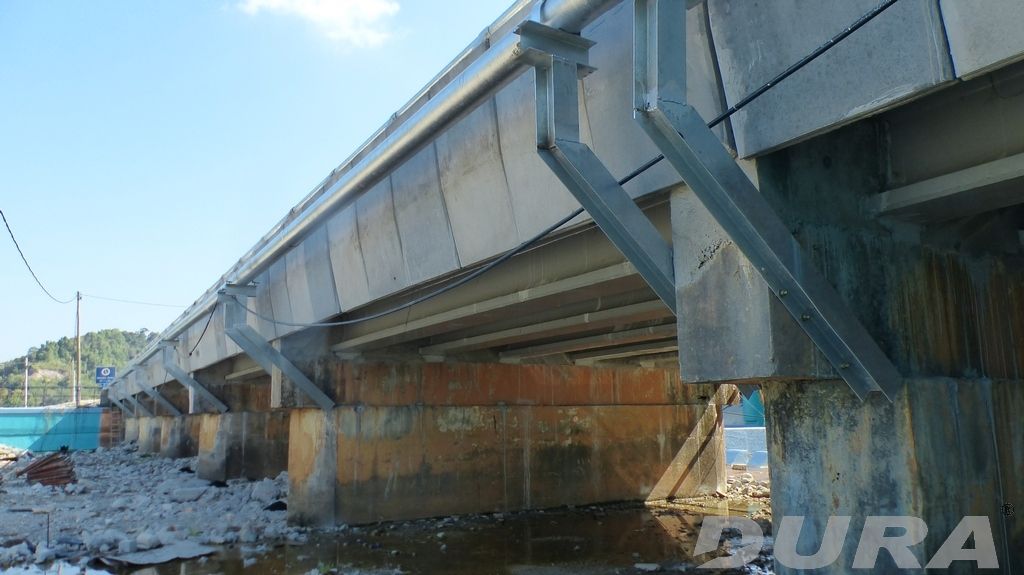

Side view of the newly completed Bukit Merah Dam bridge
Side view of the newly completed Bukit Merah Dam bridge

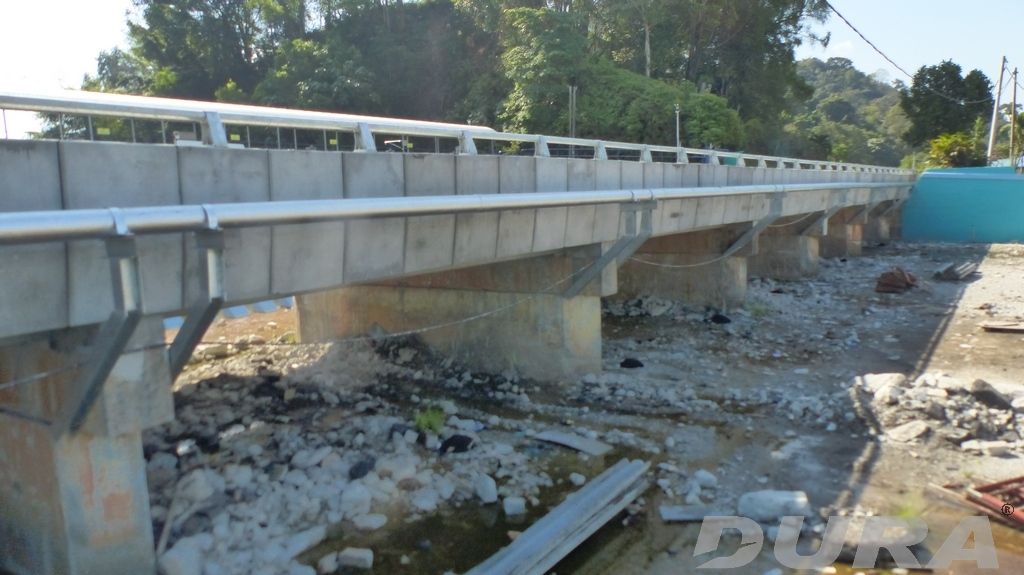

Side view of the newly completed Bukit Merah Dam bridge_2
Side view of the newly completed Bukit Merah Dam bridge_2
Soffit view
Soffit view
Project Title

RTB Lembangan Sungai Kerian - Projek Menaiktaraf Jambatan Alur Limpah Selatan Di Empangan Bukit Merah Serta Kerja-Kerja Lain Yang Berkaitan Di Daerah Kerian, Perak Darul Ridzuan.

Project Year

2014

Status

Completed Project

Country

Malaysia

GPS Cordinates

5.030669,100.650887

Structure Type

Multiple spans 55m x 9.5m wide UHPC composite bridge

Superstructure Feature

12 pieces of DURA® IB650-13.3m & 18 pieces DURA® IB650-9.2m

Substructure Feature

No changed / maintained

Client

JPS Perak

Superintendent Officer (S.O.)

JPS Daerah Kerian

Consultant

Concrete Technology Sdn Bhd (alternative design)

Contractor

Global Terbilang Sdn Bhd

Contract Period

18 months

Construction Status

Completed
