Replacing Jambatan Buloh using UHPFRC Accelerate Bridge Construction (ABC) Method

  • Project Status

  • Select Country

  • Select Years

  • Reset
default

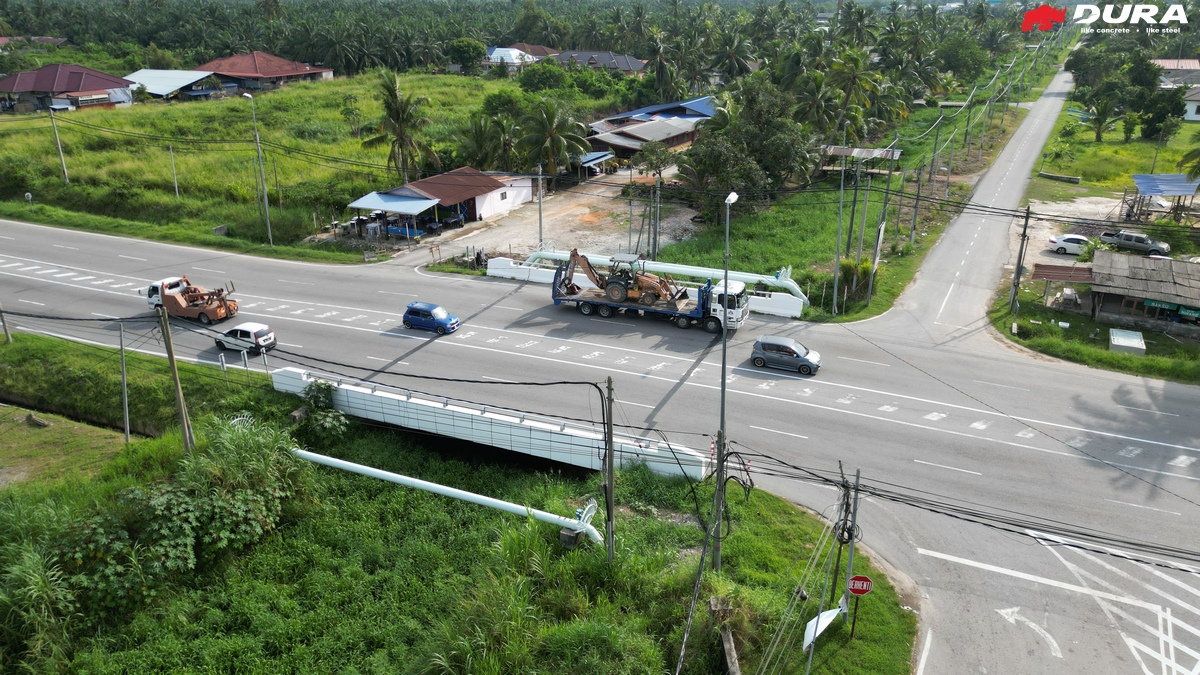

Completed bridge.
Lifting of prebag premix into site mixer.
Lifting of prebag premix into site mixer.
Stitching work in progress for the second phase.
Stitching work in progress for the second phase.

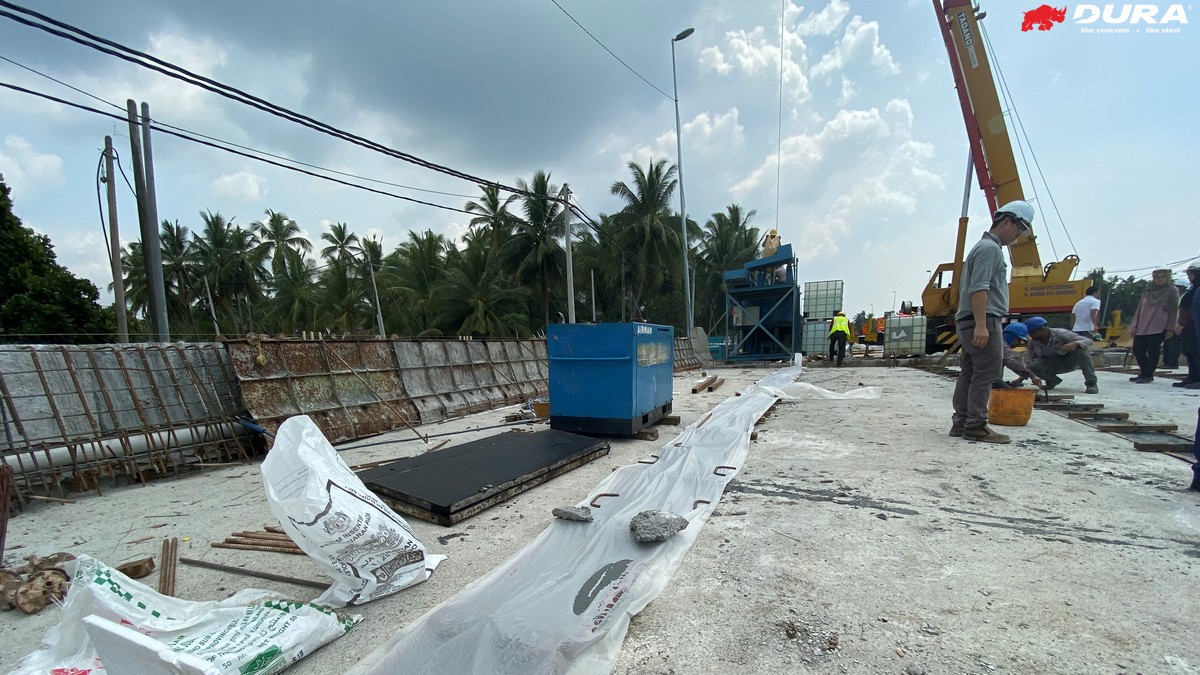

A thin plastic layer used to cover the fresh UHPC stitching.
A thin plastic layer used to cover the fresh UHPC stitching.
Curong compound applied on the exposed surface of the fresh UHPC.
Curong compound applied on the exposed surface of the fresh UHPC.

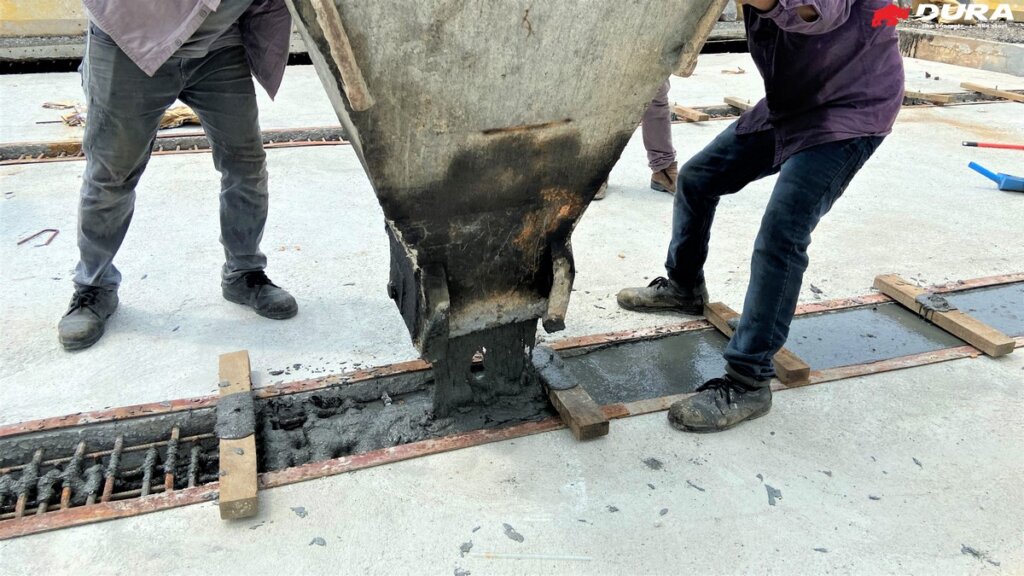

Laying of UHPC.
Laying of UHPC.

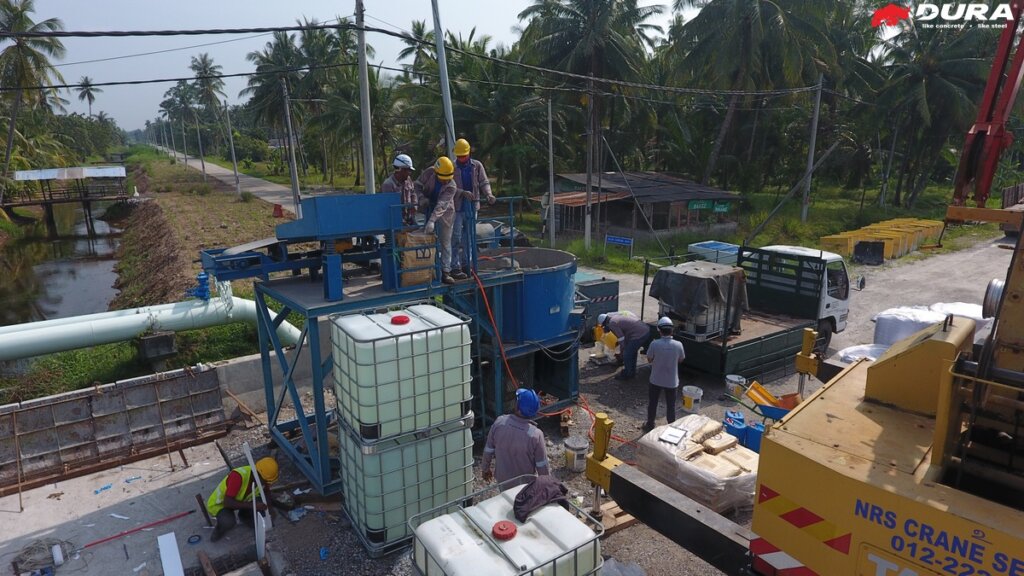

Mixing of on-site UHPC.
Portable shear mixer used for the production of UHPC.
Side view of the bridge.
Side view of the bridge.
Soffit view of the beams.
Soffit view of the beams.
Engineers inspection before concreting.
Engineers inspection before concreting.
Aggregate exposed at the connection jointing.
Aggregate exposed at the connection jointing.
Deck connection prior to casting of UHPC stitches.
Deck connection prior to casting of UHPC stitches.

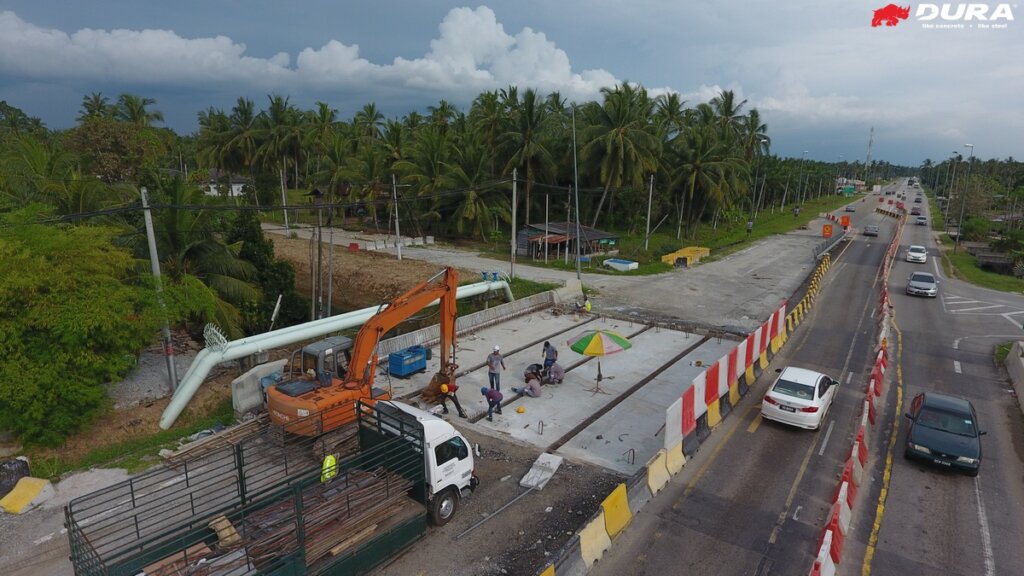

Preparation of UHPC stitching joint.
Four beams launched overnight.
Site ready for beam launching.
Four beams casted.
Four beams casted.
Casting of in-situ RC deck.
Casting of in-situ RC deck.
Existing bridge abutment.
Existing bridge abutment.
First half of the extsing bridge dismantle..JPG
Project Title

To Replace Buloh Bridge FT005/476/70, Kuala Selangor, Selangor Darul Ehsan (Menggantikan Jambatan Buloh, FT005/476/70, Kuala Selangor, Selangor Darul Ehsan)

Project Year

2021

Status

Completed Project

Country

Malaysia

GPS Cordinates

3.313171 N; 101.277764 E

Structure Type

Single Span UHPFRC Beam Composite In Situ Deck Bridge System: 15.55m x 22m wide.

Superstructure Feature

14 pieces of DURA® IB650 – 15.55m with Precast RC Deck Stitch with In-situ UHPFRC

Substructure Feature

2 nos. of Existing Cast in-situ RC abutments

Loading Type

HA+KEL or 45 units HB loadings

Client

Kementerian Kerja Raya

Superintendent Officer (S.O.)

JKR Daerah Kuala Selangor

Consultant

JKR Malaysia

Contractor

Jaticon Sdn Bhd

Contract Period

12 Months
