Single Span 100m UHPC Bridge – Pushing UHPC Technology to the Max

  • Project Status

  • Select Country

  • Select Years

  • Reset
Beautiful Sungai Perak with crystal clear water
Beautiful Sungai Perak with crystal clear water
Beautiful Sungai Perak with crystal clear water_2
Beautiful Sungai Perak with crystal clear water_2
Proposed abutments location
Proposed abutments location

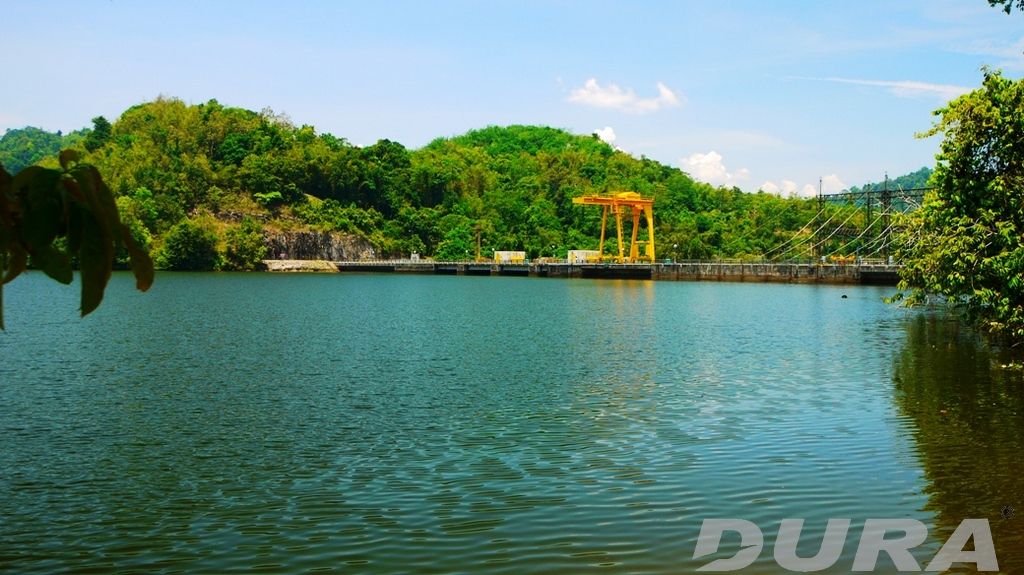

Bersia Dam at upstream of the river
Bersia Dam at upstream of the river

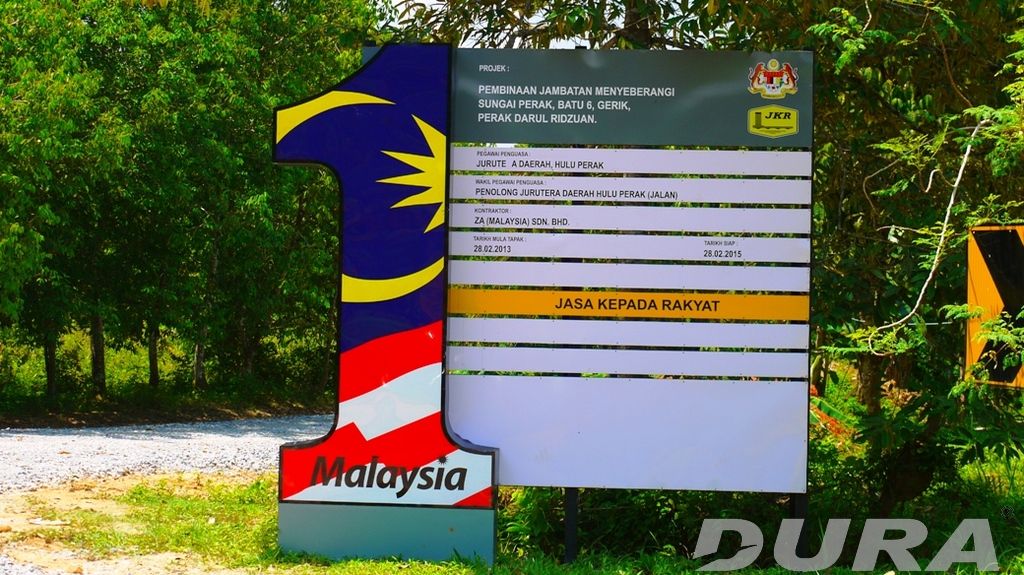

Project signboard
Project signboard
Location of abutment A
Location of abutment A
Location of abutment B
Location of abutment B
Drilling of micropile in progress -12-07-2013-
Drilling of micropile in progress -12-07-2013-

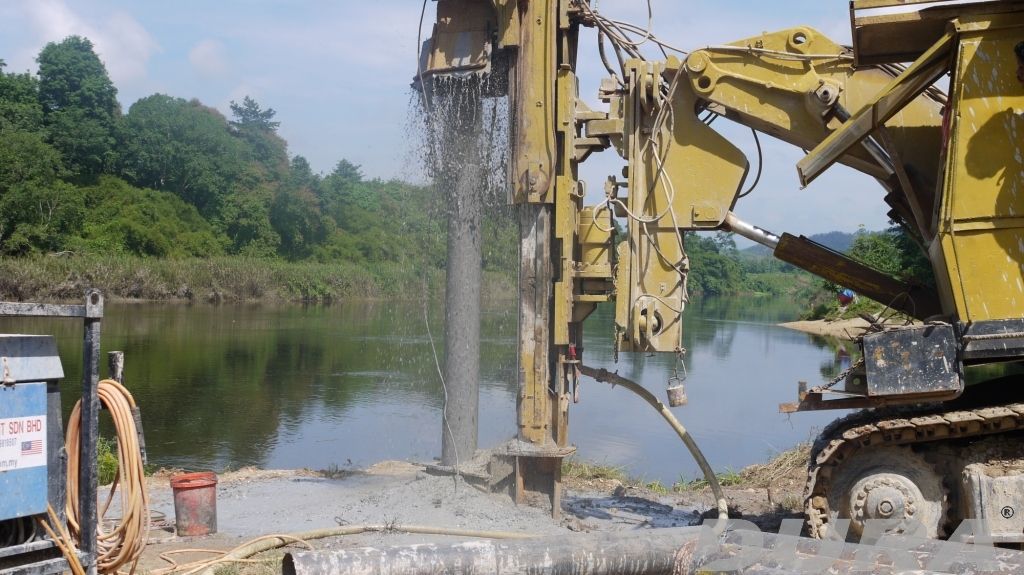

Drilling of micropile in progress -12-07-2013-_2
Drilling of micropile in progress -12-07-2013-_2
PDA test in progress -01-08-2013-
PDA test in progress -01-08-2013-
Partially completed abutment A
Partially completed abutment A
Abutment B under construction -22-12-2013-
Abutment B under construction -22-12-2013-

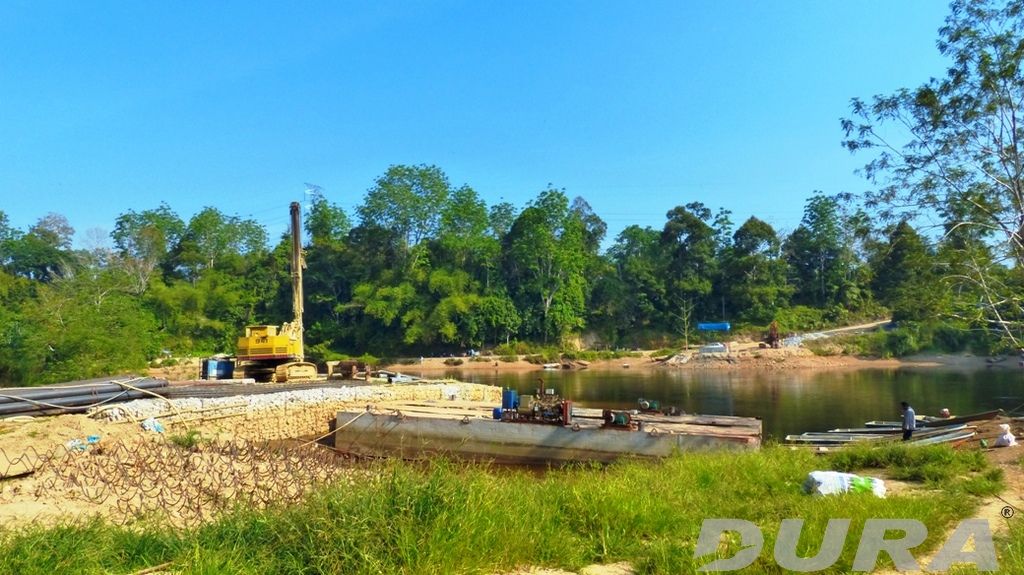

Micropile construction in progress for Abutment B -06-02-2014-
Micropile construction in progress for Abutment B -06-02-2014-
Micropile construction in progress for Abutment B -06-02-2014-_2
Micropile construction in progress for Abutment B -06-02-2014-_2
DURA Box Bridge Grider BBG4000
DURA Box Bridge Grider BBG4000
DURA Box Bridge Grider BBG4000_2
DURA Box Bridge Grider BBG4000_2
Fully steam cured BBG4000
Fully steam cured BBG4000
Fully steam cured BBG4000_2
Fully steam cured BBG4000_2
Fully steam cured BBG4000_3
Fully steam cured BBG4000_3
Filling bucket with Grade40 ready mix concrete
Filling bucket with Grade40 ready mix concrete

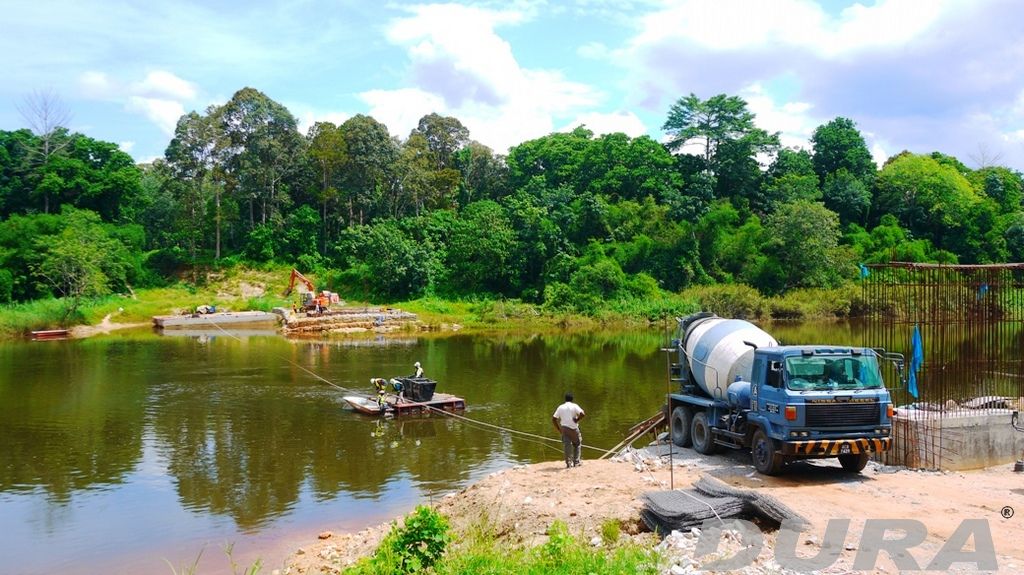

Transporting ready mix concrete to opposite site of the river for concreting work of Abutment B
Transporting ready mix concrete to opposite site of the river for concreting work of Abutment B
Piling work in progress for the installation of temporary pier support -17-06-2014-
Piling work in progress for the installation of temporary pier support -17-06-2014-
Piling work in progress for the installation of temporary pier support -17-06-2014-_2
Piling work in progress for the installation of temporary pier support -17-06-2014-_2
Piles for pier 1 and pier 2
Piles for pier 1 and pier 2

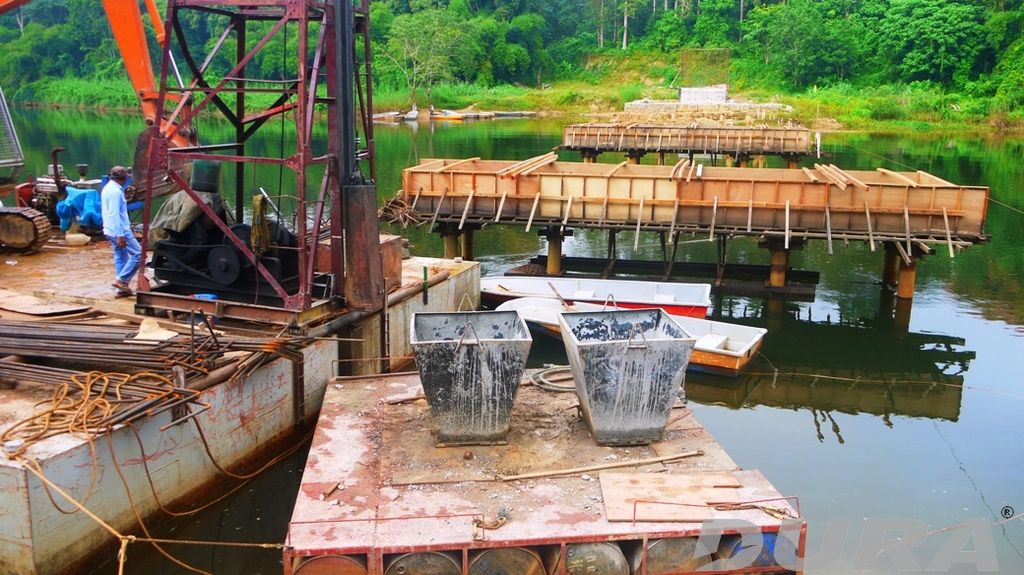

Construction of pile cap - temporary support pier 2 -05-07-2014-
Construction of pile cap - temporary support pier 2 -05-07-2014-
Unloading first precast box girder segments -09-07-2014-
Unloading first precast box girder segments -09-07-2014-
Three precast box girder segments unloaded -09-07-2014-
Three precast box girder segments unloaded -09-07-2014-
Unloading SBG -17-07-2014-
Unloading SBG -17-07-2014-

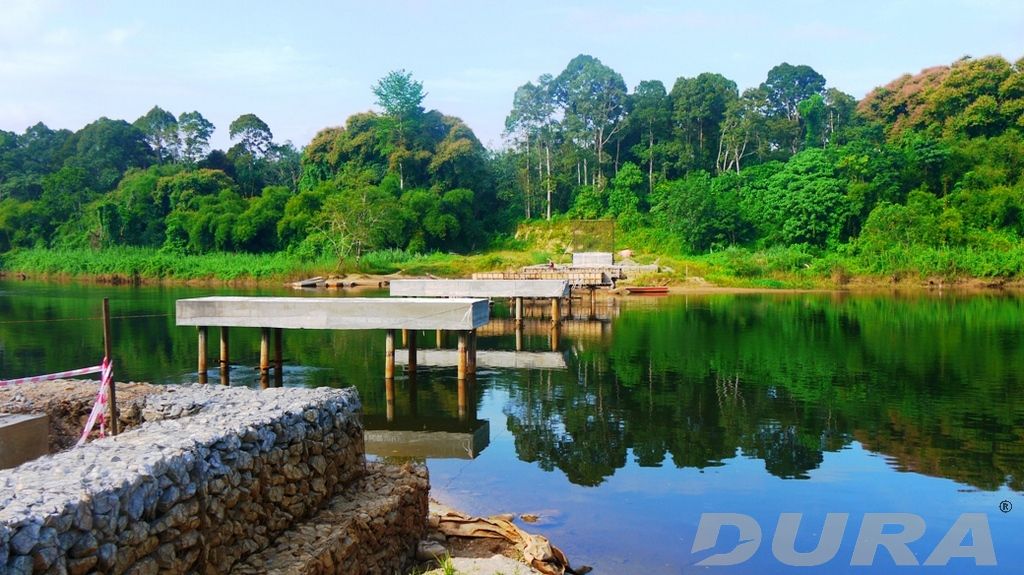

Temporary supports for beam assembly
Temporary supports for beam assembly
Temporary supports for beam assembly_2
Temporary supports for beam assembly_2

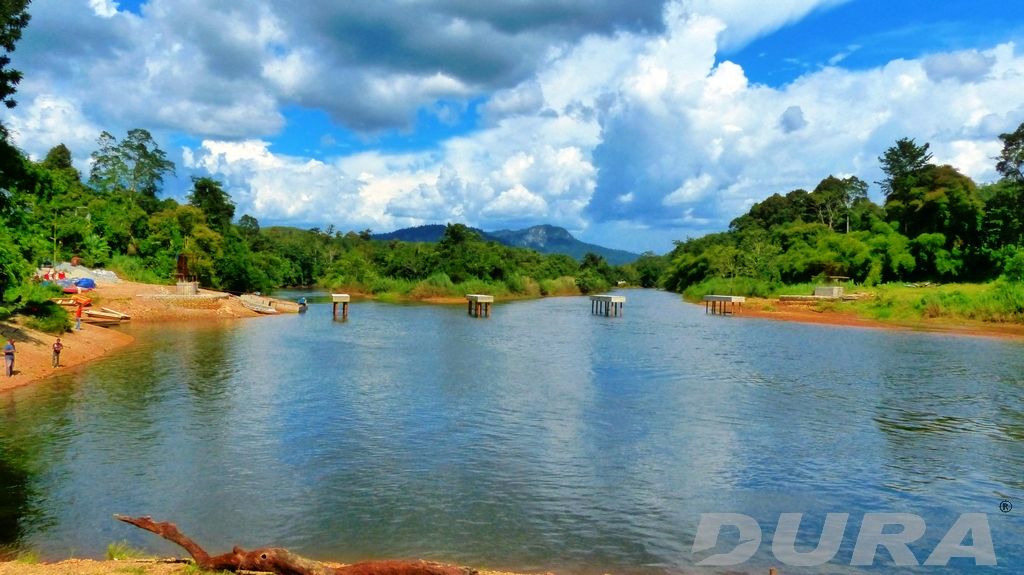

Temporary supports for beam assembly_3
Temporary supports for beam assembly_3
Assembly of 550 tonnes capacity crawler crane in progress -12-10-2014-
Assembly of 550 tonnes capacity crawler crane in progress -12-10-2014-
Assembly of 550 tonnes capacity crawler crane in progress -12-10-2014-_2
Assembly of 550 tonnes capacity crawler crane in progress -12-10-2014-_2

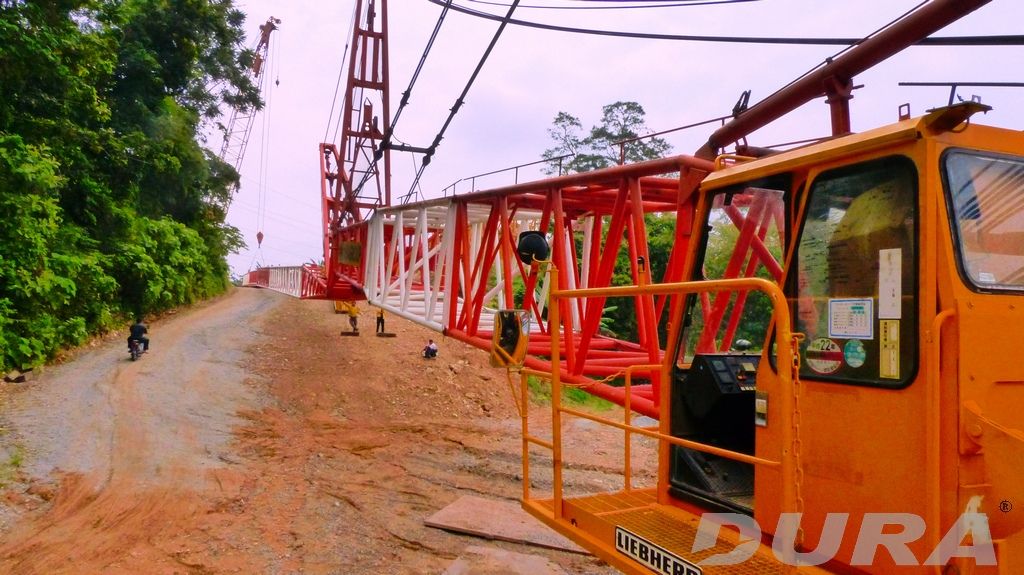

Assembly of 550 tonnes capacity crawler crane in progress -12-10-2014-_3
Assembly of 550 tonnes capacity crawler crane in progress -12-10-2014-_3
Erection of precast beams in progress -12-10-2014-
Erection of precast beams in progress -12-10-2014-

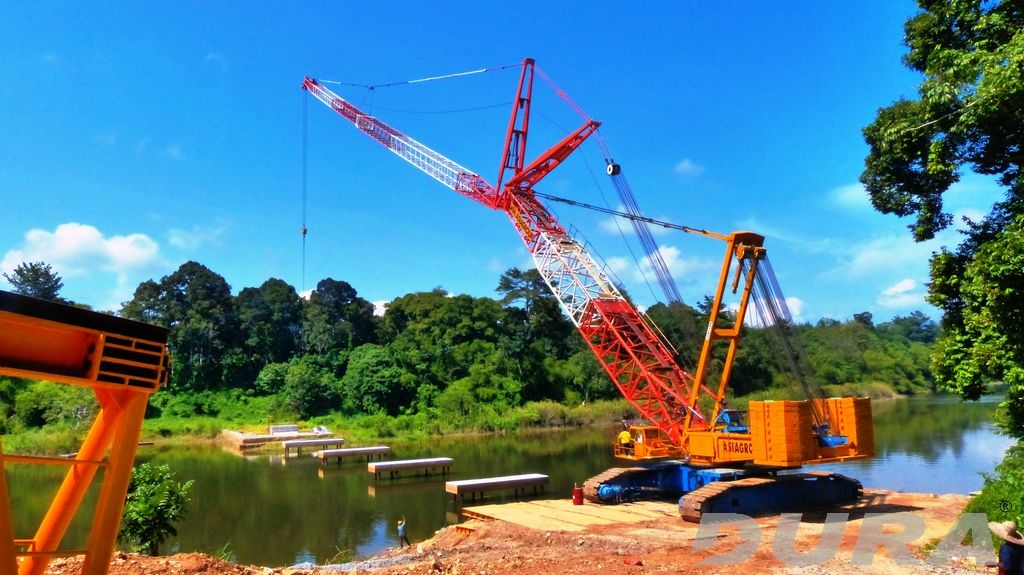

Erection of precast beams in progress -12-10-2014-_2
Erection of precast beams in progress -12-10-2014-_2

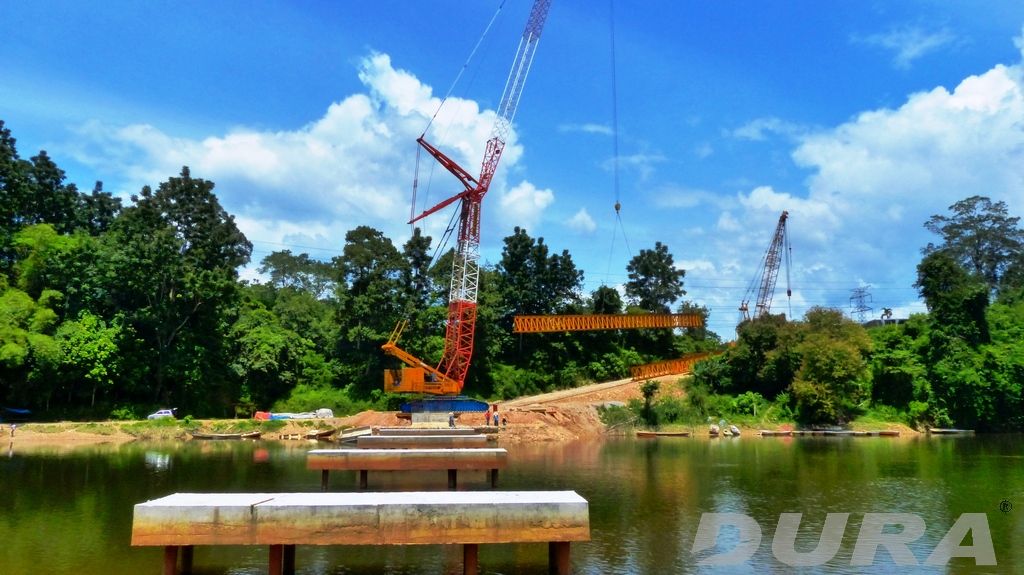

Erection of precast beams in progress -12-10-2014-_3
Erection of precast beams in progress -12-10-2014-_3

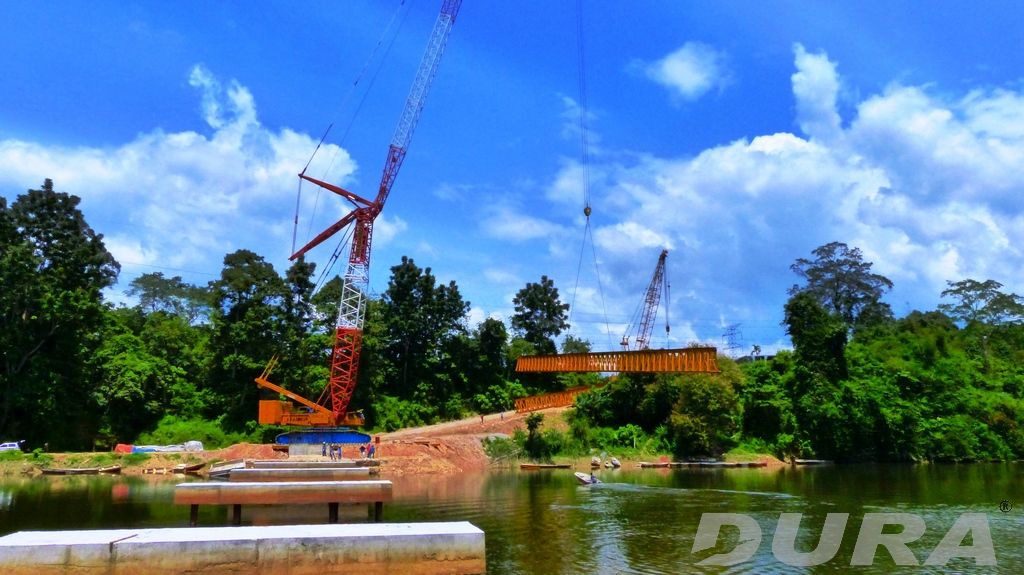

Erection of precast beams in progress -12-10-2014-_4
Erection of precast beams in progress -12-10-2014-_4

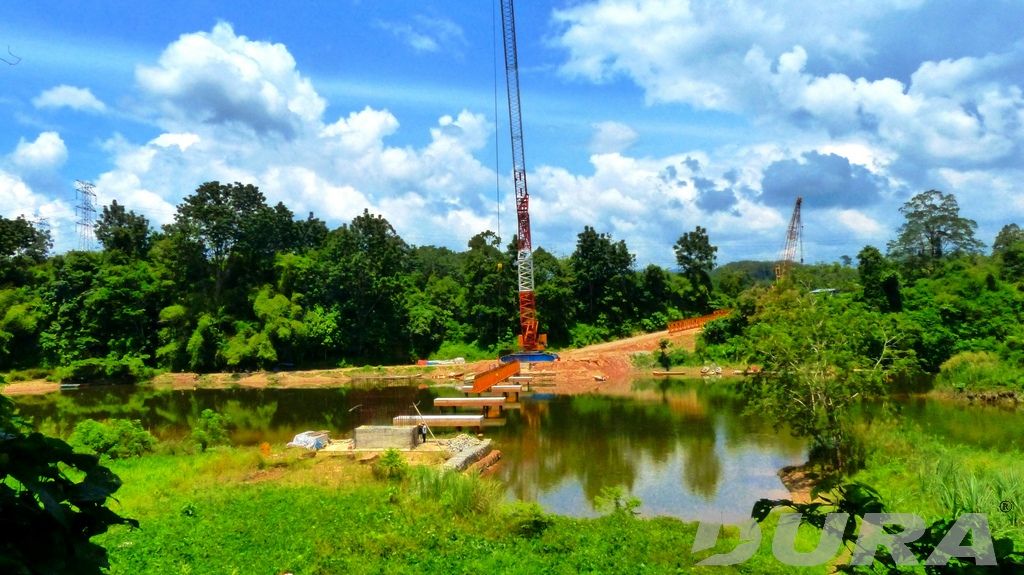

Erection of precast beams in progress -12-10-2014-_5
Erection of precast beams in progress -12-10-2014-_5
Erection of precast beams in progress -12-10-2014-_6
Erection of precast beams in progress -12-10-2014-_6

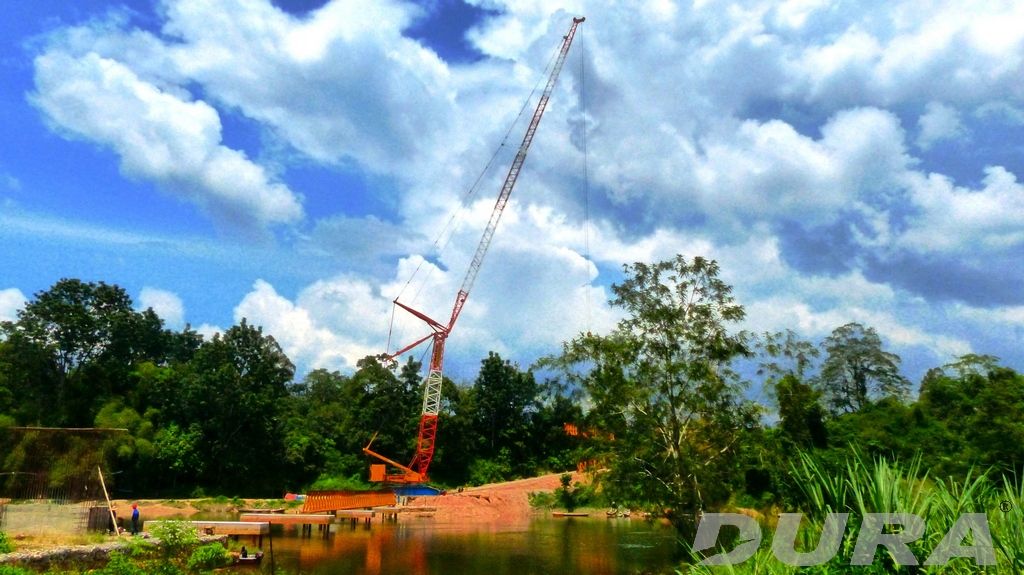

Erection of precast beams in progress -12-10-2014-_7
Erection of precast beams in progress -12-10-2014-_7

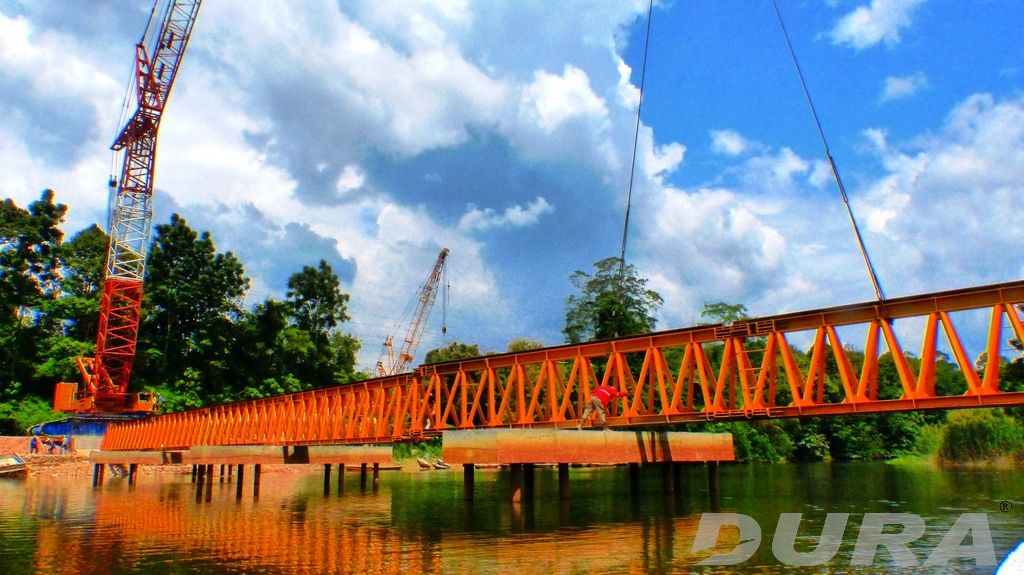

Erection of precast beams in progress -12-10-2014-_8
Erection of precast beams in progress -12-10-2014-_8

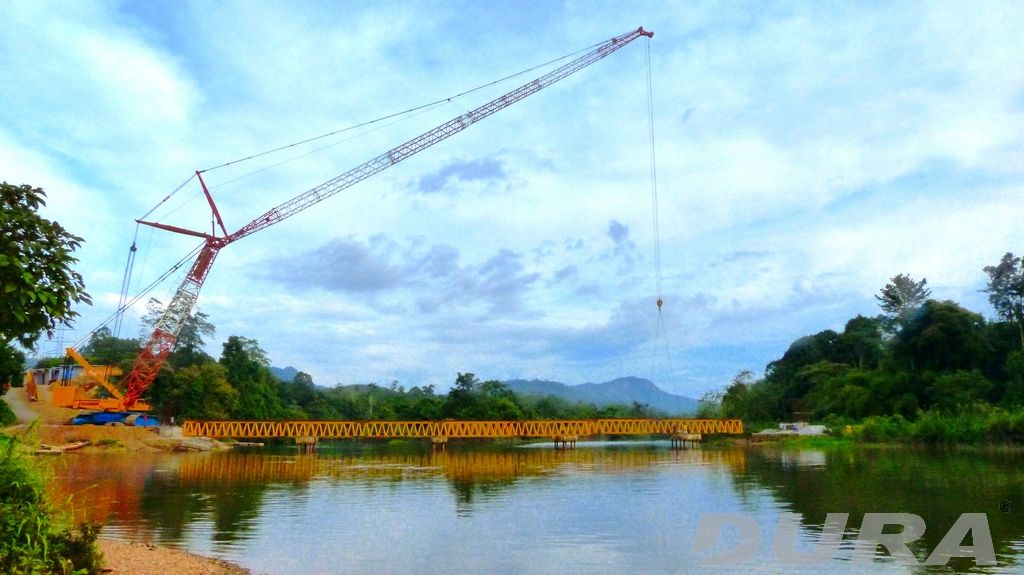

Erection of precast beams in progress -12-10-2014-_9
Erection of precast beams in progress -12-10-2014-_9
Erection of precast beams in progress -12-10-2014-_10
Erection of precast beams in progress -12-10-2014-_10

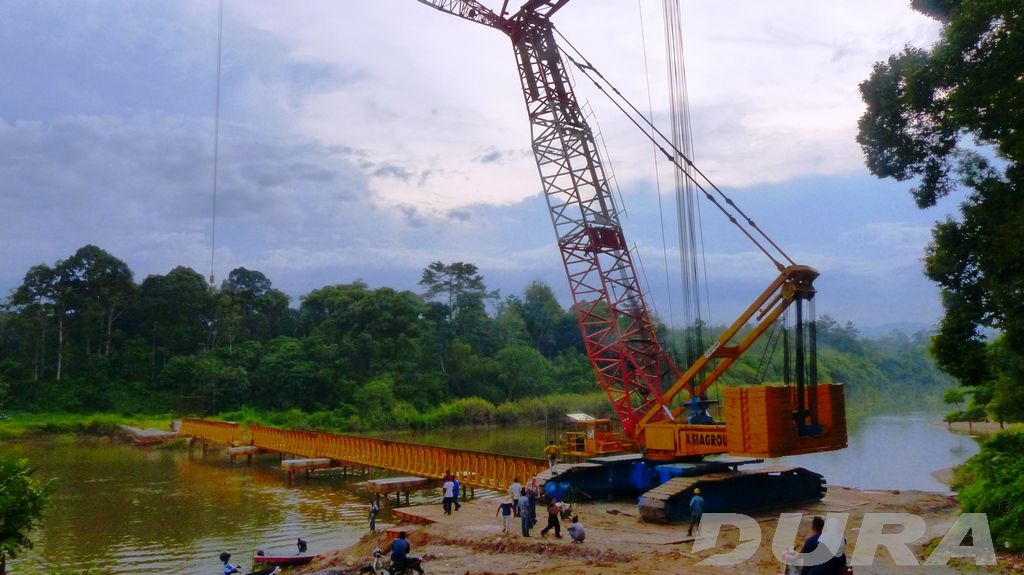

Erection of precast beams in progress -12-10-2014-_11
Erection of precast beams in progress -12-10-2014-_11

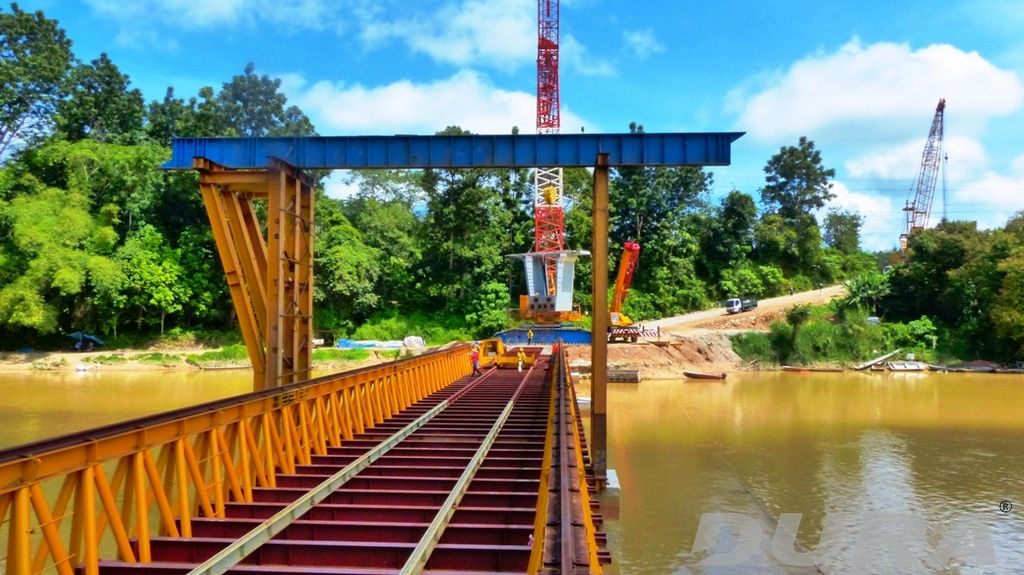

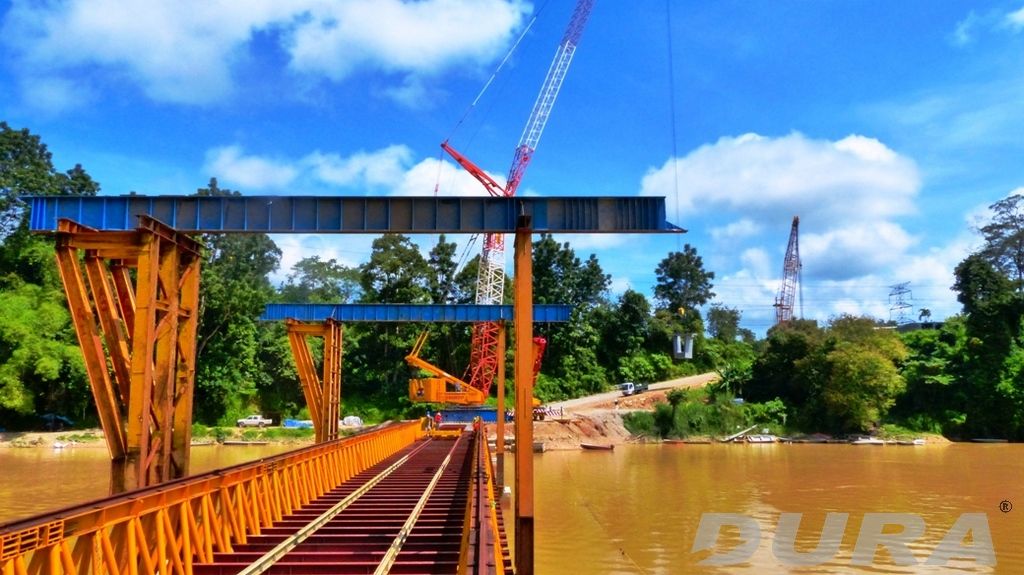

Erection of precast beams in progress -12-10-2014-_12
Erection of precast beams in progress -12-10-2014-_12
Erection of precast beams in progress -12-10-2014-_13
Erection of precast beams in progress -12-10-2014-_13
Erection of precast beams in progress -12-10-2014-_14
Erection of precast beams in progress -12-10-2014-_14

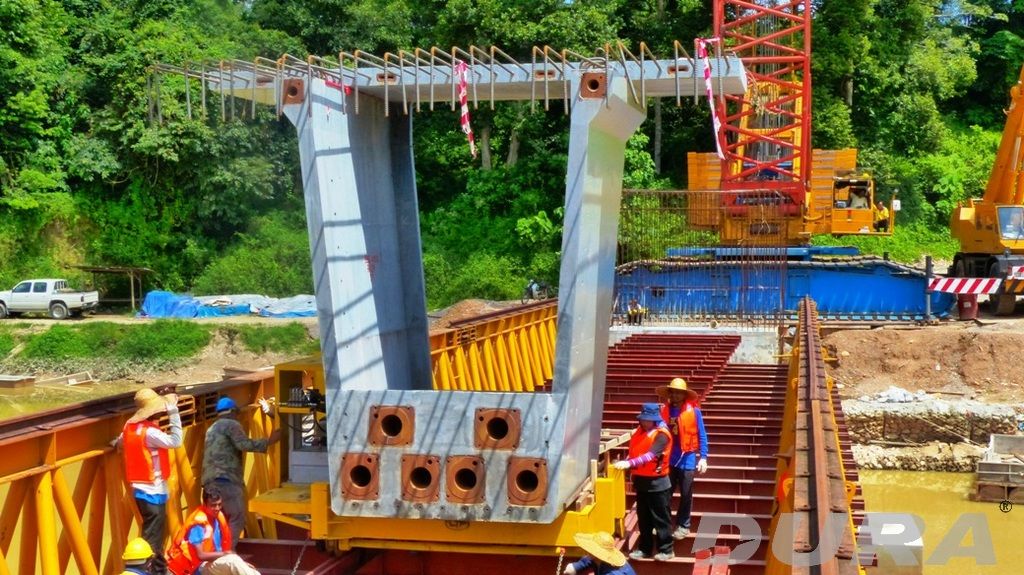

Erection of precast beams in progress -12-10-2014-_15
Erection of precast beams in progress -12-10-2014-_15

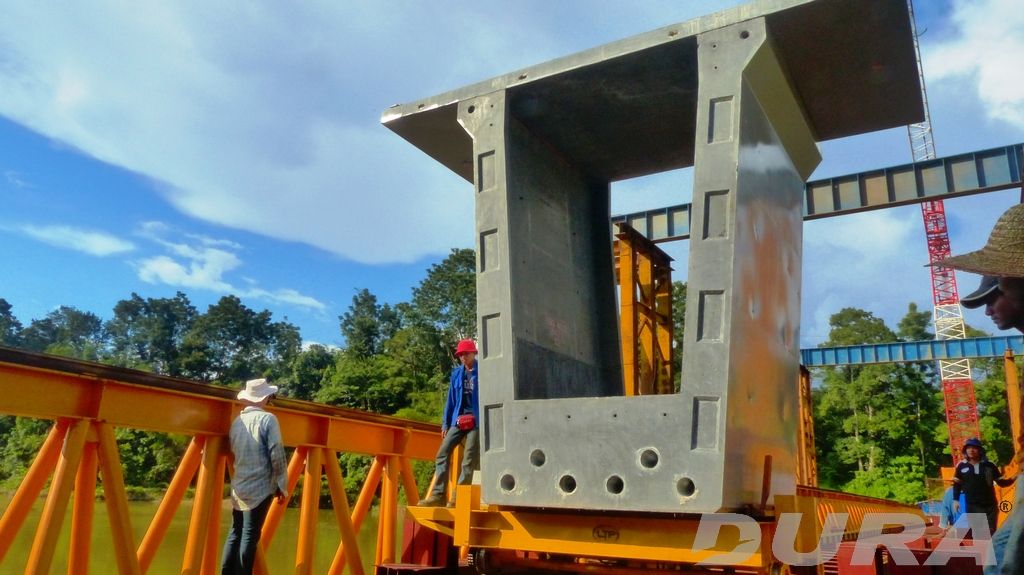

Erection of precast beams in progress -12-10-2014-_16
Erection of precast beams in progress -12-10-2014-_16

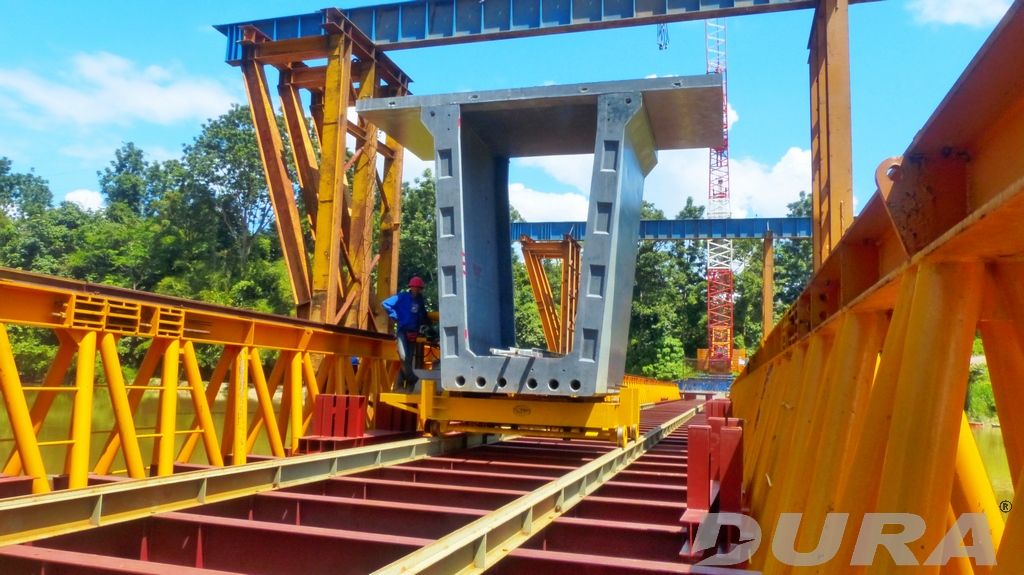

Erection of precast beams in progress -12-10-2014-_17
Erection of precast beams in progress -12-10-2014-_17

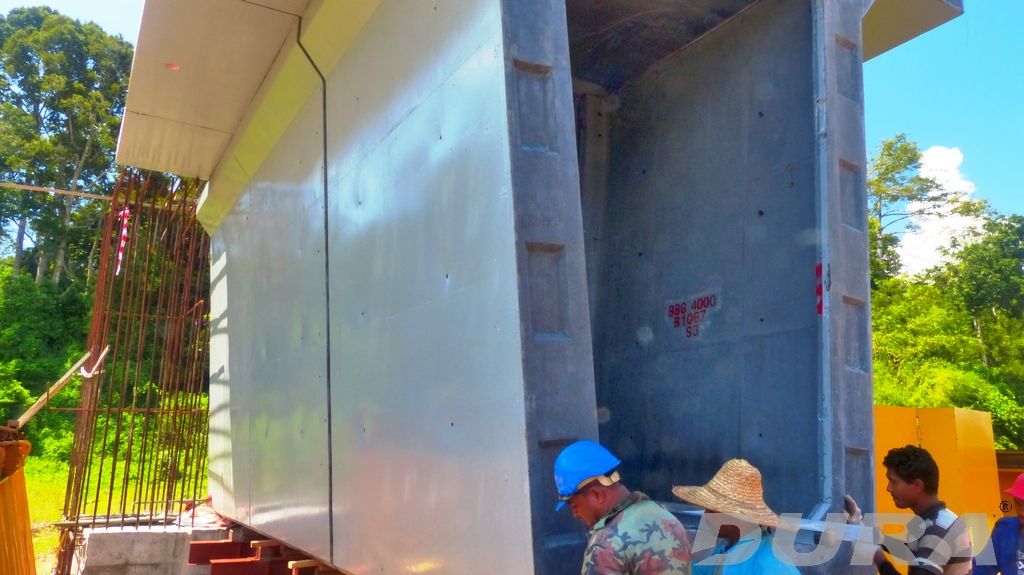

Erection of precast beams in progress -12-10-2014-_18
Erection of precast beams in progress -12-10-2014-_18
Erection of precast beams in progress -12-10-2014-_19
Erection of precast beams in progress -12-10-2014-_19
Erection of precast beams in progress -12-10-2014-_20
Erection of precast beams in progress -12-10-2014-_20

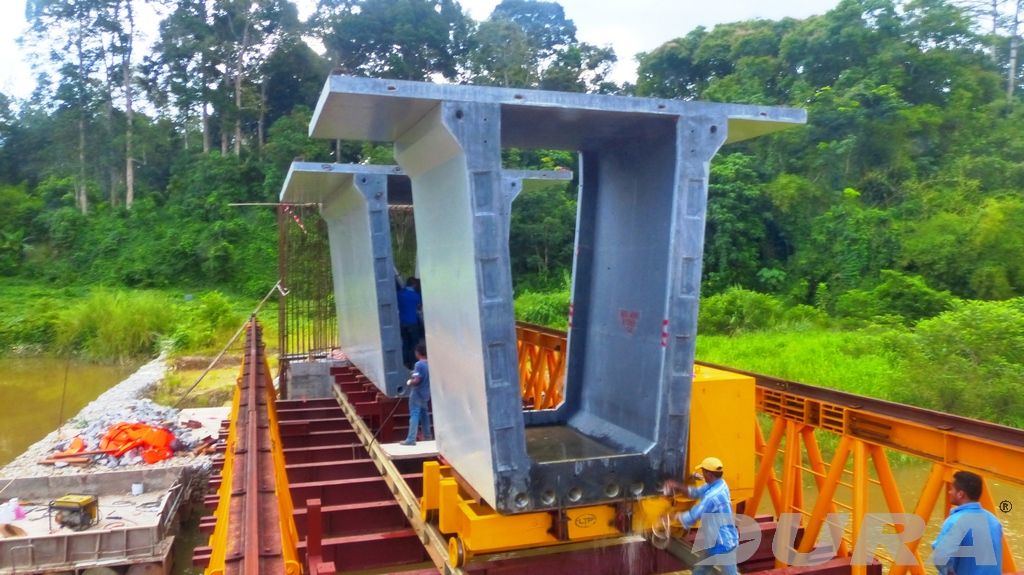

Erection of precast beams in progress -12-10-2014-_21
Erection of precast beams in progress -12-10-2014-_21
Erection of precast beams in progress -12-10-2014-_22
Erection of precast beams in progress -12-10-2014-_22

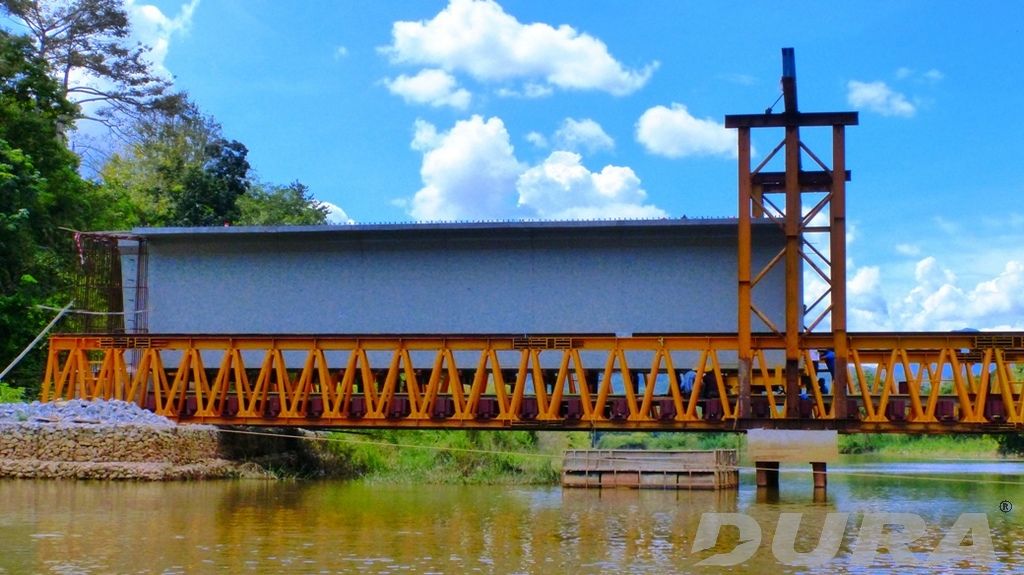

Erection of precast beams in progress -12-10-2014-_23
Erection of precast beams in progress -12-10-2014-_23

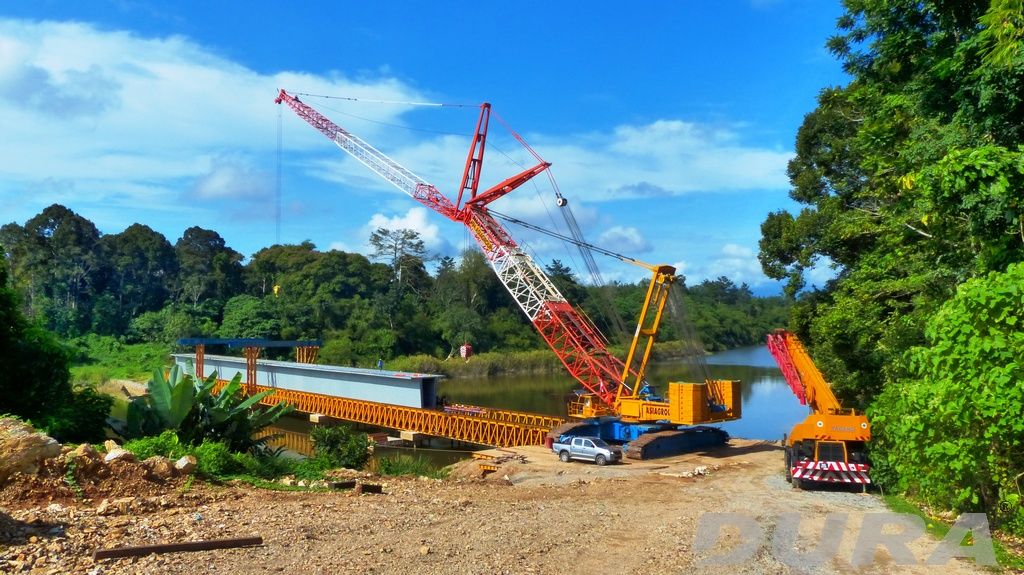

Erection of precast beams in progress -12-10-2014-_24
Erection of precast beams in progress -12-10-2014-_24

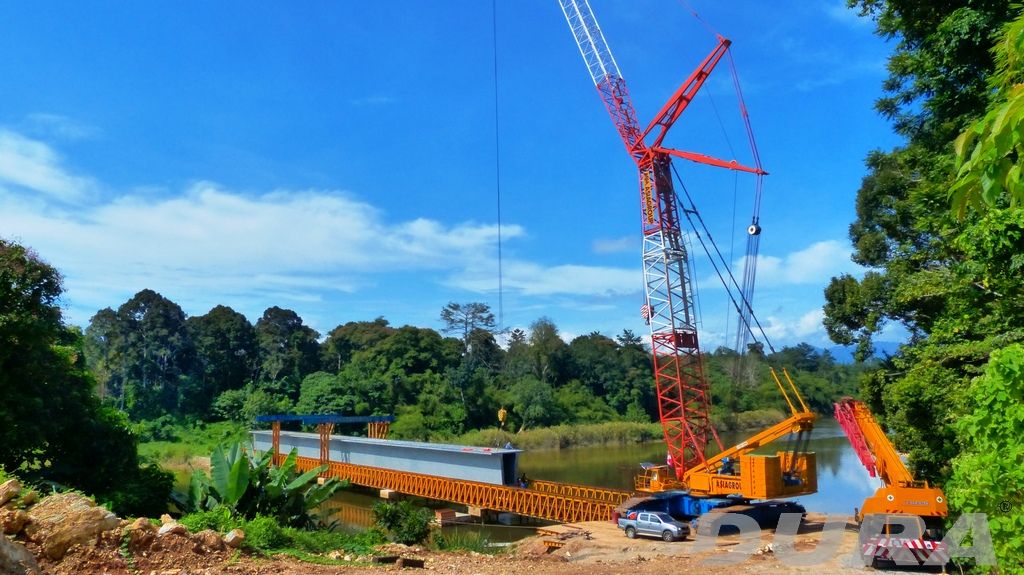

Erection of precast beams in progress -12-10-2014-_25
Erection of precast beams in progress -12-10-2014-_25

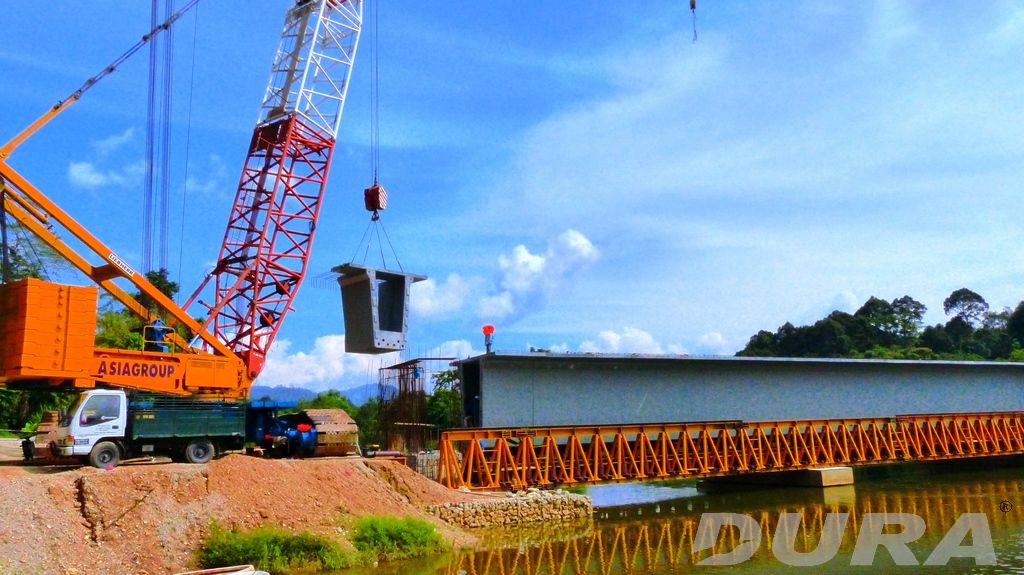

Erection of precast beams in progress -12-10-2014-_26
Erection of precast beams in progress -12-10-2014-_26

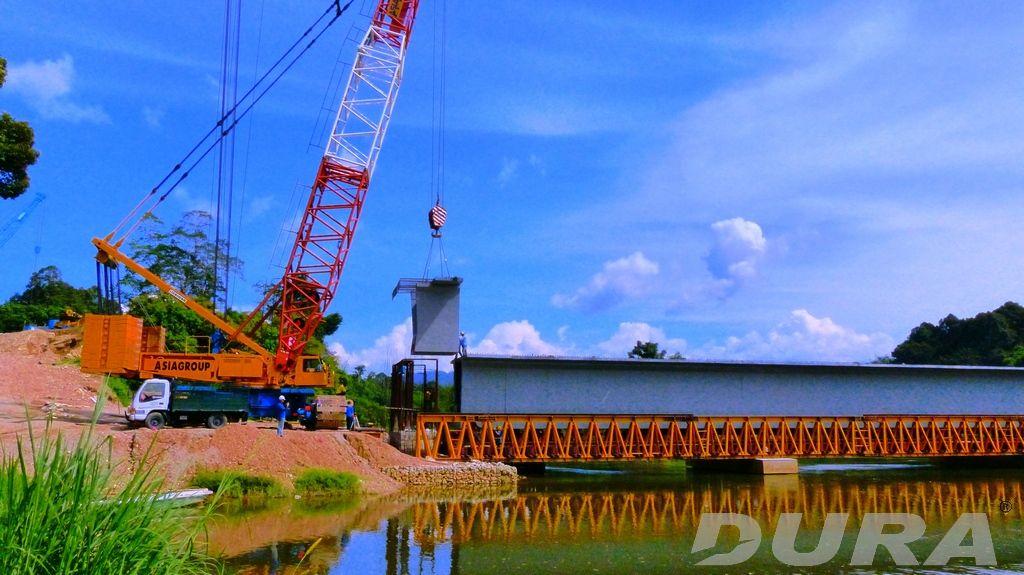

Erection of precast beams in progress -12-10-2014-_27
Erection of precast beams in progress -12-10-2014-_27

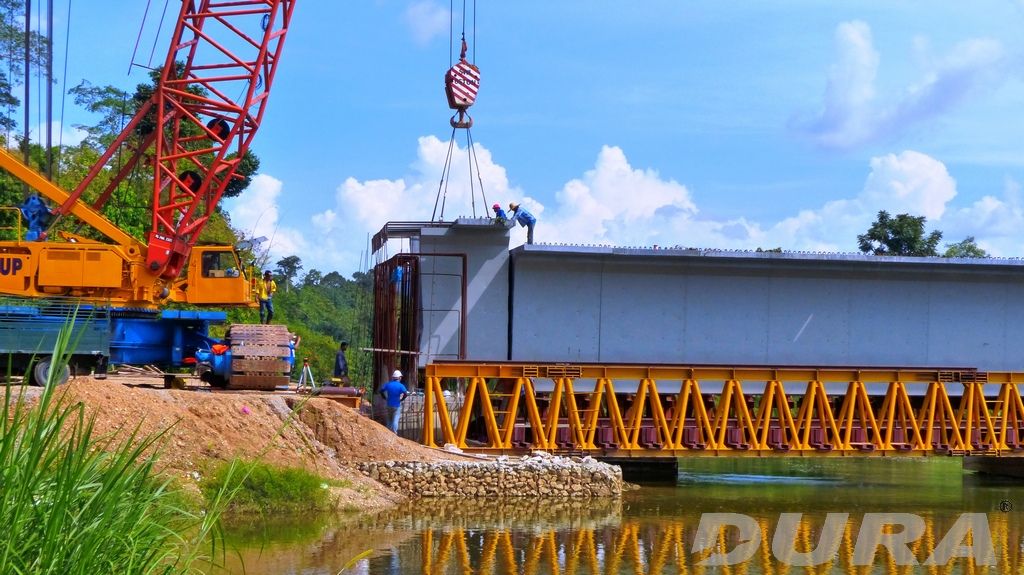

Erection of precast beams in progress -12-10-2014-_28
Erection of precast beams in progress -12-10-2014-_28

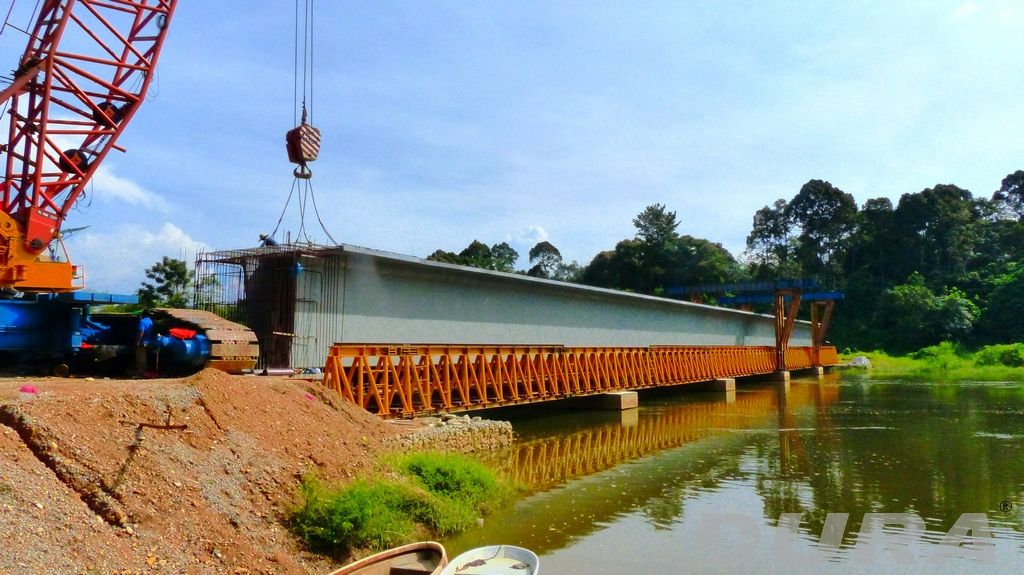

Erection of precast beams in progress -12-10-2014-_29
Erection of precast beams in progress -12-10-2014-_29
Erection of precast beams in progress -12-10-2014-_30
Erection of precast beams in progress -12-10-2014-_30
Erection of precast beams in progress -12-10-2014-_31
Erection of precast beams in progress -12-10-2014-_31

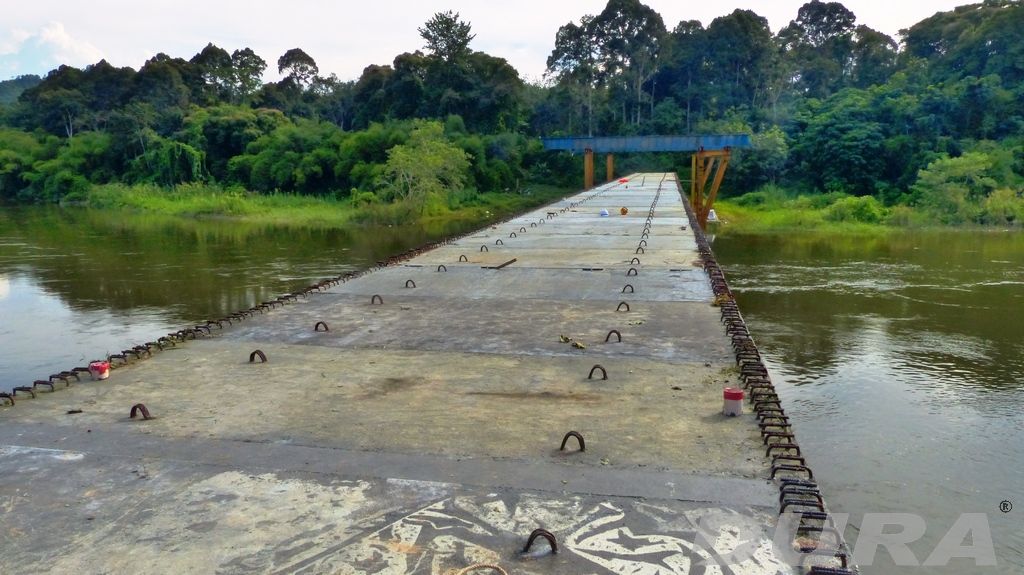

Erection of precast beams in progress -12-10-2014-_32
Erection of precast beams in progress -12-10-2014-_32
Erection of precast beams in progress -12-10-2014-_33
Erection of precast beams in progress -12-10-2014-_33

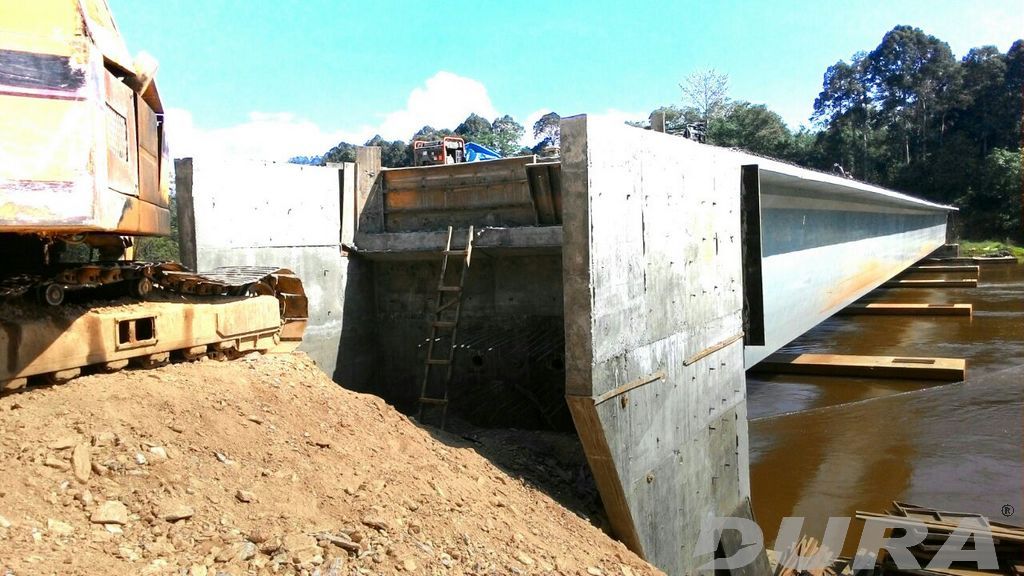

Erection of precast beams in progress -12-10-2014-_34
Erection of precast beams in progress -12-10-2014-_34

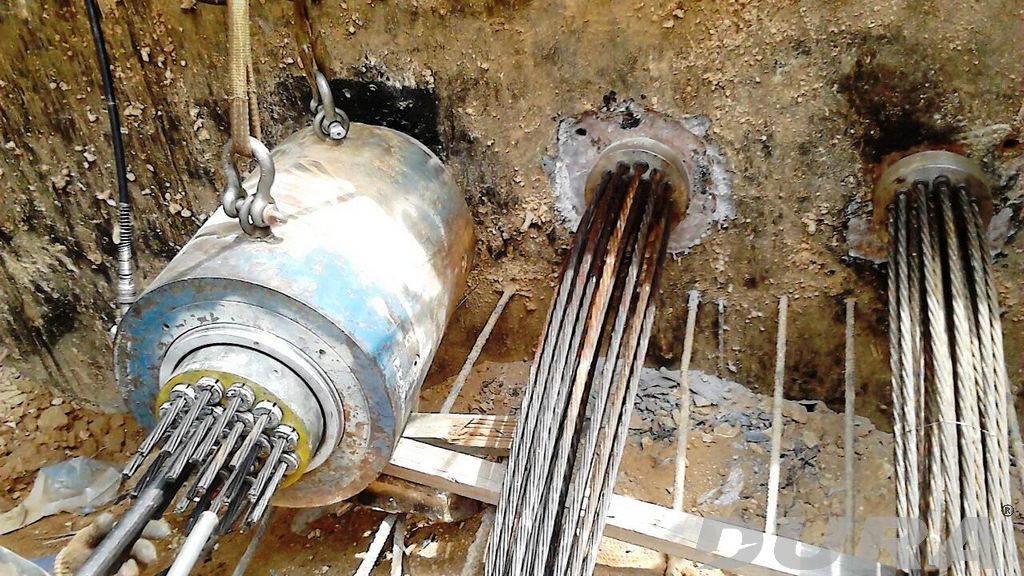

Erection of precast beams in progress -12-10-2014-_35
Erection of precast beams in progress -12-10-2014-_35

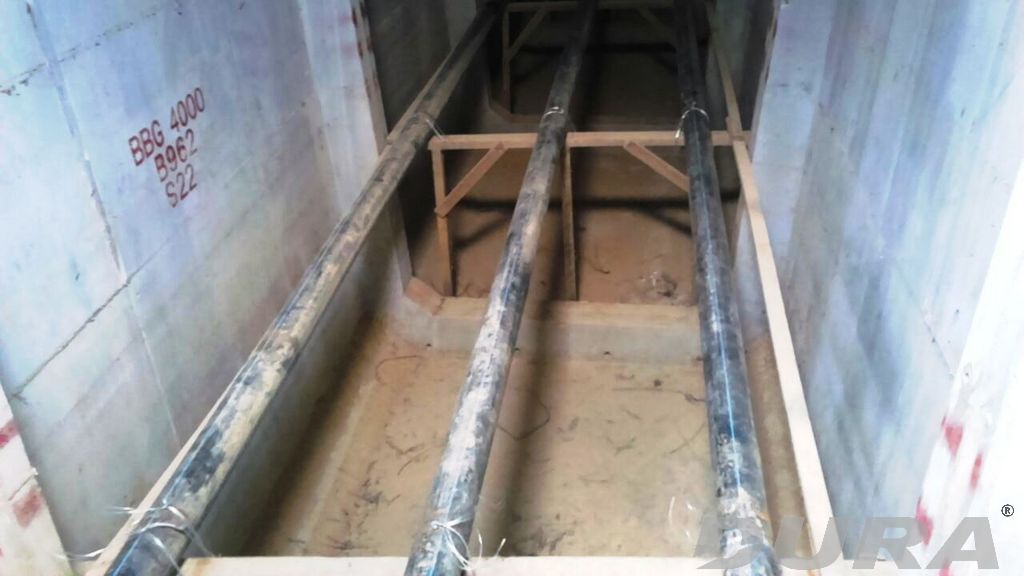

Erection of precast beams in progress -12-10-2014-_36
Erection of precast beams in progress -12-10-2014-_36
Erection of precast beams in progress -12-10-2014-_37
Erection of precast beams in progress -12-10-2014-_37
Erection of precast beams in progress -12-10-2014-_38
Erection of precast beams in progress -12-10-2014-_38
Erection of precast beams in progress -12-10-2014-_39
Erection of precast beams in progress -12-10-2014-_39
Erection of precast beams in progress -12-10-2014-_40
Erection of precast beams in progress -12-10-2014-_40

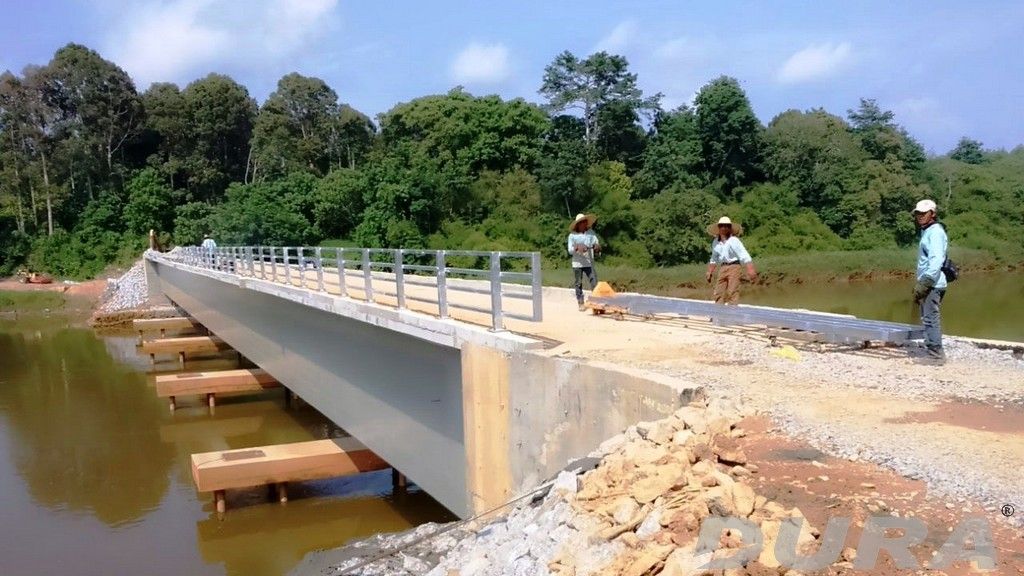

Erection of precast beams in progress -12-10-2014-_41
Erection of precast beams in progress -12-10-2014-_41

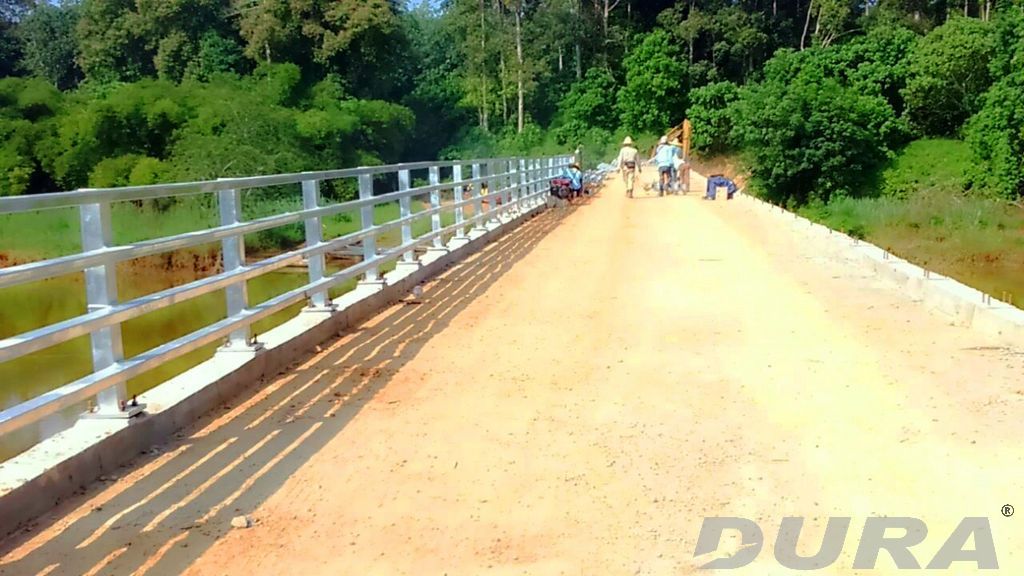

Erection of precast beams in progress -12-10-2014-_42
Erection of precast beams in progress -12-10-2014-_42

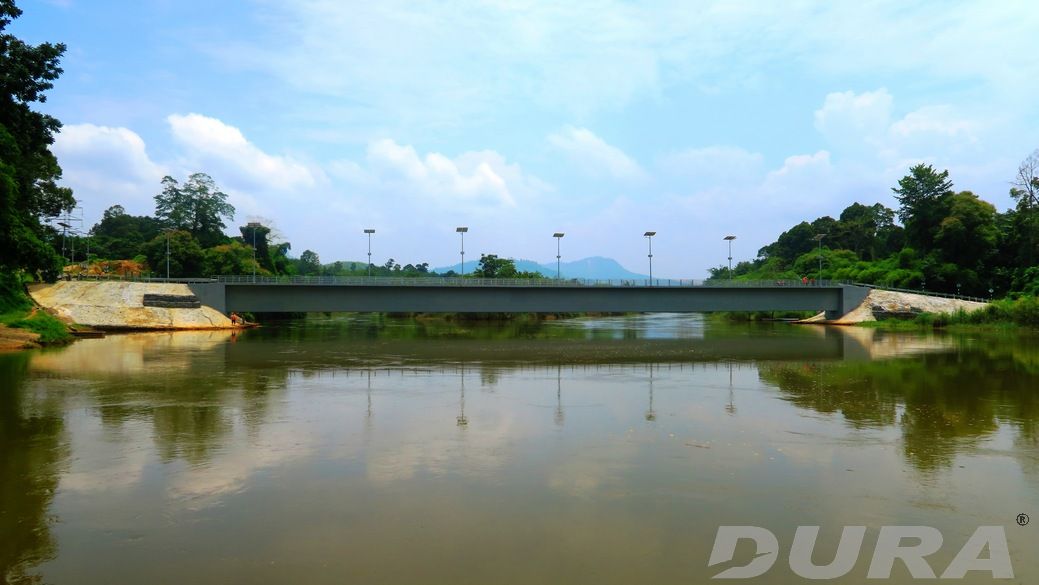

Erection of precast beams in progress -12-10-2014-_43
Erection of precast beams in progress -12-10-2014-_43

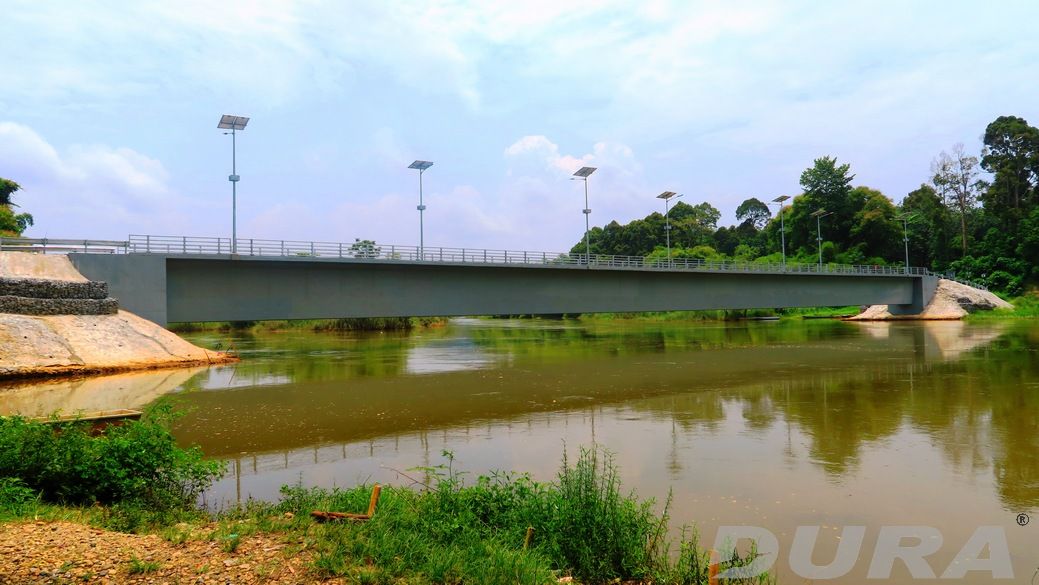

Erection of precast beams in progress -12-10-2014-_44
Erection of precast beams in progress -12-10-2014-_44
Erection of precast beams in progress -12-10-2014-_45
Erection of precast beams in progress -12-10-2014-_45

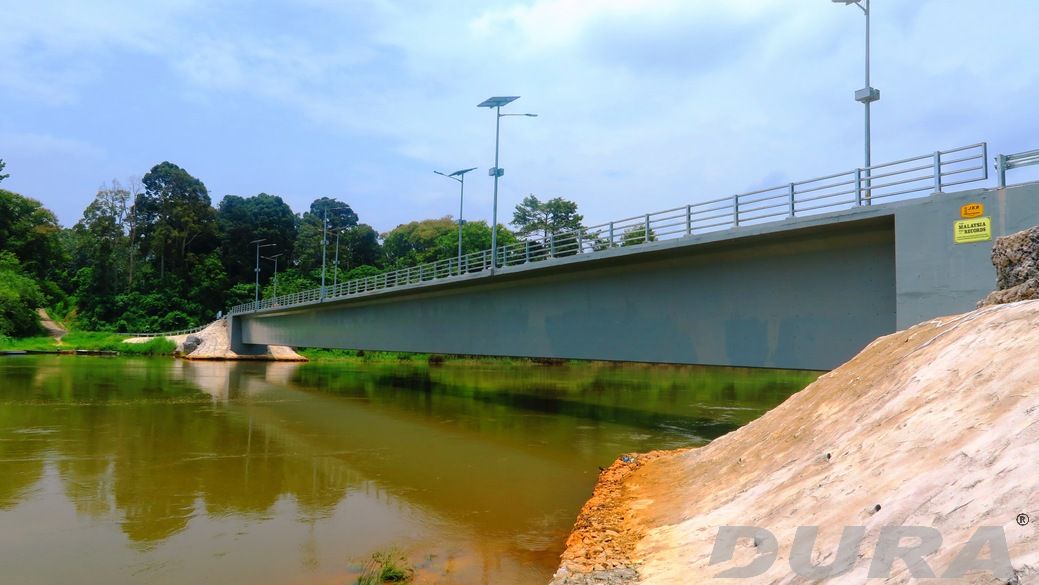

Erection of precast beams in progress -12-10-2014-_46
Erection of precast beams in progress -12-10-2014-_46
The completed Batu 6 bridge
The completed Batu 6 bridge
Project Title

Construct of a New Bridge Crossing Perak River, Batu 6, Kampung Rhui, Bandariang, Gerik, Hulu Perak District, Perak D.R.(Jambatan Menyeberangi Sungai Perak, Batu 6, Kampung Rhui, Bandariang, Gerik, Daerah Hulu Perak, Perak D.R.)

Project Year

2015

Status

Completed Project

Country

Malaysia

GPS Cordinates

5.45040N, 101.18660E

Structure Type

Single Span 100m long by 5.0m wide (MTB-R1) UHPC box brigde system.

Superstructure Feature

1 piece of DURA® Box Bridge Girder BBG4000-100m

Substructure Feature

24 nos. 300mm dia. micropiles per Abutment

Loading Type

Full HA + 30units HB loading (BD37/01) + 5 kPa Pedestrian

Client

JKR Perak

Consultant

Jurutera Perunding Concrete Technology

Contractor

ZA (Malaysia) Sdn Bhd (Class B)

Contract Period

24 months

Construction Status

Completed
