Single Span 23m Kampung Ulu Kenderong Bridge

  • Project Status

  • Select Country

  • Select Years

  • Reset

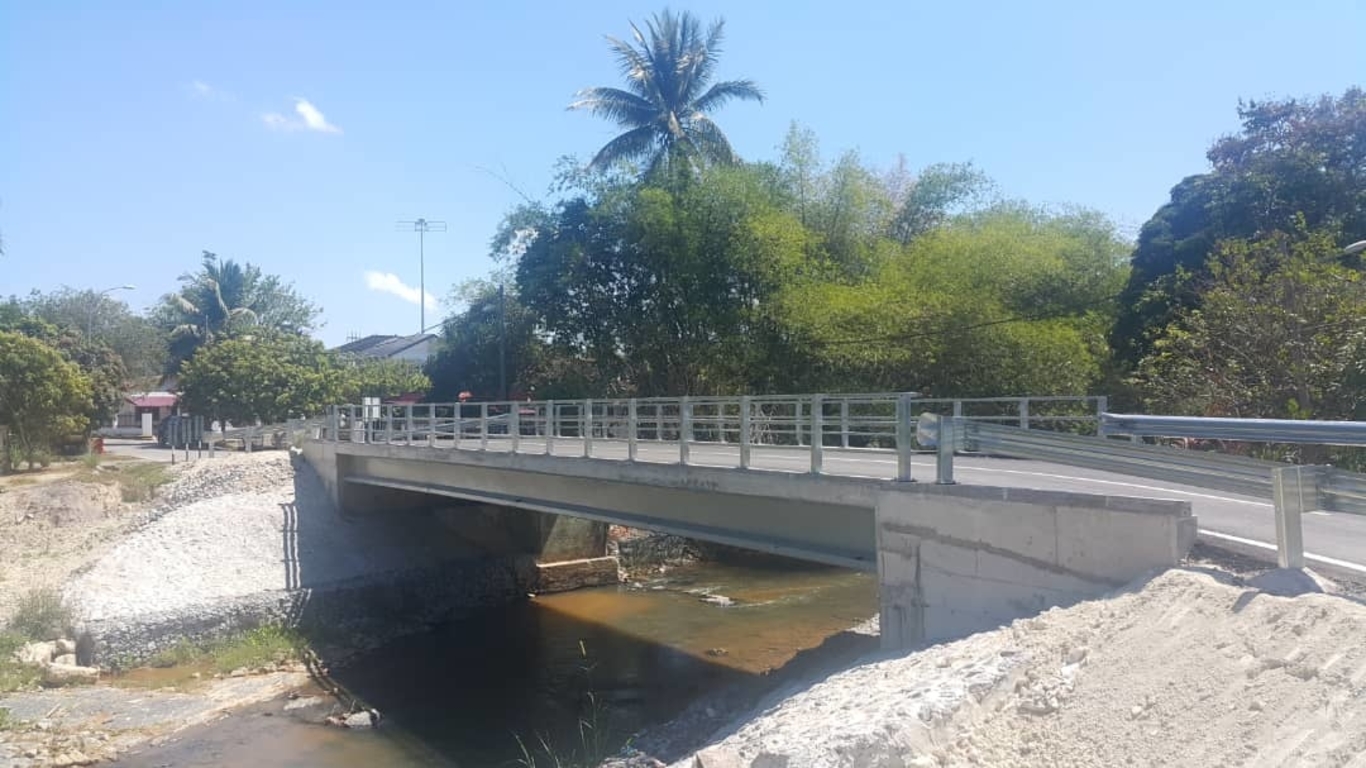

Completed Bridge_5
Completed Bridge_5

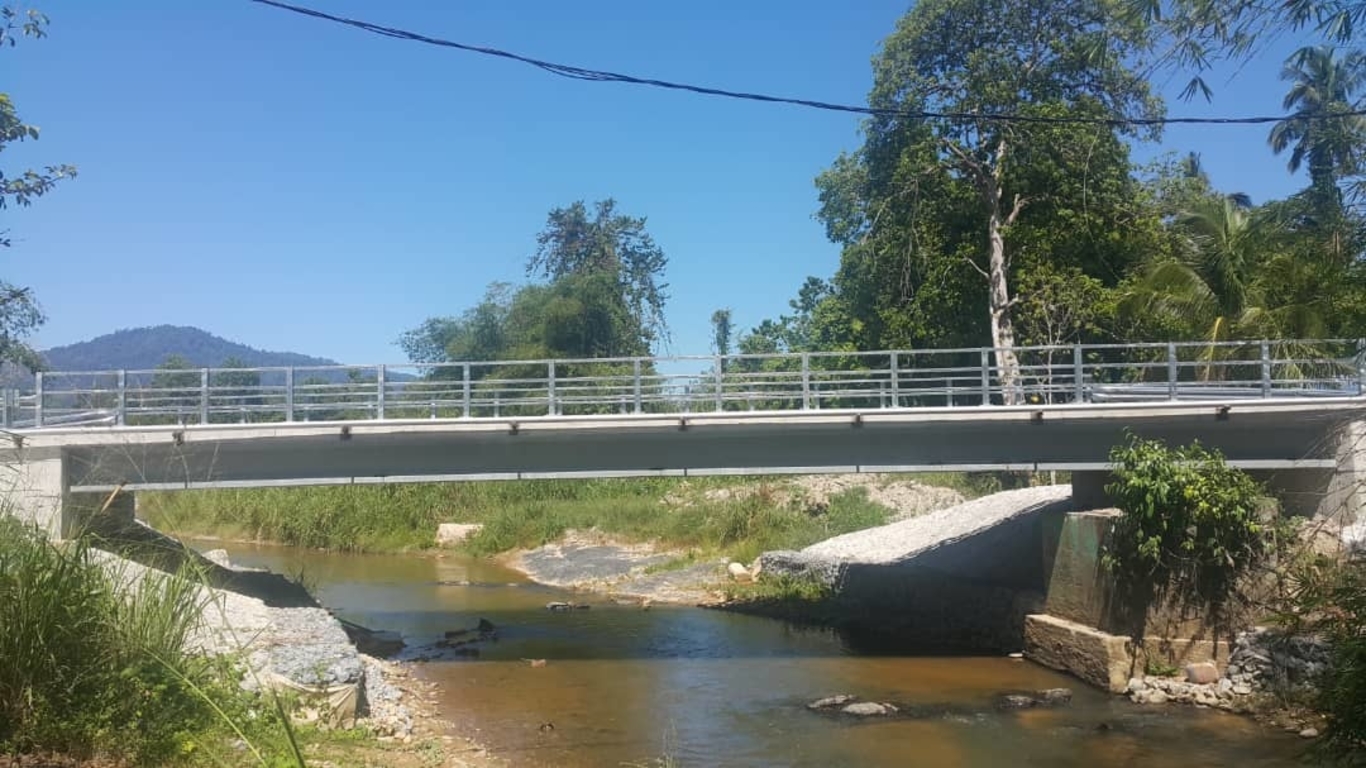

Completed Bridge_4
Completed Bridge_4

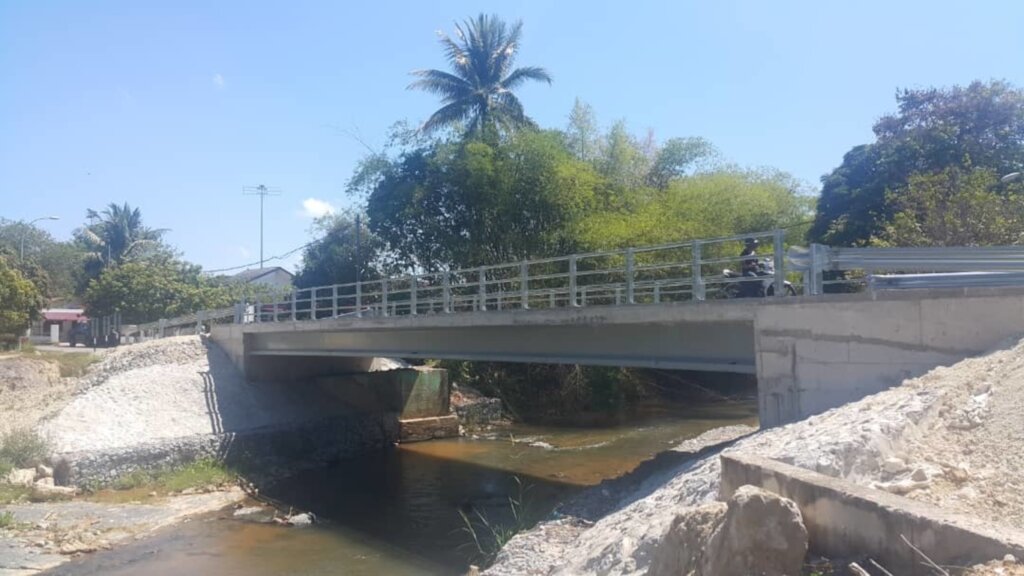

Completed Bridge_3
Completed Bridge_3

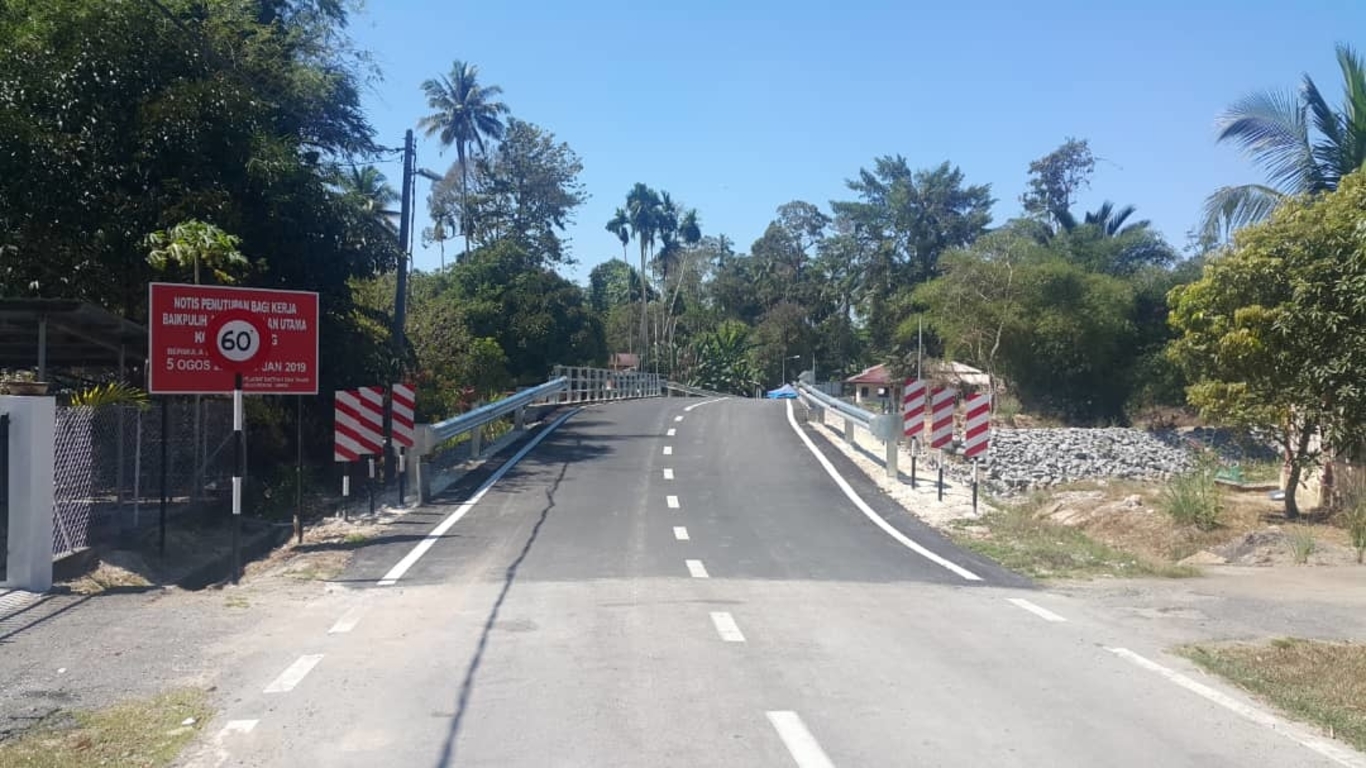

Completed Bridge_2
Completed Bridge_2

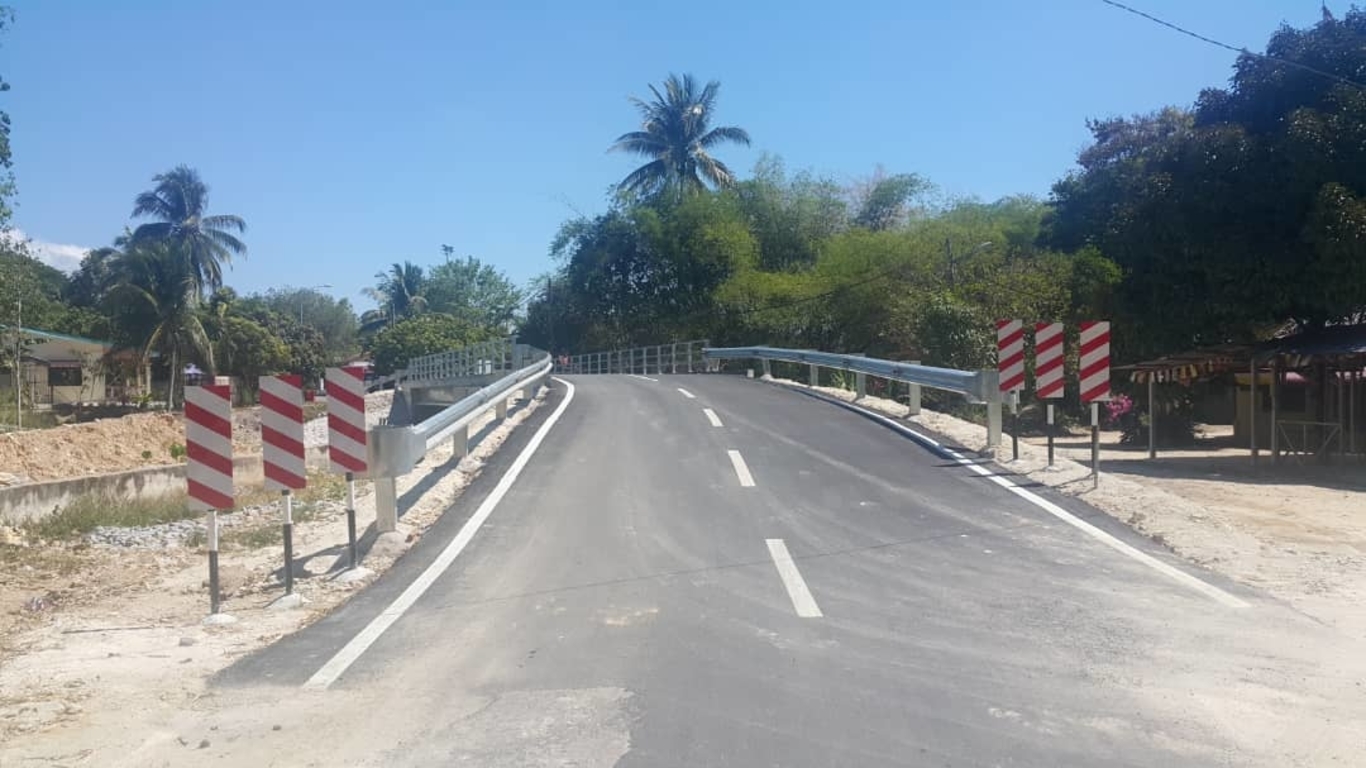

Completed Bridge
Completed Bridge

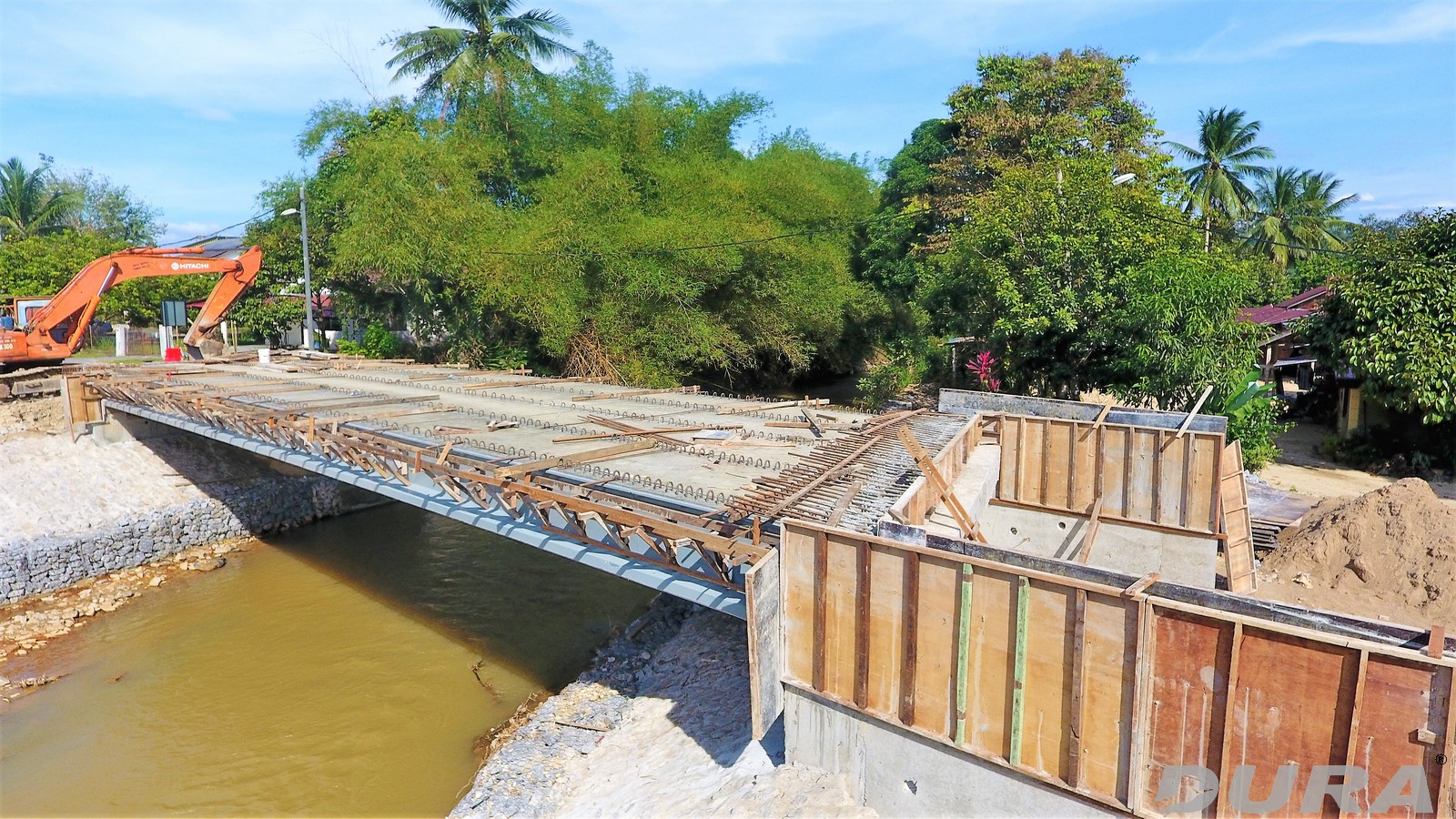

Formwork for wingwall.

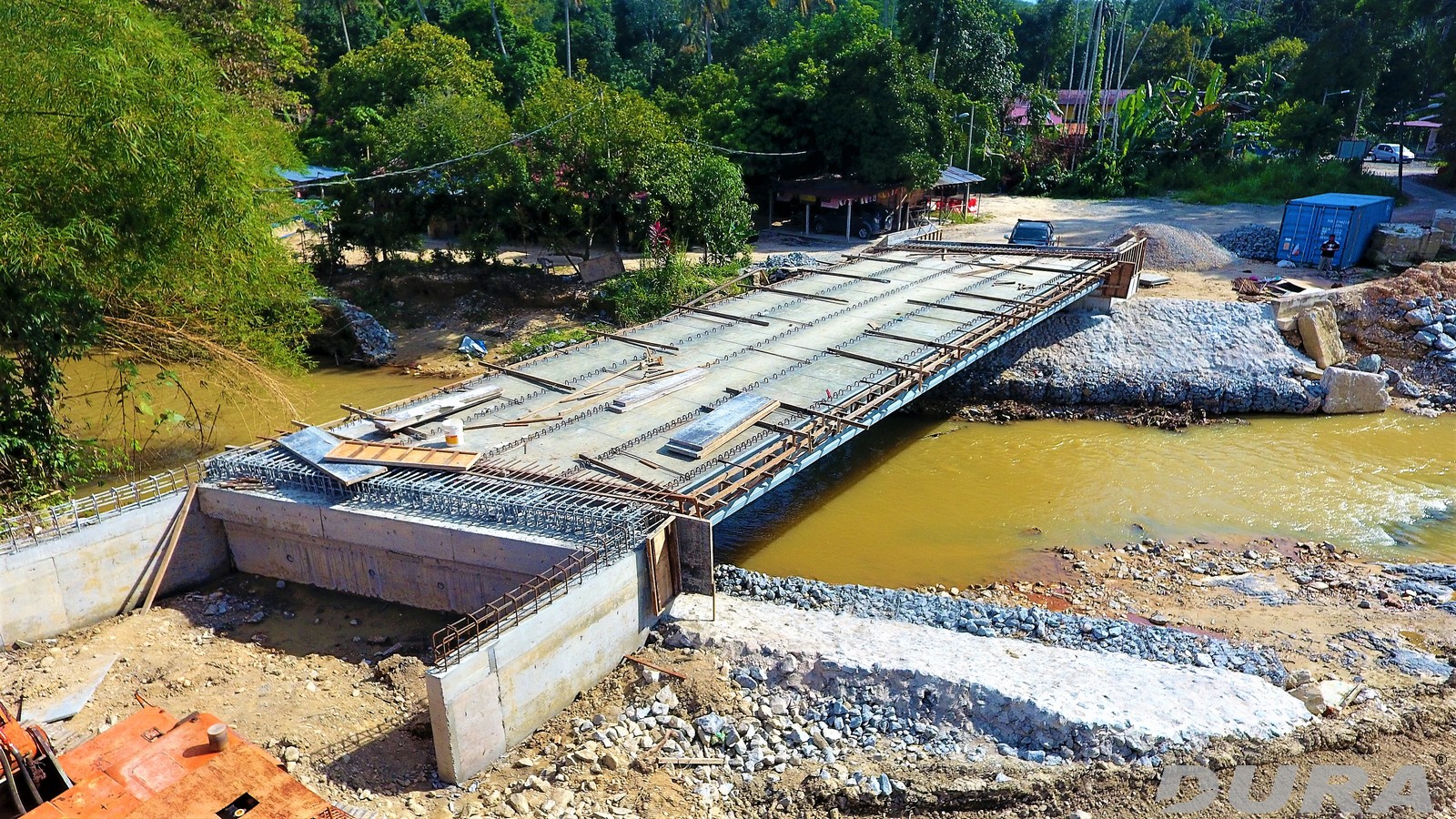

Installation of timber formwork for the edge deck (011118)

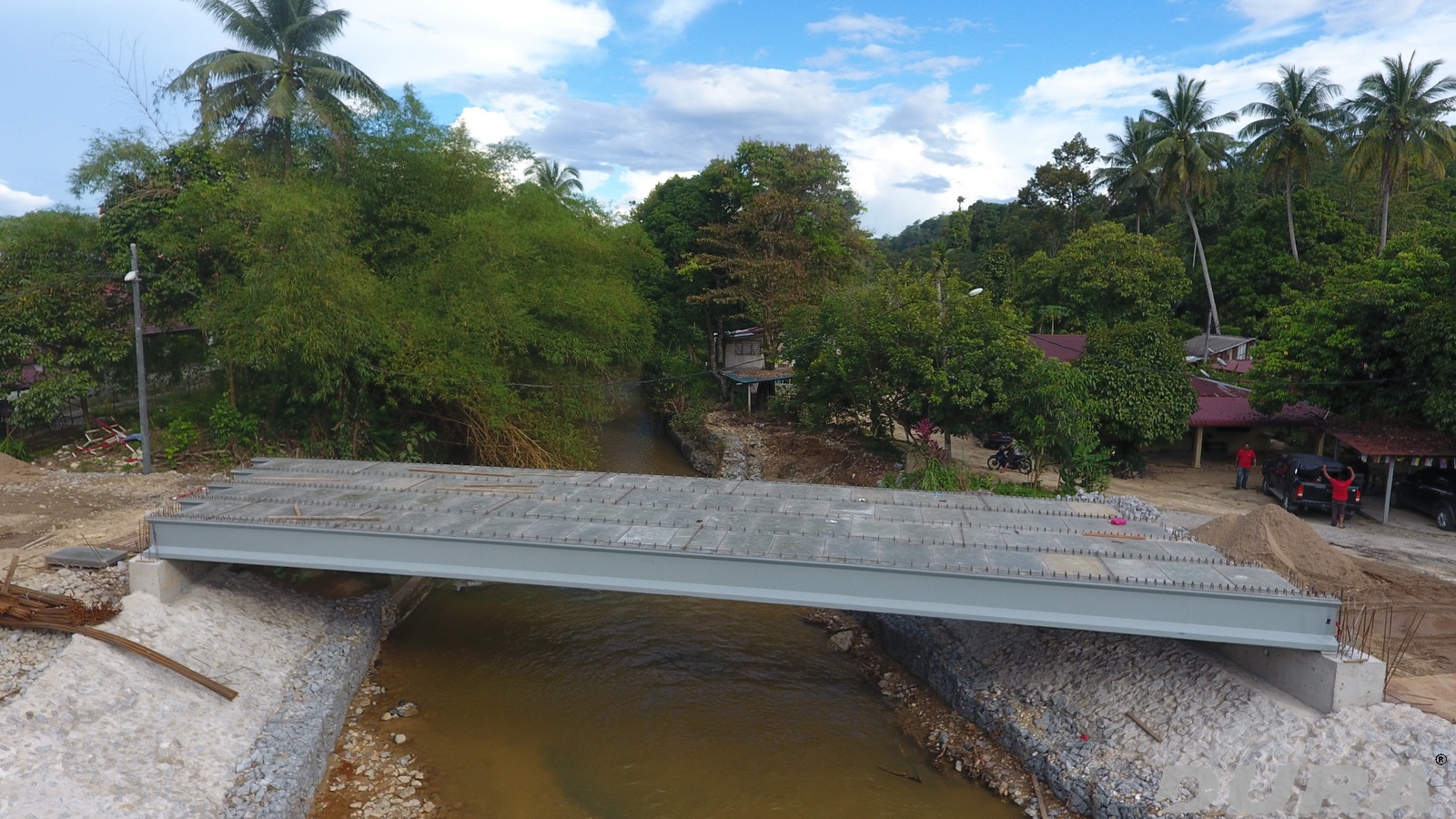

Left-in formwork installed.

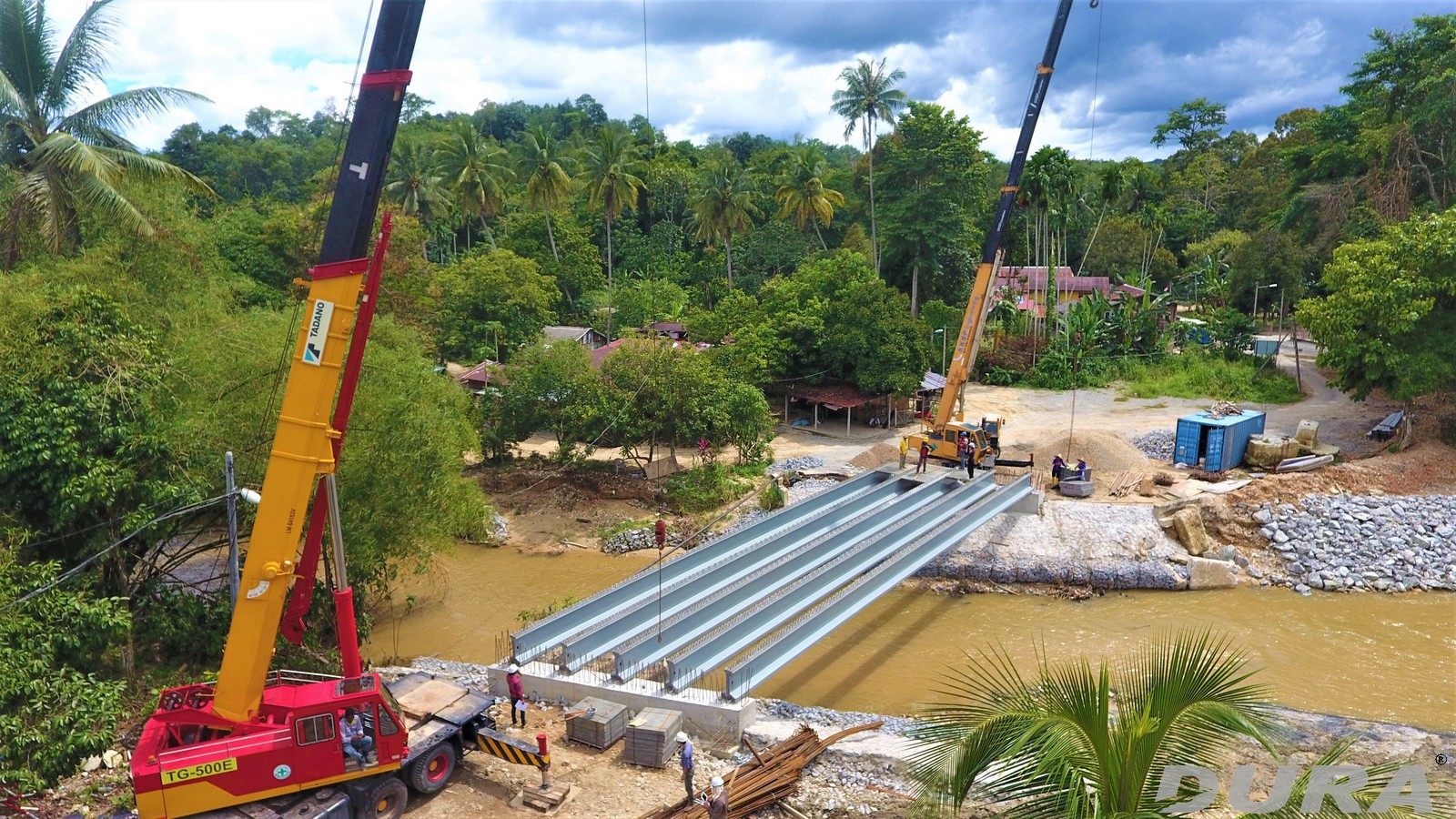

5 beams launched succesfully.

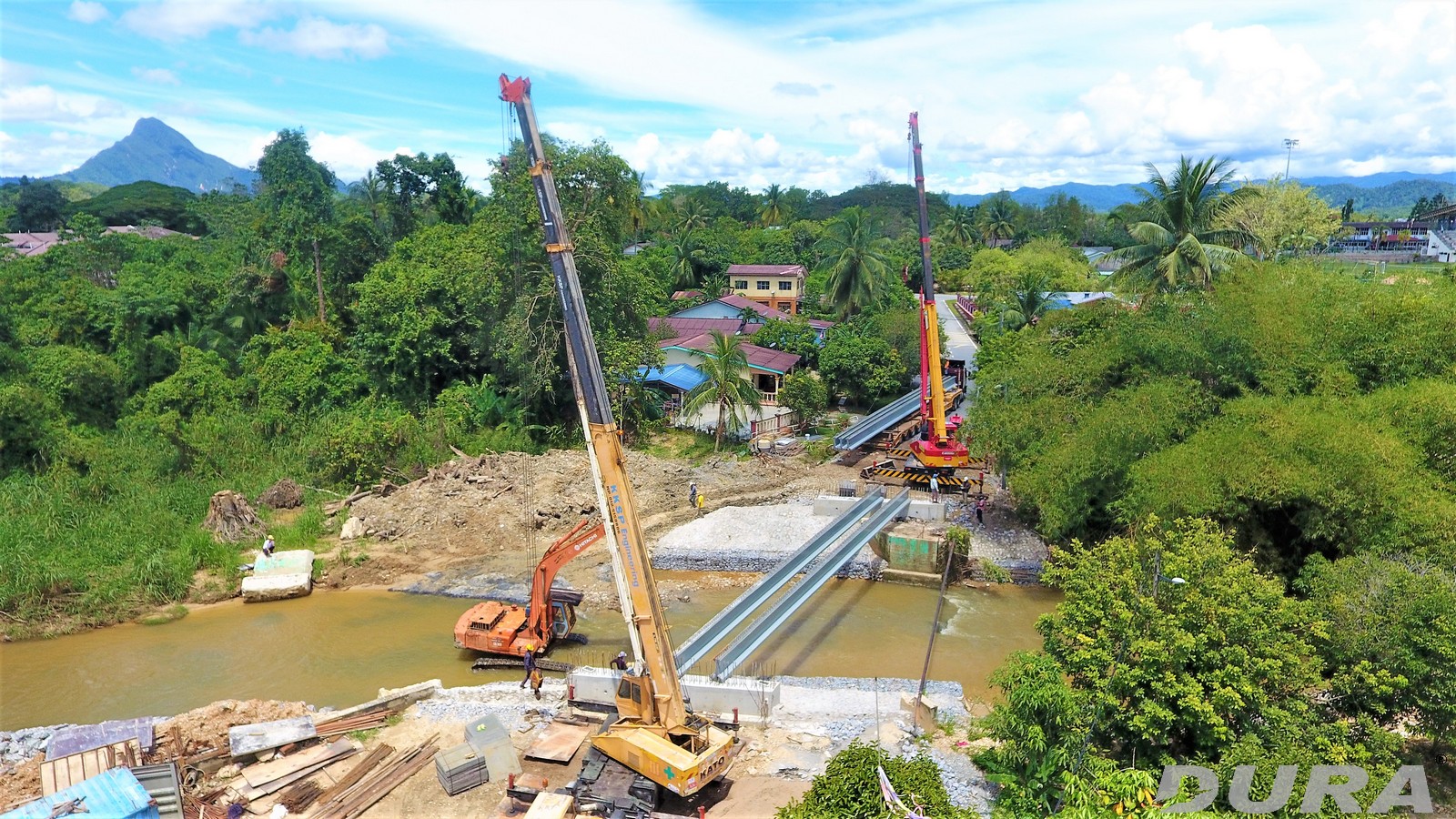

Beam launching (251018)

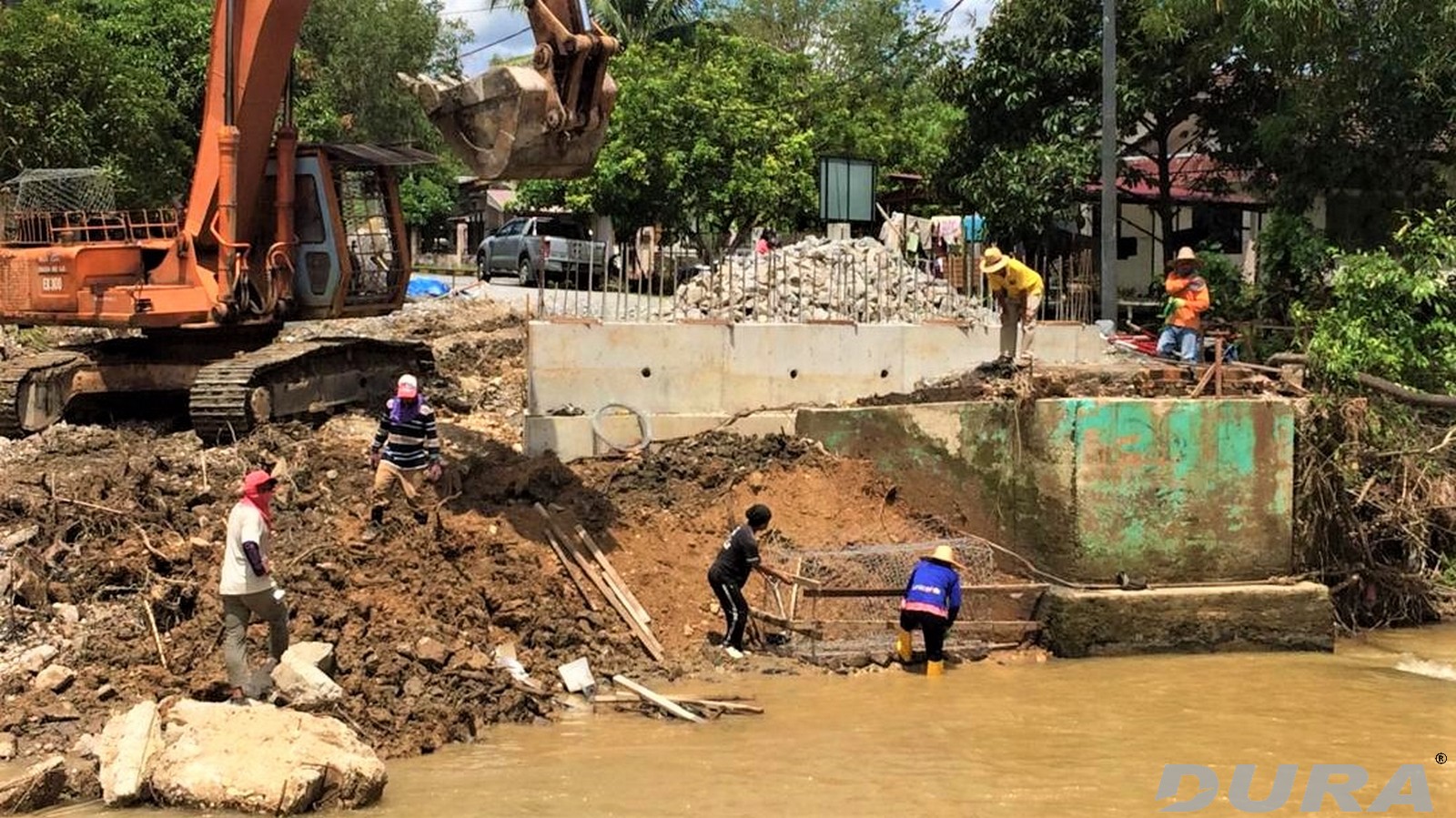

Abutments constructed (161018).
Abutments constructed (161018).
RC piles used as foundation.
RC piles used as foundation.

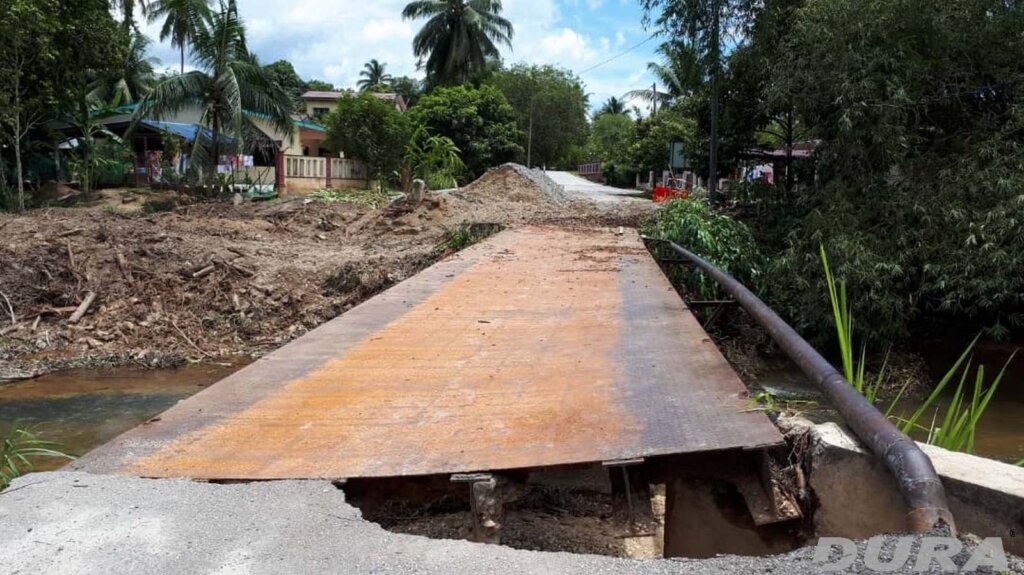

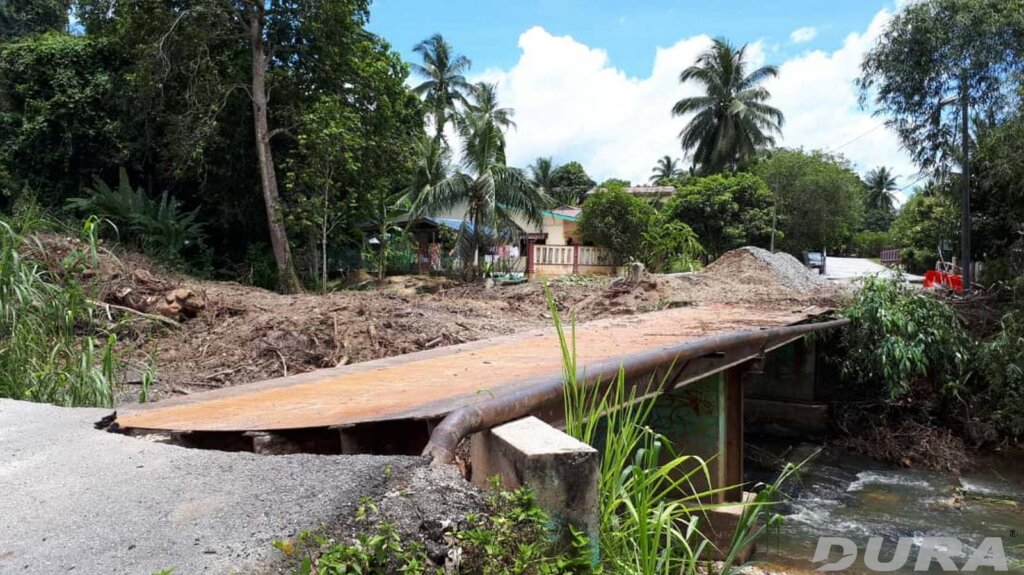

Dismantling of existing old bridge (060918)._2
Dismantling of existing old bridge (060918)._2
Dismantling of existing old bridge (060918).
Dismantling of existing old bridge (060918).

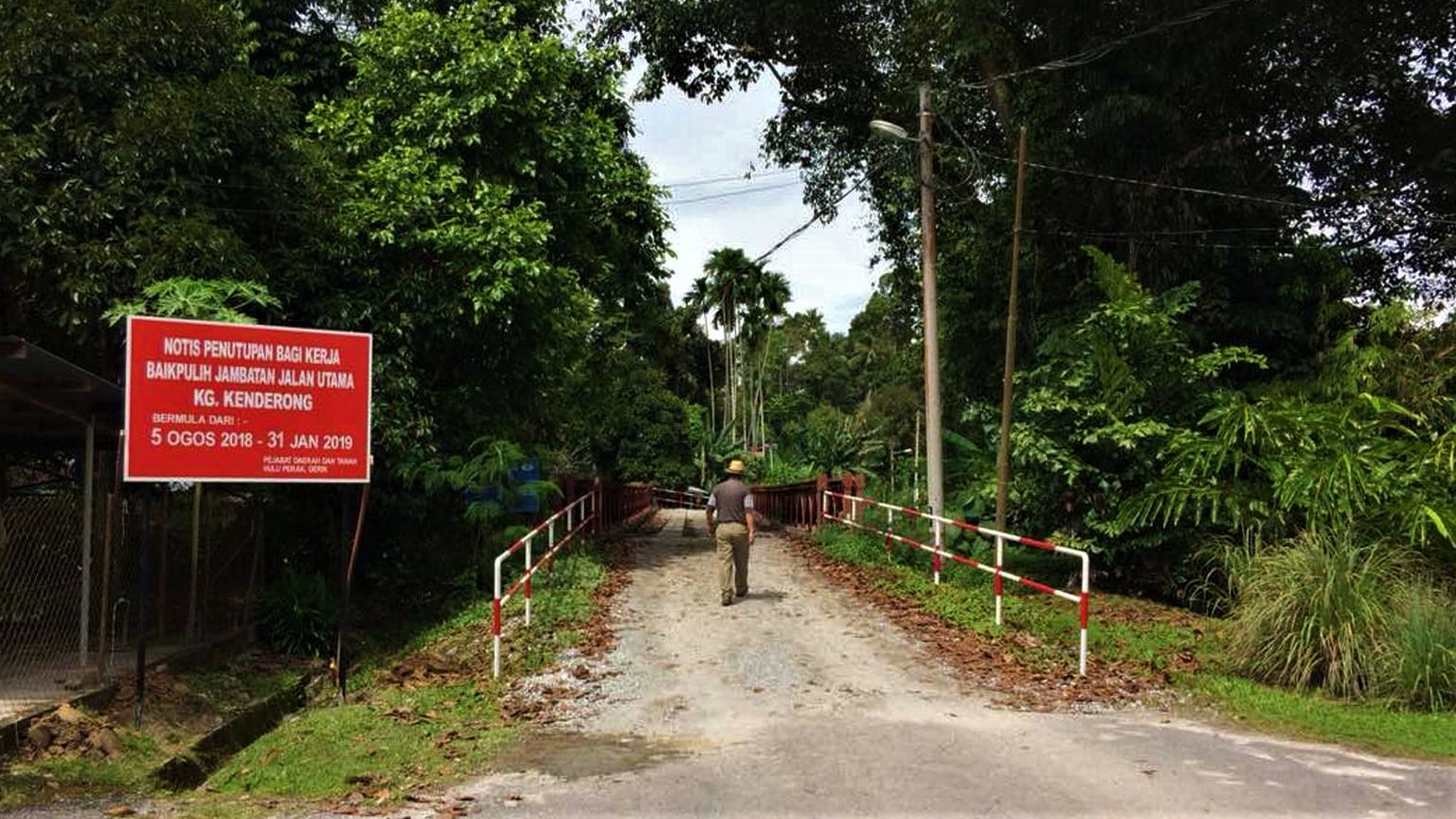

Project signboard for Kg. Ulu Kenderong
Project signboard for Kg. Ulu Kenderong
Project Title

To Replace Bridge Air Kudung, Kampung Ulu Kenderong, Gerik, Perak Darul Ridzuan(Membaikpulih Jambatan Air Kudung, Kampung Ulu Kenderong, Gerik, Perak Darul Ridzuan)

Project Year

2019

Status

Completed Project

Country

Malaysia

GPS Cordinates

5.4268350 N; 101.1214090 E

Structure Type

Single Span 23m by 7m Wide (Left & Right) Composite Bridge System.

Superstructure Feature

5 pieces of DURA® IB850-23m with Cast In-Situ RC Deck

Substructure Feature

Cast in-situ RC abutments

Foundation Feature

200 x 200mm dia. SQ RC. pile (Class B)

Loading Type

HA+ 30 units HB loadings (BD37/01)

Client

JABATAN TANAH GERIK Malaysia

Superintendent Officer (S.O.)

JABATAN TANAH GERIK Malaysia

Consultant

JPCT

Contractor

Dura Technology Sdn Bhd

Contract Period

4 months

Construction Status

Completed
