Single Span 55m DURA Composite Bridge used at Tumpat, Kelantan

  • Project Status

  • Select Country

  • Select Years

  • Reset
Sungai Batu Tampar bridge existing site
Sungai Batu Tampar bridge existing site
Piling work is in progress
Piling work is in progress
Casting of abutment A in progress
Casting of abutment A in progress
Unloading UBG2000 segment at open space (260516)
Unloading UBG2000 segment at open space (260516)
First beam DURA UBG2000-55m aligned (260516)
First beam DURA UBG2000-55m aligned (260516)
First beam DURA UBG2000-55m aligned (260516)_2
First beam DURA UBG2000-55m aligned (260516)_2

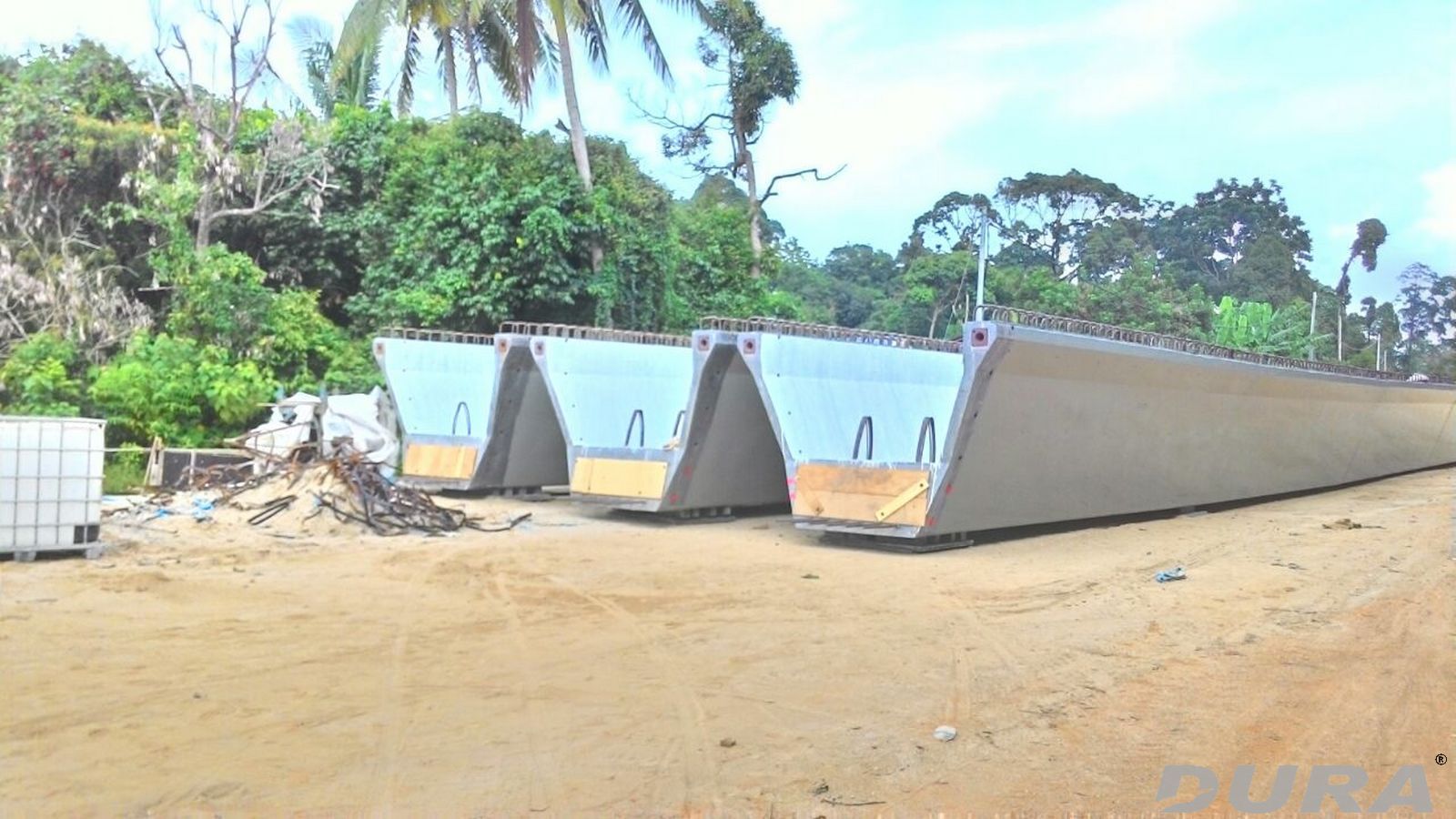

Three beams aligned
Three beams aligned
Abutments A and B partially constructed
Abutments A and B partially constructed
2 units of 160 tonens mobile cranes parked behind the abutments and ready for beam launching (171016)
2 units of 160 tonens mobile cranes parked behind the abutments and ready for beam launching (171016)
Lifting of first DURA UBG2000-55m
Lifting of first DURA UBG2000-55m
Two U beams positioned (171016)
Two U beams positioned (171016)
Six beams positioned (191016)
Six beams positioned (191016)
Lifting of last beams (191016)
Lifting of last beams (191016)
Seven number of DURA UBG2000-55m launched (201016)
Seven number of DURA UBG2000-55m launched (201016)
Side view of the new launched Tumpat bridge girders
Side view of the new launched Tumpat bridge girders
Construction of in-situ RC composite decking
Construction of in-situ RC composite decking
Construction of in-situ RC composite decking_2
Construction of in-situ RC composite decking_2
Construction of wingwall of abutment B
Construction of wingwall of abutment B
Construction of approach slab
Construction of approach slab
Installation of precast parapets
Installation of precast parapets
Newly finished single span 55M long fully-integral composite bridge
Newly finished single span 55M long fully-integral composite bridge
Completed Bridge
Completed Bridge
Completed Bridge_2
Completed Bridge_2
Completed Bridge_3
Completed Bridge_3
Completed Bridge_4
Completed Bridge_4
Project Title

Upgrading The Morak-Talent-Fourth Street [4] Tok Mek Ngah, Tumpat, Kelantan [Fasa 2].(Menaiktaraf Jalan Morak-Kebakat-Cabang Empat [4] Tok Mek Ngah, Tumpat, Kelantan [Fasa 2].)

Project Year

2017

Status

Completed Project

Country

Malaysia

GPS Cordinates

6.147124N, 102.189201 E

Structure Type

Single Span 55m x 22.5m wide Composite Bridge System.

Superstructure Feature

7 pieces of DURA® UBG2000-55m

Substructure Feature

2 nos. of cast in-situ RC abutments

Foundation Feature

500mm dia. Spun pile (Class B)

Loading Type

HA + KEL loading + 45 Units HB Loadings (BD37/01)

Client

Kerajaan Negeri Kelantan / JKR Kelantan

Consultant

Concrete Technology Sdn Bhd

Contractor

D’ Intan Trade Bina Sdn Bhd (G7)

Contract Period

18 months

Construction Status

Completed
