Single Span UHPC Bridge used at Sungai Chenerai from Tol Chenor to Bandar Tun Abdul Razak

  • Project Status

  • Select Country

  • Select Years

  • Reset
Existing Sg Chenerai Bridge from Tol Chenor to Bandar Tun Abdul Razak
Existing Sg Chenerai Bridge from Tol Chenor to Bandar Tun Abdul Razak
Existing Sg Chenerai Bridge from Tol Chenor to Bandar Tun Abdul Razak_2
Existing Sg Chenerai Bridge from Tol Chenor to Bandar Tun Abdul Razak_2
RC piles installed.
RC piles installed.
Unloading of DURA U beam.
Unloading of DURA U beam.
Assembly of DURA UBG2000-50m (020319).
Assembly of DURA UBG2000-50m (020319).
Assembly of U segment using 45 tonnes mobile crane.
Assembly of U segment using 45 tonnes mobile crane.
Installation of strands (070419).
Installation of strands (070419).

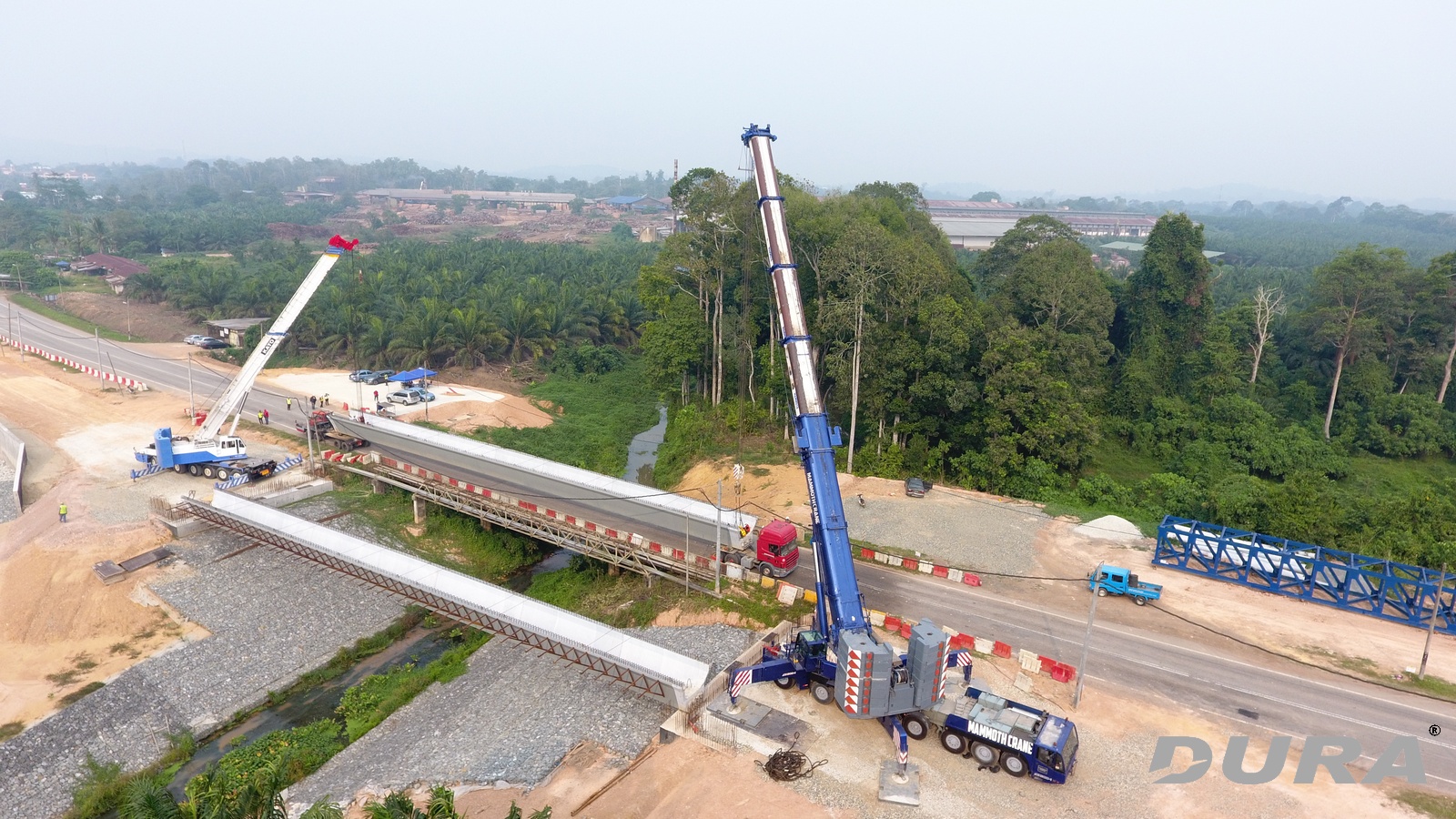

All-beams-launched
Preparation of formwork for construction of in-situ RC deck.
Preparation of formwork for construction of in-situ RC deck.
Left-in formwork used between DURA U beams.
Left-in formwork used between DURA U beams.
Fixing rebars for the RC deck.
Fixing rebars for the RC deck.
RC deck completed.
RC deck completed.
Project Title

To Construct Bridge at Sungai Chenerai from Tol Chenor to Bandar Tun Abdul Razak Jengka, Maran, Pahang.(Menaiktaraf Jalan Persekutuan FT 83 Dari Tol Chenor Ke Bandar Tun Abdul Razak Jengka, Maran, Pahang)

Project Year

2018

Status

Completed Project

Country

Malaysia

GPS Cordinates

3.7355540 N; 102.5382080 E

Structure Type

Single Span 50m by 14m Wide (Left & Right) Composite Bridge System.

Superstructure Feature

3 pieces of DURA® UBG2000-50m with Cast In-Situ RC Deck

Substructure Feature

Cast in-situ RC abutments

Foundation Feature

300mm dia. Micropiles (Class B)

Loading Type

HA+ 45 units HB loadings (BD37/01)

Client

JKR Malaysia

Superintendent Officer (S.O.)

JKR Malaysia

Consultant

DPI Konsult Sdn Bhd

Contractor

Iswarabena Sdn Bhd

Contract Period

12 months

Construction Status

Completed
