Sungai Langat Bridge using DURA UBG4000 for 105m

  • Project Status

  • Select Country

  • Select Years

  • Reset
default

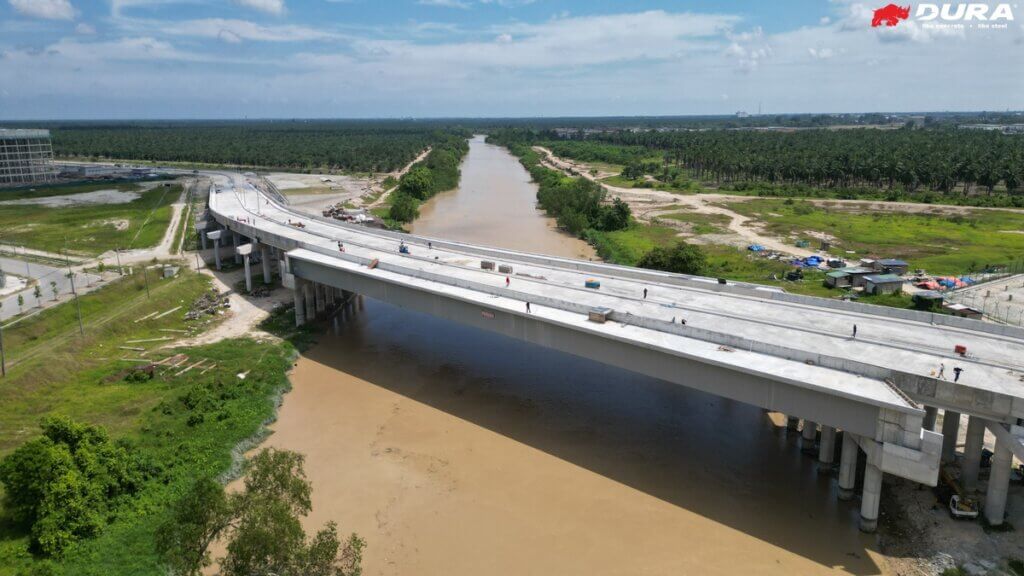

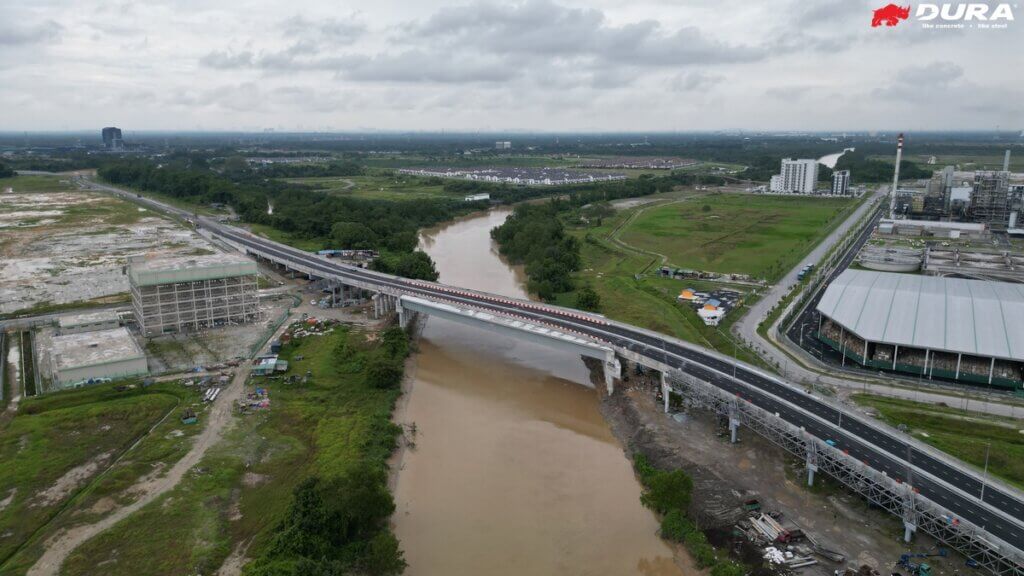

Completed bridge.
default
Completed bridge.
default

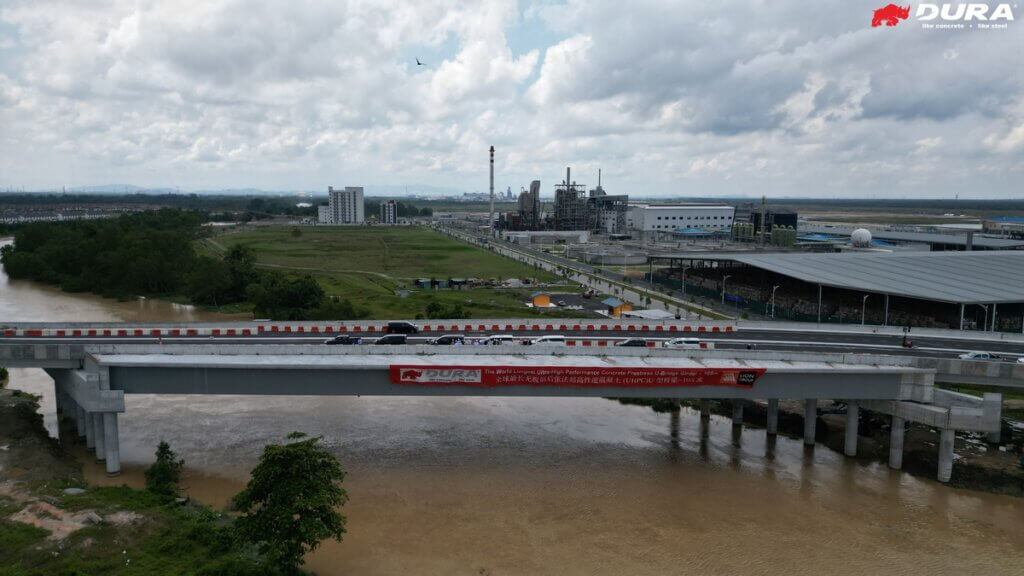

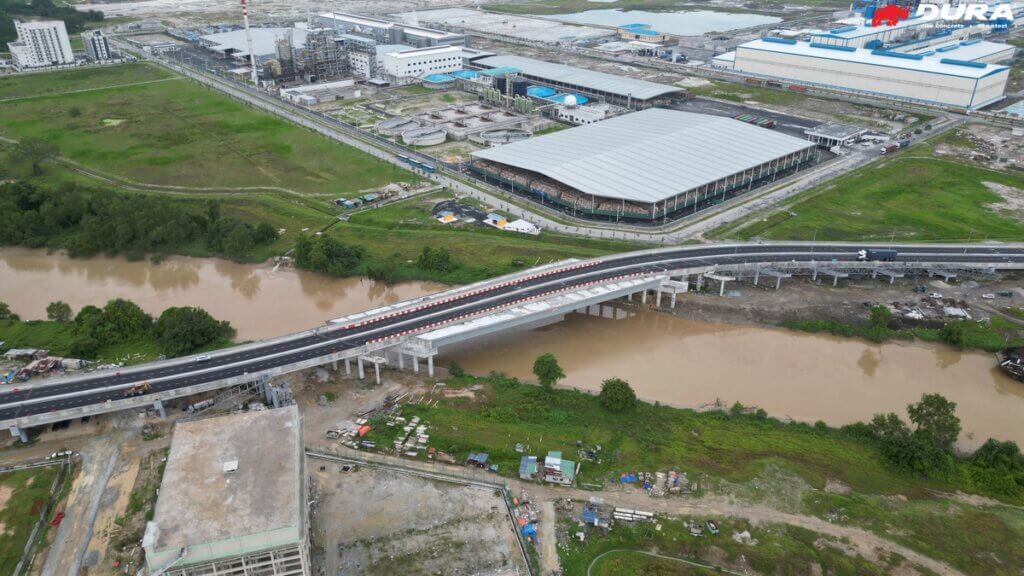

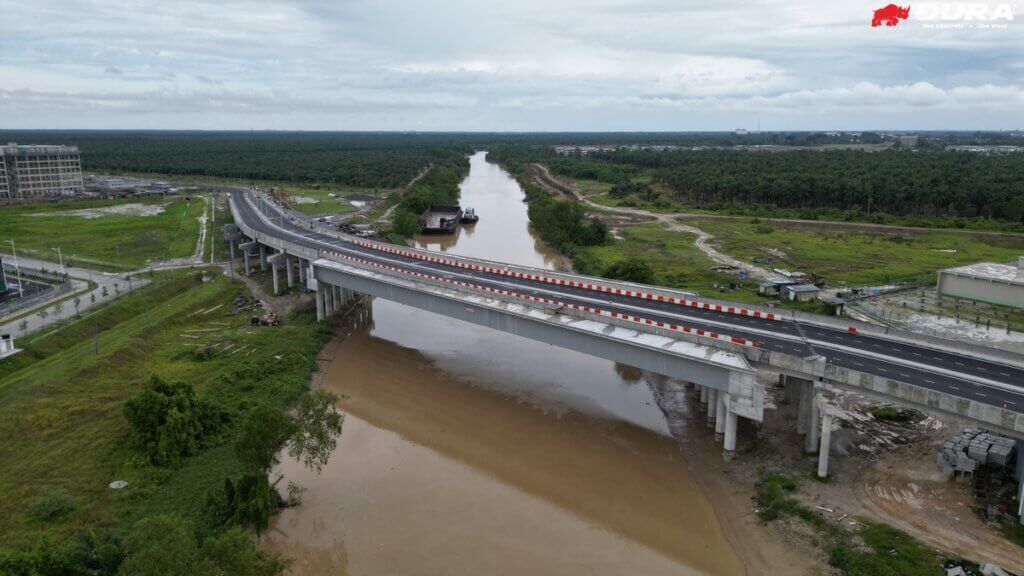

Completed bridge and open for traffic.
default
Completed bridge.
default
Completed bridge.
default

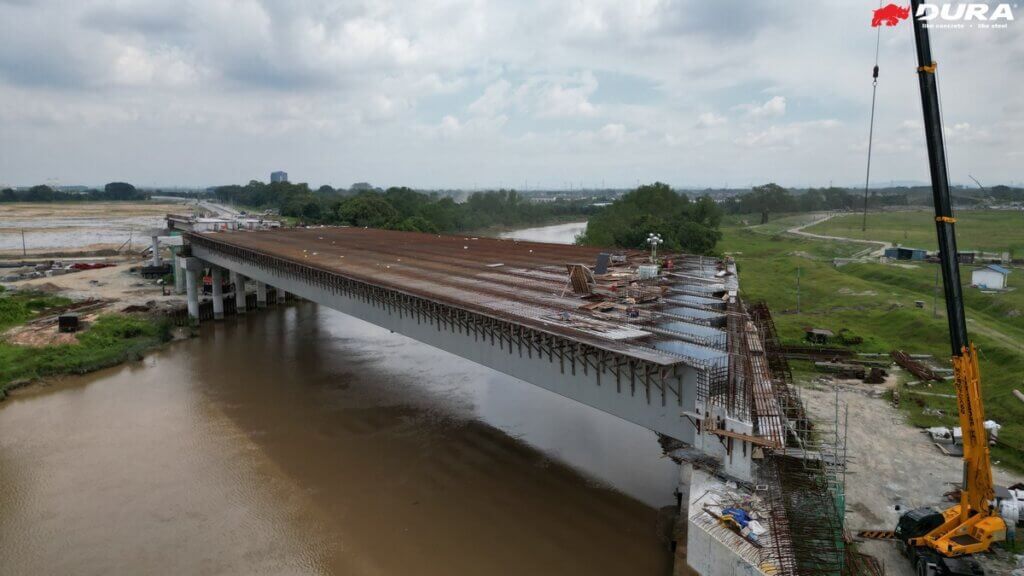

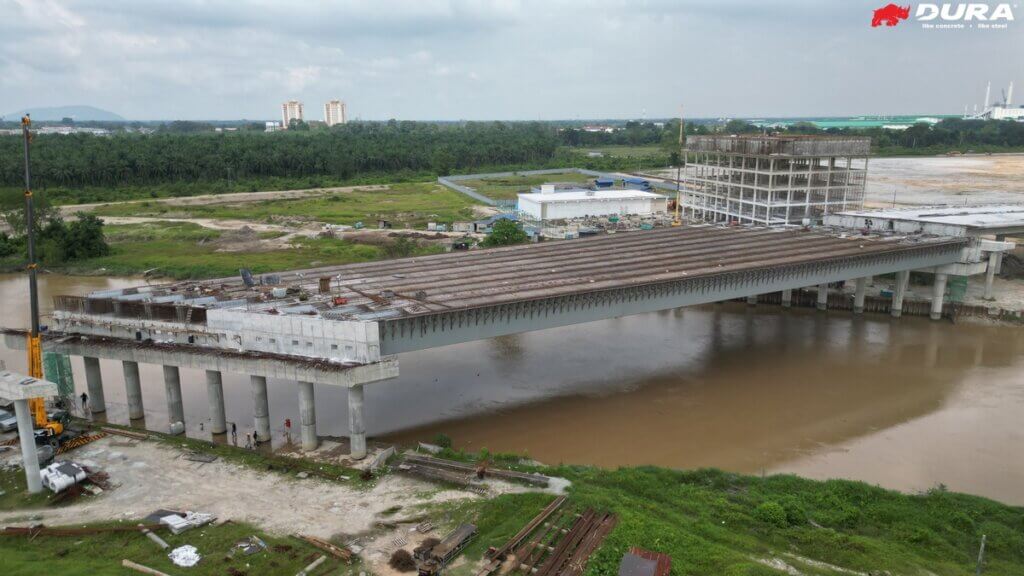

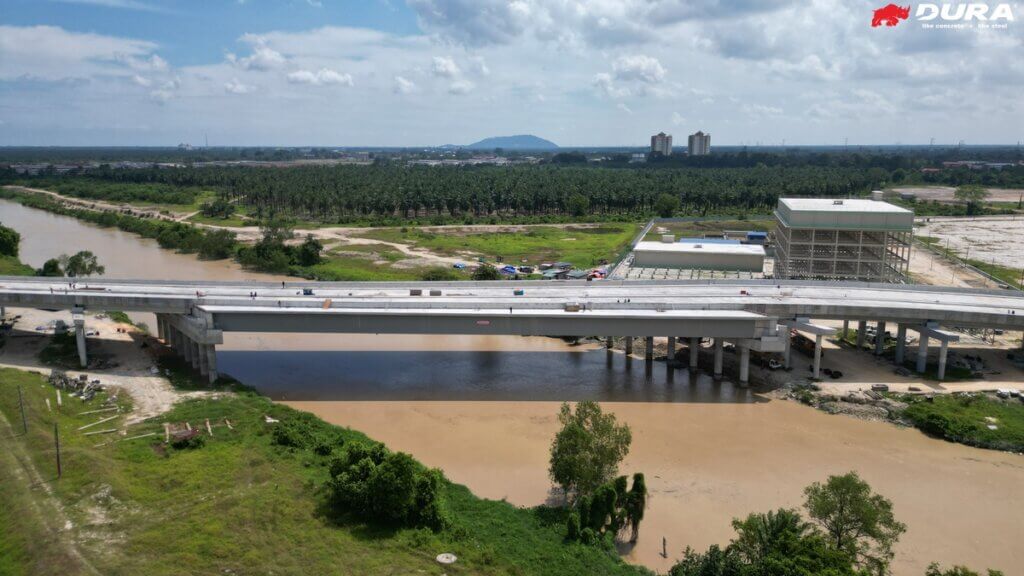

Completed cast of deck slab.
default
Completed cast of deck slab.
default
Completed cast of deck slab.
default
Completed cast of deck slab.
default
Casting of diaphragm.
default
Casting of deck slab.

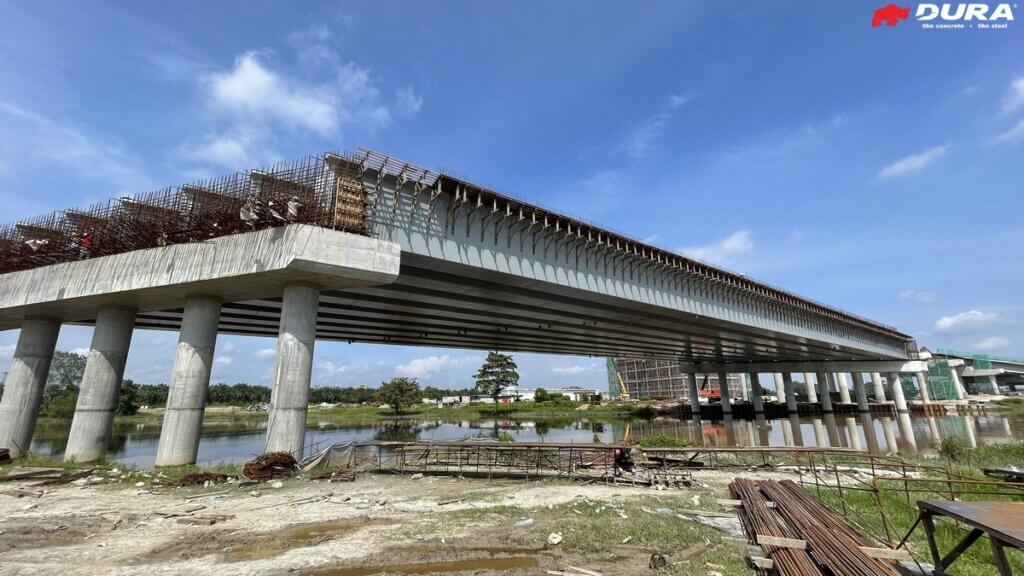

Completed of beam launching.
Completed of beam launching.
default
Completed of beam launching.

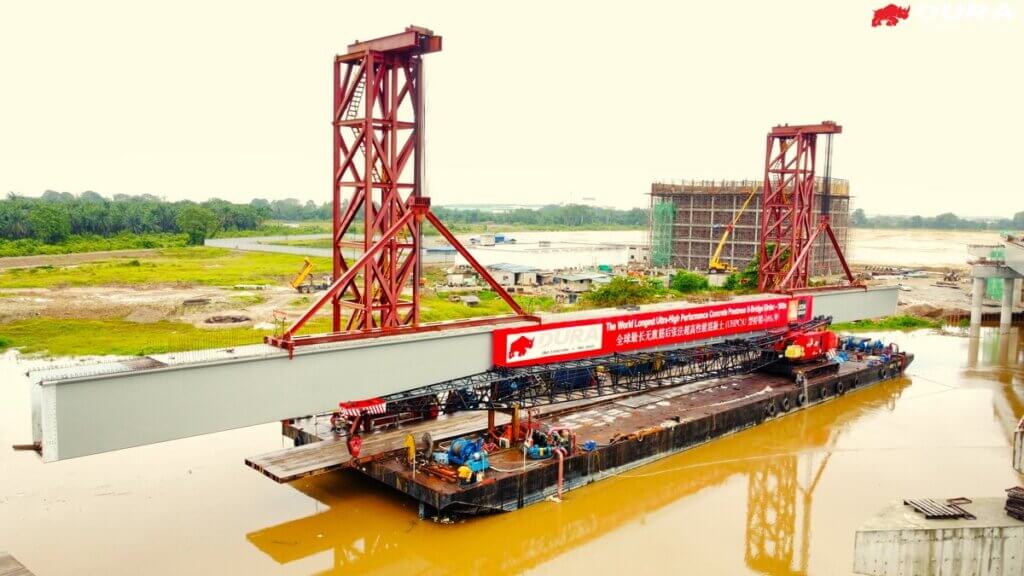

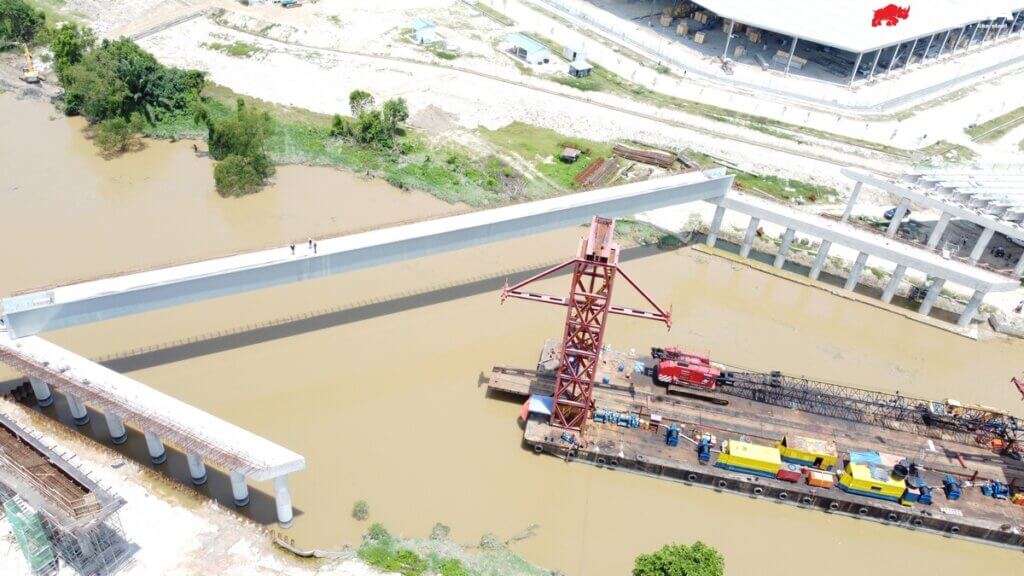

Lifting last beam for positioning.
Lifting last beam for positioning.
Beam 1 positioned..JPG

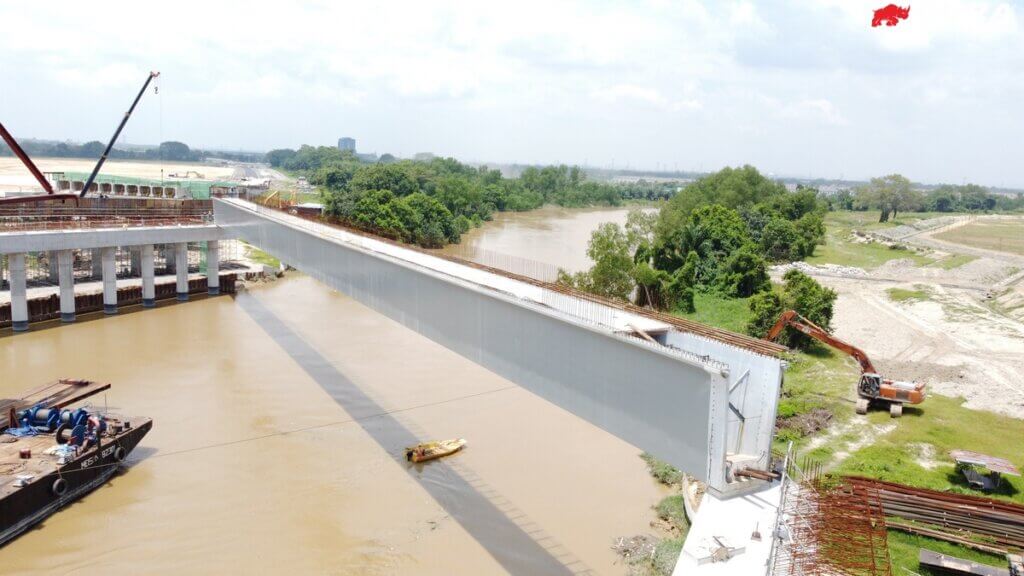

Beam 1 positioned onto the piers.

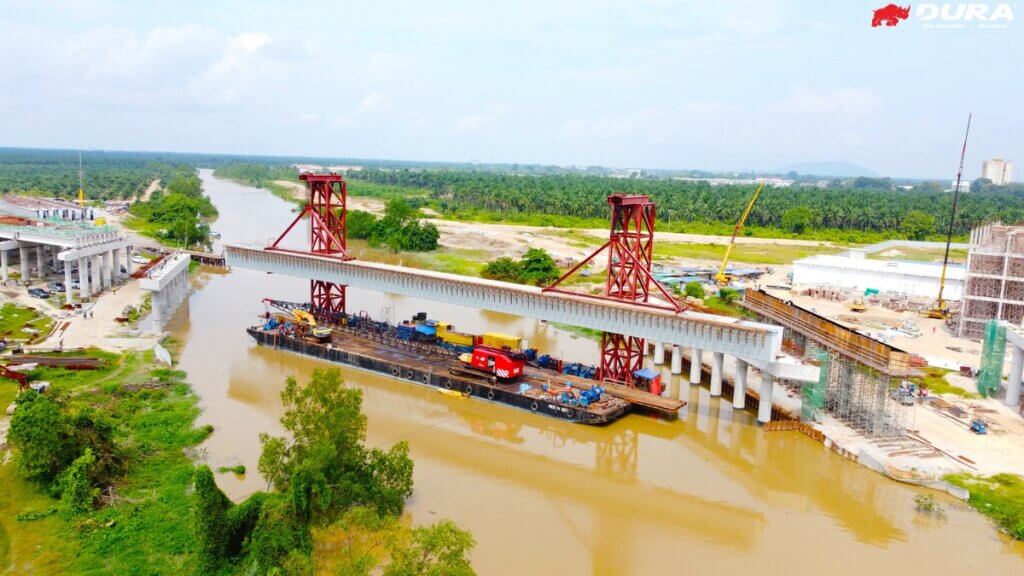

Beam launching using barge.

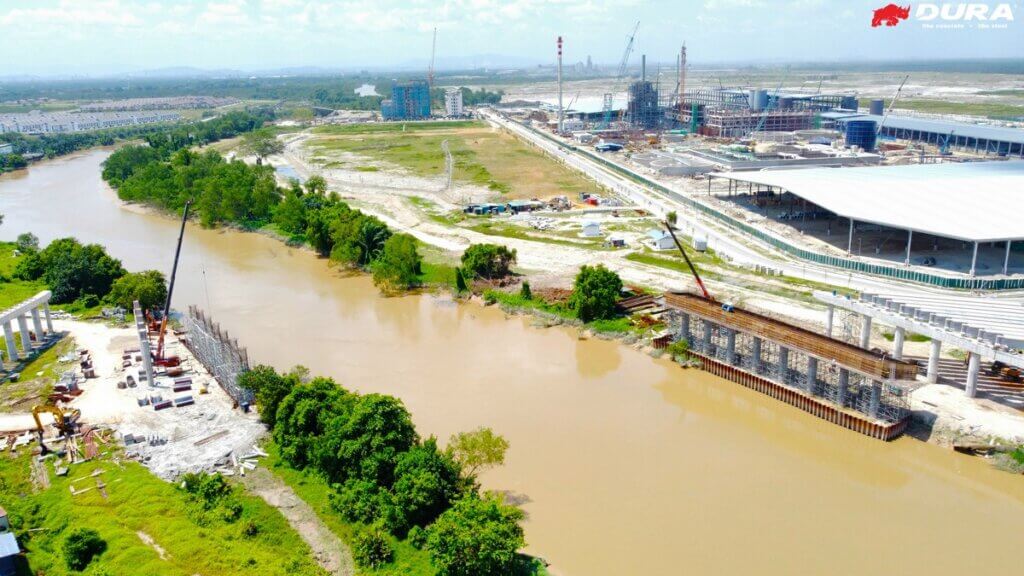

Construction Pier 6a and 9a where UBG4000-150m going to positioned.
Construction Pier 6a and 9a where UBG4000-150m going to positioned.

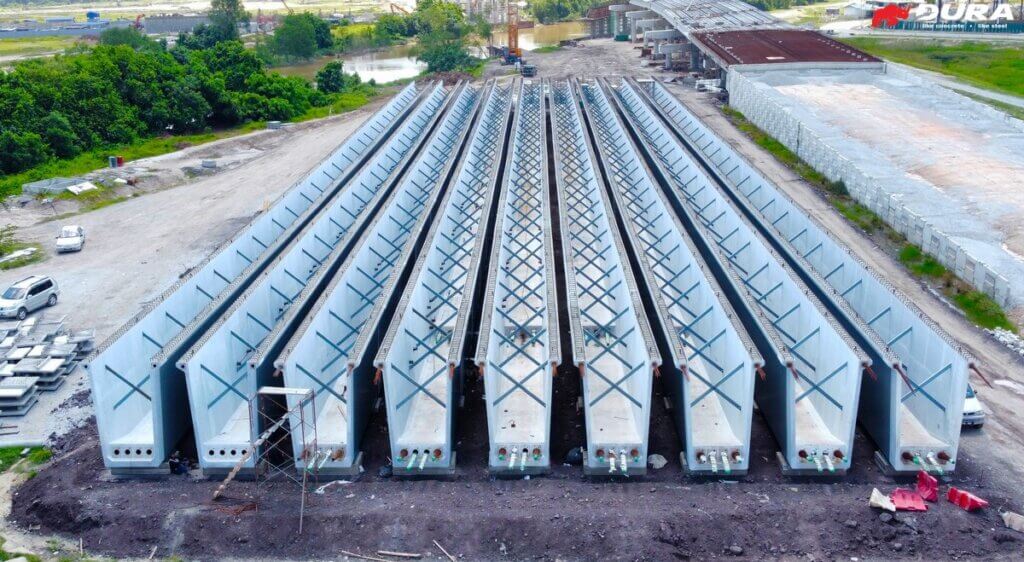

Nine Beam assembled at site and PT work in progress.
Nine Beam assembled at site and PT work in progress.

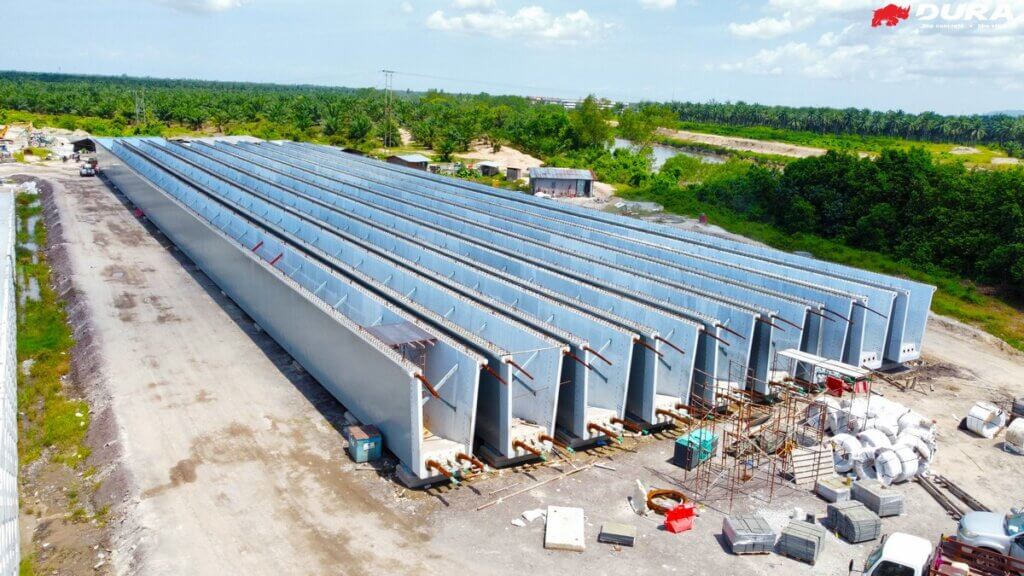

Nine DURA UBG4000-105m.
Nine DURA UBG4000-105m.

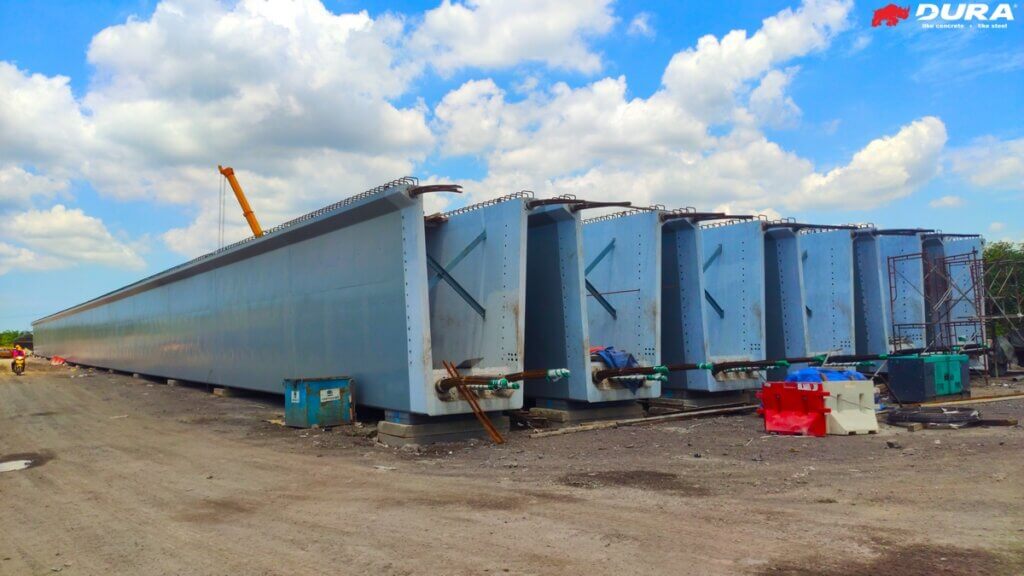

Six UBG4000-105m.
Six UBG4000-105m.

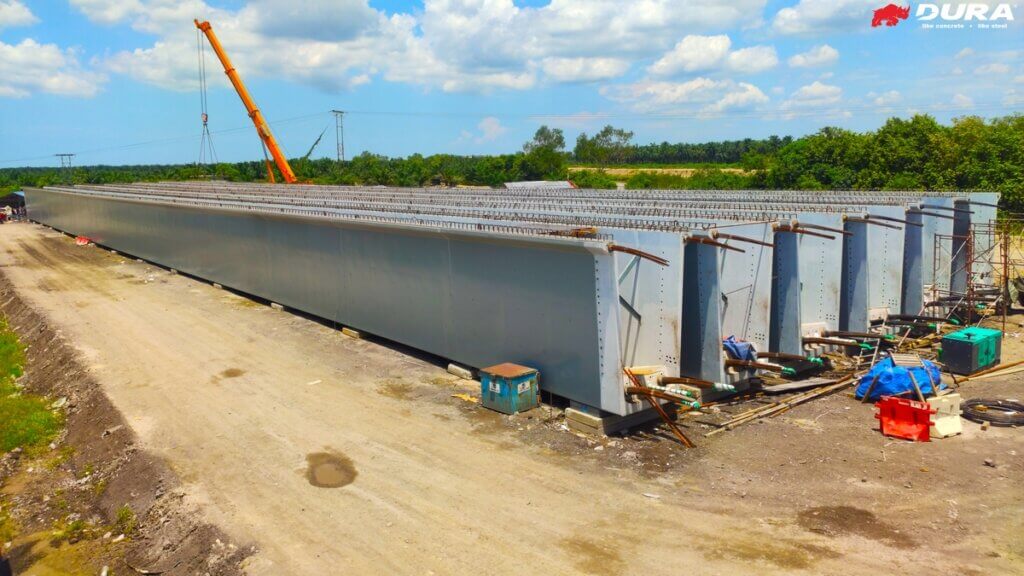

Six number of UBG4000-105m assembled on site (060422).
Six number of UBG4000-105m assembled on site (060422).

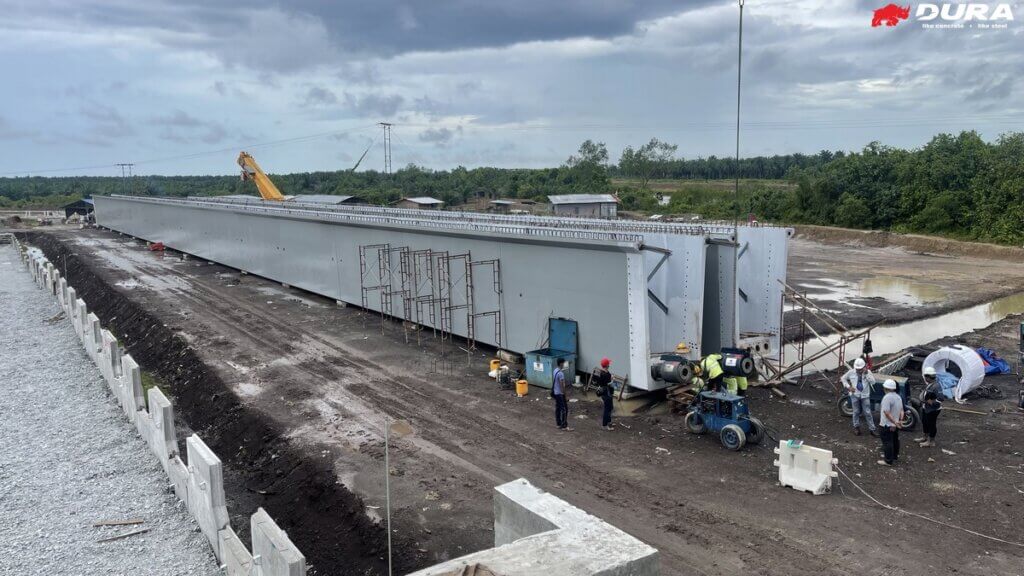

Assembly and PT work of UBG4000-105m (24022).
Assembly and PT work of UBG4000-105m (24022).

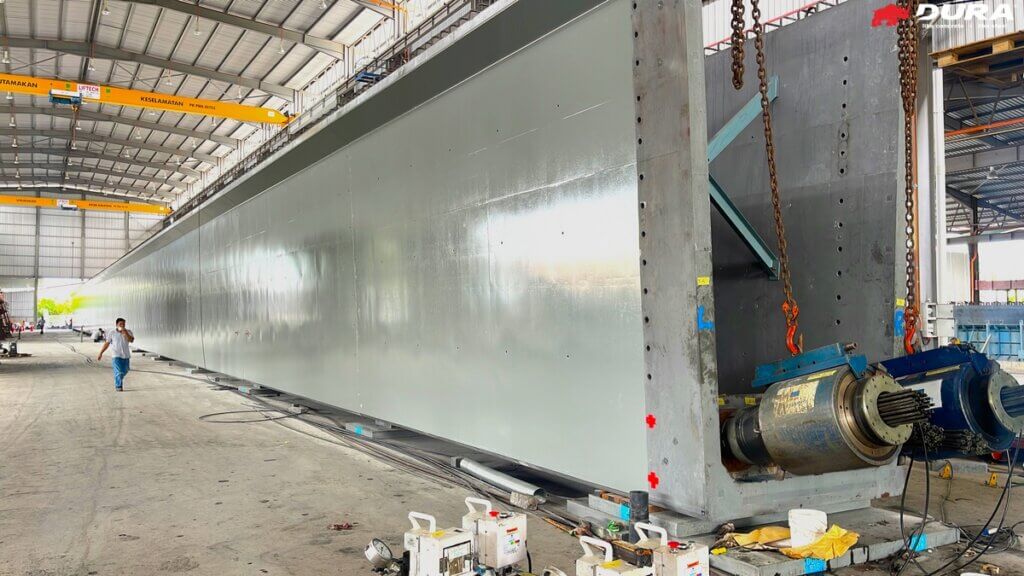

Mock up test on post-tensiong of the full UBG4000-105m.
Mock up test on post-tensiong of the full UBG4000-105m.

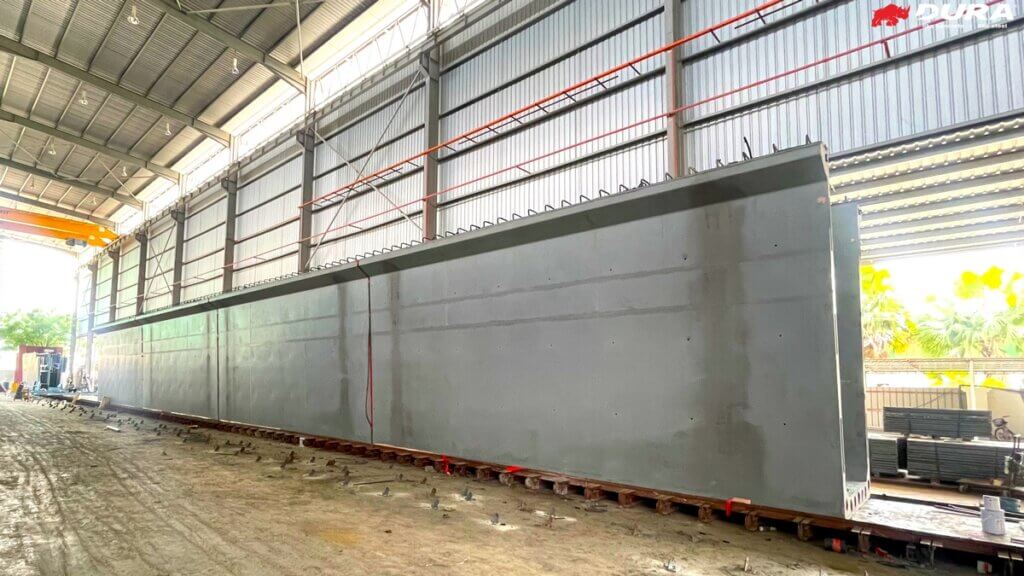

Match casting of UBG4000-105m segments.
Match casting of UBG4000-105m segments.
Project Title

The Proposed Construction and Completion Including Other Related Ancillaries for Bridge 2 Crossing Sungai Langat on Lot 74463 and LOT 74462, Mukim Tanjung Duabelas, Daerah Kuala Langat, Selangor Darul Ehsan.

Project Year

2023

Status

Completed Project

Country

Malaysia

GPS Cordinates

2.817090 N, 101.544850 E

Structure Type

Single Span 105m by 32m Wide Composite Bridge System.

Superstructure Feature

9 pieces of DURA® UBG4000-105m with Cast In-Situ RC Deck

Substructure Feature

Cast in-situ RC abutments and piers

Foundation Feature

500mm dia. Spun pile (Class C)

Loading Type

Combination of HA+KEL or 45 units HB loadings (BD37/01)

Client

Bonus Essential Sdn Bhd (Lion Group Behad)

Superintendent Officer (S.O.)

VED Engineers Sdn Bhd

Consultant

VED Engineers Sdn Bhd

Contractor

Dura Construction Sdn Bhd (G7)
