The Application of 60m Long DURA U Bridge at Hulu Besut

  • Project Status

  • Select Country

  • Select Years

  • Reset

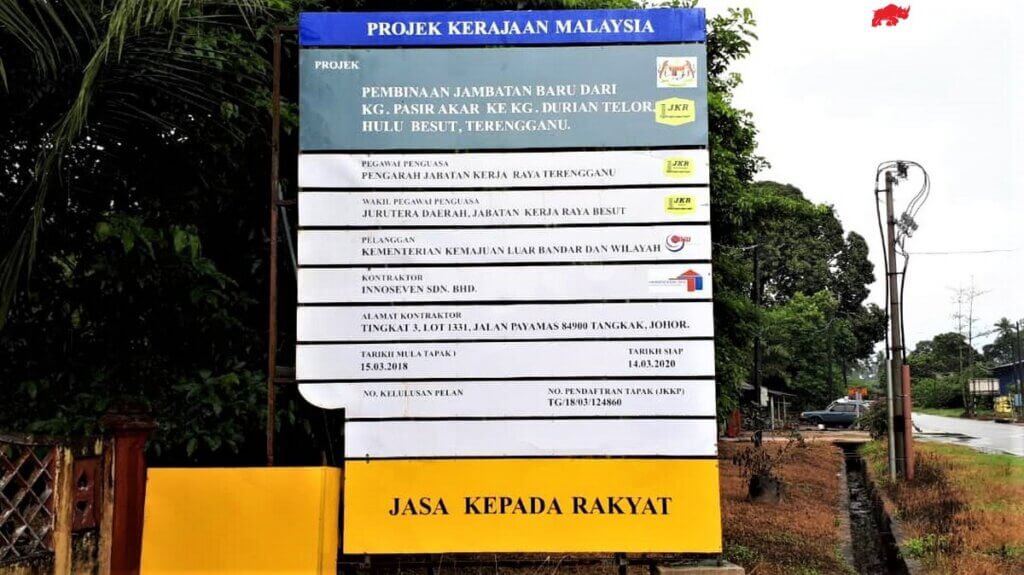

Project signboard (130219).
Project signboard (130219).
Current bridge site (130219)..JPG

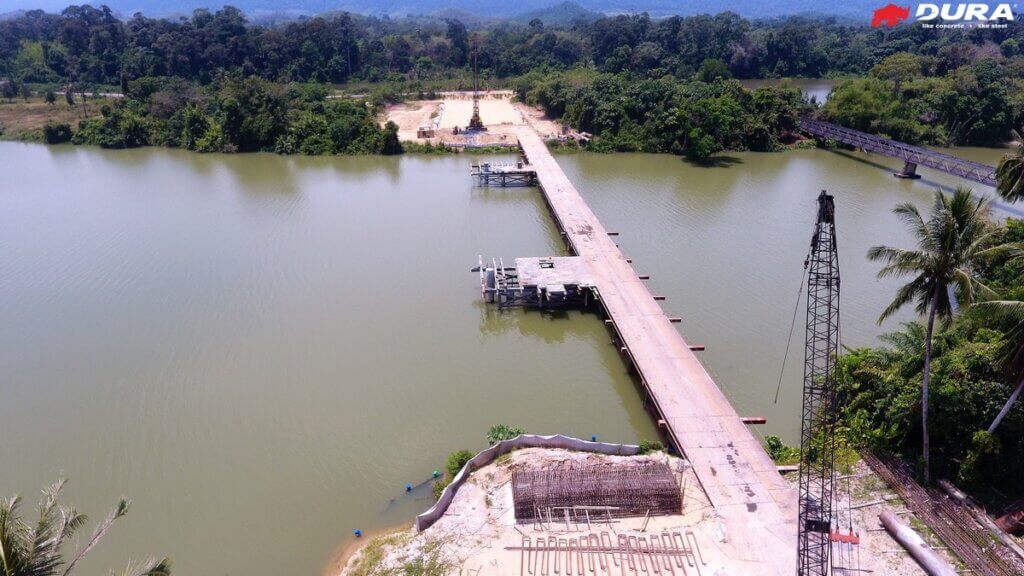

Current bridge site with temporary bridge installed (130219)..JPG

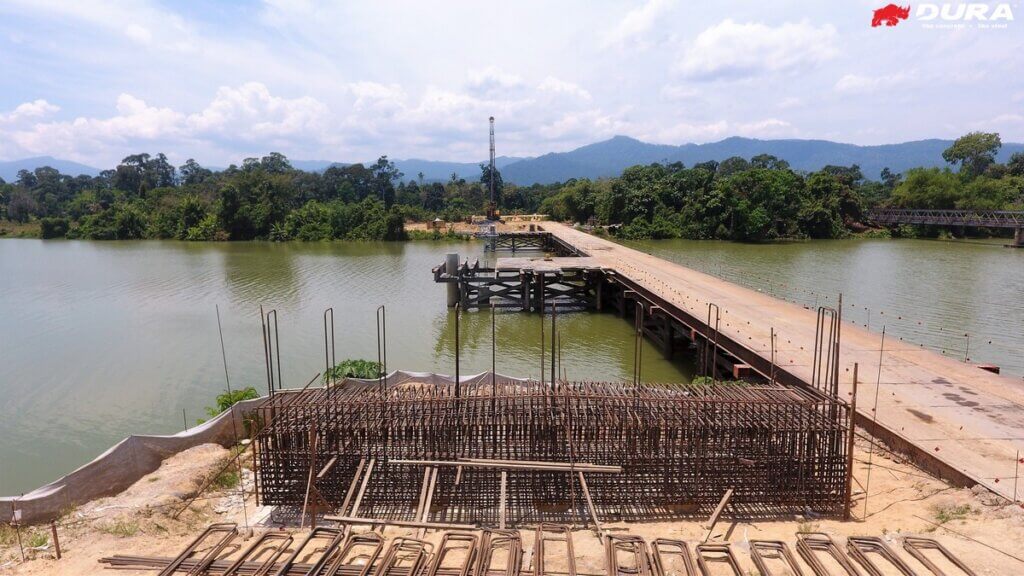

Construction of abutment (130219)..JPG
Piling work in progress (130219).
Piling work in progress (130219).

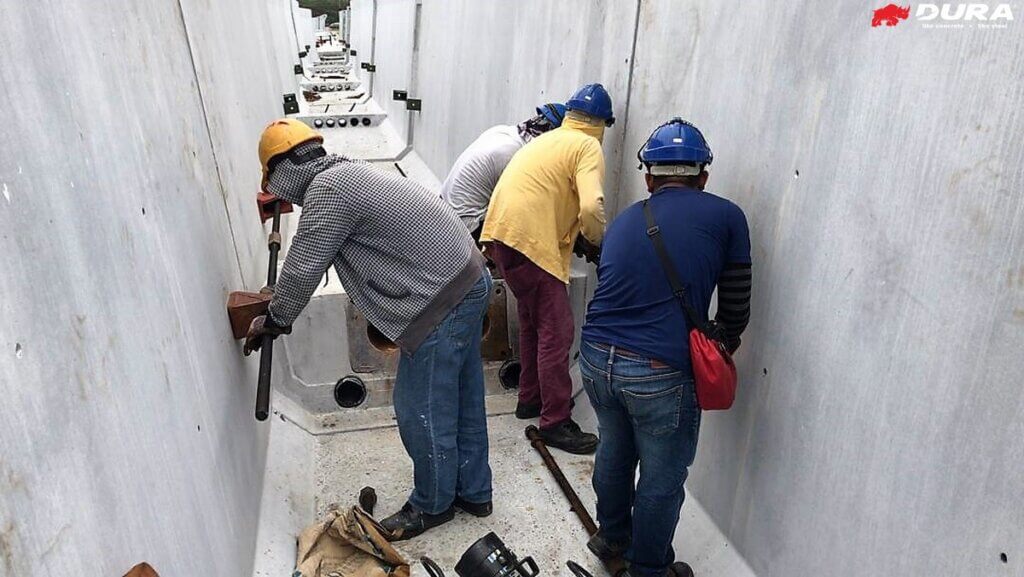

Splicing and aligning beams
Splicing and aligning beams

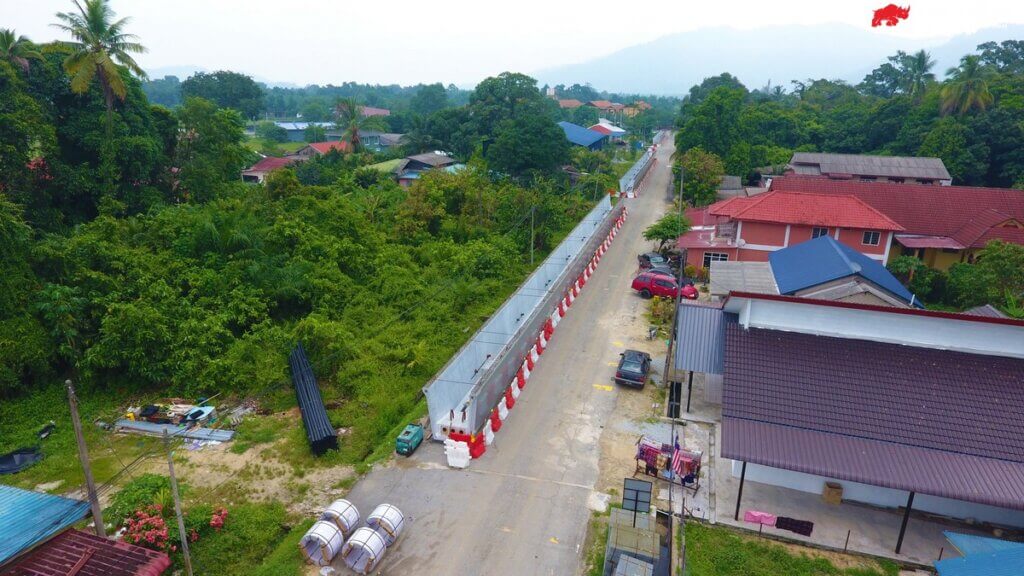

Precast DURA UBG3000-60m beam aligned near job site.

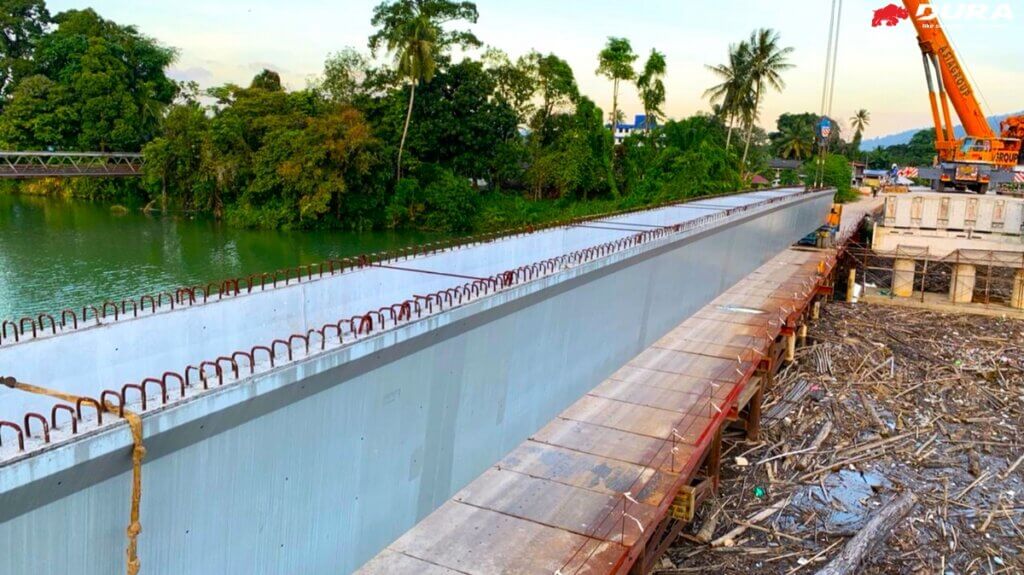

Lifting of first UBG2500-60m (230122).
Lifting of first UBG2500-60m (230122).
Positioning first beam.
Positioning first beam.
Three beams positioned.
Three beams positioned.

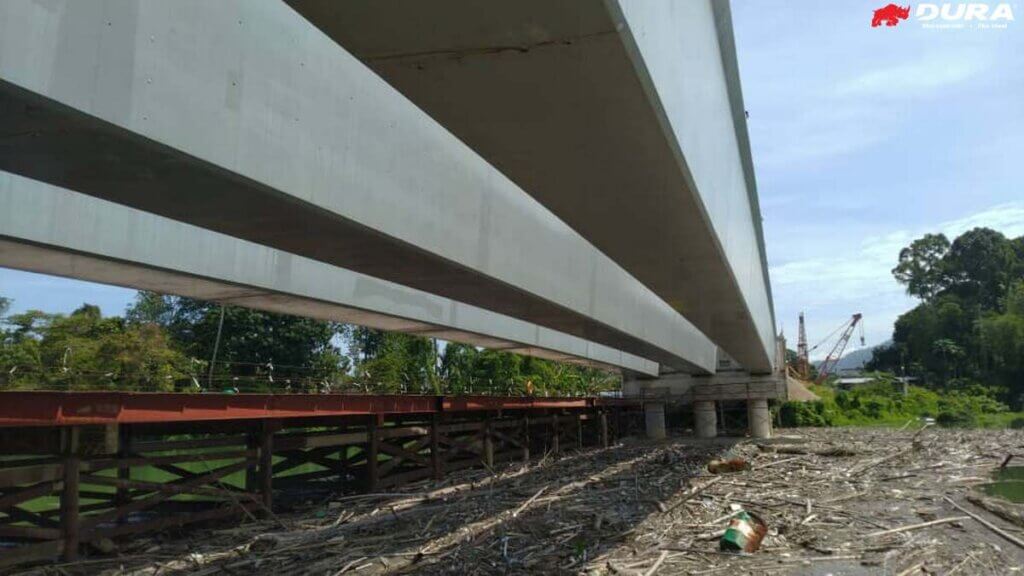

Beam launching completed.
Beam launching completed.
default

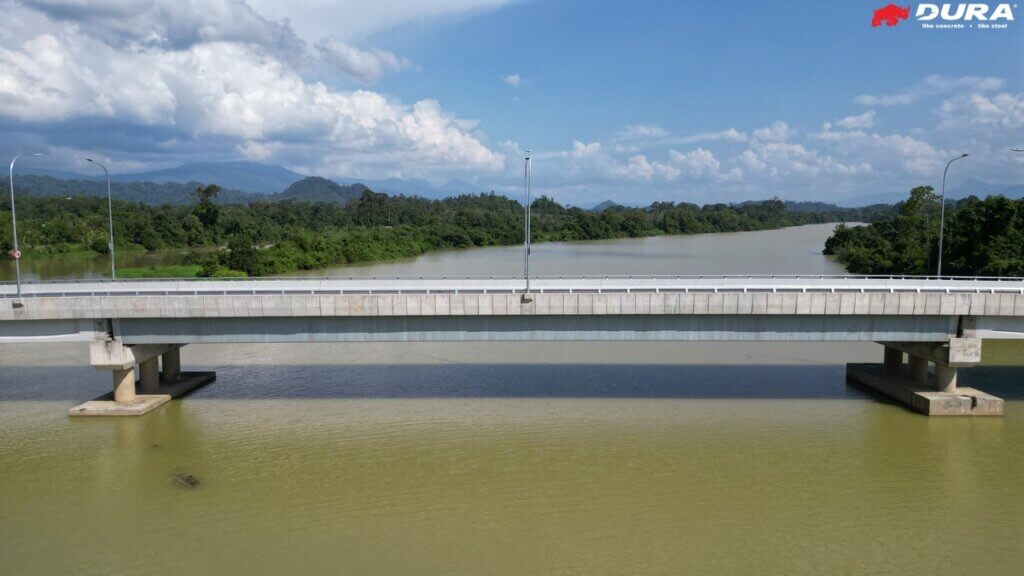

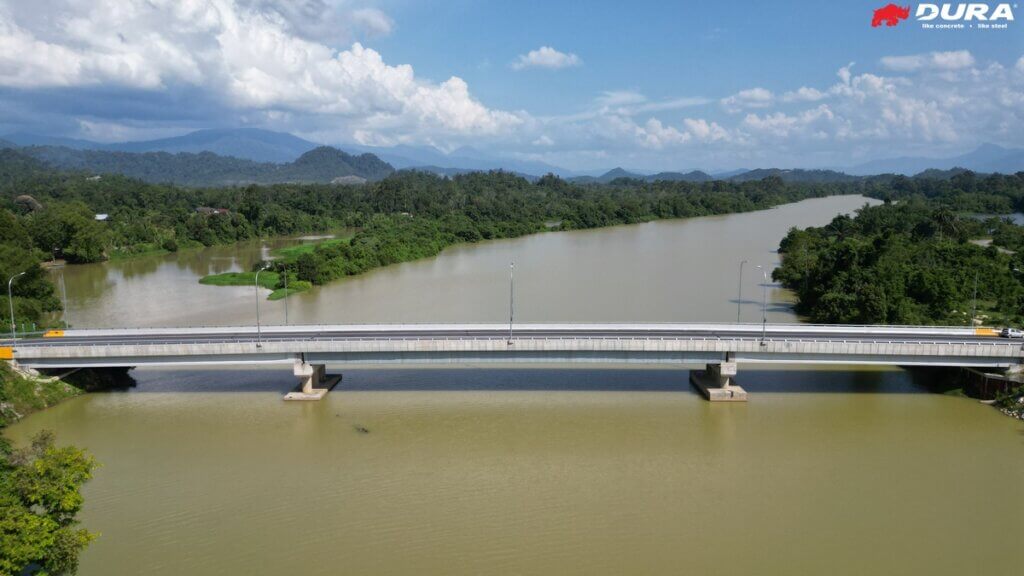

Completed bridge.
default
Completed bridge.
default
Completed bridge.
default
Completed bridge.
Project Title

To Construct A New Bridge From Kg. Pasir Akar To Kg. Durian Telor, Hulu Besut, Terengganu (Projek Membina Jambatan Baru Dari Kg. Pasir Akar Ke Kg. Durian Telor, Hulu Besut, Terengganu)

Project Year

2022

Status

Completed Project

Country

Malaysia

GPS Cordinates

5.639662 N, 102.499176 E

Structure Type

Three Spans UHPC Beam Composite In Situ Deck Bridge System: 40m + 60m +40m x 11.5m wide.

Superstructure Feature

3 pieces of DURA® UBG2500-60m with Cast In-Situ RC Deck

Substructure Feature

Cast in-situ RC abutments

Foundation Feature

800mm & 1000mm Diameter Bored Pile

Loading Type

BD 37/01 – HA+30HB & HA+45HB

Client

JKR Malaysia

Superintendent Officer (S.O.)

JKR Malaysia

Consultant

JKR Malaysia

Contractor

SS Base Contractors Sdn Bhd

Contract Period

24 months
