The New Bridge for “Washed Away” Kampung Sawa Bridge During 2014/2015 Massive Flood.

  • Project Status

  • Select Country

  • Select Years

  • Reset

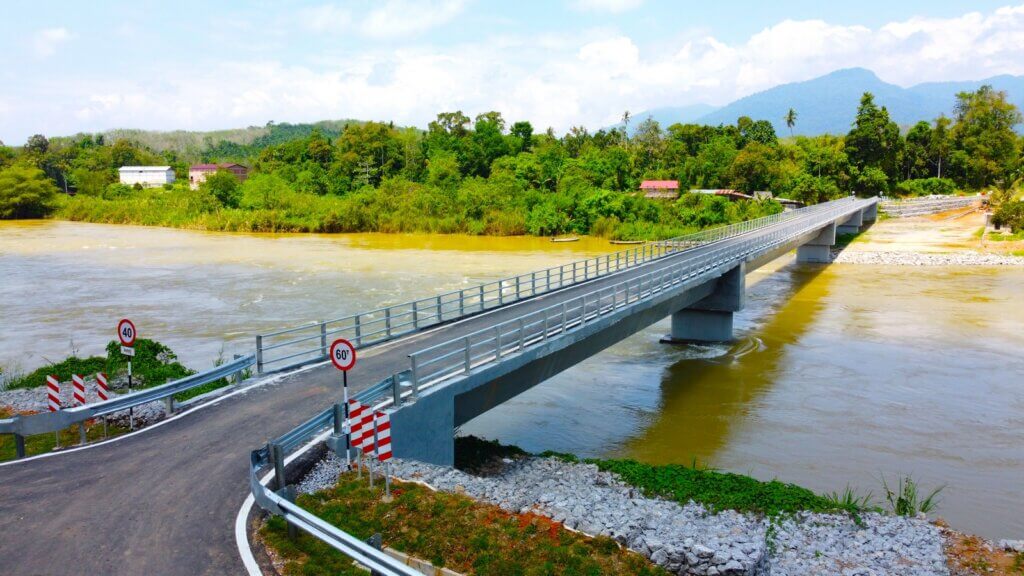

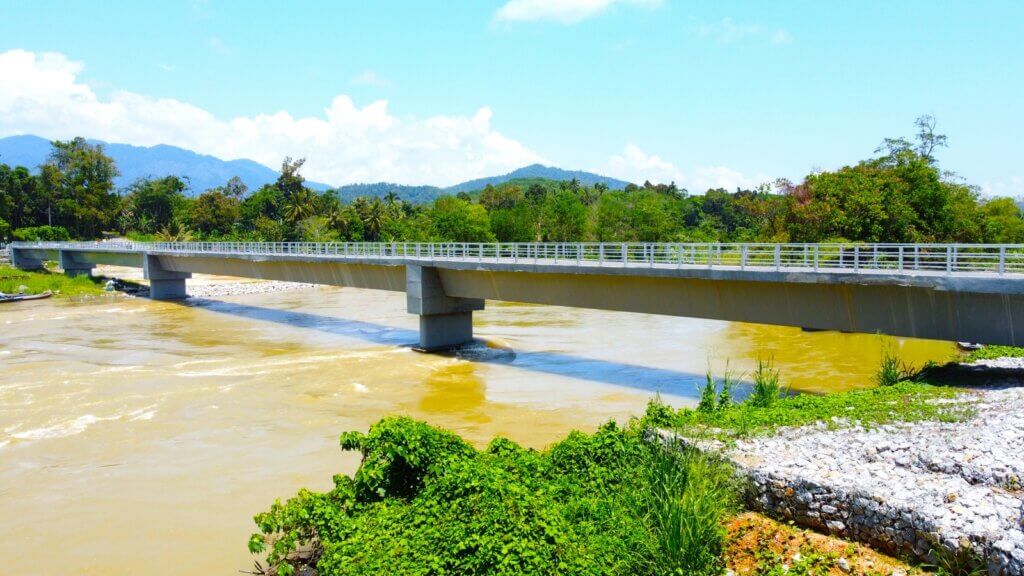

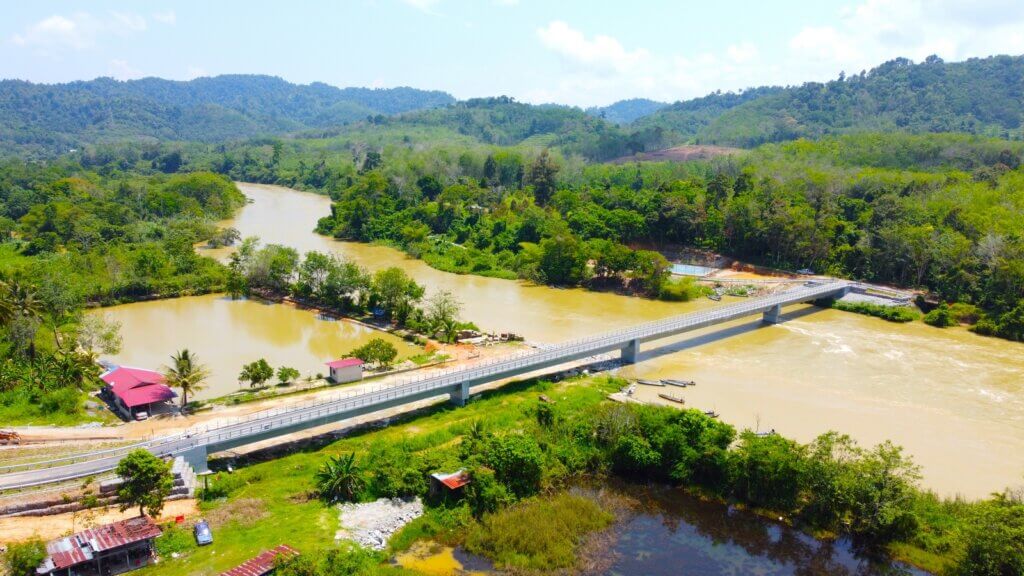

Completed Kg. Sawa Bridge.
Completed Kg. Sawa Bridge.
Completed Kg. Sawa Bridge.
Completed Kg. Sawa Bridge..JPG
Completed Kg. Sawa Bridge..JPG

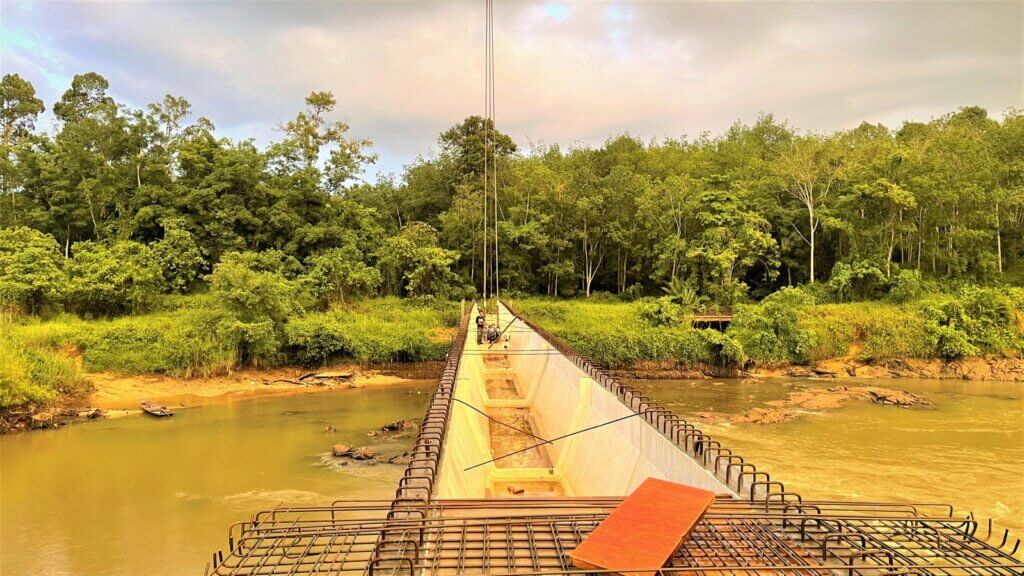

Beam launching completed.
Beam launching completed.

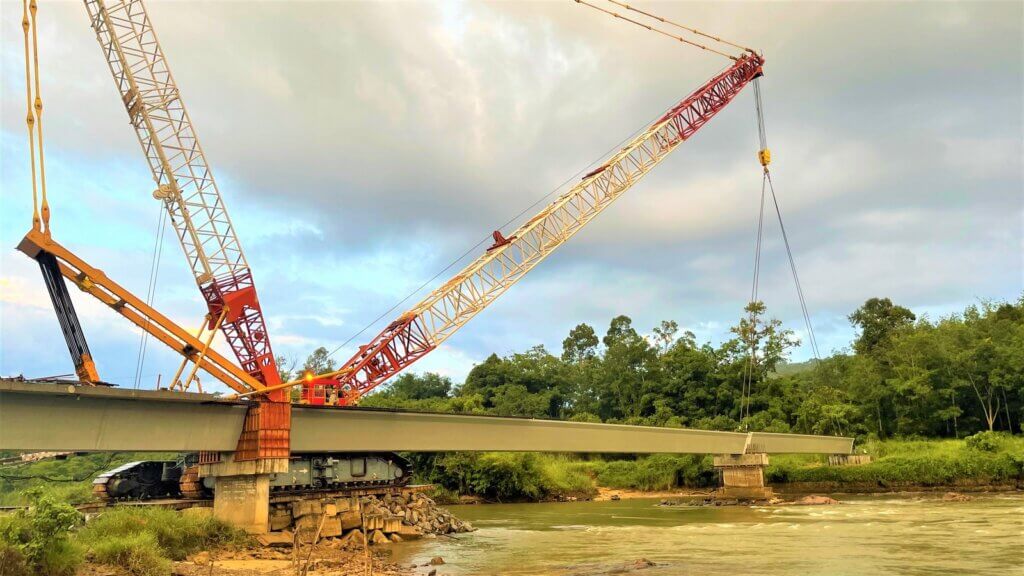

UBG2000-35m positioned on the abutment B.
UBG2000-35m positioned on the abutment B.

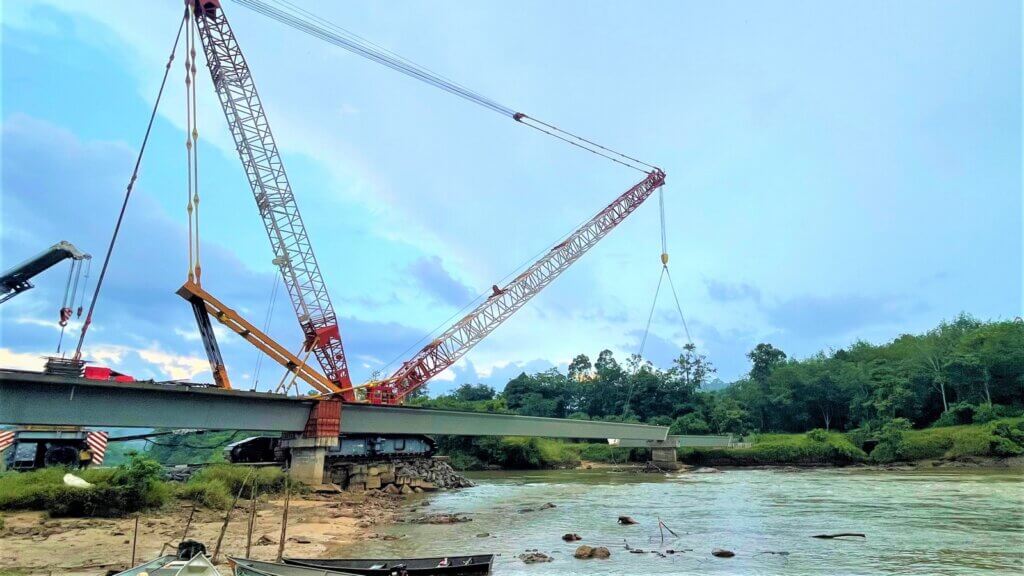

Positioning the last beam across Perak river.
Positioning the last beam across Perak river.

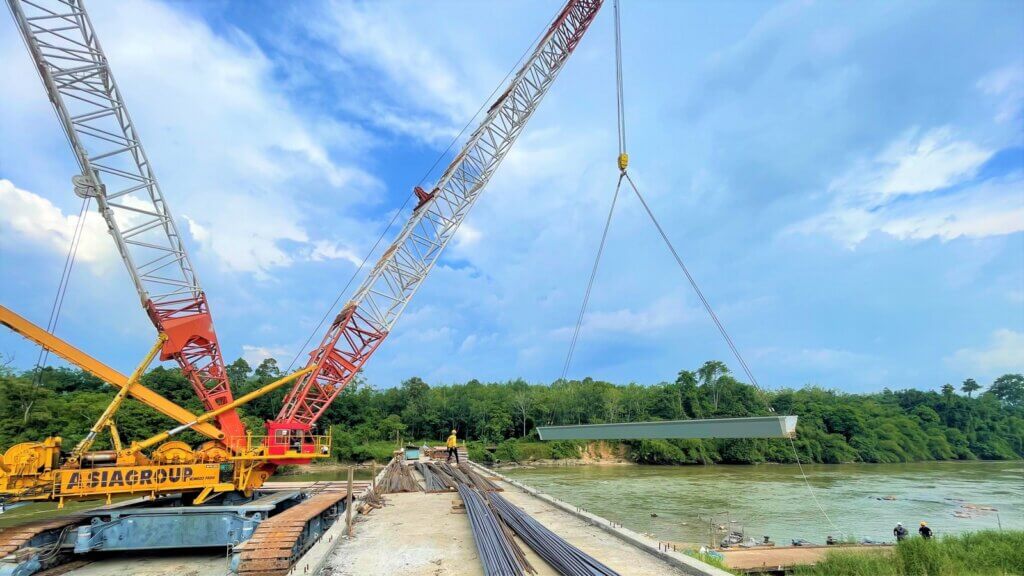

Swinging beam to the pier positions.
Swinging beam to the pier positions.
Picking up last beam (UBG200-35m)..JPG
Positioning UBG2000-55m.
Lifting of UBG2000-55m (140t) using a single lifting method.

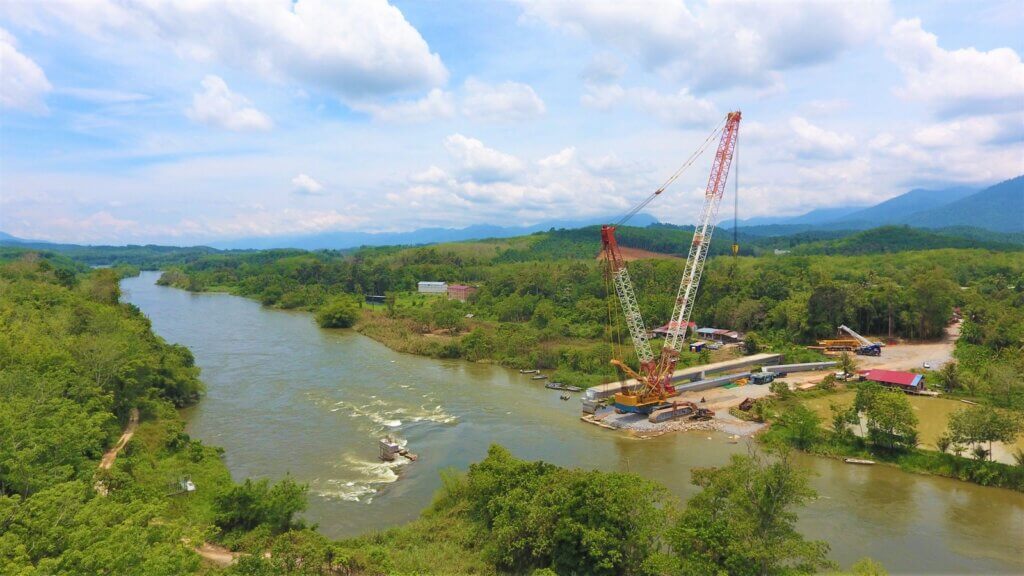

Setting of crane for beam launching.
Setting of crane for beam launching.

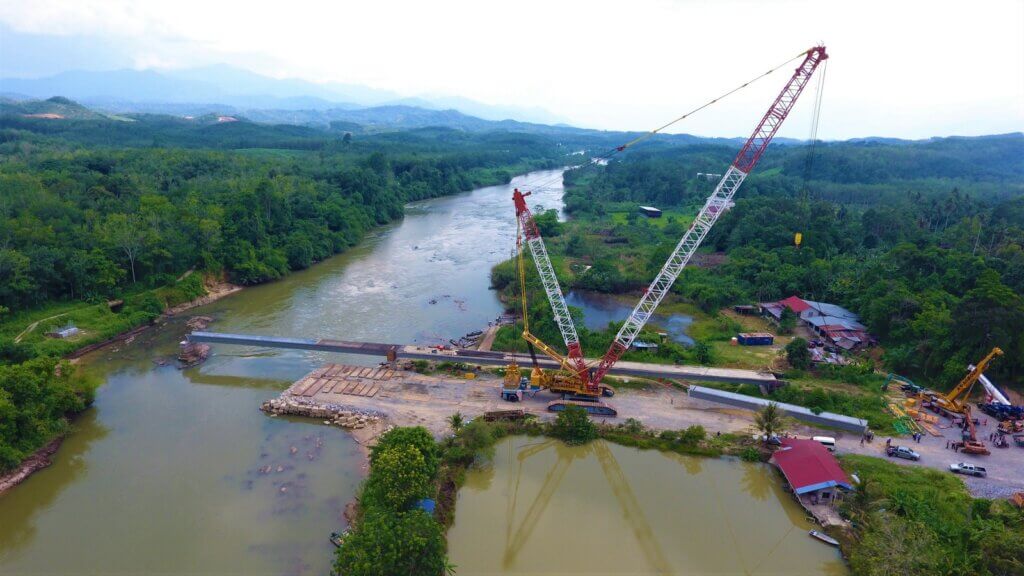

Setting up of crane for beam launching.

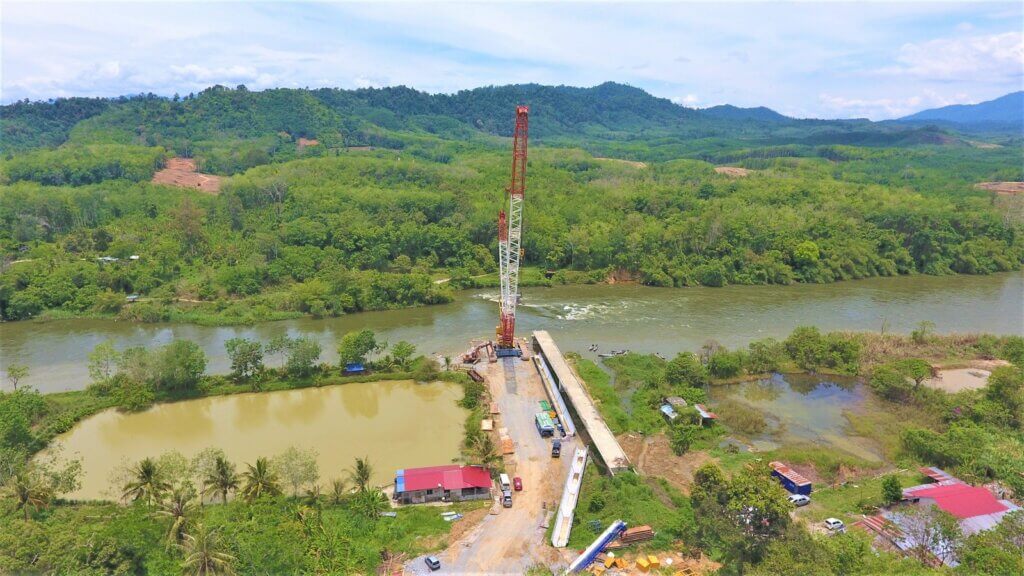

Setting up giant crane for direct beam launching for UBG2000-55m..JPG

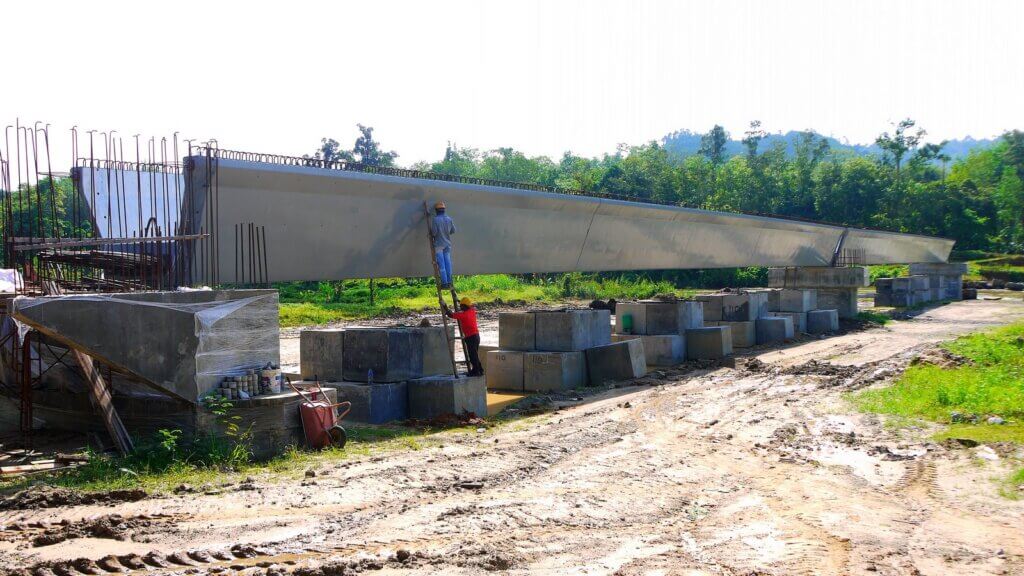

Two numbers of UBG2000-45m already post-tensioned.
Two numbers of UBG2000-45m already post-tensioned.
Two numbers of UBG2000-45m already post-tensioned.
Two numbers of UBG2000-45m already post-tensioned.
Positioning of end segment for first span.
Positioning of end segment for first span.
Six segments for second span positioned.
Six segments for second span positioned.
Two segments positioned.
Two segments positioned.
Transportation of UBG2000 girder segments.
Transportation of UBG2000 girder segments.
Partially constructed substructures.
Partially constructed substructures.
Partially constructed pier 2.
Partially constructed pier 2.
Marking of position of micropile for pier 3.
Marking of position of micropile for pier 3.
Construction of 300mm diameter micropiles.
Construction of 300mm diameter micropiles.
Construction of 300mm diameter micropiles.
Construction of 300mm diameter micropiles.
Demolisation of existing concrete bridge.
Demolisation of existing concrete bridge.
Demolisation of existing concrete bridge.
Demolisation of existing concrete bridge.
Project signboard and detail.
Project signboard and detail.

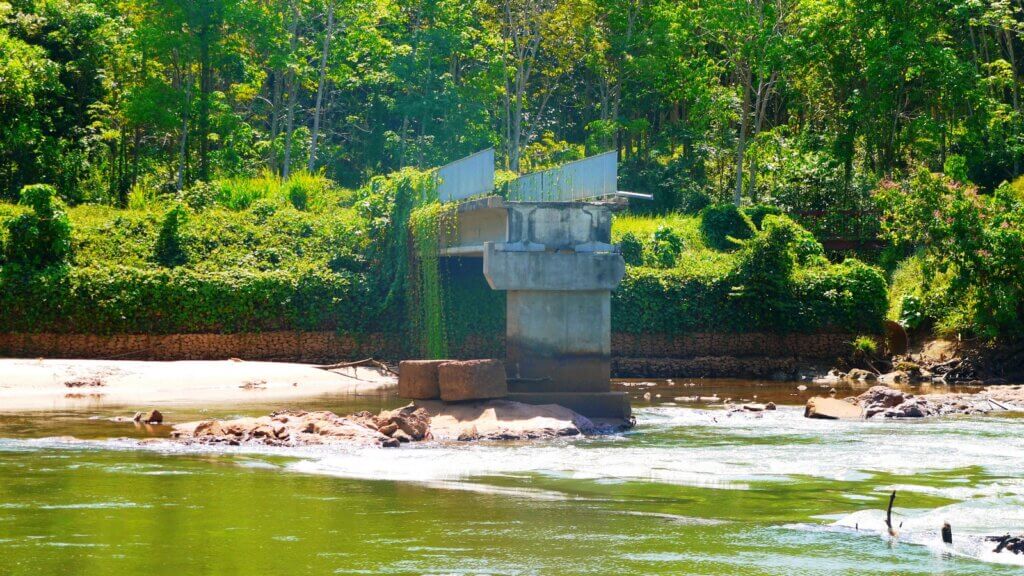

Existing bridge at Kampung Sawa was destroyed by the year 2015 Dec massive flood.
Existing bridge at Kampung Sawa was destroyed by the year 2015 Dec massive flood.
Existing bridge at Kampung Sawa was destroyed by the year 2015 Dec massive flood.
Existing bridge at Kampung Sawa was destroyed by the year 2015 Dec massive flood.
Existing bridge at Kampung Sawa was destroyed by the year 2015 Dec massive flood.
Existing bridge at Kampung Sawa was destroyed by the year 2015 Dec massive flood.
Existing bridge at Kampung Sawa was destroyed by the year 2015 Dec massive flood.
Existing bridge at Kampung Sawa was destroyed by the year 2015 Dec massive flood.
Project Title

To Construct a New Bridge In Kampung Sawa, and Related Works, Hulu Perak District, Perak D.R. (Post Flood). (PERS/752/2015)

Project Year

2022

Status

Completed Project

Country

Malaysia

GPS Cordinates

5.210554 N, 101.071142 E

Structure Type

Four Spans 45m+45m+55m+35m x 5m Wide Composite Bridge System

Superstructure Feature

2 pieces of DURA ® UBG2000-45m, 1 piece of DURA ® UBG2000-55m, 1 piece of DURA ® UBG2000-35m, with Cast In-Situ RC Deck

Substructure Feature

Cast in-situ RC abutments and RC piers

Foundation Feature

300mm dia. micropiles

Loading Type

HA+KEL or 30 units HB loadings (BD37/01)

Client

KKLW

Superintendent Officer (S.O.)

JKR Hulu Perak

Contractor

Lumut Project Management Sdn Bhd

Contract Period

24 months (from 18 Jan 2016 to 18 Jan 2018)
