To Build New Bridge at Sungai Sugut, Sabah for Sabang Farm Using UBG2500 – 65m

  • Project Status

  • Select Country

  • Select Years

  • Reset

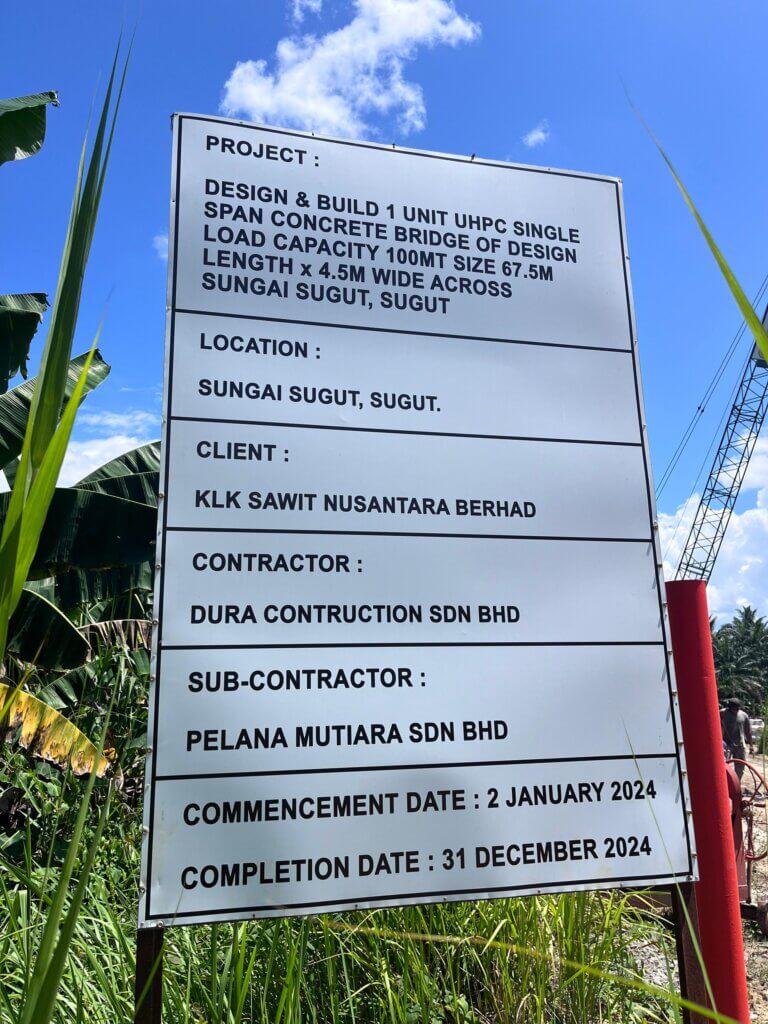

Project signboard
Project signboard
Project site
Project site
Piling on abutment A
Piling on abutment A
Lean concrete on abutment B.
Lean concrete on abutment B.
Rebar work on abutment A.
Rebar work on abutment A.
DURA sheet pile arrived on site.
DURA sheet pile arrived on site.
Sheet pile installation
Sheet pile installation
DURA® UBG2500 segment arrived on site.
DURA® UBG2500 segment arrived on site.
Temporary platform bridge
Temporary platform bridge
Staging work in progress along abutment A to abutment B.
Staging work in progress along abutment A to abutment B.
Temporary bridge connecting both abutments A & B.
Temporary bridge connecting both abutments A & B.
Completed temporary bridge.
Completed temporary bridge.
First segment of UBG2500 has been successfully loaded on the bailey bridge.
First segment of UBG2500 has been successfully loaded on the bailey bridge.
Beam trolley has been installed and prepared to push and align beam segments.
Beam trolley has been installed and prepared to push and align beam segments.
Aligning 2 segments of UBG2500 using beam trolley.
Aligning 2 segments of UBG2500 using beam trolley.
Aligning beam segments.
Aligning beam segments.
Successfully aligned UBG2500-65m segments.
Successfully aligned UBG2500-65m segments.
Project Title

Ladang Sabang – Bridge Across Sungai Sugut, Sabah.

Project Year

2024

Status

On Going Project

Country

Malaysia

GPS Cordinates

6.231963 N, 117.306535 E

Structure Type

Single Span 65m by 4.5m Wide UHPFRC Composite Bridge System

Superstructure Feature

1 piece of DURA® UBG2500 – 65m,

Substructure Feature

Cast in-situ RC abutments

Foundation Feature

450mm dia. Spun Piles

Loading Type

HA+ 30 units HB loadings (BD37/01)

Client

Kuala Lumpur Kepong Berhad (KLK)

Consultant

Concrete Technology Consult Sdn Bhd

Contractor

Dura Construction Sdn Bhd

Contract Period

12 months
