To Construct a Bridge at Kg.Tinanduk, Nabawan,Sabah using DURA®IB1000 – 24m and DURA®IB1300 – 30m length

  • Project Status

  • Select Country

  • Select Years

  • Reset

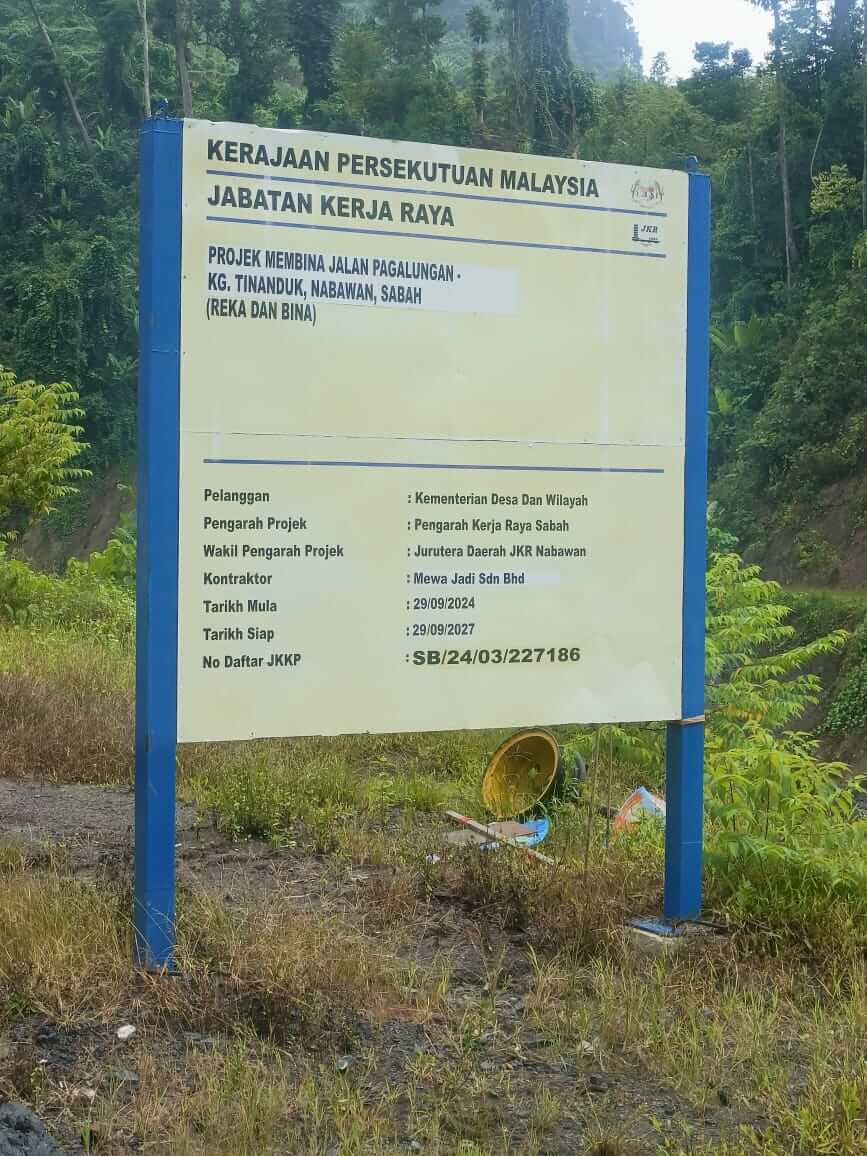

Project signboard.
Project signboard.

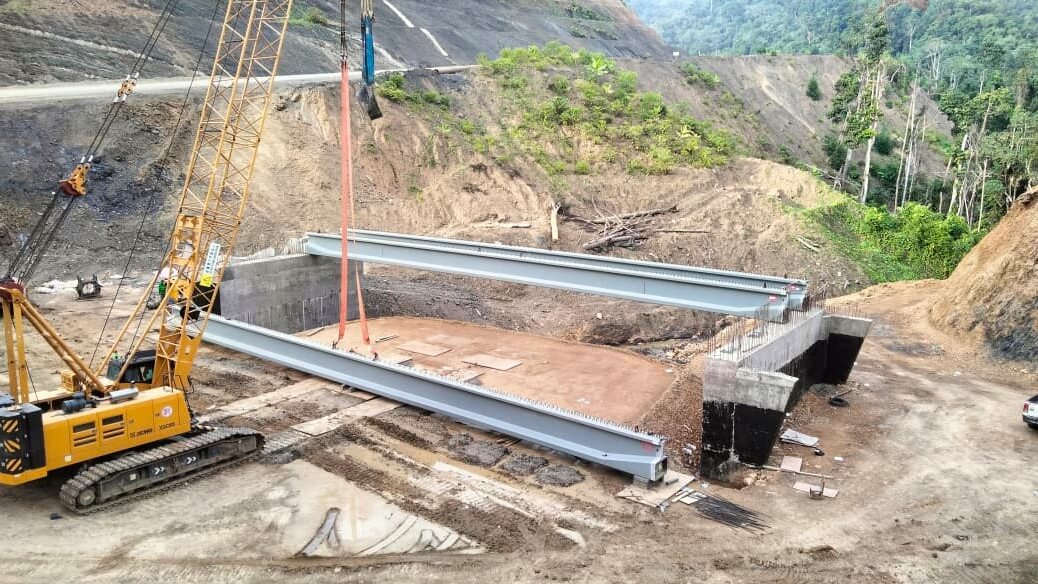

Br 1 : Unloading beam onto the abutments; launching in progress.
Br 1 : Unloading beam onto the abutments; launching in progress.

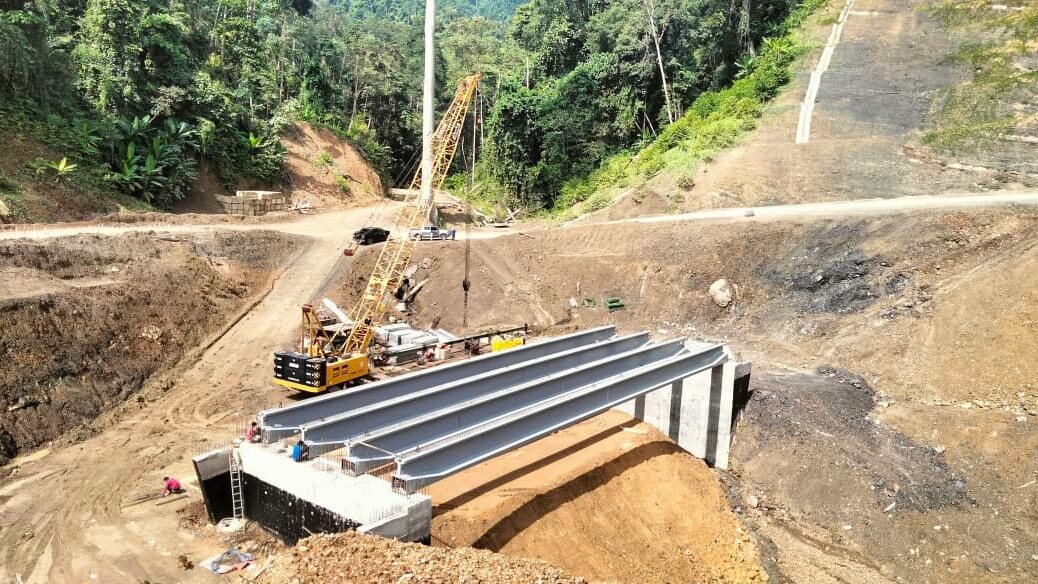

Br 1 : 4 nos of IB1300 – 30m positioned and seated on the abutments.
Br 1 : 4 nos of IB1300 – 30m positioned and seated on the abutments.

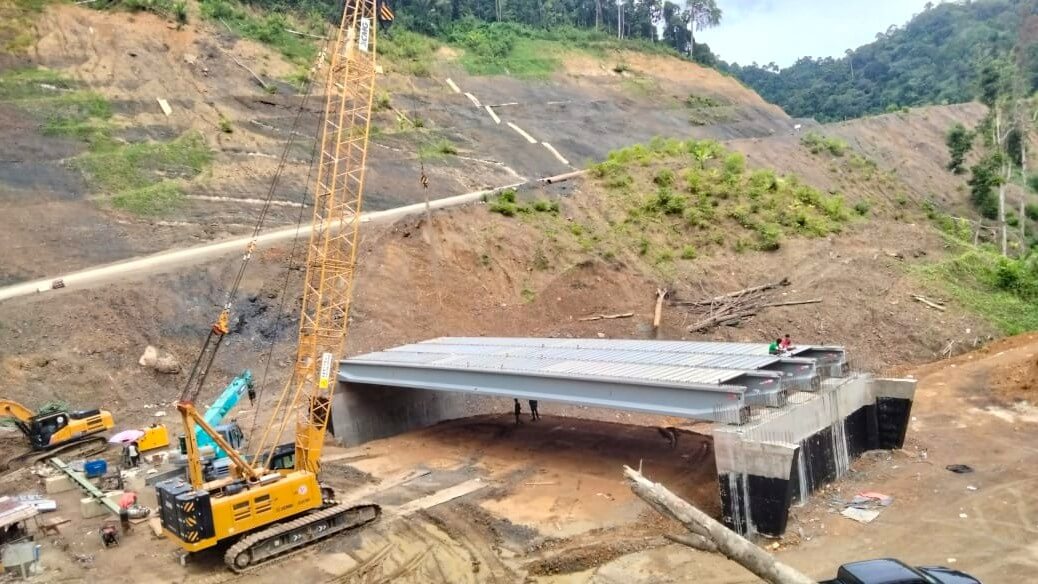

Br 1 : UHPC left-in formwork installed on the bridge deck.
Br 1 : UHPC left-in formwork installed on the bridge deck.
Project Title

PROJEK MEMBINA JALAN PAGALUNGAN – KG.TINANDUK, NABAWAN, SABAH

Project Year

2025

Status

On Going Project

Country

Malaysia

GPS Cordinates

4.5213701 N , 116.3870451 E

Structure Type

Bridge 1 : One Span 30 m by 10.78m Wide UHPFRC Composite Bridge System Bridge 2 : One Span 24m by 10.78m Wide UHPFRC Composite Bridge System

Superstructure Feature

Br 1 : 4 pieces DURA®IB1300 – 30m | Br 2 : 6 pieces DURA®IB1000 – 24m

Substructure Feature

Cast in-situ RC abutments

Foundation Feature

300mm dia. Micro Piles

Loading Type

HA+ 45 units HB loadings (BD 37/01)

Client

Kementerian Desa dan Wilayah

Superintendent Officer (S.O.)

Pengarah Kerja Raya Sabah

Contractor

Mewa Jadi Sdn Bhd

Contract Period

36 Months
