To Construct New Bridge at Machang,Kelantan using DURA® IB1200 – 25m length , DURA® IB1200 – 30m length , DURA® IB1500 – 40m length & DURA® UBG1750 – 50m length.

  • Project Status

  • Select Country

  • Select Years

  • Reset

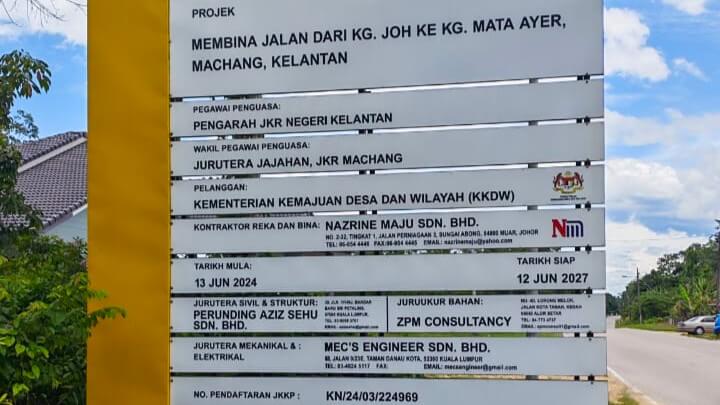

Project signboard.
Project signboard.

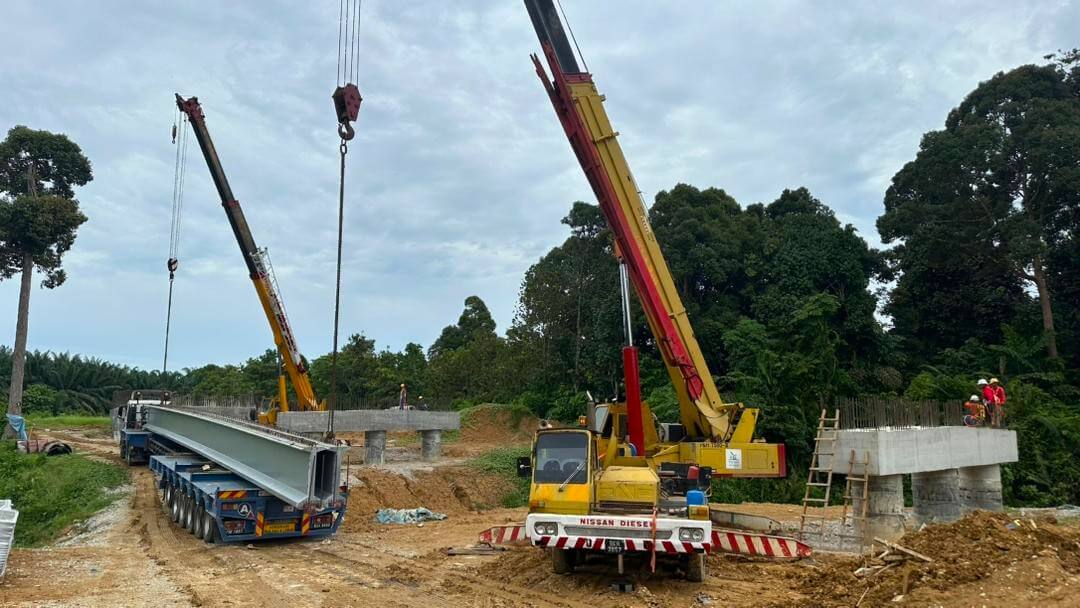

Bridge 1 – Ongoing launching operation involving the lifting and positioning of beams using two mobile cranes.
Bridge 1 – Ongoing launching operation involving the lifting and positioning of beams using two mobile cranes.

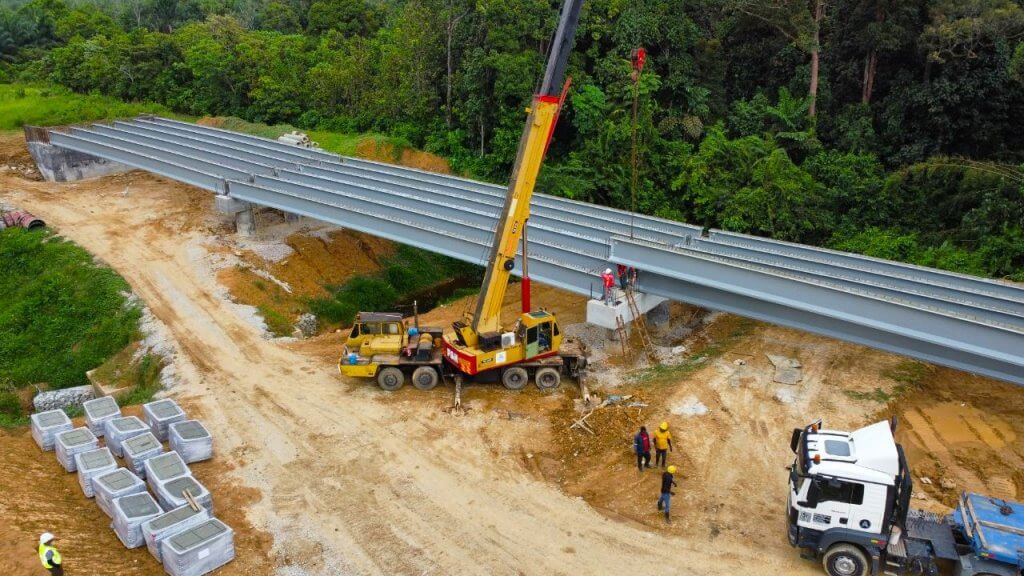

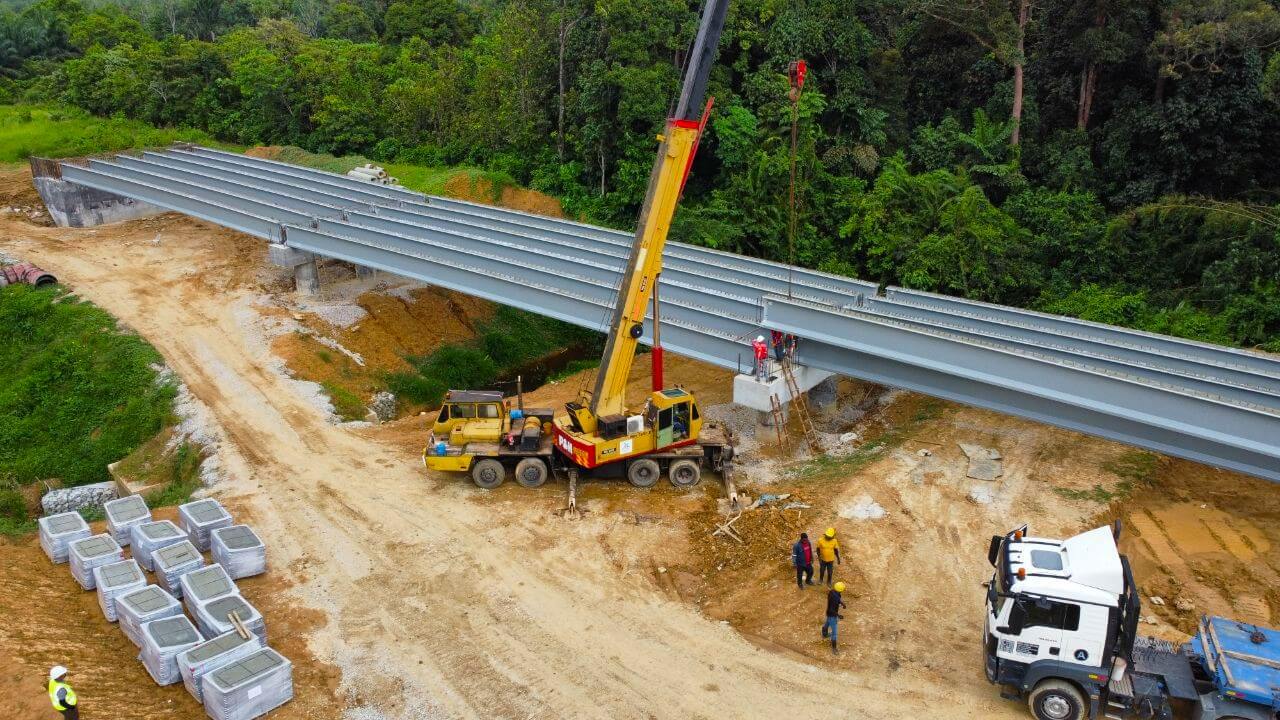

Bridge 1-Ongoing positioning of beams onto the abutments as part of the launching operation.
Bridge 1-Ongoing positioning of beams onto the abutments as part of the launching operation.

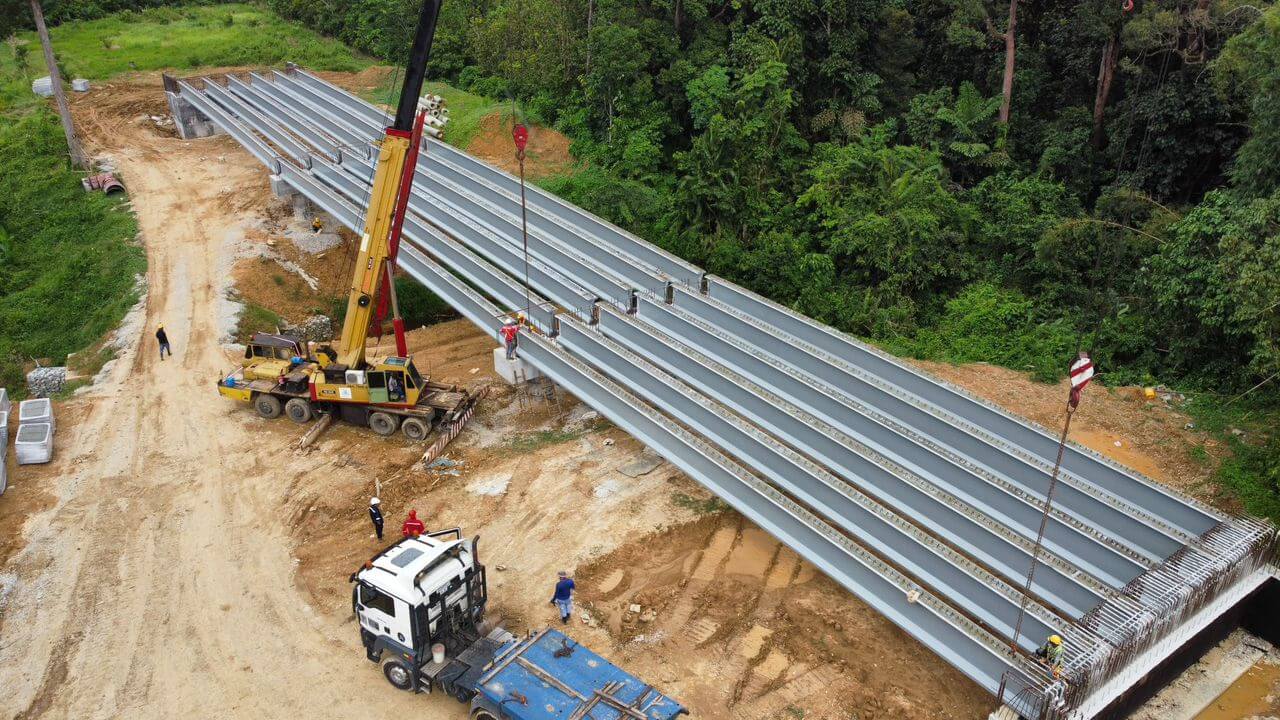

Bridge 1- Successfully launched 18 nos of DURA® IB1200.
Bridge 1- Successfully launched 18 nos of DURA® IB1200.
Project Title

PROJEK MEMBINA JALAN DARI KG JOH KE MATA AYER, MACHANG, KELANTAN- BRIDGE 1,2 & 3

Project Year

2025

Status

On Going Project

Country

Malaysia

GPS Cordinates

Bridge 1 - 5.838028 N , 102.185361 E , Bridge 3 - 5.864611 N , 102.193417 E

Structure Type

Bridge 1 : Three Spans 84.7m by 11.5m Wide UHPFRC Composite Bridge System , Bridge 2 : Three Spans 101m by 11.5m Wide UHPFRC Composite Bridge System, Bridge 3 : One Span 50m by 11.5m Wide UHPFRC Composite Bridge System

Superstructure Feature

Bridge 1 : 6 pieces of DURA® IB1200 - 25m , 12 pieces of DURA® IB1200 - 30m , Bridge 2 : 12 pieces of DURA® IB1200 - 30m , 6 pieces of DURA® IB1500 - 40m , Bridge 3 : 3 pieces of DURA® UBG1750 - 50m

Substructure Feature

Cast in-situ RC abutments

Foundation Feature

600mm dia. Spun Piles

Loading Type

HA+ 45 units HB loadings (BD 37/01)

Client

Kementerian Kemajuan Desa & Wilayah

Superintendent Officer (S.O.)

Pengarah JKR Negeri Kelantan

Consultant

Perunding Aziz Sehu Sdn. Bhd.

Contractor

Nazrine Maju Sdn. Bhd.

Alternative Bridge Designer

Jurutera Perunding Al-Ikhlas Sdn. Bhd.

Contract Period

36 Months
