To Construct New Bridge for District and Land Office at Lorong Pak Duan , Kampung Klian Gunung , Hulu Ijok , Perak Using DURA®IB1000 – 26m

  • Project Status

  • Select Country

  • Select Years

  • Reset

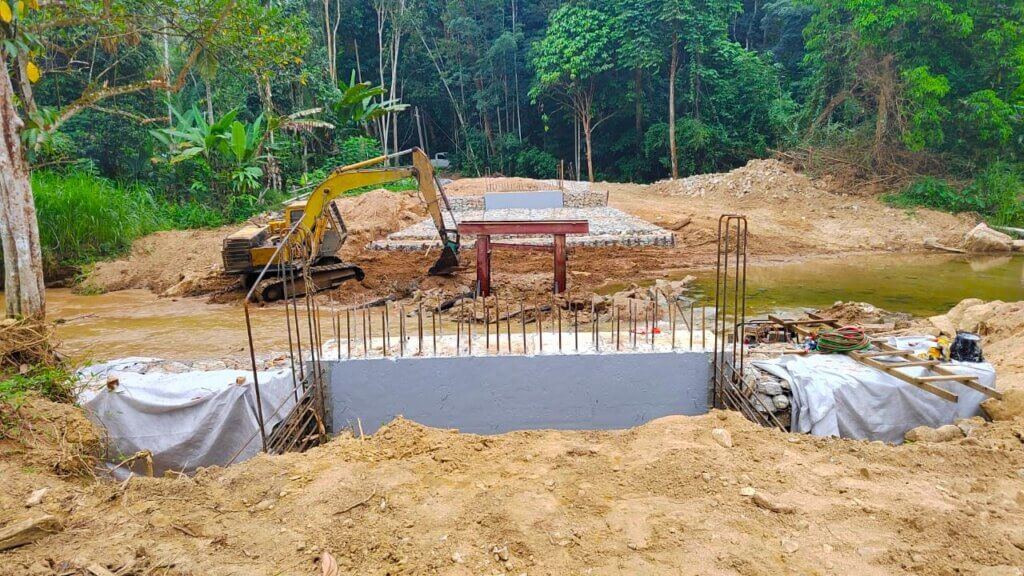

1.Construction of RC column at abutment A.
1.Construction of RC column at abutment A.

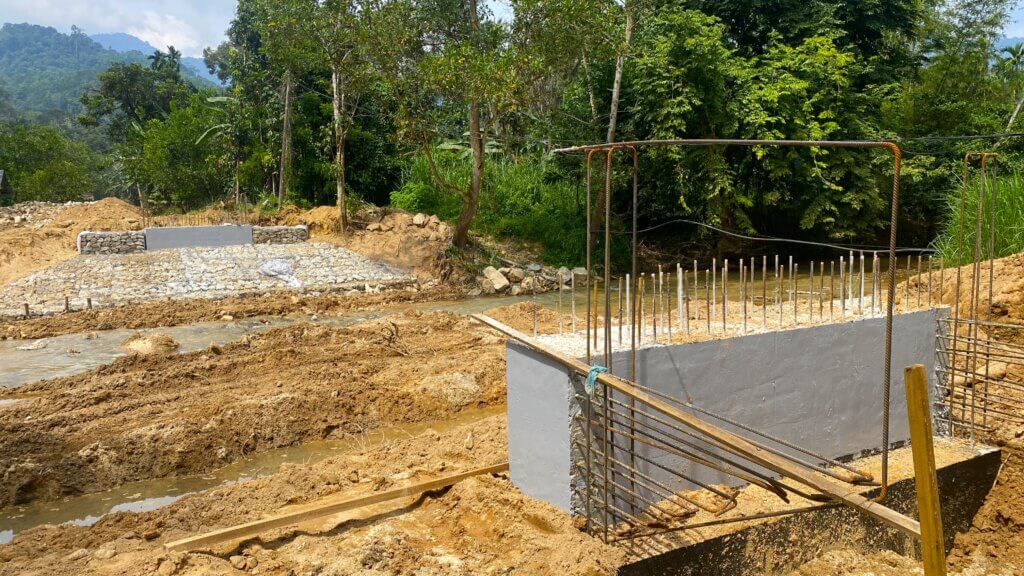

2. Construction of RC column at abutment B.
2. Construction of RC column at abutment B.

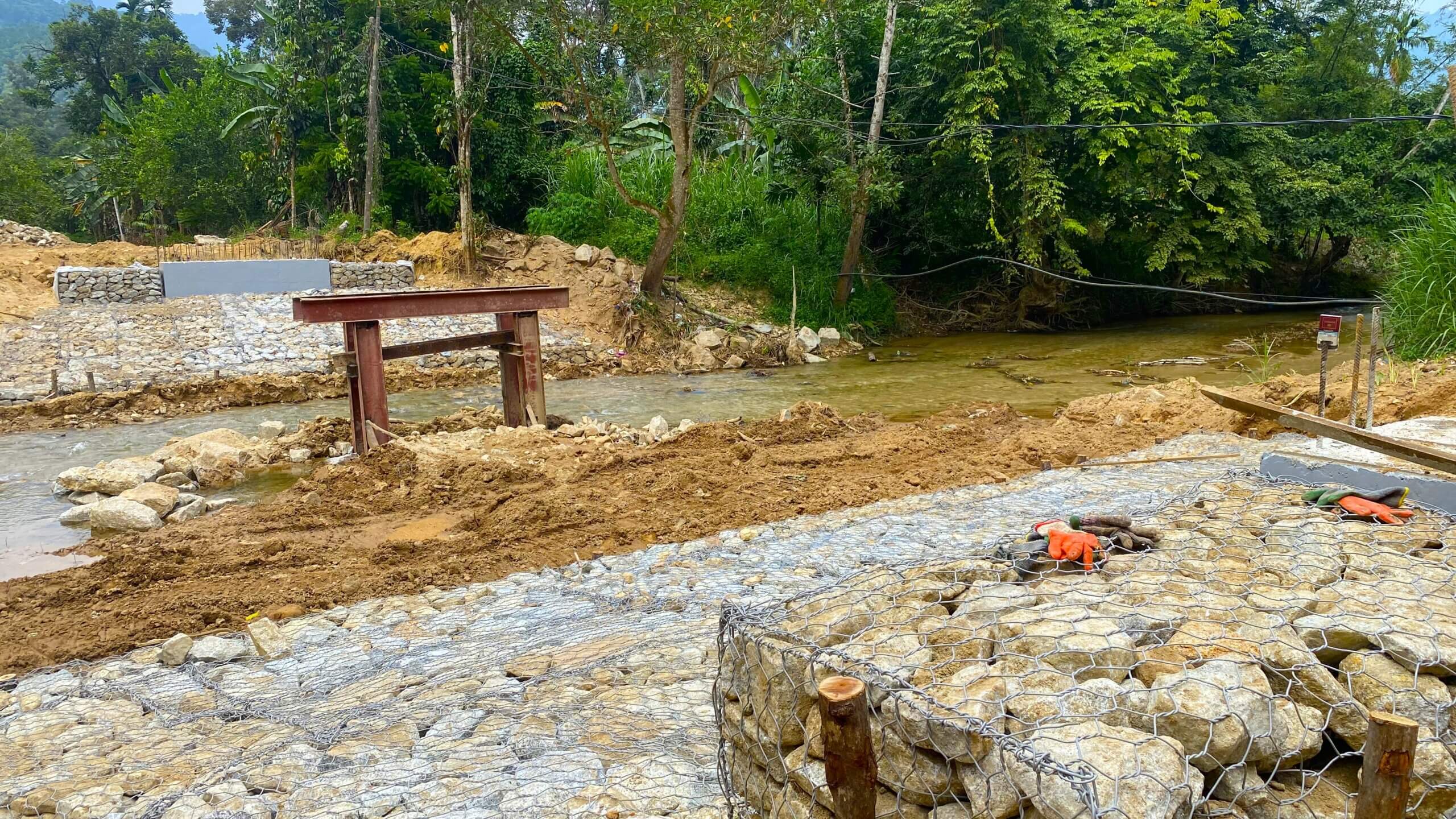

3.Temporary staging in the middle of the river.
3.Temporary staging in the middle of the river.

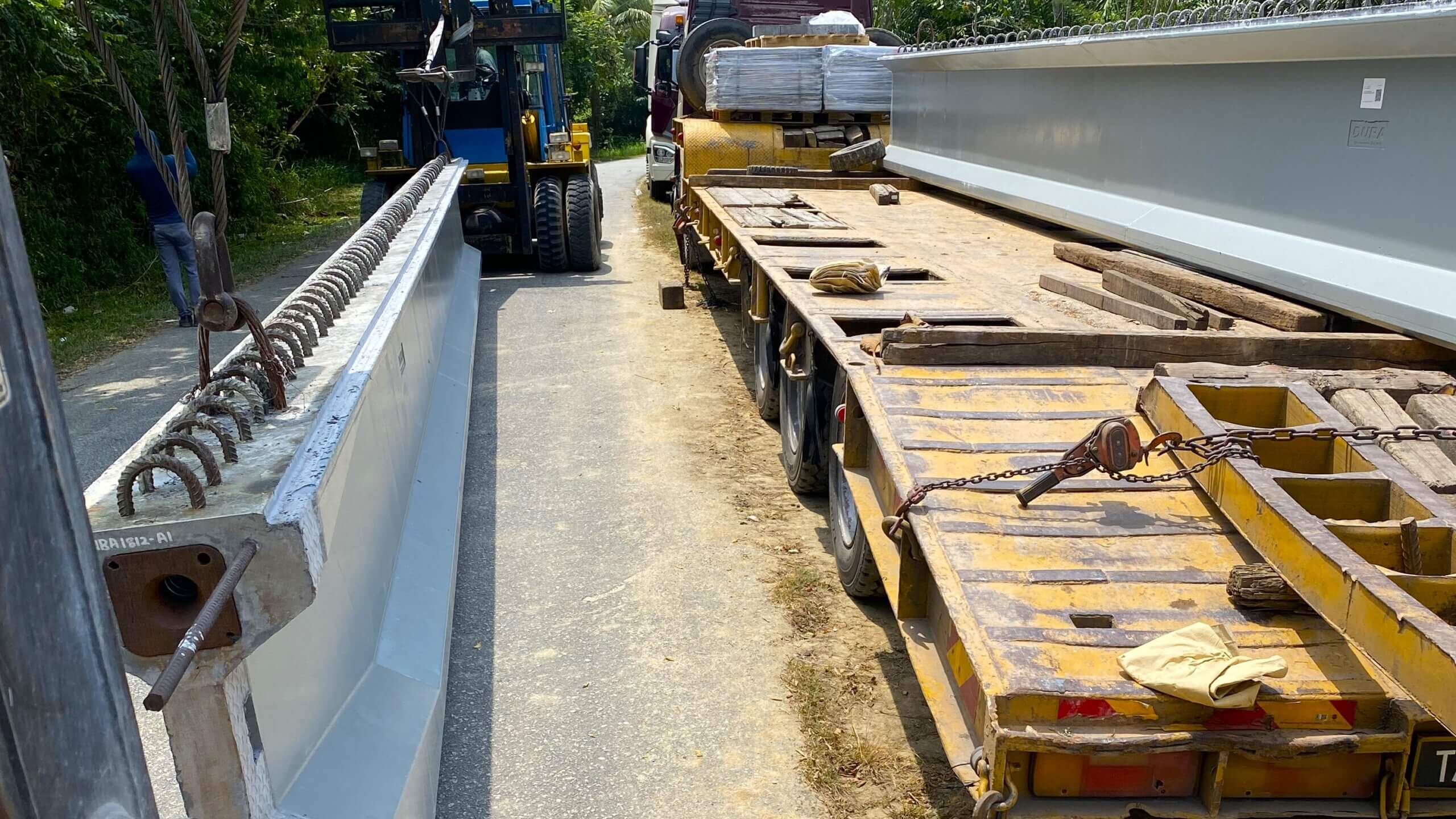

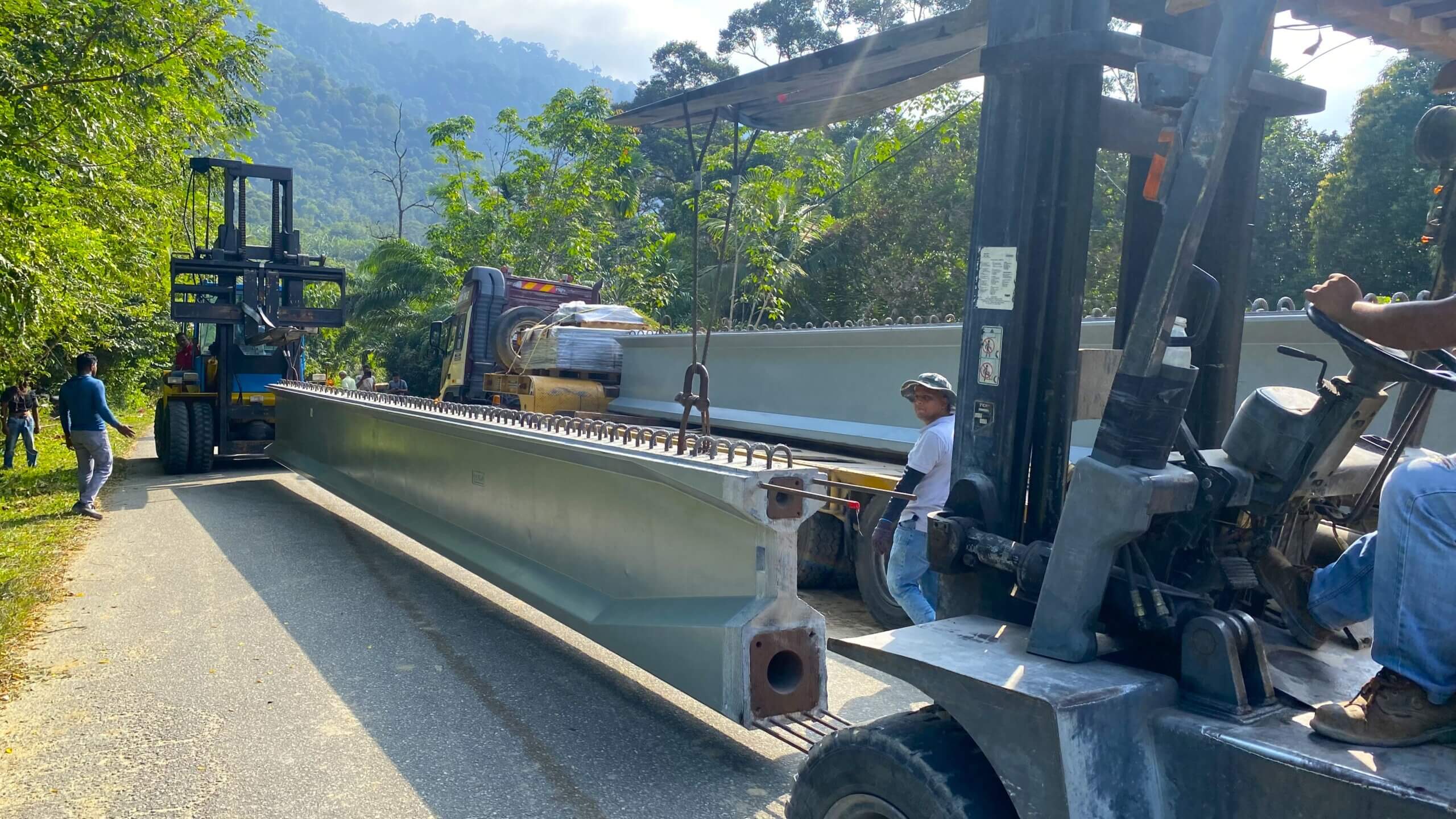

4.Two nos of IB1000 segments arrived on site.
4.Two nos of IB1000 segments arrived on site.
5.Unloading IB1000 segment.
5.Unloading IB1000 segment.

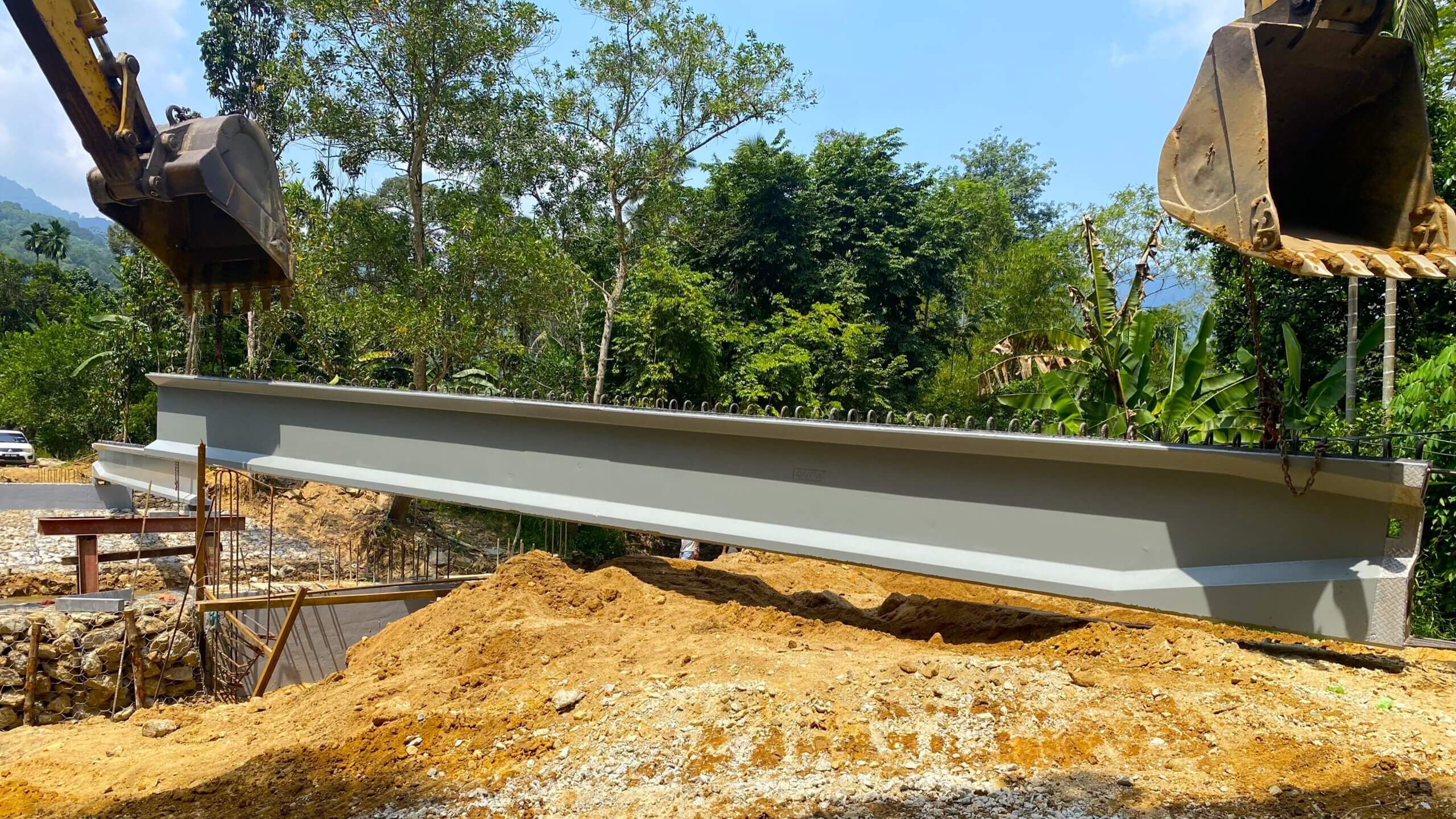

6.Positioning IB1000 segment onto temporary staging.
6.Positioning IB1000 segment onto temporary staging.

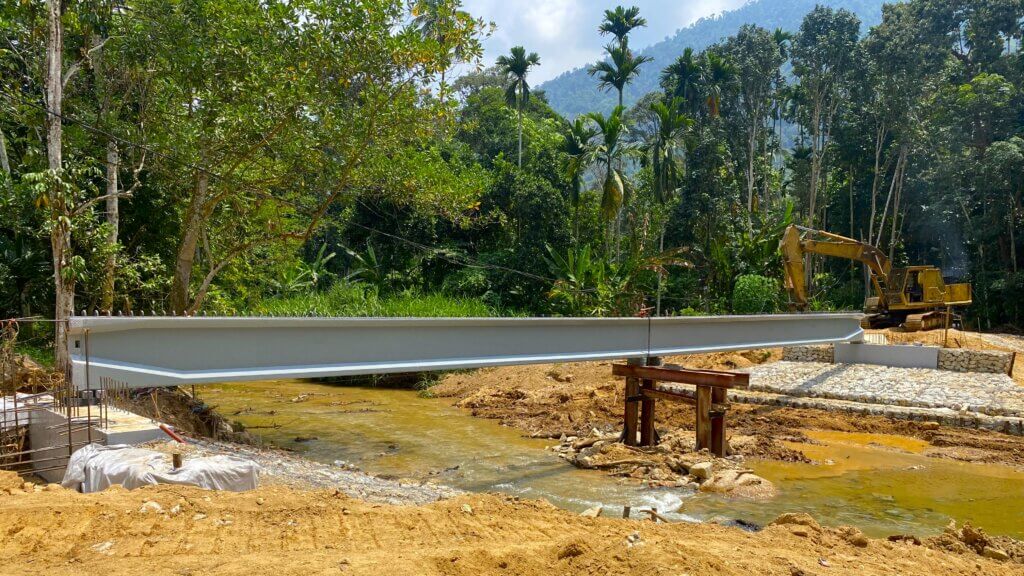

7.First IB1000 has been aligned on the temporary staging and both abutments.
7.First IB1000 has been aligned on the temporary staging and both abutments.

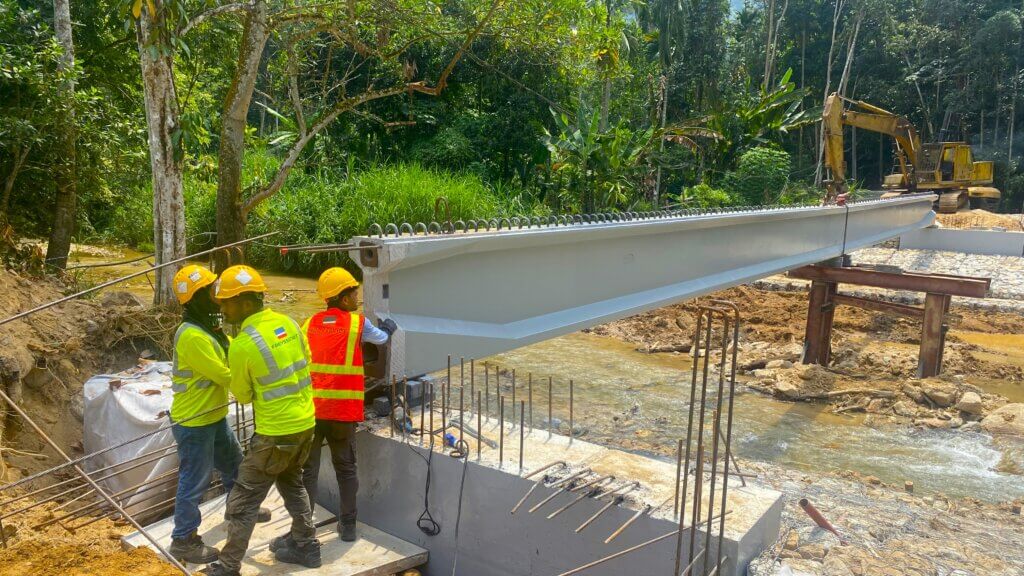

8.Pushing cable strand.
8.Pushing cable strand.

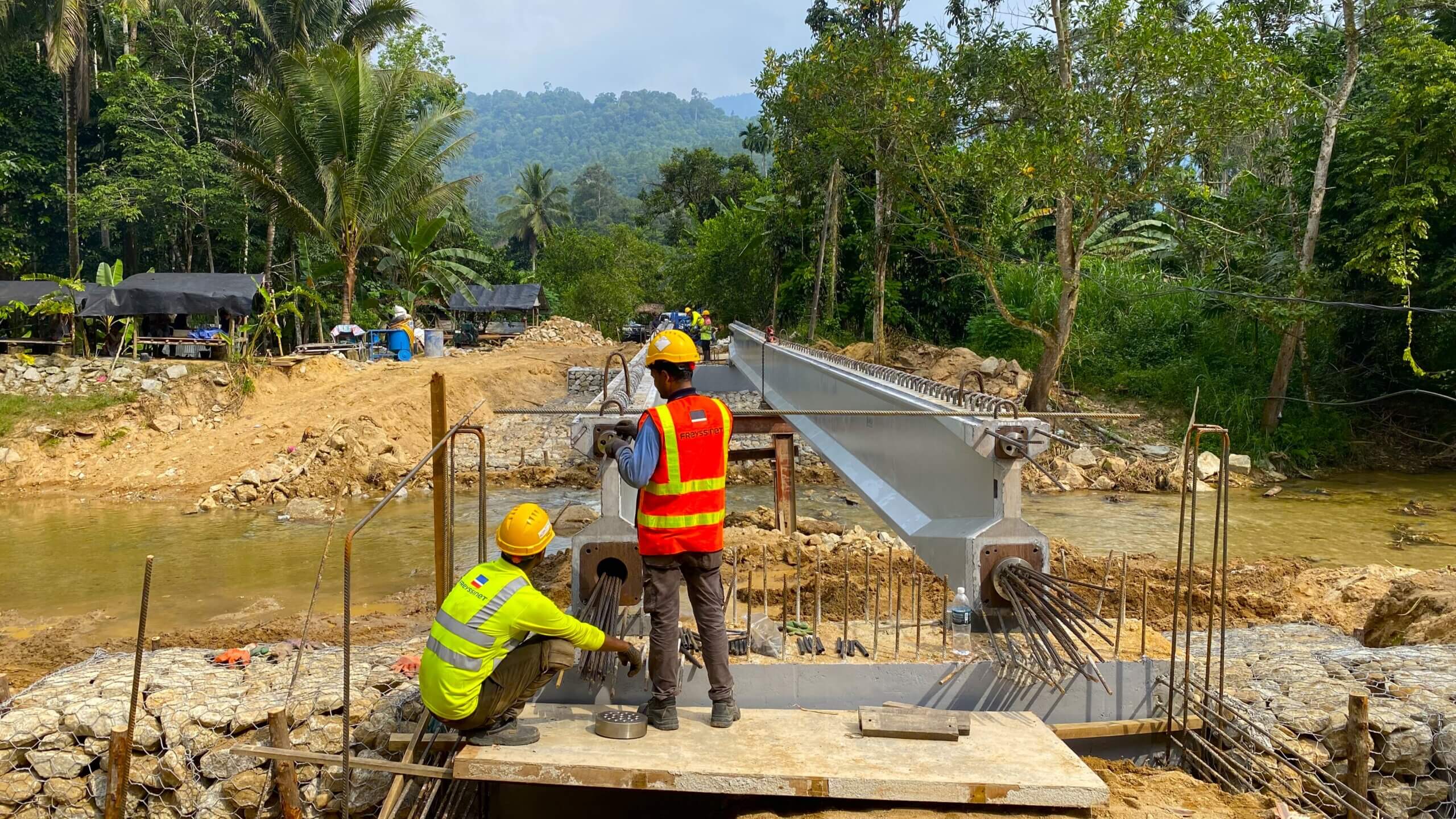

9.Installation of bearing plate.
9.Installation of bearing plate.

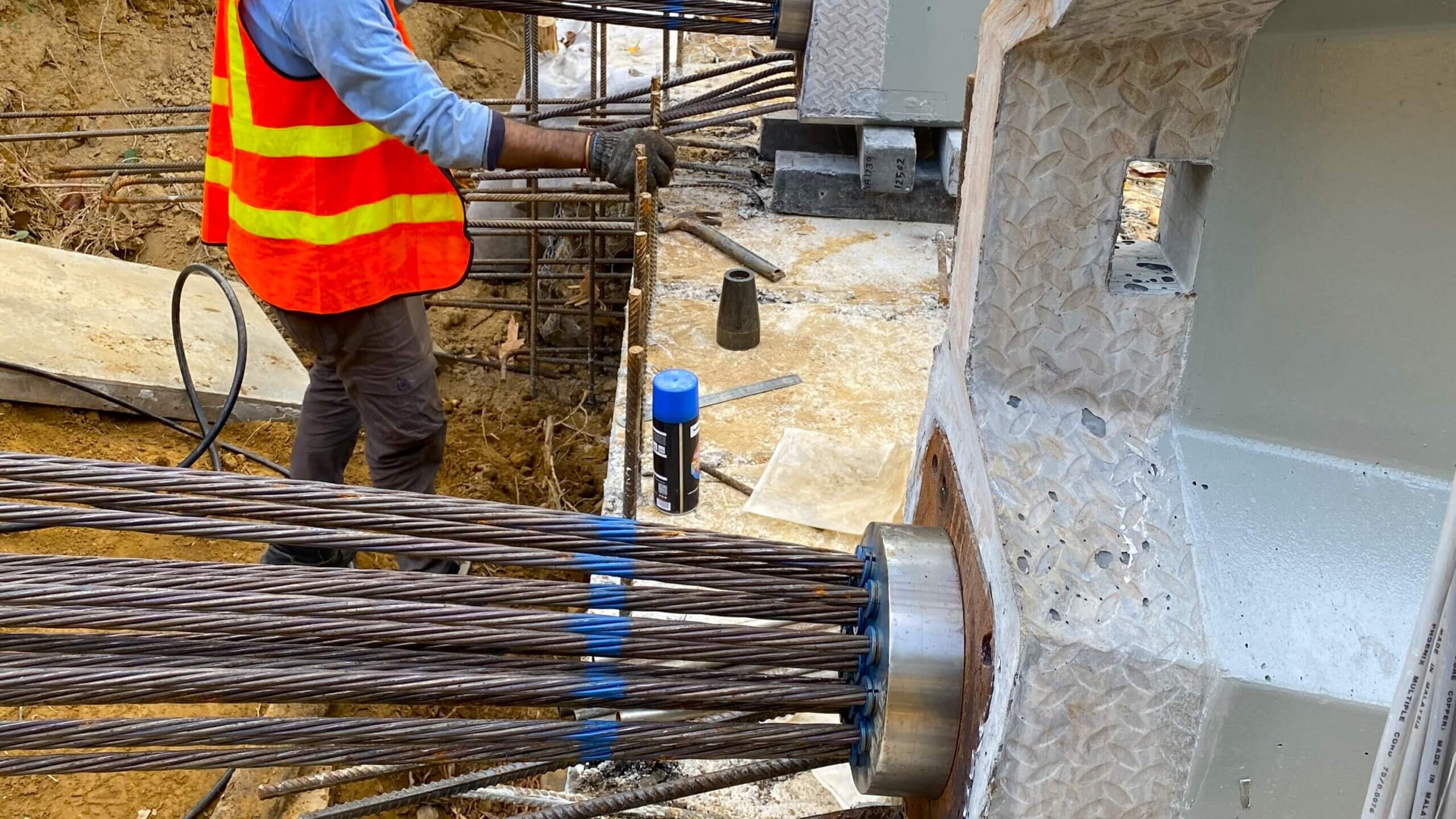

10. Two nos of IB1000-26m complete post-tensioned.
10. Two nos of IB1000-26m complete post-tensioned.

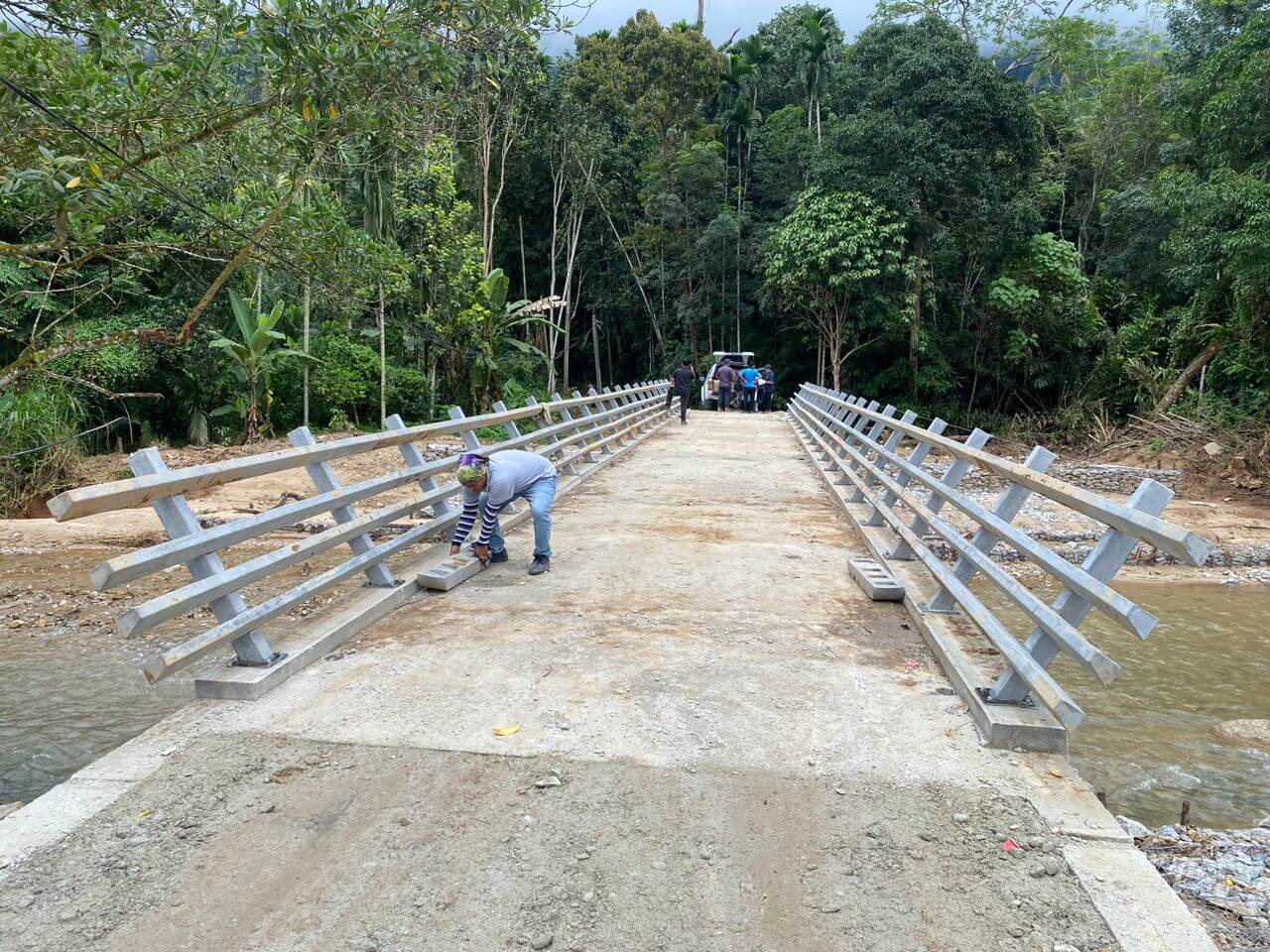

11.Installation of DURA handrail.
11.Installation of DURA handrail.

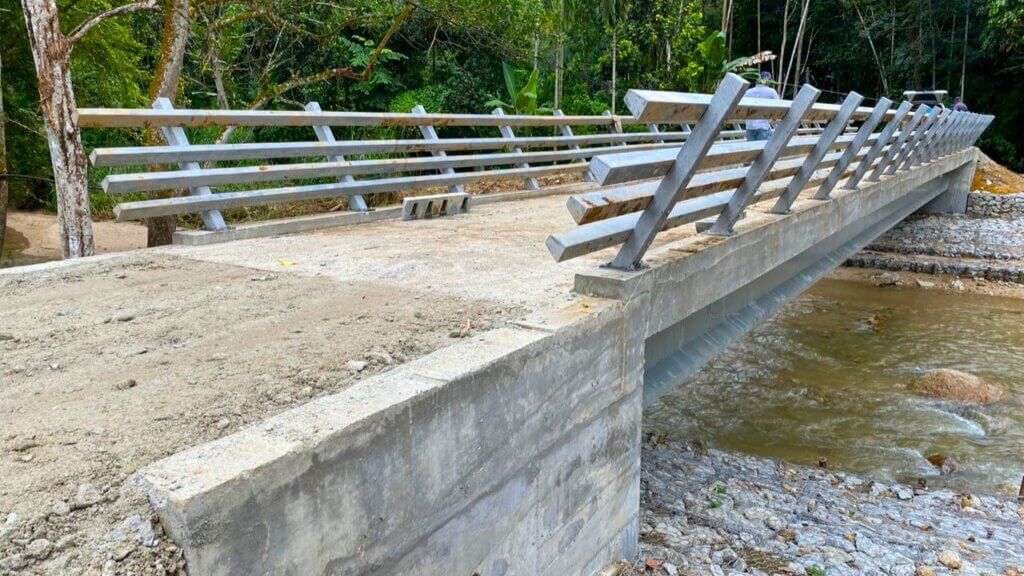

12.Completed bridge.
12.Completed bridge.

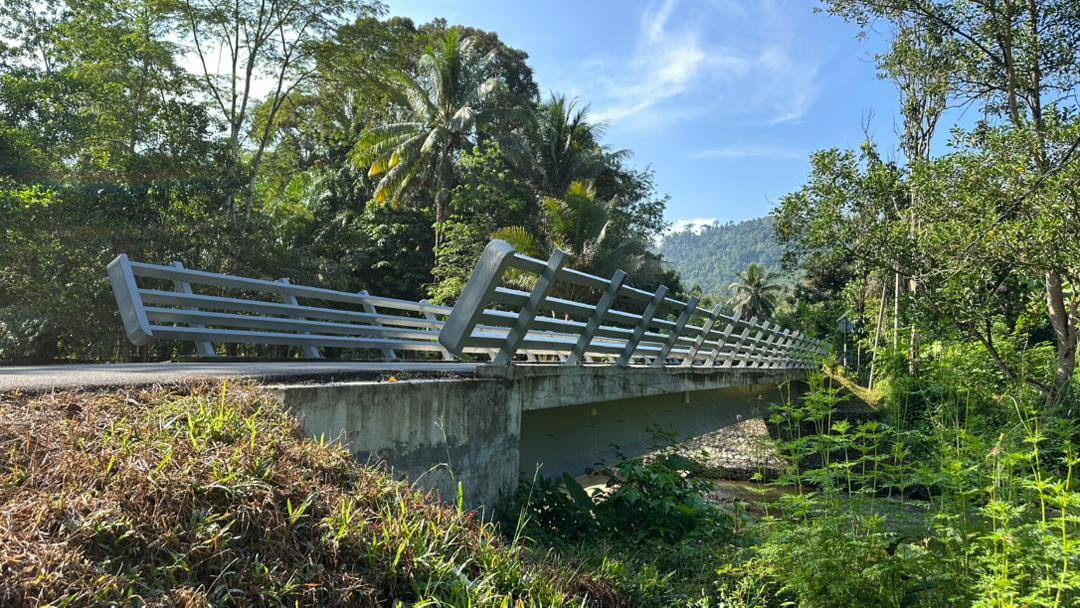

Completed bridge.(Photo taken on 30725)
Completed bridge.(Photo taken on 30725)

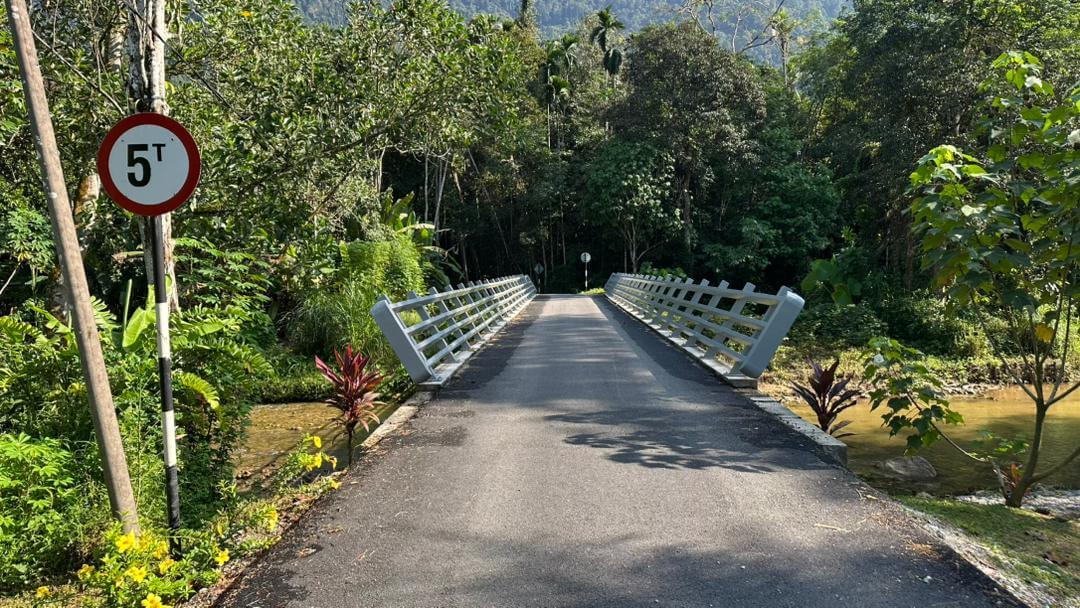

Completed bridge.(Photo taken on 30072025)
Completed bridge.(Photo taken on 30072025)
Completed bridge. ( Photo taken on 30.07.2025)
Completed bridge. ( Photo taken on 30.07.2025)
Project Title

Cadangan Bina Baru Jambatan Serta Lain-Lain Kerja Di Lorong Pak Duan, Kampung Klian Gunung, Hulu Ijok, Perak Darul Ridzuan.

Project Year

2024

Status

Completed Project

Country

Malaysia

GPS Cordinates

5.145180 N, 100.878026 E

Structure Type

Single Span 26m by 3.5m Wide UHPFRC integral beam-deck system.

Superstructure Feature

2 pieces of DURA® IB1000 – 26m

Substructure Feature

Cast in-situ RC abutments

Foundation Feature

200mm x 200mm Square RC Pile

Loading Type

HA loading (BD37/01)

Client

Pejabat Daerah Dan Tanah Hulu Perak

Consultant

Concrete Technology Consult Sdn Bhd

Contract Period

12 months
