To Construct New Bridge for District and Land Office at Lorong Yusuf Sudin, Kampung Garok, Selama, Perak Using DURA IB850 – 20m

  • Project Status

  • Select Country

  • Select Years

  • Reset

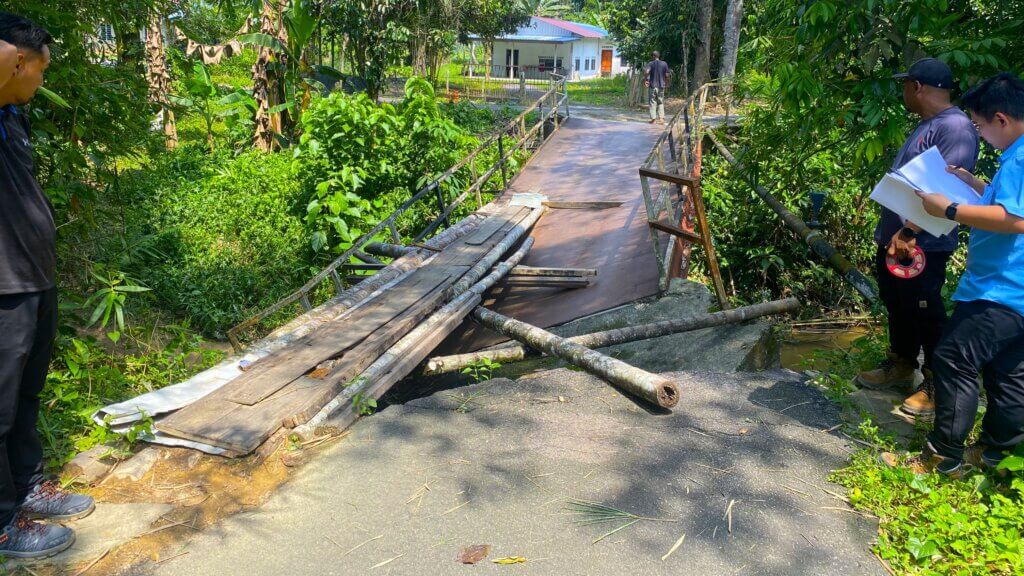

1.Existing bridge.
1.Existing bridge.

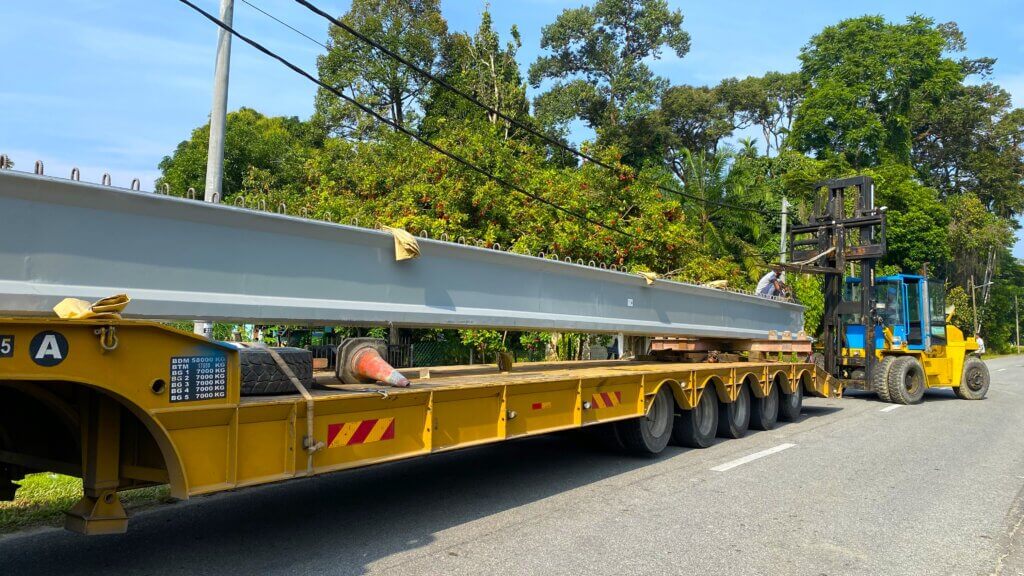

2.IB850-20m arrived on site.
2.IB850-20m arrived on site.

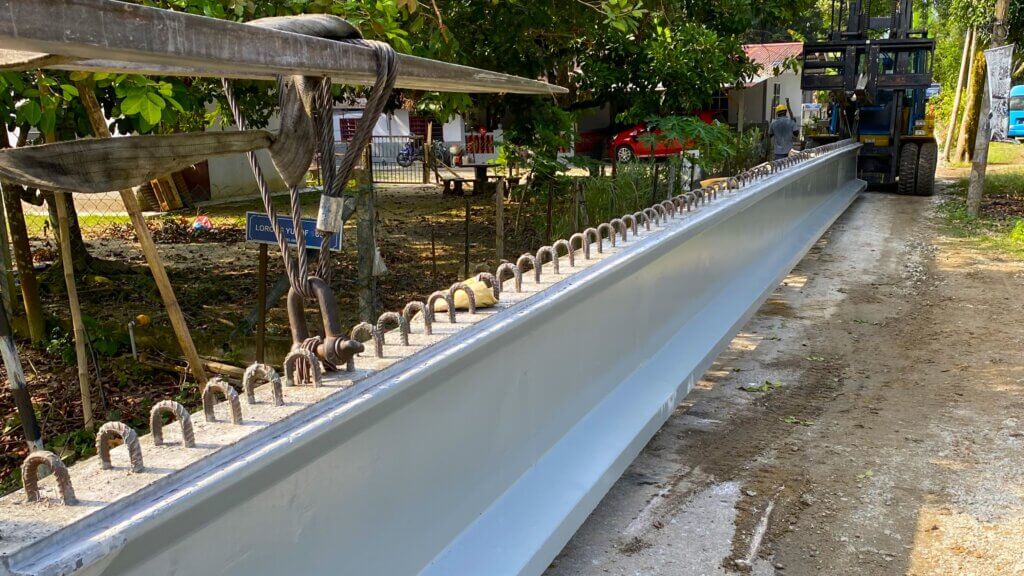

3.Tranferring IB850-20m to the site
3.Tranferring IB850-20m to the site

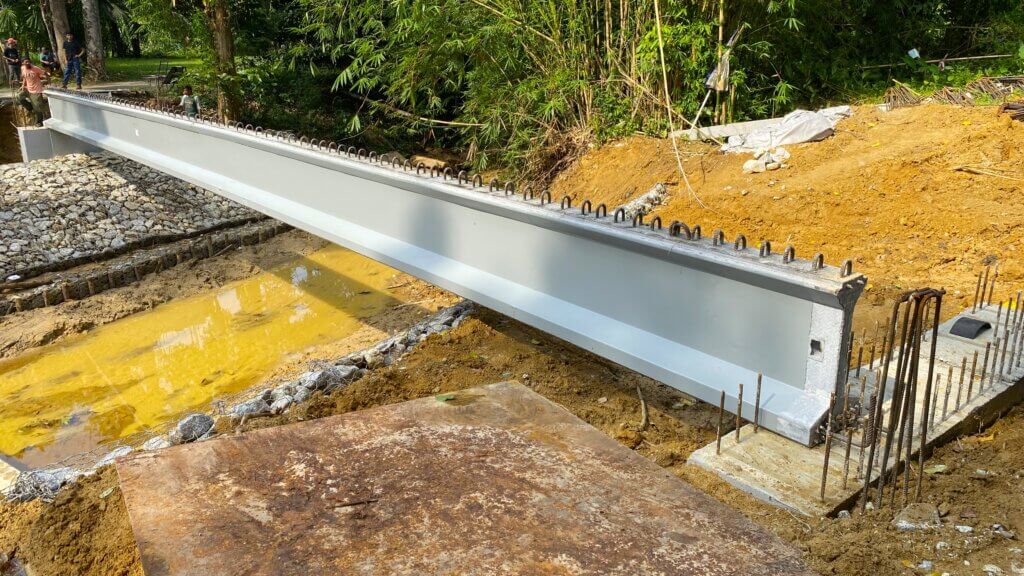

4.Successfully launched of first IB850-20m.
4.Successfully launched of first IB850-20m.

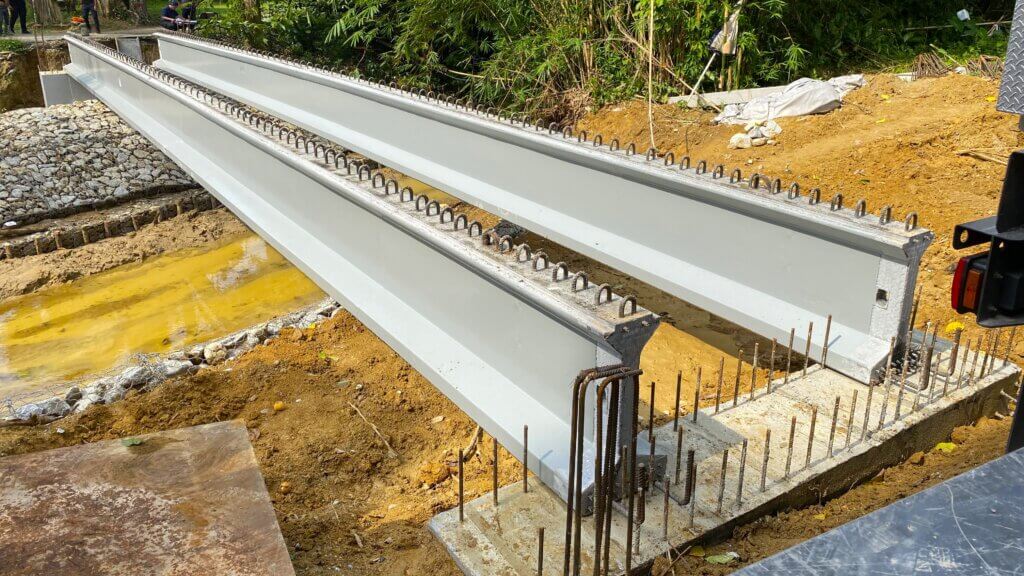

5.Both IB850-20m has been positioned and sitting on both abutments.
5.Both IB850-20m has been positioned and sitting on both abutments.

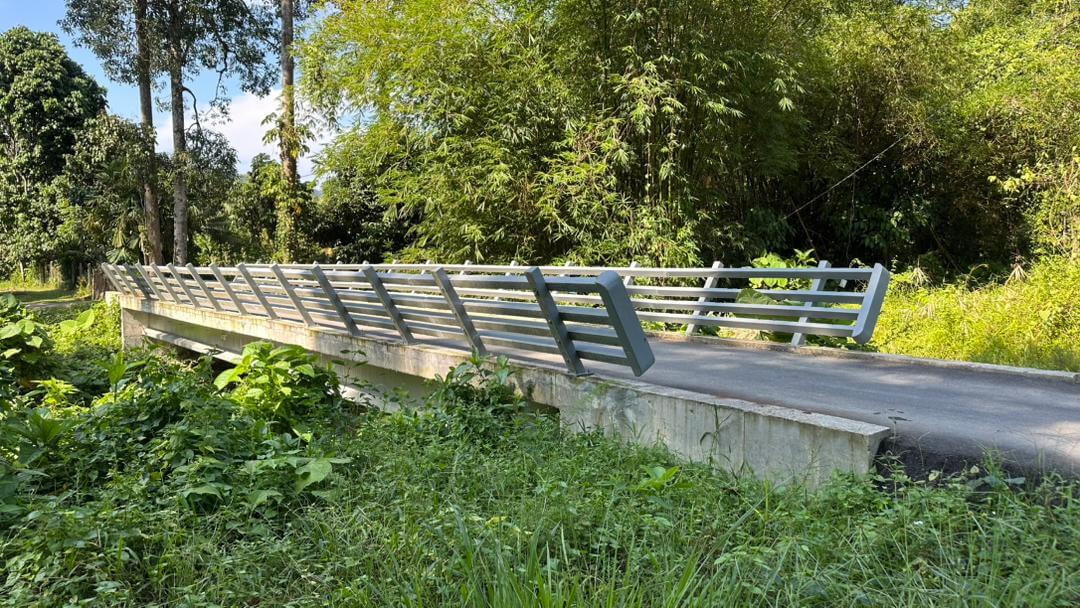

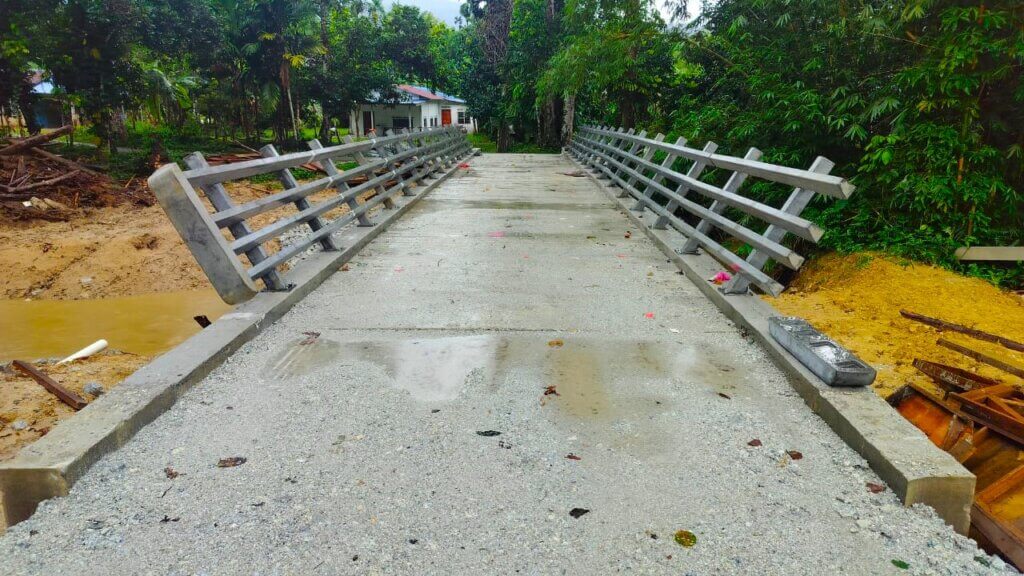

6.Completed bridge.
6.Completed bridge.
Project Title

Cadangan Bina Baru Jambatan Serta Lain-Lain Kerja di Lorong Yusuf Sudin, Kampung Garok, Selama, Perak Darul Ridzuan

Project Year

2024

Status

Completed Project

Country

Malaysia

GPS Cordinates

5.260116 N, 100.794075 E

Structure Type

Single Span 20m by 3.5m Wide UHPFRC integral beam-deck system.

Superstructure Feature

2 pieces of DURA® IB850 – 20m

Substructure Feature

Cast in-situ RC abutments

Foundation Feature

200mm x 200mm Square RC Pile

Loading Type

HA + 30 units HB loadings (BD37/01)

Client

Pejabat Daerah Dan Tanah Hulu Perak

Consultant

Concrete Technology Consult Sdn Bhd

Contract Period

12 months
