To Construct Road Bridge for Kuala Kedah Jetty, Kedah using IB850-22m

  • Project Status

  • Select Country

  • Select Years

  • Reset
I-Beams were cast in the DURA factory.
I-Beams were cast in the DURA factory.

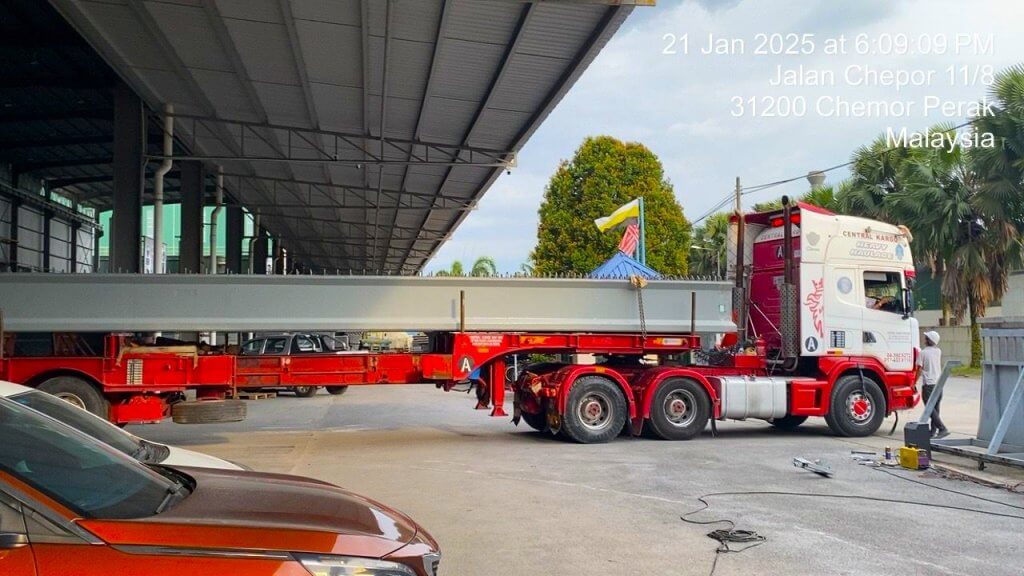

I-Beams are shipped out to the site from the factory
I-Beams are shipped out to the site from the factory

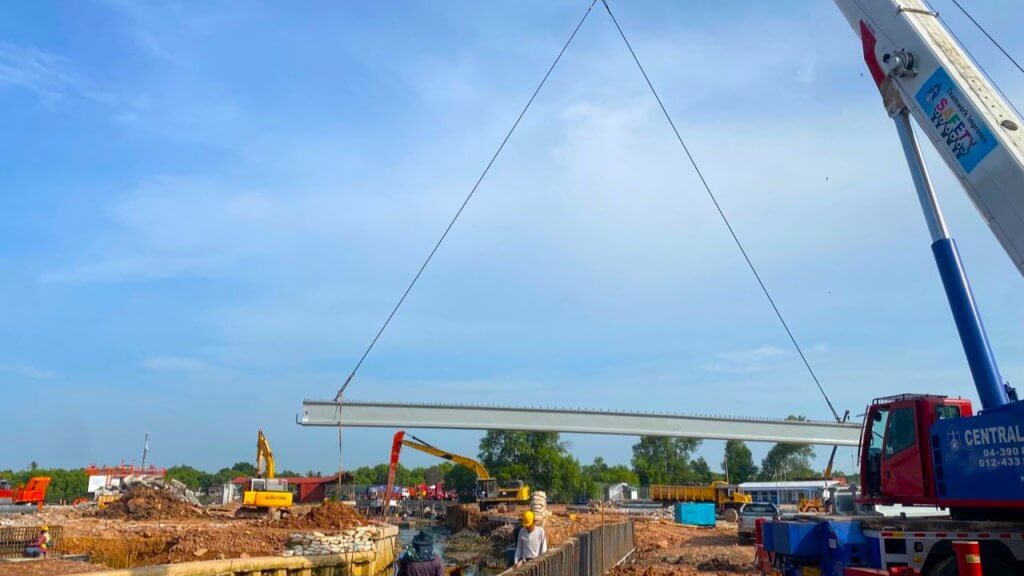

Beam launching is ongoing. Position and align the beam onto the abutments.
Beam launching is ongoing. Position and align the beam onto the abutments.

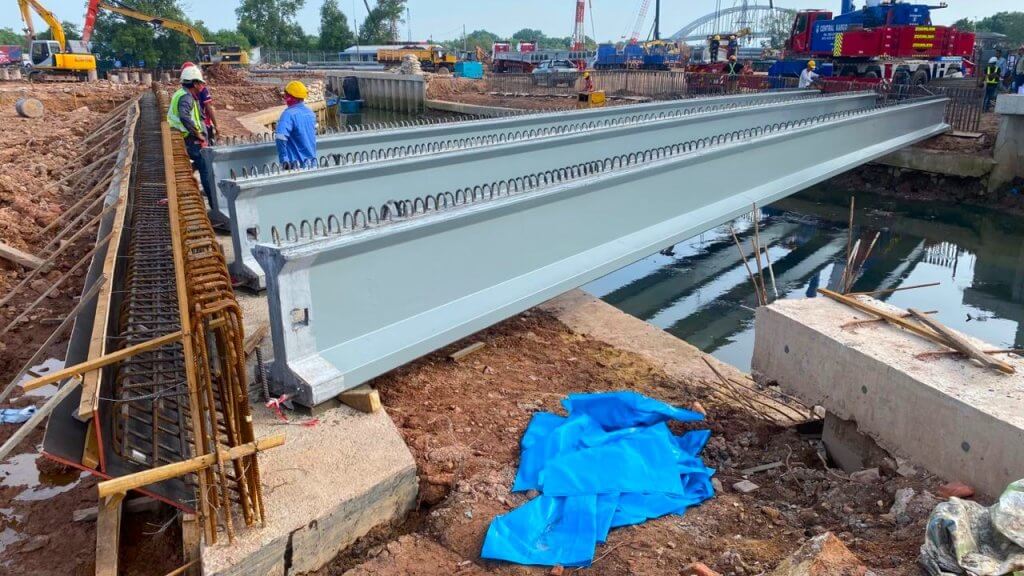

Ibeams sitting onto the abutments.
Ibeams sitting onto the abutments.

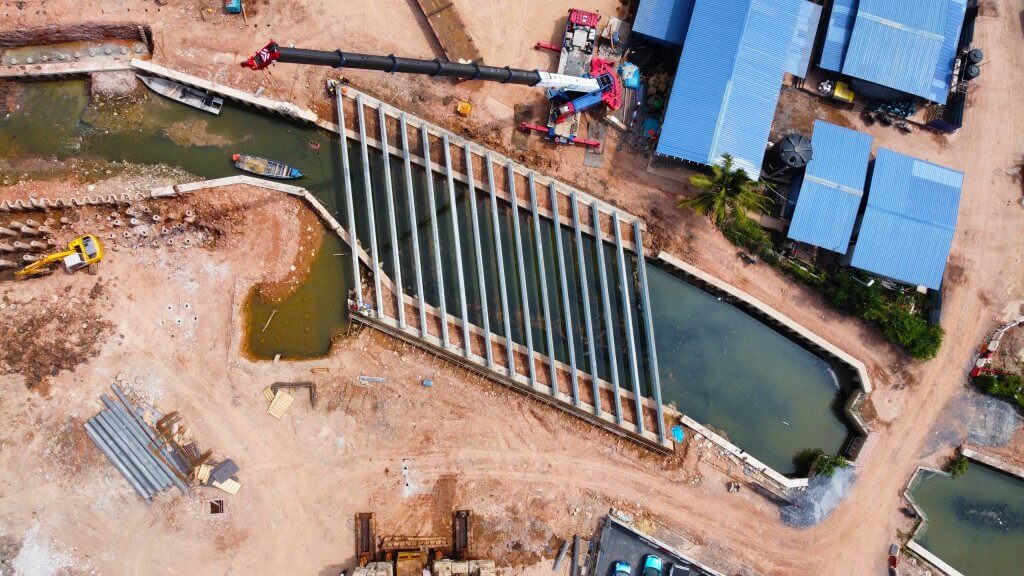

All I-beams have now been successfully launched.
All I-beams have now been successfully launched.

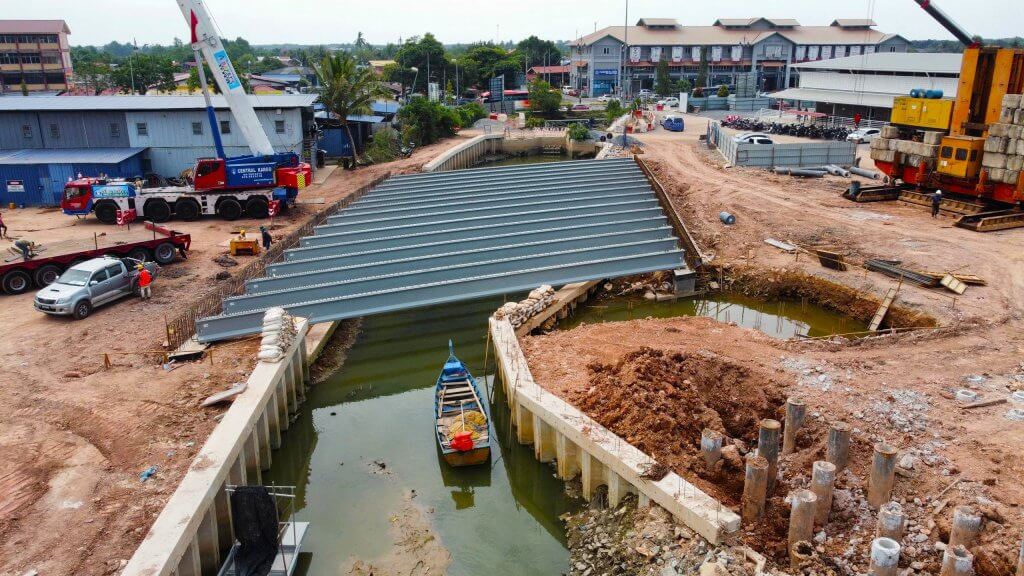

Launching has been completed.
Launching has been completed.

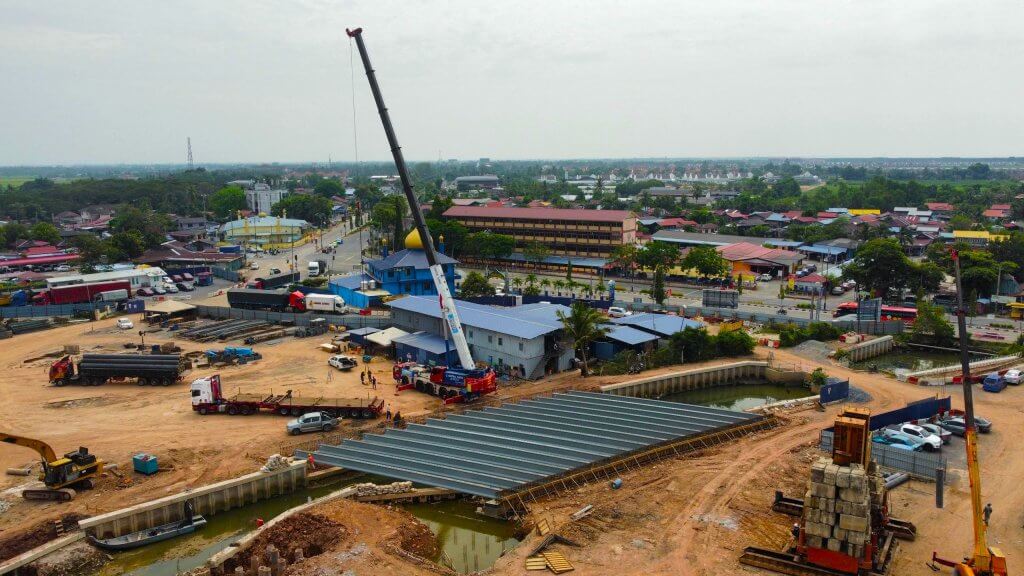

Completion of beam launching.
Completion of beam launching.

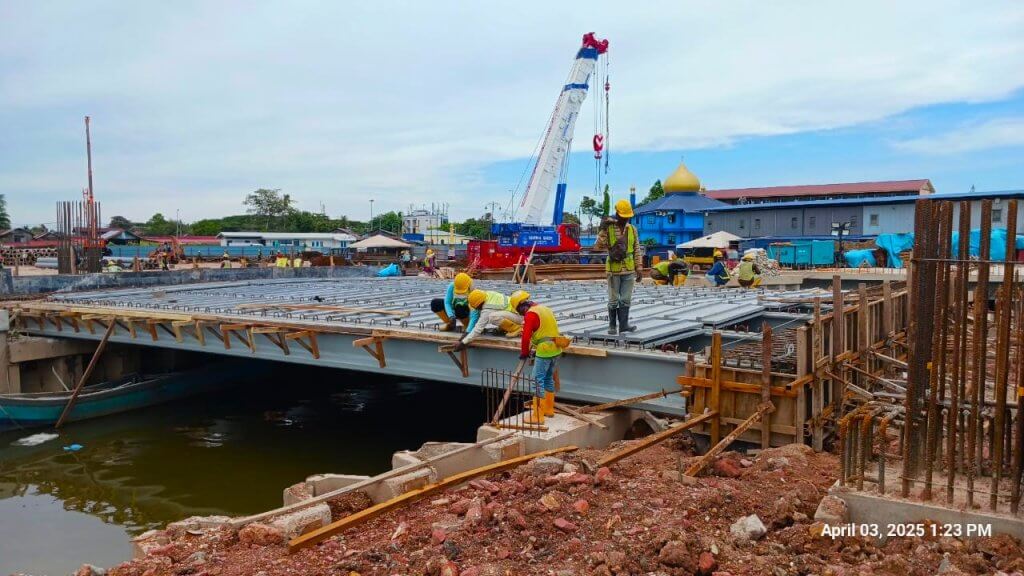

Installation of left in formwork.
Installation of left in formwork.
Project Title

Projek Meroboh , Membina Dan Menaiktaraf Termonal Dan Jeti Penumpang, Kargo Dan Roro Kuala Kedah, Kedah Darul Aman

Project Year

2025

Status

On Going Project

Country

Malaysia

GPS Cordinates

6.106611 N , 100.291278 E

Structure Type

One Span 22m by 30m Wide UHPFRC Composite Bridge System

Superstructure Feature

20 pieces of DURA® IB850 – 22m

Substructure Feature

Cast in-situ RC abutments

Foundation Feature

500mm dia. Spun Piles

Loading Type

HA+ 45 units HB loadings (BD37/01)

Client

Kementerian Pengangkutan Malaysia

Superintendent Officer (S.O.)

Kementerian Pengangkutan Malaysia

Consultant

TechniPro Consult Sdn Bhd

Contractor

Sunissa Sdn Bhd

Contract Period

36 MONTHS
