To Construct 135m UHPC Bridge at Pekan Kiulu-Kg Bayag , Tuaran , Sabah using DURA®IB650, DURA®IB850 & DURA®UBG1750

  • Project Status

  • Select Country

  • Select Years

  • Reset

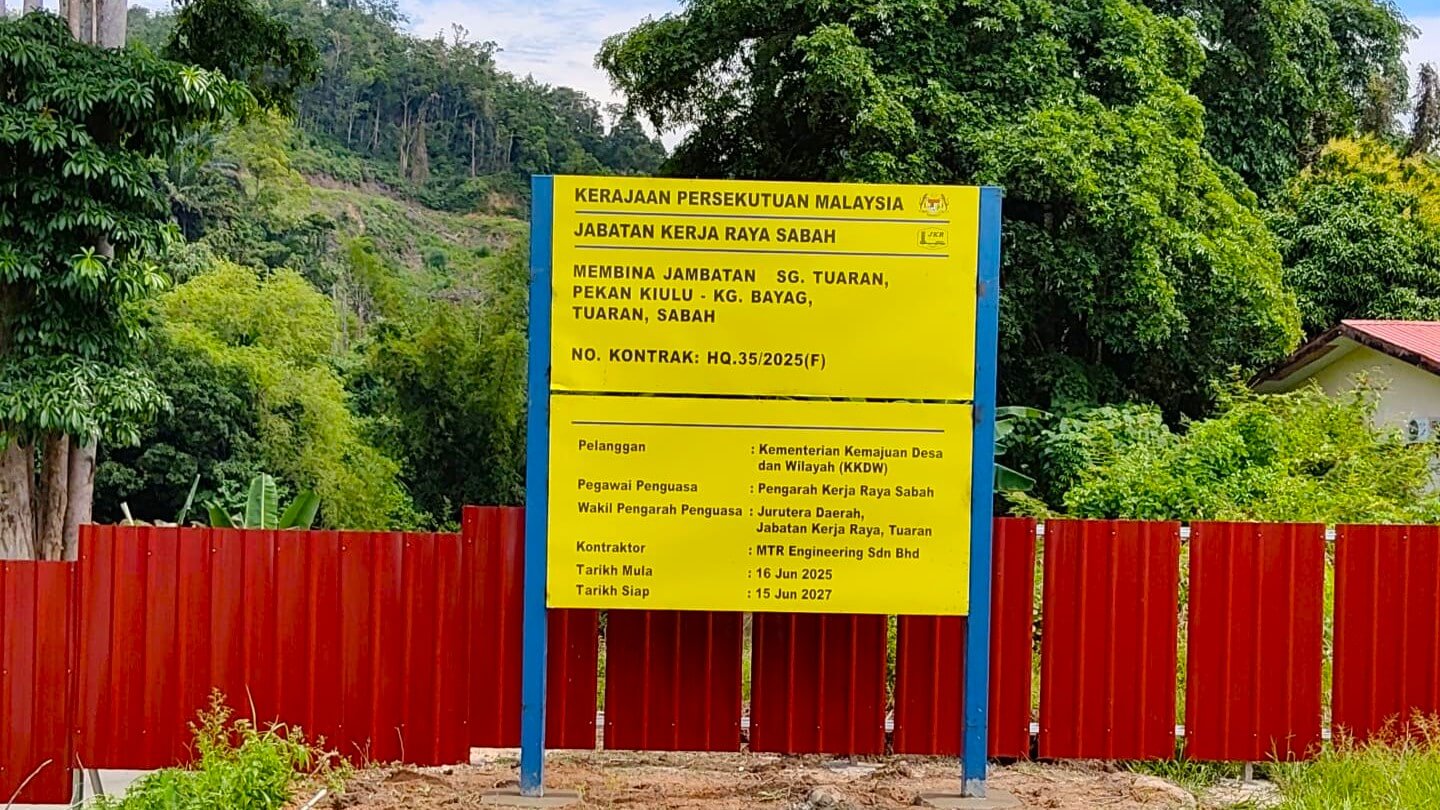

Project signboard.
Project signboard.

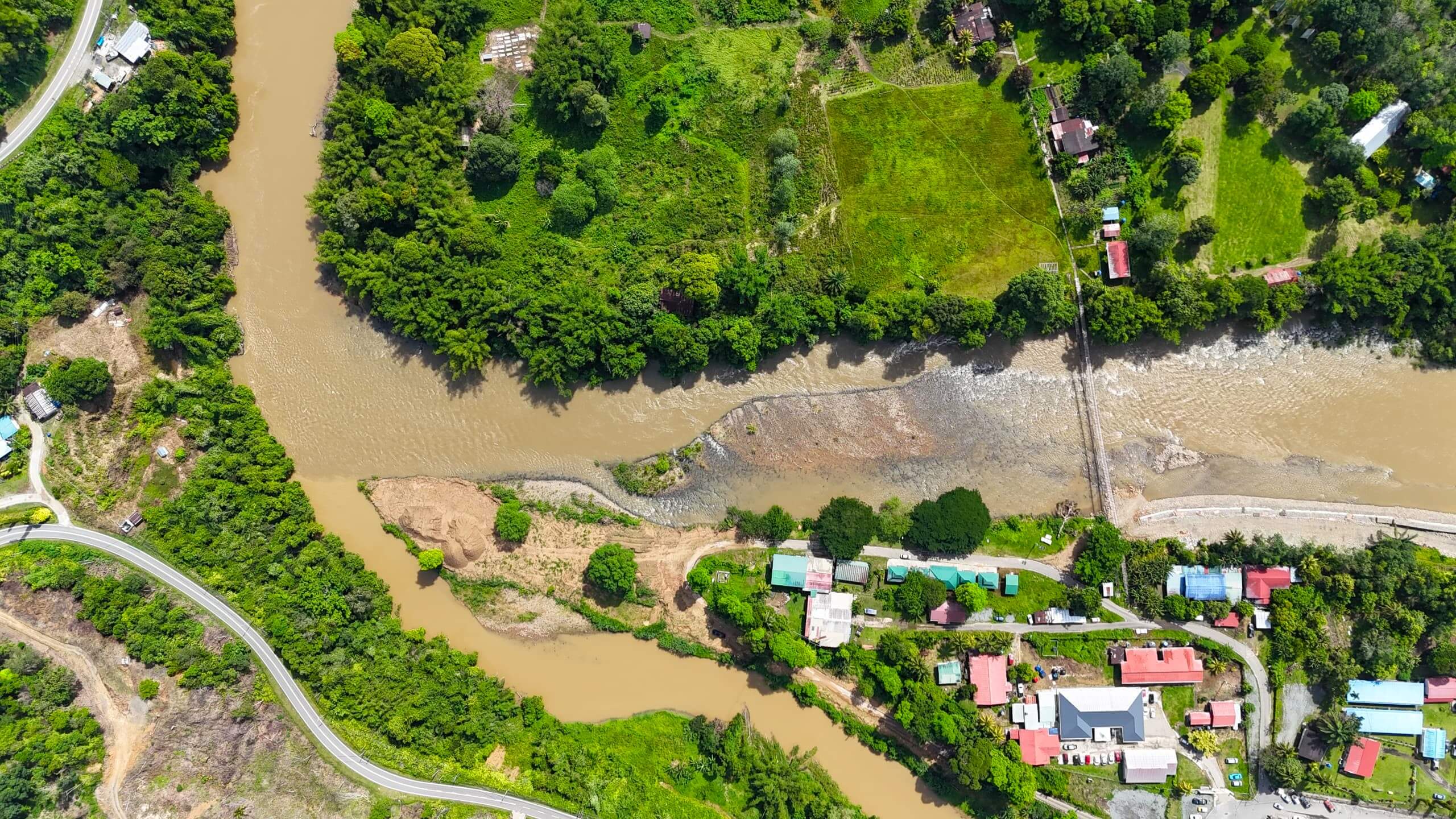

Project site.
Project site.

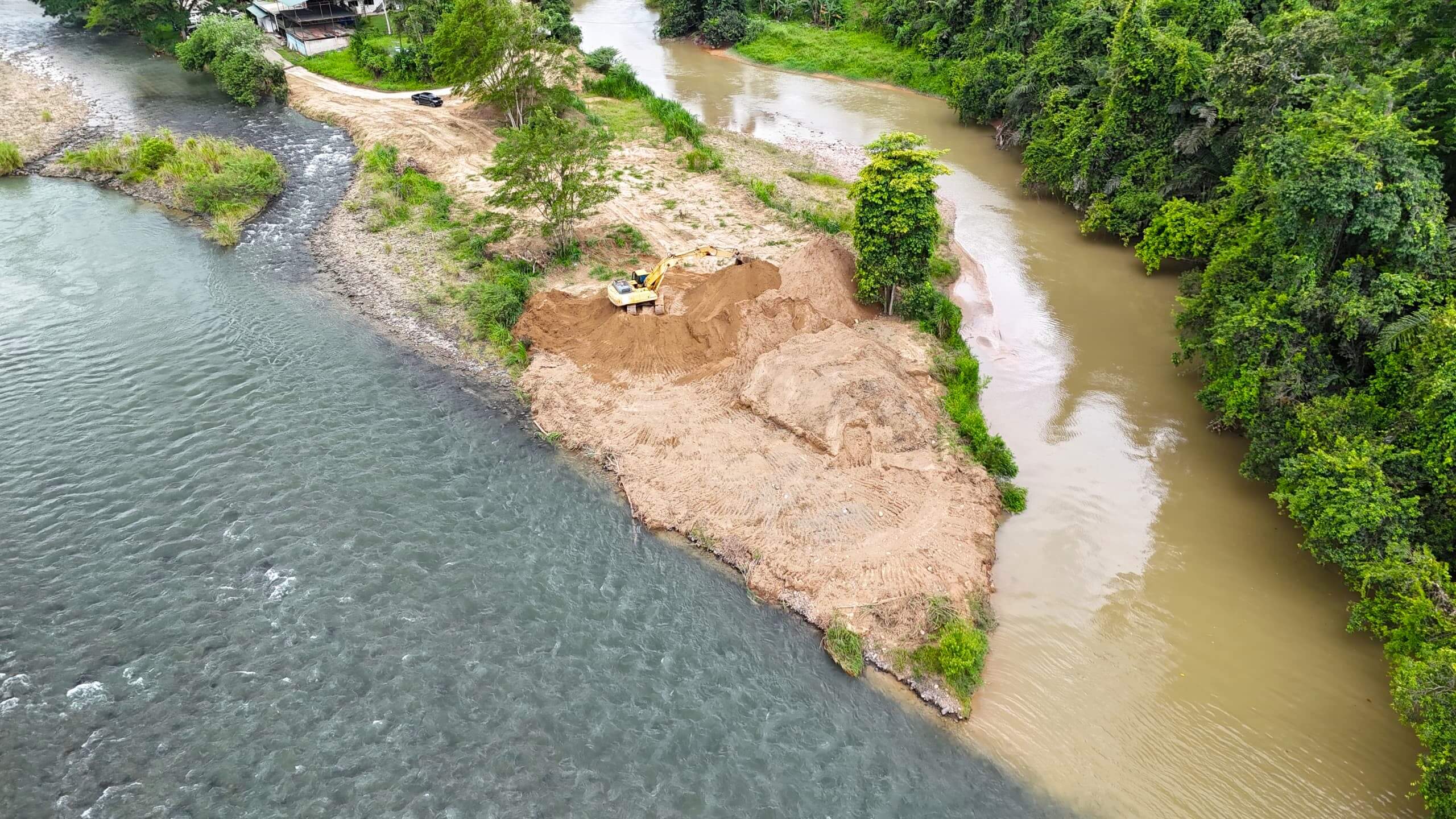

Construction Work is ongoing at the site.
Construction Work is ongoing at the site.

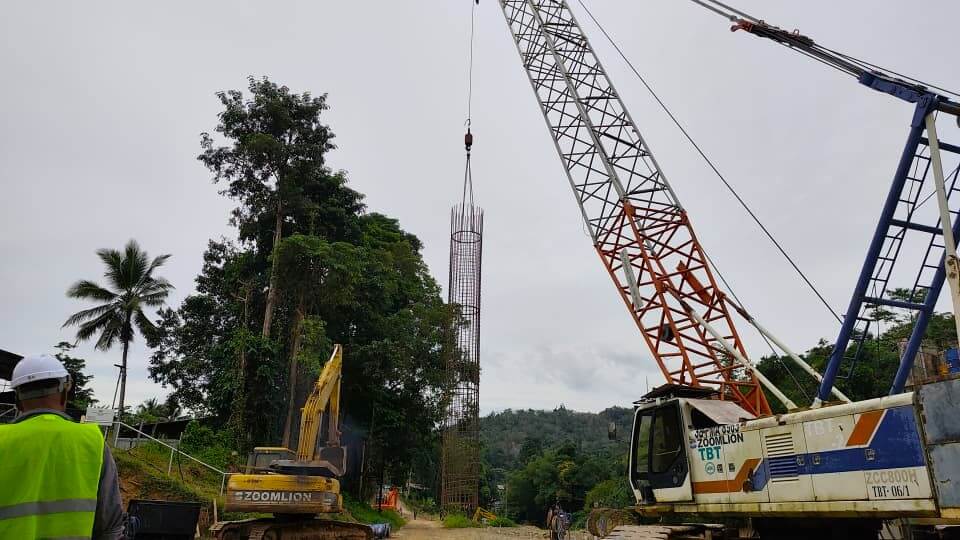

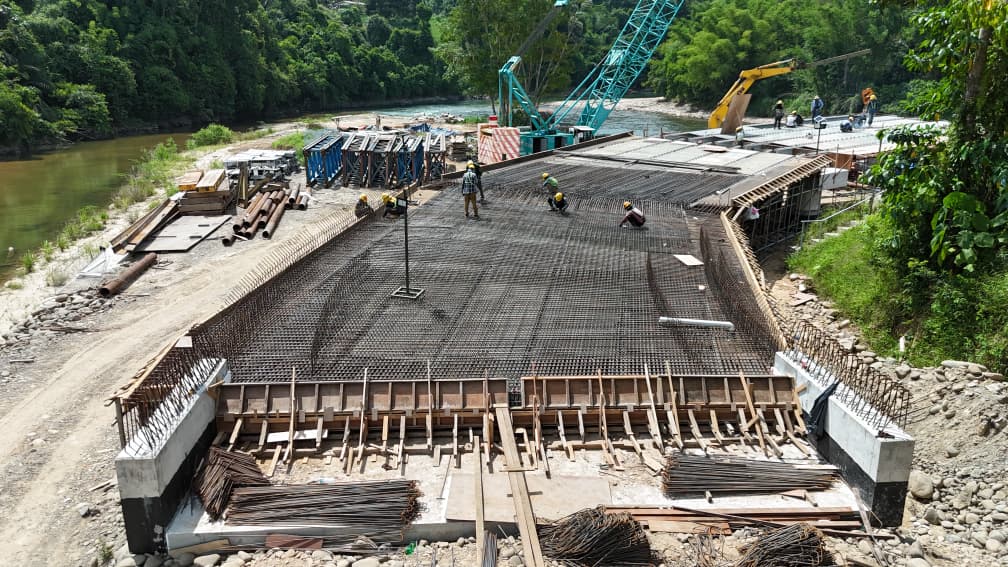

Rebar fabrication in progress.
Rebar fabrication in progress.

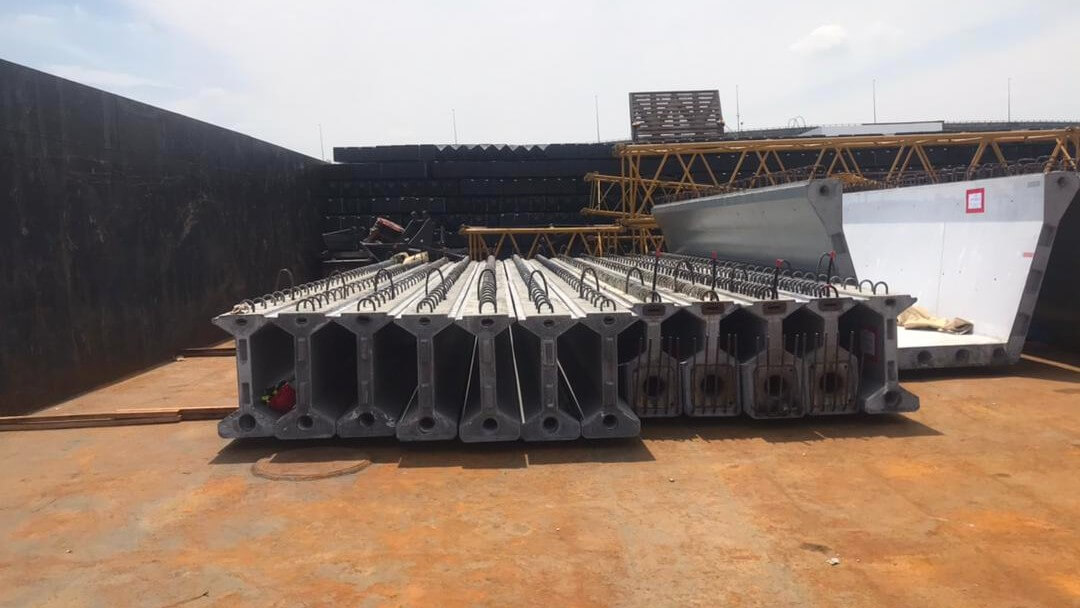

Beams have been loaded onto the barge and are ready for shipment to Sabah
Beams have been loaded onto the barge and are ready for shipment to Sabah

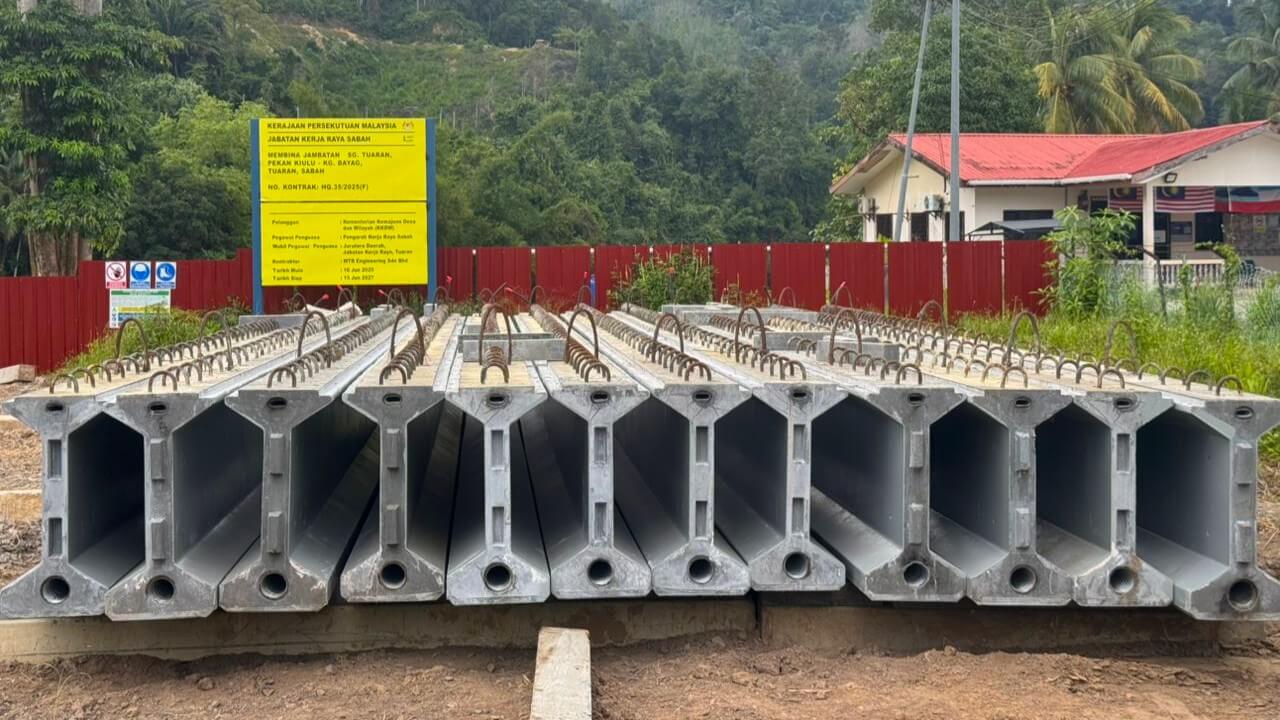

Delivery and staging of segmental beams from Chemor factory.
Delivery and staging of segmental beams from Chemor factory.

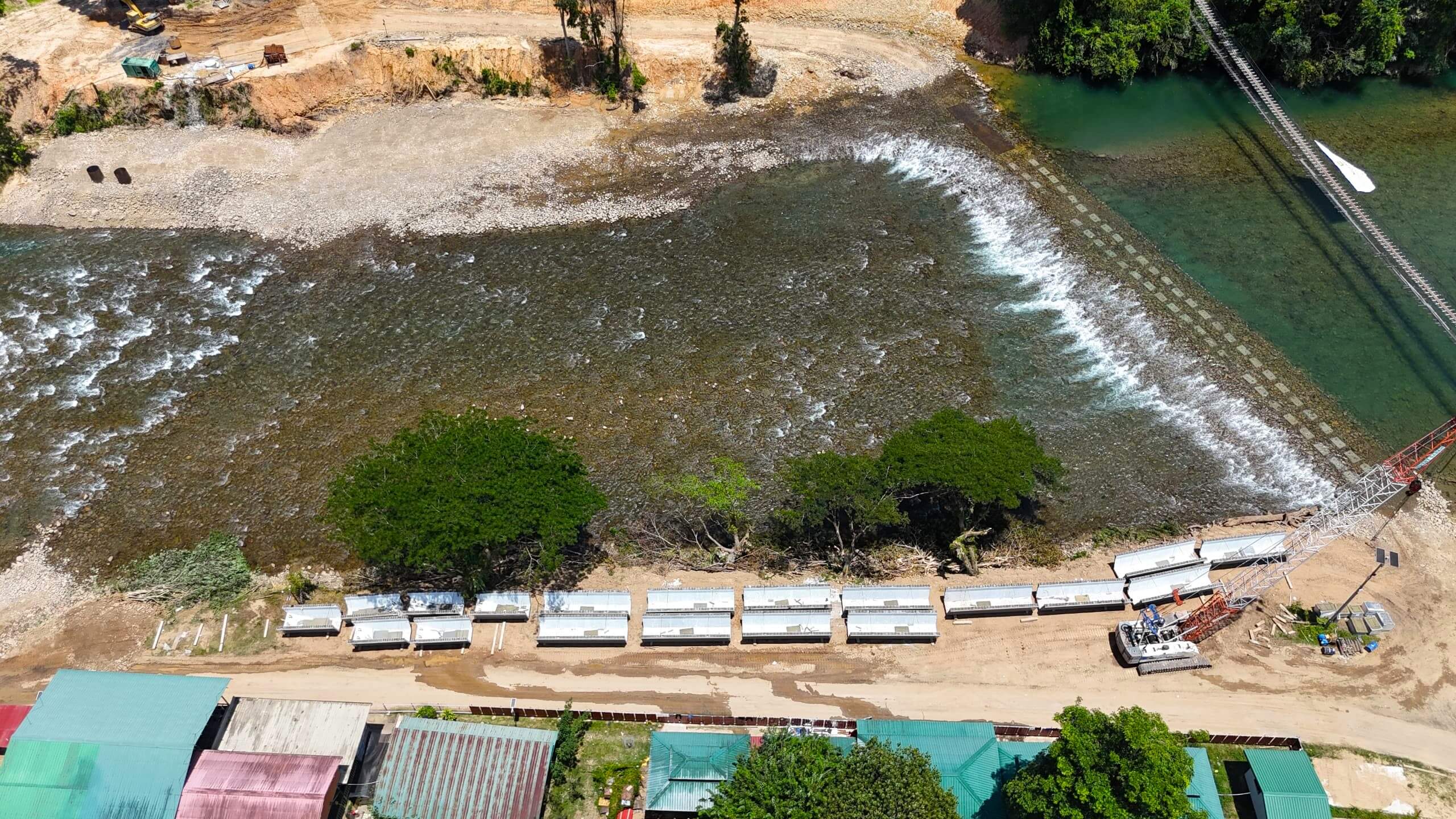

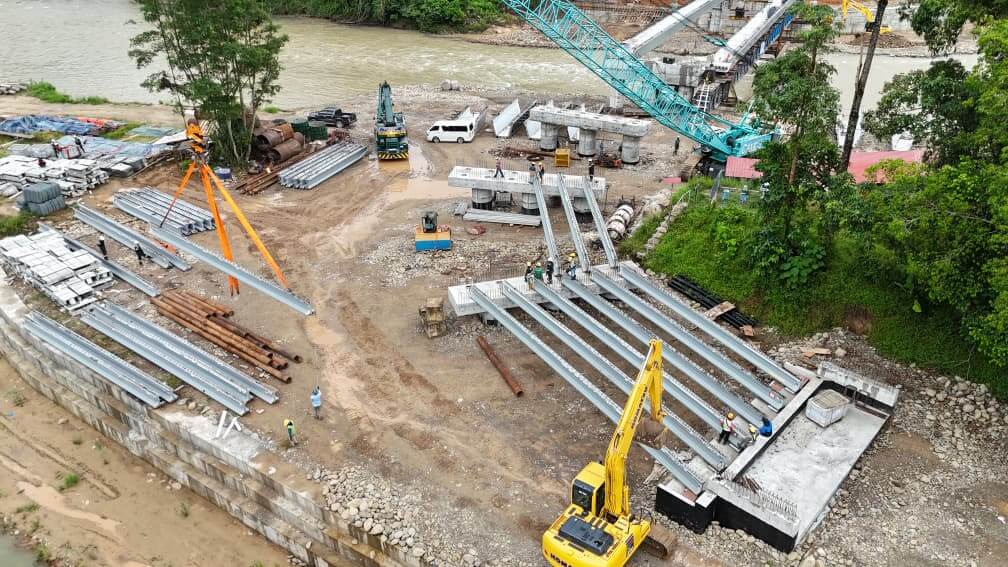

Delivery and unloading of segmental beams were carried out at the site. The beams were transported from the Chemor factory
Delivery and unloading of segmental beams were carried out at the site. The beams were transported from the Chemor factory

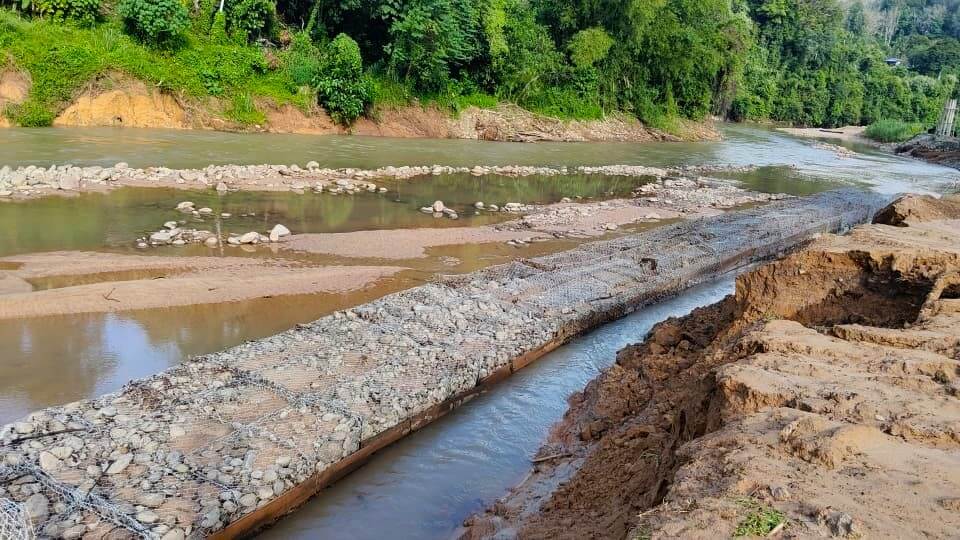

Fabrication and installation of gabion cage for riverbank protection.
Fabrication and installation of gabion cage for riverbank protection.
Project Title

PROJEK MEMBINA JAMBATAN SG.TUARAN, PEKAN KIULU – KG BAYAG,TUARAN,SABAH.

Project Year

2025

Status

On Going Project

Country

Malaysia

GPS Cordinates

6.145181 N , 116.247208 E

Structure Type

Six Spans 135.5m by 11m Wide UHPFRC Composite Bridge System

Superstructure Feature

18 pieces of DURA® IB650-12.37 m to 17.56m , 12 pieces of DURA® IB850 – 19.5m & 20 m, 3 pieces of DURA® UBG1750-50M

Substructure Feature

Cast in-situ RC abutments

Foundation Feature

1500mm dia. Bored Piles

Loading Type

HA+ 45 units HB loadings (BD 37/01)

Client

Kementerian Kemajuan Desa dan Wilayah (KKDW)

Superintendent Officer (S.O.)

Pengarah Kerja Raya Sabah

Contractor

MTR Engineering Sdn Bhd

Contract Period

24 Months
