To Replace Collapsed Bridge Using DURA Shallow Beams 300×400 – 10m at Kg. Bukit Kulim, Selama, Perak.

  • Project Status

  • Select Country

  • Select Years

  • Reset
Completed bridge.
Completed bridge.
Completed bridge.
Completed bridge.

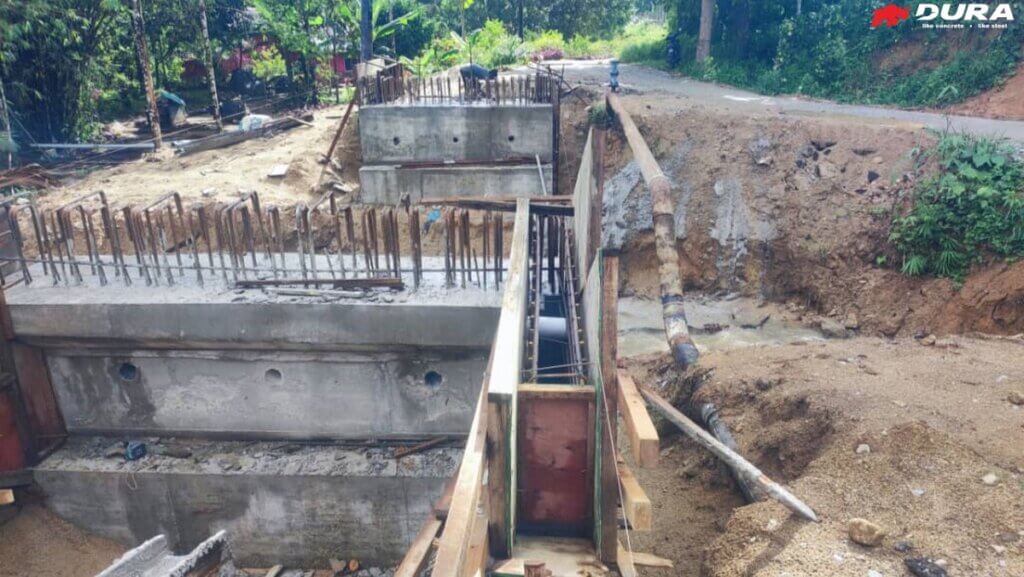

Completed abutment and ready for beam sitting.
Completed abutment and ready for beam sitting.

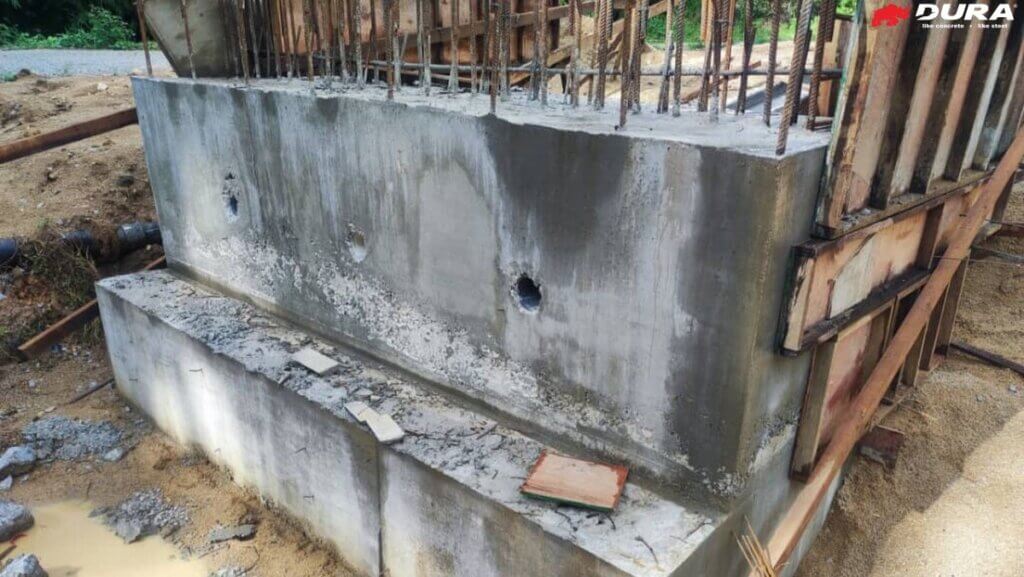

Completed abutment.
Completed abutment.
Completed abutment.
Completed abutment.

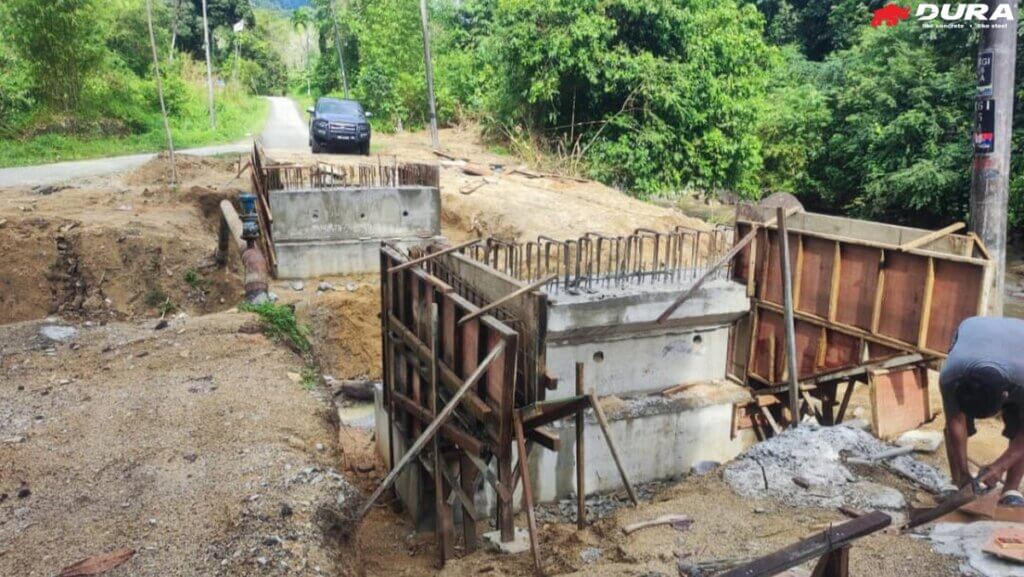

Site condition of new bridge.
Site condition of new bridge.

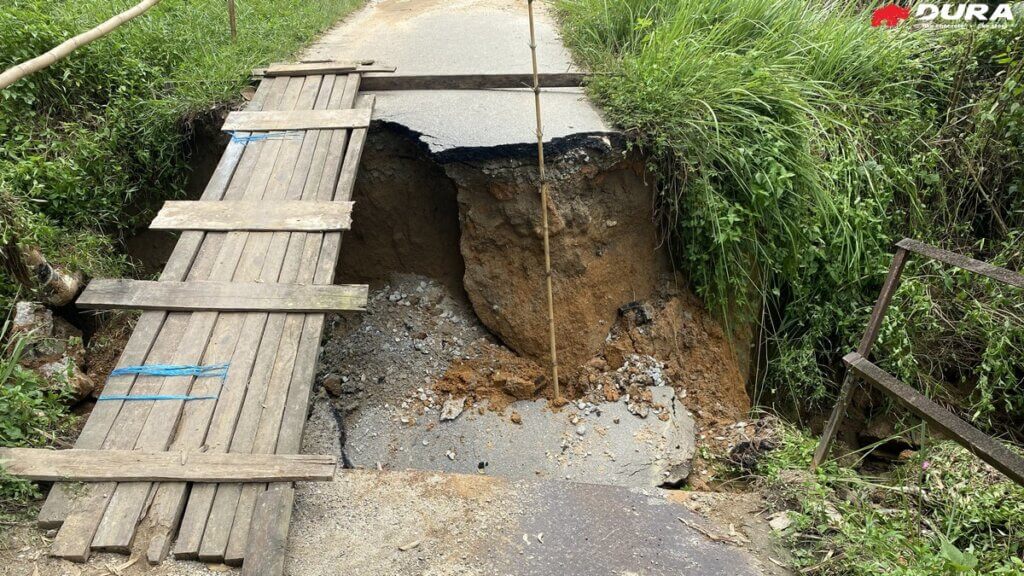

Existing bridge collapsed.
Existing bridge collapsed.
Project Title

(To Build New Bridge at Kampung Bukit Kulim, Mukim Hulu Ijok, Selama, Perak)

Project Year

2023

Status

Completed Project

Country

Malaysia

GPS Cordinates

5.150458N, 100.885704E

Structure Type

Single Span UHPFRC Beam Composite In Situ Deck Bridge System: 10m x 3.5m wide.

Superstructure Feature

7 pieces of DURA® Shallow Beams 300 x 400 - 10m with Cast In-Situ RC Deck

Substructure Feature

2 nos. of Cast in-situ RC abutments

Foundation Feature

200mm x 200mm dia. SQ RC pile (Class B)

Loading Type

HA+KEL or 30 units HB loadings

Client

Jabatan Tanah Selama

Superintendent Officer (S.O.)

Jabatan Tanah Selama

Consultant

Concrete Technology Consult Sdn Bhd

Contractor

Sadan Works Enterprise

Contract Period

4 months
