To Replace Old Bridge at St. Joseph, Sandakan, Sabah using DURA®IB650 – 15m length

  • Project Status

  • Select Country

  • Select Years

  • Reset

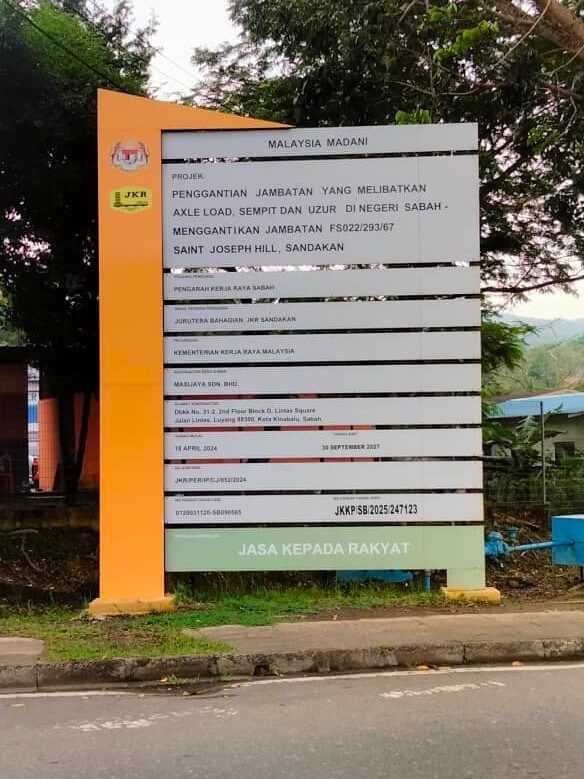

Project signboard.
Project signboard.

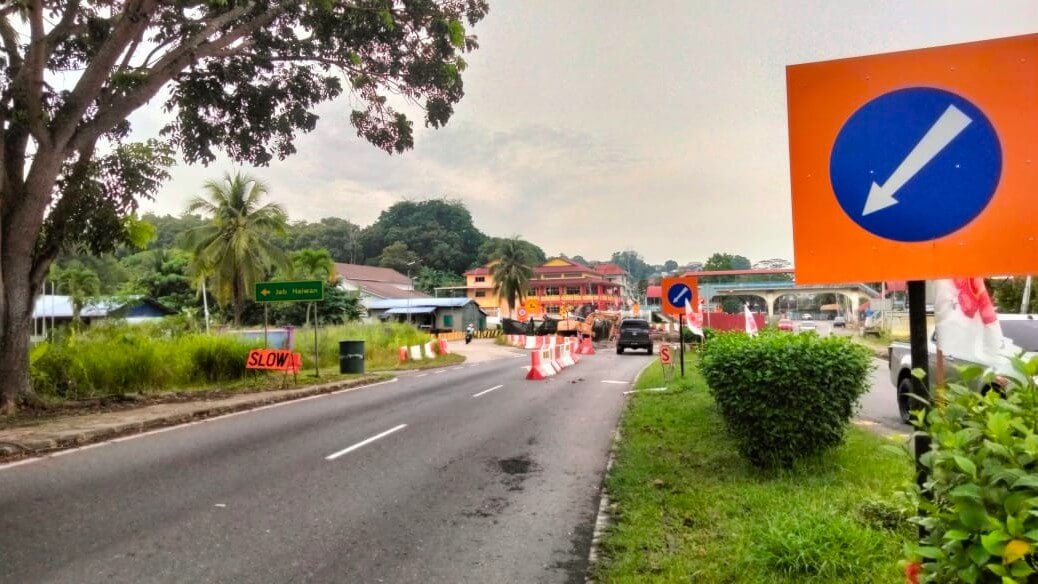

Project site.
Project site.

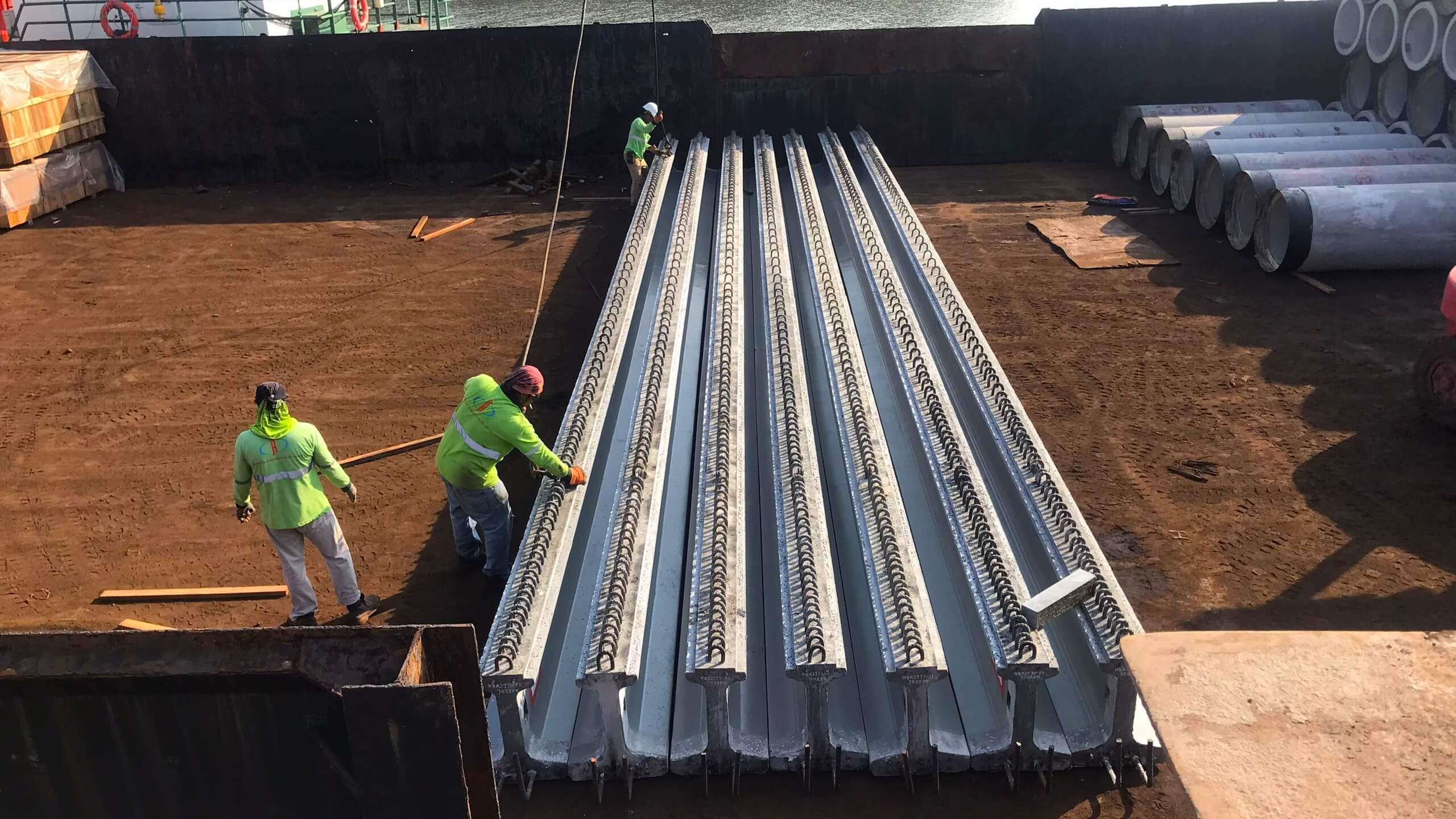

DURA® IB650 girders were delivered by barge from the Chemor factory to Sandakan.
DURA® IB650 girders were delivered by barge from the Chemor factory to Sandakan.

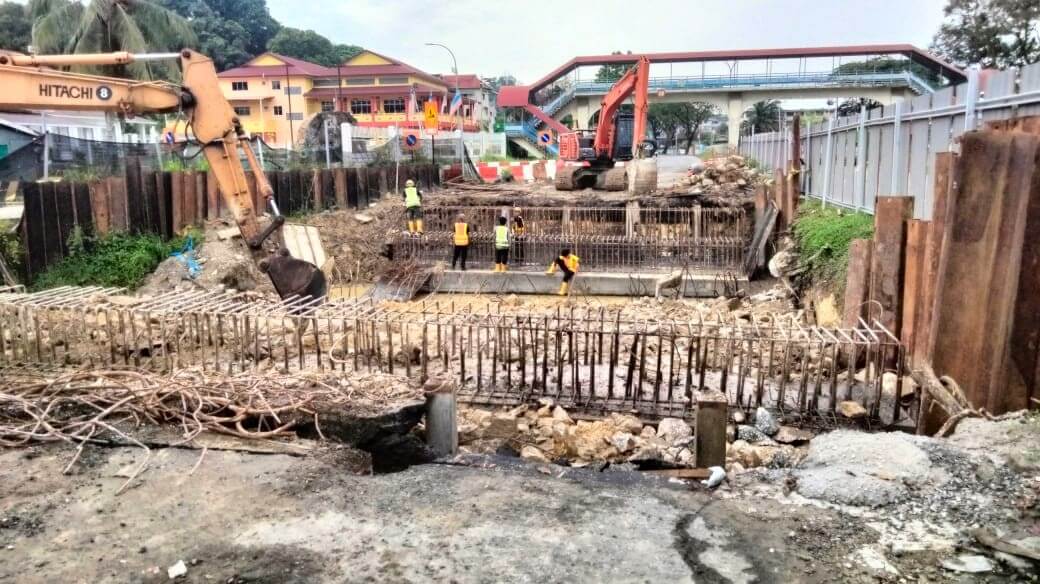

Abutment construction works are ongoing.
Abutment construction works are ongoing.

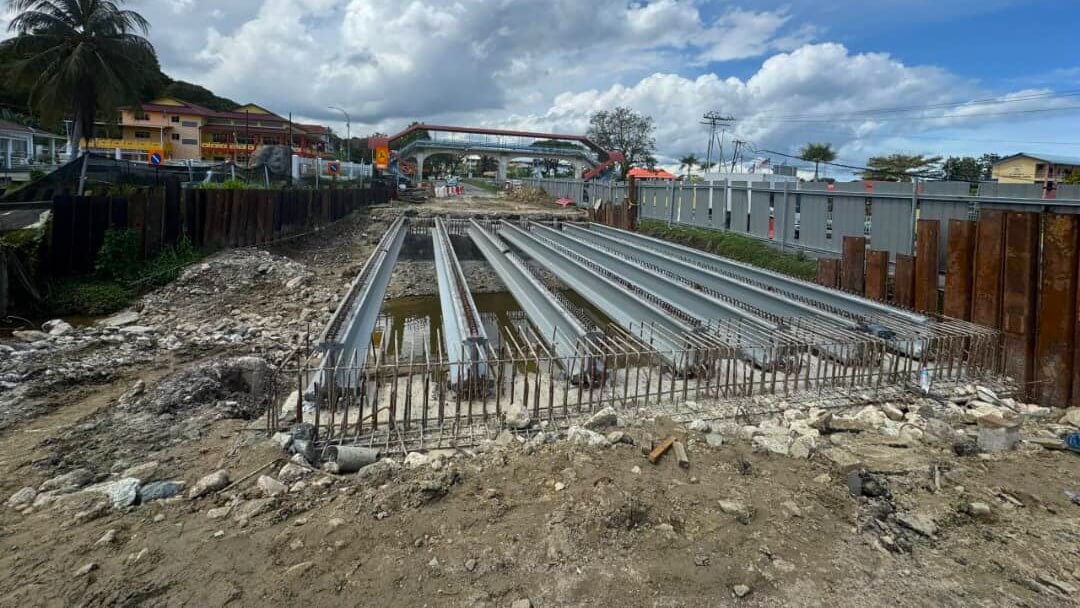

All beams have been successfully positioned and aligned on the abutments.
All beams have been successfully positioned and aligned on the abutments.
Project Title

PENGGANTIAN JAMBATAN YANG MELIBATKAN AXLE LOAD,SEMPIT DAN UZUR DI NEGERI SABAH – MENGGANTIKAN JAMBATAN FS022/293/67 SAINT JOSEPH HILL, SANDAKAN

Project Year

2025

Status

On Going Project

Country

Malaysia

GPS Cordinates

5.859461 N , 118.101072 E

Structure Type

One Span 15m by 10.5m Wide UHPFRC Composite Bridge System

Superstructure Feature

14 pieces of DURA®IB650 – 15m

Substructure Feature

Cast in-situ RC abutments

Foundation Feature

450mm dia. Spun Piles

Loading Type

HA+ 45 units HB loadings (BD37/01)

Client

Kementerian Kerja Raya Malaysia

Superintendent Officer (S.O.)

Jurutera Bahangian JKR Sandakan

Contractor

Masijaya Sdn Bhd

Contract Period

36 Months
